MERCEDES-BENZ C CLASS COUPE 2004 Owners Manual

141
Controls in detail
Automatic transmission*
Gear ranges
With the gear selector lever in position
D,
you can limit the transmission’s gear range
by pressing the gear selector lever to the
left ( D-), and reverse the gear range limit
by pressing the gear selector lever to the
right ( D+).
The selected gear range appears in the
multifunction display. If you press on the
accelerator when the engine has reached
its rpm limit, the transmission will upshift
beyond any gear range limit selected.
Effect
é
The transmission shifts through
fourth gear only.
è
The transmission shifts through
third gear only.
With this selection you can use
the braking effect of the engine.
Effect
ç
The transmission shifts through
second gear only.
Allows the use of engine’s
braking power when driving:

on steep downgrades


in mountainous regions


under extreme operating
conditions
æ
The transmission operates in
first gear only.
For maximum use of engine’s
braking effect on very steep or
lengthy downgrades.

142 Controls in detailAutomatic transmission*Gear selector lever position
Effect
ì
Park position
Gear selector lever position
when the vehicle is parked. Place
gear selector lever in position P
only when vehicle is stopped.
The park position is not intended
to serve as a brake when the
vehicle is parked. Rather, the
driver should always set the
parking brake in addition to
placing the gear selector lever in
position P to secure the vehicle.
EffectThe SmartKey can only be
removed from the starter switch
with the gear selector lever in
position P. With the SmartKey
removed, the gear selector lever
is locked in position P.
If the vehicle’s electrical system
is malfunctioning, the gear
selector lever could remain
locked in position P
(page 291).
í
Reverse gear
Place gear selector lever in
position R only when vehicle is
stopped.
Effect
ë
Neutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the
vehicle can be moved freely
(pushed or towed).
To avoid damage to the trans-
mission, never engage N while
driving.
If the ESP is deactivated or
malfunctioning:
Move gear selector lever to N
only if the vehicle is in danger of
skidding, e.g. on icy roads.
ê
Drive
The transmission shifts
automatically. All five forward
gears are available.

143
Controls in detail
Automatic transmission*
!
Coasting the vehicle, or driving for any
other reason with gear selector lever
in N can result in transmission damage
that is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Getting out of your vehicle with the gear
selector lever not fully engaged in position P
is dangerous. Also, position P alone is not
intended to or capable of preventing your
vehicle from moving, possibly hitting people
or objects.
Always set the parking brake in addition to
shifting to position P (
page 46).
When parked on an incline, turn the front
wheels towards the road curb.
Do not park this vehicle in areas where com-
bustible materials such as grass, hay, or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could move the gear selector lever from
position P, which could result in an accident
and/or serious personal injury.

144 Controls in detailAutomatic transmission*Program mode selector switch
The program mode selector switch is
located on the lower part of the center
console.1 Program mode selector switch
S Sport For standard driving
C Comfort For comfort driving

Press program mode selector
switch 1 repeatedly until the letter of
the desired shift program appears in
the multifunction display (
page 109).
Select Cfor comfort driving:


The vehicle starts out in second
gear (both forward and reverse) for
gentler starts. This does not apply if
full throttle is applied or gear
range 1 is selected.


Traction and driving stability are
improved on icy roads.


Upshifts occur earlier even when
you give more gas. The engine then
operates at lower rpms and the
wheels are less likely to spin.


The power transmission ratio for
gear selector lever position R
changes depending on the program
mode selected ( Sor C).
!Never change the program mode when
the gear selector lever is out of
position P. This could result in a
change of driving characteristics for
which you may not be prepared.

145
Controls in detail
Automatic transmission*
Accelerator position
Your driving style influences the
transmission’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.

Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.
Emergency operation (Limp Home
Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode only second gear and reverse gear
can be activated.
Stop the vehicle.

Move gear selector lever to
P.

Turn off the engine.

Wait at least ten seconds before
restarting.

Restart the engine.

Move gear selector lever to position D
(for second gear) or R.

Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.

146 Controls in detailGood visibility
Good visibilityInformation on the windshield wipers
(page 49) and for setting the rear view
mirrors (
page 39) is found in the “Get-
ting started” section.
Rear view mirrors
Interior rear view mirror, antiglare posi-
tion
1 Lever
Tilt the mirror to the antiglare night posi-
tion using lever 1. Automatic antiglare rear view mirrors*
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when


the ignition is switched on
and


incoming light from headlamps falls on
the sensor in the interior rear view mir-
ror.
The rear view mirror will not react if


reverse gear is engaged


the interior lighting is turned on.
Warning!
G
The automatic antiglare function does not
react if incoming light is not aimed directly
at sensors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, when transporting cargo
which covers the rear window.
Glare can endanger you and others.Warning!
G
In the case of an accident liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.

147
Controls in detail
Good visibility
Activating exterior rear view mirror
parking position
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward to the stored positions.
Make sure you stored a parking posi-
tion for the passenger-side exterior
rear view mirror (
page 97)

Make sure the
MIRROR SETTING WHEN
PARKING
function, found under the
CON-
VENIENCE
submenu in the control sys-
tem, is switched to
ON (page 132).

Switch on ignition.

Press button 2 for the passenger-side
exterior rear view mirror.

Place the gear selector lever in reverse
gear R.
The passenger-side exterior rear view
mirror will be turned downward to the
stored position. 1
Driver’s side exterior rear view mirror
button
2 Passenger-side exterior rear view
mirror button
The exterior rear view mirror returns to
its previously stored driving position:


ten seconds after you put the gear
selector lever out of position R


immediately once you exceed a ve-
hicle speed of approx. 6 mph
(10 km/h)


immediately when you press
button1 for driver’s side mirror
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state by applying plenty of water.

148 Controls in detailGood visibilityHeadlamp cleaning system*
The switch is located on the left side of the
dashboard.1 Headlamp washer switch
Switch on ignition.

Press switch 1.
The headlamps are cleaned with a
high-pressure water jet.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 243).
Sun visors
The sun visors protect you from sun glare
while driving.
Swing sun visors down when you expe-
rience glare. 1
Mounting
2 Mirror cover
3 Mirror lamp*
4 Sun visor

To use mirror, lift up cover 2.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf sunlight enters through a side win-
dow, disengage sun visor from
mounting 1 and pivot to the side.
The mirror lamp* 3 will switch off.

149
Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press button
F (
page 151).
The indicator lamp on the button
comes on. Deactivating

Press button
F (
page 151) again.
The indicator lamp on the button goes
out.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.

150 Controls in detailClimate control

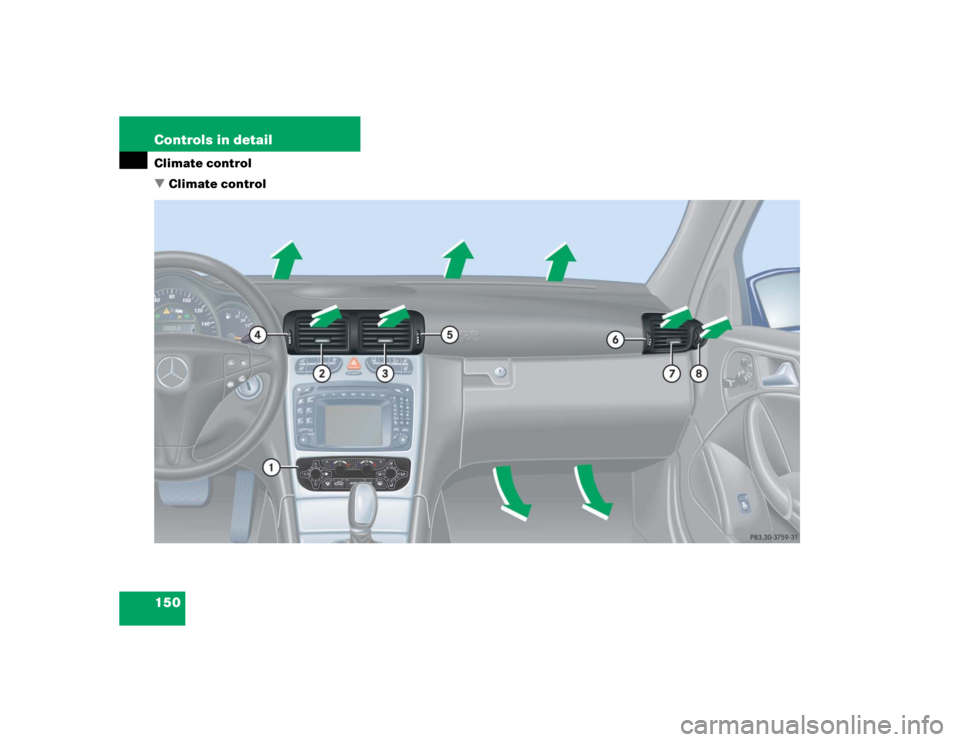

Climate control
