MERCEDES-BENZ C CLASS COUPE 2004 Owners Manual

191
Controls in detail
Panorama sliding/pop-up roof*

Turn SmartKey in the starter switch to
position
1 or 2.
Opening and closing the panorama
sliding/pop-up roof

To open, close, raise or lower the pan-
orama sliding/pop-up roof, move the
switch to the resistance point in the re-
quired direction 1to4 .
Release the switch when the roof has
reached the desired position. Opening the panorama
sliding/pop-up roof automatically

Move the switch past the resistance
point in direction
4 and release.
The panorama sliding/pop-up roof will
not open completely.

Press the switch again to open it com-
pletely.
Stopping the panorama
sliding / pop-up roof

Move the switch in any direction.
!Do not transport any objects that pro-
trude out of the panorama
sliding / pop-up roof as the seals could
be damaged.
Do not open the panorama
sliding / pop-up roof if there is snow or
ice on the roof, as this could result in
malfunctions.
The panorama sliding/pop-up roof can
be opened or closed manually should
an electrical malfunction occur
(page 292).
iYou can also open or close the panora-
ma sliding/pop-up roof using the:

SmartKey (summer opening/con-
venience feature) (
page 192)


button O in the control panel of
the climate control (
page 150)
iThe panorama sliding/pop-up roof can-
not be closed automatically.

192 Controls in detailPanorama sliding/pop-up roof*Opening the panorama sliding/pop-up
roof with the SmartKey
The power windows (
page 186) will also
be opened or closed when you operate the
panorama sliding/pop-up roof with the
SmartKey.

Aim transmitter eye at the driver‘s door
handle. Opening (Summer opening feature)
If the roller sunblind is closed:

Press and hold button
Πafter un-
locking the vehicle.
The windows and the roller sunblind
begin to open after approximately
one second.

Press and hold button Πagain.
The panorama sliding / pop-up roof
tilts.

Press and hold button Πagain.
The panorama sliding / pop-up roof be-
gins to open after approximately
one second.
If roller sunblind is already open:

Press and hold button Πafter un-
locking the vehicle.
The windows move down and the pan-
orama sliding / pop-up roof tilts after
approximately one second.

With the windows fully open, press and
hold button Πagain.
The panorama sliding / pop-up roof be-
gins to slide open after approximately
one second.

Release transmit button to stop proce-
dure.
Closing (Convenience feature)

Press and hold button ‹ after lock-
ing the vehicle.
The windows and the panorama slid-
ing/pop-up roof begin to close after
approximately one second.

Release the ‹ button to stop proce-
dure.
Make sure all side windows and the pan-
orama sliding/pop-up roof are properly
closed before leaving the vehicle.
Warning!
G
Never operate the windows or panorama
sliding/pop-up roof if there is the possibility
of anyone being harmed by the opening or
closing procedure.
In the event that the procedure causes po-
tential danger, the procedure can be imme-
diately halted by releasing the button on the
SmartKey. To reverse direction of move-
ment, press Œ for opening or ‹ for
closing.

193
Controls in detail
Panorama sliding/pop-up roof*
Synchronizing the panorama
sliding / pop-up roof and the roller sun-blinds
It is necessary to resynchronize the pan-
orama sliding / pop-up roof after

voltage supply interruption due to a
disconnected or discharged battery


the panorama sliding/pop-up roof has
been closed manually


the panorama sliding/pop-up roof has
been opened with an abrupt movement


a malfunction.

Switch on ignition.

Move the switch in direction
3 and
wait until the roller sunblind are fully
closed.
Hold the switch for approximately
one second.

Move the switch in the direction 4
and wait until the roller sunblind is ap-
proximately 4 in (10 cm) opened.
Release the switch.

Move the switch in the direction 3
and wait until the roller sunblind is fully
closed.
Hold the switch for approximately
one second.
The roller sunblind is synchronized.

Move the switch in direction 4 and
wait until the roller sunblind are fully
opened.
Hold the switch for approximately
one second.

Move the switch in the direction 4
and wait until the panorama slid-
ing/pop-up roof is approximately 4 in
(10 cm) opened.
Release the switch.

Move the switch in the direction 3
and wait until the panorama slid-
ing/pop-up roof is fully closed.
Hold the switch for approximately
one second.
The panorama sliding/pop-up roof is syn-
chronized when the panorama slid-
ing/pop-up roof opens automatically.
Repeat synchronization if necessary.

194 Controls in detailDriving systems
Driving systemsThe driving system of your vehicle is de-
scribed on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed
For information on the BAS, ABS and ESP
driving systems, see “Driving safety sys-
tems” (
page 73).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed over 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column.
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must remain at all
times responsible for the vehicle speed and
for safe brake operation.
Only use cruise control if the road, the traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

195
Controls in detail
Driving systems
1
Set current or higher speed
2 Set current or lower speed
3 Cancel cruise control
4 Resume at last set speed
Setting current speed
Accelerate or decelerate to the desired
speed.

Briefly lift 1 or depress 2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated. Canceling cruise control
There are several ways to cancel cruise
control:

Step on the brake pedal.
or

Briefly push the cruise control lever to
position 3.
Cruise control will be canceled. The
last speed set will be stored for later
use.iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Moving gear selector lever to
position N while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
position N while driving except to coast
when the vehicle is in danger of skid-
ding (e.g. on icy roads).iVehicles with manual transmission:
The set cruise controlled speed is
switched off when declutching exceeds
four seconds during downshifting a
gear.iThe last stored speed is canceled when
you turn off the engine.

196 Controls in detailDriving systemsSetting a higher speed
Lift the cruise control lever to
position1 and hold it up until the de-
sired speed is reached.

Release the cruise control lever.
The new speed is set.
Setting a lower speed

Depress the cruise control lever to
position 2 and hold it down until the
desired speed is reached.

Release the cruise control lever.
The new speed is set. Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip the cruise control lever in the
direction of arrow
1.
Slower

Briefly tip the cruise control lever in the
direction of arrow 2. Setting to last stored speed (“Resume”
function)

Briefly push the cruise control lever to
position
4.
The cruise control will resume the last
set speed.

Remove your foot from the accelerator
pedal.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iVehicles with automatic transmission:
When you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the engine’s
braking power does not brake the vehi-
cle sufficiently.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury to you and others.

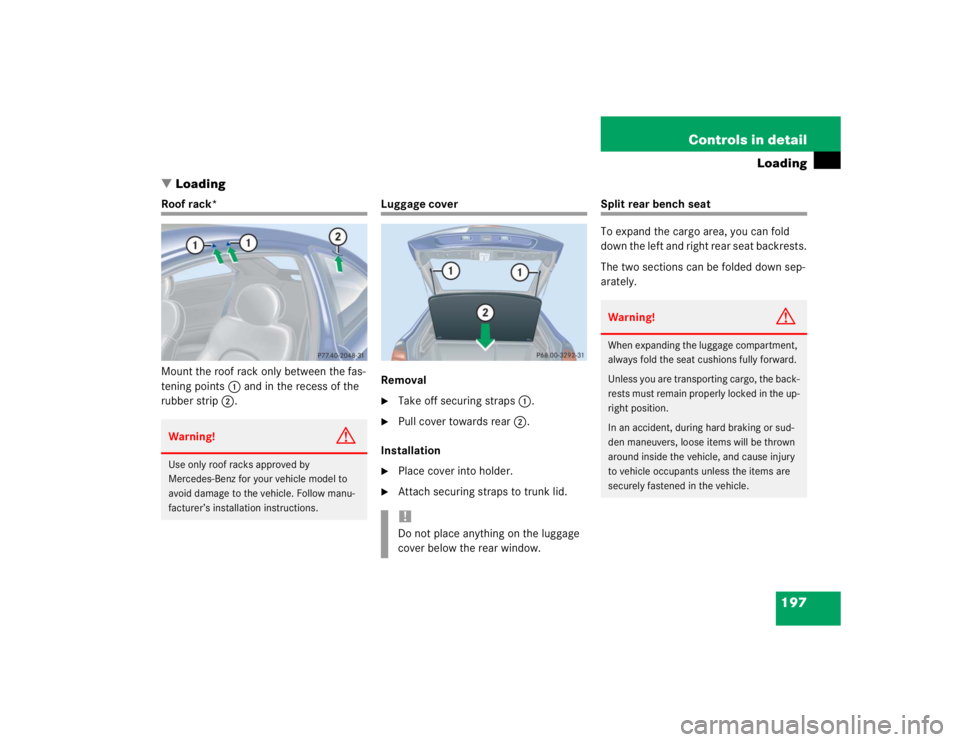

197
Controls in detail
Loading
 Loading
Roof rack*
Mount the roof rack only between the fas-
tening points 1 and in the recess of the
rubber strip 2.
Luggage cover
Removal
Take off securing straps 1.

Pull cover towards rear 2.
Installation

Place cover into holder.

Attach securing straps to trunk lid.

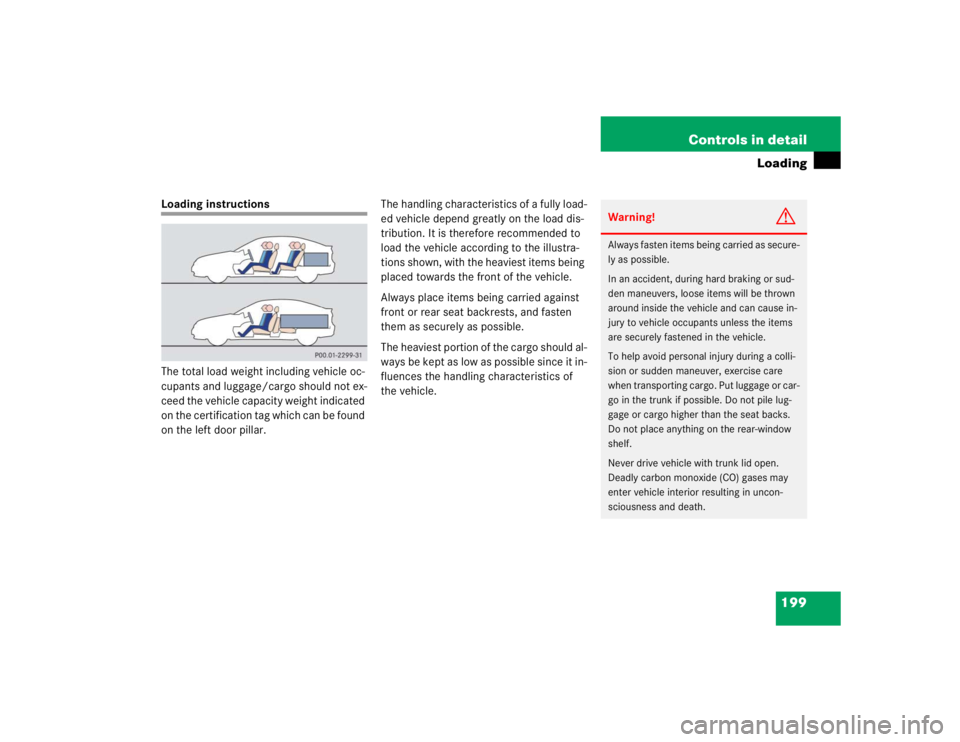

Split rear bench seat
To expand the cargo area, you can fold
down the left and right rear seat backrests.
The two sections can be folded down sep-
arately.
Warning!
G
Use only roof racks approved by
Mercedes-Benz for your vehicle model to
avoid damage to the vehicle. Follow manu-
facturer’s installation instructions.
!Do not place anything on the luggage
cover below the rear window.
Warning!
G
When expanding the luggage compartment,
always fold the seat cushions fully forward.
Unless you are transporting cargo, the back-
rests must remain properly locked in the up-
right position.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.

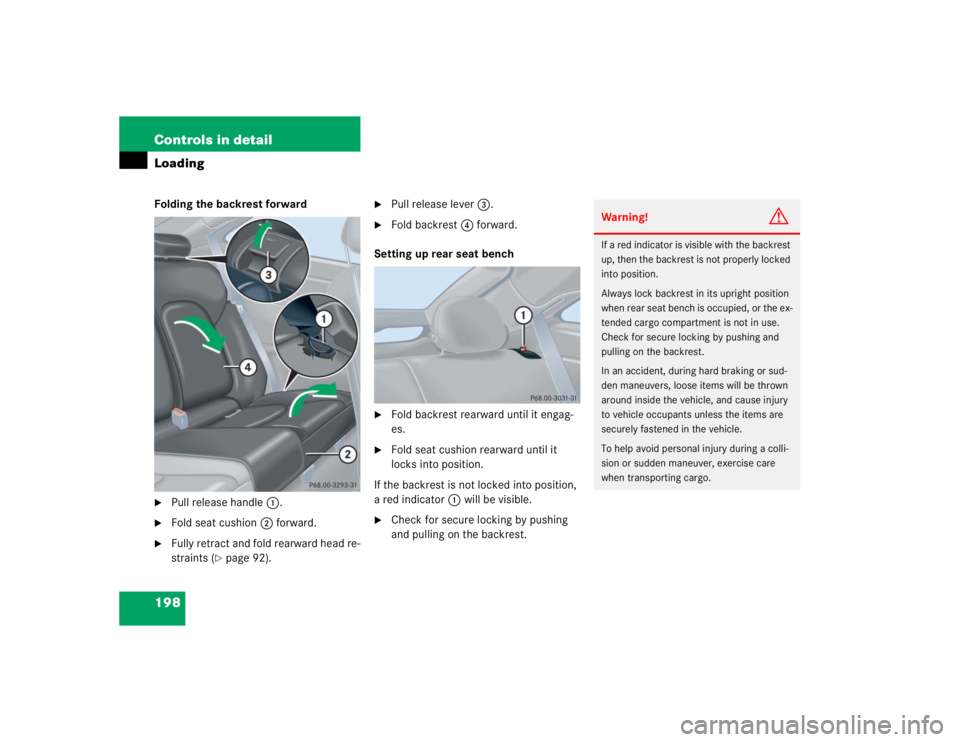

198 Controls in detailLoadingFolding the backrest forward
Pull release handle1.

Fold seat cushion 2 forward.

Fully retract and fold rearward head re-
straints (
page 92).

Pull release lever 3.

Fold backrest 4 forward.
Setting up rear seat bench

Fold backrest rearward until it engag-
es.

Fold seat cushion rearward until it
locks into position.
If the backrest is not locked into position,
a red indicator 1 will be visible.

Check for secure locking by pushing
and pulling on the backrest.
Warning!
G
If a red indicator is visible with the backrest
up, then the backrest is not properly locked
into position.
Always lock backrest in its upright position
when rear seat bench is occupied, or the ex-
tended cargo compartment is not in use.
Check for secure locking by pushing and
pulling on the backrest.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.

199
Controls in detail
Loading
Loading instructions
The total load weight including vehicle oc-
cupants and luggage/cargo should not ex-
ceed the vehicle capacity weight indicated
on the certification tag which can be found
on the left door pillar.
The handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Always place items being carried against
front or rear seat backrests, and fasten
them as securely as possible.
The heaviest portion of the cargo should al-
ways be kept as low as possible since it in-
fluences the handling characteristics of
the vehicle.
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible. Do not pile lug-
gage or cargo higher than the seat backs.
Do not place anything on the rear-window
shelf.
Never drive vehicle with trunk lid open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.

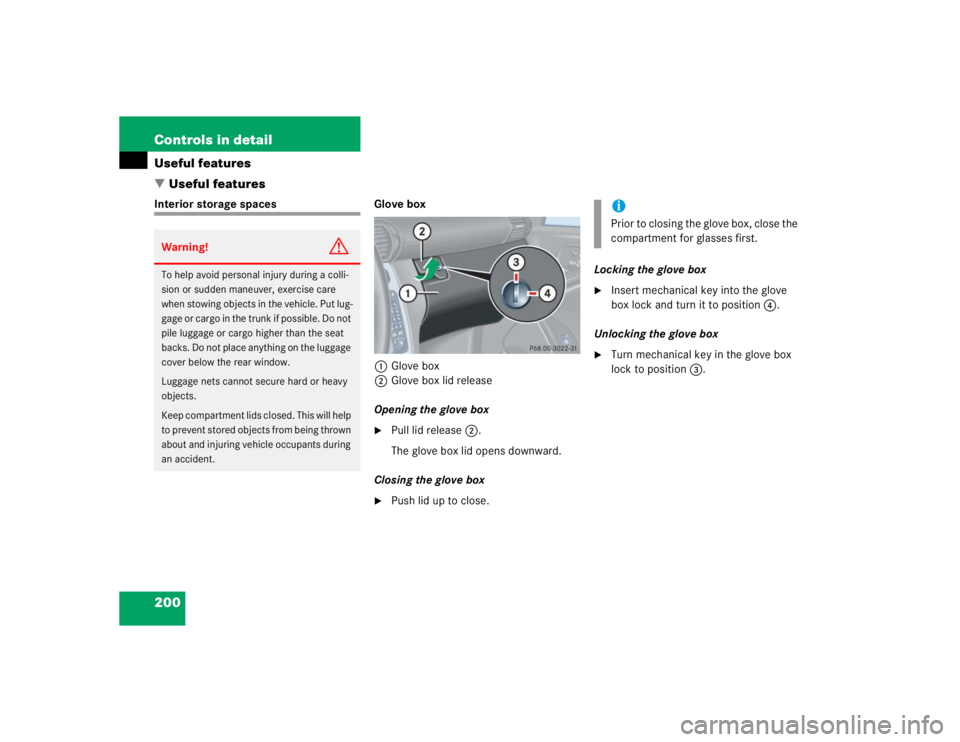

200 Controls in detailUseful features
Useful featuresInterior storage spaces Glove box
1 Glove box
2 Glove box lid release
Opening the glove box

Pull lid release 2.
The glove box lid opens downward.
Closing the glove box

Push lid up to close. Locking the glove box

Insert mechanical key into the glove
box lock and turn it to position
4.
Unlocking the glove box

Turn mechanical key in the glove box
lock to position 3.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
g a g e o r c a r g o i n t h e t r u n k i f p o s s i b l e . D o n o t
pile luggage or cargo higher than the seat
backs. Do not place anything on the luggage
cover below the rear window.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
iPrior to closing the glove box, close the
compartment for glasses first.
