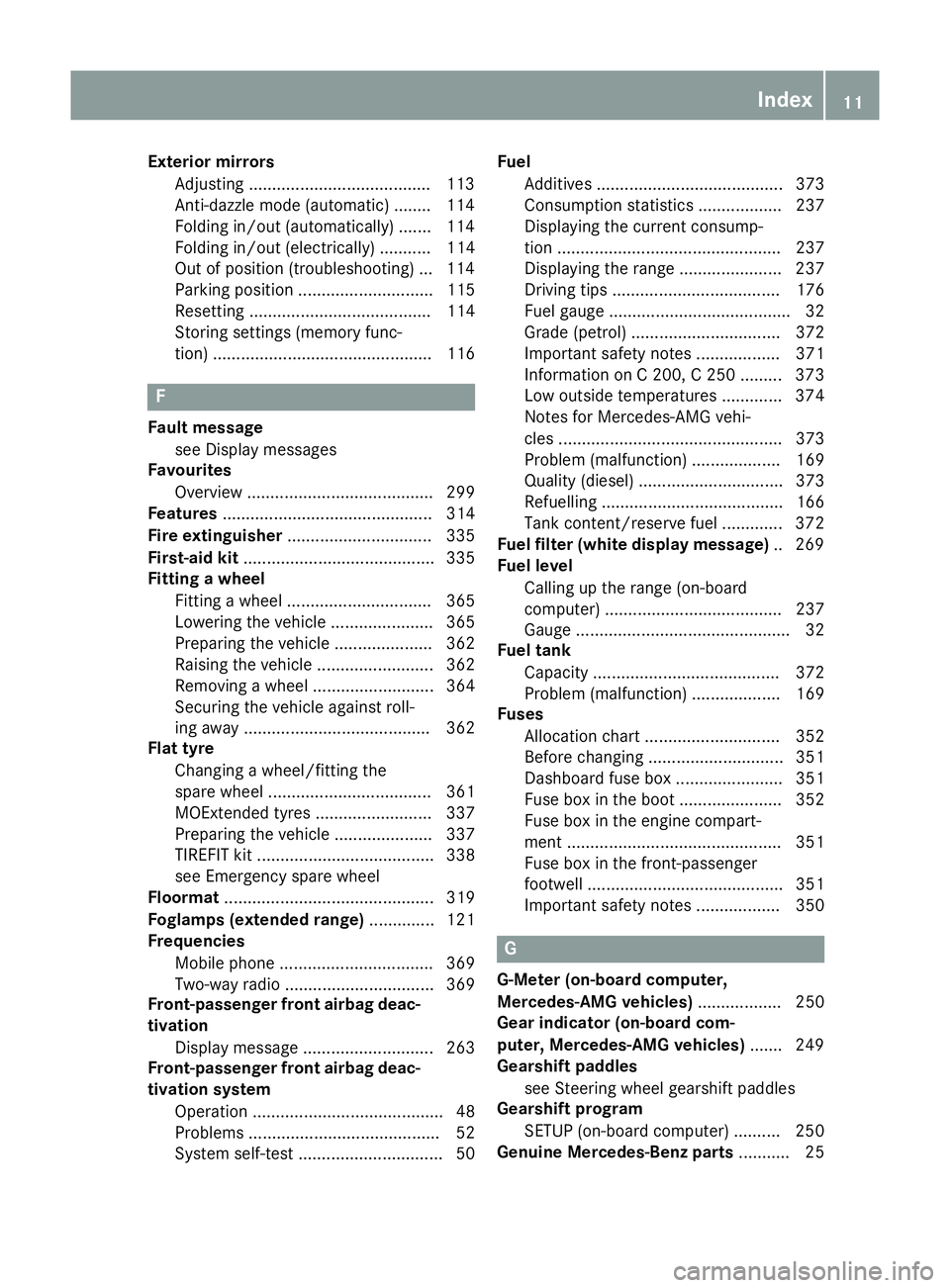

Exterior mirrors
Adjusting ...................................... .113
Anti-dazzle mode (automatic) ....... .114
Folding in/ou t(au tomatically). ...... 114
Folding in/out (electrically) ........... 114
Ou tofp osition (troubleshooting )... 114
Parking position ............................. 115
Resetting ....................................... 114
Storing settings (memory func-
tion) ............................................... 116 F
Fault message see Displa ymessages
Favourites
Overview ........................................ 299
Features ............................................. 314
Fire extinguisher ............................... 335
First-ai dkit......................................... 335
Fitting awheel
Fitting awheel ............................... 365
Lowering the vehicl e...................... 365
Preparing the vehicl e..................... 362
Raising the vehicl e......................... 362
Removing awheel .......................... 364
Securing the vehicl eagains troll-
ing away ........................................ 362
Flat tyre
Changing awheel /fitting the
spare whee l................................... 361
MOExtended tyre s......................... 337
Preparing the vehicl e..................... 337
TIREFIT kit ...................................... 338
see Emergency spare wheel
Floormat ............................................. 319
Foglamps (extende drange) .............. 121
Frequencies
Mobil ephone ................................. 369
Two-way radio ................................ 369
Front-passenger fron tairbag deac-
tivation
Displa ymessage ............................ 263
Front-passenger fron tairbag deac-
tivatio nsystem
Operation ......................................... 48
Problems ......................................... 52
System self-test ............................... 50 Fuel
Additives ........................................ 373
Consumption statistics .................. 237
Displaying the current consump-
tion ................................................ 237
Displaying the rang e...................... 237
Driving tip s.................................... 176
Fue lgauge ....................................... 32
Grade (petrol) ................................ 372
Important safety notes .................. 371
Information on C200, C250 ......... 373
Low outsid etemperature s............. 374
Note sfor Mercedes‑AM Gvehi-
cle s................................................ 373
Problem (malfunction) ................... 169
Quality (diesel )............................... 373
Refuelling ....................................... 166
Tank content/reserve fue l............. 372
Fue lfilter (white display message) .. 269
Fue llevel
Calling up the rang e(on-board
computer) ...................................... 237
Gaug e.............................................. 32
Fue ltank
Capacity ........................................ 372
Problem (malfunction) ................... 169
Fuses
Allocation chart ............................. 352
Before changing ............................. 351
Dashboard fus ebox ....................... 351
Fus ebox in the boo t...................... 352
Fus ebox in the engine compart-
ment .............................................. 351
Fus ebox in the front-passenger
footwell .......................................... 351
Important safety notes .................. 350 G
G-Meter (on-board computer,
Mercedes-AMG vehicles) .................. 250
Gea rind icator (on-board com-
puter, Mercedes-AMG vehicles) ....... 249
Gearshift paddles
see Steering whee lgearshift paddles
Gearshift program
SETUP (on-board computer) .......... 250
Genuin eMercedes-Benz parts ........... 25 Index
11

All vehicles
!
You may only secure th
evehicl ebyt he
wheels, no tbypartsoft hevehicl esuchas
axl eors teering components. Otherwise ,the
vehicl ecould be damaged.
The towin geyes or trailer to whitch can be used
to pull th evehicl eontoa trailer or transporte rif
you wish to transpor tit.
X Vehicles wit
hmanua ltra nsmission:
depress th eclutch pedal fully and engage
neutral.
X Vehicles wit
hautomatic transmission:
tur nthe keyt op osition 2in th eignition lock.
X Shift th eautomatic transmission to position
N.
As soon as th evehicle is loaded:
X Preven tthe vehicl efromr ollin gaway by
applyin gthe electric parking brake.
X Vehicles wit
hmanua ltra nsmission:
depress th eclutch pedal fully and engage first
or revers egear.
X Vehicles wit
hautomatic transmission:
shif tthe automatic transmission to position
P.
X Turn th ekeyto position 0in th eignition lock
and remove it.
X Secur ethe vehicle. Tow-starting (emergency engine
starting)
! Do no
ttow -star tvehicles wit hautomatic
transmission .You could otherwise damage
th ea utomatic transmission.
i You can fin
dinformation on "Jump-starting"
under (Y page 345).
Befor etow -starting ,the followin gconditi ons
mus tbef ulfilled:
R theb attery is connected
R thee ngineh as cooled down
R thee xhaust system has cooled down
When tow-starting ,itisimportant that you
observ ethe safet ynotes ( Ypage 347) and the
legal requirements in eac hrespective country.
X Switc hont hehazard warning lamps
(Y page 120).
X Fit th etow inge ye (Y page 348). X
Secur ethe rigid towin gbar or th etow ing
rope.
X Depress th ebrak epedal and keep it
depressed.
X Turn th ekeyto position 2in th eignition lock.
X Depress th eclutch pedal fully, engage 2nd
gear and continu etokeept he clutch pedal
fully depressed.
X Releas ethe brak epedal.
X Tow-start th evehicle.
X Releas ethe clutch pedal slowly; do not
depress th eaccelerato rpedal while doin gso.
X When th eengineh as been started, immedi-
ately depress th eclutch pedal fully and shift
to neutral.
X Pull ove ratasuitable plac eand stop th evehi-
cle safely, payin gattention to road and traffic
conditions.
X Use th eelectric parking brak etosecure the
vehicl eand preven titfromr ollin gaway.
X Remove th erigid towin gbar or towin grope.
X Remove th etow inge ye (Y page 349).
X Switc hoff th ehazard warning lamps. Electrical fuses
Important safety notes
G
WARNING
If you manipulate, bridge or replace afaulty
fus ew ithaf useofah igher amperage ,the
electric cables could be overloaded. This may result in afire. There is ariskofana ccident
and injury.
Always replace fault yfuses wit hspecifie dnew
fuses of th ecorrect amperage.
Blown fuses mus tbereplace dwithf uses of the
sam erating ,whic hy ou can recognise by the
colour and fus erating .The fus erating sare listed
in th efusea llocation chart.
The fus eallocation chart is on th efus eb ox in the
boot (Y page 352).
If th enewly inserted fus ealso blows ,havet he
caus etrace da nd rectifie dataqualified special-
ist workshop ,e.g.a Mercedes-Benz Service
Centre.
! Only use fuses that hav
ebeen approve dfor
Mercedes-Benz vehicles and whic hhavet he 350

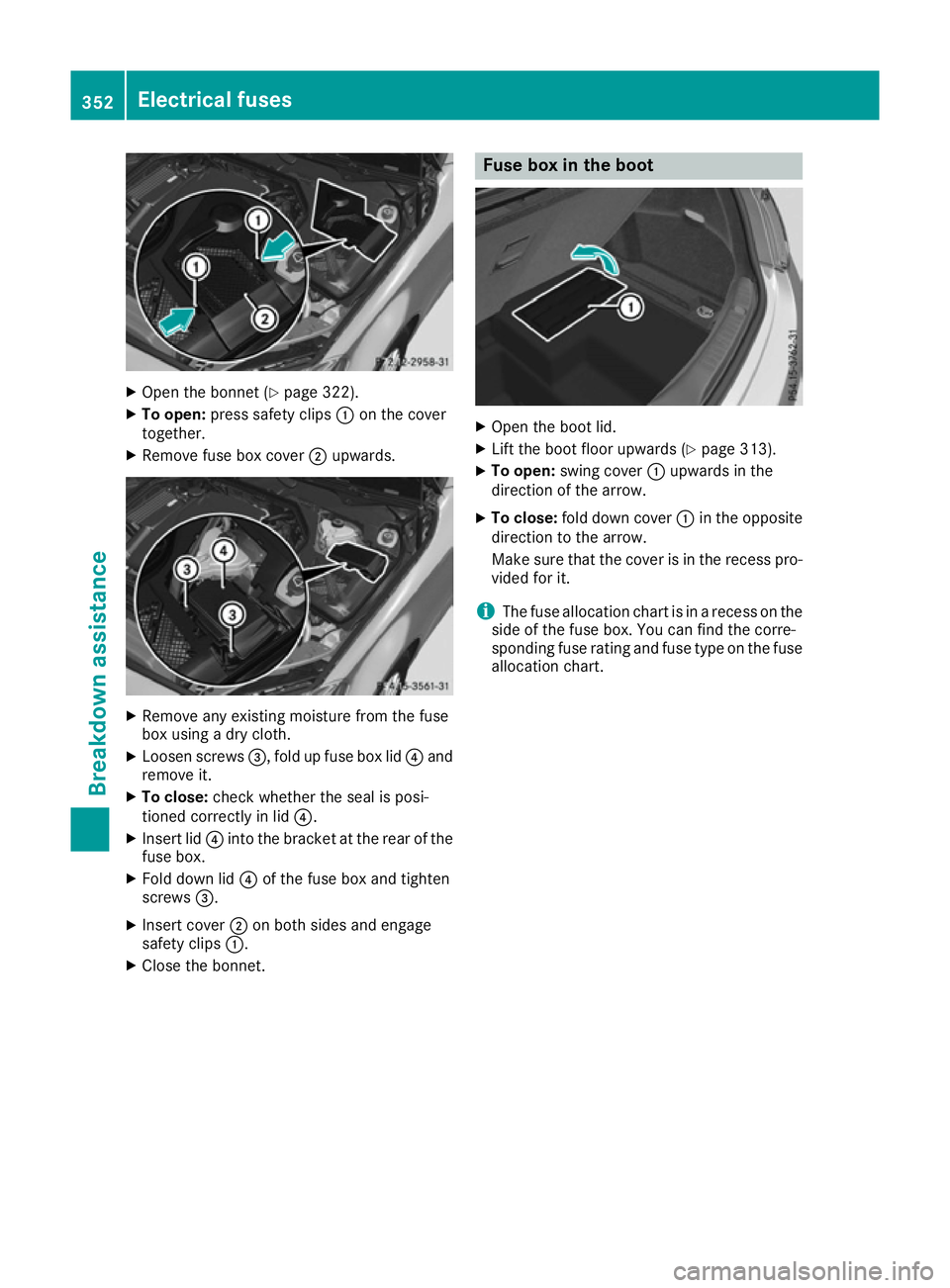

Electrical fusesBreakdown assistance

X
Open the bonnet (Y page 322).
X To open: press safety clips :on the cover
together.
X Remove fuse box cover ;upwards. X
Remove any existing moisture from the fuse
box using adry cloth.
X Loosen screws =,fold up fuse box lid ?and
remove it.
X To close: check whether the seal is posi-
tioned correctly in lid ?.
X Insert lid ?into the bracket at the rear of the
fuse box.
X Fold down lid ?of the fuse box and tighten
screws =.
X Insert cover ;on both sides and engage
safety clips :.
X Close the bonnet. Fuse box in the boot
X
Open the boot lid.
X Lift the boot floor upwards (Y page 313).
X To open: swing cover :upwards in the
direction of the arrow.
X To close: fold down cover :in the opposite
direction to the arrow.
Make sure that the cover is in the recess pro-
vided for it.
i The fuse allocation chart is in
arecess on the
side of the fuse box. You can find the corre-
sponding fuse rating and fuse type on the fuse
allocation chart. 352
