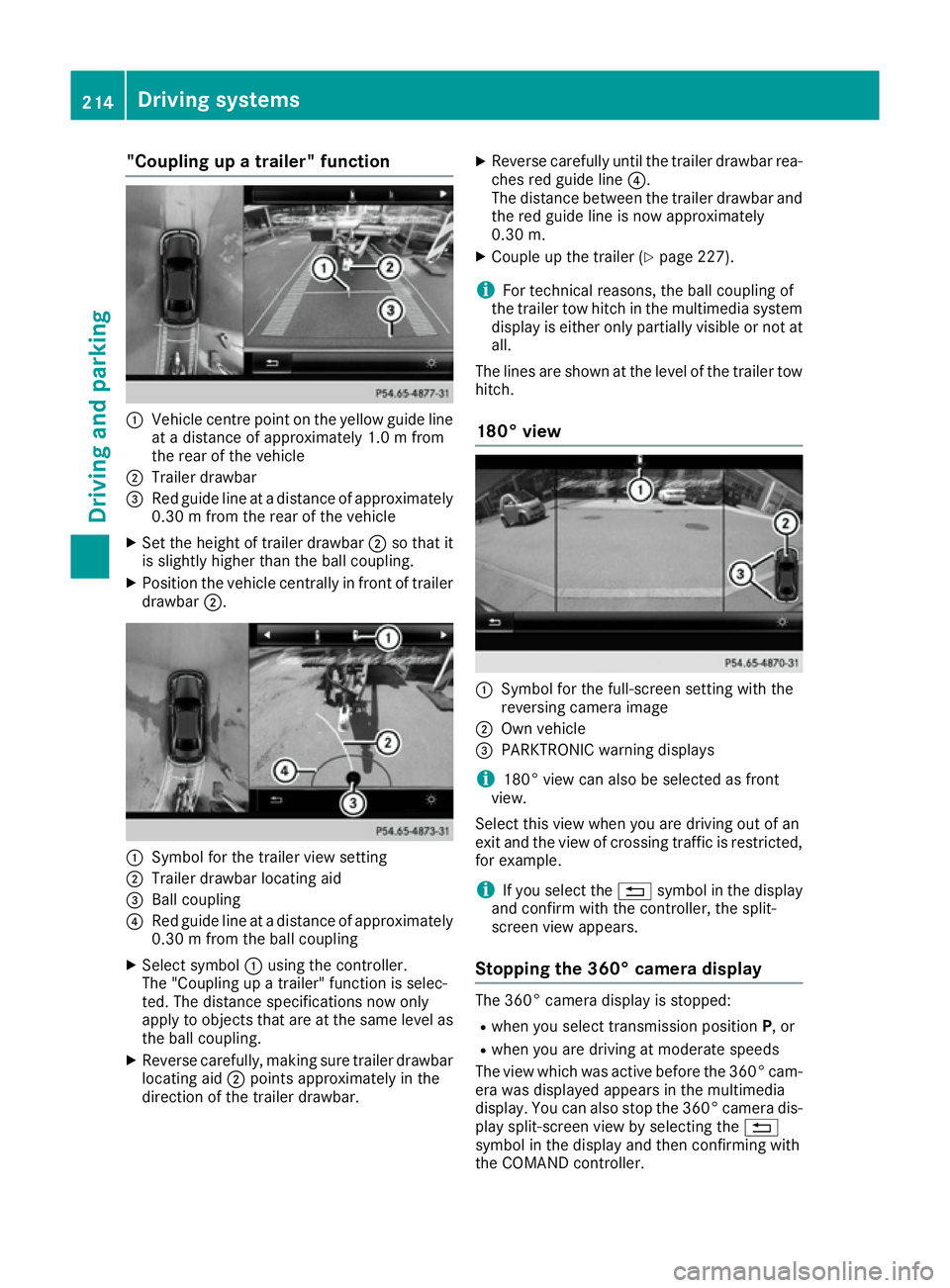

"Coupling up
atrailer" function :
Vehicle centrep oint on the yellow guide line
at ad istance of approximately 1.0 mfrom
the rear of the vehicle
; Trailerd rawbar
= Red guide line at adistance of approximately
0.30 mfrom the rear of the vehicle
X Set the height of trailer drawbar ;so that it
is slightly higher than the ball coupling.
X Position the vehicle centrally in front of trailer
drawbar ;. :
Symbol for the trailer view setting
; Trailerd rawbarlocating aid
= Ball coupling
? Red guide line at adistance of approximately
0.30 mfrom the ball coupling
X Select symbol :using the controller.
The "Coupling up atrailer" function is selec-
ted. The distance specifications now only
apply to objects that are at the same level as
the ball coupling.
X Reverse carefully,m aking sure trailer drawbar
locating aid ;points approximately in the
direction of the trailer drawbar. X
Reverse carefully until the trailer drawbarr ea-
ches red guide line ?.
The distance between the trailer drawbara nd
the red guide line is now approximately
0.30 m.
X Couple up the trailer (Y page 227).
i For technical reasons, the ball coupling of
the trailer tow hitch in the multimedia system
displayise ither only partiallyv isible or not at
all.
The lines are shown at the level of the trailer tow hitch.
180° view :
Symbol for the full-screen setting with the
reversing camera image
; Own vehicle
= PARKTRONIC warning displays
i 180° view can also be selected as front
view.
Select this view when you are driving out of an
exit and the view of crossing traffic is restricted,
for example.
i If you select the
%symbol in the display
and confirm with the controller, the split-
screen view appears.
Stopping the 360° camera display The 360° camera displayiss
topped:
R when you select transmission position P,or
R when you are driving at moderate speeds
The view which was active before the 360° cam-
era was displayed appears in the multimedia
display. You can also stop the 360° camera dis-
play split-screen view by selecting the %
symbol in the displaya nd then confirming with
the COMAND controller. 214
Driving systemsDriving and parking

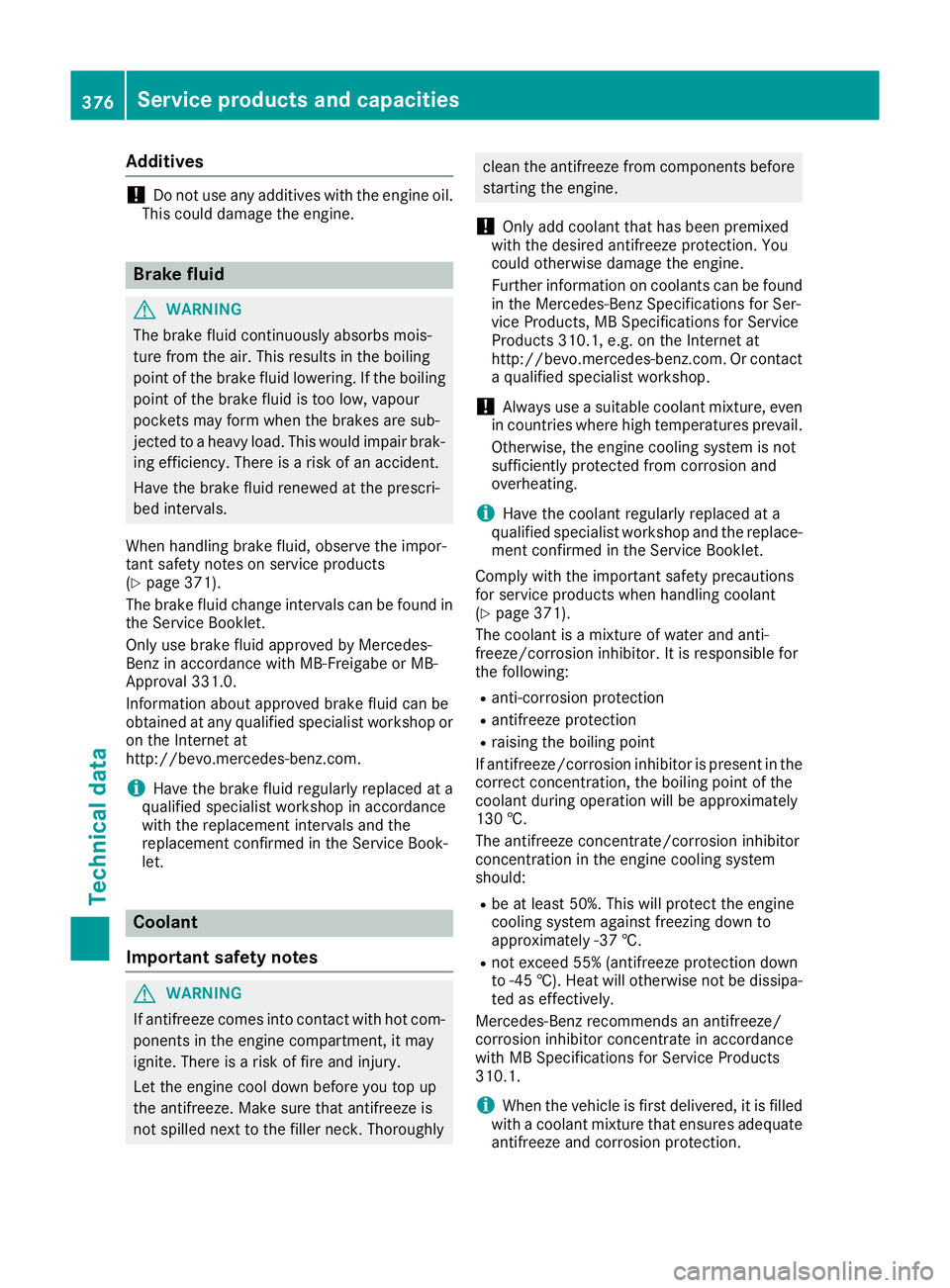

Additives
!
Do no
tuse any additive switht he engin eoil.
This could damag ethe engine. Brak
efluid G
WARNING
The brak efluid continuously absorbs mois-
tur efromt heair. This result sintheboiling
poin toft hebrak efluid lowering .Iftheboiling
poin toft hebrak efluid is to olow, vapour
pockets may for mwhen th ebrakes are sub-
jected to aheav yload. This would impair brak-
ing efficiency. There is ariskofana ccident.
Hav ethe brak efluid renewed at th eprescri-
bed intervals.
When handlin gbrak efluid ,observ ethe impor-
tan tsafet ynotes on servic eproducts
(Y page 371).
The brak efluid chang eintervals can be foun din
th eS ervic eBooklet.
Only use brak efluid approve dbyMercedes-
Benz in accordanc ewithM B-Freig abe or MB-
Approval 331.0.
Information about approve dbrak efluid can be
obtained at any qualified specialis tworkshop or
on th eInterne tat
http://bevo.mercedes-benz.co m.
i Have the brake fluid regularly replaced at a
qualified specialist workshop in accordance
with the replacement intervals and the
replacement confirmed in the Service Book-
let. Coolant
Importan tsafety notes G
WARNING
If antifreeze comes into contact with hot com- ponents in the engine compartment, it may
ignite. There is arisk of fire and injury.
Let the engine cool dow nbefore yo utop up
the antifreeze .Make sur ethat antifreeze is
not spilled next to the filler neck. Thoroughly clea
nthe antifreeze from components before
starting the engine.
! Only ad
dcoolant that has bee npremixed
with the desire dantifreeze protection. You
coul dotherwise damag ethe engine.
Furthe rinformatio noncoolants can be found
in the Mercedes-Benz Specifications for Ser-
vice Products, MB Specifications for Service
Products 310.1, e.g. on the Internet at
http://bevo.mercedes-benz.com .Orcontact
aq ualifie dspecialist workshop.
! Always use
asuitabl ecoolant mixture, even
in countries where hig htemperatures prevail.
Otherwise ,the engine cooling system is not
sufficiently protected from corrosion and
overheating.
i Have the coolant regularly replaced at a
qualified specialist workshop and the replace- ment confirmed in the Service Booklet.
Comply with the important safety precautions
for service products whe nhandling coolant
(Y page 371).
The coolant is amixture of water and anti-
freeze/corrosion inhibitor. It is responsible for
the following:
R anti-corrosion protection
R antifreeze protection
R raising the boiling point
If antifreeze/corrosion inhibito rispresent in the
correct concentration, the boiling point of the
coolant during operation will be approximately
130 †.
The antifreeze concentrate/corrosion inhibitor
concentration in the engine cooling system
should:
R be at least 50%. Thi swillp rotect the engine
cooling system against freezing dow nto
approximatel y-37 †.
R not excee d55% (antifreeze protection down
to -45 †). Hea twillo therwise not be dissipa-
ted as effectively.
Mercedes-Benz recommends an antifreeze/
corrosion inhibito rconcentrate in accordance
with MB Specifications for Service Products
310.1.
i Whe
nthe vehicle is first delivered, it is filled
with acoolant mixtur ethat ensures adequate
antifreeze and corrosion protection. 376
Service products and capacitiesTechnical data
