Page 228 of 354
Display messagesPossible causes/consequences andMSolutions
Collision Preven‐tionAssist Plu sInoperative
COLLISION PREVENTION ASSIST PLU Sistemporarily inoperative due
to am alfunction .Adaptive Brake Assis tmay also hav efailed.
XVisit aqualified specialist workshop immediately.
PRE-SAFE Inopera‐tiv eSeeOperator' sManual
Importantfunction sofPRE-SAF E®havefailed. Al lother occupant
safet ysystems ,e.g.a ir bags ,remain available.
XVisit aqualified specialist workshop immediately.
PRE-SAFE FunctionsCurrently Limite dSee Operator'sMan‐ual
PRE ‑SAFE®PLU SorP RE‑SAFE®Brake is temporarily inoperative.
Possibl ecauses are:
Rfunction is impaire ddue to heav yrain or snow.
Rther adar sensor system is temporarily inoperative, e.g. due to elec -
tromagneti cradiation emitted by nearby TV or radi ostation sor
other source sofelectromagneti cradiation .
RMercedes-AMG vehicles: ES P®is deactivated
Rthes ystem is outside th eoperating temperature range.
Rtheo n-bo ardv oltag eistoolow.
Whe nthe causes state dabov enol onger apply, th edisplay message
disappears.
PRE ‑SAFE
®PLU Sand PRE ‑SAFE®Brake are operational again .
If th edisplay message does no tdisappear :
XPull overand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XRestart th eengine.
XMercedes-AMG vehicles: switch ES P®on again(Ypage 68).
PRE-SAFE FunctionsLimitedSee Opera‐tor's Manual
PRE ‑SAFE®PLU SorP RE‑SAFE®Brake is unavailable due to amal-
function .BAS PLU SwithC ross-Traffic Assis tmay also hav efailed.
XVisit aqualified specialist workshop immediately.
226Display messages
On-boardc omputer andd isplays
Page 229 of 354
Display messagesPossible causes/consequences andMSolutions
RadarSensorsDirtySee Operator' sMan‐ual
At least on eofthefollowin gdrivin gsystems or drivin gsafet ysystems
is temporarily restricted or inoperative:
RPRE-SAF E®PLUS
RPRE-SAF E®Brake
RCOLLISION PREVENTION ASSIST PLU S
RActive LaneKeepin gAssist
RActive Blind Spot Assis t
RDISTRONICPLUSw ithS teering Assis tand Stop&Go Pilo t
If th eradar sensor system in fron tisdirty, Active Blind Spot Assis twill
no tp erfor mac ourse-correcting brak eapplication .
Possibl ecauses are:
Rthes ensor sintheradiato rtrima nd/o rinthebumpers are dirty
Rthef unction of th edrivin gsystem or drivin gsafet ysystem is
impaire ddue to heav yrain or snow
Aw arning tone also sounds.
Whe nthe causes state dabov enol onger apply, th edisplay message
disappears. Al ldrivin gsystems or drivin gsafet ysystems are operative
again .
If th edisplay message does no tdisappear :
XPull overand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XSwitc hoff th eengine.
XClean th esensor sinthefollowin glocation s(Ypage 296):
Rin theradiato rtrim
Rin th efront bumper
Rin therear bumper, particularly in th emiddle of th erear bumper
XRestart th eengine.
The display message disappears.
6
SRSMalfunctionSer ‐viceRequired
The restrain tsystem is faulty. The 6warning lamp also lights up in
th ei nstrumen tcluster.
GWARNIN G
The air bags or Emergency Tensioning Devices may either be triggered
unintentionally or, in th eevent of an accident, may no tbetriggered .
There is an increased ris kofinjury.
XVisit aqualified specialist workshop immediately.
Fo rfurther information about th erestrain tsystem, see (
Ypage 41).
Display messages227
On-boardc omputer andd isplays
Z

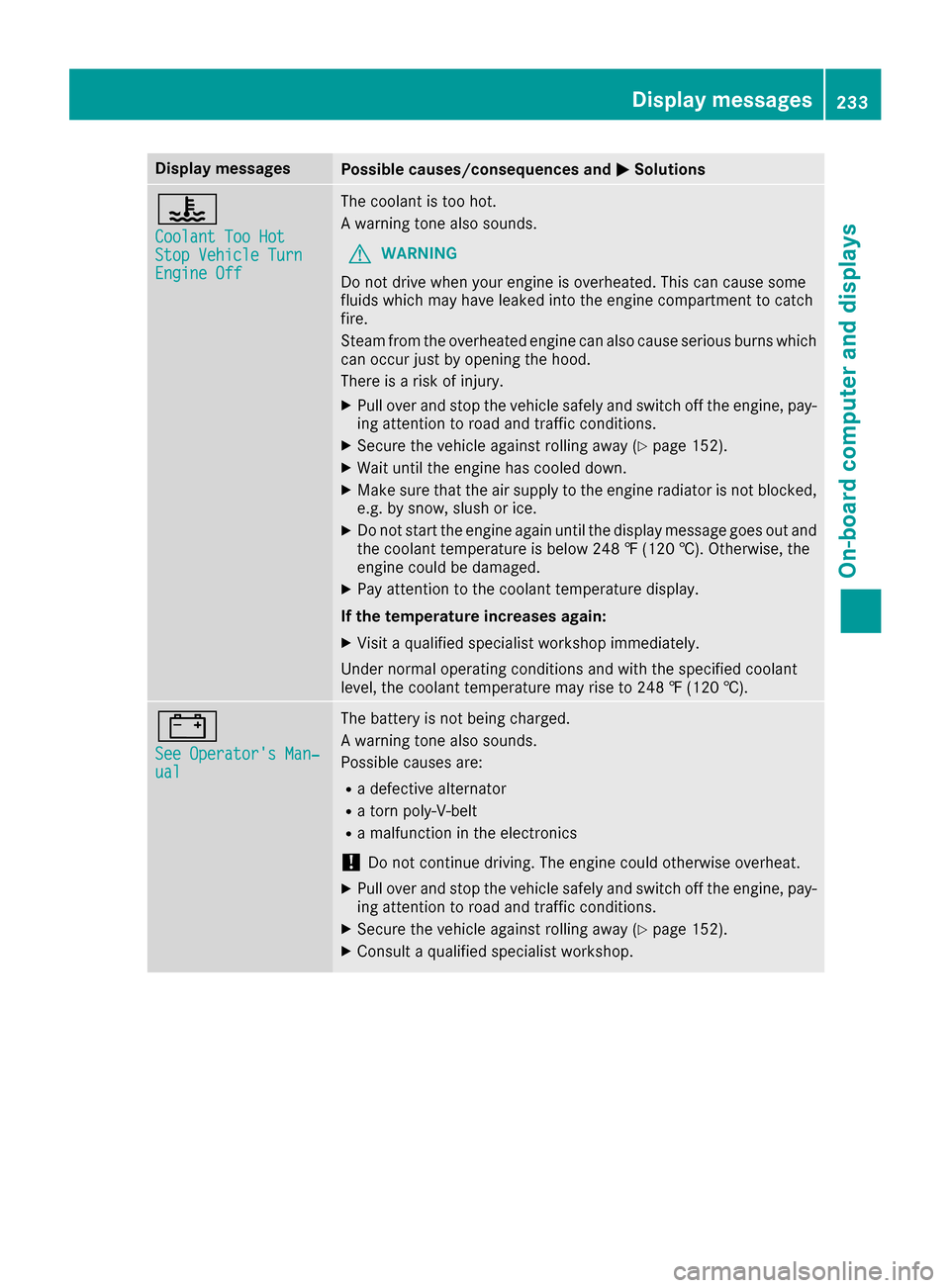

Page 235 of 354
Display messagesPossible causes/consequences andMSolutions
?
CoolantToo HotStopVehicl eTurnEngine Off
The coolan tistoohot .
Aw arning tone also sounds.
GWARNIN G
Do no tdrive when your engin eisoverheated. This can caus esom e
fluids whic hmay hav eleaked int othe engin ecom partmen ttocatch
fire.
Steam from th eoverheate denginec an also caus eserious burn swhich
can occur jus tbyopening th ehood.
There is ariskofi njury.
XPull ove rand stop th evehicl esafely and switch off th eengine, pay-
ing attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XWait until th eengineh as cooled down .
XMakesuret hatthe air supply to th eenginer adiato risnotblocked,
e.g. by snow, slus horice.
XDo no tstart th eenginea gain until th edisplay message goe sout and
th ec oolan ttem perature is belo w248‡(120† ). Otherwise ,the
engin ecould be damaged.
XPay attention to th ecoolan ttem perature display.
If th etemperatur eincreases again:
XVisit aqualified specialist workshop immediately.
Under normal operating condition sand wit hthe specified coolan t
level, th ecoolan ttem perature may ris eto2 48 ‡(120† ).
#
See Operator' sMan‐ual
The battery is no tbein gcharged.
Aw arning tone also sounds.
Possibl ecauses are:
Rad efective alternato r
Ratornp oly-V-belt
Ram alfunction in th eelectronics
!Do no tcontinue driving. The engin ecould otherwise overheat.
XPull ove rand stop th evehicl esafely and switch off th eengine, pay-
ing attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XConsult aqualified specialist workshop .
Display messages233
On-boardc omputer andd isplays
Z
Page 236 of 354
Display messagesPossible causes/consequences andMSolutions
#
StopVehicl eSeeOperator' sManual
The battery is no longer bein gcharged and th ebattery charg elevel is
to ol ow.
Aw arning tone also sounds.
XPull ove rand stop th evehicl esafely and switch off th eengine, pay-
ing attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XObserv ethe instruction sinthe# See Operator' sManualdisplay message .
XConsultaqualified specialist workshop .
#
StopVehicl eLeaveEngine Runnin g
The battery charg elevel is to olow.
XPull ove rand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions. Do no tcontinue driving
under any circumstances.
XLeav ethe engin erunning.
XWait until th edisplay message disappear sbefore pullin gaway.
#
Start Engine SeeOperator' sManual
The engin eisswitched off and th ebattery charg elevel is to olow.
XSwitc hoff electrical consumer sthaty ou do no tneed, suc hasthe
rear window defroste rand interior lighting .
XLeavethe engin erunnin gfor afew minute sordrivealon gd istance.
The battery is bein gcharged.
4
CheckEngineOilAtNex tRefueling
The engin eoil level has dropped to th eminimum level.
Aw arning tone also sounds.
!Avoid lon gjou rneys wit htoo littl eengineo il. The engin ewill oth-
erwise be damaged.
XChec kthe oil level when next refueling, at th elatest (Ypage 289).
XIf necessary, add engin eoil(Ypage 289).
If th eengin eoil need stoppin gupm oreo ften:
XContac taqualified specialist workshop and hav ethe engin e
checked.
Information on approve dengineo ils can be obtained from aqualified
specialist workshop or on th eInterne tath ttp:// bevo.mercedes -
benz.com.
234Display messages
On-boardc omputer andd isplays
Page 239 of 354
Display messagesPossible causes/consequences andMSolutions
LaneKeepin gAssistCurrently Unavaila‐ble See Operator' sManualorActiveLan eKeepin gAssistCurrently Unavaila‐ble See Operator' sManual
LaneKeepin gAssistorA ctiveLaneK eepin gAssistisd eactivated and
temporarily inoperative.
Possibl ecauses are:
Rthew indshield in th ecamera' sfield of vision is dirty.
Rvisibilit yisimpaire ddue to heav yrain ,sno worf og.
Rthere hav ebeen no lan emarking sfor an extended period.
Rthel an em arking sare worn, dark or covered, e.g. by dir torsnow.
Whe nthe causes state dabov enol onger apply, th edisplay message
disappears.
Lan eKeepin gAssistorA ctiveLaneK eepin gAssistiso perational
again .
If th edisplay message does no tdisappear :
XPull overand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XClean th ewindshield.
Lan eKeepin gAssistInoperativeor
ActiveLan eKeepin gAssist Inoperative
LaneKeepin gAssistorA ctiveLaneK eepin gAssistisd efective.
XVisit aqualified specialist workshop .
Blind SpotAssistCurrently Unavaila‐ble See Operator' sManualorActiveBlind Spo tAssistCurrently Unavaila‐ble See Operator' sManual
Blind Spot AssistorActiveBlind Spot Assis tistemporarily inoperative.
Possibl ecauses are:
Rther adar sensor system is outside th eoperating temperature
range.
Rth er adar sensor system is temporarily inoperative, e.g. due to elec -
tromagneti cradiation emitted by nearby TV or radi ostation sor
other source sofelectromagneti cradiation .
Whe nthe causes state dabov enol onger apply, th edisplay message
disappears.
Blind Spot Assis torActiveBlind Spot Assis tisoperational again .
If th edisplay message does no tdisappear :
XPull overand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XRestart th eengine.
Blind Spo tAssistInoperativeor
Active Blind Spo t
Assist Inoperative
Blind Spot AssistorActiveBlind Spot Assis tisdefective.
XVisit aqualified specialist workshop .
ParkAssistCanceledThe driver's door is open .
XRepeat theparking gap measuremen tand parking process wit hthe
driver's door closed .
Display messages237
On-boardc omputer andd isplays
Z
Page 241 of 354
Display messagesPossible causes/consequences andMSolutions
DISTRONIC PLUSNowAvailableDISTRONI CPLUSiso perational again after having been temporarily
unavailable .You can no wreactivat eDISTR ONICPLUS(Ypage 162).
DISTRONIC PLU SCur‐rently UnavailableSee Operator' sMan‐ual
DISTRONI CPLUSist emporarily inoperative.
Steering Assis tand Stop&Go Pilo tare temporarily inoperative.
Possibl ecauses are:
Rther adar sensor system is temporarily inoperative, e.g. due to elec -
tromagneti cradiation emitted by nearby TV or radi ostation sor
other source sofelectromagneti cradiation .
Rthes ystem is outside th eoperating temperature range.
Rtheo n-bo ardv oltag eistoolow.
Aw arning tone also sounds.
Whe nthe causes state dabov enol onger apply, th edisplay message
disappears.
DISTRONI CPLUSiso perational again .
If th edisplay message does no tdisappear :
XPull overand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XRestart th eengine.
DISTRONICPLU SInop‐erativ eDISTRONI CPLUSisd efective.
The followin gmay hav ealso failed:
RBASP LUSw ithC ross-Traffic Assis t
RPRE-SAFE®Brake
RSteering Assis tand Stop&Go Pilo t
Aw arning tone also sounds.
XVisit aqualified specialist workshop .
DISTRONIC PLUSSus‐pendedYou hav edepressed th eaccelerato rpedal .DISTR ONICPLUSisn o
longer controllin gthe speed of th evehicle.
XRemove your foo tfromt heaccelerato rpedal .
DISTRONIC PLU S---mphAn activation condition for DISTRONI CPLUSisn otfulfilled .
XCheckthe activation condition sfor DISTRONI CPLUS(Ypage 162).
Display messages23 9
On-boardc omputer andd isplays
Z
Page 243 of 354
Tires
Display messagesPossible causes/consequencesand MSolutions
CheckTirePressureSoonCanad aonly:
The tire pressure loss warning system hasd etecte das ignificant loss
in pressure.
Aw arning tone also sounds.
Possibl ecauses:
Ryouh avec hange dthe positions of the wheels and tire sorinstalled
new wheels and tires.
Rthe tire pressure in one or mor etiresh asdropped significantly
GWARNING
Tire pressures thata retoo lo wposet he following hazards:
Rtheym ayburst, especially as the load and vehicl espeed increase.
Rtheym aywear excessivel yand/or unevenly, which mayg reatly
impai rtire traction.
Rthe drivin gcharacteristics, as well as steerin gand braking ,maybe
greatl yimpaired.
There is ariskofana ccident.
XStop the vehicl ewithou tmaking any sudden steerin gorbraking
maneuvers. Pa yattentio ntothe trafficc onditions as yo udoso.
XSecure the vehicl eagain st rolling away (Ypage 152).
XCheck the tire sand,ifn ecessary,f ollowthe instructions for aflat
tire (Ypage 300).
XCheck the tire pressures and ,ifnecessary,c orrect the tire pressure.
XRestart the tire pressure loss warning system when the tire pres-
sure is correct (Ypage 323).
CheckTirePressureThenRestar tRunFlatIndicator
Canad aonly:
The tire pressure loss warning system generated adisplay message
and hasn ot been restarted since.
XSet the correct tire pressure in al lfou rtires.
XRestart the tire pressure loss warning system (Ypage 323).
Run Fla tIndicatorInoperativeCanad aonly:
The tire pressure loss warning system is faulty.
XVisitaq ualified specialis tworkshop.
PleaseCorrectTirePressureThe tire pressure is too lo winatleastone of the tires, or the tire
pressure differenc ebetween the wheels is too great.
XCheck the tire pressures at the next opportunity (Ypage 323).
XIf necessary,c orrect the tire pressure.
XRestart the tire pressure monitor (Ypage 325).
Displaymessages241
On-boardc omputer andd isplays
Z
Page 244 of 354
Display messagesPossible causes/consequences andMSolutions
Check TiresThe tire pressureinoneor mor etires has dropped significantly. The
whee lposition is displayed in th emultifunction display.
Aw arning tone also sounds.
GWARNIN G
Tir ep ressures that are to olow pos ethe followin ghazards :
Rthey may burst, especially as th eload and vehicl espeed increase.
Rthey may wear excessivel yand/o runevenly, whic hmay greatl y
impair tire traction .
Rthed rivin gcharacteristics ,aswell as steering and braking ,may be
greatl yimpaired.
There is ariskofana ccident.
XStop thevehicl ewithout making any sudden steering or braking
maneuvers .Pay attention to th etraffic condition sasyou do so.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XChec kthe tires and ,ifneces sary, follow th einstruction sfor aflat
tire (Ypage 300).
XChec kthe tire pressur e(Ypage 323).
XIf necessary, correc tthe tire pressure.
Warnin gTireM al‐functionThe tire pressur einoneor mor etires has dropped suddenly. The whee l
position is shown in th emultifunction display.
GWARNIN G
Drivin gwithaf lat tire poses ariskoft hefollowin ghazards :
Raflat tire affects th eabilit ytos teer or brak ethe vehicle.
Ryou could lose control of th evehicle.
Rcontinued drivin gwithaf lat tire will caus eexces sive heat build-up
and possibl yafire.
There is ariskofana ccident.
XStop thevehicl ewithout making any sudden steering or braking
maneuvers .Pay attention to th etraffic condition sasyou do so.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XChec kthe tires and ,ifneces sary, follow th einstruction sfor aflat
tire (Ypage 300).
TirePress.Monito rCurrently Unavaila‐ble
Becausethere is interferenc efromas tron gs ource of radi owaves, no
signals from th etirep ressur esensor sare detected. The tire pressur e
monitor is temporarily malfunctioning .
XDrive on.
The tire pressur emonitor restarts automatically as soo nasthe
problem has been resolved.
TirePress .Sen‐sor(s) Missin gThere is no signal from th etirep ressur esensor of on eorseveral
wheels. The pressur eoftheaffecte dtireisn otdisplayed in th emul-
tifunction display.
XHav ethe fault ytirep ressur esensor replace dataqualified special -
ist workshop .
242Display messages
On-boardcomputer andd isplays
Page 245 of 354
Display messagesPossible causes/consequences andMSolutions
TirePressure Moni‐tor Inoperative NoWheel Sensor s
The wheels mounte ddonothav eas uitable tire pressur esensor .The
tire pressur emonitor is deactivated.
XMoun twheels wit hsuitable tire pressur esensors.
The tire pressur emonitor is activated automatically after drivin gfor
af ew minutes.
Tir ePress.Monito rInoperativeThe tire pressur emonitor is faulty.
XVisit aqualified specialist workshop .
Vehicle
Display messagesPossible causes/consequences and MSolutions
Shiftto'P'or'N'to Start EngineYou haveattempte dtostart th eenginew itht he transmission in posi-
tion Ror D.
XShift th etransmission to position Por N.
Apply Brake toShift fro m'P'You hav eattempte dtomovet he transmission selector lever to posi-
tion D,Ror Nwithout depressing th ebrak epedal .
XDepress th ebrak epedal .
ToDeselect PorN,DepressBrake andStart Engine
Withthe engin eswitched off ,you hav eattempte dtoshift th etrans -
mission out of position Por Nint oa nother transmission position .
XDepress thebrak epedal .
XStart th eengine.
TransmissionNotinPR iskofV ehicleRollin gAway
The driver's door is open or no tfully closed and th etransmission is in
position R,N or D.
Aw arning tone also sounds.
GWARNIN G
The vehicl emay rol laway.
There is ariskofana ccident.
XShift thetransmission to position P.
XSecurethe vehicl eagainst rollin gaway (Ypage 152).
XClosethe driver's door completely.
Onl yShift to 'P'whenVehicl eisSta‐tionar y
The vehicl eismoving.
XPull ove rand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XShift th etransmission to position P.
Display messages243
On-boardc omputer andd isplays
Z
Page 248 of 354
Display messagesPossible causes/consequences andMSolutions
Â
Don't Forget YourKey
The SmartKey is notintheignition lock. You hav eopened th edriver's
door wit hthe engin eswitched off .
This display message is displayed for amaximum of 60 seconds and is
simply areminder.
XTak ethe SmartKey wit hyou when you leav ethe vehicle.
Â
Key Not Detected(whit edisplay message )
The SmartKey is currentl yundetected.
XChange th elocation of th eSmartKey in th evehicle.
If th eSmartKey still canno tbedetected:
XInsertthe SmartKey int othe ignition loc kand tur nittot hedesire d
position .
Â
Key Not Detected(redd isplay message )
The SmartKey is no tinthevehicle.
Aw arning tone also sounds.
If th eengineiss witched off ,you can no longer loc kthe vehicl ecen-
trally or start th eengine.
XPull ove rand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XLocate th eSmartKey.
XPress aon thesteering whee ltoc onfir mthedisplay message .
Becausethe re is interferenc efromas tron gs ource of radi owaves, th e
SmartKey is no tdetecte dwhilstthe engin eisrunning.
Aw arning tone also sounds.
XPull ove rand stop th evehicl esafely as soo naspossible, payin g
attention to roa dand traffic conditions.
XSecur ethe vehicl eagainst rollin gaway (Ypage 152).
XInser tthe SmartKey int othe ignition loc kand bring int okeymode.
Â
Remove 'Start 'But‐ton and Insert Key
The SmartKey is continually undetected.
The SmartKey detection function has atem porar ymalfunction or is
faulty. Awarning tone also sounds.
XInser tthe SmartKey int othe ignition loc kand tur nittot hedesire d
position .
XVisitaqualified specialist workshop .
Warning and indicat orlamps in th einstrume nt cluster
Generaln otes
Some systems carry out aself-diagnosis when th eignition is switched on .Therefore ,som eindicator
and warning lamp smay ligh tuporf lashtem porarily. This behavio risnon-criti cal.These indicator
and warning lamp sonlyi ndicat eamalfunction if they ligh tuporflasha fter starting th eengineo r
whils tdriving.
246Warning andi ndicator lampsint he instrument cluster
On-board computera nd displays
