MERCEDES-BENZ C320 2005 W203 Owner's Manual

249 Controls in detail
Useful features
The Tele Aid system
(Tele
matic A
larm I
dentification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency


roadside assistance and


information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and
cellular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the multifunction steering wheel. To
raise, press buttonæ and to lower,
press buttonç. The volume can also be
adjusted using the volume knob on your
audio system or COMAND* head unit.

To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.System self-check
Initially, after switching on ignition, mal-
functions are detected and indicated (the
indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than ten seconds or do not come on). The
message
Tele Aid malfunction. Drive
to workshop
appears in the multifunction
display.
iThe SOS button is located above the
interior rear view mirror.
The Roadside Assistance button•
and the Information button¡ are
located below the center armrest
cover.
iThe Tele Aid system utilizes the cellular
network for communication and the
GPS (Global Positioning System) satel-
lites for vehicle location. If either of
these signals are unavailable, the
Tele Aid system may not function and if
this occurs, assistance must be sum-
moned by other means.

250 Controls in detailUseful features
Emergency calls
An emergency call is initiated
automatically following an accident in
which the emergency tensioning devices
(ETDs) or air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 251) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call

appears in the multifunction display and
the audio system is muted. When the
connection is established, the message
Call connected
appears in the multifunc-
tion display. All information relevant to the
emergency, such as the location of the
vehicle (determined by the GPS satellite
location system), vehicle model, identifica-
tion number and color are generated.A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
emergency provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if


it has been activated and is
operational. Activation requires a
subscription for monitoring services,
connection and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button remain illuminated
constantly in red and/or the message Tele Aid malfunction. Drive to
workshop
is displayed in the multifunction
display after the system self-check, a mal-
function in the system has been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
iLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the
Response Center.

251 Controls in detail
Useful features

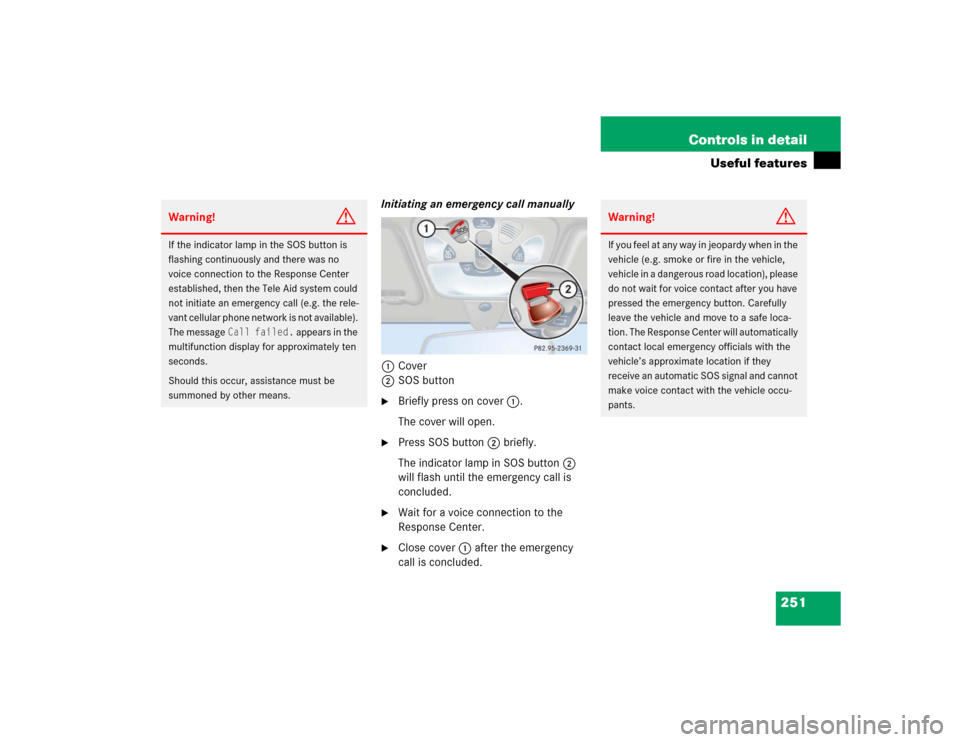

Initiating an emergency call manually
1Cover
2SOS button
Briefly press on cover1.
The cover will open.

Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.

Wait for a voice connection to the
Response Center.

Close cover1 after the emergency
call is concluded.
Warning!
G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed.
appears in the
multifunction display for approximately ten
seconds.
Should this occur, assistance must be
summoned by other means.
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they
receive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.

252 Controls in detailUseful featuresRoadside Assistance button•
Located below the center armrest cover is
the Roadside Assistance button•.
Press and hold button (for longer than
two seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting
call
will appear in the multifunction
display and the audio system is muted.
When the connection is established, the
message Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for
assistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may
apply. Refer to the Roadside Assistance
manual for more information.
The following is only available in the USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iThe indicator lamp on the Roadside
Assistance button• remains illumi-
nated in red for approximately ten
seconds during the system self-check
after switching on ignition (together
with the SOS button and the Informa-
tion button¡).
See system self-check (
page 249)
when the indicator lamp does not come
on in red or stays on longer than
approximately ten seconds.
If the indicator lamp on the Roadside
Assistance button• is flashing
continuously and there was no voice
connection to the Response Center
established, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network is not available). The
message
Call failed.
appears in the
multifunction display.

253 Controls in detail
Useful features
Information button¡
Located below the center armrest cover is
the Information button¡.
Press and hold button (for longer than
two seconds).
A call to the Customer Assistance
Center will be initiated. The button will
flash while the call is in progress. The
message
Connecting call
will appear
in the multifunction display and the
audio system is muted.When the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be
established. Information regarding the
operation of your vehicle, the nearest
Mercedes-Benz Center or Mercedes-Benz
USA products and services is available to
you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you
separately) to learn more (USA only). Roadside Assistance calls can be
terminated using the tbutton on
the multifunction steering wheel or the
respective button for ending a
telephone call on the audio system or
COMAND* head unit.
iThe indicator lamp on the Information
button¡ remains illuminated in red
for approximately ten seconds during
the system self-check after switching
on ignition (together with the SOS
button and the Roadside Assistance
button•).
See system self-check (
page 249)
when the indicator lamp does not come
on in red or stays on longer than
approximately ten seconds.
If the indicator lamp on the Information
button¡ is flashing continuously
and there was no voice connection to
the Response Center established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not
available). The message Call failed.

appears in the multifunction display.

254 Controls in detailUseful features
Upgrade scenario
An emergency call is possible even if other
services are active. Information calls can be terminated
using thet button on the
multifunction steering wheel or the re-
spective button for ending a telephone
call on the audio system or COMAND*
head unit.
!If the indicator lamps do not start flash-
ing after pressing one of the buttons or
remain illuminated (in red) at any time,
the Tele Aid system has detected a
malfunction or the service is not
currently active, and may not initiate a
call. Visit your Mercedes-Benz Center
and have the system checked or
contact the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada) as soon
as possible.
!If the indicator lamp continues to flash
or the system does not reset, contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada), or
Mercedes-Benz Customer Assistance
at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or
Customer Service at 1-800-387-0100
in Canada.
iThe indicator lamp in the respective
button flashes until the call is con-
cluded. Calls can only be terminated by
a Response Center or Customer
Assistance Center representative
except Roadside Assistance and
Information calls, which can also be
terminated by pressing buttont on
the multifunction steering wheel or the
respective button for ending a
telephone call on the audio system or
COMAND* head unit.

255 Controls in detail
Useful features
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve SmartKey is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.

Then return to your vehicle and pull the
trunk recessed handle for a minimum
of 20 seconds until the SOS button is
flashing.
The message
Connecting call

appears in the multifunction display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.
iWhen a Tele Aid call has been initiated,
the audio system or the COMAND*
system audio is muted and the
selected mode (radio or CD) pauses.
The optional cellular phone (if installed)
switches off. If you must use this
phone, the vehicle must be parked.
Disconnect the coiled cord and place
the call. The COMAND* navigation
system (if engaged) will continue to
run. The display in the instrument
cluster is available for use, and spoken
commands are only available by press-
ing the RPT button on the COMAND*
unit. A pop-up window will appear in
the COMAND* display to indicate that
a Tele Aid call is in progress.
iThe remote door unlock feature is
available if the relevant cellular phone
network is available.
The SOS button will flash and the
message
Connecting call
will appear
in the multifunction display to indicate
receipt of the door unlock command.
Once the vehicle is unlocked, a
Response Center specialist will
attempt to establish voice contact with
the vehicle occupants.
If the trunk recessed handle was pulled
for more than 20 seconds before door
unlock authorization was received by
the Response Center, you must
wait 15 minutes before pulling the
trunk recessed handle again.

256 Controls in detailUseful featuresStolen Vehicle Recovery services
In the event your vehicle was stolen:
Report the incident to the police.
The police will issue a numbered
incident report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is
located, the Response Center will
contact the local law enforcement and
you. The vehicle’s location will only be
provided to law enforcement.
Garage door opener*
The built-in remote control is capable of
operating up to three separately controlled
devices, for example garage door openers,
gate openers, or other devices compatible
with HomeLink
® or some other systems.
You can program the signal transmitter
buttons.
Remote control integrated into the interior
rear view mirror1Indicator lamp
2 3 4Signal transmitter button
5Hand-held transmitter button
6Hand-held remote control
transmitter (not part of the
vehicle equipment)
iWhen the anti-theft alarm or the
tow-away alarm stays on for more than
30 seconds, a call is initiated automat-
ically to the Response Center. See
anti-theft alarm system* (
page 83)
and tow-away alarm* (
page 85).

257 Controls in detail
Useful features
Warning!
G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage. When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks
safety stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an object
- signaling the door to stop and reverse -
does not meet current U.S. federal safety
standards.
iCertain types of garage door openers
are incompatible with the integrated
opener. If you should experience
difficulties with programming the
transmitter, contact an authorized
Mercedes-Benz Center, or call
Mercedes-Benz Customer Assistance
Center (in the USA only) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

258 Controls in detailUseful featuresProgramming or reprogramming the
integrated remote control
Step 1:
Switch on ignition (
page 33).
Step 2:

If you have previously programmed an
integrated signal transmitter button
and wish to retain its programming,
proceed to step 3. Otherwise, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when the indicator lamp1
begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory. If you later wish to program a
second and/or third hand-held trans-
mitter to the remaining two signal
transmitter buttons, do not repeat this
step and begin directly with step 3.Step 3:

Hold the end of the hand-held remote
control transmitter6 of the device
you wish to train approximately 2 to
5 in (5 to12 cm) away from the surface
of the integrated remote control
located on the interior rear view mirror,
keeping the indicator lamp1 in view.
Step 4:

Using both hands, simultaneously
press the hand-held transmitter
button5 and the desired integrated
signal transmitter button (2, 3
or4). Do not release the buttons until
completing step 5.
The indicator lamp1 on the
integrated remote control will flash,
first slowly and then rapidly.Step 5:

When the indicator lamp1 flashes
rapidly, release both buttons.
Step 6:

Press and hold the just-trained
integrated signal transmitter button
and observe the indicator lamp1.
If the indicator lamp1 stays on
constantly, programming is complete
and your device should activate when
the integrated signal transmitter
button is pressed and released.iThe indicator lamp1 flashes the first
time the signal transmitter button is
programmed. If this button has already
been programmed, the indicator lamp
will only start flashing after
20 seconds.
