400 Controls in detail
Automatic transmission
Steering wheel gearshift control
With drive positionD selected, you can
limit or extend the gear range.

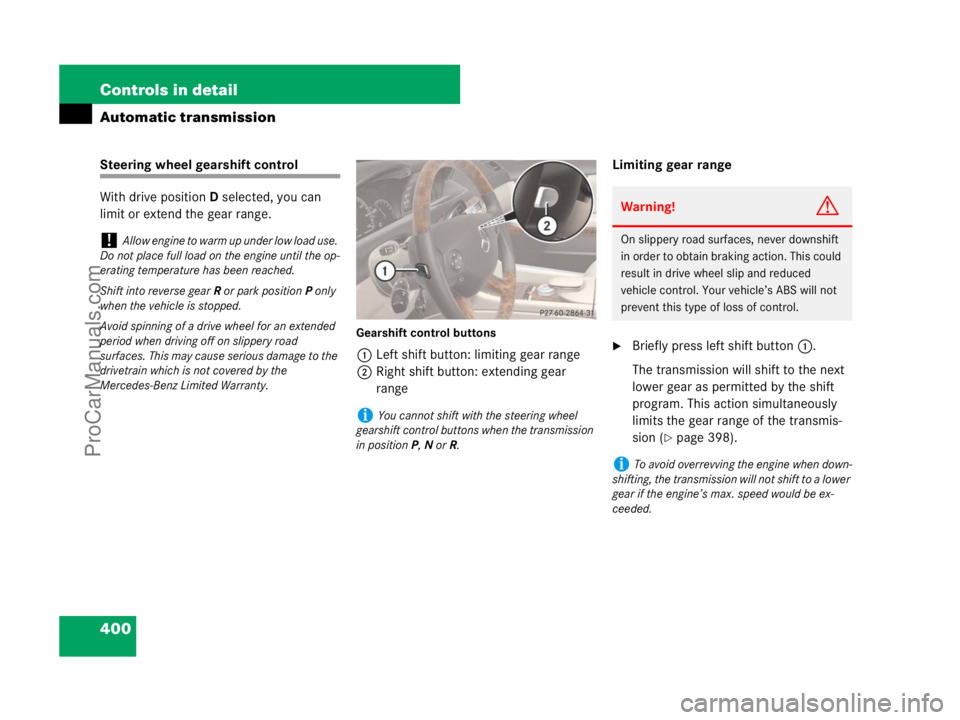

Gearshift control buttons
1Left shift button: limiting gear range
2Right shift button: extending gear
rangeLimiting gear rangeBriefly press left shift button1.
The transmission will shift to the next
lower gear as permitted by the shift
program. This action simultaneously
limits the gear range of the transmis-
sion (
page 398).
!Allow engine to warm up under low load use.
Do not place full load on the engine until the op-
erating temperature has been reached.
Shift into reverse gearR or park positionP only
when the vehicle is stopped.
Avoid spinning of a drive wheel for an extended
period when driving off on slippery road
surfaces. This may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
iYou cannot shift with the steering wheel
gearshift control buttons when the transmission
in positionP,N orR.
Warning!G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.
iTo avoid overrevving the engine when down-
shifting, the transmission will not shift to a lower
gear if the engine’s max. speed would be ex-
ceeded.
ProCarManuals.com
Page 402 of 723
401 Controls in detail
Automatic transmission
Extending gear range
Briefly press right shift button2.
The transmission will shift to the next
higher gear as permitted by the shift
program. This action simultaneously
extends the gear range of the transmis-
sion.Canceling gear range limitPress and hold right shift button2
until the indicator for the current gear
range disappears from the instrument
cluster (
page 398).
The transmission will shift from the
current gear range directly to gear
rangeD.
Shifting into optimal gear range
Press and hold left shift button1.
The transmission will automatically
select the gear range suited for optimal
acceleration and deceleration. This will
involve shifting down one or more
gears.Emergency operation
(Limp-Home Mode)
If vehicle acceleration becomes less re-
sponsive or sluggish or the transmission
no longer shifts, the transmission is most
likely operating in limp-home (emergency
operation) mode. In this mode only second
gear and reverse gear can be selected.
Stop the vehicle in a safe location.
Shift to park positionP.
Turn off the engine.
Wait at least 10 seconds before
restarting.
Restart the engine.
Shift to drive positionD (for second
gear) or reverse gearR.
Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.
iIf you press on the accelerator when the en-
gine has reached its rpm limit, the transmission
will upshift beyond any gear range limit selected.
ProCarManuals.com
Page 403 of 723
402 Controls in detail
Instrument cluster
A full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 30).
The instrument cluster is activated when
you:
open a door
switch on the ignition (page 336)
switch on the exterior lamps
The language setting for the multifunction
display can be changed via COMAND
(
page 81).Adjusting instrument cluster display il-
lumination
1Knob
Brightening illumination: Turn
knob1 clockwise.
Dimming illumination: Turn knob1
counterclockwise.
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warning/
indicator lamps, malfunction/warning mes-
sages or the failure of any systems. Driving
characteristics may be impaired.
If you must continue to drive, please do so
with added caution. Contact an authorized
Mercedes-Benz Center as soon as possible.
iThe instrument cluster illumination is
dimmed or brightened automatically to suit am-
bient light conditions.
The instrument cluster illumination will also be
adjusted automatically when you switch on the
vehicle’s exterior lamps.
ProCarManuals.com
Page 404 of 723
403 Controls in detail
Instrument cluster
Coolant temperature gauge
The coolant temperature gauge is on the
left side in the instrument cluster
(
page 30).
Tachometer
The red marking on the tachometer de-
notes excessive engine speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.

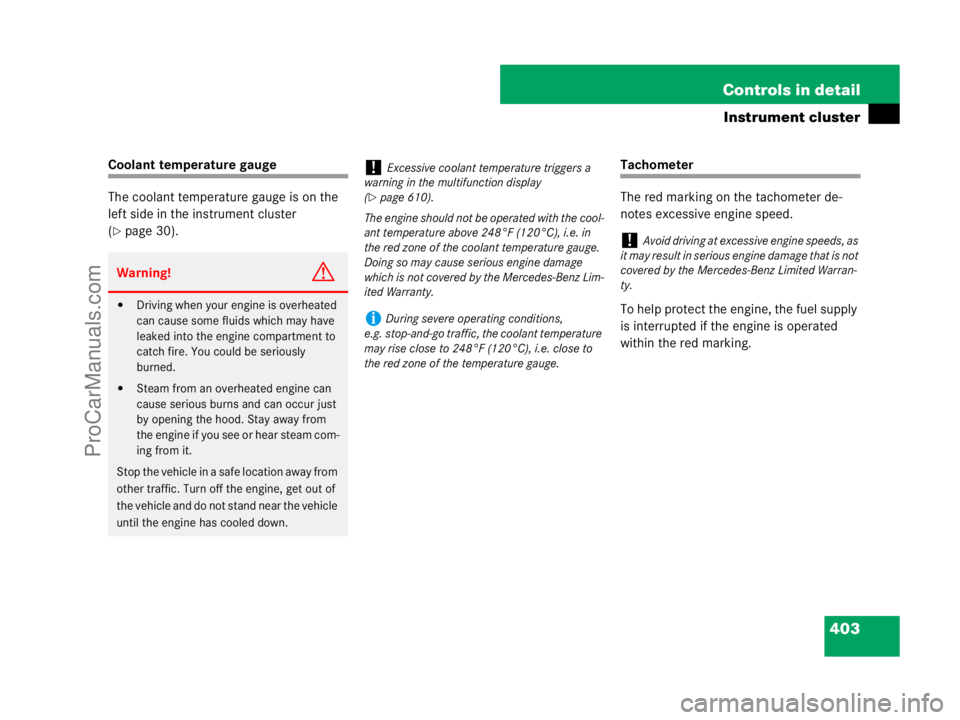

Warning!G
Driving when your engine is overheated
can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously
burned.
Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Stop the vehicle in a safe location away from
other traffic. Turn off the engine, get out of
the vehicle and do not stand near the vehicle
until the engine has cooled down.
!Excessive coolant temperature triggers a
warning in the multifunction display
(
page 610).
The engine should not be operated with the cool-
ant temperature above 248°F (120°C), i.e. in
the red zone of the coolant temperature gauge.
Doing so may cause serious engine damage
which is not covered by the Mercedes-Benz Lim-
ited Warranty.
iDuring severe operating conditions,
e.g. stop-and-go traffic, the coolant temperature
may rise close to 248°F (120°C), i.e. close to
the red zone of the temperature gauge.
!Avoid driving at excessive engine speeds, as
it may result in serious engine damage that is not
covered by the Mercedes-Benz Limited Warran-
ty.
ProCarManuals.com
Page 405 of 723
404 Controls in detail
Instrument cluster
Outside temperature indicator
The outside temperature indicator is on
the bottom left-hand side of the instru-
ment cluster (
page 30).The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. There-
fore, the accuracy of the displayed temper-
ature can only be verified by comparison to
a thermometer placed next to the sensor,
not by comparison to external displays
(e.g. bank signs, etc.).
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.
Fuel gauge
The fuel gauge is on the left-hand side of
the instrument cluster (
page 30). Once
the fuel level has fallen below the reserve
mark, the yellow fuel tank reserve warning
lamp comes on (
page 573).Warning!G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.
ProCarManuals.com
Page 406 of 723
405 Controls in detail
Driving systems
Driving systems
The driving systems of your vehicle are de-
scribed on the following pages:
Cruise control (page 405) and
DISTRONIC Plus*(
page 411), with
which the vehicle can maintain a preset
speed.
ABC (page 429) adjusts the vehicle
suspension characteristics automati-
cally and control the vehicle level.
Parktronic* (page 431) and
Park Assist* (
page 435), which serve
as a parking assistant.
Dynamic Rear View Monitor*
(
page 439) is an electronic and
visual parking aid.
Night View Assist* (page 446) illumi-
nates the road with infrared light in
addition to the normal headlamps.
For information on the ABS, Adaptive
Brake, BAS, BAS Plus*, EBP, ESP
® and
PRE-SAFE® Brake*, see “Driving safety
systems” (
page 64).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
The use of the cruise control is recom-
mended for driving at a constant speed for
extended periods of time.
You can set or resume the cruise control at
any speed over 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
Warning!G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must always
remain responsible for the vehicle’s speed
and for safe brake operation.
Only use the cruise control if the road,
traffic, and weather conditions make it
advisable to travel at a constant speed.
The use of the cruise control can be dan-
gerous on winding roads or in heavy traf-
fic because conditions do not allow safe
driving at a constant speed.
The use of the cruise control can be dan-
gerous on slippery roads. Rapid changes
in tire traction can result in wheel spin
and loss of control.
Deactivate the cruise control when
driving in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.
ProCarManuals.com
Page 407 of 723
406 Controls in detail
Driving systems

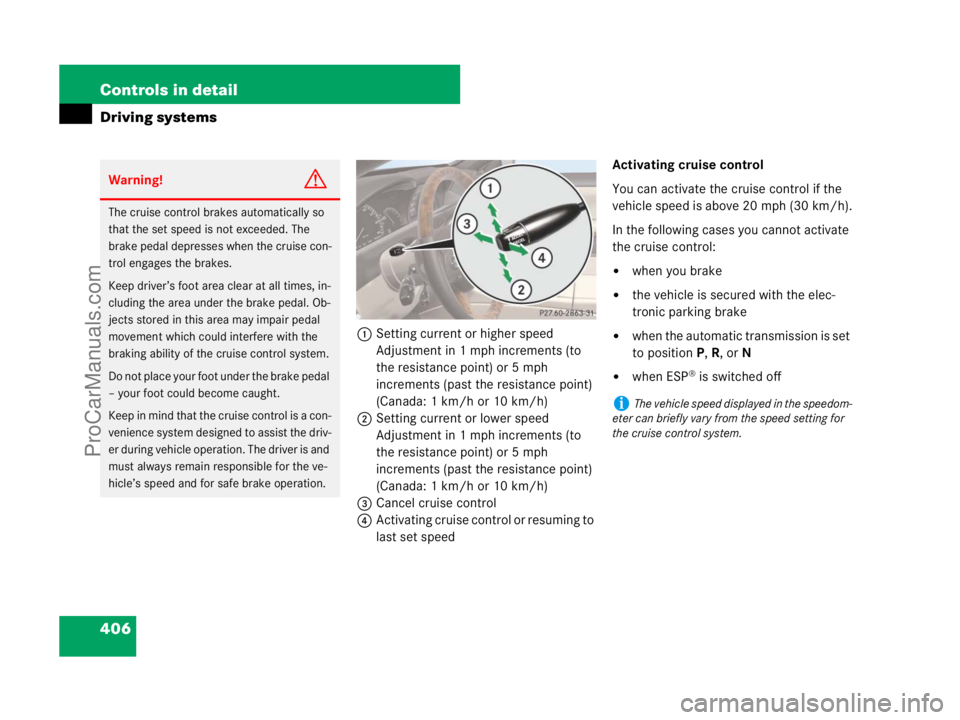

1Setting current or higher speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
2Setting current or lower speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
3Cancel cruise control
4Activating cruise control or resuming to
last set speedActivating cruise control
You can activate the cruise control if the
vehicle speed is above 20 mph (30 km/h).
In the following cases you cannot activate
the cruise control:
when you brake
the vehicle is secured with the elec-
tronic parking brake
when the automatic transmission is set
to positionP, R, or N
when ESP® is switched off
Warning!G
The cruise control brakes automatically so
that the set speed is not exceeded. The
brake pedal depresses when the cruise con-
trol engages the brakes.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the cruise control system.
Do not place your foot under the brake pedal
– your foot could become caught.
Keep in mind that the cruise control is a con-
venience system designed to assist the driv-
er during vehicle operation. The driver is and
must always remain responsible for the ve-
hicle’s speed and for safe brake operation.
iThe vehicle speed displayed in the speedom-
eter can briefly vary from the speed setting for
the cruise control system.
ProCarManuals.com
Page 408 of 723
407 Controls in detail
Driving systems
Setting current speed
Accelerate or decelerate to the desired
speed.
Briefly lift the cruise control lever in
direction of arrow1 or depress in
direction of arrow2.
The current speed is set.
Remove your foot from the accelerator
pedal.
The cruise control is activated.
The current set speed appears in
the multifunction display for ap-
proximately 5 seconds.
The corresponding speedometer
segments from the selected speed
to the vehicle maximum speed in
the multifunction display are illumi-
nated.
The set speed is shown by a triangle
in the speedometer.Canceling cruise control
There are several ways to cancel the cruise
control:
Step on the brake pedal.
The cruise control is canceled. The last
set speed is stored for later use.
or
Briefly push the cruise control lever in
direction of arrow3.
The cruise control is canceled. The last
set speed is stored for later use.
iOn uphill grades, the cruise control may not
be able to maintain the set speed. Once the
grade eases, the set speed will be resumed.
On downhill grades, the cruise control maintains
the set speed by braking with the vehicle’s brak-
ing system. In addition, on longer downhill
grades the automatic transmission will down-
shift automatically.
iThe last stored set speed is deleted when
the engine is turned off.
ProCarManuals.com
Page 409 of 723
408 Controls in detail
Driving systems
Setting a higher speed
You can increase the set speed in two
ways.Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly lift the cruise control lever up to
the resistance point in direction of
arrow1 (
page 406).
Release the cruise control lever.
The vehicle speed increases in incre-
ments of 1 mph (Canada: 1 km/h).
iThe cruise control switches off automatical-
ly when
you step on the brake pedal
the vehicle is secured with the electronic
parking brake
In this case, the cruise control speed seg-
ments in the multifunction display will go out
and no warning sounds.
the vehicle speed is below 20 mph
(30 km/h)
the ESP® is in operation or switched off with
the ESP® switch (page 71)
you set the automatic transmission toN
while driving
The cruise control speed segments in the
multifunction display will go out and an
acoustic warning sounds.
Observe additional messages in the
multifunction display that may appear.
!Setting the automatic transmission toN
while driving cancels the cruise control. Howev-
er, the automatic transmission should not be set
toN while driving except to coast when the vehi-
cle is in danger of skidding (e.g. on icy roads).
iDepressing the accelerator pedal does not
deactivate the cruise control. After a brief accel-
eration (e.g. for passing), the cruise control will
resume the last set speed.
Warning!G
If you increase the set speed, keep in mind
that it may take a brief moment until the ve-
hicle has reached the set speed.
Increase the set speed to a value that the
prevailing road conditions and legal speed
limits permit. Otherwise, sudden and unex-
pected acceleration of the vehicle could
cause an accident and/or serious injury to
you and others.
iThe set speed value is increased in 1 mph
(Canada: 1 km/h) increments each time you lift
the cruise control lever up to the resistance
point.
ProCarManuals.com
Page 410 of 723
409 Controls in detail
Driving systems
Adjustment in 5 mph
(Canada: 10 km/h) increments
Briefly lift the cruise control lever up
past the resistance point in direction of
arrow1 (
page 406).
Release the cruise control lever.
The vehicle speed increases in incre-
ments of 5 mph (Canada: 10 km/h).Setting a lower speed
You can reduce the set speed in two ways.Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly press the cruise control lever
down to the resistance point in direc-
tion of arrow2 (
page 406).
Release the cruise control lever.
The vehicle speed decreases in incre-
ments of 1 mph (Canada: 1 km/h).
iThe set speed value is increased in 5 mph
(Canada: 10 km/h) increments each time you lift
the cruise control lever up past the resistance
point.
iThe new speed is set and the vehicle will ac-
celerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.
Warning!G
If you decrease the set speed, keep in mind
that it may take a brief moment until the ve-
hicle has reached the set speed.
Decelerate the set speed to a value that the
prevailing road conditions and legal speed
limits permit. Otherwise, sudden and unex-
pected deceleration of the vehicle could
cause an accident and/or serious injury to
you and others.
iWhen you use the cruise control lever to de-
celerate, the brake system will automatically
brake the vehicle if the engine’s braking power
does not brake the vehicle sufficiently.
iThe set speed value is decreased in 1 mph
(Canada: 1 km/h) increments each time you
press the cruise control lever down to the resis-
tance point.
ProCarManuals.com
