410 Controls in detail
Driving systems
Adjustment in 5 mph
(Canada: 10 km/h) increments
Briefly press the cruise control lever
down past the resistance point in
direction of arrow2 (
page 406).
Release the cruise control lever.
The vehicle speed decreases in incre-
ments of 5 mph (Canada: 10 km/h).Setting to last stored speed
(“Resume” function)
Briefly pull the cruise control lever in
direction of arrow4 (
page 406).
The cruise control resumes to the last
set speed, or if no speed is stored, it
will set and store the current speed.
Remove your foot from the accelerator
pedal.
The last set speed appears in the multi-
function display for approximately
5 seconds, and the corresponding
speedometer segments from the se-
lected speed to the vehicle maximum
speed are illuminated.
iThe set speed value is decreased in 5 mph
(Canada: 10 km/h) increments each time you
press the cruise control lever down past the re-
sistance point.
iThe new speed is set and the vehicle will de-
celerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.
Warning!G
The set speed stored in memory should only
be set again if prevailing road conditions
permit. Possible acceleration or decelera-
tion differences arising from returning to the
preset speed could cause an accident
and/or serious injury to you and others.
iThe last stored set speed is deleted when
the engine is turned off.
ProCarManuals.com
Page 412 of 723
411 Controls in detail
Driving systems
DISTRONIC Plus*
When activated, the DISTRONIC Plus adap-
tive cruise control system increases the
driving convenience afforded by the cruise
control while traveling on expressways and
other major roadways.
If the DISTRONIC Plus distance sensor
detects a slower moving vehicle direct-
ly ahead, your vehicle speed will be re-
duced so that you follow that vehicle at
your preset following distance.
If there is no vehicle directly ahead of
you, DISTRONIC Plus will function in
the same way as standard cruise con-
trol (
page 405).
DISTRONIC Plus functions within a speed
range of 0 to 120 mph
(Canada: 0 to 200 km/h).When travelling in Canada in a vehicle not
registered in Canada, you must switch off
the radar sensor system* (
page 272).
Canadian law does not permit the use of
the radar sensor system* (
page 272) for
vehicles from outside of Canada. When you
switch off the radar sensor system*, the
following functions are deactivated:
BAS Plus* (page 67)
DISTRONIC Plus
Park Assist* (page 435)
PRE-SAFE® Brake* (page 73)
Warning!G
DISTRONIC Plus is a convenience system.
Its speed adjustment reduction capability is
intended to make the cruise control more ef-
fective and usable when traffic speeds vary.
It is not however, intended to, nor does it, re-
place the need for extreme care. The re-
sponsibility for the vehicle speed and the
distance to the vehicle ahead, including
most importantly brake operation to assure
safe stopping distance, always remains with
the driver.
DISTRONIC Plus cannot take street and traf-
fic conditions into account.
Complex driving situations are not always
fully recognized by DISTRONIC Plus. This
could result in wrong or missing distance
warnings.
ProCarManuals.com
Page 413 of 723
412 Controls in detail
Driving systems
Warning!G
DISTRONIC Plus adaptive cruise control is
no substitute for active driving involvement.
It does not react to pedestrians or stationary
objects, nor does it recognize or predict the
curvature and lane layout or the movement
of vehicles ahead. DISTRONIC Plus can only
apply a maximum of 40% of the vehicle’s
braking power.
DISTRONIC Plus may not detect narrow ve-
hicles possibly driving in front of you, such
as motorcycles and vehicles driving in an
offset formation.
It is the driver’s responsibility at all times to
be attentive to road, weather and traffic con-
ditions and to provide the steering, braking
and other driving inputs necessary to retain
control of the vehicle.
High-frequency sources such as toll sta-
tions, speed measuring systems etc. can
cause the DISTRONIC Plus system to tem-
porarily cease functioning.
Warning!G
DISTRONIC Plus requires familiarity with its
operational characteristics. We strongly rec-
ommend that you review the following infor-
mation carefully before operating the
system.
Warning!G
DISTRONIC Plus cannot take street and traf-
fic conditions into account. Only use
DISTRONIC Plus if the road, weather and
traffic conditions make it advisable to travel
at a steady speed.
Warning!G
Use of DISTRONIC Plus can be dangerous
on slippery roads. Rapid changes in tire trac-
tion can result in wheel spin and loss of con-
trol.
DISTRONIC Plus does not act upon adverse
sight distance conditions. Do not use
DISTRONIC Plus during conditions of fog
and heavy rain, snow or sleet.
Warning!G
DISTRONIC Plus cannot take weather condi-
tions into account. Switch off
DISTRONIC Plus or do not turn it on if:
roads are slippery or covered with snow
or ice. The wheels could lose traction
while braking or accelerating, and the
vehicle could skid.
the sensor is dirty or visibility is
diminished due to snow, rain or fog. The
distance control could be impaired.
Always pay attention to traffic conditions
even while DISTRONIC Plus is switched on.
Otherwise, you may not be able to recognize
dangerous situations until it is too late and
could cause an accident resulting in person-
al or fatal injury to you or others.
ProCarManuals.com
Page 414 of 723
413 Controls in detail
Driving systems
Warning!G
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.
Warning!G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not DISTRONIC Plus is activated.
Use of DISTRONIC Plus can be dangerous
on winding roads as conditions do not allow
safe driving at a steady speed.
DISTRONIC Plus may not react to stationary
objects in the roadway (e.g. a stopped vehi-
cle in a traffic jam or a disabled vehicle).
DISTRONIC Plus will also not respond to on-
coming vehicles.
Switch off DISTRONIC Plus:
when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane
when entering a turn lane or highway off
ramp
in complex driving situations, such as in
highway construction zones
In these situations, DISTRONIC Plus will
continue to maintain the set speed unless
deactivated.
DISTRONIC Plus is designed and intended
only to maintain a set speed and keep a set
distance from moving objects in front of it.
iDo not use DISTRONIC Plus if you are driv-
ing on a road with steep uphill or downhill slopes.
iDue to its radar-emitting nature DISTRONIC
Plus may have an appearance similar to a radar
detector to law enforcement officials. You may
want to refer to this section of your Operator’s
Manual when asked.
iUSA only:
This device has been approved by the FCC as a
“Vehicular Radar System”. The radar sensor is
intended for use in an automotive radar system
only. Removal, tampering, or altering of the de-
vice will void any warranties, and is not permitted
by the FCC. Do not tamper with, alter, or use in
any non-approved way.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
ProCarManuals.com
Page 415 of 723
414 Controls in detail
Driving systems
DISTRONIC Plus displays in multifunc-
tion display
1Speed of the vehicle ahead
2Set speed
3Distance warning lamp
If DISTRONIC Plus is activated, the
marker2 indicates the set speed.When DISTRONIC Plus detects a vehicle
driving ahead of you, the ring on the speed-
ometer dial comes on between the speed
of the vehicle ahead of you and set
speed2.
If DISTRONIC Plus calculates that there is
a danger of collision:
The distance warning lampl in the
instrument cluster comes on.
An intermittent warning sounds.
Immediately apply the brake to avoid a
collision.
Under no circumstances should the
driver await the intermittent warning
sound before braking. See the follow-
ing warning note.
The intermittent warning sound ceases
and the distance warning lampl
goes out when the necessary distance
to the vehicle ahead is again
established.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Removal, tampering, or altering of the device will
void any warranties, and is not permitted. Do not
tamper with, alter, or use in any non-approved
way.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iThe vehicle speed displayed on the speed-
ometer can briefly vary from the speed setting
on the DISTRONIC Plus system.
ProCarManuals.com
Page 416 of 723

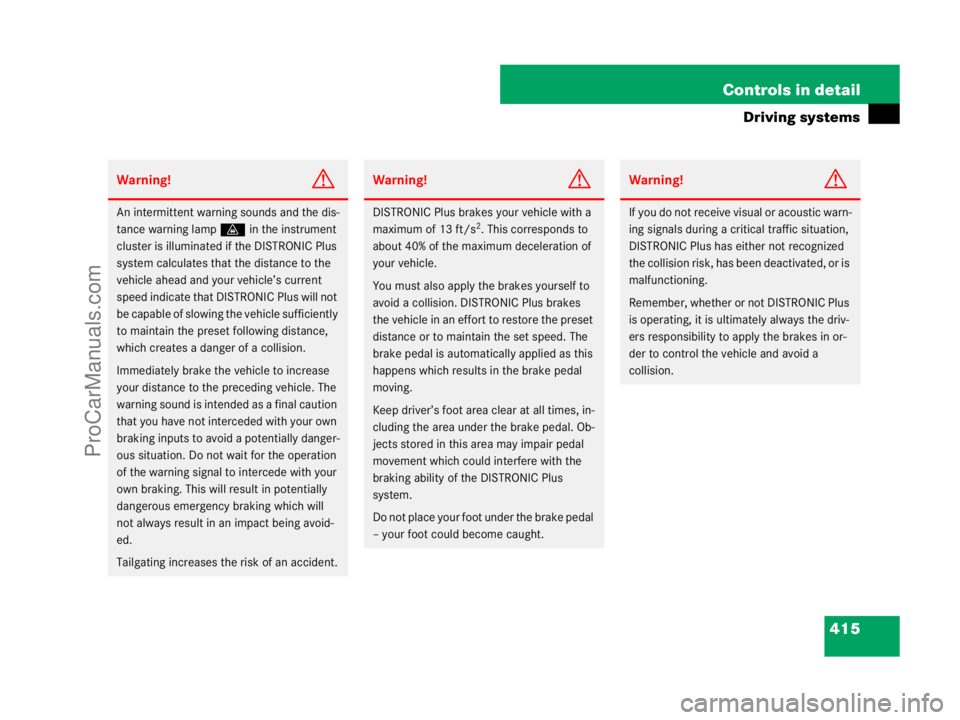

415 Controls in detail
Driving systems
Warning!G
An intermittent warning sounds and the dis-
tance warning lampl in the instrument
cluster is illuminated if the DISTRONIC Plus
system calculates that the distance to the
vehicle ahead and your vehicle’s current
speed indicate that DISTRONIC Plus will not
be capable of slowing the vehicle sufficiently
to maintain the preset following distance,
which creates a danger of a collision.
Immediately brake the vehicle to increase
your distance to the preceding vehicle. The
warning sound is intended as a final caution
that you have not interceded with your own
braking inputs to avoid a potentially danger-
ous situation. Do not wait for the operation
of the warning signal to intercede with your
own braking. This will result in potentially
dangerous emergency braking which will
not always result in an impact being avoid-
ed.
Tailgating increases the risk of an accident.
Warning!G
DISTRONIC Plus brakes your vehicle with a
maximum of 13 ft/s2. This corresponds to
about 40% of the maximum deceleration of
your vehicle.
You must also apply the brakes yourself to
avoid a collision. DISTRONIC Plus brakes
the vehicle in an effort to restore the preset
distance or to maintain the set speed. The
brake pedal is automatically applied as this
happens which results in the brake pedal
moving.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the DISTRONIC Plus
system.
Do not place your foot under the brake pedal
– your foot could become caught.
Warning!G
If you do not receive visual or acoustic warn-
ing signals during a critical traffic situation,
DISTRONIC Plus has either not recognized
the collision risk, has been deactivated, or is
malfunctioning.
Remember, whether or not DISTRONIC Plus
is operating, it is ultimately always the driv-
ers responsibility to apply the brakes in or-
der to control the vehicle and avoid a
collision.
ProCarManuals.com
Page 417 of 723
416 Controls in detail
Driving systems
Displaying the distance graphic
In the “Assistance” menu under “Distance
display” you see the current settings for
DISTRONIC Plus. The information shown in
the multifunction display depends on
whether DISTRONIC Plus is activated or
deactivated.
Press ( or & to select the
“Assistance” menu.
Press % or $ to select the
“Distance display” function.
Press #.
The DISTRONIC Plus distance graphic
appears and you will see one of the fol-
lowing displays on the multifunction
display.DISTRONIC Plus activated
When you turn DISTRONIC Plus on, you will
see the set speed in the multifunction dis-
play for about 5 seconds. You then see the
following display in the multifunction dis-
play.
1DISTRONIC Plus activated
2Your vehicle
3Preset distance threshold to the
preceding vehicle
4Preceding vehicle, if detectedDISTRONIC Plus deactivated
If DISTRONIC Plus is deactivated, the stan-
dard display of DISTRONIC Plus appears in
the multifunction display.
1Preceding vehicle, if detected
2Actual distance to the preceding
vehicle
3Preset distance threshold to the
preceding vehicle
4Your vehicle
DISTRONIC Plus lever
The DISTRONIC Plus system is operated by
means of the DISTRONIC Plus lever.
iFor activating or deactivating the
DISTRONIC Plus system, see “Activating
DISTRONIC Plus” (
page 417) or “Deactivating
DISTRONIC Plus” (
page 423).
iThe menu overview can be found on
(
page 258).
ProCarManuals.com
Page 418 of 723
417 Controls in detail
Driving systems
1Setting current or higher speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
2Setting current or lower speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
3Canceling DISTRONIC Plus
4Activating DISTRONIC Plus or resum-
ing to last set speed
5Setting target distanceActivating DISTRONIC PlusYou can activate DISTRONIC Plus when:
you are driving slower than 20 mph
(30 km/h) and DISTRONIC Plus has
detected a vehicle ahead of you
you are driving above 20 mph
(30 km/h)
If DISTRONIC Plus has not been activated
after pressing the DISTRONIC Plus lever,
you will see the message: “DISTRONIC
PLUS- - -” in the multifunction display.
Warning!G
When DISTRONIC Plus is braking, the brake
pedal is retracted (i.e. depressed automati-
cally). The pedals’ range of motion must not
be impeded by any obstacles:
Do not place any objects in the footwell.
Make sure that the floor mats and car-
pets are securely in place.
Do not rest your foot underneath the
brake pedal, as it could otherwise be
trapped.
You could otherwise cause an accident and
injure yourself and others.
Warning!G
When DISTRONIC Plus is switched on, the
vehicle can be braked. You should therefore
switch off DISTRONIC Plus if the vehicle
must be towed.
iThe maximum speed you can set is 120 mph
(Canada: 200 km/h).
ProCarManuals.com
Page 419 of 723
418 Controls in detail
Driving systems
In the following cases you cannot activate
DISTRONIC Plus:
up to 2 minutes after starting the en-
gine
if the engine is switched off
if you step on the brake pedal while
driving
the vehicle is secured with the elec-
tronic parking brake
if the gear selector lever is in
positionP, R, or N
if ESP® is switched off
if the hood is open
if the driver’s door is open and the driv-
er has not fastened his or her seat belt
if the radar sensors are switched off
(
page 272).Switching on while driving
Tap DISTRONIC Plus lever up1 or
down2 until desired speed is set.
DISTRONIC Plus is switched on.
or
Pull DISTRONIC Plus lever briefly in di-
rection of arrow4 to call up speed
last set (
page 423).
DISTRONIC Plus is switched on.
Take your foot off the accelerator ped-
al.
Your vehicle adapts its speed to the ve-
hicle ahead, observing the set speed as
a maximum value.
iUnder 20 mph (30 km/h), you can only
switch on DISTRONIC Plus if the vehicle ahead of
you has been detected and is shown on the mul-
tifunction display. If you no longer see the vehi-
cle in front of you on the multifunction display
and if it is no longer detected because it has
changed lanes, for example, DISTRONIC Plus
switches off and you will hear a signal.
iIf you do not completely lift your foot off the
accelerator pedal, the message
“DISTRONIC PLUS override” appears on the mul-
tifunction display. The distance to a slower-driv-
ing vehicle will not be set. You will drive at the
speed you dictate by pressing the accelerator
pedal.
ProCarManuals.com
Page 420 of 723
419 Controls in detail
Driving systems
Switching on when approaching a
stationary vehicle
If the vehicle in front of you is stationary,
you can only switch on DISTRONIC Plus if
your vehicle is also at a standstill.
Tap DISTRONIC Plus lever up1 or
down2 until desired speed is set.
DISTRONIC Plus is switched on.
or
Pull DISTRONIC Plus lever briefly in di-
rection of arrow4 to call up speed
last set (
page 423).
DISTRONIC Plus is switched on.Starting off
When the vehicle in front of you starts off:
Remove your foot from the brake
pedal.
Pull DISTRONIC Plus lever briefly in di-
rection of arrow4.
or
Briefly step on the accelerator pedal.
Your vehicle starts off and adapts its speed
to the vehicle in front of you.Driving
If no vehicle is driving ahead of you,
DISTRONIC Plus functions like the cruise
control (
page 405).
When DISTRONIC Plus detects that the ve-
hicle in front of you is driving more slowly,
it brakes the vehicle in order to keep the
distance specified by you.
When DISTRONIC Plus detects that the ve-
hicle in front of you is driving faster, the ve-
hicle accelerates up to the set speed.
iIt is helpful to switch on the DISTRONIC Plus
display in the instrument cluster (
page 416)
since you can only switch on DISTRONIC Plus un-
d e r a s p e e d o f 2 0 m p h ( 3 0 k m / h ) w h e n a v e h i c l e
has been detected in front of you.
iYou can adjust the set speed using the
DISTRONIC Plus lever and the target distance
using the distance setting switch on the
DISTRONIC Plus lever (
page 425).
iIf DISTRONIC Plus is switched off,
PRE-SAFE® Brake* (page 73) will warn of an
impending collision if this function has been
activated with the instrument cluster control
system (
page 268).
Warning!G
When you step on the brake pedal, you
switch off DISTRONIC Plus except when the
vehicle is at a standstill. DISTRONIC Plus will
no longer brake your vehicle. You are always
responsible for maintaining a distance from
other vehicles, observing road speeds and
braking well in advance.
ProCarManuals.com
