MERCEDES-BENZ CL-CLASS 2007 Owners Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2007, Model line: CL-CLASS, Model: MERCEDES-BENZ CL-CLASS 2007Pages: 723, PDF Size: 19.87 MB
Page 391 of 723
390 Controls in detail
Automatic transmission
Shifting from P to N
Moving the gear selector lever up or down
shifts the automatic transmission out of
park positionP:
With the vehicle at a standstill, depress
the brake pedal and keep it pressed.
Move gear selector lever up or down to
resistance point to select neutral
positionN.Shifting from N to R or from N to D
With the vehicle at a standstill, depress
the brake pedal and keep it pressed.
Move gear selector lever up past the
resistance point to select reverse
gearR.
or
Move gear selector down past the
resistance point to select drive
positionD.
Release the brake pedal.
Carefully depress the accelerator pedal
to drive off when it is safe to do so.
iThe current transmission positionP, R, N
orD appears in the instrument cluster
(
page 393).
Warning!G
It is dangerous to shift the automatic trans-
mission out of park positionP or neutral
positionN if the engine speed is higher than
idle speed. If your foot is not firmly on the
brake pedal, the vehicle could accelerate
quickly forward or reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the
engine is idling normally and when your right
foot is firmly on the brake pedal.
iThe gear selector lever returns to its original
position.
iThe gear selector lever returns to its original
position.
iWhen driving off, the electronic parking
brake is released automatically (
page 384).
ProCarManuals.com
Page 392 of 723
391 Controls in detail
Automatic transmission
Shifting from P to R
With the vehicle at a standstill, depress
the brake pedal and keep it pressed.
Move gear selector lever up past the
resistance point to select reverse
gearR.
Release the brake pedal.
Carefully depress the accelerator pedal
to drive off when it is safe to do so.Shifting from P to D
With the vehicle at a standstill, depress
the brake pedal and keep it pressed.
Move gear selector lever down past the
resistance point to select drive
positionD.
Release the brake pedal.
Carefully depress the accelerator pedal
to drive off when it is safe to do so.Shifting from D, R, or N to P
If you want to select park positionP with
the transmission being in drive positionD,
reverse gearR or neutral positionN:
With the vehicle at a standstill, depress
the brake pedal and keep it pressed.
Press the handle for electronic parking
brake (
page 384).
Press button on gear selector lever in
direction of arrow (
page 389) to se-
lect park positionP.
Release the brake pedal.
iThe gear selector lever returns to its original
position.
iWhen driving off, the electronic parking
brake is released automatically (
page 384).
iThe gear selector lever returns to its original
position.
iWhen driving off, the electronic parking
brake is released automatically (
page 384).!Shift the automatic transmission directly
from drive positionD to reverse gearR, from
reverse gearR to drive positionD or directly to
park positionP only when the vehicle is stopped.
Otherwise the automatic transmission could be
damaged.
When trying to free a vehicle stuck in mud or
snow, see “Rocking the vehicle” (
page 397).
ProCarManuals.com
Page 393 of 723
392 Controls in detail
Automatic transmission
Shifting from D or R to N
If you want to select neutral positionN
with the transmission being in drive
positionD or reverse gearR:
With the vehicle at a standstill, depress
the brake pedal and keep it pressed.
Press the handle for electronic parking
brake (
page 384).
Move gear selector lever up to resis-
tance point when in drive position D or
down to resistance point when in
reverse gear R to select neutral
positionN.
Release the brake pedal.
Shifting procedure
The automatic transmission selects indi-
vidual gears automatically, depending on:
drive positionD(page 393) with
gear ranges (
page 398)
the selected program mode (C/S)
(
page 399)
the position of the accelerator pedal
(
page 396)
the vehicle speedWith drive positionD selected, you can use
the steering wheel gearshift control
buttons (page 400) to influence trans-
mission shifting by:
limiting the gear range
changing gears manually
iWhen the vehicle needs to be moved with
the engine switched off and the transmission set
to neutral positionN ((
page 393), do not press
the handle for electronic parking brake.
!Allow engine to warm up under low load use.
Do not place full load on the engine until the op-
erating temperature has been reached.
Shift into reverse gearR or park positionP only
when the vehicle is stopped.
Avoid spinning of a drive wheel for an extended
period when driving off on slippery road
surfaces. This may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
ProCarManuals.com
Page 394 of 723
393 Controls in detail
Automatic transmission

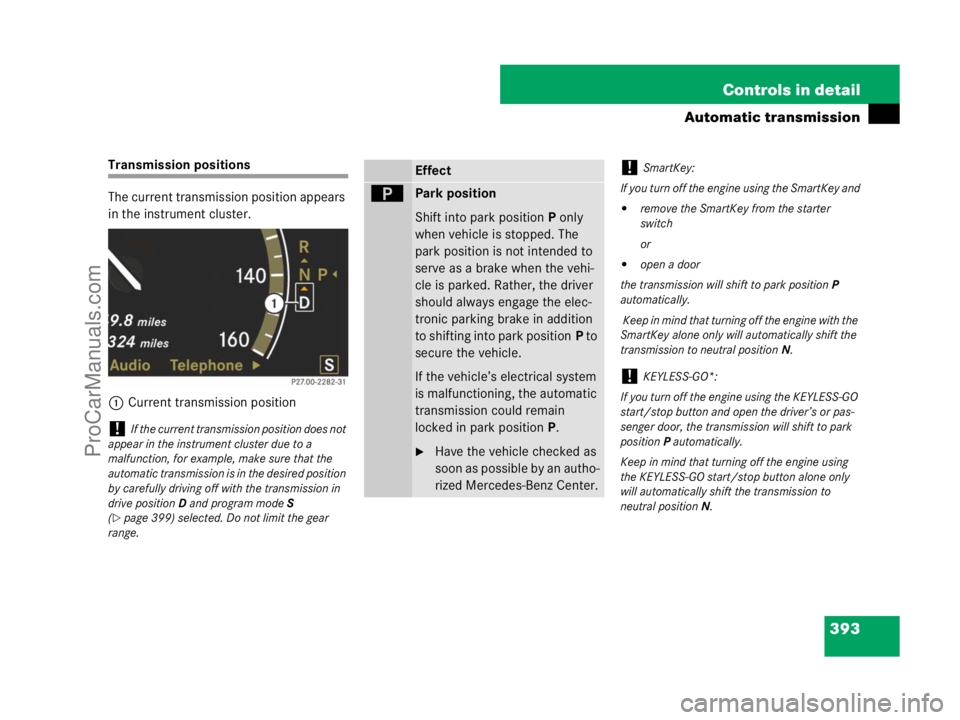

Transmission positions
The current transmission position appears
in the instrument cluster.
1Current transmission position
!If the current transmission position does not
appear in the instrument cluster due to a
malfunction, for example, make sure that the
automatic transmission is in the desired position
by carefully driving off with the transmission in
drive positionD and program modeS
(
page 399) selected. Do not limit the gear
range.
Effect
ìPark position
Shift into park positionP only
when vehicle is stopped. The
park position is not intended to
serve as a brake when the vehi-
cle is parked. Rather, the driver
should always engage the elec-
tronic parking brake in addition
to shifting into park positionP to
secure the vehicle.
If the vehicle’s electrical system
is malfunctioning, the automatic
transmission could remain
locked in park positionP.
Have the vehicle checked as
soon as possible by an autho-
rized Mercedes-Benz Center.
!SmartKey:
If you turn off the engine using the SmartKey and
remove the SmartKey from the starter
switch
or
open a door
the transmission will shift to park positionP
automatically.
Keep in mind that turning off the engine with the
SmartKey alone only will automatically shift the
transmission to neutral positionN.
!KEYLESS-GO*:
If you turn off the engine using the KEYLESS-GO
start/stop button and open the driver’s or pas-
senger door, the transmission will shift to park
positionP automatically.
Keep in mind that turning off the engine using
the KEYLESS-GO start/stop button alone only
will automatically shift the transmission to
neutral positionN.
ProCarManuals.com
Page 395 of 723
394 Controls in detail
Automatic transmission
If you want the gear position to remain in
neutral positionN, e.g. when taking the
vehicle through an automatic conveyor
type car wash or when towing the vehicle,
observe the following instructions.
!DISTRONIC Plus*:
The transmission will shift to park positionP
automatically, only when DISTRONIC Plus brings
your vehicle to a standstill, and when it meets at
least one of the following conditions at the same
time:
the engine is turned off
the driver’s or passenger door opens and the
seat belt is not engaged in the buckle
In addition to shifting to park positionP, the
electronic parking brake will be engaged auto-
matically.
iMake it a practice to always shift into park
positionP before turning off the engine and
remove the SmartKey from the starter
switch
or
open a door
or when using KEYLESS-GO*, before turning off
the engine with the start/stop button and open-
ing the driver’s or passenger door.

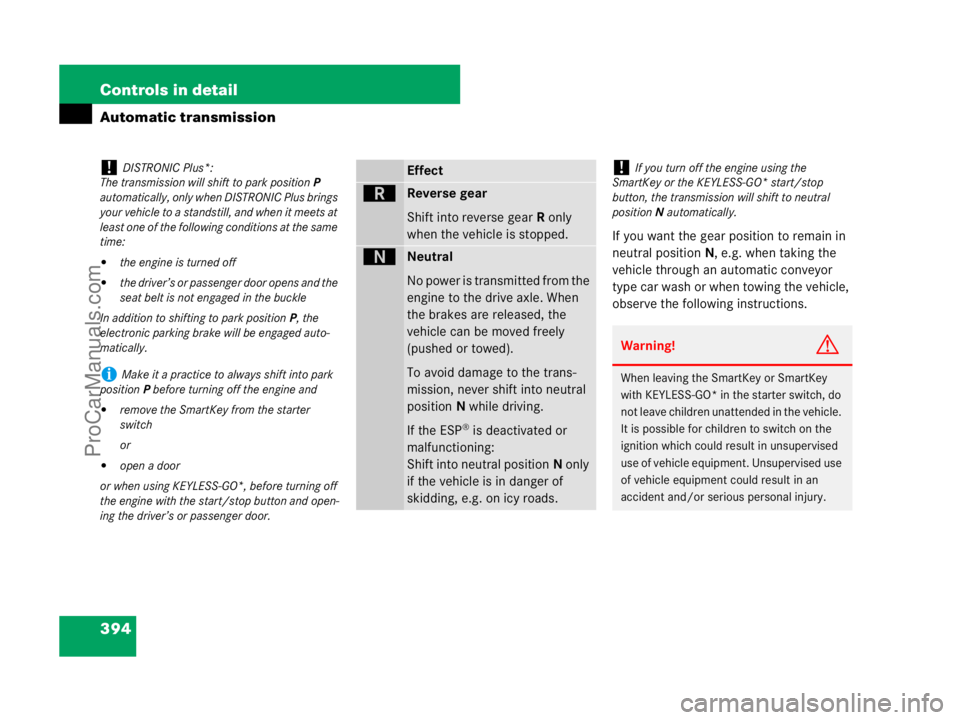

Effect
íReverse gear
Shift into reverse gearR only
when the vehicle is stopped.
ëNeutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the
vehicle can be moved freely
(pushed or towed).
To avoid damage to the trans-
mission, never shift into neutral
positionN while driving.
If the ESP
® is deactivated or
malfunctioning:
Shift into neutral positionN only
if the vehicle is in danger of
skidding, e.g. on icy roads.
!If you turn off the engine using the
SmartKey or the KEYLESS-GO* start/stop
button, the transmission will shift to neutral
positionN automatically.
Warning!G
When leaving the SmartKey or SmartKey
with KEYLESS-GO* in the starter switch, do
not leave children unattended in the vehicle.
It is possible for children to switch on the
ignition which could result in unsupervised
use of vehicle equipment. Unsupervised use
of vehicle equipment could result in an
accident and/or serious personal injury.
ProCarManuals.com
Page 396 of 723
395 Controls in detail
Automatic transmission
Vehicles with SmartKey:
With the vehicle at a standstill and the
ignition switched on shift the
automatic transmission to neutral
positionN.
If engaged, manually release the
electronic parking brake (
page 385).
Switch off the ignition and leave the
SmartKey in the starter switch.
Vehicles with KEYLESS-GO*:
With the vehicle at a standstill, depress
the brake pedal and keep it pressed.
With the ignition switched on shift the
automatic transmission to park
positionP.
Release the brake pedal.
Remove the KEYLESS-GO start/stop
button from the starter switch
(
page 337).
Insert the SmartKey with KEYLESS-GO
into the starter switch.
Switch on the ignition.
Depress the brake pedal.
Shift the automatic transmission to
neutral positionN.
Release the brake pedal.
If engaged, manually release the
electronic parking brake (
page 385).
Switch off the ignition and leave the
SmartKey with KEYLESS-GO in the
starter switch.
!Coasting the vehicle, or driving for any other
reason in neutral positionN can result in trans-
mission damage that is not covered by the
Mercedes-Benz Limited Warranty.

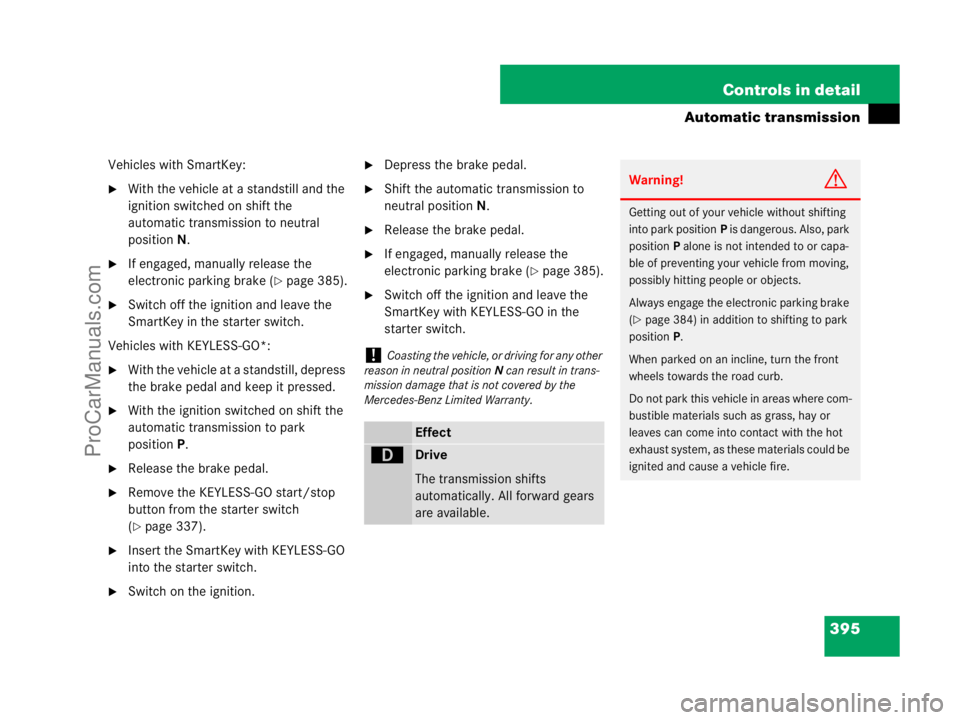

Effect
êDrive
The transmission shifts
automatically. All forward gears
are available.
Warning!G
Getting out of your vehicle without shifting
into park positionP is dangerous. Also, park
positionP alone is not intended to or capa-
ble of preventing your vehicle from moving,
possibly hitting people or objects.
Always engage the electronic parking brake
(
page 384) in addition to shifting to park
positionP.
When parked on an incline, turn the front
wheels towards the road curb.
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
ProCarManuals.com
Page 397 of 723
396 Controls in detail
Automatic transmission
Driving tips
Accelerator position
Your driving style influences the
transmission’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
Depending on the engine speed the
transmission shifts into a lower gear.
Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.Stopping
When you stop briefly, e.g. at traffic lights:
Leave the transmission in gear.
Hold the vehicle with the brake.
When you stop for a longer period of time
with the engine idling and/or on a hill:
Engage the electronic parking brake.
Shift into park positionP.
Maneuvering
When you maneuver in tight areas,
e.g. when pulling into a parking space:
Control the vehicle speed by gradually
releasing the brakes.
Accelerate gently.
Never abruptly step on the accelerator.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could shift the
automatic transmission out of park
positionP, which could result in an accident
and/or serious personal injury.
ProCarManuals.com
Page 398 of 723

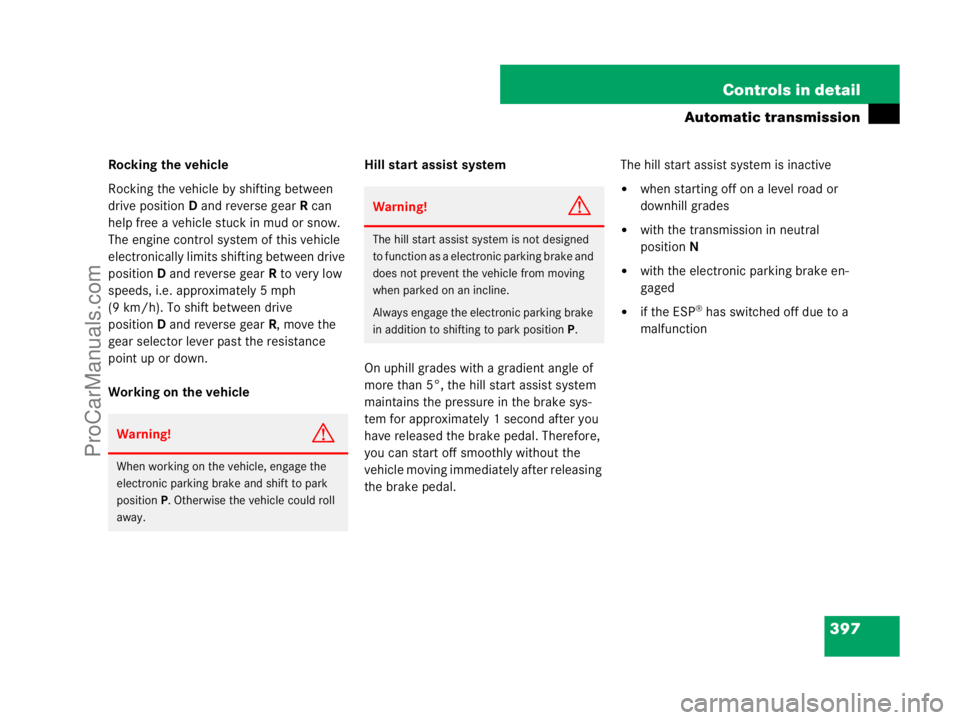

397 Controls in detail
Automatic transmission
Rocking the vehicle
Rocking the vehicle by shifting between
drive positionD and reverse gearR can
help free a vehicle stuck in mud or snow.
The engine control system of this vehicle
electronically limits shifting between drive
positionD and reverse gearR to very low
speeds, i.e. approximately 5 mph
(9 km/h). To shift between drive
positionD and reverse gearR, move the
gear selector lever past the resistance
point up or down.
Working on the vehicleHill start assist system
On uphill grades with a gradient angle of
more than 5°, the hill start assist system
maintains the pressure in the brake sys-
tem for approximately 1 second after you
have released the brake pedal. Therefore,
you can start off smoothly without the
vehicle moving immediately after releasing
the brake pedal.The hill start assist system is inactive
when starting off on a level road or
downhill grades
with the transmission in neutral
position N
with the electronic parking brake en-
gaged
if the ESP® has switched off due to a
malfunction
Warning!G
When working on the vehicle, engage the
electronic parking brake and shift to park
positionP. Otherwise the vehicle could roll
away.
Warning!G
The hill start assist system is not designed
to function as a electronic parking brake and
does not prevent the vehicle from moving
when parked on an incline.
Always engage the electronic parking brake
in addition to shifting to park positionP.
ProCarManuals.com
Page 399 of 723
398 Controls in detail
Automatic transmission
Gear ranges
With the automatic transmission in drive
positionD and driving in program mode C
or S (
page 399), you can select a gear
range for the automatic transmission to
operate within.
You can limit the gear range by pressing
the left gearshift button on the steering
wheel gearshift control, and reverse the
gear range limit by pressing the right gear-
shift button on the steering wheel gearshift
control (
page 400).The selected gear range appears in the in-
strument cluster.
1Current gear range
Effect
ïThe transmission shifts through
sixth gear only (applies to
vehicles with 7-speed automatic
transmission only).
îThe transmission shifts through
fifth gear only (applies to
vehicles with 7-speed automatic
transmission only).
éThe transmission shifts through
fourth gear only.
Effect
èThe transmission shifts through
third gear only.
With this selection you can use
the braking effect of the engine.
çThe transmission shifts through
second gear only.
Allows the use of engine’s
braking power when driving:
on steep downgrades
in mountainous regions
under extreme operating
conditions
æThe transmission operates in
first gear only.
For maximum use of engine’s
braking effect on very steep or
lengthy downgrades.
ProCarManuals.com
Page 400 of 723
399 Controls in detail
Automatic transmission
Automatic shift program
The program mode selector switch is used
to adjust
shift program
suspension tuning of ABC (page 429)
engine control
Program mode selector switch
C Comfort For comfort driving
S Sport For standard drivingThe selected program mode appears in the
instrument cluster.
1Current program mode
Press the program mode selector
switch repeatedly until the letter of the
desired program mode appears in the
instrument cluster.
SelectC for comfort driving:
The vehicle starts out in second
gear (both forward and reverse) for
gentler starts. This does not apply if
full throttle is applied or gear
range1 is selected.
Traction and driving stability are
improved on icy roads.
Upshifts occur earlier even when
you give more gas. The engine then
operates at lower rpms and the
wheels are less likely to spin.
SelectS for standard driving:
The vehicle starts out in first gear.
Upshifts occur later.
!Never change the program mode when the
automatic transmission is out of park positionP.
This could result in a change of driving character-
istics for which you may not be prepared.
iThe last selected program mode (CorS) is
switched on when the engine is restarted.
ProCarManuals.com
