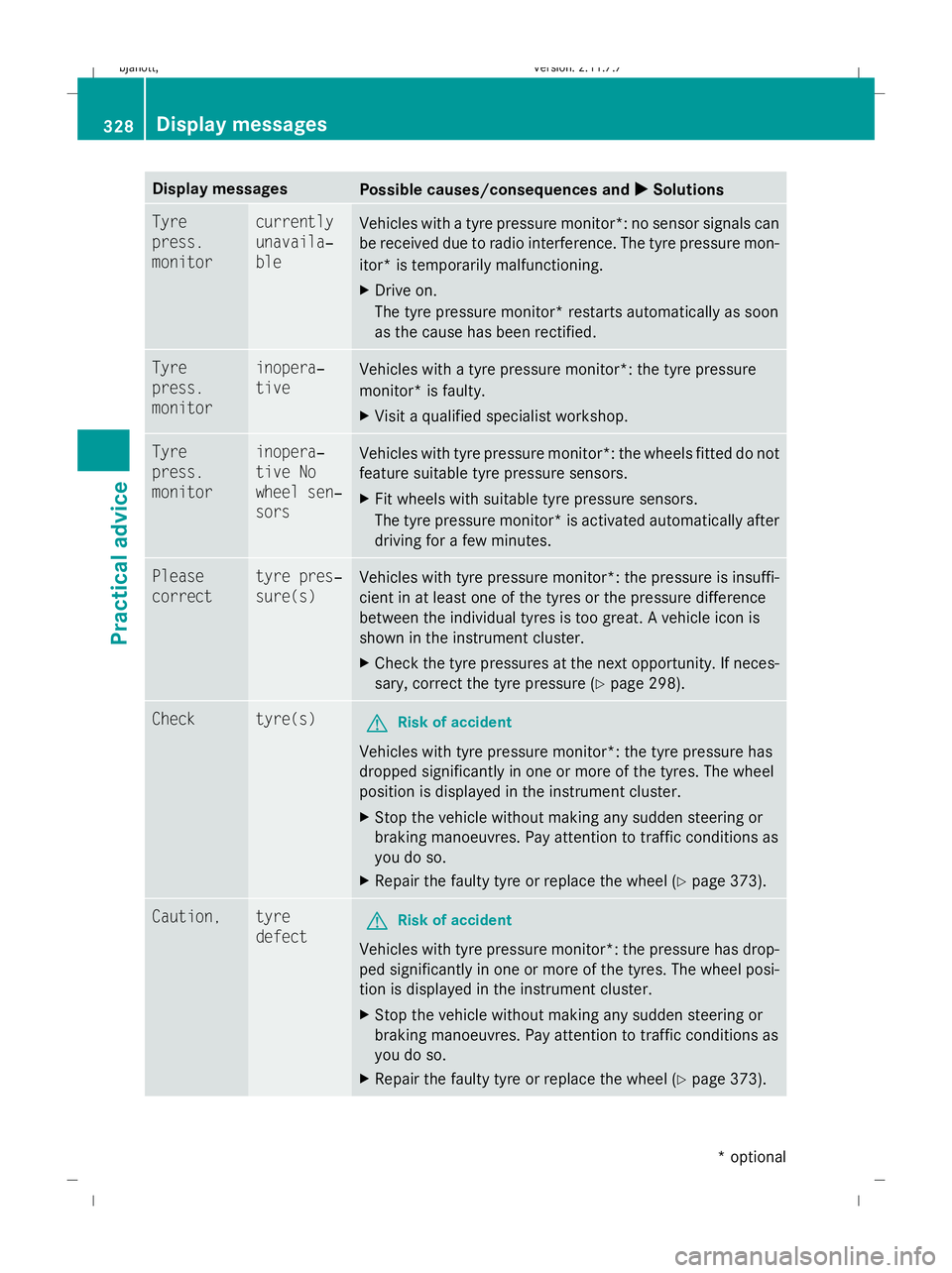

Display messages
Possible causes/consequences and
X
X Solutions Tyre
press.
monitor currently
unavaila‐
ble
Vehicles with a tyre pressure monitor*: no sensor signals can
be received due to radio interference. The tyre pressure mon-
itor* is temporarily malfunctioning.
X
Drive on.
The tyre pressure monitor* restarts automatically as soon
as the cause has been rectified. Tyre
press.
monitor inopera‐
tive
Vehicles with a tyre pressure monitor*: the tyre pressure
monitor* is faulty.
X
Visit a qualified specialist workshop. Tyre
press.
monitor inopera‐
tive No
wheel sen‐
sors
Vehicles with tyre pressure monitor*: the wheels fitted do not
feature suitable tyre pressure sensors.
X
Fit wheels with suitable tyre pressure sensors.
The tyre pressure monitor* is activated automatically after
driving for a few minutes. Please
correct tyre pres‐
sure(s)
Vehicles with tyre pressure monitor*: the pressure is insuffi-
cient in at least one of the tyres or the pressure difference
between the individual tyres is too great. A vehicle icon is
shown in the instrument cluster.
X
Check the tyre pressures at the next opportunity. If neces-
sary, correct the tyre pressure (Y page 298).Check tyre(s)
G
Risk of accident
Vehicles with tyre pressure monitor*: the tyre pressure has
dropped significantly in one or more of the tyres. The wheel
position is displayed in the instrument cluster.
X Stop the vehicle without making any sudden steering or
braking manoeuvres. Pay attention to traffic conditions as
you do so.
X Repair the faulty tyre or replace the wheel (Y page 373).Caution, tyre
defect
G
Risk of accident
Vehicles with tyre pressure monitor*: the pressure has drop-
ped significantly in one or more of the tyres. The wheel posi-
tion is displayed in the instrument cluster.
X Stop the vehicle without making any sudden steering or
braking manoeuvres. Pay attention to traffic conditions as
you do so.
X Repair the faulty tyre or replace the wheel (Y page 373).328
Display
messagesPractical advice
* optional
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 328
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:36; WK
Page 332 of 421
Display messages
Possible causes/consequences and
X

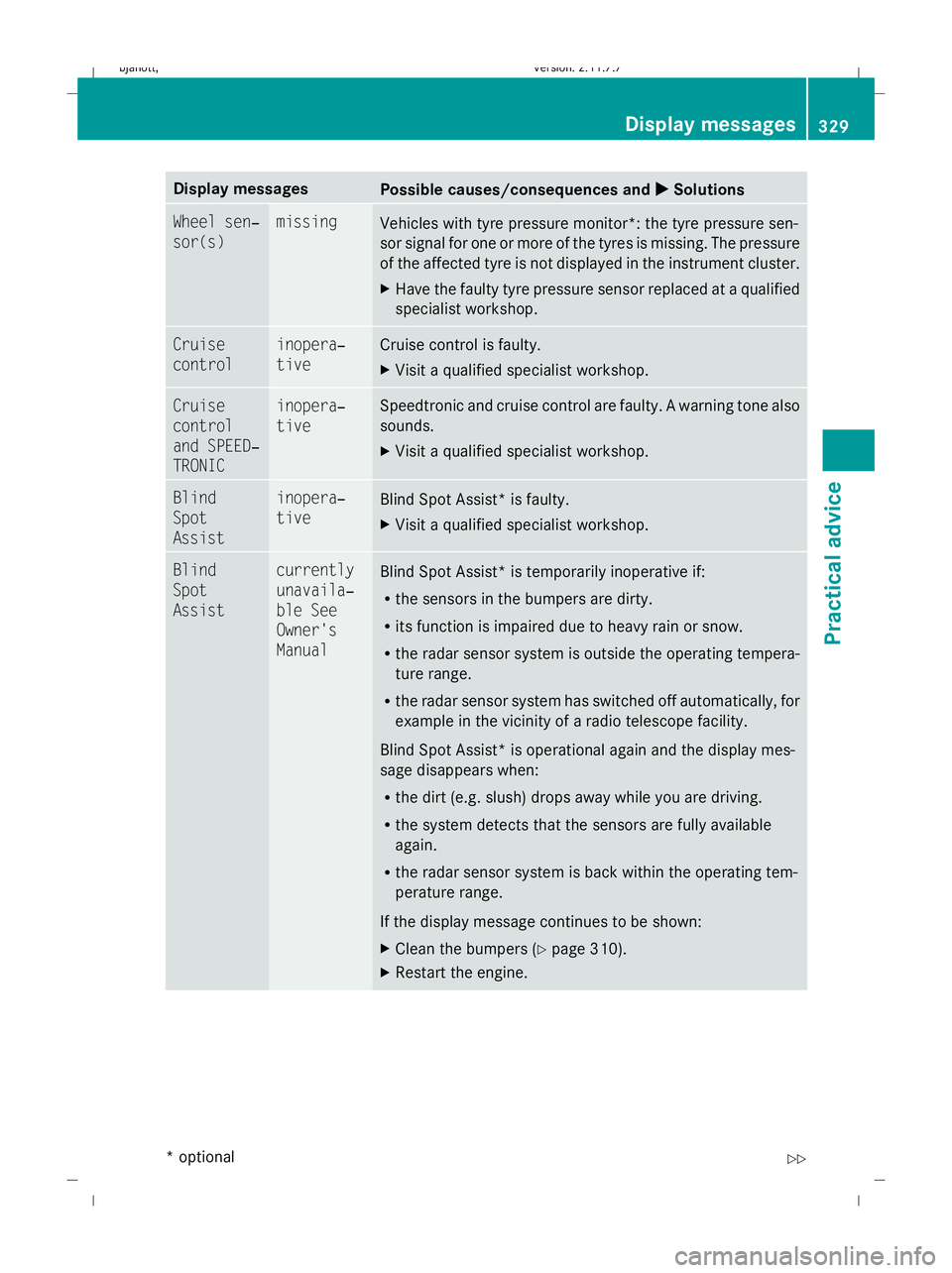

X Solutions Wheel sen‐
sor(s) missing
Vehicles with tyre pressure monitor*: the tyre pressure sen-
sor signal for one or more of the tyres is missing. The pressure
of the affected tyre is not displayed in the instrument cluster.
X
Have the faulty tyre pressure sensor replaced at a qualified
specialist workshop. Cruise
control inopera‐
tive Cruise control is faulty.
X
Visit a qualified specialist workshop. Cruise
control
and SPEED‐
TRONIC inopera‐
tive Speedtronic and cruise control are faulty. A warning tone also
sounds.
X
Visit a qualified specialist workshop. Blind
Spot
Assist inopera‐
tive
Blind Spot Assist* is faulty.
X
Visit a qualified specialist workshop. Blind
Spot
Assist currently
unavaila‐
ble See
Owner's
Manual
Blind Spot Assist* is temporarily inoperative if:
R
the sensors in the bumpers are dirty.
R its function is impaired due to heavy rain or snow.
R the radar sensor system is outside the operating tempera-
ture range.
R the radar sensor system has switched off automatically, for
example in the vicinity of a radio telescope facility.
Blind Spot Assist* is operational again and the display mes-
sage disappears when:
R the dirt (e.g. slush) drops away while you are driving.
R the system detects that the sensors are fully available
again.
R the radar sensor system is back within the operating tem-
perature range.
If the display message continues to be shown:
X Clean the bumpers (Y page 310).
X Restart the engine. Display
messages
329Practical advice
* optional
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 329 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:36; WK
Page 333 of 421
Display messages
Possible causes/consequences and
X
X Solutions Cruise
control
- - - km/h A condition for activating cruise control has not been met.
X
Activate ESP ®
(Y page 51)
X If conditions permit, drive faster than 30 km/h and store
the speed (Y page 227). The system has overheated.
X
Wait until the system has cooled down. Apply
brake to
shift out of posi‐
tion P
X
Depress the brake pedal. To start
the
engine, shift to
either P
or N You attempted to start the engine while transmission position
R
or Dwas selected.

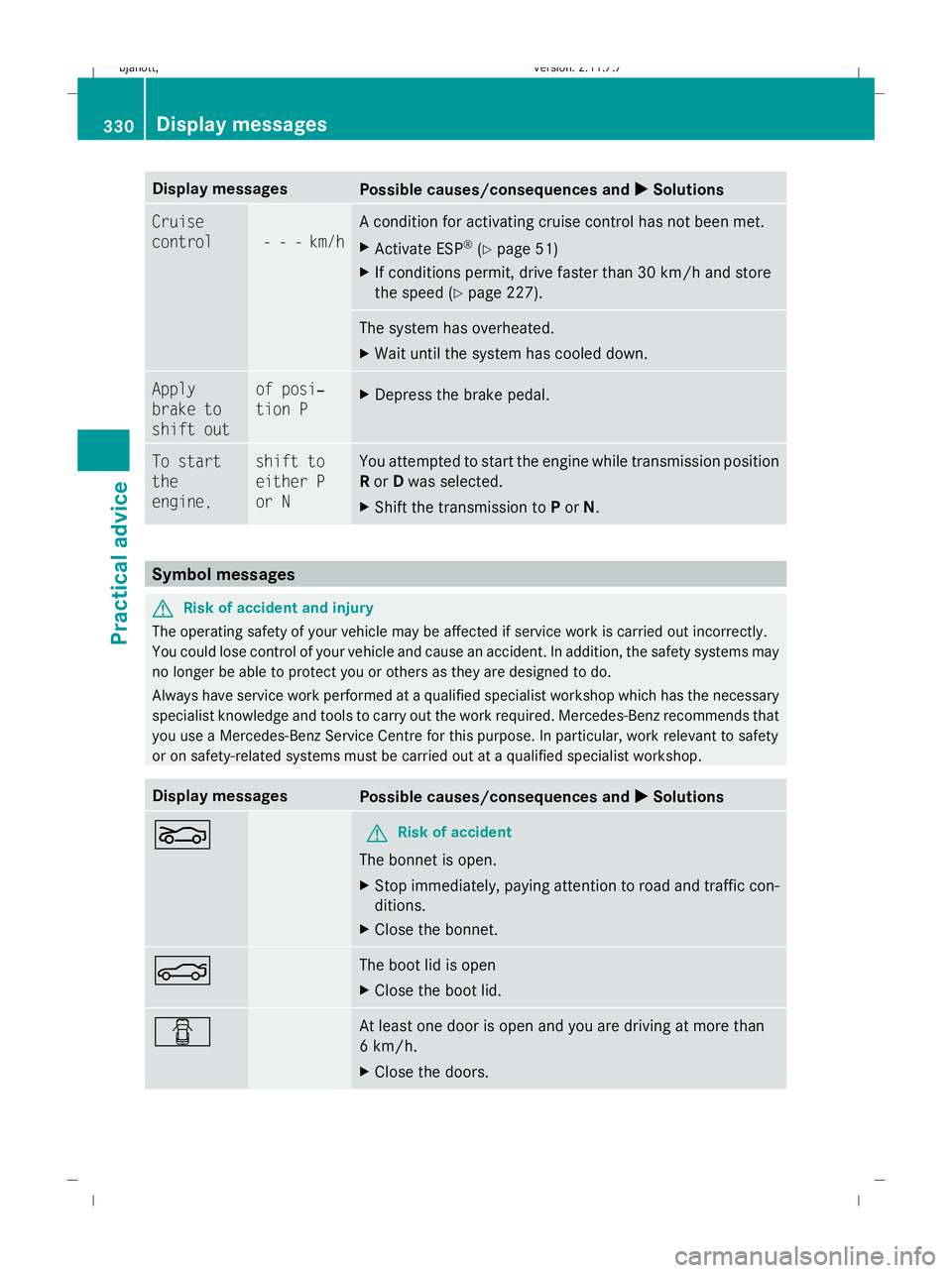

X Shift the transmission to Por N. Symbol messages
G
Risk of accident and injury
The operating safety of your vehicle may be affected if service work is carried out incorrectly.
You could lose control of your vehicle and cause an accident. In addition, the safety systems may
no longer be able to protect you or others as they are designed to do.
Always have service work performed at a qualified specialist workshop which has the necessary
specialist knowledge and tools to carry out the work required. Mercedes-Benz recommends that
you use a Mercedes-Benz Service Centre for this purpose. In particular, work relevant to safety
or on safety-related systems must be carried out at a qualified specialist workshop. Display messages
Possible causes/consequences and
X
X Solutions L G
Risk of accident
The bonnet is open.
X Stop immediately, paying attention to road and traffic con-
ditions.
X Close the bonnet. N The boot lid is open
X
Close the boot lid. C At least one door is open and you are driving at more than
6 km/h.
X
Close the doors. 330
Display
messagesPractical advice
216_AKB; 2; 3, en-GB
bjanott ,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 330
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:36; WK
Page 334 of 421

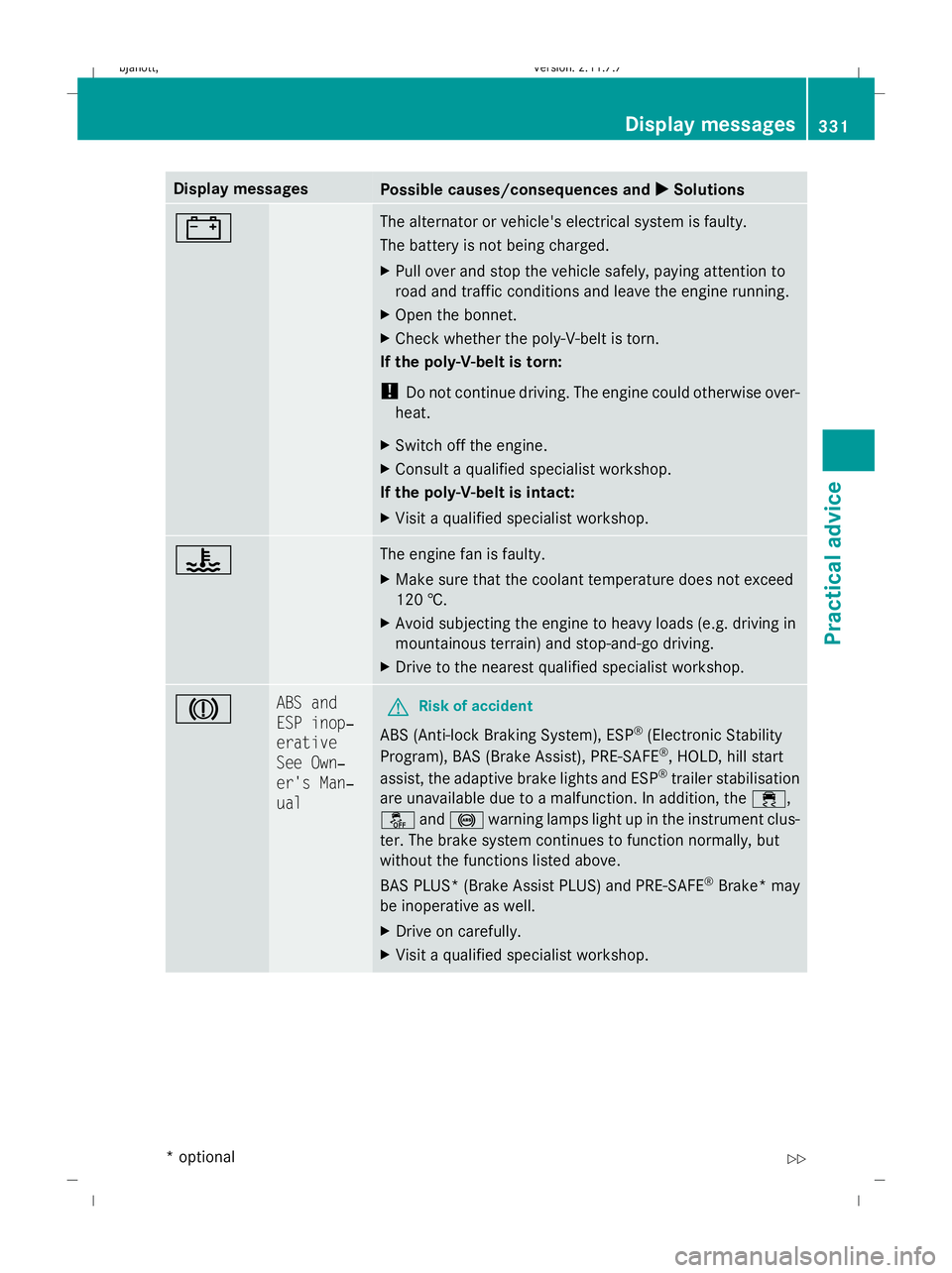

Display messages
Possible causes/consequences and
X
X Solutions # The alternator or vehicle's electrical system is faulty.
The battery is not being charged.
X
Pull over and stop the vehicle safely, paying attention to
road and traffic conditions and leave the engine running.
X Open the bonnet.
X Check whether the poly-V-belt is torn.
If the poly-V-belt is torn:
! Do not continue driving. The engine could otherwise over-
heat.
X Switch off the engine.
X Consult a qualified specialist workshop.
If the poly-V-belt is intact:
X Visit a qualified specialist workshop. ? The engine fan is faulty.
X
Make sure that the coolant temperature does not exceed
120 †.
X Avoid subjecting the engine to heavy loads (e.g. driving in
mountainous terrain) and stop-and-go driving.
X Drive to the nearest qualified specialist workshop. J ABS and
ESP inop‐
erative
See Own‐
er's Man‐
ual
G
Risk of accident
ABS (Anti-lock Braking System), ESP ®
(Electronic Stability
Program), BAS (Brake Assist), PRE-SAFE ®
, HOLD, hill start
assist, the adaptive brake lights and ESP ®
trailer stabilisation
are unavailable due to a malfunction. In addition, the ÷,
å and! warning lamps light up in the instrument clus-
ter. The brake system continues to function normally, but
without the functions listed above.
BAS PLUS* (Brake Assist PLUS) and PRE-SAFE ®
Brake *may
be inoperative as well.
X Drive on carefully.
X Visit a qualified specialist workshop. Display messages
331Practical advice
* optional
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 331 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:37; WK
Page 335 of 421

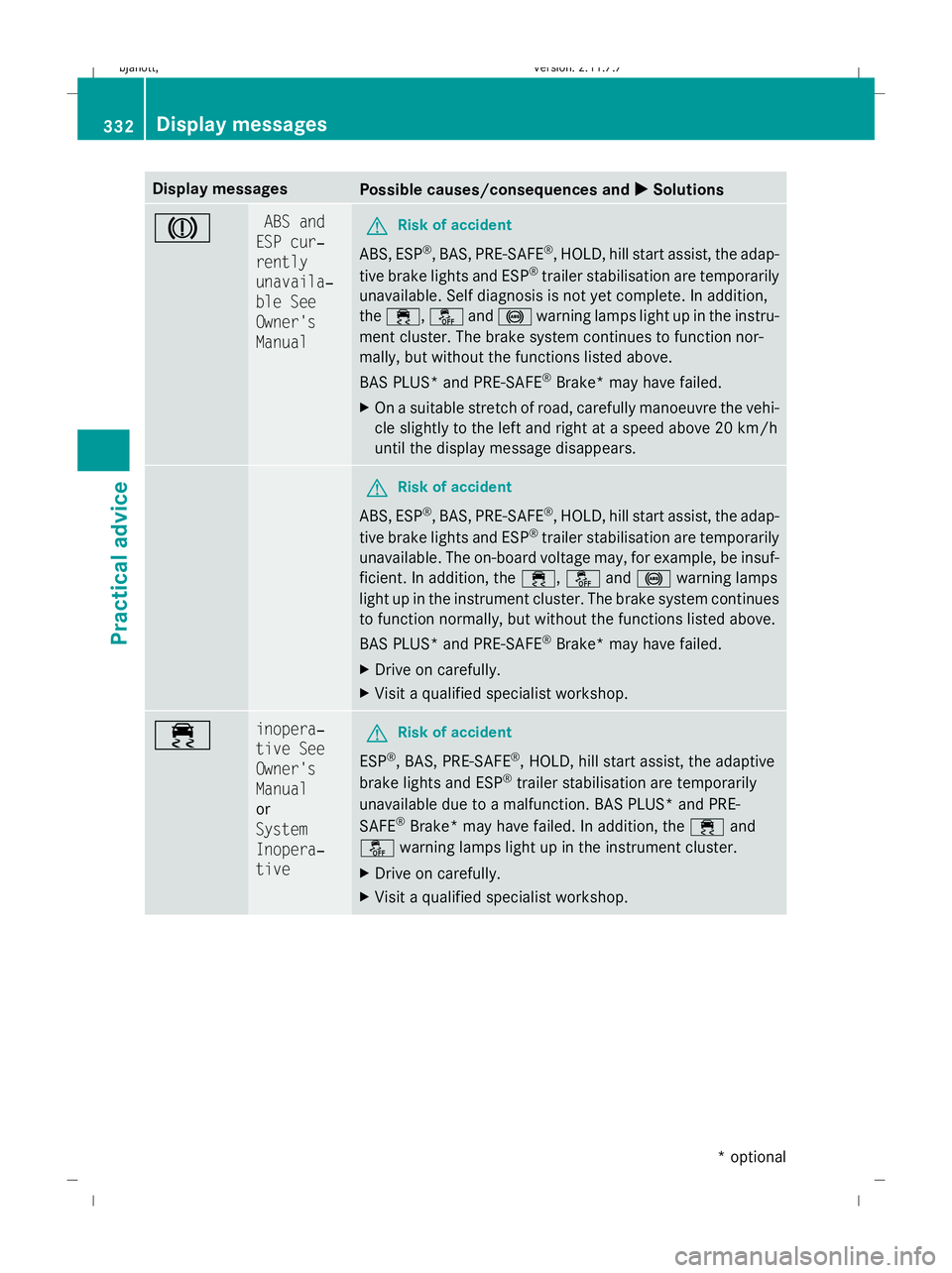

Display messages
Possible causes/consequences and
X
X Solutions J ABS and
ESP cur‐
rently
unavaila‐
ble See
Owner's
Manual G
Risk of accident
ABS, ESP ®
, BAS, PRE-SAFE ®
, HOLD, hill start assist, the adap-
tive brake lights and ESP ®
trailer stabilisation are temporarily
unavailable. Self diagnosis is not yet complete. In addition,
the ÷, åand! warning lamps light up in the instru-
ment cluster. The brake system continues to function nor-
mally, but without the functions listed above.
BAS PLUS* and PRE-SAFE ®
Brake* may have failed.
X On a suitable stretch of road, carefully manoeuvre the vehi-
cle slightly to the left and right at a speed above 20 km/h
until the display message disappears. G
Risk of accident
ABS, ESP ®
, BAS, PRE-SAFE ®
, HOLD, hill start assist, the adap-
tive brake lights and ESP ®
trailer stabilisation are temporarily
unavailable. The on-board voltage may, for example, be insuf-
ficient. In addition, the ÷,åand! warning lamps
light up in the instrument cluster. The brake system continues
to function normally, but without the functions listed above.
BAS PLUS* and PRE-SAFE ®
Brake* may have failed.
X Drive on carefully.
X Visit a qualified specialist workshop. ÷ inopera‐
tive See
Owner's
Manual
or
System
Inopera‐
tive
G
Risk of accident
ESP ®
, BAS, PRE-SAFE ®
, HOLD, hill start assist, the adaptive
brake lights and ESP ®
trailer stabilisation are temporarily
unavailable due to a malfunction. BAS PLUS* and PRE-
SAFE ®
Brake* may have failed. In addition, the ÷and
å warning lamps light up in the instrument cluster.
X Drive on carefully.
X Visit a qualified specialist workshop. 332
Display
messagesPractical advice
* optional
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 332
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:37; WK
Page 336 of 421

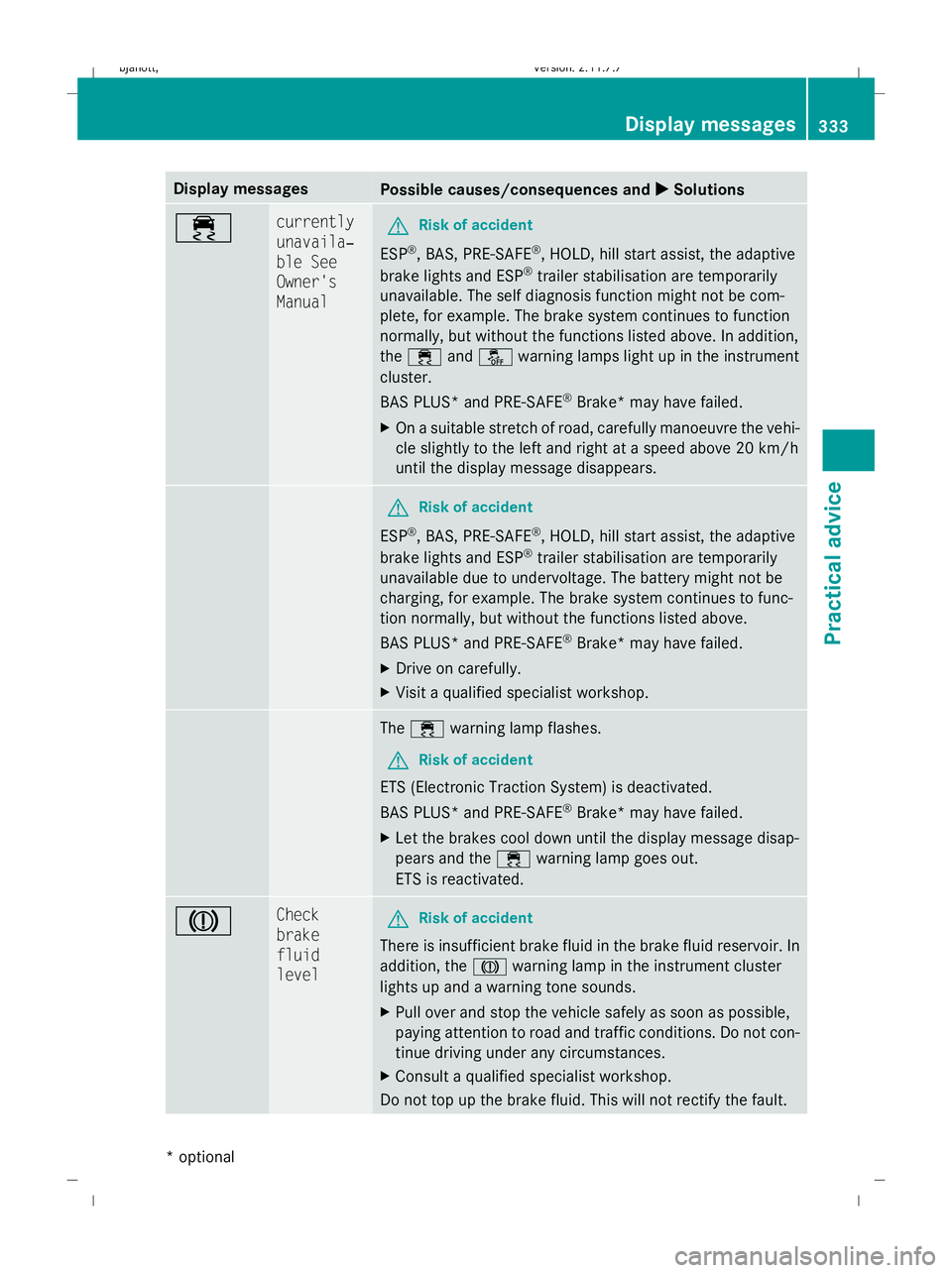

Display messages
Possible causes/consequences and
X
X Solutions ÷ currently
unavaila‐
ble See
Owner's
Manual
G
Risk of accident
ESP ®
, BAS, PRE-SAFE ®
, HOLD, hill start assist, the adaptive
brake lights and ESP ®
trailer stabilisation are temporarily
unavailable. The self diagnosis function might not be com-
plete, for example. The brake system continues to function
normally, but without the functions listed above. In addition,
the ÷ andå warning lamps light up in the instrument
cluster.
BAS PLUS* and PRE-SAFE ®
Brake* may have failed.
X On a suitable stretch of road, carefully manoeuvre the vehi-
cle slightly to the left and right at a speed above 20 km/h
until the display message disappears. G
Risk of accident
ESP ®
, BAS, PRE-SAFE ®
, HOLD, hill start assist, the adaptive
brake lights and ESP ®
trailer stabilisation are temporarily
unavailable due to undervoltage. The battery might not be
charging, for example. The brake system continues to func-
tion normally, but without the functions listed above.
BAS PLUS* and PRE-SAFE ®
Brake* may have failed.
X Drive on carefully.
X Visit a qualified specialist workshop. The
÷ warning lamp flashes.
G Risk of accident
ETS (Electronic Traction System) is deactivated.
BAS PLUS* and PRE-SAFE ®
Brake* may have failed.
X Let the brakes cool down until the display message disap-
pears and the ÷warning lamp goes out.
ETS is reactivated. J Check
brake
fluid
level
G
Risk of accident
There is insufficient brake fluid in the brake fluid reservoir. In
addition, the Jwarning lamp in the instrument cluster
lights up and a warning tone sounds.
X Pull over and stop the vehicle safely as soon as possible,
paying attention to road and traffic conditions. Do not con-
tinue driving under any circumstances.
X Consult a qualified specialist workshop.
Do not top up the brake fluid. This will not rectify the fault. Display
messages
333Practical advice
* optional
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 333 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:37; WK
Page 337 of 421

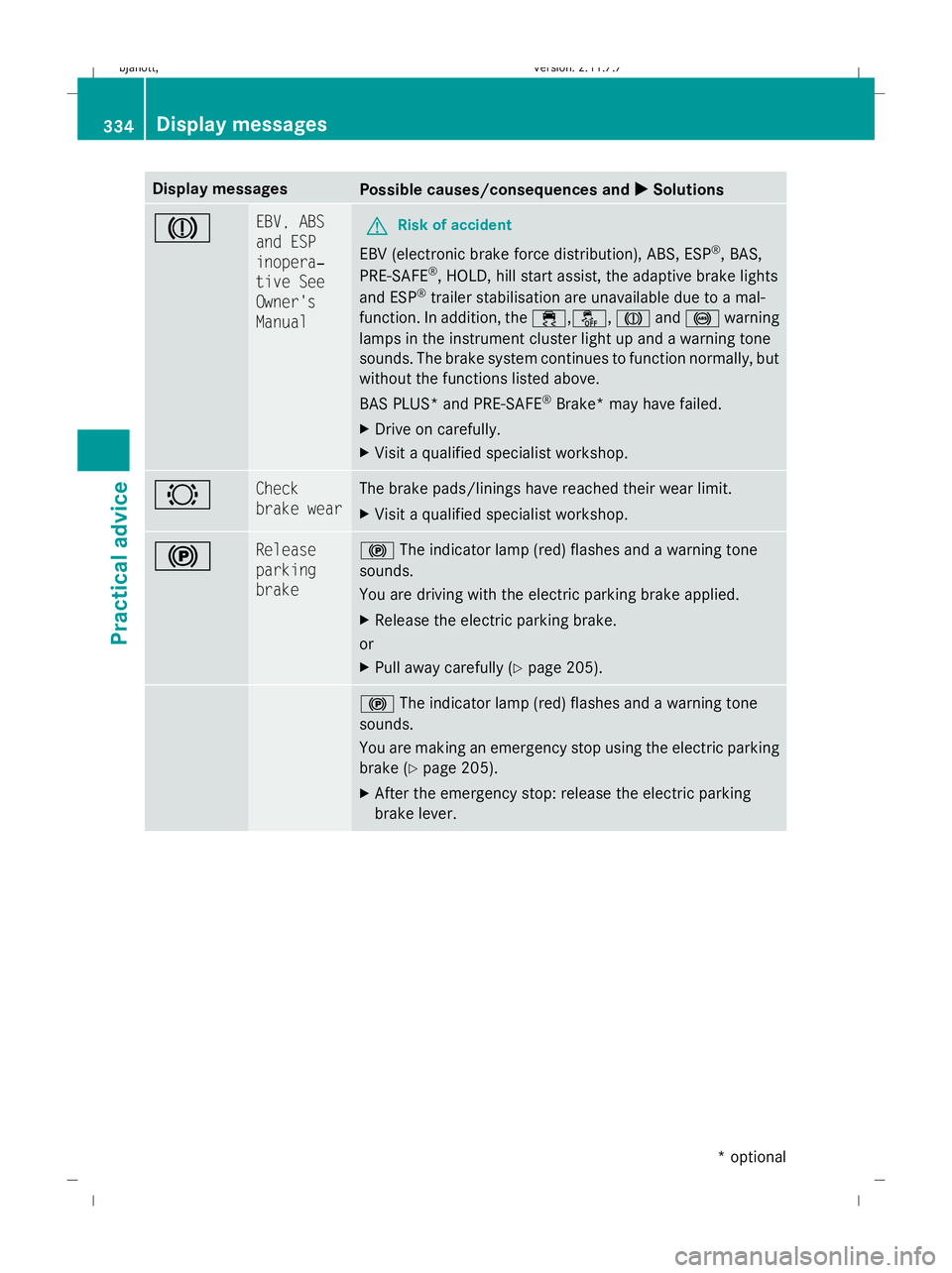

Display messages
Possible causes/consequences and
X
X Solutions J EBV, ABS
and ESP
inopera‐
tive See
Owner's
Manual
G
Risk of accident
EBV (electronic brake force distribution), ABS, ESP ®
, BAS,
PRE-SAFE ®
, HOLD, hill start assist, the adaptive brake lights
and ESP ®
trailer stabilisation are unavailable due to a mal-
function. In addition, the ÷,å,J and! warning
lamps in the instrument cluster light up and a warning tone
sounds. The brake system continues to function normally, but
without the functions listed above.
BAS PLUS* and PRE-SAFE ®
Brake* may have failed.
X Drive on carefully.
X Visit a qualified specialist workshop. # Check
brake wear The brake pads/linings have reached their wear limit.
X
Visit a qualified specialist workshop. ! Release
parking
brake !
The indicator lamp (red) flashes and a warning tone
sounds.
You are driving with the electric parking brake applied.
X Release the electric parking brake.
or
X Pull away carefully (Y page 205). !
The indicator lamp (red) flashes and a warning tone
sounds.
You are making an emergency stop using the electric parking
brake (Y page 205).
X After the emergency stop: release the electric parking
brake lever. 334
Display
messagesPractical advice
* optional
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 334
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:37; WK
Page 338 of 421

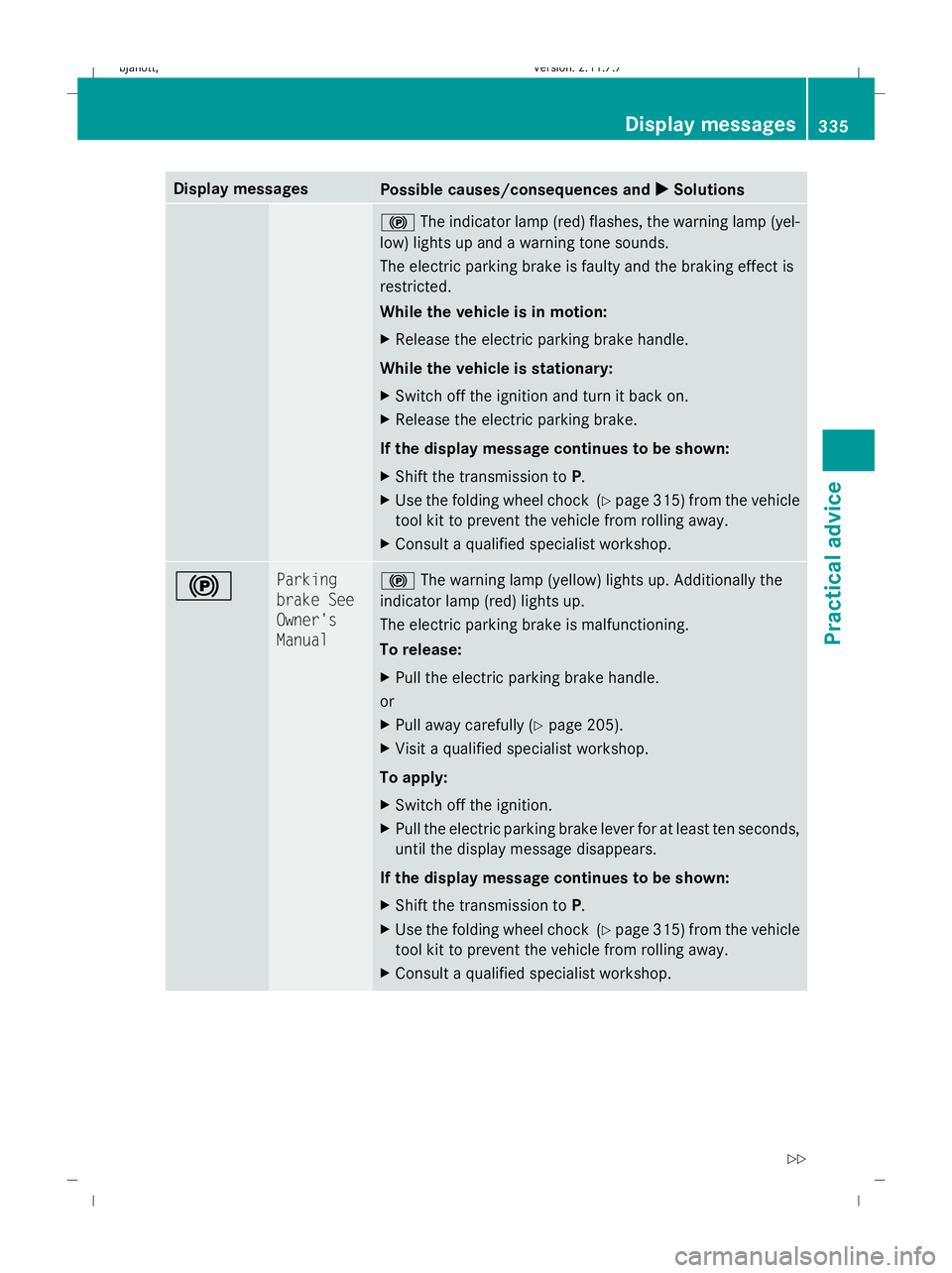

Display messages
Possible causes/consequences and
X
X Solutions !
The indicator lamp (red) flashes, the warning lamp (yel-
low) lights up and a warning tone sounds.
The electric parking brake is faulty and the braking effect is
restricted.
While the vehicle is in motion:
X Release the electric parking brake handle.
While the vehicle is stationary:
X Switch off the ignition and turn it back on.
X Release the electric parking brake.
If the display message continues to be shown:
X Shift the transmission to P.
X Use the folding wheel chock (Y page 315) from the vehicle
tool kit to prevent the vehicle from rolling away.
X Consult a qualified specialist workshop. ! Parking
brake See
Owner's
Manual !
The warning lamp (yellow) lights up. Additionally the
indicator lamp (red) lights up.
The electric parking brake is malfunctioning.
To release:
X Pull the electric parking brake handle.
or
X Pull away carefully (Y page 205).
X Visit a qualified specialist workshop.
To apply:
X Switch off the ignition.
X Pull the electric parking brake lever for at least ten seconds,
until the display message disappears.
If the display message continues to be shown:
X Shift the transmission to P.
X Use the folding wheel chock (Y page 315) from the vehicle
tool kit to prevent the vehicle from rolling away.
X Consult a qualified specialist workshop. Display
messages
335Practical advice
216_AKB; 2; 3, en-GB
bjanott ,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 335 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:37; WK
Page 339 of 421

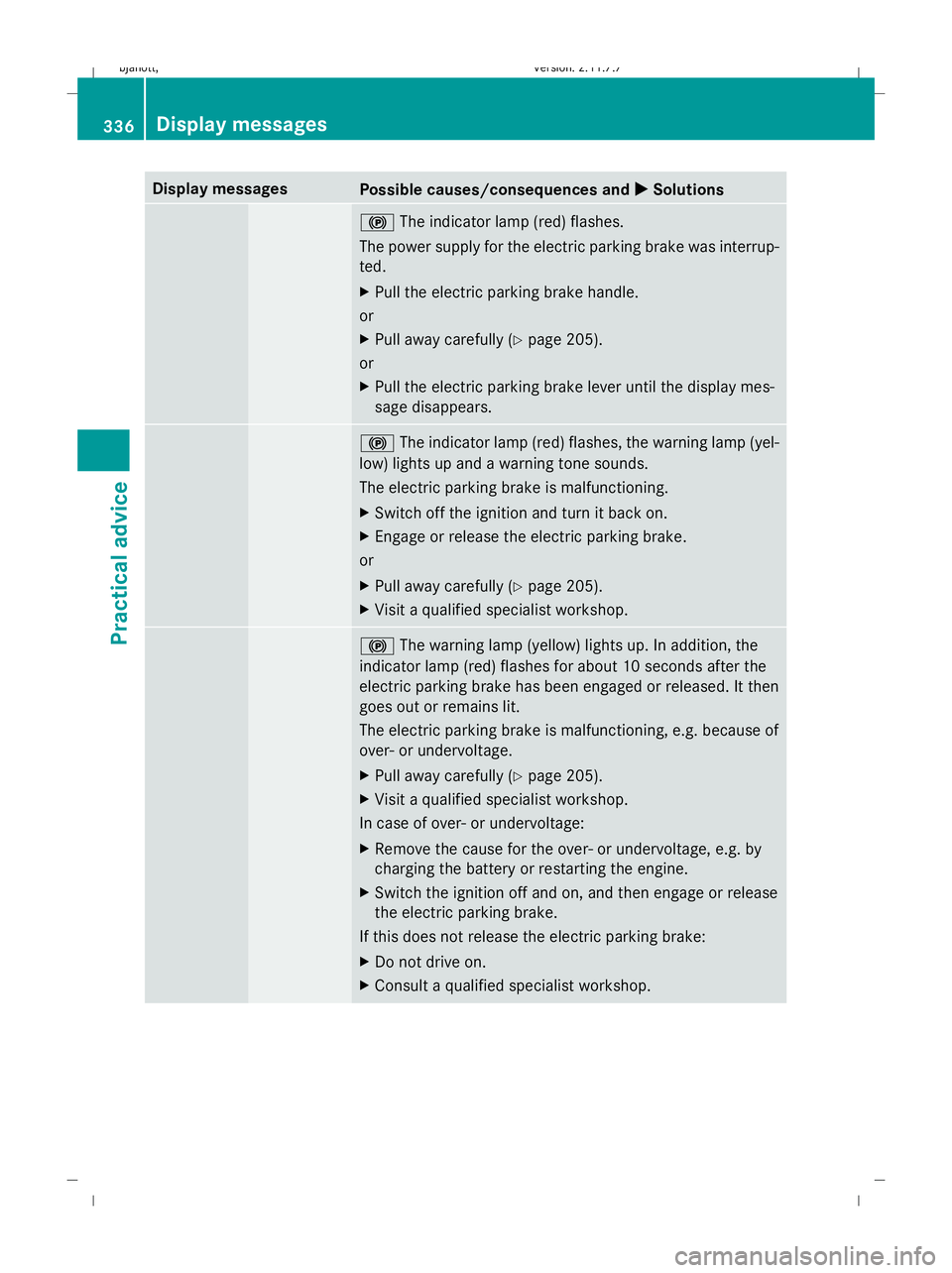

Display messages
Possible causes/consequences and
X
X Solutions !
The indicator lamp (red) flashes.
The power supply for the electric parking brake was interrup-
ted.
X Pull the electric parking brake handle.
or
X Pull away carefully (Y page 205).
or
X Pull the electric parking brake lever until the display mes-
sage disappears. !
The indicator lamp (red) flashes, the warning lamp (yel-
low) lights up and a warning tone sounds.
The electric parking brake is malfunctioning.
X Switch off the ignition and turn it back on.
X Engage or release the electric parking brake.
or
X Pull away carefully (Y page 205).
X Visit a qualified specialist workshop. !
The warning lamp (yellow) lights up. In addition, the
indicator lamp (red) flashes for about 10 seconds after the
electric parking brake has been engaged or released. It then
goes out or remains lit.
The electric parking brake is malfunctioning, e.g. because of
over- or undervoltage.
X Pull away carefully (Y page 205).
X Visit a qualified specialist workshop.
In case of over- or undervoltage:
X Remove the cause for the over- or undervoltage, e.g. by
charging the battery or restarting the engine.
X Switch the ignition off and on, and then engage or release
the electric parking brake.
If this does not release the electric parking brake:
X Do not drive on.
X Consult a qualified specialist workshop. 336
Display
messagesPractical advice
216_AKB; 2; 3, en-GB
bjanott ,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 336
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:37; WK
Page 340 of 421

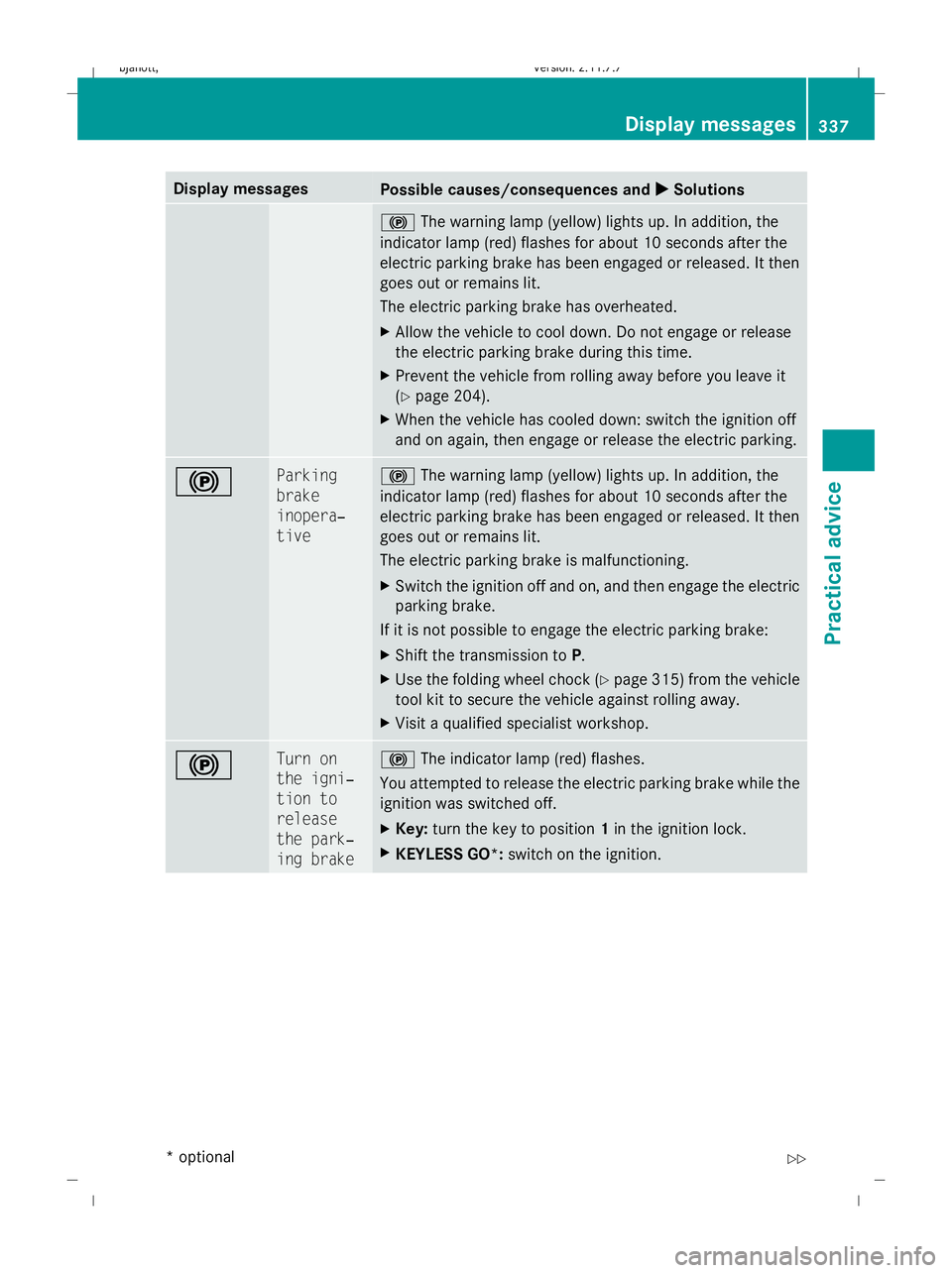

Display messages
Possible causes/consequences and
X
X Solutions !
The warning lamp (yellow) lights up. In addition, the
indicator lamp (red) flashes for about 10 seconds after the
electric parking brake has been engaged or released. It then
goes out or remains lit.
The electric parking brake has overheated.
X Allow the vehicle to cool down. Do not engage or release
the electric parking brake during this time.
X Prevent the vehicle from rolling away before you leave it
(Y page 204).
X When the vehicle has cooled down: switch the ignition off
and on again, then engage or release the electric parking. ! Parking
brake
inopera‐
tive !
The warning lamp (yellow) lights up. In addition, the
indicator lamp (red) flashes for about 10 seconds after the
electric parking brake has been engaged or released. It then
goes out or remains lit.
The electric parking brake is malfunctioning.
X Switch the ignition off and on, and then engage the electric
parking brake.
If it is not possible to engage the electric parking brake:
X Shift the transmission to P.
X Use the folding wheel chock (Y page 315) from the vehicle
tool kit to secure the vehicle against rolling away.
X Visit a qualified specialist workshop. ! Turn on
the igni‐
tion to
release
the park‐
ing brake !
The indicator lamp (red) flashes.
You attempted to release the electric parking brake while the
ignition was switched off.
X Key: turn the key to position 1in the ignition lock.
X KEYLESS GO*: switch on the ignition. Display
messages
337Practical advice
* optional
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 337 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:38; WK
