290OperationVehicle careUpholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.
Leather upholstery
Wipe leather upholstery with a damp cloth
and dry thoroughly or clean with
Mercedes-Benz approved Leather Care.
Exercise particular care when cleaning per-
forated leather as its underside should not
become wet.Nubuck leather upholstery (CL 55 AMG)
The nubuck leather upholstery is treated
with a protective coating. Wipe nubuck
leather upholstery with damp microfiber
cloth to remove dust and other light stains.
Carefully dab nubuck leather upholstery
with a microfiber cloth to remove oil stains.Plastic and rubber parts
Do not use oil or wax on these parts.
Wood trims
Dampen cloth using water and use damp
cloth to clean wood trims in your vehicle.
Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as
these may be abrasive.
!Do not use Mercedes-Benz approved
Leather Care or any solvents to clean
nubuck leather upholstery.
Avoid hard scrubbing on nubuck leath-
er upholstery.

291 Practical hints
What to do if …?
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

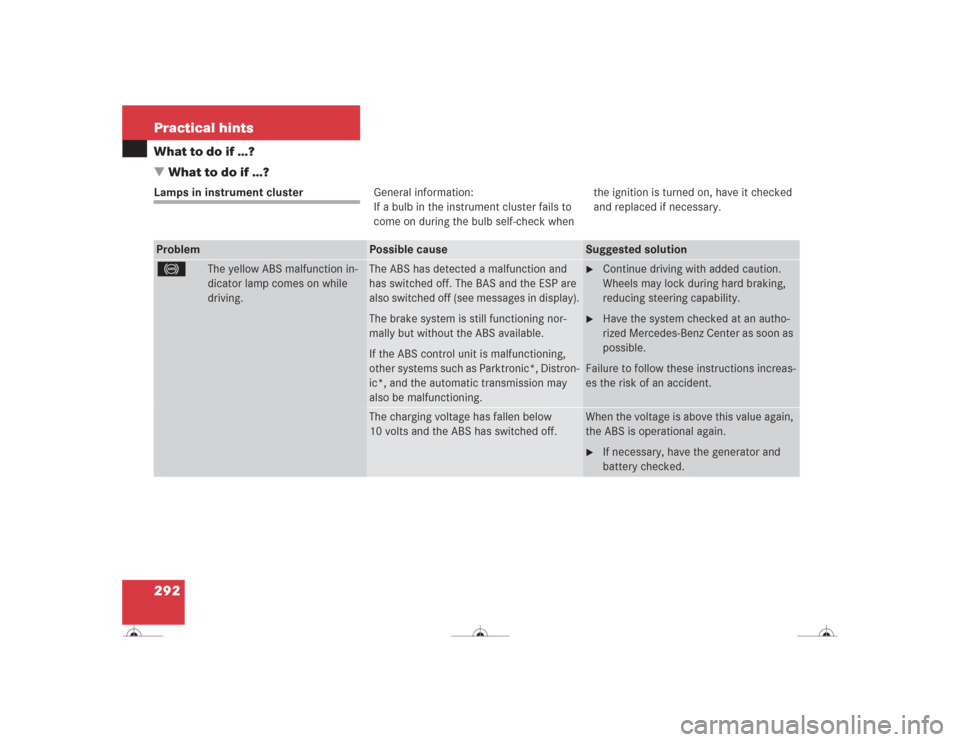

292 Practical hintsWhat to do if …?
What to do if …?Lamps in instrument clusterGeneral information:
If a bulb in the instrument cluster fails to
come on during the bulb self-check when the ignition is turned on, have it checked
and replaced if necessary.Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction in-
dicator lamp comes on while
driving.
The ABS has detected a malfunction and
has switched off. The BAS and the ESP are
also switched off (see messages in display).
The brake system is still functioning nor-
mally but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as Parktronic*, Distron-
ic*, and the automatic transmission may
also be malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
The charging voltage has fallen below
10 volts and the ABS has switched off.
When the voltage is above this value again,
the ABS is operational again.
If necessary, have the generator and
battery checked.

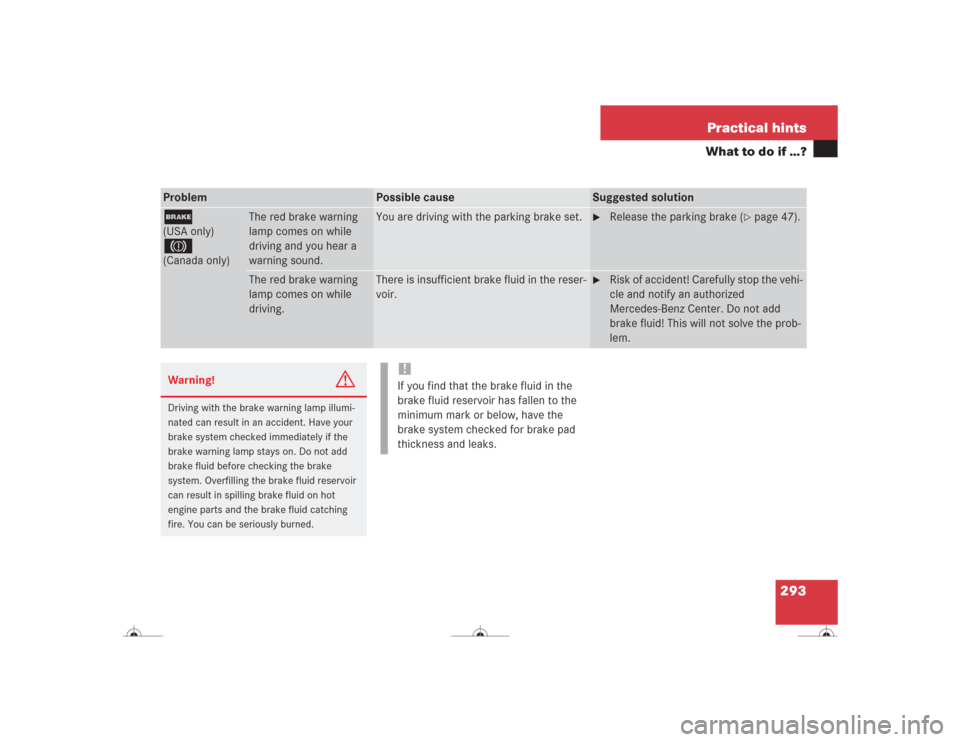

293 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
;(USA only)3(Canada only)
The red brake warning
lamp comes on while
driving and you hear a
warning sound.
You are driving with the parking brake set.

Release the parking brake (
page 47).
The red brake warning
lamp comes on while
driving.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Carefully stop the vehi-
cle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the prob-
lem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

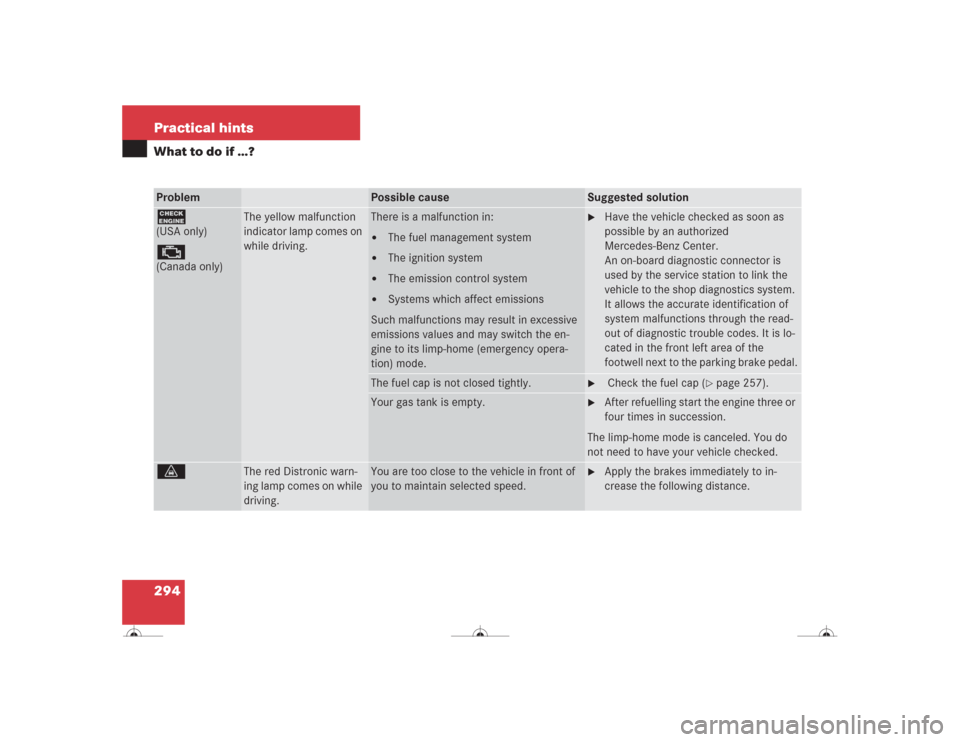

294 Practical hintsWhat to do if …?Problem
Possible cause
Suggested solution
?(USA only)±(Canada only)
The yellow malfunction
indicator lamp comes on
while driving.
There is a malfunction in:

The fuel management system


The ignition system


The emission control system


Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the en-
gine to its limp-home (emergency opera-
tion) mode.

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics system.
It allows the accurate identification of
system malfunctions through the read-
out of diagnostic trouble codes. It is lo-
cated in the front left area of the
footwell next to the parking brake pedal.
The fuel cap is not closed tightly.

Check the fuel cap (
page 257).
Your gas tank is empty.

After refuelling start the engine three or
four times in succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.
l
The red Distronic warn-
ing lamp comes on while
driving.
You are too close to the vehicle in front of
you to maintain selected speed.

Apply the brakes immediately to in-
crease the following distance.

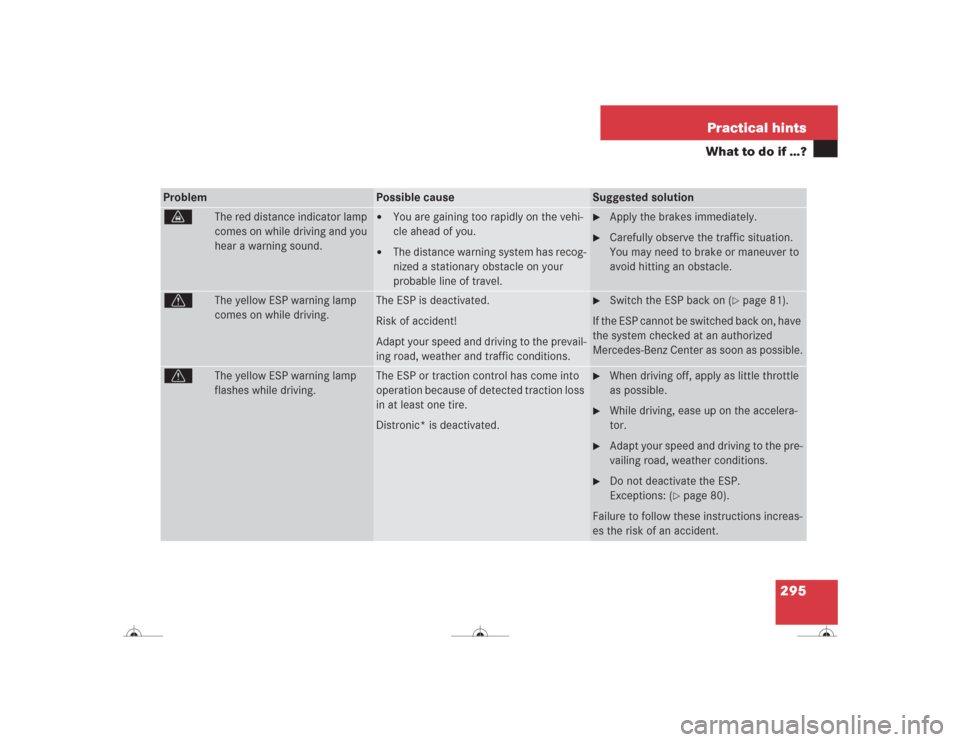

295 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
l
The red distance indicator lamp
comes on while driving and you
hear a warning sound.


You are gaining too rapidly on the vehi-
cle ahead of you.


The distance warning system has recog-
nized a stationary obstacle on your
probable line of travel.

Apply the brakes immediately.

Carefully observe the traffic situation.
You may need to brake or maneuver to
avoid hitting an obstacle.
v
The yellow ESP warning lamp
comes on while driving.
The ESP is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather and traffic conditions.

Switch the ESP back on (
page 81).
If the ESP cannot be switched back on, have
the system checked at an authorized
Mercedes-Benz Center as soon as possible.
v
The yellow ESP warning lamp
flashes while driving.
The ESP or traction control has come into
operation because of detected traction loss
in at least one tire.
Distronic* is deactivated.

When driving off, apply as little throttle
as possible.

While driving, ease up on the accelera-
tor.

Adapt your speed and driving to the pre-
vailing road, weather conditions.

Do not deactivate the ESP.
Exceptions: (
page 80).
Failure to follow these instructions increas-
es the risk of an accident.

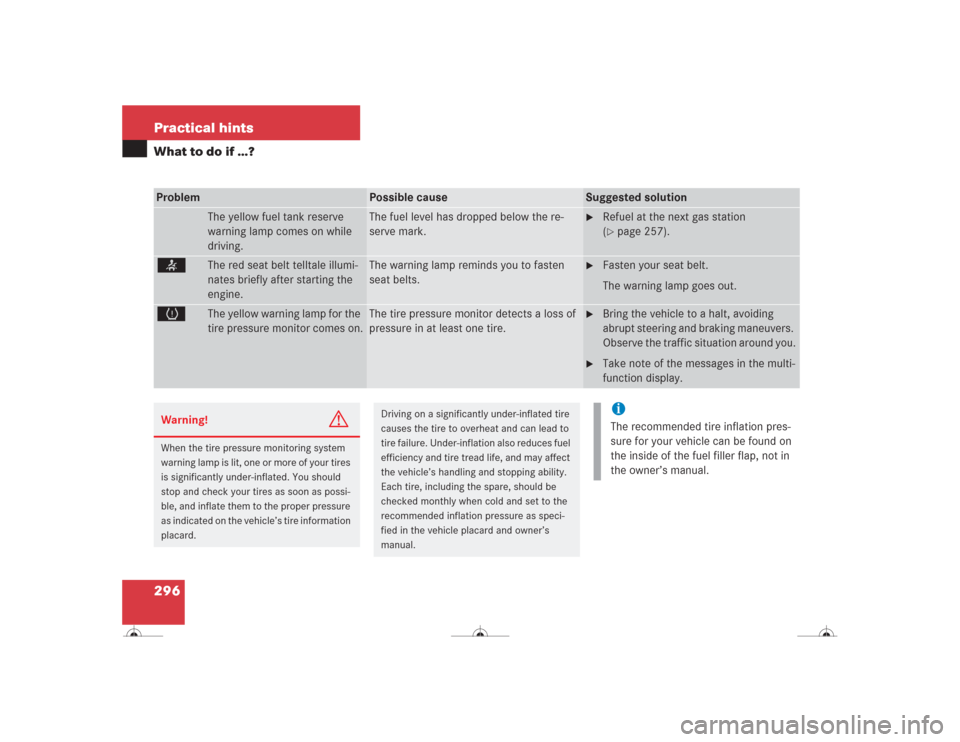

296 Practical hintsWhat to do if …?Problem
Possible cause
Suggested solution
The yellow fuel tank reserve
warning lamp comes on while
driving.
The fuel level has dropped below the re-
serve mark.

Refuel at the next gas station
(page 257).
<
The red seat belt telltale illumi-
nates briefly after starting the
engine.
The warning lamp reminds you to fasten
seat belts.

Fasten your seat belt.
The warning lamp goes out.
H
The yellow warning lamp for the
tire pressure monitor comes on.
The tire pressure monitor detects a loss of
pressure in at least one tire.

Bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Observe the traffic situation around you.

Take note of the messages in the multi-
function display.
Warning!
G
When the tire pressure monitoring system
warning lamp is lit, one or more of your tires
is significantly under-inflated. You should
stop and check your tires as soon as possi-
ble, and inflate them to the proper pressure
as indicated on the vehicle’s tire information
placard.
Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
Each tire, including the spare, should be
checked monthly when cold and set to the
recommended inflation pressure as speci-
fied in the vehicle placard and owner’s
manual.
iThe recommended tire inflation pres-
sure for your vehicle can be found on
the inside of the fuel filler flap, not in
the owner’s manual.

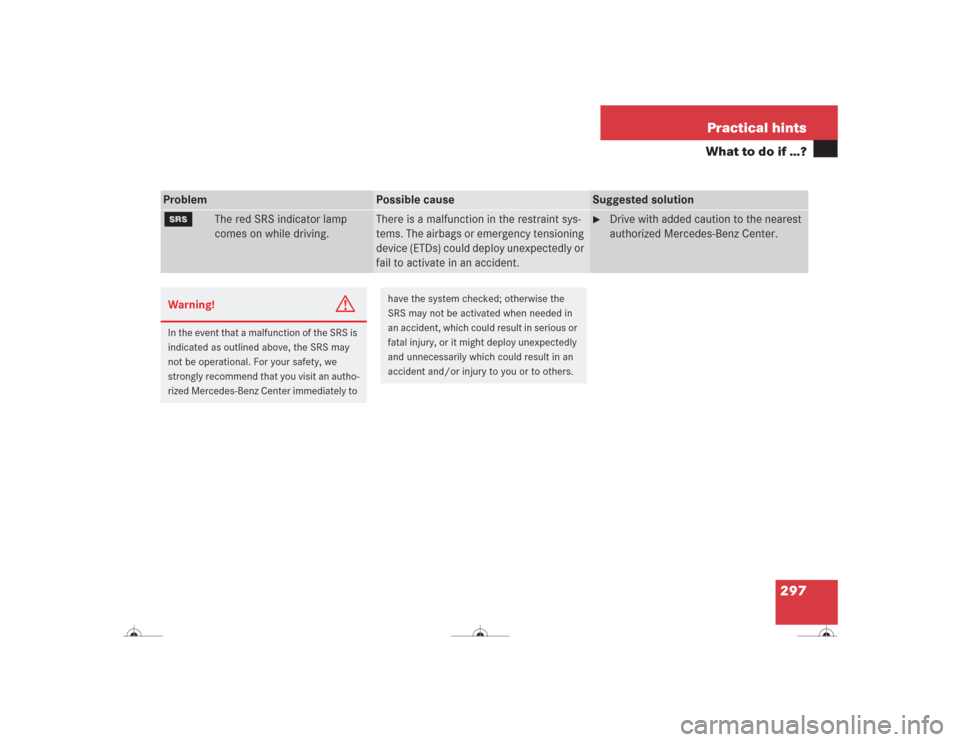

297 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
1
The red SRS indicator lamp
comes on while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETDs) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the nearest
authorized Mercedes-Benz Center.
Warning!
G
In the event that a malfunction of the SRS is
indicated as outlined above, the SRS may
not be operational. For your safety, we
strongly recommend that you visit an autho-
rized Mercedes-Benz Center immediately to
have the system checked; otherwise the
SRS may not be activated when needed in
an accident, which could result in serious or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could result in an
accident and/or injury to you or to others.

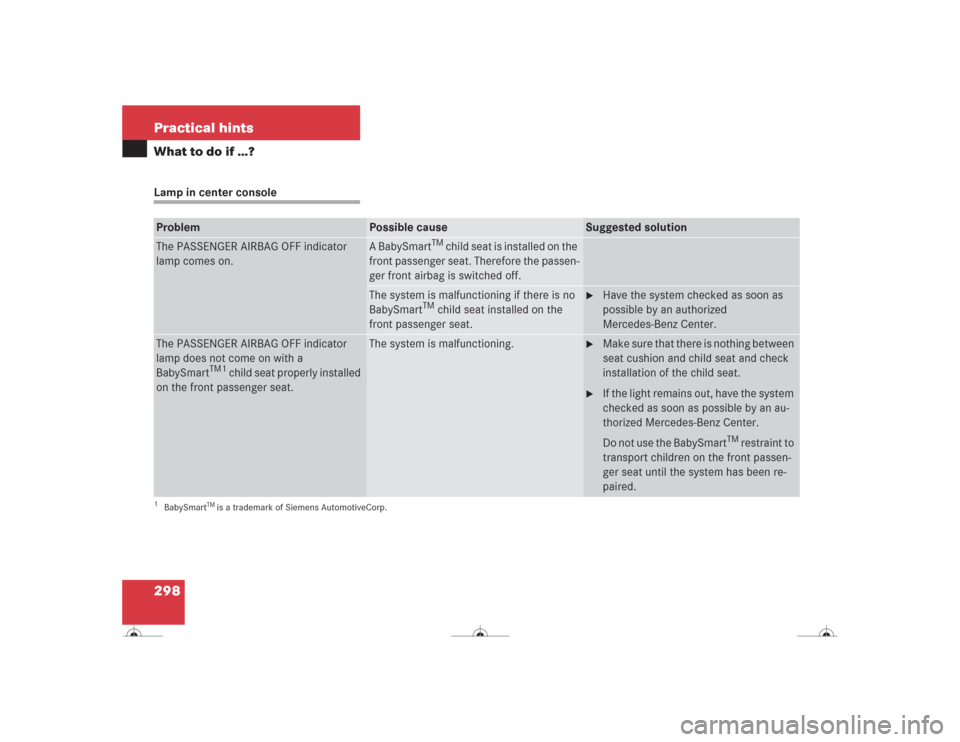

298 Practical hintsWhat to do if …?Lamp in center consoleProblem
Possible cause
Suggested solution
The PASSENGER AIRBAG OFF indicator
lamp comes on.
A BabySmart
TM child seat is installed on the
front passenger seat. Therefore the passen-
ger front airbag is switched off.
The system is malfunctioning if there is no
BabySmart
TM child seat installed on the
front passenger seat.

Have the system checked as soon as
possible by an authorized
Mercedes-Benz Center.
The PASSENGER AIRBAG OFF indicator
lamp does not come on with a
BabySmart
TM1
child seat properly installed
on the front passenger seat.
1BabySmart
TMis a trademark of Siemens AutomotiveCorp.
The system is malfunctioning.

Make sure that there is nothing between
seat cushion and child seat and check
installation of the child seat.

If the light remains out, have the system
checked as soon as possible by an au-
thorized Mercedes-Benz Center.
Do not use the BabySmart
TM restraint to
transport children on the front passen-
ger seat until the system has been re-
paired.

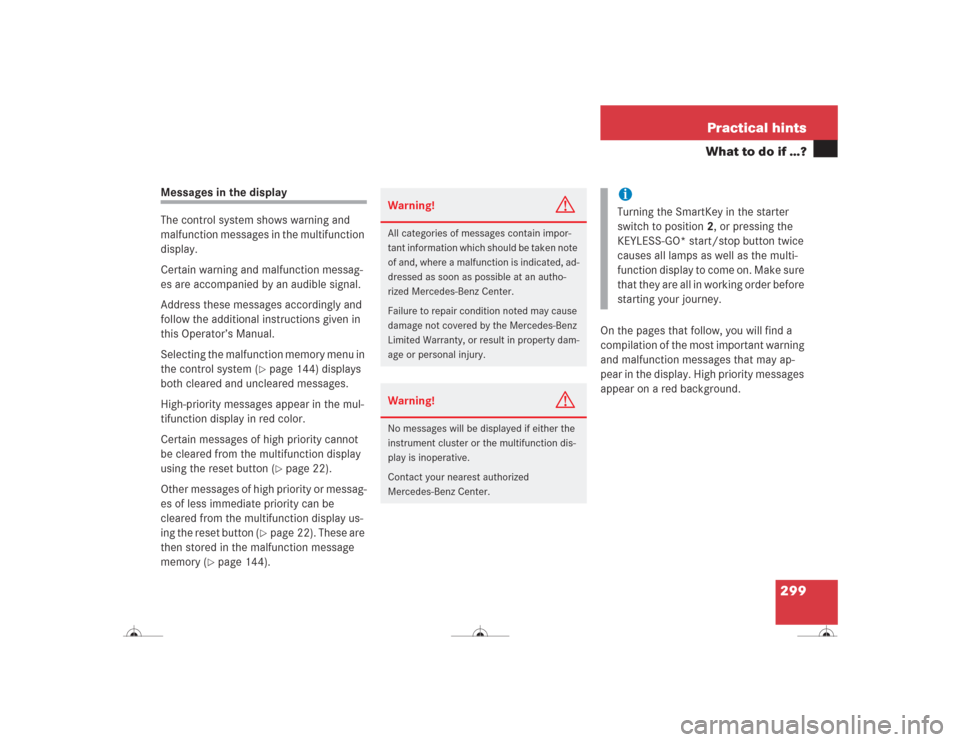

299 Practical hints
What to do if …?
Messages in the display
The control system shows warning and
malfunction messages in the multifunction
display.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the malfunction memory menu in
the control system (
page 144) displays
both cleared and uncleared messages.
High-priority messages appear in the mul-
tifunction display in red color.
Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (page 22).
Other messages of high priority or messag-
es of less immediate priority can be
cleared from the multifunction display us-
ing the reset button (
page 22). These are
then stored in the malfunction message
memory (
page 144).On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pear in the display. High priority messages
appear on a red background.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
Contact your nearest authorized
Mercedes-Benz Center.
iTurning the SmartKey in the starter
switch to position2, or pressing the
KEYLESS-GO* start/stop button twice
causes all lamps as well as the multi-
function display to come on. Make sure
that they are all in working order before
starting your journey.
