200 Controls in detailPower windowsSummer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the windows


opening the tilt/sliding sunroof


turning on the seat ventilation* for the
driver’s seat

Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle.
The SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the driver’s door handle.

Press and hold button Πuntil the
windows and tilt/sliding sunroof have
reached the desired position.

Release button Πto interrupt pro-
cedure.
Convenience closing feature
When you lock the vehicle, you can close
the windows and tilt/sliding sunroof simul-
taneously.
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle.
The SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the driver’s door handle.

Press and hold button ‹ until the
windows and tilt/sliding sunroof are
completely closed.

Release button ‹ to interrupt pro-
cedure.
iThe seat ventilation* for the driver’s
seat is automatically set to the highest
level if activated via summer opening
feature.

201 Controls in detail
Power windows
Vehicles with KEYLESS-GO*:
Press and hold the lock button on an
outside door handle (
page 60) until
the windows and the tilt/sliding sun-
roof are completely closed.

Release the lock button at the outside
door handle to interrupt procedure.

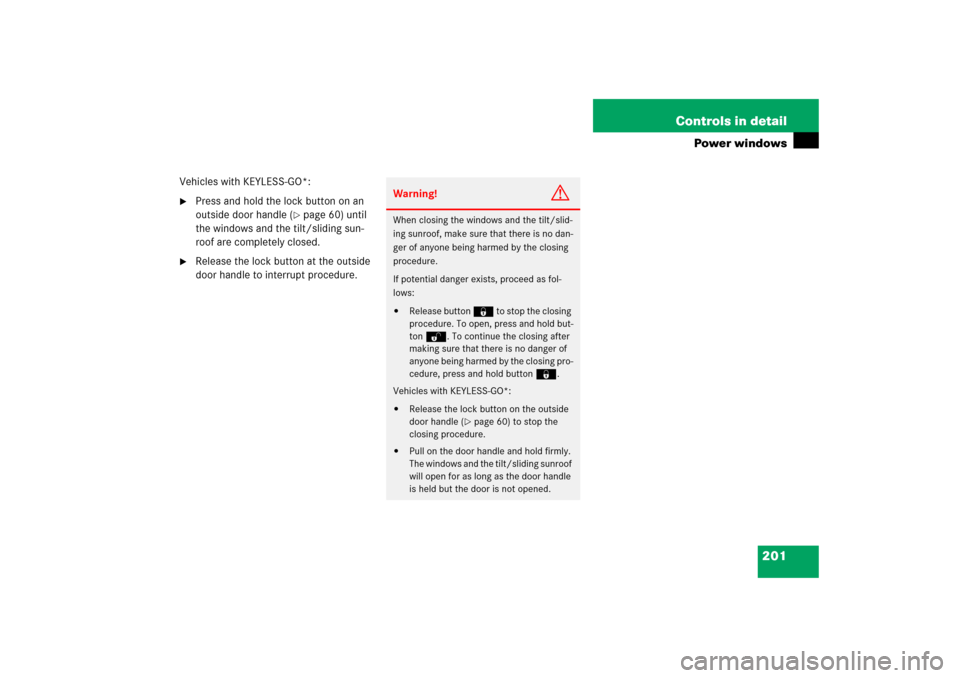

Warning!
G
When closing the windows and the tilt/slid-
ing sunroof, make sure that there is no dan-
ger of anyone being harmed by the closing
procedure.
If potential danger exists, proceed as fol-
lows:

Release button ‹ to stop the closing
procedure. To open, press and hold but-
ton Œ. To continue the closing after
making sure that there is no danger of
anyone being harmed by the closing pro-
cedure, press and hold button‹.
Vehicles with KEYLESS-GO*:


Release the lock button on the outside
door handle (
page 60) to stop the
closing procedure.


Pull on the door handle and hold firmly.
The windows and the tilt/sliding sunroof
will open for as long as the door handle
is held but the door is not opened.

202 Controls in detailPower tilt/sliding sunroofOpening and closing the power tilt/sliding sunroof

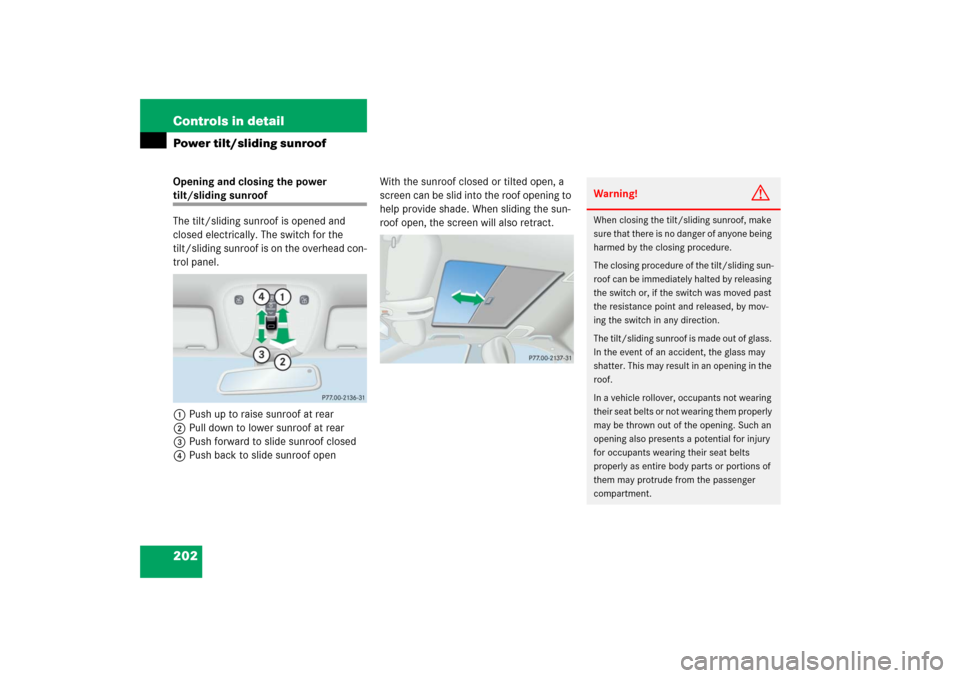

The tilt/sliding sunroof is opened and
closed electrically. The switch for the
tilt/sliding sunroof is on the overhead con-
trol panel.
1Push up to raise sunroof at rear
2Pull down to lower sunroof at rear
3Push forward to slide sunroof closed
4Push back to slide sunroof openWith the sunroof closed or tilted open, a
screen can be slid into the roof opening to
help provide shade. When sliding the sun-
roof open, the screen will also retract.
Warning!
G
When closing the tilt/sliding sunroof, make
sure that there is no danger of anyone being
harmed by the closing procedure.
The closing procedure of the tilt/sliding sun-
roof can be immediately halted by releasing
the switch or, if the switch was moved past
the resistance point and released, by mov-
ing the switch in any direction.
The tilt/sliding sunroof is made out of glass.
In the event of an accident, the glass may
shatter. This may result in an opening in the
roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts
properly as entire body parts or portions of
them may protrude from the passenger
compartment.

203 Controls in detail
Power tilt/sliding sunroof

Switch on the ignition (
page 34).
Opening and closing the power
tilt/sliding sunroof

To open, close, raise or lower the
tilt/sliding sunroof, move the switch to
resistance point in the required
direction1to4.

Release the sunroof switch when the
tilt/sliding sunroof has reached the de-
sired position.
Fully opening (Express-open) and clos-
ing (Express-close) the power the
tilt/sliding sunroof

To open, close, raise or lower the
tilt/sliding sunroof, move the switch
past the resistance point in the re-
quired direction1to4 and release.
The tilt/sliding sunroof opens or closes
completely.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
sunroof.
Do not open the tilt/sliding sunroof if
there is snow or ice on the roof, as this
could result in malfunctions.
The tilt/sliding sunroof can be opened
or closed manually should an electrical
malfunction occur (
page 375).
iYou can also open or close the side
windows and power tilt/sliding sunroof
using the SmartKey or SmartKey with
KEYLESS-GO*, see “Summer opening
feature” (
page 200) and
“Convenience closing feature”
(
page 200).
Depending on current position, the
tilt/sliding sunroof may also open or
close when the air recirculation
button, or the charcoal filter
buttone in the climate control
panel (
page 185) is pressed and
held.
iWith the SmartKey in starter switch po-
sition 0 or removed from the starter
switch, the tilt/sliding sunroof can be
operated

until you open the driver’s or pas-
senger door


for up to approximately 5 minutes.


204 Controls in detailPower tilt/sliding sunroof
Stopping the power tilt/sliding sunroof
during Express-operation
Move the switch in any direction.
Synchronizing the power tilt/sliding
sunroof
The tilt/sliding sunroof must be synchro-
nized

after the vehicle battery has been
disconnected or discharged


after the tilt/sliding sunroof has been
closed manually (
page 375)


the tilt/sliding sunroof does not open
smoothly


after a malfunction

Switch on the ignition (
page 34).

Press and hold the sunroof switch in
the direction of arrow1 until the
tilt/sliding sunroof is fully raised at the
rear.
Keep holding the sunroof switch in the
direction of arrow1 for approximately
1 second.

Check the Express-open feature
(page 203).
If the tilt/sliding sunroof opens com-
pletely, the sunroof is synchronized.
Otherwise repeat the above steps.
iThe selecting a tilt/sliding sunroof
opening position feature is activated
for Canada vehicles, but deactivated
for U.S. vehicles at the factory. If you
wish to have it activated, contact an au-
thorized Mercedes-Benz Center.
To select a tilt/sliding sunroof opening
position, press the sunroof switch to
the resistance point and release it
when the tilt/sliding sunroof has
reached the desired position. The
tilt/sliding sunroof now opens to the
position set when the sunroof switch is
pressed past the resistance point in the
“open” direction.
iIf the movement of the tilt/sliding sun-
roof is blocked during the closing pro-
cedure, the sunroof will stop and
reopen slightly.


205 Controls in detail
Driving systems
Driving systems
The driving systems of your vehicle are de-
scribed on the following pages:

Cruise control and Distronic*, with
which the vehicle can maintain a preset
speed.


ABC with vehicle level control system,
with which you can change vehicle sus-
pension characteristics.


Parktronic*, which serves as a parking
assistant.
For information on the BAS, ABS, and ESP
®
driving systems, see “Driving safety sys-
tems” (
page 80).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed over 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 22).

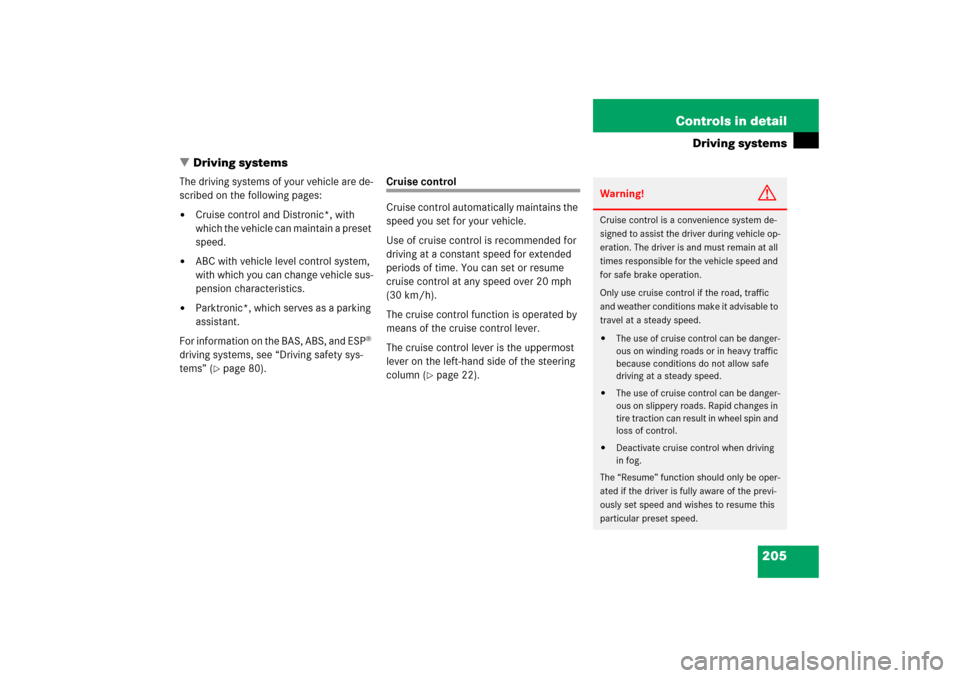

Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must remain at all
times responsible for the vehicle speed and
for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

206 Controls in detailDriving systems1Sets current or higher speed
2Sets current or lower speed
3Cancels cruise control
4Resumes at last set speed
Setting current speed
Accelerate or decelerate to the desired
speed.

Briefly lift the cruise control lever in the
direction of arrow1 or depress in the
direction of arrow2.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated.
The selected speed appears in the multi-
function display for approximately
5 seconds, and the corresponding speed-
ometer segments from the selected speed
to the vehicle maximum speed are illumi-
nated.
Canceling cruise control
There are several ways to cancel cruise
control:

Step on the brake pedal.
Cruise control is canceled. The last
speed set is stored for later use.or

Briefly push the cruise control lever in
the direction of arrow3.
Cruise control is canceled. The last
speed set is stored for later use.
iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Moving the gear selector lever to
positionN while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
positionN while driving, except to
coast when the vehicle is in danger of
skidding (e.g. on icy roads).iThe last stored speed is canceled when
you turn off the engine.

207 Controls in detail
Driving systems
Setting a higher speed
Lift cruise control lever in the direction
of arrow1 and hold it up until the de-
sired speed is reached.

Release cruise control lever.
The new speed is set.
Setting a lower speed

Depress cruise control lever in the di-
rection of arrow2 and hold it down
until the desired speed is reached.

Release cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip cruise control lever in the di-
rection of arrow1.
Slower

Briefly tip cruise control lever in the di-
rection of arrow2.Setting to last stored speed
(“Resume” function)

Briefly push cruise control lever in the
direction of arrow4.
The cruise control resumes the last set
speed.

Remove your foot from the accelerator
pedal.
The selected speed appears in the multi-
function display for approximately
5 seconds, and the corresponding speed-
ometer segments from the selected speed
to the vehicle maximum speed are illumi-
nated.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the engine’s
braking power does not brake the vehi-
cle sufficiently.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.

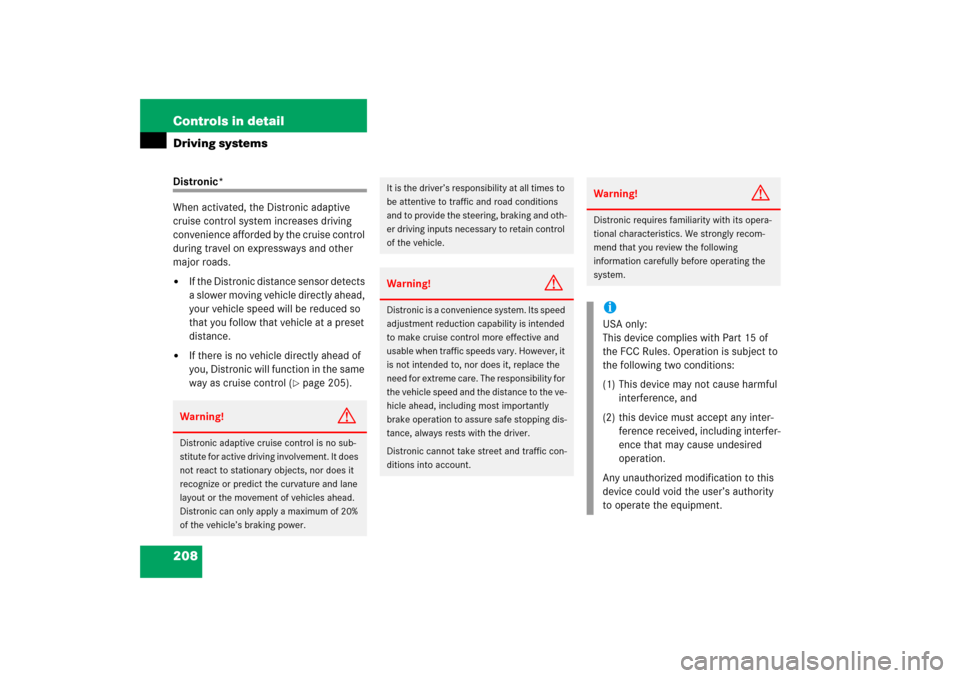

208 Controls in detailDriving systemsDistronic*
When activated, the Distronic adaptive
cruise control system increases driving
convenience afforded by the cruise control
during travel on expressways and other
major roads.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at a preset
distance.


If there is no vehicle directly ahead of
you, Distronic will function in the same
way as cruise control (
page 205).
Warning!
G
Distronic adaptive cruise control is no sub-
stitute for active driving involvement. It does
not react to stationary objects, nor does it
recognize or predict the curvature and lane
layout or the movement of vehicles ahead.
Distronic can only apply a maximum of 20%
of the vehicle’s braking power.
It is the driver’s responsibility at all times to
be attentive to traffic and road conditions
and to provide the steering, braking and oth-
er driving inputs necessary to retain control
of the vehicle.Warning!
G
Distronic is a convenience system. Its speed
adjustment reduction capability is intended
to make cruise control more effective and
usable when traffic speeds vary. However, it
is not intended to, nor does it, replace the
need for extreme care. The responsibility for
the vehicle speed and the distance to the ve-
hicle ahead, including most importantly
brake operation to assure safe stopping dis-
tance, always rests with the driver.
Distronic cannot take street and traffic con-
ditions into account.
Warning!
G
Distronic requires familiarity with its opera-
tional characteristics. We strongly recom-
mend that you review the following
information carefully before operating the
system.iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

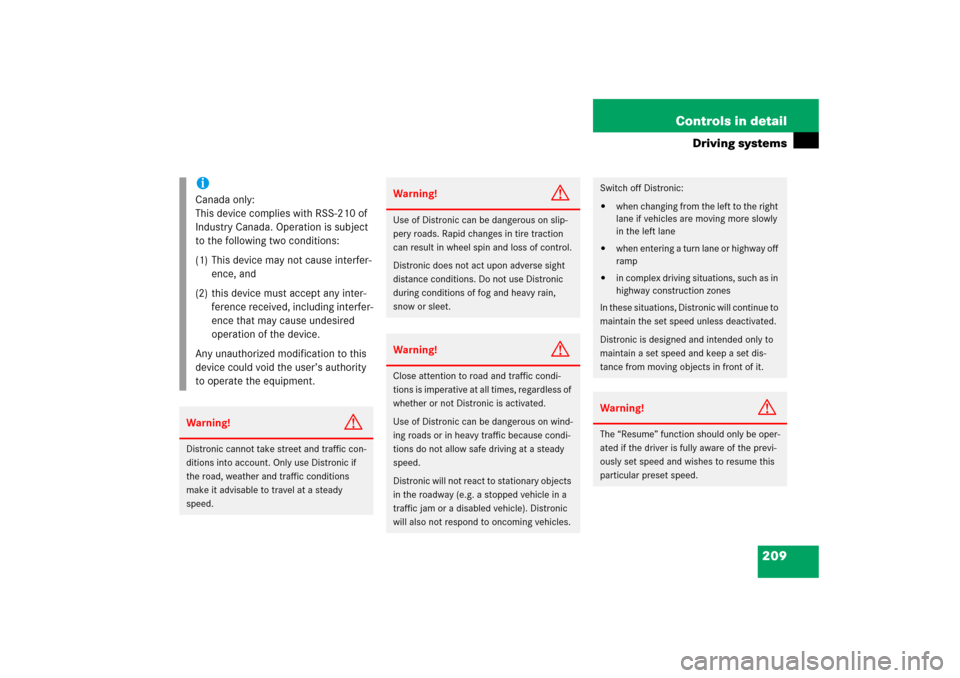

209 Controls in detail
Driving systems
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.Warning!
G
Distronic cannot take street and traffic con-
ditions into account. Only use Distronic if
the road, weather and traffic conditions
make it advisable to travel at a steady
speed.
Warning!
G
Use of Distronic can be dangerous on slip-
pery roads. Rapid changes in tire traction
can result in wheel spin and loss of control.
Distronic does not act upon adverse sight
distance conditions. Do not use Distronic
during conditions of fog and heavy rain,
snow or sleet.Warning!
G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not Distronic is activated.
Use of Distronic can be dangerous on wind-
ing roads or in heavy traffic because condi-
tions do not allow safe driving at a steady
speed.
Distronic will not react to stationary objects
in the roadway (e.g. a stopped vehicle in a
traffic jam or a disabled vehicle). Distronic
will also not respond to oncoming vehicles.
Switch off Distronic:

when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane


when entering a turn lane or highway off
ramp


in complex driving situations, such as in
highway construction zones
In these situations, Distronic will continue to
maintain the set speed unless deactivated.
Distronic is designed and intended only to
maintain a set speed and keep a set dis-
tance from moving objects in front of it.
Warning!
G
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.
