220 Controls in detailDriving systemsActive Body Control (ABC)
The ABC system automatically selects the
optimum suspension tuning and ride
height for your vehicle.
Suspension tuning
The suspension tuning is set according to:

your driving style


road surface conditions


the vehicle loading


your choice of suspension style
You can set following suspension style:


Regular (convenience)


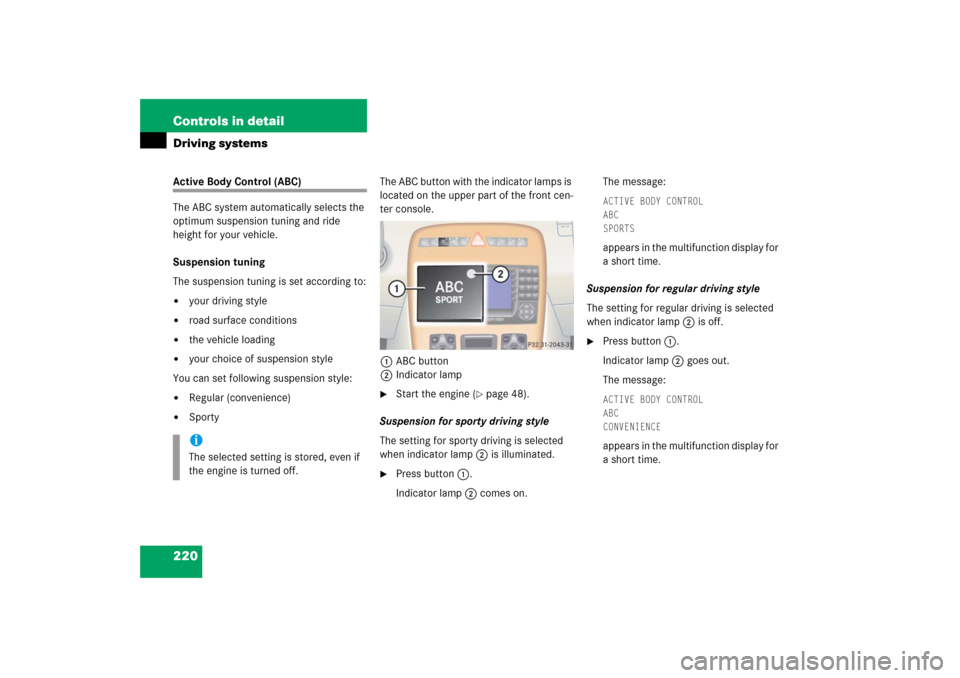

SportyThe ABC button with the indicator lamps is
located on the upper part of the front cen-
ter console.
1ABC button
2Indicator lamp

Start the engine (
page 48).
Suspension for sporty driving style
The setting for sporty driving is selected
when indicator lamp2 is illuminated.

Press button1.
Indicator lamp2 comes on.The message:
ACTIVE BODY CONTROL
ABC
SPORTSappears in the multifunction display for
a short time.
Suspension for regular driving style
The setting for regular driving is selected
when indicator lamp2 is off.

Press button1.
Indicator lamp2 goes out.
The message:ACTIVE BODY CONTROL
ABC
CONVENIENCEappears in the multifunction display for
a short time.
iThe selected setting is stored, even if
the engine is turned off.

221 Controls in detail
Driving systems
Vehicle level control
Your vehicle automatically adjusts its ride
height to

increase vehicle safety


reduce fuel consumptionThe vehicle chassis ride height is raised or
lowered according to the selected level
setting and to the vehicle speed:


With increasing speed, ride height is re-
duced by up to approximately 0.95 in
(24 mm).


With decreasing speed, the ride height
is again raised to the selected vehicle
level.Select the level 1 and 2 settings only when
required by current driving conditions.
Otherwise


Fuel consumption may increase.


Handling may be impaired.
The following vehicle level settings can be
selected when the vehicle is stationary:
Warning!
G
To help avoid personal injury, keep hands
and feet away from wheel housing area, and
stay away from under the vehicle when low-
ering the vehicle chassis.
iThese height adjustments are so small
that you may not notice any change.

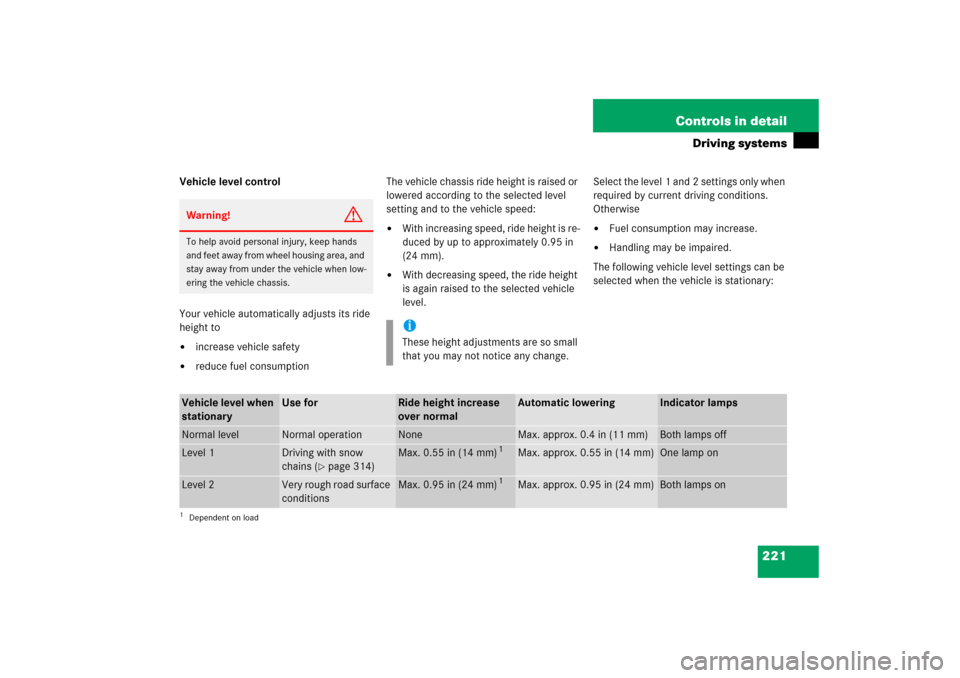

Vehicle level when
stationary
Use for
Ride height increase
over normal
Automatic lowering
Indicator lamps
Normal level
Normal operation
None
Max. approx. 0.4 in (11 mm)
Both lamps off
Level 1
Driving with snow
chains (
page 314)
Max. 0.55 in (14 mm)
1
1Dependent on load
Max. approx. 0.55 in (14 mm)
One lamp on
Level 2
Very rough road surface
conditions
Max. 0.95 in (24 mm)
1
Max. approx. 0.95 in (24 mm)
Both lamps on

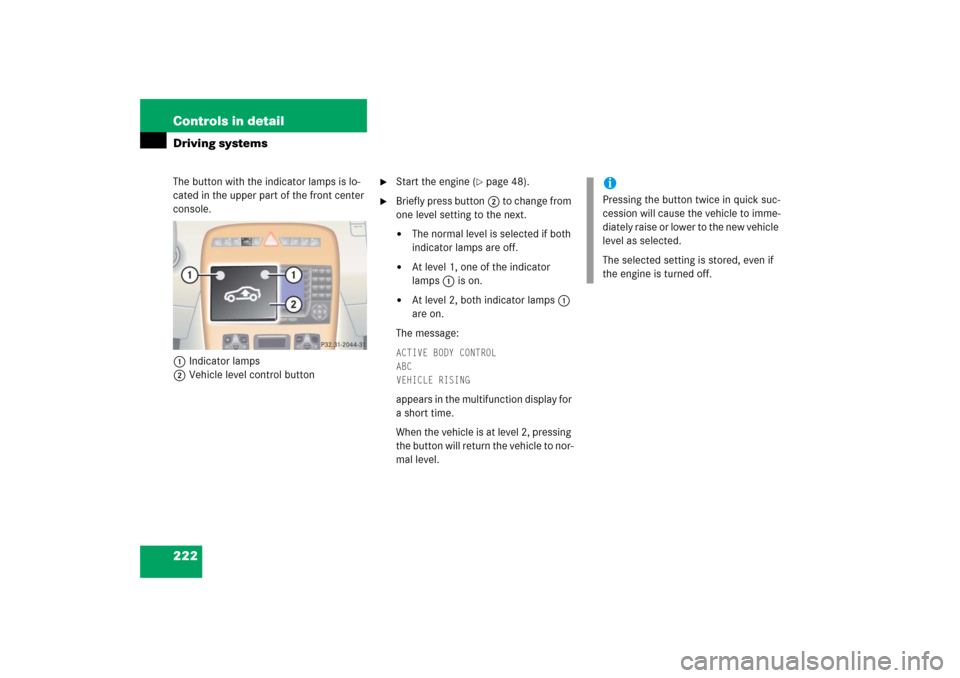

222 Controls in detailDriving systemsThe button with the indicator lamps is lo-
cated in the upper part of the front center
console.
1Indicator lamps
2Vehicle level control button

Start the engine (
page 48).

Briefly press button2 to change from
one level setting to the next.

The normal level is selected if both
indicator lamps are off.


At level 1, one of the indicator
lamps 1 is on.


At level 2, both indicator lamps 1
are on.
The message:
ACTIVE BODY CONTROL
ABC
VEHICLE RISINGappears in the multifunction display for
a short time.
When the vehicle is at level 2, pressing
the button will return the vehicle to nor-
mal level.
iPressing the button twice in quick suc-
cession will cause the vehicle to imme-
diately raise or lower to the new vehicle
level as selected.
The selected setting is stored, even if
the engine is turned off.

223 Controls in detail
Driving systems
Parktronic system* (Parking assist)
The Parktronic system is an electronic aid
designed to assist the driver during park-
ing maneuvers. It visually and audibly indi-
cates the relative distance between the
vehicle and an obstacle.
The Parktronic system is automatically ac-
tivated when you switch on the ignition
and placed the gear selector lever in posi-
tion D, R, or N.
The Parktronic system deactivates at
speeds over approximately 11 mph
(18 km/h). At lower speeds the Parktronic
system turns on again.
The Parktronic system also deactivates
when you place the gear selector lever in
position P.The Parktronic system monitors the sur-

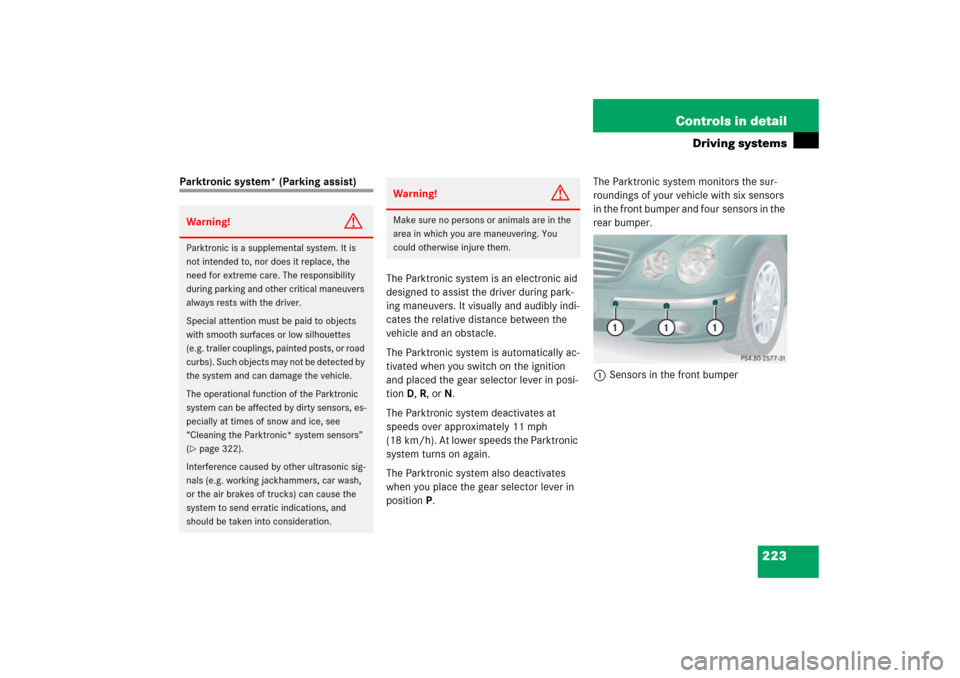

roundings of your vehicle with six sensors
in the front bumper and four sensors in the
rear bumper.
1Sensors in the front bumperWarning!
G
Parktronic is a supplemental system. It is
not intended to, nor does it replace, the
need for extreme care. The responsibility
during parking and other critical maneuvers
always rests with the driver.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts, or road
curbs). Such objects may not be detected by
the system and can damage the vehicle.
The operational function of the Parktronic
system can be affected by dirty sensors, es-
pecially at times of snow and ice, see
“Cleaning the Parktronic* system sensors”
(page 322).
Interference caused by other ultrasonic sig-
nals (e.g. working jackhammers, car wash,
or the air brakes of trucks) can cause the
system to send erratic indications, and
should be taken into consideration.
Warning!
G
Make sure no persons or animals are in the
area in which you are maneuvering. You
could otherwise injure them.

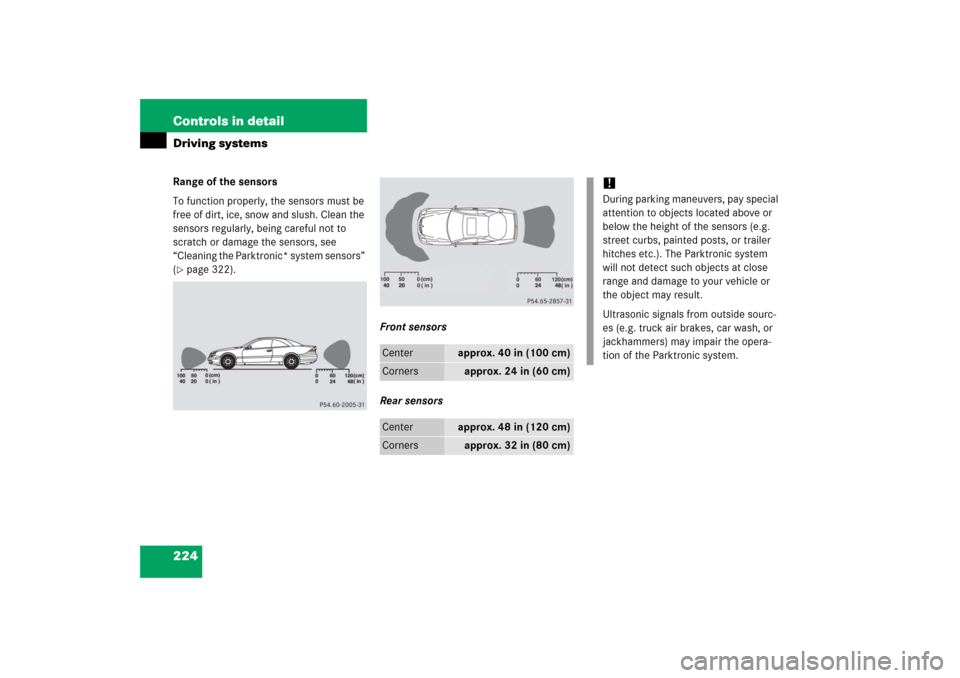

224 Controls in detailDriving systemsRange of the sensors
To function properly, the sensors must be
free of dirt, ice, snow and slush. Clean the
sensors regularly, being careful not to
scratch or damage the sensors, see
“Cleaning the Parktronic* system sensors”
(page 322).
Front sensors
Rear sensors
Center
approx. 40 in (100 cm)
Corners
approx. 24 in (60 cm)
Center
approx. 48 in (120 cm)
Corners
approx. 32 in (80 cm)
!During parking maneuvers, pay special
attention to objects located above or
below the height of the sensors (e.g.
street curbs, painted posts, or trailer
hitches etc.). The Parktronic system
will not detect such objects at close
range and damage to your vehicle or
the object may result.
Ultrasonic signals from outside sourc-
es (e.g. truck air brakes, car wash, or
jackhammers) may impair the opera-
tion of the Parktronic system.

225 Controls in detail
Driving systems
Minimum distance
If the system detects an obstacle in this
range, all the distance warning segments
illuminate and you hear a warning signal. If
the obstacle is closer than the minimum
distance, the actual distance may no long-
er be indicated by the system.

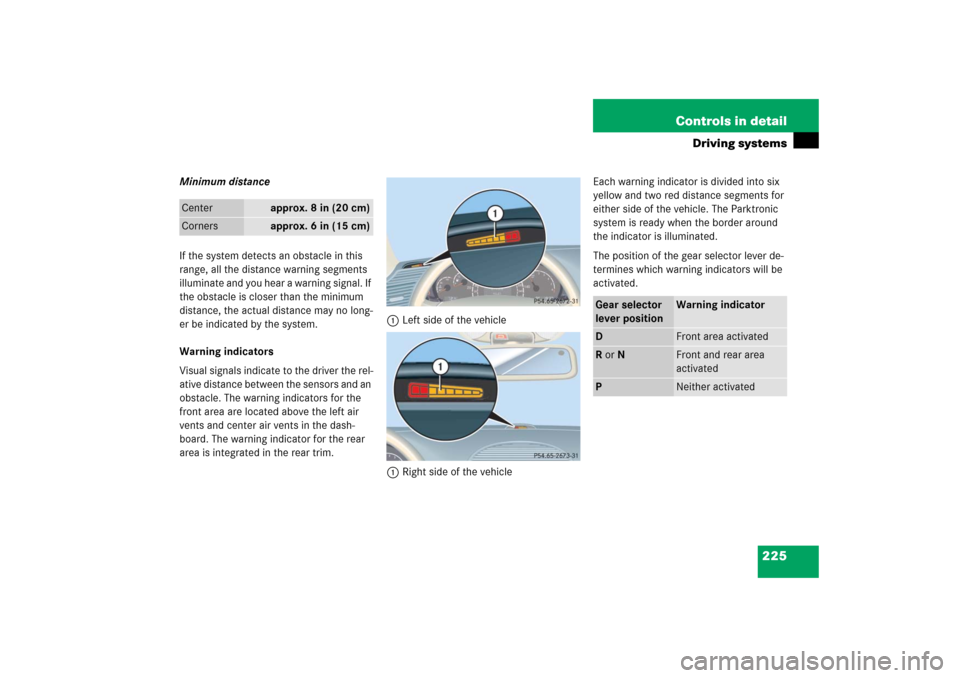

Warning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle. The warning indicators for the
front area are located above the left air
vents and center air vents in the dash-
board. The warning indicator for the rear
area is integrated in the rear trim.1Left side of the vehicle
1Right side of the vehicleEach warning indicator is divided into six
yellow and two red distance segments for
either side of the vehicle. The Parktronic
system is ready when the border around
the indicator is illuminated.
The position of the gear selector lever de-
termines which warning indicators will be
activated.Center
approx. 8 in (20 cm)
Corners
approx. 6 in (15 cm)
Gear selector
lever position
Warning indicator
D
Front area activated
R or N
Front and rear area
activated
P
Neither activated

226 Controls in detailDriving systemsAs your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the
eighth distance segment illuminates, you
have reached the minimum distance.

Front area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of 2 seconds will sound for
the second red distance segment. The
signal is canceled when the gear selec-
tor lever is placed in position P.


Rear area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of 2 seconds will sound for
the second red distance segment. The
signal is canceled when the gear selec-
tor lever is placed in position D orP.Switching the Parktronic system
on/off
The Parktronic system can be switched off
manually.
The Parktronic button is located in the up-
per part of the front center console.
1Parktronic button
2Indicator lampSwitching off the Parktronic system

Press button 1.
Indicator lamp 2 comes on.
Switching on the Parktronic system

Press button 1 again.
Indicator lamp 2 goes out.iThe Parktronic system is automatically
switched on when the ignition is
switched on (
page 34).

227 Controls in detail
Driving systems
Parktronic system malfunction
If only the red distance segments illumi-
nate and an acoustic warning sounds,
there is a malfunction in the Parktronic
system. The Parktronic system will auto-
matically switch off after 20 seconds and
the indicator lamp in the Parktronic switch
comes on.
Have the Parktronic system checked
by an authorized Mercedes-Benz
Center as soon as possible.If only the red distance segments illumi-
nate and no acoustic warning sounds, the
Parktronic system sensors are dirty or
there is an interference from other radio or
ultrasonic signals. The Parktronic system
will automatically switch off after
20 seconds and the indicator lamp in the
Parktronic switch comes on.

Switch off the ignition (
page 34).

Clean Parktronic system sensors
(page 322).

Switch on the ignition.
or

Check Parktronic system operation at
another location to rule out interfer-
ence from outside radio or ultrasonic
signals.

228 Controls in detailLoadingRoof rack* Preparing roof rack installation

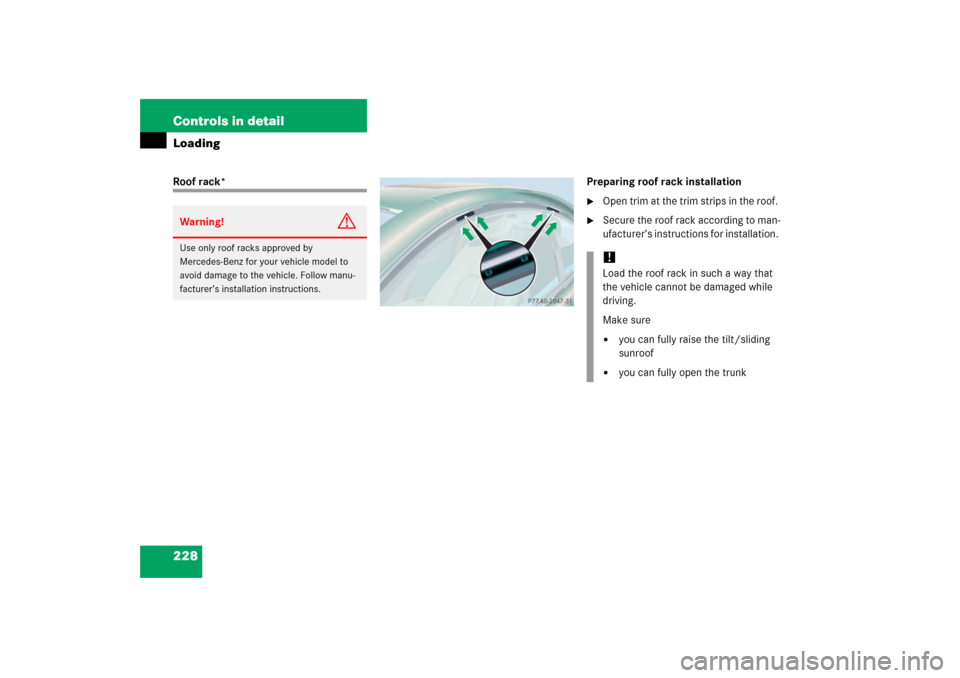

Open trim at the trim strips in the roof.

Secure the roof rack according to man-
ufacturer’s instructions for installation.
Warning!
G
Use only roof racks approved by
Mercedes-Benz for your vehicle model to
avoid damage to the vehicle. Follow manu-
facturer’s installation instructions.
!Load the roof rack in such a way that
the vehicle cannot be damaged while
driving.
Make sure

you can fully raise the tilt/sliding
sunroof


you can fully open the trunk

229 Controls in detail
Loading
Loading instructions
The total load weight including vehicle oc-
cupants and luggage/cargo should not ex-
ceed the load limit or vehicle capacity
weight as indicated on the corresponding
placard located on the driver’s door B-pil-
lar.

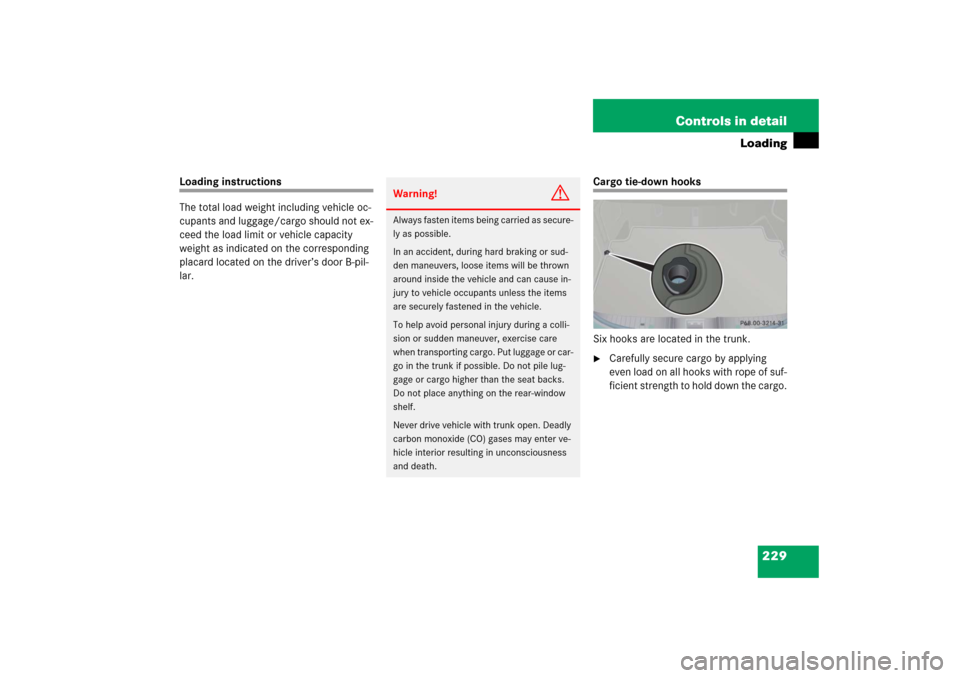

Cargo tie-down hooks
Six hooks are located in the trunk.
Carefully secure cargo by applying
even load on all hooks with rope of suf-
ficient strength to hold down the cargo.
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible. Do not pile lug-
gage or cargo higher than the seat backs.
Do not place anything on the rear-window
shelf.
Never drive vehicle with trunk open. Deadly
carbon monoxide (CO) gases may enter ve-
hicle interior resulting in unconsciousness
and death.
