MERCEDES-BENZ CL55AMG 2006 C215 Owner's Manual

230 Controls in detailUseful featuresVanity mirrors
Vanity mirror in the sun visor
1Mirror cover
2Mirror lamp
3Document holder

To use mirror, lift up cover1.
Mirror lamp2 comes on.Adjusting the vanity mirror

Slide the mirror to the left or to the
right.
Images in the mirror appear in normal
size or larger, depending on the posi-
tion of the mirror.
Document holder
You can use the plastic tab of the docu-
ment holder3 to hold admission tickets,
parking passes, or similar items in place.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.!Close the vanity mirror cover (if open)
before you disengage the sun visor
from the mounting and pivot it to the
side (
page 181).
iIf you disengage the sun visor from the
mounting, mirror lamp2 will switch
off.

231 Controls in detail
Useful features
Storage compartments Glove box
1Unlocked
2Locked
3Glove box lid release
Opening glove box

Press glove box lid release3.
The glove box lid opens downward.
Closing glove box

Push glove box lid up to close.Locking glove box

Insert the mechanical key
(page 372) into the glove box lock.

Turn the mechanical key to
position2.
Unlocking glove box

Insert the mechanical key
(page 372) into the glove box lock.

Turn the mechanical key to
position1.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when storing objects in the vehicle. Put lug-
gage or cargo in the trunk if possible. Do not
pile luggage or cargo higher than the seat
backs.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.

232 Controls in detailUseful featuresStorage compartment in the glove box
A storage compartment is located in the
cover of the glove box. It can be used to
store cards, pens, a flashlight, etc.
1Storage compartment in glove box
Lightly press the marking on the lid of
storage compartment1.
The lid opens upward.Storage compartment in front of arm-
rest
1Storage compartment
Opening
The compartment contains a cup holder
(
page 235).

Lightly touch cover plate1.
The cover opens automatically.
Closing

Lightly push the cover plate1 up until
it engages in lock.Storage compartment below the front
armrest
Depending on vehicle model and configu-
ration, your vehicle is equipped with a stor-
age compartment below the front armrest.
The storage compartment below the front
armrest is illuminated with the exterior
lamps switched on.
The buttons are located under the cushion
of the armrest.
1Button to open storage compartment
2Button to open storage tray and tele-
phone holder*

233 Controls in detail
Useful features
Opening storage compartment
Press button1 and lift the armrest lid.Opening storage tray and telephone
holder*
The tray contains a coin holder and a tele-
phone* holder.

Press button2 and lift the armrest.Storage compartment between rear
seats
1Cover
Opening

Slide cover1 rearward.
Closing

Slide cover1 forward.
iThe storage compartment can be heat-
ed or cooled.
The compartment can get very warm
due to its confined space. When storing
heat-sensitive objects in the compart-
ment, close the air vent (
page 195)
while heating the passenger compart-
ment.
!Do not obstruct the air vent in the stor-
age compartment.
!Do not let bank cards, credit cards or
other cards with a magnetic strip come
near the storage tray as a magnet built
into the tray could erase or change the
information on the card.

234 Controls in detailUseful featuresStorage compartments under the front
seats
1Lid
2Buttons
Opening
Press buttons2 together and fold
lid1 down.
Closing

Close lid1 until both buttons2 of
lock engage.Parcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.Parcel net in trunk
You can hang a parcel net in the trunk. The
hooks and the parcel net in the trunk can
hold a load of up to 29.8 lbs (13.5 kg).
1Hook

Hang the parcel net on hooks1 on the
left and right sides of the trunk.
Warning!
G
The parcel net is intended for storing
light-weight items only.
Heavy objects, objects with sharp edges or
fragile objects may not be transported in the
parcel net. In an accident, during hard brak-
ing, or sudden maneuvers, they could be
thrown around inside the vehicle and cause
injury to vehicle occupants
The parcel net cannot protect transported
goods in the event of an accident.
!The parcel net cannot protect or suffi-
ciently secure goods in the event of an
accident.

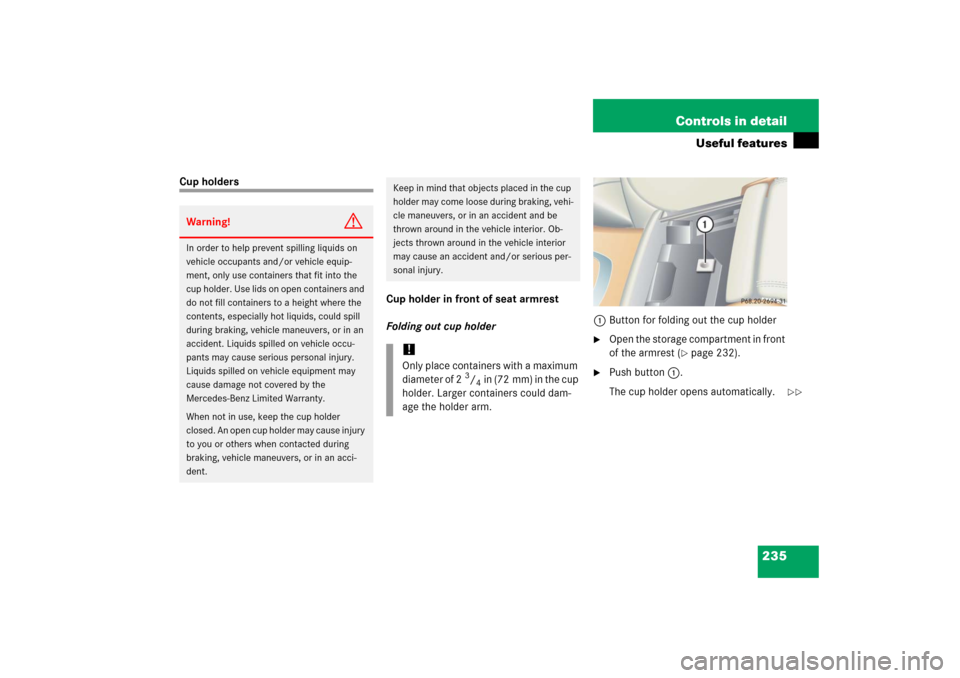

235 Controls in detail
Useful features
Cup holders
Cup holder in front of seat armrest
Folding out cup holder1Button for folding out the cup holder

Open the storage compartment in front
of the armrest (
page 232).

Push button1.
The cup holder opens automatically.
Warning!
G
In order to help prevent spilling liquids on
vehicle occupants and/or vehicle equip-
ment, only use containers that fit into the
cup holder. Use lids on open containers and
do not fill containers to a height where the
contents, especially hot liquids, could spill
during braking, vehicle maneuvers, or in an
accident. Liquids spilled on vehicle occu-
pants may cause serious personal injury.
Liquids spilled on vehicle equipment may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
When not in use, keep the cup holder
closed. An open cup holder may cause injury
to you or others when contacted during
braking, vehicle maneuvers, or in an acci-
dent.
Keep in mind that objects placed in the cup
holder may come loose during braking, vehi-
cle maneuvers, or in an accident and be
thrown around in the vehicle interior. Ob-
jects thrown around in the vehicle interior
may cause an accident and/or serious per-
sonal injury. !Only place containers with a maximum
diameter of 2
3/4in (72 mm) in the cup
holder. Larger containers could dam-
age the holder arm.

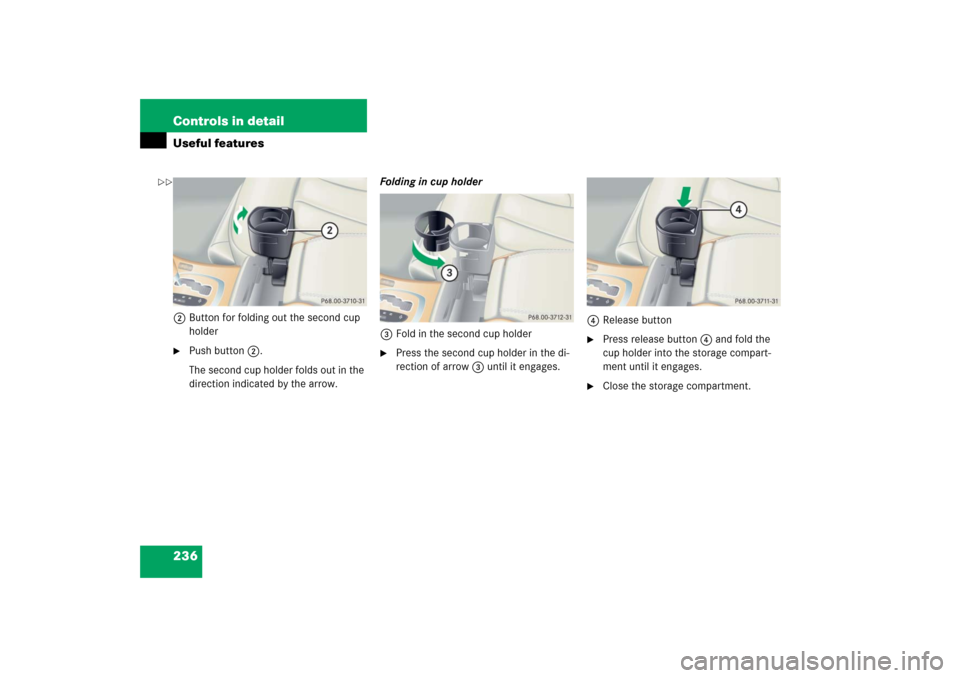

236 Controls in detailUseful features2Button for folding out the second cup
holder
Push button2.
The second cup holder folds out in the
direction indicated by the arrow.Folding in cup holder
3Fold in the second cup holder

Press the second cup holder in the di-
rection of arrow3 until it engages.4Release button

Press release button4 and fold the
cup holder into the storage compart-
ment until it engages.

Close the storage compartment.


237 Controls in detail
Useful features
Cup holder in rear seat armrest
1Compartment for cup holder
Opening cup holder
Push front of sliding compartment1.
The cup holder slides out.
Closing cup holder

Push sliding compartment1 back un-
til it engages.
Ashtrays
Center console ashtray
1Button for disengaging ashtray
Opening ashtray
Briefly touch cover plate.
The ashtray opens automatically.Removing ashtray insert

Secure vehicle from movement by set-
ting the parking brake. Move the gear
selector lever to positionN.
Now you have more room to remove
the insert.

Push sliding button1 to the right.
The ashtray is disengaged and slides
out a short way.

Remove insert from ashtray frame.
Reinstalling the ashtray insert

Install insert by pushing back into the
frame until it engages.Warning!
G
Remove front ashtray only with vehicle
standing still. Set the parking brake to se-
cure vehicle from movement. Move the gear
selector lever to positionN. With gear selec-
tor lever in positionN, turn off the engine.

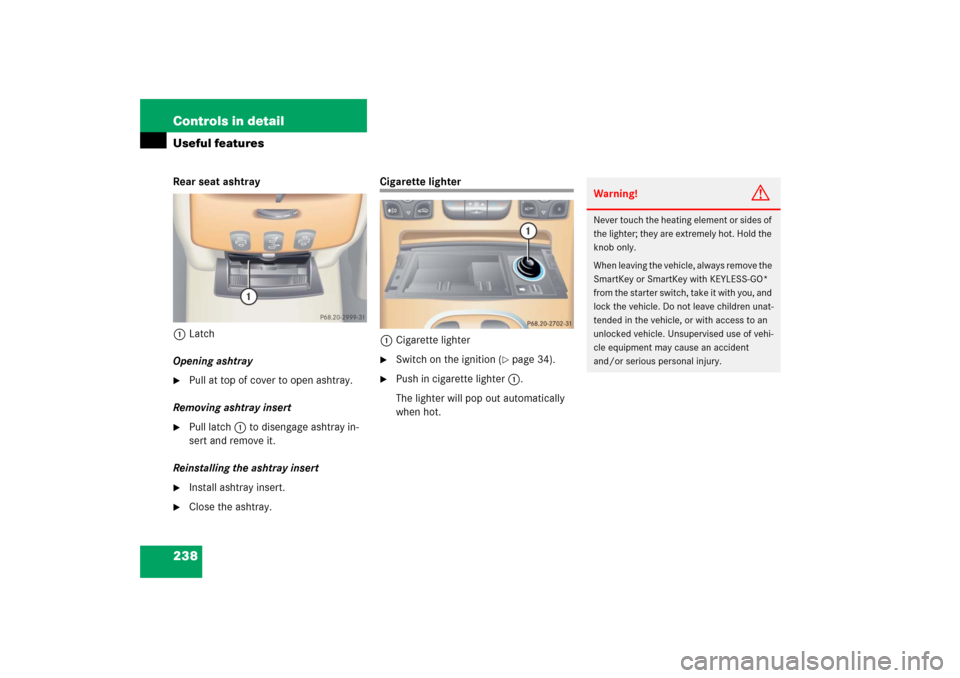

238 Controls in detailUseful featuresRear seat ashtray
1Latch
Opening ashtray
Pull at top of cover to open ashtray.
Removing ashtray insert

Pull latch1 to disengage ashtray in-
sert and remove it.
Reinstalling the ashtray insert

Install ashtray insert.

Close the ashtray.
Cigarette lighter
1Cigarette lighter
Switch on the ignition (
page 34).

Push in cigarette lighter1.
The lighter will pop out automatically
when hot.
Warning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

239 Controls in detail
Useful features
Heated steering wheel* (CL 500 and CL 600)
The steering wheel heating warms up the
leather area of the steering wheel.
The stalk is on the lower left-hand side of
the steering wheel.
1Switching on
2Indicator lamp
3Switching offSwitching on

Switch on the ignition (
page 34).

Turn switch at the tip of stalk in the di-
rection of arrow1.
The steering wheel is heated. Indicator
lamp2 comes on.
!The lighter socket can accommodate
12V DC electrical accessories (up to a
maximum of 85 W) designed for use
with the standard “cigarette lighter
plug”. Keep in mind, however, that con-
necting accessories to the lighter sock-
et (for example extensive connecting
and disconnecting, or using plugs that
do not fit properly) can damage the
lighter socket. With the socket dam-
aged, the lighter may no longer be able
to be placed in the heating (pushed-in)
position, or the lighter may pop out too
early with the lighter not hot enough.
iThe steering wheel heating is tempo-
rarily suspended while indicator
lamp2 remains on when

the temperature of the vehicle inte-
rior is above 86°F (30°C)


the temperature of the steering
wheel is above 95°F (35°C)
When these conditions do not apply
anymore, steering wheel heating con-
tinues.
