MERCEDES-BENZ CLA 2014 Owners Manual

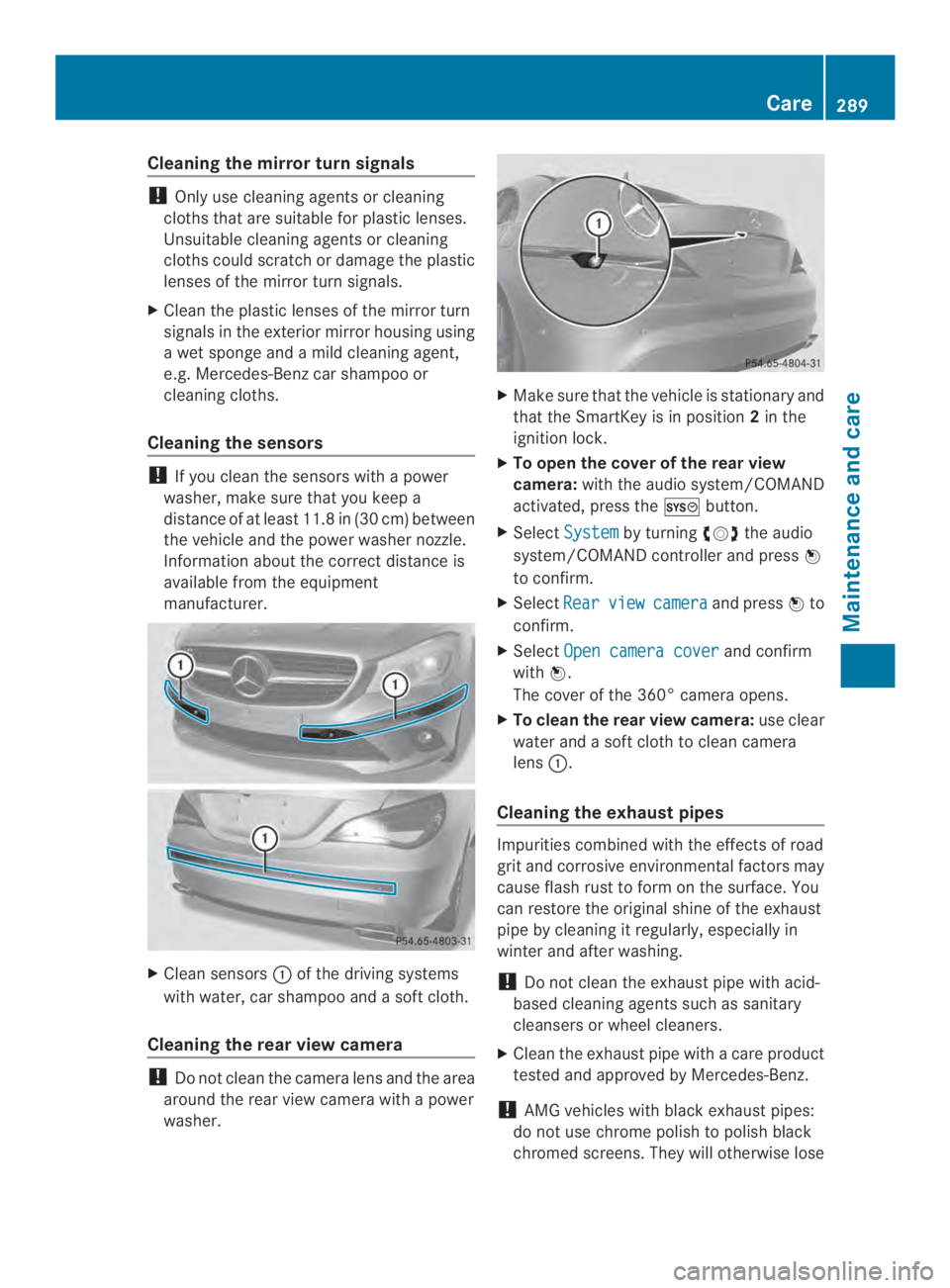

Cleaning the mirror turn signals
!Only use cleaning agents or cleaning
cloths that are suitable for plastic lenses.
Unsuitable cleaning agents or cleaning
cloths could scratch or damage the plastic
lenses of the mirror turnsignals.
XClean the plastic lenses of the mirror turn
signals in the exterior mirror housing using
a wet sponge and a mild cleaning agent,
e.g. Mercedes-Benzcar shampoo or
cleaning cloths.
Cleaning the sensors
!If you clean the sensorswith a power
washer, make sure that you keep a
distance of at least 11.8in(30 cm) between
the vehicle and the power washer nozzle.
Information about the correct distance is
available from the equipment
manufacturer.
XClean sensorsof the driving systems
with water, car shampoo and a soft cloth.
Cleaning the rear view camera
!Do not cleanthe camera lens and the area
around the rear view camera with a power
washer.
XMake sure that the vehicle is stationary and
that the SmartKey is in position2in the
ignition lock.
XTo open the cover of the rear view
camera:with the audio system/COMAND
activated, press thebutton.
XSelectSystemby turning\rthe audio
system/COMAND controller and press\n
to confirm.
XSelectRearviewcameraand press\nto
confirm.
XSelectOpen camera coverand confirm
with\n.
The cover of the 360° camera opens.
XTo clean the rear view camera:use clear
water and a soft cloth to clean camera
lens.
Cleaning the exhaust pipes
Impurities combined with the effects of road
grit and corrosive environmental factors may
cause flash rust to form on the surface. You
can restore the original shine of the exhaust
pipe by cleaning it regularly, especially in
winter and after washing.
!Do not clean the exhaust pipe with acid-
based cleaning agents such as sanitary
cleansers or wheel cleaners.
XCleanthe exhaust pipe with a care product
tested and approved by Mercedes-Benz.
!AMG vehicles with black exhaust pipes:
do not use chrome polish to polish black
chromed screens. They will otherwise lose
Care289
Maintenance and care
Z

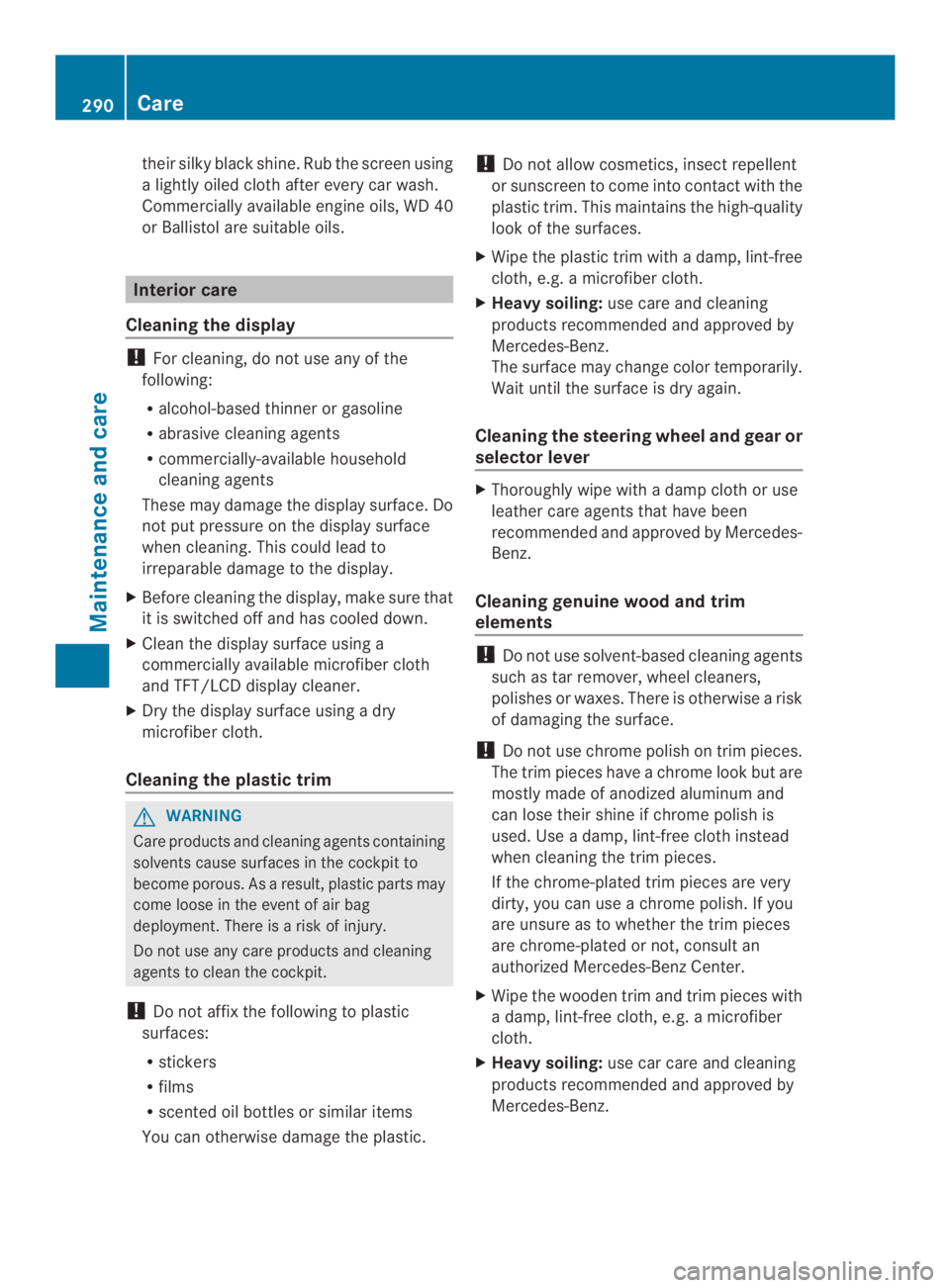

their silky black shine. Rub the screen using
a lightly oiled cloth after every car wash.
Commercially available engine oils, WD 40
or Ballistol are suitable oils.
Interior care
Cleaning the display
!For cleaning, do not useany of the
following:
Ralcohol-based thinner or gasoline
Rabrasive cleaning agents
Rcommercially-available household
cleaning agents
These may damage the display surface. Do
not putpressure on the display surface
when cleaning. This could leadto
irreparable damage to the display.
XBefore cleaning the display, make sure that
it is switched off and has cooled down.
XClean the display surface using a
commercially available microfiber cloth
and TFT/LCD display cleaner.
XDry the display surface using a dry
microfiber cloth.
Cleaning the plastic trim
GWARNING
Care products and cleaning agents containing
solvents cause surfaces in the cockpit to
become porous.As a result, plastic parts may
come loose in the event of air bag
deployment. There is a risk of injury.
Do not use any care products and cleaning
agents to clean the cockpit.
!Do not affix the following to plastic
surfaces:
Rstickers
Rfilms
Rscented oil bottles or similaritems
You can otherwise damage the plastic.
!Do not allow cosmetics, insect repellent
or sunscreen to come into contact with the
plastic trim. This maintains the high-quality
look of the surfaces.
XWipe the plastic trimwith a damp, lint-free
cloth, e.g. a microfiber cloth.
XHeavysoiling:use care and cleaning
products recommended and approved by
Mercedes-Benz.
The surface may change colortemporarily.
Wait until the surface is dry again.
Cleaning the steering wheel and gear or
selector lever
XThoroughly wipe with a damp cloth or use
leather care agents that have been
recommended and approved by Mercedes-
Benz.
Cleaning genuine wood and trim
elements
!Do not use solvent-based cleaning agents
such as tar remover, wheel cleaners,
polishes or waxes. There is otherwise a risk
of damaging the surface.
!Do not use chrome polish on trim pieces.
The trim pieces have a chrome look but are
mostly made of anodized aluminum and
can lose their shine if chrome polish is
used. Use a damp, lint-free cloth instead
when cleaning the trim pieces.
If the chrome-plated trim pieces are very
dirty, you can use a chrome polish. If you
are unsure as to whether the trim pieces
are chrome-plated or not, consult an
authorized Mercedes-BenzCenter.
XWipe the wooden trim and trim pieces with
a damp, lint-free cloth, e.g. a microfiber
cloth.
XHeavy soiling:use car care and cleaning
products recommended and approved by
Mercedes-Benz.
290Care
Maintenance and care

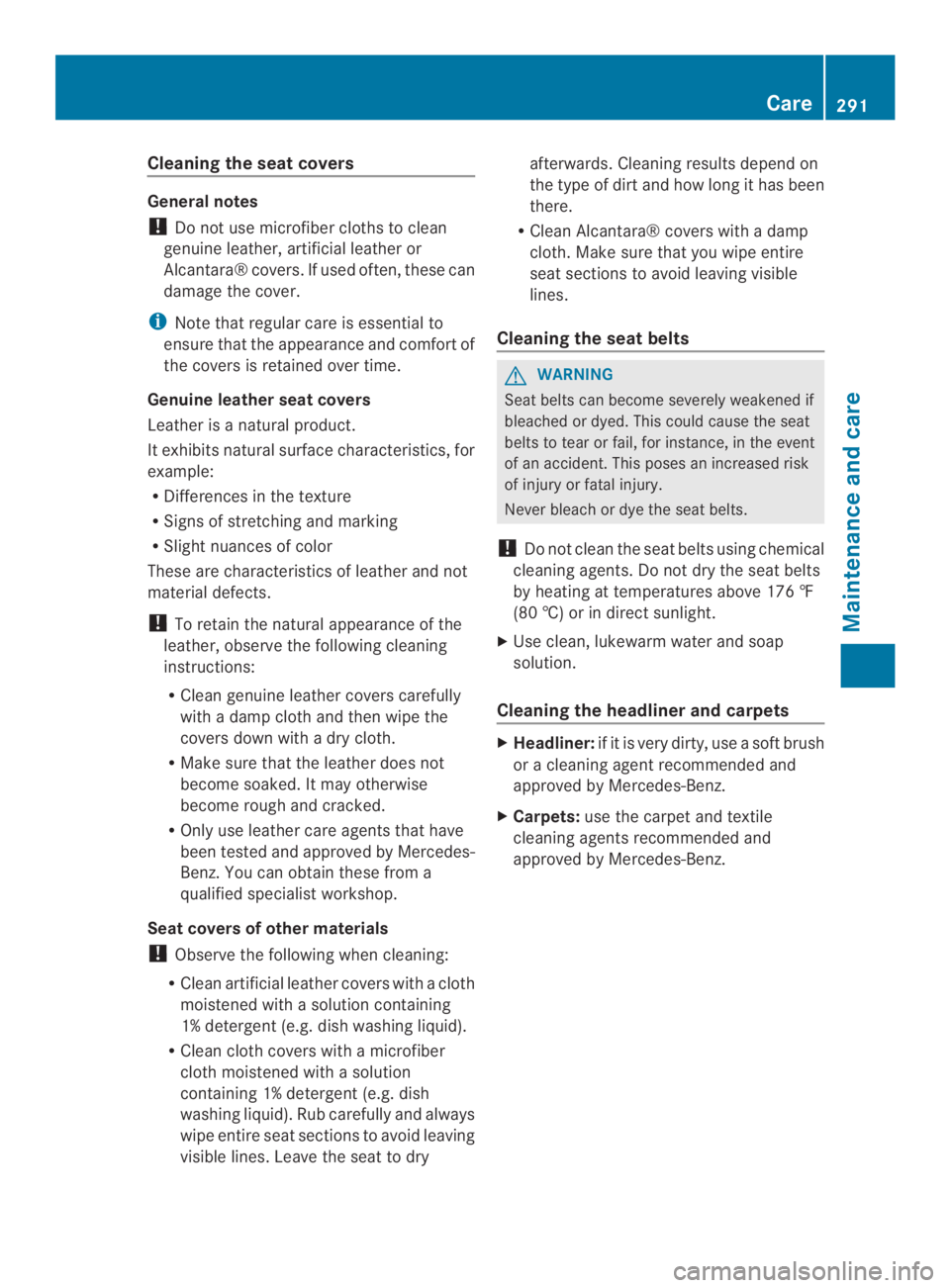

Cleaning the seat covers
General notes
!Do notuse microfiber cloths to clean
genuine leather, artificial leather or
Alcantara® covers. If used often, these can
damage the cover.
iNote that regularcare is essential to
ensure that the appearance and comfort of
the covers is retained overtime.
Genuine leather seat covers
Leather is a natural product.
It exhibits natural surface characteristics, for
example:
RDifferences in the texture
RSigns of stretching and marking
RSlightnuances of color
These are characteristics of leather and not
material defects.
!To retain the natural appearance of the
leather, observe the followingcleaning
instructions:
RClean genuine leathercovers carefully
with a damp cloth and then wipe the
covers down with a dry cloth.
RMake sure that the leather does not
become soaked. It may otherwise
become rough and cracked.
ROnly use leather care agents that have
been tested and approved by Mercedes-
Benz. You can obtain these from a
qualified specialist workshop.
Seat covers of other materials
!Observe the following when cleaning:
RClean artificial leather covers with a cloth
moistened with a solution containing
1% detergent (e.g. dish washing liquid).
RClean cloth covers with a microfiber
cloth moistened with a solution
containing 1% detergent (e.g. dish
washing liquid). Rub carefully and always
wipe entire seat sections to avoid leaving
visible lines. Leave the seat to dry
afterwards. Cleaning results depend on
the type of dirt and how long it has been
there.
RClean Alcantara® covers with a damp
cloth. Make sure that you wipe entire
seat sections to avoid leaving visible
lines.
Cleaning the seat belts
GWARNING
Seat belts can become severely weakened if
bleached or dyed. This could cause the seat
belts to tear or fail, for instance, in the event
of an accident.This poses an increased risk
of injury or fatal injury.
Never bleach or dye the seat belts.
!Do not clean the seat belts using chemical
cleaning agents. Do not dry the seat belts
by heating at temperatures above 176 ‡
(80 †) or in direct sunlight.
XUse clean, lukewarm water and soap
solution.
Cleaning the headliner and carpets
XHeadliner:if it is very dirty, use a soft brush
or a cleaning agent recommended and
approved by Mercedes-Benz.
XCarpets:use the carpet and textile
cleaning agents recommended and
approved by Mercedes-Benz.
Care291
Maintenance and care
Z

292

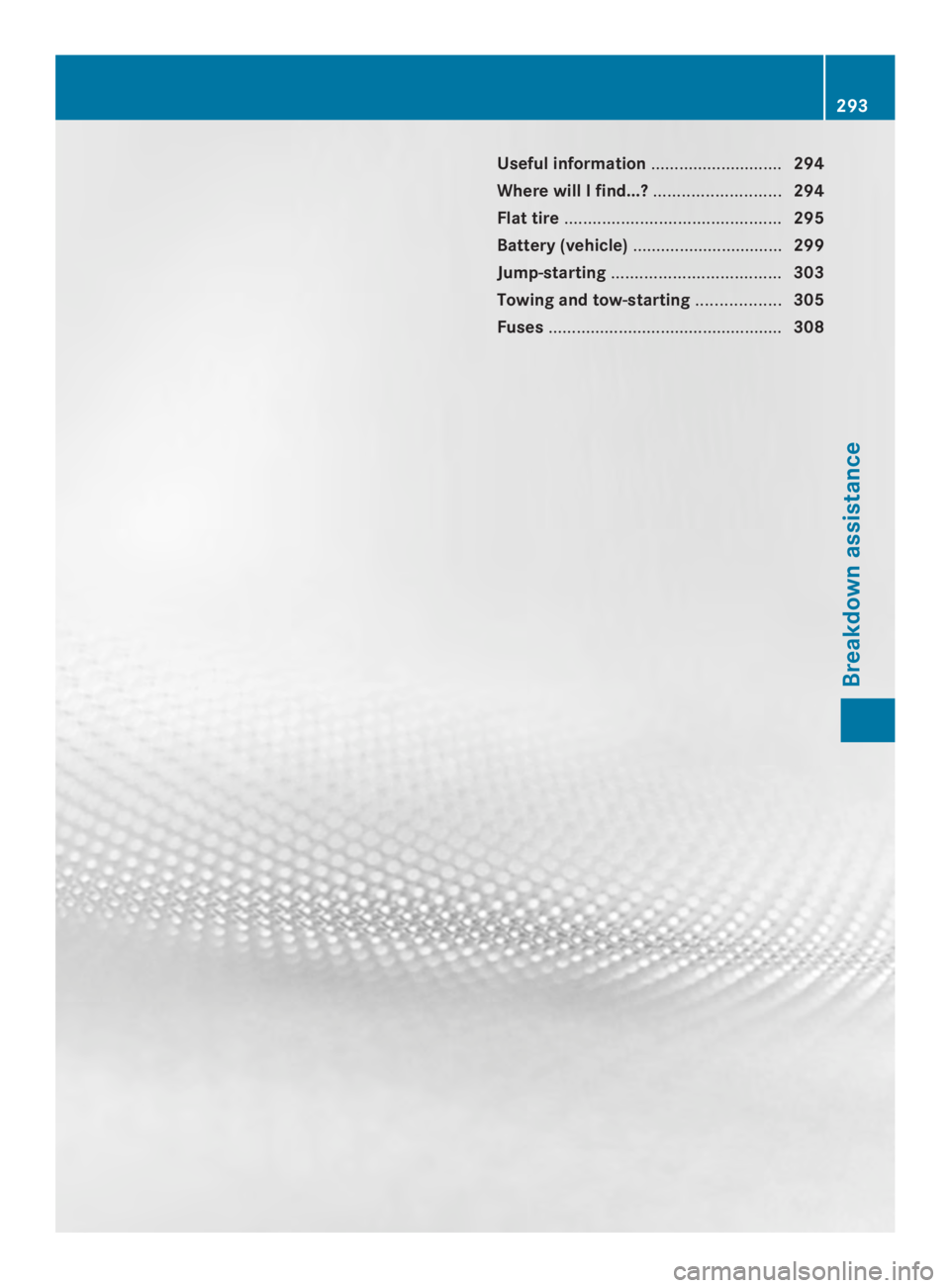

Useful information............................294
Where will I find...?...........................294
Flat tire..............................................295
Battery(vehicle)................................299
Jump-starting....................................303
Towing and tow-starting..................305
Fuses..................................................308
293
Breakdown assistance

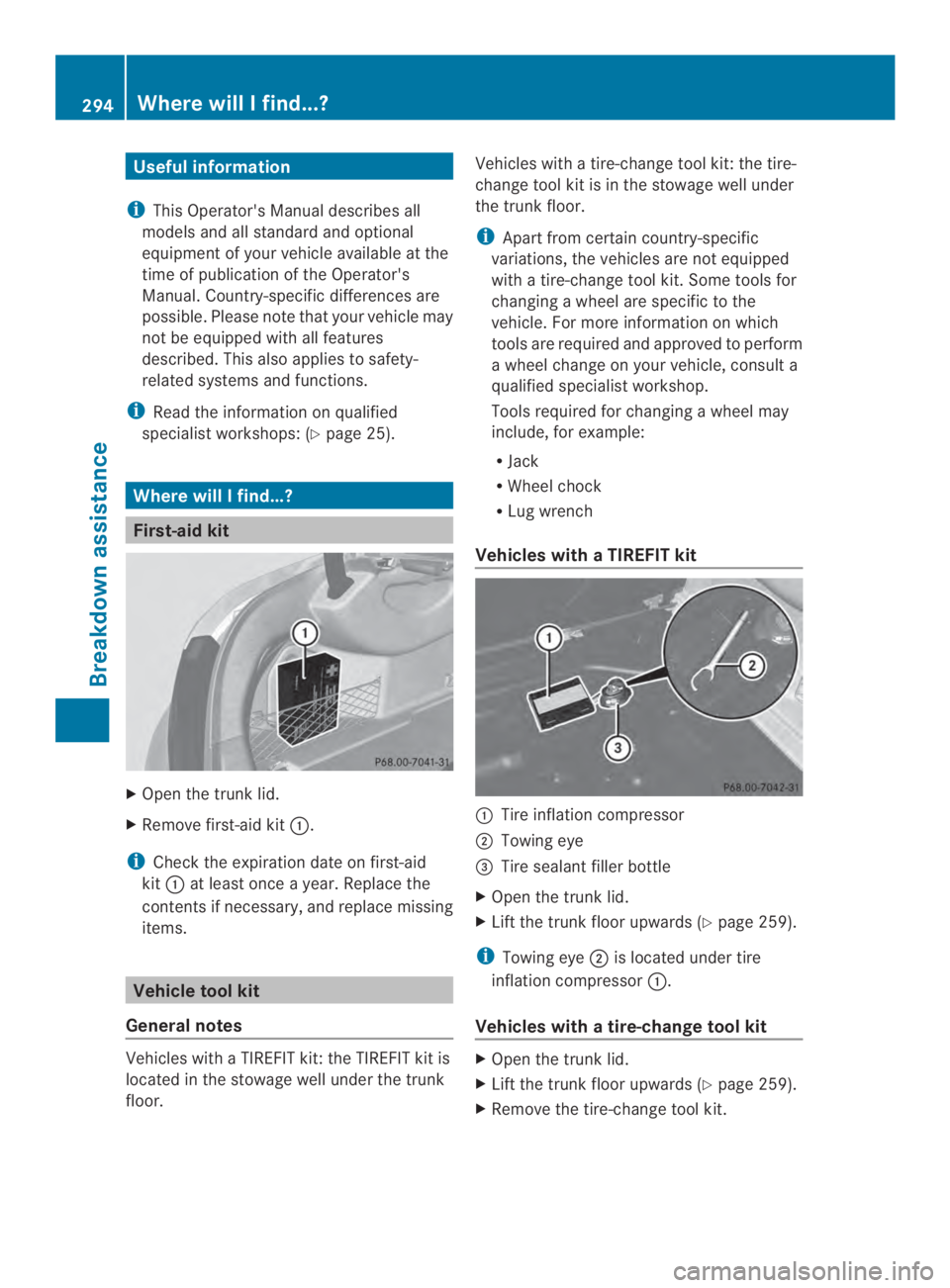

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
iRead the information on qualified
specialist workshops: (Ypage 25).
Where will I find...?
First-aid kit
XOpen the trunklid.
XRemove first-aid kit.
iCheck the expiration date on first-aid
kitat least once a year. Replace the
contents if necessary, and replace missing
items.
Vehicle tool kit
General notes
Vehicles with a TIREFIT kit: the TIREFIT kit is
located in the stowage well under the trunk
floor.
Vehicles with a tire-changetool kit: the tire-
change tool kit is in the stowage well under
the trunk floor.
iApart from certain country-specific
variations, the vehicles are not equipped
with a tire-change tool kit. Some tools for
changing a wheel are specific to the
vehicle. For more information on which
tools are required and approved to perform
a wheel change on your vehicle, consult a
qualified specialist workshop.
Tools required for changingawheel may
include, for example:
RJack
RWheel chock
RLug wrench
Vehicles withaTIREFIT kit
Tire inflation compressor
Towing eye
"Tire sealantfiller bottle
XOpen the trunk lid.
XLift the trunk floor upwards (Ypage 259).
iTowing eyeis located under tire
inflation compressor.
Vehicles withatire-change tool kit
XOpen the trunk lid.
XLift the trunk floor upwards (Ypage 259).
XRemove the tire-change toolkit.
294Where will I find...?
Breakdown assistance

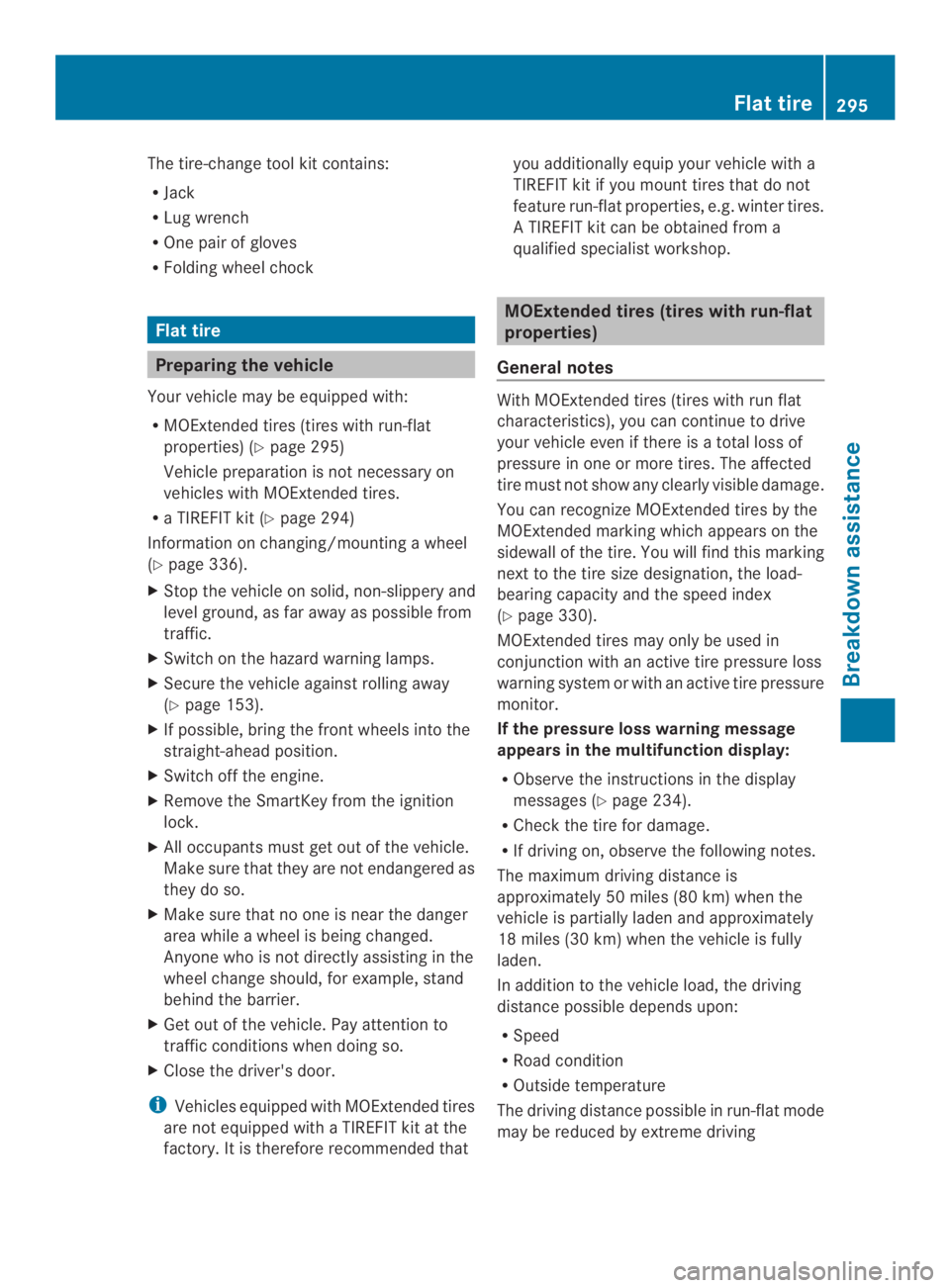

The tire-change tool kit contains:
RJack
RLug wrench
ROne pair of gloves
RFolding wheel chock
Flat tire
Preparing the vehicle
Your vehicle may be equipped with:
RMOExtended tires (tires with run-flat
properties) (Ypage 295)
Vehicle preparation is not necessary on
vehicles with MOExtended tires.
Ra TIREFIT kit (Ypage 294)
Information on changing/mounting a wheel
(Ypage 336).
XStop the vehicle on solid, non-slippery and
level ground, as far away as possible from
traffic.
XSwitch on the hazard warning lamps.
XSecure the vehicle against rolling away
(Ypage 153).
XIf possible, bring the frontwheels into the
straight-ahead position.
XSwitch off the engine.
XRemove the SmartKey from the ignition
lock.
XAll occupants must get out of the vehicle.
Make sure that they are not endangered as
they do so.
XMake sure that no one is near the danger
area while a wheel is being changed.
Anyone who is not directly assisting in the
wheel change should, for example, stand
behind the barrier.
XGet out of the vehicle. Pay attention to
traffic conditions when doing so.
XClose the driver's door.
iVehicles equipped with MOExtended tires
are not equipped with a TIREFIT kit at the
factory. It is therefore recommended that
you additionally equip your vehicle with a
TIREFIT kit if you mount tires that do not
feature run-flat properties, e.g. winter tires.
A TIREFIT kit can be obtained from a
qualified specialist workshop.
MOExtended tires (tires with run-flat
properties)
General notes
With MOExtended tires (tires with run flat
characteristics), you can continue to drive
your vehicle even if there is a total loss of
pressure in one or more tires. The affected
tire must not show any clearly visible damage.
You can recognize MOExtended tires by the
MOExtended marking which appears on the
sidewall of the tire. You will find this marking
next to the tire size designation, the load-
bearing capacity and the speed index
(Ypage 330).
MOExtended tires may only be used in
conjunction with an active tire pressure loss
warning system or with an active tire pressure
monitor.
If the pressure loss warning message
appears in the multifunction display:
RObserve the instructions in the display
messages (Ypage 234).
RCheck the tire for damage.
RIf driving on, observe the following notes.
The maximum driving distance is
approximately 50 miles (80 km) when the
vehicle is partially laden and approximately
18 miles (30 km) when the vehicle is fully
laden.
In addition to the vehicle load, the driving
distance possible depends upon:
RSpeed
RRoad condition
ROutside temperature
The driving distance possible in run-flat mode
may be reduced by extreme driving
Flat tire295
Breakdown assistance

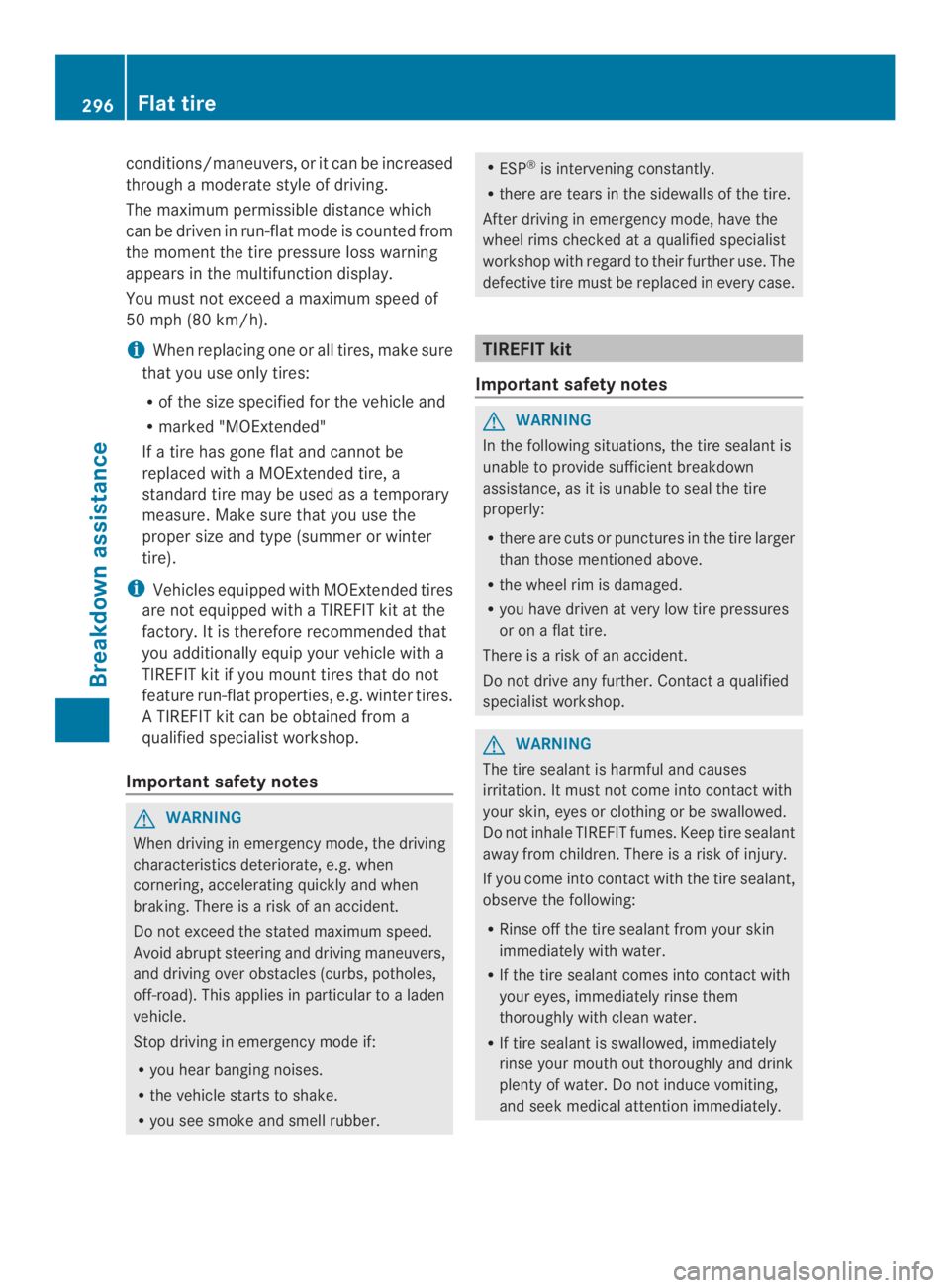

conditions/maneuvers, or it can be increased
through a moderate style of driving.
The maximum permissible distance which
can be driven in run-flat mode is counted from
the moment the tire pressure loss warning
appears in the multifunction display.
You mustnot exceed a maximum speed of
50 mph (80 km/h).
iWhen replacing one or all tires, make sure
that you use only tires:
Rof the size specified for the vehicle and
Rmarked "MOExtended"
If a tire has gone flat and cannot be
replaced with a MOExtended tire, a
standard tire may be used as a temporary
measure. Make sure that you use the
proper size and type (summer or winter
tire).
iVehicles equipped with MOExtended tires
are not equipped with a TIREFIT kit at the
factory. It is therefore recommended that
you additionally equip your vehicle with a
TIREFIT kit if you mount tires that do not
feature run-flat properties, e.g. winter tires.
A TIREFIT kit can be obtained from a
qualified specialist workshop.
Important safety notes
GWARNING
When driving in emergency mode, the driving
characteristics deteriorate, e.g. when
cornering, accelerating quickly and when
braking. There is a risk of an accident.
Do not exceed the stated maximum speed.
Avoid abrupt steering and driving maneuvers,
and driving over obstacles (curbs, potholes,
off-road). This applies in particular to a laden
vehicle.
Stop driving in emergency mode if:
Ryou hear banging noises.
Rthe vehicle starts to shake.
Ryou see smoke and smell rubber.
RESP®is intervening constantly.
Rthere are tears in the sidewalls of the tire.
After driving in emergency mode, have the
wheel rims checked at a qualified specialist
workshop with regard to their further use. The
defective tire must be replaced in every case.
TIREFIT kit
Important safety notes
GWARNING
In the following situations, the tire sealant is
unable to provide sufficient breakdown
assistance, as it is unable to seal the tire
properly:
Rthere are cuts or punctures in the tire larger
than those mentioned above.
Rthe wheel rim is damaged.
Ryou have driven at very low tire pressures
or on a flat tire.
There is a risk of an accident.
Do not drive any further. Contact a qualified
specialist workshop.
GWARNING
The tire sealant is harmful and causes
irritation. It must not come into contact with
your skin, eyes or clothing or be swallowed.
Do not inhale TIREFIT fumes. Keep tire sealant
away from children. There is a risk of injury.
If you come into contact with the tire sealant,
observe the following:
RRinse off the tire sealant from your skin
immediately with water.
RIf the tire sealant comes into contact with
your eyes, immediately rinse them
thoroughly with clean water.
RIf tire sealant is swallowed, immediately
rinse your mouth out thoroughly and drink
plenty of water. Do not induce vomiting,
and seek medical attention immediately.
296Flat tire
Breakdown assistance

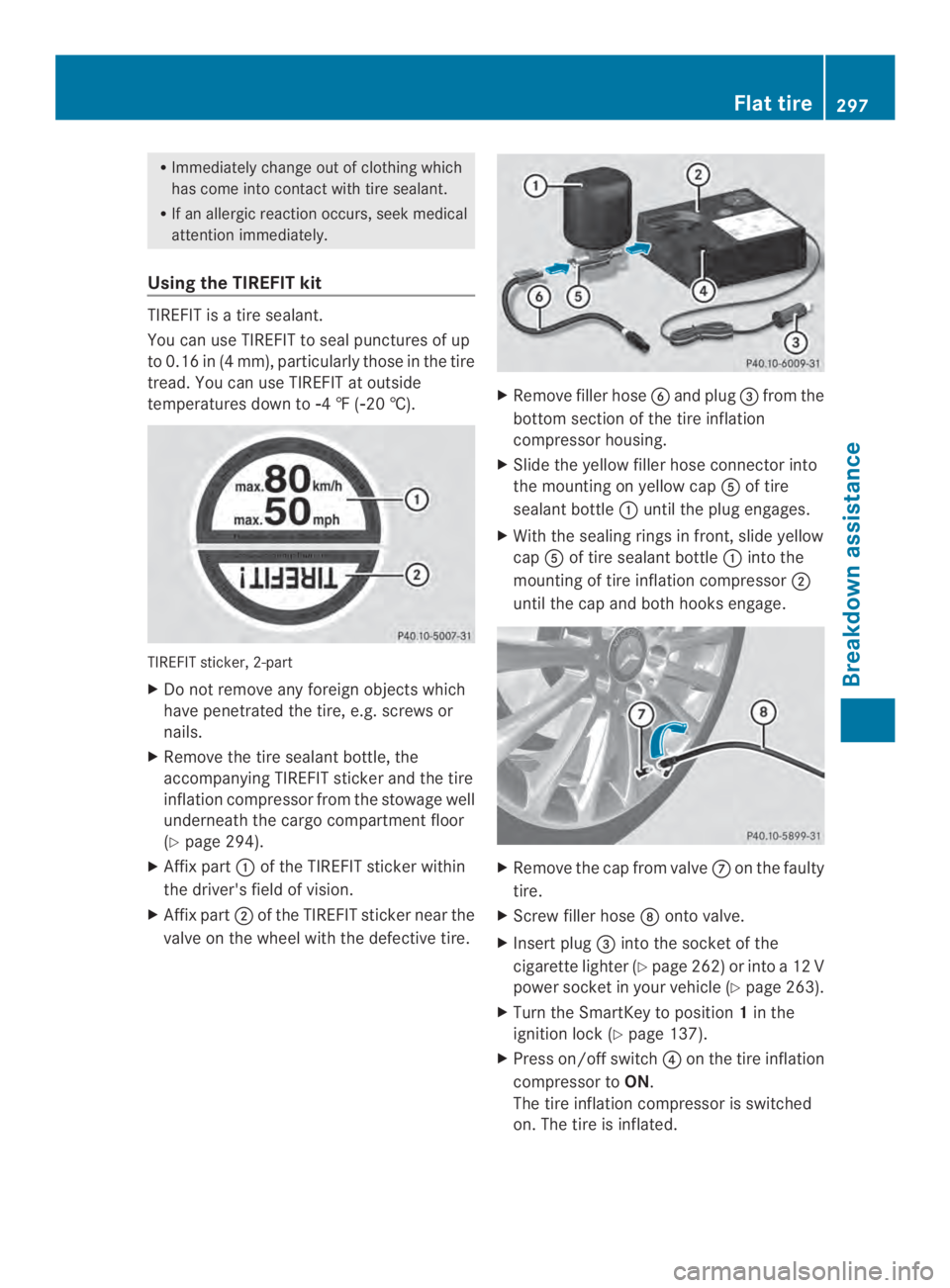

RImmediately change out of clothing which
has come into contact with tire sealant.
RIf an allergic reaction occurs, seek medical
attention immediately.
Using the TIREFITkit
TIREFIT is a tire sealant.
You can use TIREFIT to seal punctures of up
to 0.16 in (4 mm), particularly those in the tire
tread. You can use TIREFIT at outside
temperatures down to4 ‡ (20 †).
TIREFIT sticker, 2-part
XDo not remove any foreign objects which
have penetrated the tire, e.g. screws or
nails.
XRemove the tire sealant bottle, the
accompanying TIREFIT sticker and the tire
inflation compressor from the stowage well
underneath the cargo compartment floor
(Ypage 294).
XAffix partof the TIREFIT sticker within
the driver's field of vision.
XAffix partof the TIREFIT sticker near the
valve on the wheel with the defective tire.
XRemove filler hose and plug"from the
bottom section of the tire inflation
compressor housing.
XSlide the yellow filler hose connector into
the mounting on yellow capof tire
sealant bottleuntil the plug engages.
XWith the sealing rings in front, slide yellow
capof tire sealant bottleinto the
mounting of tire inflation compressor
until the cap and both hooks engage.
XRemove the cap from valveon the faulty
tire.
XScrew filler hoseonto valve.
XInsert plug"into the socket of the
cigarette lighter (Ypage 262)orinto a 12 V
powersocket in your vehicle (Ypage 263).
XTurn the SmartKey to position1in the
ignition lock (Ypage 137).
XPress on/offswitch!on the tire inflation
compressor toON.
The tire inflationcompressor is switched
on. The tire is inflated.
Flat tire297
Breakdown assistance
Z

iFirst, tire sealant is pumped into the tire.
The pressure can briefly rise to
approximately 500 kPa (5 bar/73 psi).
Do notswitch off the tire inflation
compressor during this phase.
XLet the tire inflation compressor run for a
maximum of tenminutes. The tire should
thenhave attained a pressure of at least
200 kPa (2.0 bar/29 psi).
!Do notoperate the tire inflation
compressor for longer than ten minutes at
a time without a break. It may otherwise
overheat.
The tire inflation compressor can be
operated again once it has cooled down.
Ifapressure of 200 kPa(2.0 bar/29 psi) has
been attained after a maximum of after ten
minutes, see (Ypage 298).
Ifapressure of 200 kPa(2.0 bar/29 psi) has
not been attained after a maximum of ten
minutes, see (Ypage 298).
iIf tire sealant leaks out, allow it to dry.It
can then be removed like a layeroffilm.
If your clothes are soiled with tire sealant,
have themcleaned with perchloroethylene
at a dry cleaner as soon as possible.
Tire pressure not reached
Ifapressure of 200 kPa(2.0 bar/29 psi) has
not been achieved after ten minutes:
XSwitch off the tire inflation compressor.
XUnscrew the filler hose from the valve of
the faulty tire.
XVery slowly drive forwards or reverse
approximately 30 ft (10 m).
XPump up the tire again.
After a maximum of ten minutes, the tire
pressure must be at least 200 kPa (2.0 bar/
29 psi).
GWARNING
If the required tire pressure is not reached
after the specified time, the tire is too badly
damaged. The tire sealant cannot repair the
tire in this instance. Damaged tires and a tire
pressure that is too low can significantly
impair the vehicle's braking and driving
characteristics. There is a risk of accident.
Do not continue driving. Contact a qualified
specialist workshop.
Tire pressure reached
GWARNING
Atire temporarily sealed with tire sealant
impairs the driving characteristics and is not
suitable for higher speeds. There is a risk of
accident.
You should therefore adapt your driving style
accordingly and drive carefully. Do not exceed
the specified maximum speed with a tire that
has been repaired using tire sealant.
!After use, excess tire sealant may run out
of the filler hose. This could cause stains.
Therefore, place the filler hose in the plastic
bag that contained the TIREFIT kit.
HEnvironmental note
Have the used tire sealant bottle disposed of
professionally, e.g. ataqualified specialist
workshop.
Ifatire pressure of 200 kPa(2.0 bar/29 psi)
has beenachieved afterten minutes:
XSwitch off the tire inflation compressor.
XUnscrew the filler hose from the valve of
the faulty tire.
XStow the tire sealant bottle and the tire
inflation compressor.
XPull away immediately.
The maximum speed for a tire sealed with tire
sealant is 50 mph(80km/h). The upper part
of the TIREFIT sticker must be affixed to the
instrument cluster in the driver's field of
vision.
298Flat tire
Breakdown assistance
