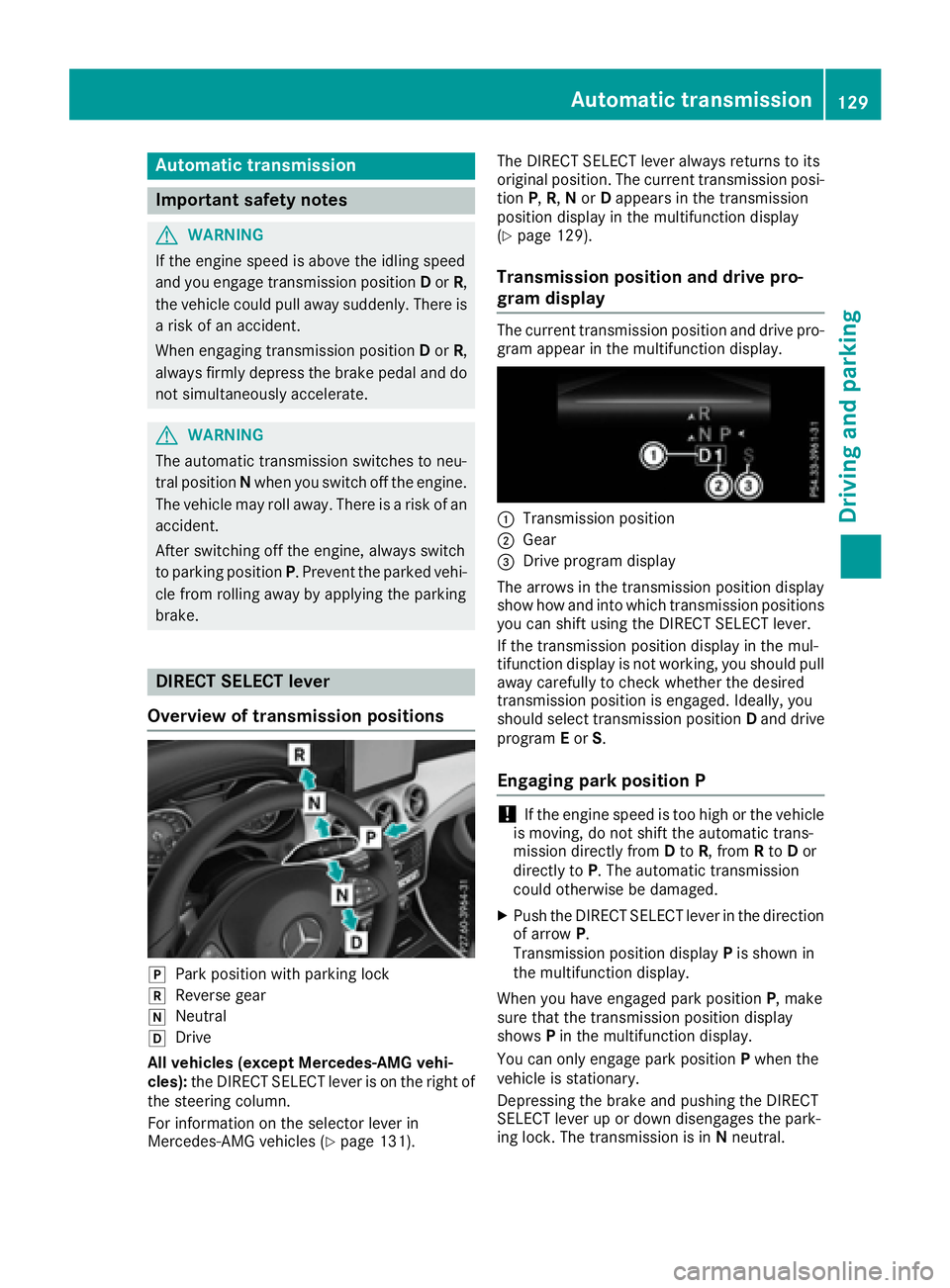

Aut oma tic trans mi ssion
Import ant safety notes
G WARNIN G
If th e engin e spee d is abov e th e idlin g spee d
and you engage transmission position D or R ,
th e vehicl e could pull away suddenly. There is
a ris k of an accident.
When engagin g transmission position D or R ,
always firmly depress th e brak e pedal and do
no t simultaneously accelerate .
G WARNIN G
The automatic transmission switches to neu-
tral position N when you switch off th e engine.
The vehicl e may rol l away. There is a ris k of an
accident.
Afte r switching off th e engine, always switch
to parking position P . Preven t th e parked vehi-
cle from rollin g away by applyin g th e parking
brake.
DIRECT SELECT lever
Overview of trans mi ssion positions
]
Park position wit h parking loc k
^
Reverse gear
\\
Neutral
[
Drive
All vehicles (excep t Mercedes-AMG vehi-
cles): th e DIRECT SELECT lever is on th e right of
th e steering column .
Fo r information on th e selector lever in
Mercedes-AM G vehicles ( Y
page 131). The DIRECT SELECT lever always return s to it s
original position . The curren t transmission posi-
tion P , R , N or D appear s in th e transmission
position display in th e multifunction display
( Y
page 129).
Trans mi ssion position and drive pr o-
gram display The curren t transmission position and drive pro -
gram appear in th e multifunction display.
C
Transmission position D
Gear

At transmission fluid temperatures below

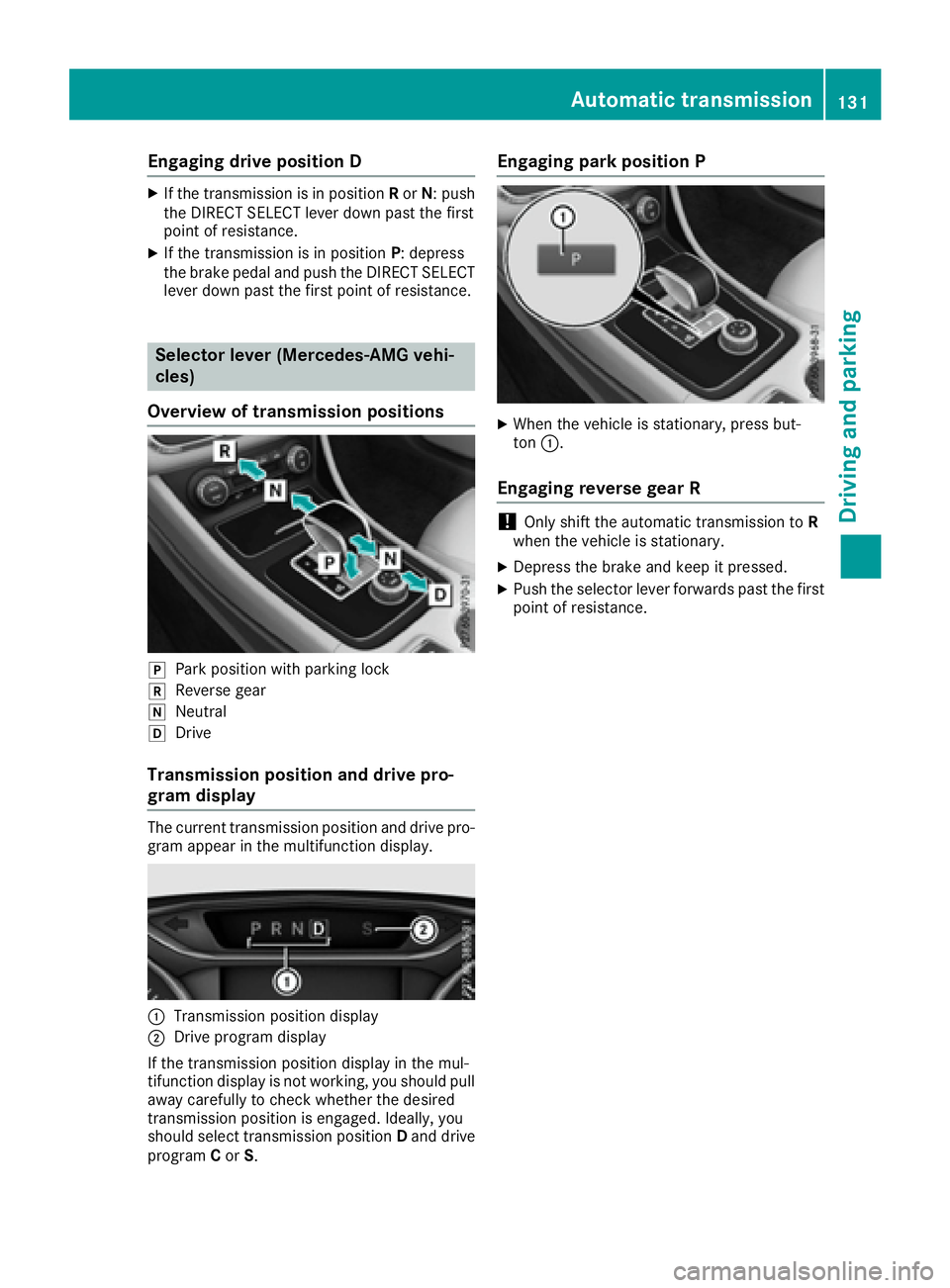

Engaging drive position D X
If the transmission is in position R or N : push
the DIRECT SELECT lever down past the first
point of resistance. X
If the transmission is in position P : depress
the brake pedal and push the DIRECT SELECT
lever down past the first point of resistance.
Selector lever (Mercedes-AMG vehi-
cles)
Overview of transmission positions
]
Park position with parking lock^
Reverse gear\\
Neutral[
Drive
Transmission position and drive pro-
gram display The current transmission position and drive pro-
gram appear in the multifunction display.
C
Transmission position display
D
Drive program display
If the transmission position display in the mul-
tifunction display is not working, you should pull
away carefully to check whether the desired
transmission position is engaged. Ideally, you
should select transmission position D and drive
program C or S . Engaging park position P X
When the vehicle is stationary, press but-
ton C .
Engaging reverse gear R
! Only shift the automatic transmission to R
when the vehicle is stationary. X
Depress the brake and keep it pressed. X
Push the selector lever forwards past the first
point of resistance.Automatic transmission 131
Driving and parking Z

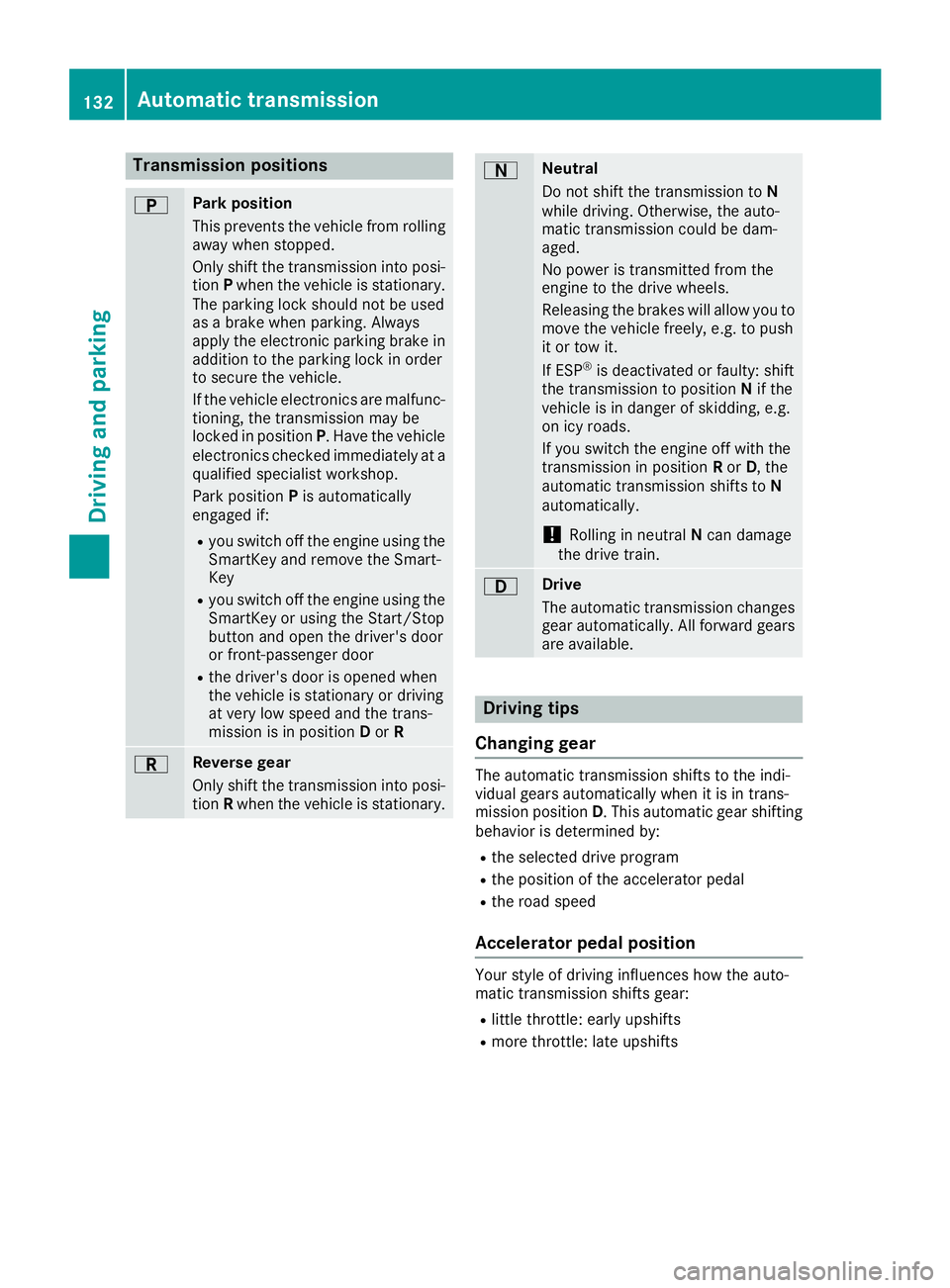

Transmission positions E Park position
This prevents the vehicle from rolling
away when stopped.
Only shift the transmission into posi-
tion P when the vehicle is stationary.
The parking lock should not be used
as a brake when parking. Always
apply the electronic parking brake in
addition to the parking lock in order
to secure the vehicle.
If the vehicle electronics are malfunc-
tioning, the transmission may be
locked in position P . Have the vehicle
electronics checked immediately at a
qualified specialist workshop.
Park position P is automatically
engaged if: R
you switch off the engine using the
SmartKey and remove the Smart-
Key R
you switch off the engine using the
SmartKey or using the Start/Stop
button and open the driver's door
or front-passenger door R
the driver's door is opened when
the vehicle is stationary or driving
at very low speed and the trans-
mission is in position D or R
F Reverse gear
Only shift the transmission into posi-
tion R when the vehicle is stationary. D Neutral
Do not shift the transmission to N
while driving. Otherwise, the auto-
matic transmission could be dam-
aged.
No power is transmitted from the
engine to the drive wheels.
Releasing the brakes will allow you to
move the vehicle freely, e.g. to push
it or tow it.
If ESP ®
is deactivated or faulty: shift
the transmission to position N if the
vehicle is in danger of skidding, e.g.
on icy roads.
If you switch the engine off with the
transmission in position R or D , the
automatic transmission shifts to N
automatically.
! Rolling in neutral N can damage
the drive train.
: Drive
The automatic transmission changes
gear automatically. All forward gears
are available.
Driving tips
Changing gear The automatic transmission shifts to the indi-
vidual gears automatically when it is in trans-
mission position D . This automatic gear shifting
behavior is determined by: R
the selected drive program R
the position of the accelerator pedal R
the road speed
Accelerator pedal position Your style of driving influences how the auto-
matic transmission shifts gear: R
little throttle: early upshifts R
more throttle: late upshifts132
Automatic transmission
Driving an d parking

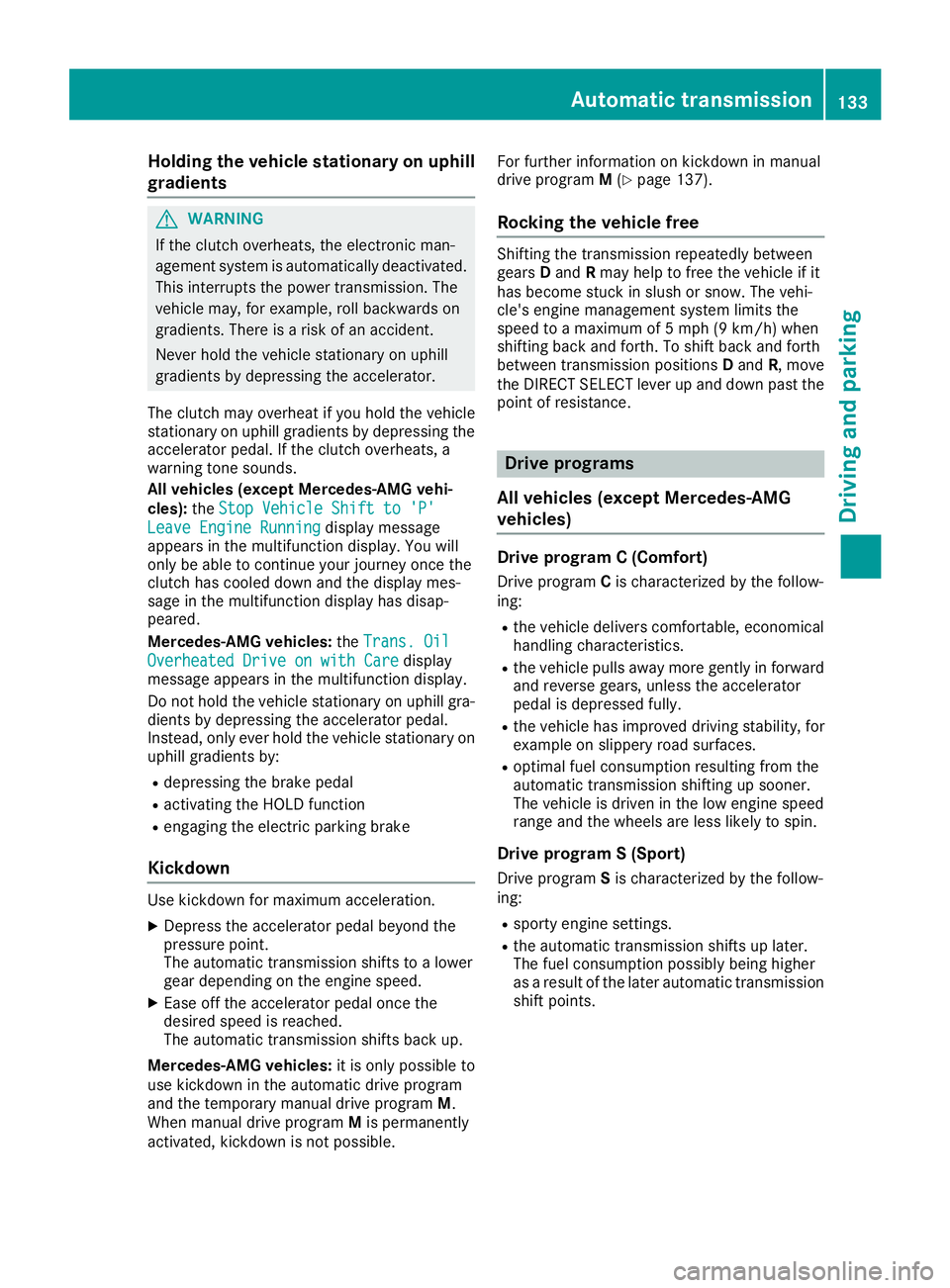

Holding the vehicle stationary on uphill
gradients
G WARNING
If the clutch overheats, the electronic man-
agement system is automatically deactivated.
This interrupts the power transmission. The
vehicle may, for example, roll backwards on
gradients. There is a risk of an accident.
Never hold the vehicle stationary on uphill
gradients by depressing the accelerator.
The clutch may overheat if you hold the vehicle
stationary on uphill gradients by depressing the
accelerator pedal. If the clutch overheats, a
warning tone sounds.
All vehicles (except Mercedes-AMG vehi-
cles): the Stop Vehicle Shift to 'P'
Leave Engine Running display message
appears in the multifunction display. You will
only be able to continue your journey once the
clutch has cooled down and the display mes-
sage in the multifunction display has disap-
peared.
Mercedes-AMG vehicles: the Trans. Oil
Overheated Drive on with Care display
message appears in the multifunction display.
Do not hold the vehicle stationary on uphill gra-
dients by depressing the accelerator pedal.
Instead, only ever hold the vehicle stationary on
uphill gradients by: R
depressing the brake pedal R
activating the HOLD function R
engaging the electric parking brake
Kickdown Use kickdown for maximum acceleration. X
Depress the accelerator pedal beyond the
pressure point.
The automatic transmission shifts to a lower
gear depending on the engine speed. X
Ease off the accelerator pedal once the
desired speed is reached.
The automatic transmission shifts back up.
Mercedes-AMG vehicles: it is only possible to
use kickdown in the automatic drive program
and the temporary manual drive program M .
When manual drive program M is permanently
activated, kickdown is not possible. For further information on kickdown in manual
drive program M ( Y
page 137).
Rocking the vehicle free Shifting the transmission repeatedly between
gears D and R may help to free the vehicle if it
has become stuck in slush or snow. The vehi-
cle's engine management system limits the
speed to a maximum of 5 mph (9 km/h) when
shifting back and forth. To shift back and forth
between transmission positions D and R , move
the DIRECT SELECT lever up and down past the
point of resistance.
Drive programs
All vehicles (except Mercedes-AMG
vehicles) Drive program C (Comfort) Drive program C is characterized by the follow-
ing: R
the vehicle delivers comfortable, economical
handling characteristics. R
the vehicle pulls away more gently in forward
and reverse gears, unless the accelerator
pedal is depressed fully. R
the vehicle has improved driving stability, for
example on slippery road surfaces. R
optimal fuel consumption resulting from the
automatic transmission shifting up sooner.
The vehicle is driven in the low engine speed
range and the wheels are less likely to spin.
Drive program S (Sport)
Drive program S is characterized by the follow-
ing: R
sporty engine settings. R
the automatic transmission shifts up later.
The fuel consumption possibly being higher
as a result of the later automatic transmission
shift points.Automatic transmission 133
Driving and parking Z

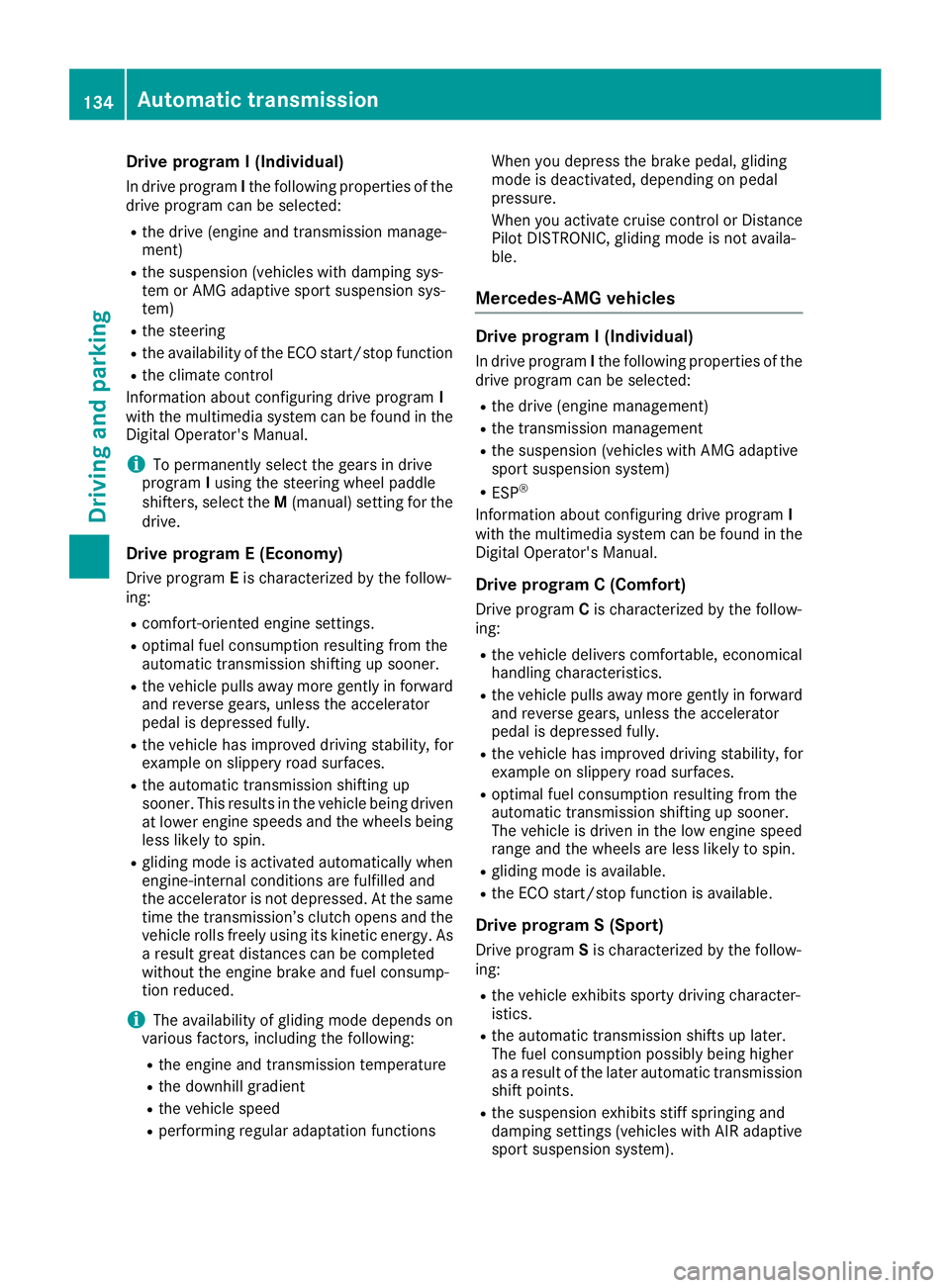

Drive program I (Individual)In drive progra m I th e following properties of th e
drive progra m can be selected:R
th e drive (engin e and transmissio n manage-
ment) R
th e suspensio n (vehicles wit h dampin g sys-
te m or AM G adaptive sport suspensio n sys-
tem) R
th e steerin gR
th e availabilit y of th e ECO start/sto p functionR
th e climat e control
Information about configurin g drive progra m I
wit h th e multimedia system can be found in th e
Digital Operator' s Manual.
i To permanentl y select th e gear s in drive
progra m I usin g th e steerin g whee l paddl e
shifters , select th e M (manual) setting fo r th e
drive.
Drive program E (Economy)Drive progra m E is characterized by th e follow-
ing: R
comfort-oriented engin e settings.R
optimal fue l consumption resultin g from th e
automati c transmissio n shiftin g up sooner.R
th e vehicl e pulls away mor e gentl y in forwar d
and revers e gears, unless th e accelerato r
peda l is depressed fully.R
th e vehicl e has improved drivin g stability, fo r
exampl e on slipper y roa d surfaces.R
th e automati c transmissio n shiftin g up
sooner. This result s in th e vehicl e bein g driven
at lowe r en gin e s peeds and th e w
heels bein g
less likely to spin .R
glidin g mod e is activated automatically when
engine-internal condition s are fulfilled and
th e accelerato r is no t depressed. At th e sam e
time th e transmission’s clutc h opens and th e
vehicl e rolls freely usin g it s kineti c energy. As
a result great distances can be completed
without th e engin e brak e and fue l consump-
tion reduced.
i The availabilit y of glidin g mod e depend s on
various factors , includin g th e following :R
th e engin e and transmissio n temperatureR
th e downhill gradien tR
th e vehicl e speedR
performin g regular adaptation function s Whe n you depress th e brak e pedal, glidin g
mod e is deactivated, dependin g on peda l
pressure.
Whe n you activat e cruise control or Distanc e
Pilo t DISTRONIC, glidin g mod e is no t availa-
ble.
Mercedes-AMG vehicles Drive program I (Individual)In drive progra m I th e following properties of th e
drive progra m can be selected: R
th e drive (engin e management)R
th e transmissio n managemen tR
th e suspensio n (vehicles wit h AM G adaptive
sport suspensio n system)R
ES P ®
Information about configurin g drive progra m I
wit h th e multimedia system can be found in th e
Digital Operator' s Manual.
Drive program C (Comfort)Drive progra m C is characterized by th e follow-
ing: R
th e vehicl e deliver s comfortable, economical
handlin g characteristics .R
th e vehicl e pulls away mor e gentl y in forwar d
and revers e gears, unless th e accelerato r
peda l is depressed fully. R
th e vehicl e has improved drivin g stability, fo r
exampl e on slipper y roa d surfaces.R
optimal fue l consumption resultin g from th e
automati c transmissio n shiftin g up sooner.
The vehicl e is driven in th e low engin e speed
range and th e wheels are less likely to spin .R
glidin g mod e is available. R
th e ECO start/sto p function is available.
Drive program S (Sport)
Drive progra m S is characterized by th e follow-
ing: R
th e vehicl e exhibits sport y drivin g character-
istics . R
th e automati c transmissio n s hift s up later.
The fue l consumption possibl y bein g higher
as a result of th e later automati c transmissio n
shift points . R
th e suspensio n exhibits stiff springin g and
dampin g setting s (vehicles wit h AI R adaptive
sport suspensio n system) .134
Automatic transmission
Driving and parking

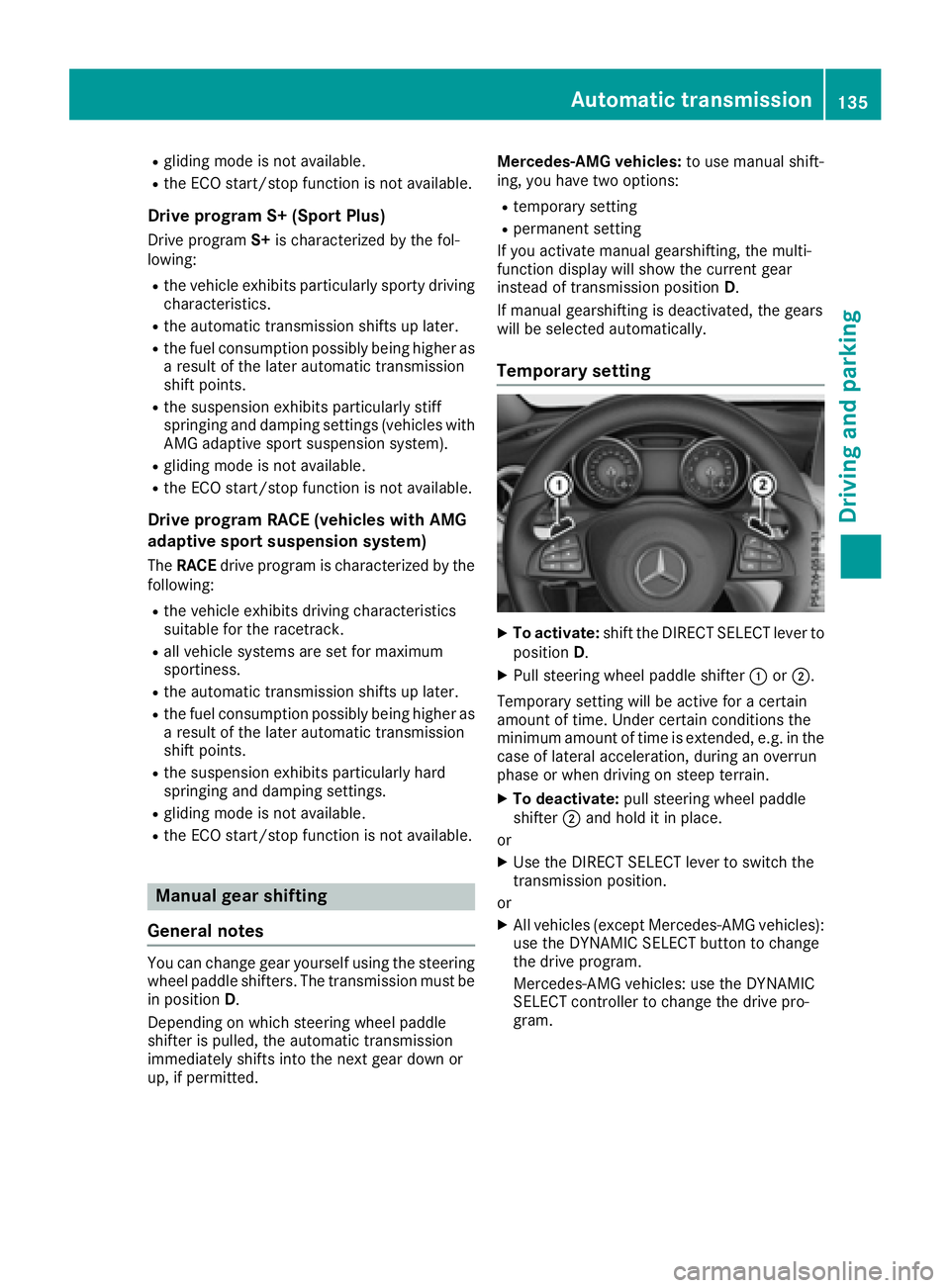

R
gliding mode is not available. R
the ECO start/stop function is not available.
Drive program S+ (Sport Plus) Drive program S+ is characterized by the fol-
lowing: R
the vehicle exhibits particularly sporty driving
characteristics. R
the automatic transmission shifts up later. R
the fuel consumption possibly being higher as
a result of the later automatic transmission
shift points. R
the suspension exhibits particularly stiff
springing and damping settings (vehicles with
AMG adaptive sport suspension system). R
gliding mode is not available. R
the ECO start/stop function is not available.
Drive program RACE (vehicles with AMG
adaptive sport suspension system) The RACE drive program is characterized by the
following: R
the vehicle exhibits driving characteristics
suitable for the racetrack. R
all vehicle systems are set for maximum
sportiness. R
the automatic transmission shifts up later. R
the fuel consumption possibly being higher as
a result of the later automatic transmission
shift points. R
the suspension exhibits particularly hard
springing and damping settings. R
gliding mode is not available. R
the ECO start/stop function is not available.
Manual gear shifting
General notes You can change gear yourself using the steering
wheel paddle shifters. The transmission must be
in position D .
Depending on which steering wheel paddle
shifter is pulled, the automatic transmission
immediately shifts into the next gear down or
up, if permitted. Mercedes-AMG vehicles: to use manual shift-
ing, you have two options: R
temporary setting R
permanent setting
If you activate manual gearshifting, the multi-
function display will show the current gear
instead of transmission position D .
If manual gearshifting is deactivated, the gears
will be selected automatically.
Temporary setting X
To activate: shift the DIRECT SELECT lever to
position D . X
Pull steering wheel paddle shifter C or D .
Temporary setting will be active for a certain
amount of time. Under certain conditions the
minimum amount of time is extended, e.g. in the
case of lateral acceleration, during an overrun
phase or when driving on steep terrain. X
To deactivate: pull steering wheel paddle
shifter D and hold it in place.
or X
Use the DIRECT SELECT lever to switch the
transmission position.
or X
All vehicles (except Mercedes-AMG vehicles):
use the DYNAMIC SELECT button to change
the drive program.
Mercedes-AMG vehicles: use the DYNAMIC
SELECT controller to change the drive pro-
gram.Automatic transmission 135
Driving and parking Z

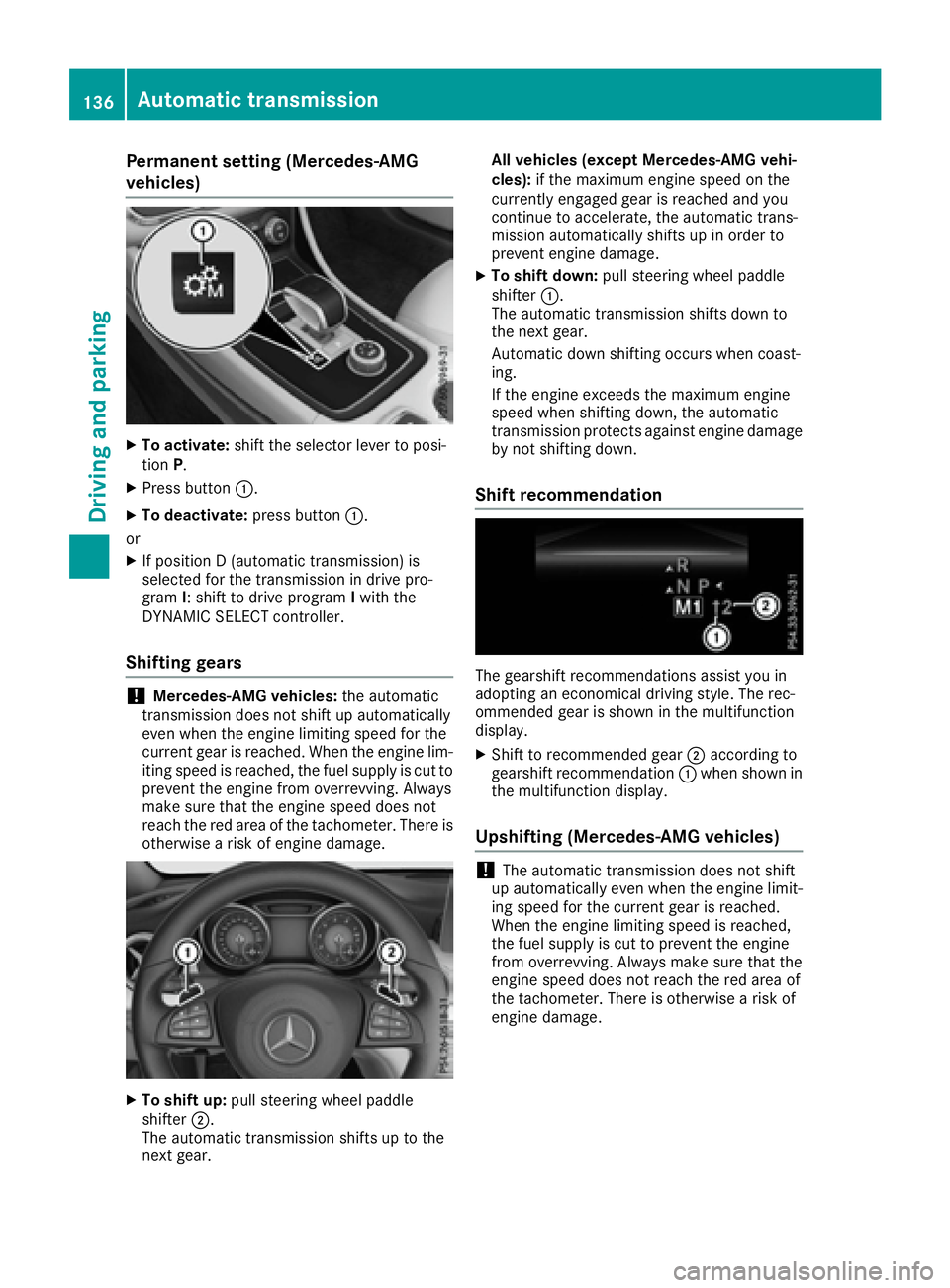

Permanent setting (Mercedes-AMG
vehicles) X
To activate: shift the selector lever to posi-
tion P .X
Press button C .X
To deactivate: press button C .
or X
If position D (automatic transmission) is
selected for the transmission in drive pro-
gram I : shift to drive program I with the
DYNAMIC SELECT controller.
Shifting gears
! Mercedes-AMG vehicles: the automatic
transmission does not shift up automatically
even when the engine limiting speed for the
current gear is reached. When the engine lim-
iting speed is reached, the fuel supply is cut to
prevent the engine from overrevving. Always
make sure that the engine speed does not
reach the red area of the tachometer. There is
otherwise a risk of engine damage.
X
To shift up: pull steering wheel paddle
shifter D .
The automatic transmission shifts up to the
next gear. All vehicles (except Mercedes-AMG vehi-
cles): if the maximum engine speed on the
currently engaged gear is reached and you
continue to accelerate, the automatic trans-
mission automatically shifts up in order to
prevent engine damage. X
To shift down: pull steering wheel paddle
shifter C .
The automatic transmission shifts down to
the next gear.
Automatic down shifting occurs when coast-
ing.
If the engine exceeds the maximum engine
speed when shifting down, the automatic
transmission protects against engine damage
by not shifting down.
Shift recommendation
The gearshift recommendations assist you in
adopting an economical driving style. The rec-
ommended gear is shown in the multifunction
display. X
Shift to recommended gear D according to
gearshift recommendation C when shown in
the multifunction display.
Upshifting (Mercedes-AMG vehicles)
! The automatic transmission does not shift
up automatically even when the engine limit-
ing speed for the current gear is reached.
When the engine limiting speed is reached,
the fuel supply is cut to prevent the engine
from overrevving. Always make sure that the
engine speed does not reach the red area of
the tachometer. There is otherwise a risk of
engine damage.136
Automatic transmission
Driving and parking

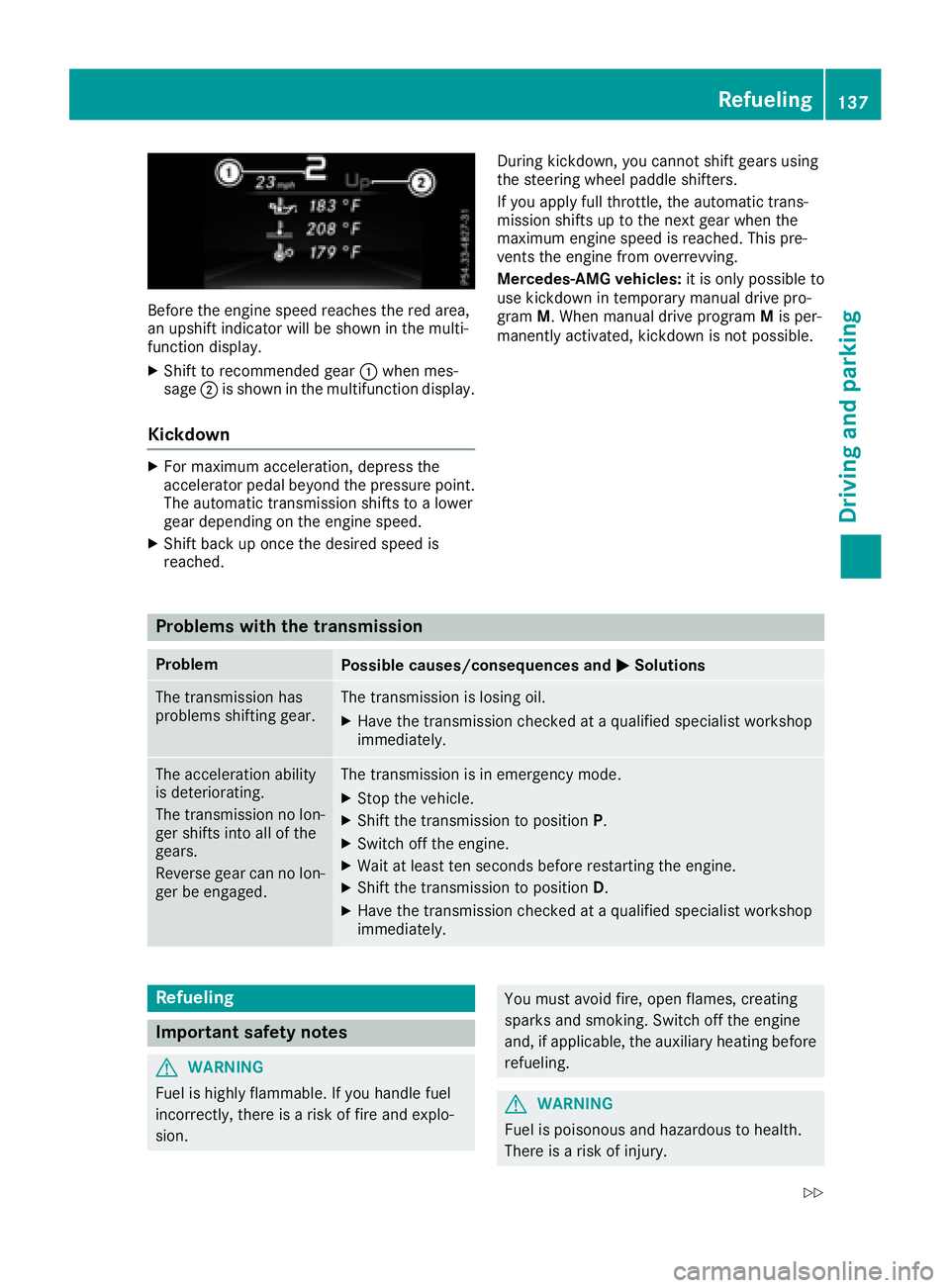

Before the engine speed reaches the red area,
an upshift indicator will be shown in the multi-
function display. X
Shift to recommended gear C when mes-
sage D is shown in the multifunction display.
Kickdown X
For maximum acceleration, depress the
accelerator pedal beyond the pressure point.
The automatic transmission shifts to a lower
gear depending on the engine speed. X
Shift back up once the desired speed is
reached. During kickdown, you cannot shift gears using
the steering wheel paddle shifters.
If you apply full throttle, the automatic trans-
mission shifts up to the next gear when the
maximum engine speed is reached. This pre-
vents the engine from overrevving.
Mercedes-AMG vehicles: it is only possible to
use kickdown in temporary manual drive pro-
gram M . When manual drive program M is per-
manently activated, kickdown is not possible.
Problems with the transmission Problem
Possible causes/consequences and P Solutions
The transmission has
problems shifting gear. The transmission is losing oil. X
Have the transmission checked at a qualified specialist workshop
immediately.
The acceleration ability
is deteriorating.
The transmission no lon-
ger shifts into all of the
gears.
Reverse gear can no lon-
ger be engaged. The transmission is in emergency mode. X
Stop the vehicle. X
Shift the transmission to position P .X
Switch off the engine. X
Wait at least ten seconds before restarting the engine. X
Shift the transmission to position D .X
Have the transmission checked at a qualified specialist workshop
immediately.
Refueling
Important safety notes
G WARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and explo-
sion. You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before
refueling.
G WARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury. Refueling 137
Driving and parking Z

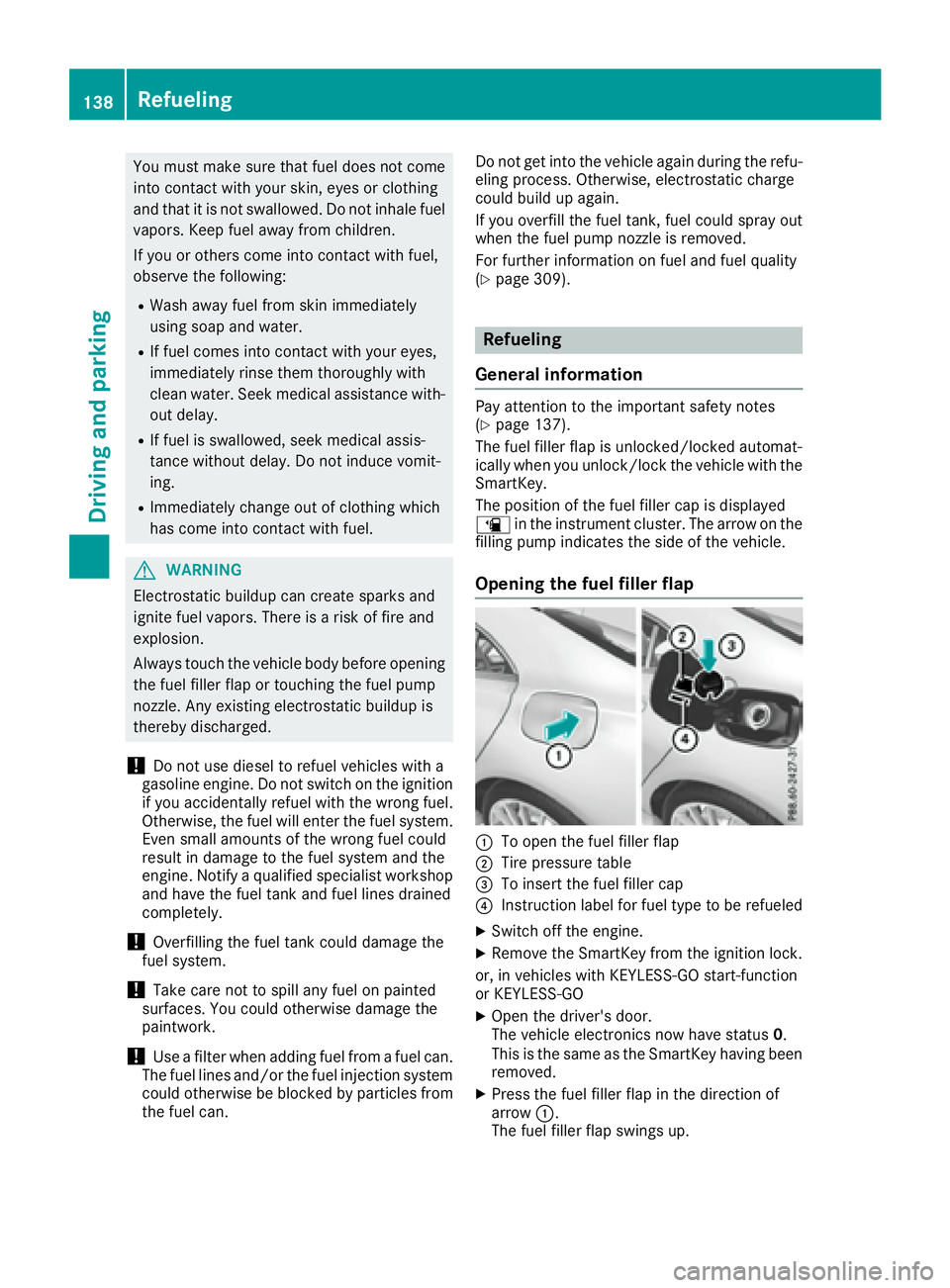

You must make sure that fuel does not come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following: R
Wash away fuel from skin immediately
using soap and water. R
If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay. R
If fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing. R
Immediately change out of clothing which
has come into contact with fuel.
G WARNING
Electrostatic buildup can create sparks and
ignite fuel vapors. There is a risk of fire and
explosion.
Always touch the vehicle body before opening
the fuel filler flap or touching the fuel pump
nozzle. Any existing electrostatic buildup is
thereby discharged.
! Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the ignition
if you accidentally refuel with the wrong fuel.
Otherwise, the fuel will enter the fuel system.
Even small amounts of the wrong fuel could
result in damage to the fuel system and the
engine. Notify a qualified specialist workshop
and have the fuel tank and fuel lines drained
completely.
! Overfilling the fuel tank could damage the
fuel system.
! Take care not to spill any fuel on painted
surfaces. You could otherwise damage the
paintwork.
! Use a filter when adding fuel from a fuel can.
The fuel lines and/or the fuel injection system
could otherwise be blocked by particles from
the fuel can. Do not get into the vehicle again during the refu-
eling process. Otherwise, electrostatic charge
could build up again.
If you overfill the fuel tank, fuel could spray out
when the fuel pump nozzle is removed.
For further information on fuel and fuel quality
( Y
page 309).
Refueling
General information Pay attention to the important safety notes
( Y
page 137).
The fuel filler flap is unlocked/locked automat-
ically when you unlock/lock the vehicle with the
SmartKey.
The position of the fuel filler cap is displayed
