MERCEDES-BENZ CLA 2018 Owners Manual

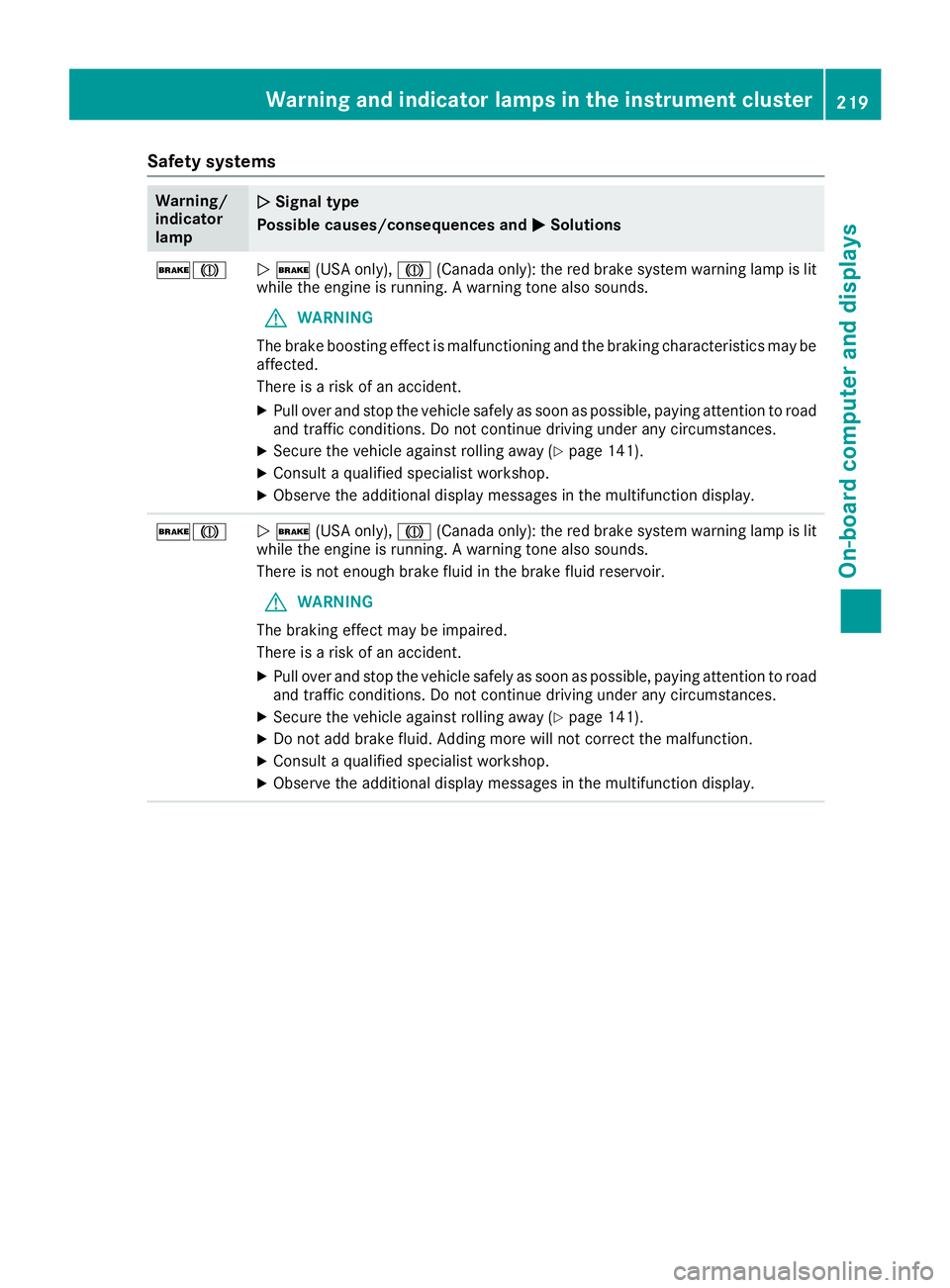

Safety systems Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
'M
Q ' (USA only), M (Canada only): the red brake system warning lamp is lit
while the engine is running. Aw arning tone also sounds.
G WARNING
The brake boosting effect is malfunctioning and the braking characteristics may be
affected.
There is ar isk of an accident.X
Pull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances. X
Secure the vehicle against rolling away ( Y
page 141).X
Consult aq ualified specialist workshop.X
Observe the additional display messages in the multifunction display.
'M
Q ' (USA only), M (Canada only): the red brake system warning lamp is lit
while the engine is running. Aw arning tone also sounds.
There is not enough brake fluid in the brake fluid reservoir.
G WARNING
The braking effect may be impaired.
There is ar isk of an accident.X
Pull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances. X
Secure the vehicle against rolling away ( Y
page 141).X
Do not add brake fluid. Adding more will not correct the malfunction. X
Consult aq ualified specialist workshop.X
Observe the additional display messages in the multifunction display.Warning and indicator lamp sint he instrument cluster 219
On-board computer and displays Z

Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions
%

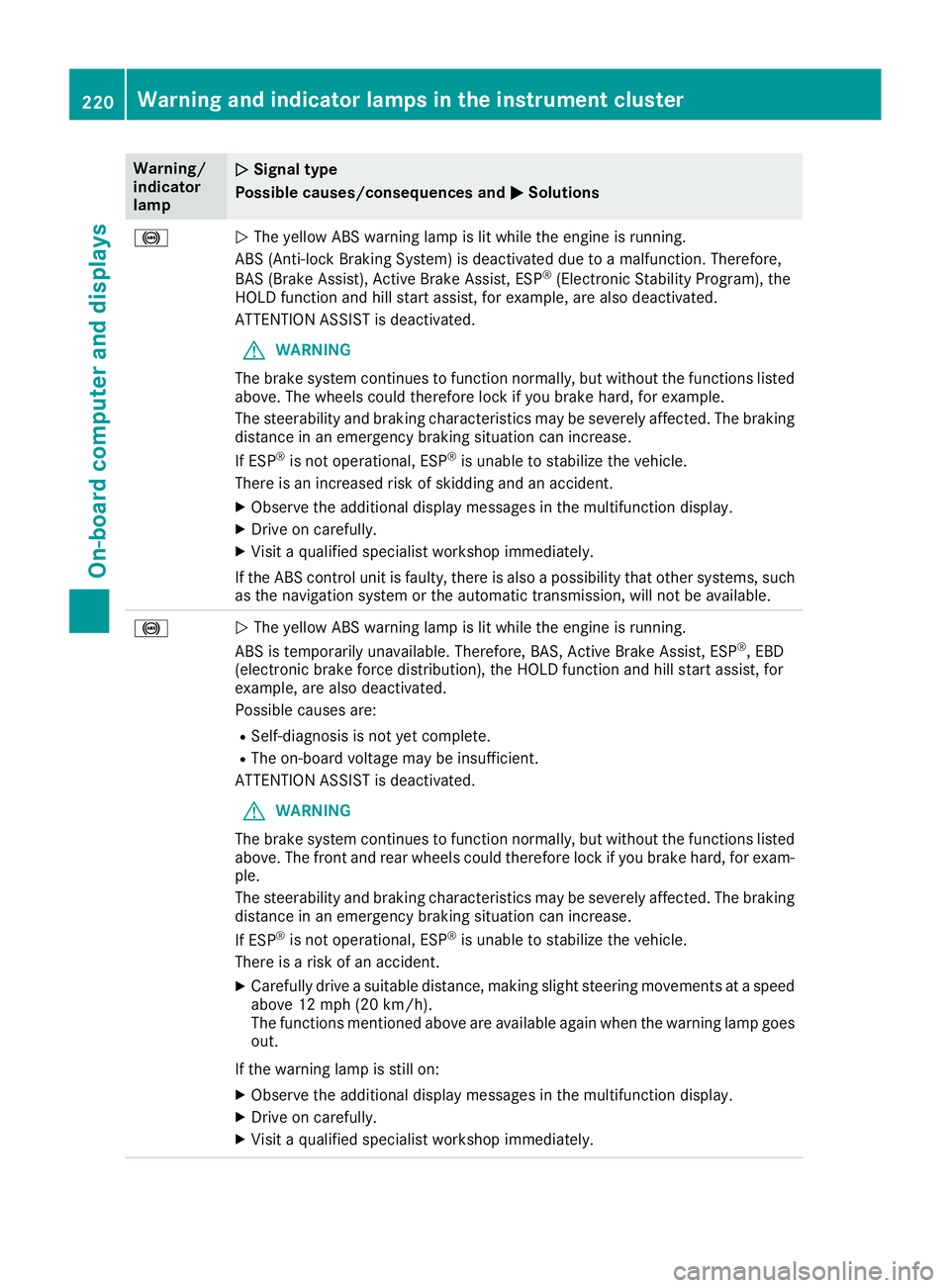

Q The yellow ABS warning lamp is lit while the engine is running.
ABS (Anti-lock Braking System) is deactivated due to am alfunction. Therefore,
BAS (Brake Assist), Active Brake Assist, ESP ®
(Electronic Stability Program), the
HOLD function and hil ls tart assist, for example, are als od eactivated.
ATTENTION ASSIST is deactivated.
G WARNING
The brake system continues to function normally, but without the functions listed
above. The wheels coul dt herefore lock if you brake hard ,f or example.
The steerability and braking characteristics may be severely affected. The braking
distance in an emergency braking situation can increase.
If ESP ®
is not operational ,E SP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident. X
Observe the additiona ld isplay messages in the multifunction display.X
Drive on carefully. X
Visi taq ualified specialist worksho pi mmediately.
If the ABS control unit is faulty, there is als oap ossibility that other systems ,s uch
as the navigation system or the automatic transmission, wil ln ot be available.
%
Q The yellow ABS warning lamp is lit while the engine is running.
ABS is temporarily unavailable .T herefore, BAS, Active Brake Assist, ESP ®
,E BD
(electronic brake force distribution), the HOLD function and hil ls tart assist, for
example, are als od eactivated.
Possible causes are: R
Self-diagnosi sisn ot yet complete.R
The on-board voltag em ay be insufficient.
ATTENTION ASSIST is deactivated.
G WARNING
The brake system continues to function normally, but without the functions listed
above. The front and rear wheels coul dt herefore lock if you brake hard ,f or exam-
ple.
The steerability and braking characteristics may be severely affected. The braking
distance in an emergency braking situation can increase.
If ESP ®
is not operational ,E SP ®
is unable to stabilize the vehicle.
There is ar isk of an accident.X
Carefully drive as uitable distance, making slight steering movements at as peed
above 12 mph (20 km/h).
The functions mentioned above are available again when the warning lamp goes
out.
If the warning lamp is still on: X
Observe the additiona ld isplay messages in the multifunction display.X
Drive on carefully. X
Visi taq ualified specialist worksho pi mmediately.220
Warning and indicator lamps in the instrument cluster
On-board computer and displays

Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions
%

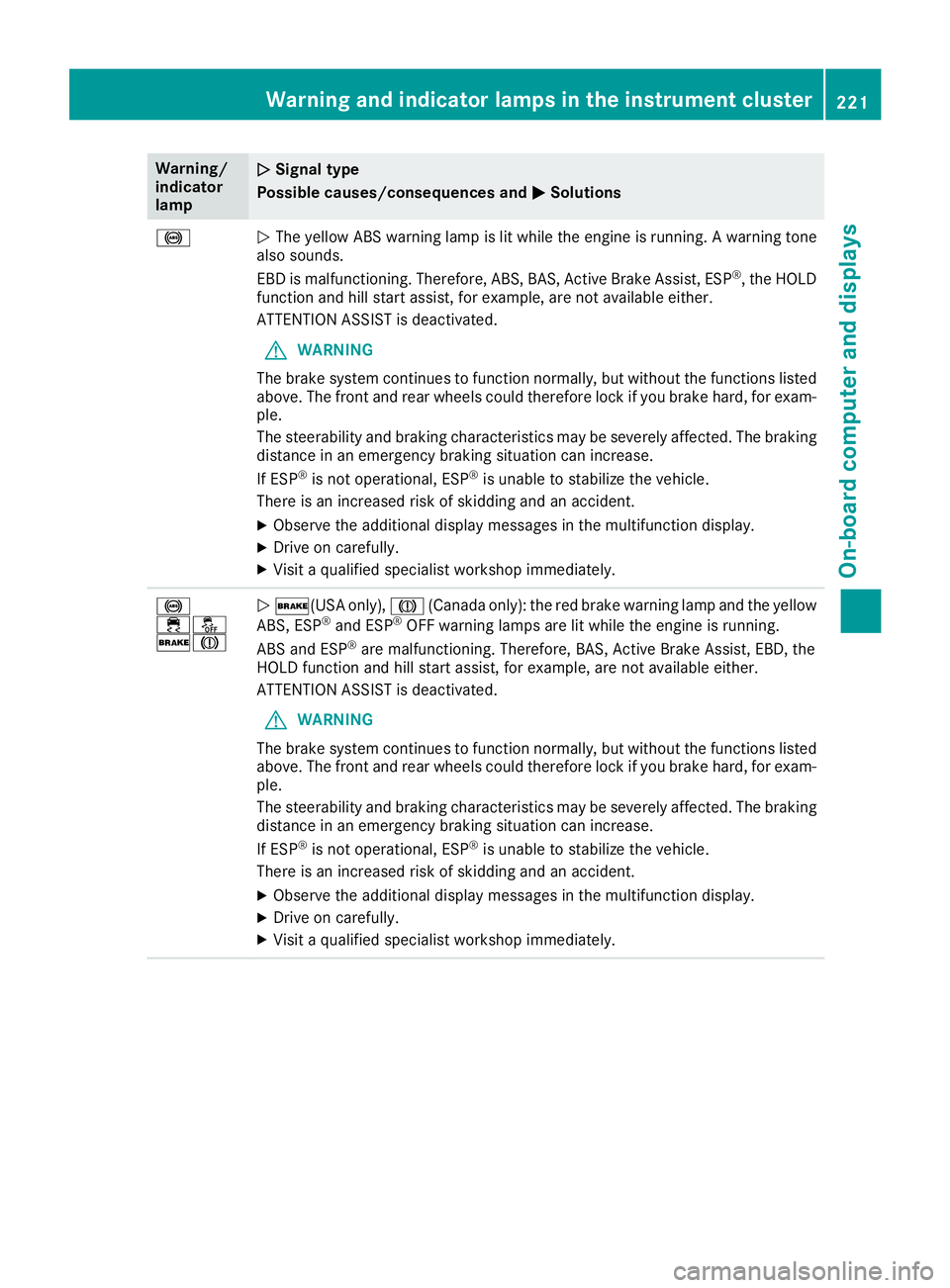

Q The yellow ABS warning lamp is lit while the engine is running. Aw arning tone
als os ounds.
EBD is malfunctioning. Therefore, ABS, BAS, Active Brake Assist, ESP ®
,t he HOLD
function and hil ls tart assist, for example, are not available either.
ATTENTION ASSIST is deactivated.
G WARNING
The brake system continues to function normally, but without the functions listed
above. The front and rear wheels coul dt herefore lock if you brake hard ,f or exam-
ple.
The steerability and braking characteristics may be severely affected. The braking
distance in an emergency braking situation can increase.
If ESP ®
is not operational ,E SP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident. X
Observe the additiona ld isplay messages in the multifunction display.X
Drive on carefully. X
Visi taq ualified specialist worksho pi mmediately.
%

Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions

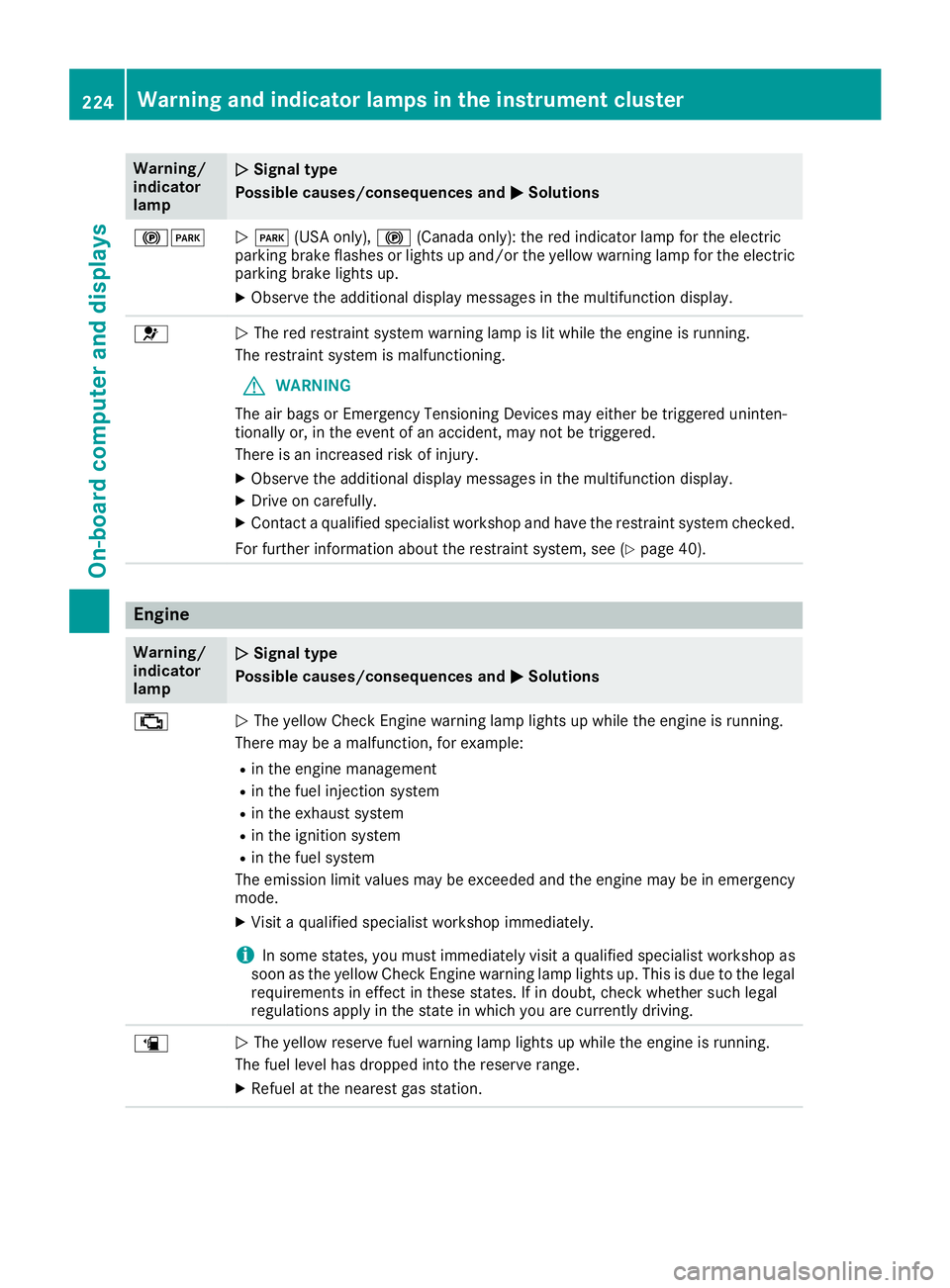

$I
Q I (USA only), $ (Canada only): the red indicator lamp for the electric
parking brake flashes or lights up and/or the yellow warning lamp for the electric
parking brake lights up. X
Observe the additiona ld isplay messages in the multifunction display.
u
Q The red restraint system warning lamp is lit while the engine is running.
The restraint system is malfunctioning.
G WARNING
The air bag sorE mergency Tensioning Devices may either be triggere du ninten-
tionally or, in the event of an accident, may not be triggered.
There is an increased risk of injury. X
Observe the additiona ld isplay messages in the multifunction display.X
Drive on carefully. X
Contact aq ualified specialist worksho pa nd have the restraint system checked.
For further information about the restraint system, see ( Y
pag e4 0).
Engine Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions

Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P SolutionsX

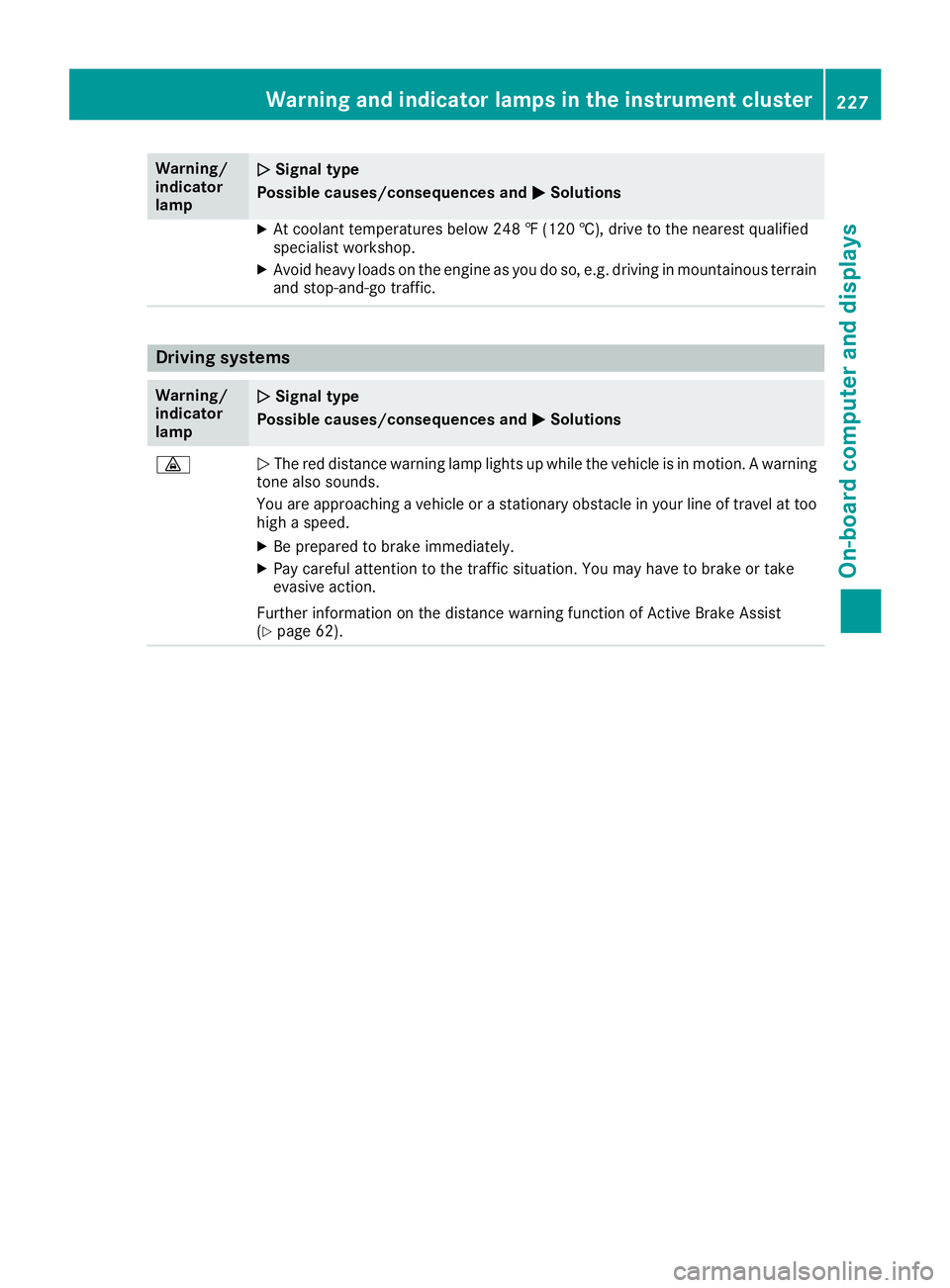

At coolant temperatures below 248 ‡( 120 †), drive to the neares tq ualified
specialist workshop. X
Avoid heavy loads on the engine as you do so, e.g. driving in mountainous terrain
and stop-and-go traffic.
Driving systems Warning/
indicator
lamp Q Signal type
Possibl ec auses/consequences and P Solutions

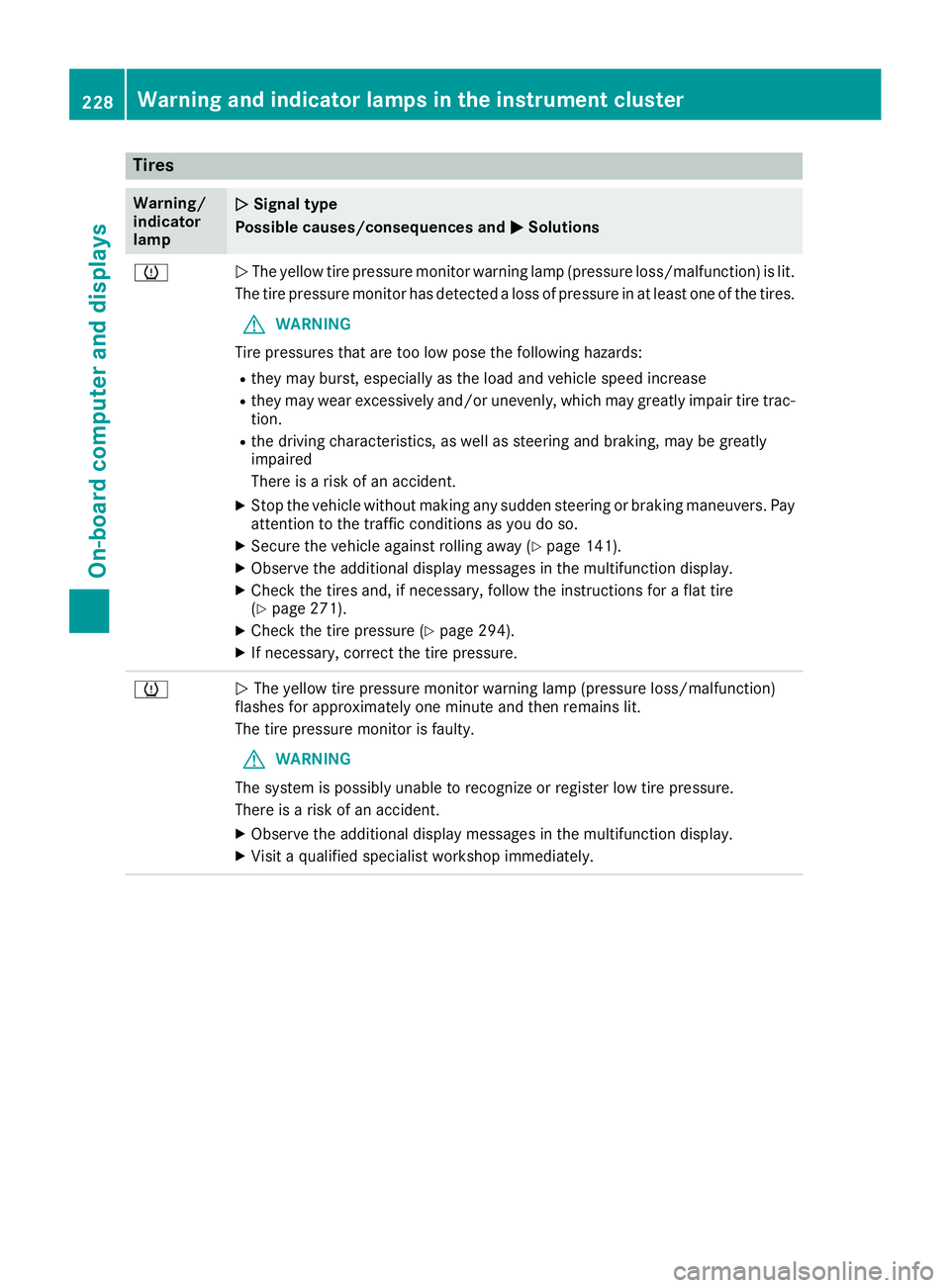

Tires Warning/
indicator
lamp Q Signal type
Possible causes/consequence sa nd P Solutions
w
Q The yellow tire pressure monitor warning lamp (pressure loss/malfunction) is lit.
The tire pressure monitor ha sd et ecte dal os sofp ressure in at leas to ne of the tires.
G WARNING
Tire pressures tha ta re too lo wp os et he following hazards:R
the ym ay burst, especially as the load and vehicl es peed increaseR
the ym ay wear excessivel ya nd/or unevenly, which ma yg reatl yi mpai rt ire trac-
tion. R
the drivin gc haracteristics, as well as steerin ga nd braking ,m ay be greatly
impaired
There is ar is kofana ccident.X
Stop the vehicl ew it hou tm ak ing any sudden steerin gorb raking maneuvers. Pay
attentio ntot he traffi cc onditions as yo udos o.X
Secure the vehicl ea gain st rolling away ( Y
page 141).X
Observe the additional displa ym essage sint he multifunctio nd isplay .X
Check the tire sa nd ,ifn ecessary ,f ollo wt he instructions for af la tt ire
( Y
page 271). X
Check the tire pressure ( Y
page 294).X
If necessary ,c orrect the tire pressure.
w
Q The yellow tire pressure monitor warning lamp (pressure loss/malfunction)
flashe sf or approximately one minute and the nr emains lit.
The tire pressure monitor is faulty.
G WARNING
The system is possibl yu nabl etor ecognize or register lo wt ire pressure.
There is ar is kofana ccident.X
Observe the additional displa ym essage sint he multifunctio nd isplay .X
Visi taq uali fied specialis tw or kshop immediately.228
