MERCEDES-BENZ CLA 2018 Owners Manual

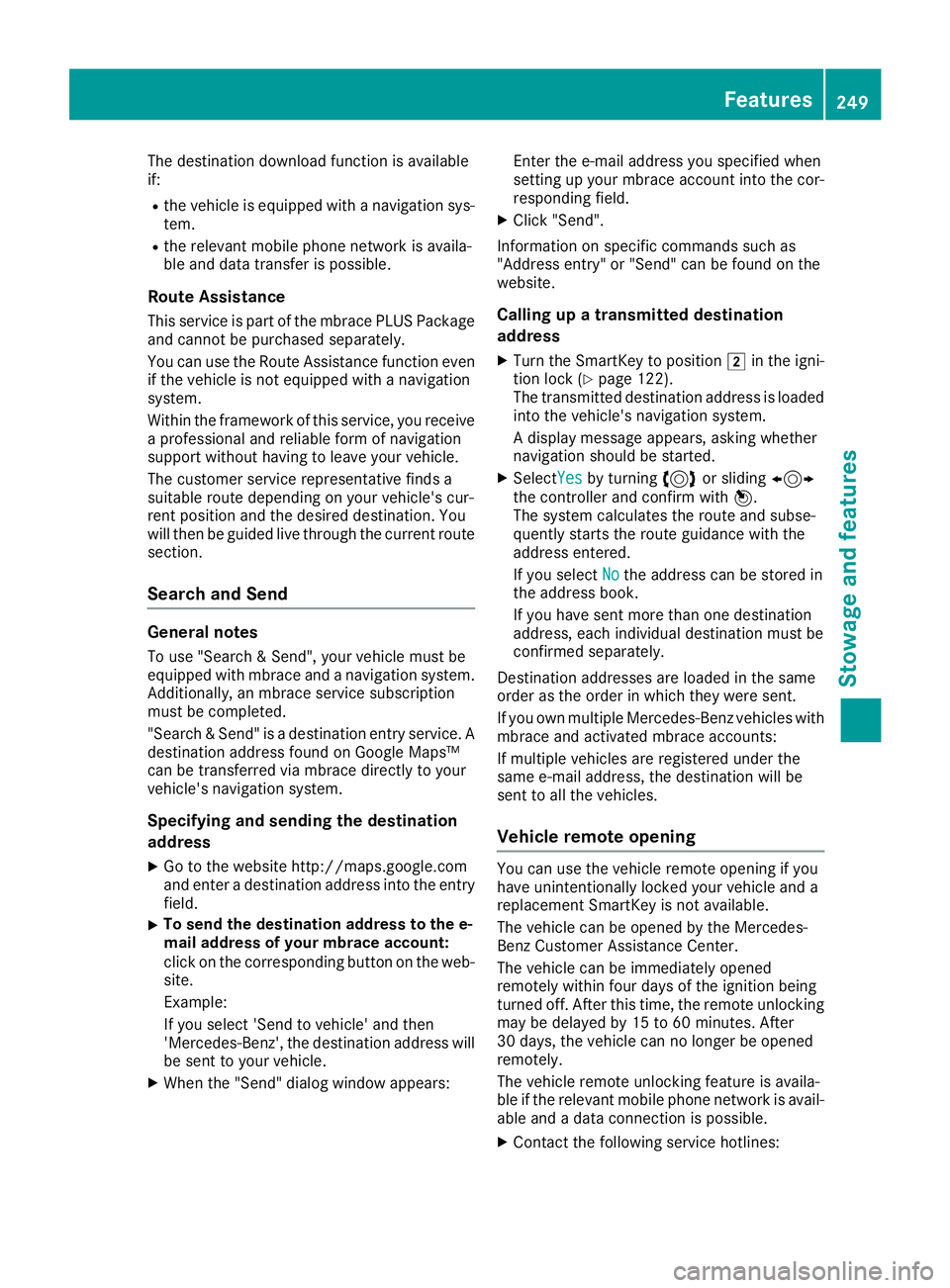

The destination download function is available
if: R
the vehicle is equipped with an avigation sys-
tem. R
the relevant mobile phone network is availa-
ble and data transfer is possible.
Route Assistance This service is part of the mbrace PLUS Package
and cannot be purchased separately.
You can use the Route Assistance function even
if the vehicle is not equipped with an avigation
system.
Within the framework of this service, you receive
ap rofessional and reliable form of navigation
support without having to leave your vehicle.
The customer service representative finds a
suitable route depending on your vehicle's cur-
rent position and the desired destination. You
will then be guided live through the current route
section.
Search and Send
General notes To use "Search &S end", your vehicle must be
equipped with mbrace and an avigation system.
Additionally, an mbrace service subscription
must be completed.
"Search &S end" is ad estination entr ys ervice. A
destination address found on Google Maps™
can be transferred via mbrace directly to your
vehicle's navigation system.
Specifying and sending the destination
address X
Go to the website http://maps.google.com
and enter ad estination address into the entry
field. X
To send the destination address to the e-
mail address of your mbrace account:
click on the corresponding button on the web-
site.
Example:
If you select 'Send to vehicle' and then
'Mercedes-Benz', the destination address will
be sent to your vehicle. X
When the "Send" dialog window appears: Enter the e-mail address you specified when
setting up your mbrace account into the cor-
responding field. X
Click "Send".
Information on specific commands such as
"Address entry" or "Send" can be found on the
website.
Calling up at ra nsmitted destination
address X
Turn the SmartKey to position H in the igni-
tion lock ( Y
page 122).
The transmitted destination address is loaded
into the vehicle's navigation system.
Ad isplay message appears, asking whether
navigation should be started. X
Select Yes by turning 3 or sliding 1
the controller and confirm with 7 .
The system calculates the route and subse-
quently start st he route guidance with the
address entered.
If you select No
the address can be stored in
the address book.
If you have sent more than one destination
address, each individual destination must be
confirmed separately.
Destination addresses are loaded in the same
order as the order in which they were sent.
If you own multiple Mercedes-Benz vehicles with
mbrace and activated mbrace accounts:
If multiple vehicles are registered under the
same e-mail address, the destination will be
sent to all the vehicles.
Vehicle remot eo peningYou can use the vehicle remote opening if you
have unintentionally locked your vehicle and a
replacement SmartKey is not available.
The vehicle can be opened by the Mercedes-
Benz Customer Assistance Center.
The vehicle can be immediately opened
remotely within four days of the ignition being
turned off. After this time, the remote unlocking
may be delayed by 15 to 60 minutes. After
30 days, the vehicle can no longer be opened
remotely.
The vehicle remote unlockin gf eature is availa-
ble if the relevant mobile phone network is avail-
able and ad ata connection is possible. X
Contact the following service hotlines: Features 249
Stowage and features Z

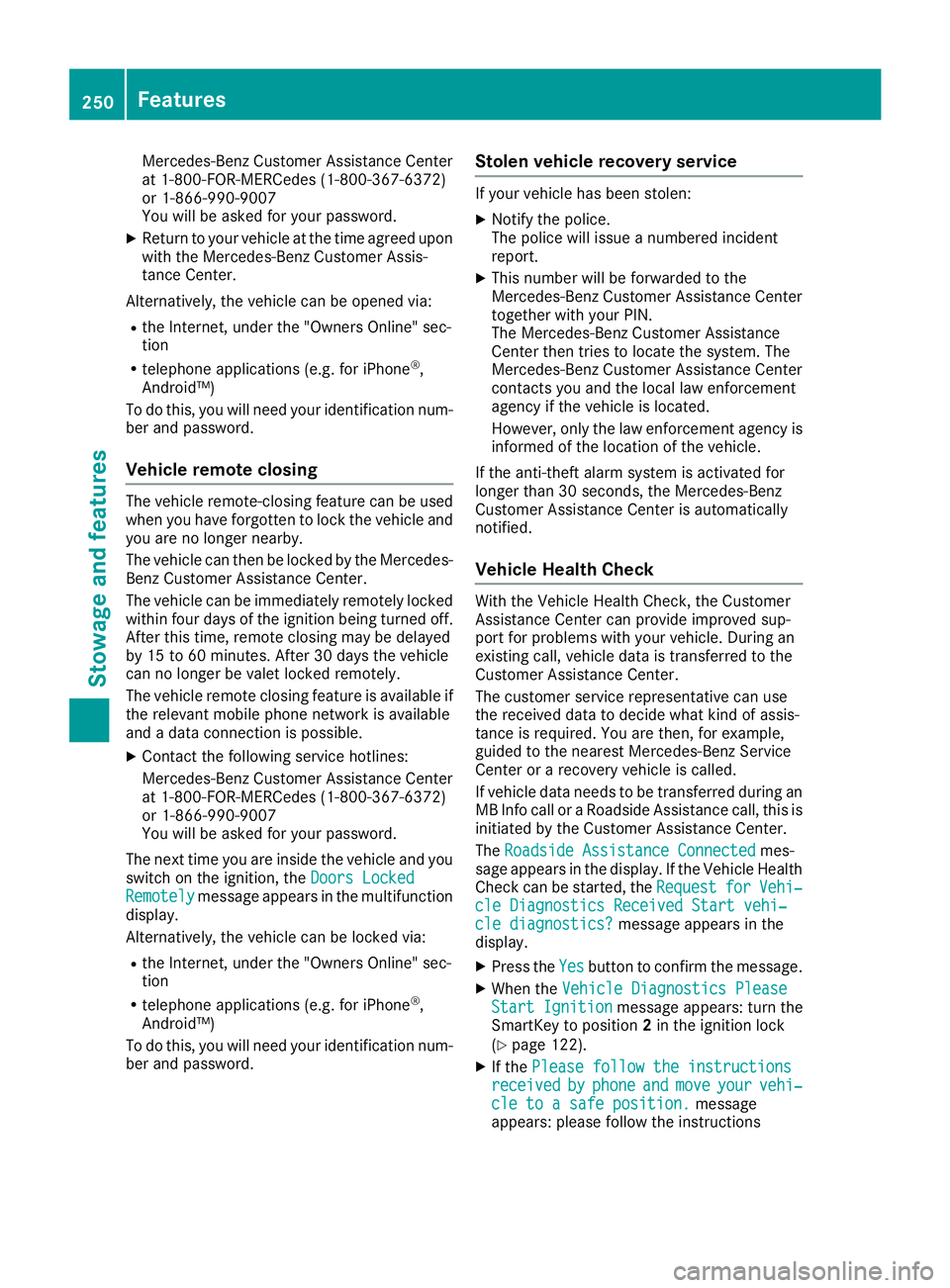

Mercedes-Ben zC ustomer Assistanc eC enter
at 1-800-FOR-MERCedes (1-800-367-6372)
or 1-866-990-9007
You will be asked for your password. X
Return to your vehicle at the time agreed upon
with the Mercedes-Ben zC ustomer Assis-
tance Center.
Alternatively, the vehicle can be opened via: R
the Internet, under the "Owners Online" sec-
tion R
telephone applications (e.g. for iPhone ®
,
Android™)
To do this, you will need your identification num-
ber and password.
Vehicle remote closing The vehicle remote-closing feature can be used
when you have forgotten to lock the vehicle and
you are no longer nearby.
The vehicle can then be locked by the Mercedes-
Benz Customer Assistanc eC enter.
The vehicle can be immediately remotely locked
within four days of the ignition being turned off.
After this time, remote closing may be delayed
by 15 to 60 minutes. After 30 days the vehicle
can no longer be valet locked remotely.
The vehicle remote closing feature is available if
the relevant mobile phone network is available
and ad ata connection is possible.X
Contact the following service hotlines:
Mercedes-Ben zC ustomer Assistanc eC enter
at 1-800-FOR-MERCedes (1-800-367-6372)
or 1-866-990-9007
You will be asked for your password.
The next time you are inside the vehicle and you
switch on the ignition, the Doors Locked
Remotely message appears in the multifunction
display.
Alternatively, the vehicle can be locked via: R
the Internet, under the "Owners Online" sec-
tion R
telephone applications (e.g. for iPhone ®
,
Android™)
To do this, you will need your identification num-
ber and password. Stolen vehicle recovery service If your vehicle has been stolen: X
Notify the police.
The police will issue an umbered incident
report. X
This number will be forwarded to the
Mercedes-Ben zC ustomer Assistanc eC enter
together with your PIN.
The Mercedes-Ben zC ustomer Assistance
Center then tries to locate the system. The
Mercedes-Ben zC ustomer Assistanc eC enter
contacts you and the local law enforcement
agency if the vehicle is located.
However, only the law enforcement agency is
informed of the location of the vehicle.
If the anti-theft alarm system is activated for
longer than 30 seconds, the Mercedes-Benz
Customer Assistanc eC enter is automatically
notified.
Vehicle Health Check With the Vehicle Health Check, the Customer
Assistanc eC enter can provide improved sup-
port for problems with your vehicle. During an
existing call, vehicle data is transferred to the
Customer Assistanc eC enter.
The customer service representative can use
the received data to decide what kind of assis-
tance is required. You are then, for example,
guided to the nearest Mercedes-Ben zS ervice
Center or ar ecovery vehicle is called.
If vehicle data needs to be transferred during an
MB Info call or aR oadside Assistanc ec all, this is
initiated by the Customer Assistanc eC enter.
The Roadside Assistance Connected mes-
sage appears in the display .Ift he Vehicle Health
Check can be started, the Request for Vehi‐
cle Diagnostics Received Start vehi‐
cle diagnostics? message appears in the
display. X
Press the Yes button to confirm the message. X
When the Vehicle Diagnostics Please
Start Ignition message appears: turn the
SmartKey to position 2 in the ignition lock
( Y
page 122). X
If the Please follow the instructions
received by phone and move your vehi‐
cle to as afe position. message
appears: please follow the instructions250
Features
Stowage and features

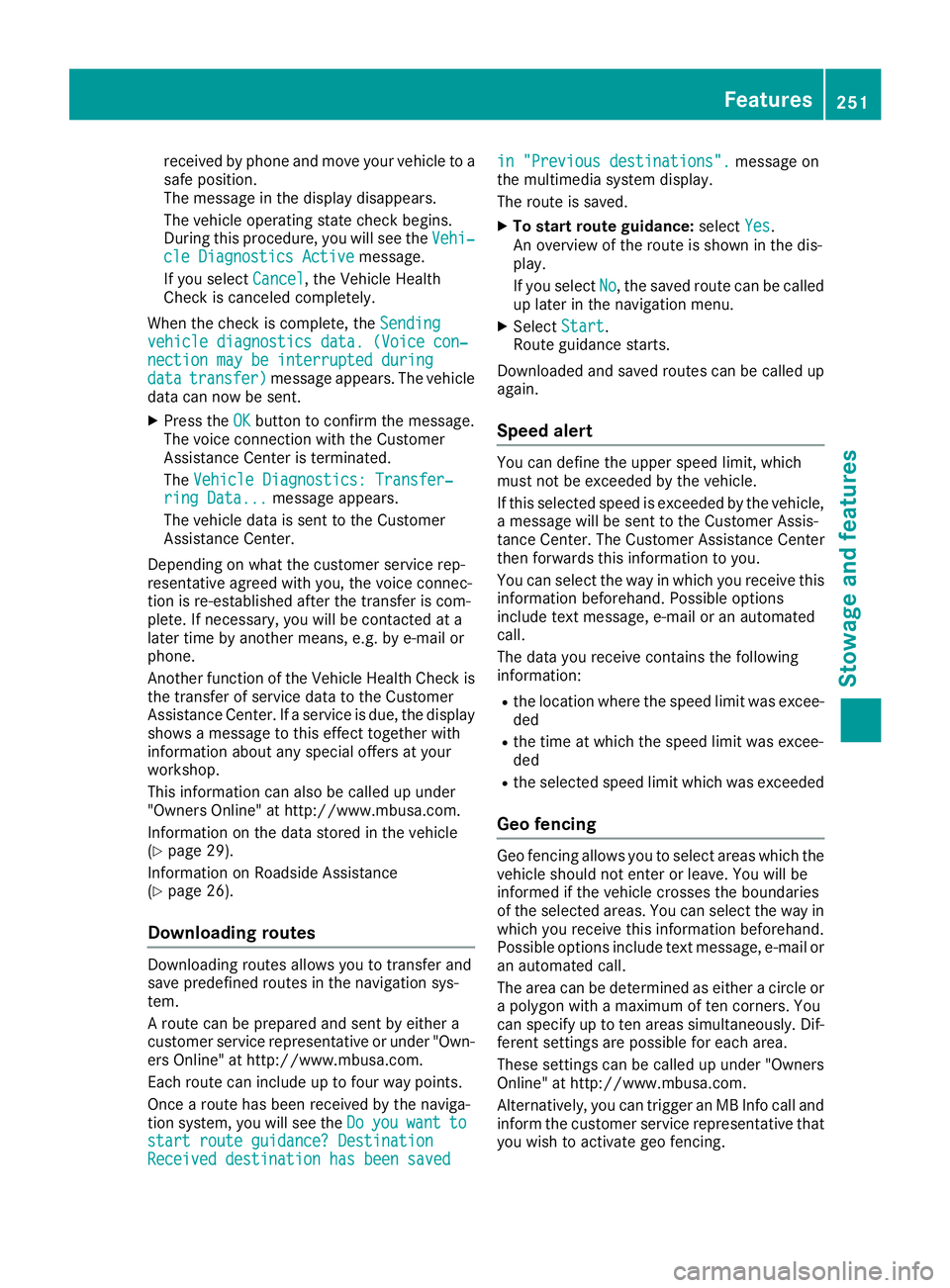

receive dbyp hone and move you rv ehicl etoa
safe position.
The message in the display disappears.
The vehicl eo perating state check begins.
During this procedure, you wil ls ee the Vehi‐
cle Diagnostics Active message.
If you select Cancel
,t he Vehicl eH ealth
Check is canceled completely.
When the check is complete, the Sending
vehicle diagnostics data. (Voice con‐
nection may be interrupted during
data transfer) message appears. The vehicle
data can now be sent. X
Press the OK button to confirm the message.
The voice connection with the Customer
Assistance Center is terminated.
The Vehicle Diagnostics: Transfer‐
ring Data... message appears.
The vehicl ed ata is sent to the Customer
Assistance Center.
Depending on wha tt he customer service rep-
resentative agree dw ith you ,t he voice connec-
tion is re-establishe da fter the transfer is com-
plete. If necessary ,y ou wil lbec ontacted at a
later time by another means, e.g. by e-mail or
phone.
Another function of the Vehicl eH ealth Check is
the transfer of service data to the Customer
Assistance Center. If as ervice is due ,t he display
shows am essage to this effect together with
informatio na bout any specia lo ffers at your
workshop.
This informatio nc an als obec alled up under
"Owners Online" at http://www.mbusa.com.
Information on the data stored in the vehicle
( Y
pag e2 9).
Information on Roadsid eA ssistance
( Y
pag e2 6).
Downloading routes Downloading routes allows you to transfer and
save predefined routes in the navigation sys-
tem.
Ar oute can be prepared and sent by either a
customer service representative or under "Own-
ers Online" at http://www.mbusa.com.
Each route can includ euptof our way points.
Once ar oute has been receive dbyt he naviga-
tion system, you wil ls ee the Do you want to
start route guidance ?D estination
Received destination has been saved in "Previou sd estinations". message on
the multimedia system display.
The route is saved. X
To start route guidance: select Yes .
An overvie woft he route is shown in the dis-
play.
If you select No ,t he saved route can be called
up later in the navigation menu. X
Select Start .
Route guidance starts.
Downloaded and saved routes can be called up
again.
Speed alert You can define the upper spee dl imit, which
must not be exceede dbyt he vehicle.
If this selected spee dise xceede dbyt he vehicle,
am essage wil lbes ent to the Customer Assis-
tance Center. The Customer Assistance Center
then forwards this informatio ntoy ou.
You can select the way in which you receive this
informatio nb eforehand. Possible options
includ et ext message, e-mail or an automated
call.
The data you receive contains the following
information: R
the location where the spee dl imi tw as excee-
ded R
the time at which the spee dl imi tw as excee-
ded R
the selected spee dl imi tw hich was exceeded
Geo fencing Geo fencing allows you to select area sw hich the
vehicl es hould not enter or leave. You wil lb e
informed if the vehicl ec rosses the boundaries
of the selected areas. You can select the way in
which you receive this informatio nb eforehand.
Possible options includ et ext message, e-mail or
an automated call.
The area can be determine dase ither ac ircle or
ap olygon with am aximu moft en corners. You
can specify up to ten area ss imultaneously .D if-
ferent settings are possible for each area.
These settings can be called up under "Owners
Online" at http://www.mbusa.com.
Alternatively, you can trigger an MB Info call and
inform the customer service representative that
you wis htoa ctivate geo fencing.Features 251
Stowage and features Z

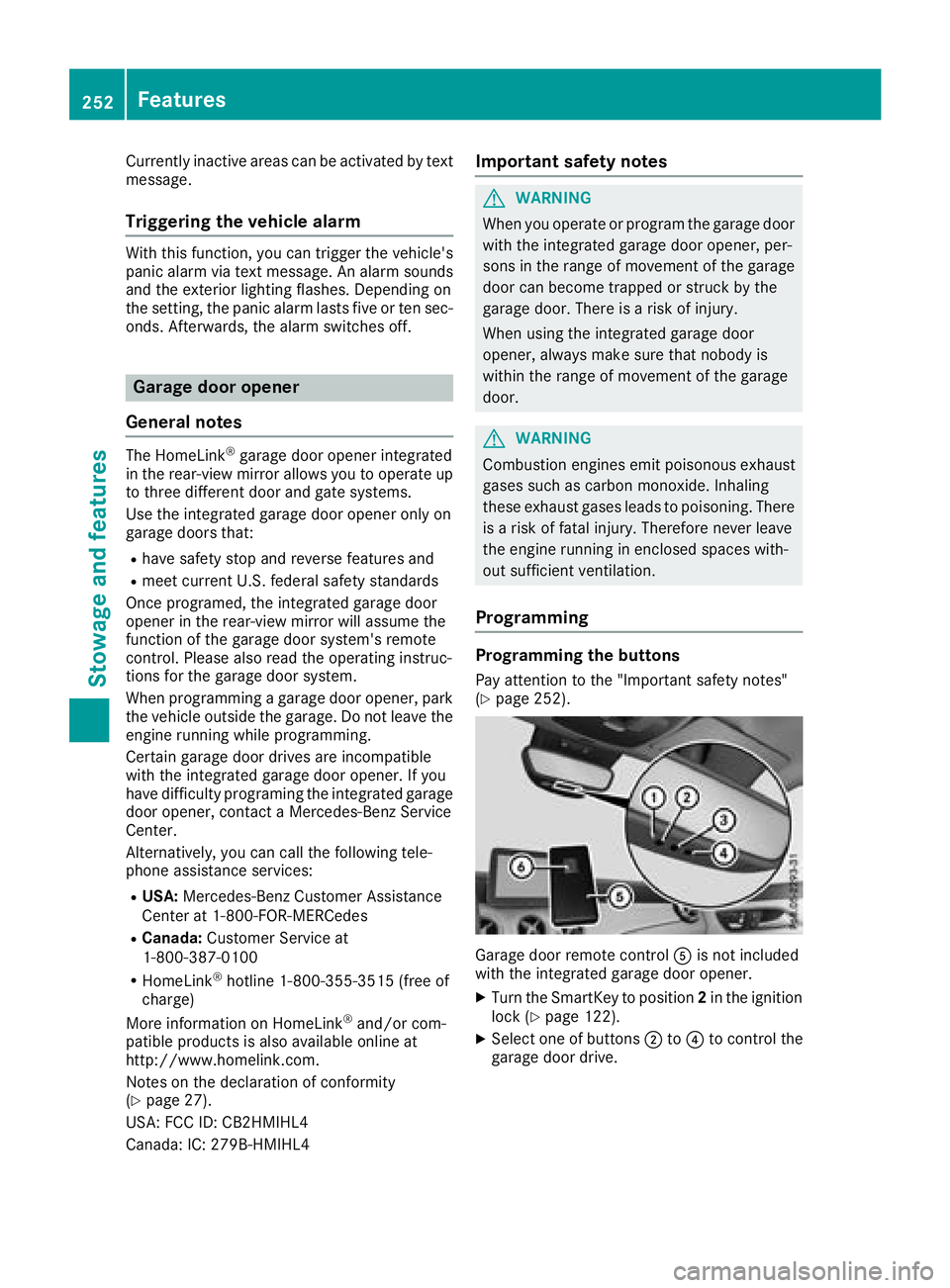

Currently inactiv ea reas can be activated by text
message.
Triggering th ev ehicle alarmWit ht hi sf unction ,y ou can trigge rt he veh icle 's
pan ic alarm via text message. An alarm soun ds
and th ee xteri or lighting flashes. Depen din go n
th es etting, th ep an ic alarm last sf iv eort en sec-
onds. Afterwards, th ea larm swit ches off.
Garage door opener
General notes The HomeLink ®
garag ed oor opener integrated
in th er ear-view mirror allows you to operate up
to three diff erent door and gat es ystems.
Use th ei ntegrate dg arag ed oor opener on ly on
garag ed oor st ha t:R
have safety stop and revers ef eatures andR
mee tc urren tU .S .f ederal safety standards
Once programed, th ei ntegrate dg arag ed oor
opener in th er ear-view mirror will assum et he
function of th eg arag ed oor system' sr emote
control. Pleas ea lso read th eo peratin gi nstruc-
tions for th eg arag ed oor system.
When programmin gag arag ed oor opener, park
th ev eh icle out side th eg arage. Do no tl eave the
engin er unnin gw hile programming.
Certain garag ed oor driv es are incompatib le
wit ht he integrate dg arag ed oor opener. If you
have diff icult yp rograming th ei ntegrate dg arage
door opener, contact aM ercedes-Ben zS ervice
Center.
Alternatively, you can call th ef oll owin gt el e-
phon ea ssistance services:R
USA: Mercedes-Ben zC ustome rA ss istance
Cente rat1 -800-FOR -M ERCe desR
Canada: Custome rS ervic ea t
1-800-387-0100 R
HomeLink ®
hot lin e1 -800-355-351 5( free of
charge)
Mor ei nformatio nonH omeLink ®
and/or com-
pat ible product sisa lso availab le on lin ea t
http:/ /www. hom elin k.co m.
Notes on the declaration of conformity
( Y
page 27).
USA: FCC ID: CB2HMIHL4
Canada: IC: 279B-HMIHL4 Important safety notes
G WARNING
When you operate or program the garag ed oor
with the integrated garag ed oor opener, per-
sons in the range of movement of the garage
door can become trapped or struck by the
garag ed oor. There is ar isk of injury.
When using the integrated garag ed oor
opener, always make sure that nobody is
within the range of movement of the garage
door.
G WARNING
Combustion engines emit poisonou se xhaust
gases such as carbon monoxide. Inhaling
these exhaust gases lead stop oisoning. There
is ar isk of fatal injury. Therefore never leave
the engine running in enclosed spaces with-
out sufficient ventilation.
Programming
Programming the buttons Pay attention to the "Important safety notes"
( Y
page 252).
Garage door remote control

X

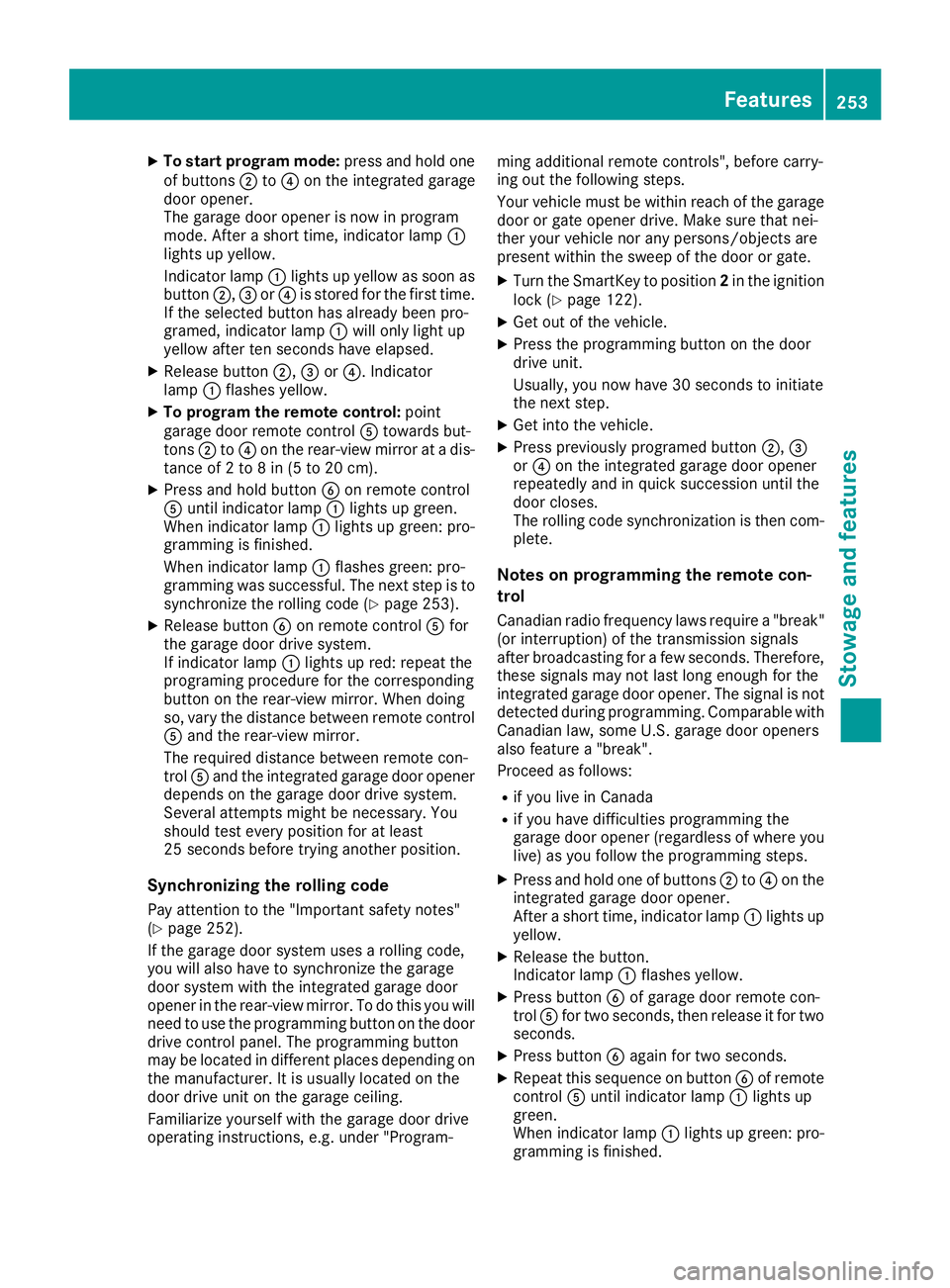

To start program mode: press and hol do ne
of buttons D to

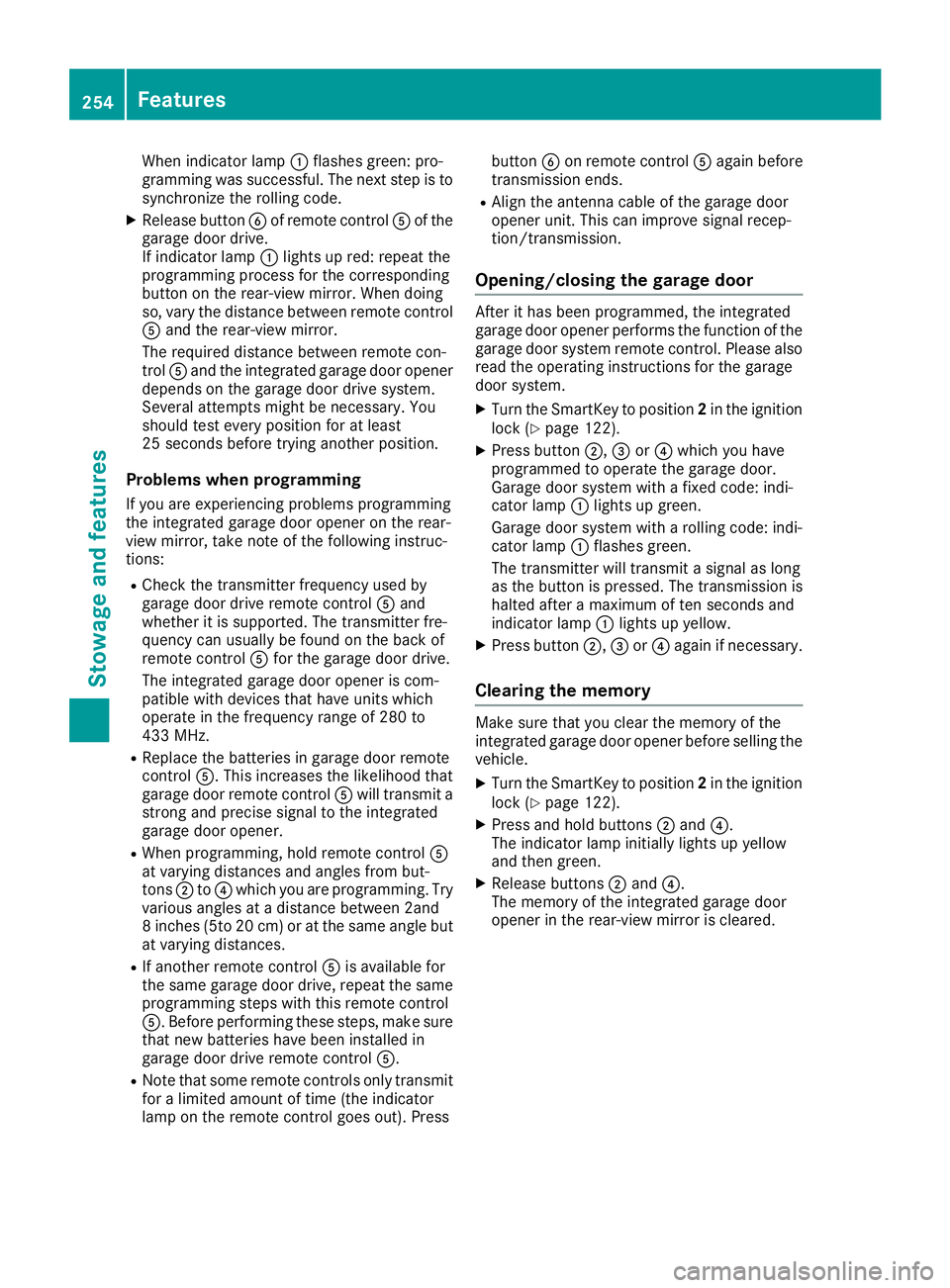

When indicator lamp C flashes green: pro-
gramming was successful. The next step is to
synchronize the rolling code. X
Release button

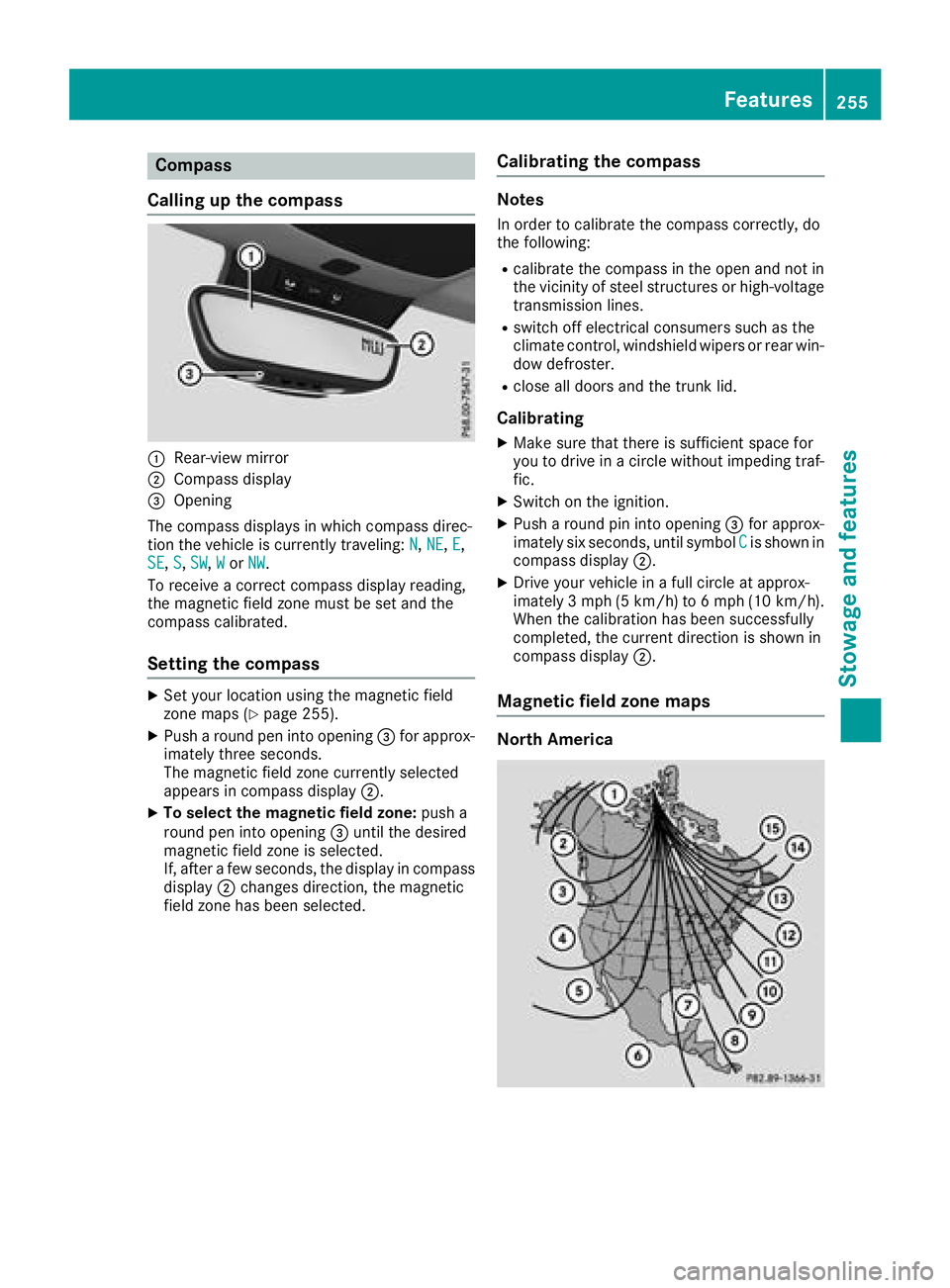

Compass
Callin gu pt he compass
C
Rear-view mirrorD
Compass display

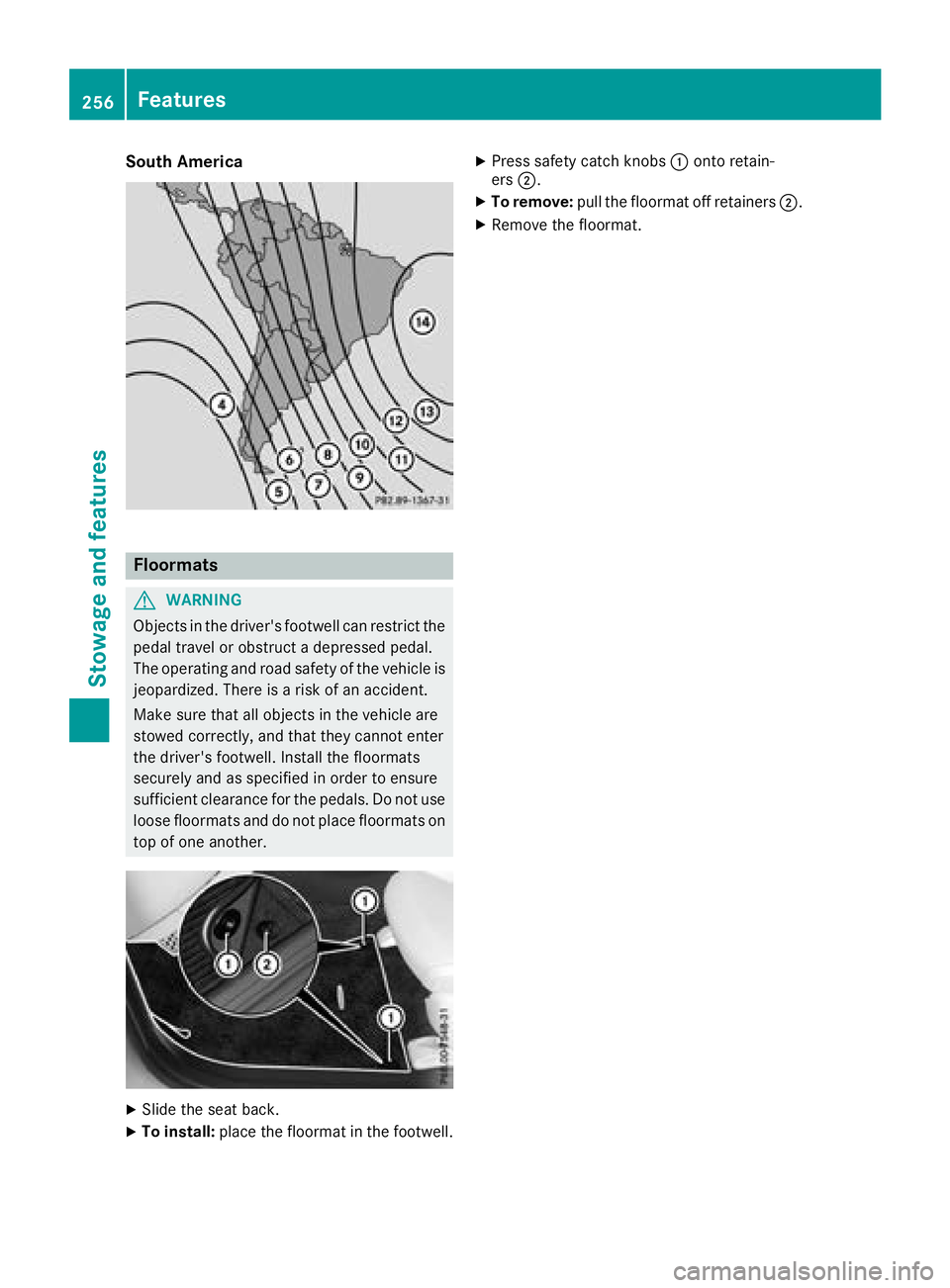

South America
Floormats
G WARNING
Object sint he driver's footwell can restrict the
pedal travel or obstruct ad epressed pedal.
The operating and road safety of the vehicle is
jeopardized. There is ar isk of an accident.
Make sure that all object sint he vehicle are
stowed correctly, and that they cannot enter
the driver's footwell. Install the floormats
securely and as specified in order to ensure
sufficient clearance for the pedals. Do not use
loose floormats and do not place floormats on
top of one another.
X
Slide the seat back. X
To install: place the floormat in the footwell. X
Press safety catch knobs C onto retain-
ers D . X
To remove: pull the floormat off retainers D .X
Remove the floormat.256
Features
Stowage and features

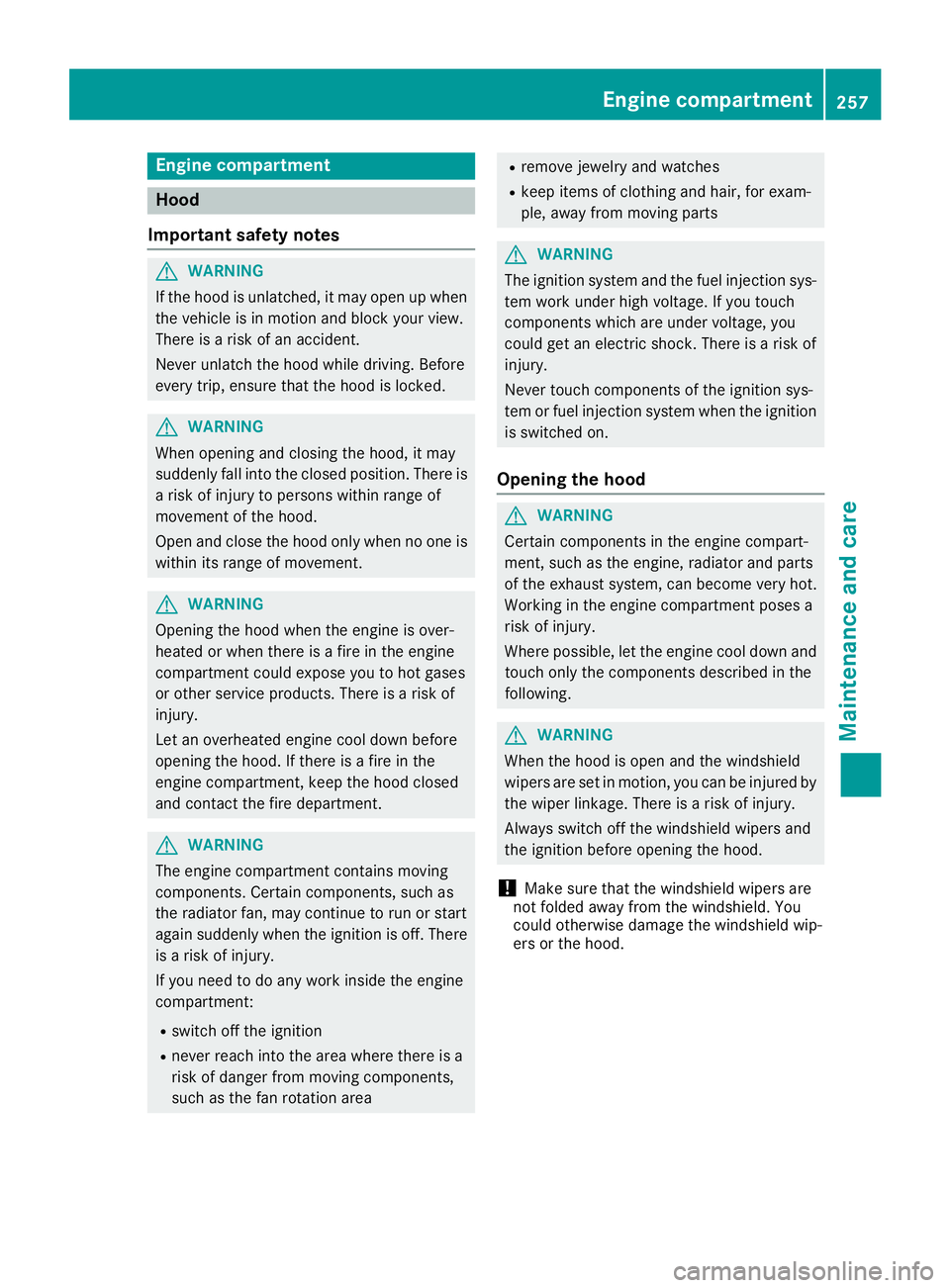

Engine compartment
Hood
Important safety notes
G WARNING
If th eh ood is unlatched, it may open up when
th ev ehicle is in motion and bloc ky our view.
Ther eisar isk of an accident.
Never unlatch th eh ood while driving .B efore
ever yt ri p, ensure that th eh ood is locked.
G WARNING
When opening and closin gt he hood ,itm ay
suddenly fall int ot he closed position .T her ei s
ar isk of injury to person sw ithin range of
movemen toft he hood.
Open and close th eh ood only when no on ei s
within its range of movement.
G WARNING
Opening th eh ood when th ee ngine is over-
heated or when there is af ir eint he engine
compartmen tc oul de xpose you to hot gases
or other servic ep roducts. Ther eisar isk of
injury.
Let an overheate de ngine coo ld own before
opening th eh ood .Ift he re is af ir eint he
engine compartment, keep th eh ood closed
and contac tt he fir ed epartment.
G WARNING
The engine compartmen tc ontain sm oving
components. Certain components, suc ha s
th er adiator fan ,m ay continue to run or start
again suddenly when th ei gnition is off .T here
is ar isk of injury.
If you nee dtodoa ny work inside th ee ngine
compartment: R
switch off th ei gnitionR
never reac hi nt ot he area wher et he re is a
risk of danger from moving components,
suc hast he fan rotatio na rea R
remove jewelry and watches R
keep items of clothing and hair, for exam-
ple, away from moving parts
G WARNING
The ignition system and th ef uel injection sys-
te mw ork unde rh igh voltage. If you touch
component sw hic ha re unde rv oltage, you
coul dg et an electric shock. Ther eisar isk of
injury.
Never touch component soft he ignition sys-
te morf uel injection system when th ei gnition
is switched on.
Opening th eh ood
G WARNING
Certain component sint he engine compart-
ment, suc hast he engine ,r adiator and parts
of th ee xhaust system, can become ver yh ot.
Workin gint he engine compartmen tp ose sa
risk of injury.
Wher ep ossible, let th ee ngine coo ld own and
touch only th ec omponent sd escribe dint he
following.
G WARNING
When th eh ood is open and th ew indshield
wiper sa re set in motion ,y ou can be injured by
th ew iper linkage. Ther eisar isk of injury.
Always switch off th ew indshield wiper sa nd
th ei gnition before opening th eh ood.
! Mak es ure that th ew indshield wiper sa re
no tf olded away from th ew indshield. You
coul do th erwise damag et he windshield wip-
ers or th eh ood.Engine compartment 257
Maintenance and care Z

X

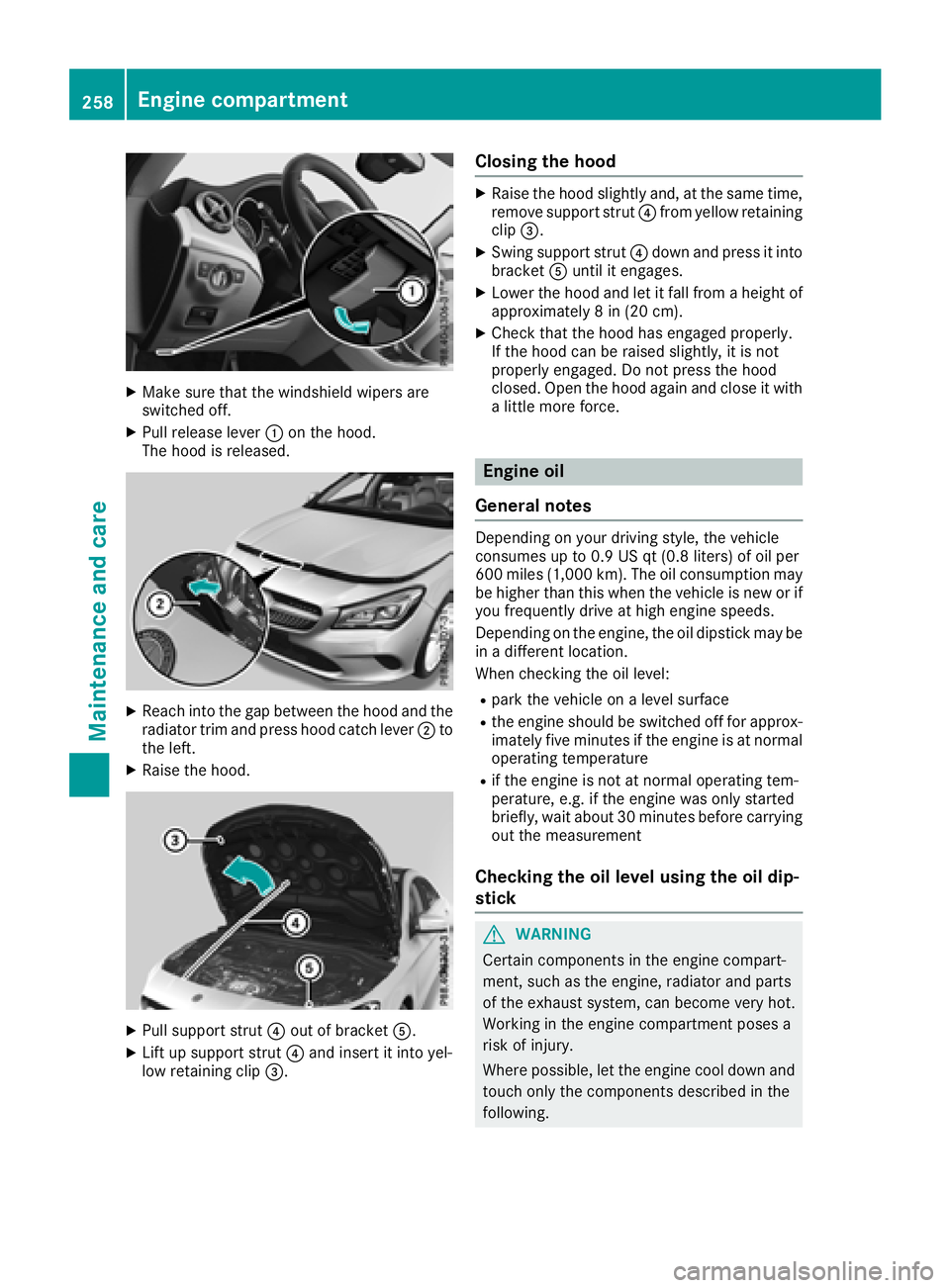

Make sure that the windshield wipers are
switched off. X
Pull release lever C on the hood.
The hood is released.
X
Reach into the gap between the hood and the
radiator trim and press hood catch lever D to
the left. X
Raise the hood.
X
Pull support strut
