121 Controls in detail
Lighting
Daytime running lamp mode
Turn exterior lamp switch to
positionM orU.
When the engine is running, the low beam
headlamps are automatically switched on.
In low ambient light conditions the parking
lamps will also switch on.
Canada only
When you shift from a driving position to
positionN orP, the low beam switches off
(with a three-minute delay).
For nighttime driving you should turn the
exterior lamp switch to positionB to
permit activation of the high beam head-
lamps.USA only
The high beam headlamps can also be ac-
tivated when driving with the daytime run-
ning lamp mode activated and exterior
lamp switch in positionM.
To activate the daytime running lamp
mode, see “Setting daytime running lamp
mode (USA only)” (
page 145).
Locator lighting and night security illu-
mination
Locator lighting and night security illumi-
nation are described in the control system
section, see “Setting locator lighting”
(
page 146) and see “Setting night secu-
rity illumination (Exterior lamps delayed
shut-off)” (
page 147).
iWith the daytime running lamp mode
activated, the low beam headlamps will
not be switched off automatically.iThe front fog lamps and rear fog lamp
cannot be switched on manually with
exterior lamp switch in positionU.
To activate the fog lamps, turn exterior
lamp switch to positionB and pull
the exterior lamp switch to first or sec-
ond stop (
page 122).
iSee notes on the exterior lamp switch
(page 119).
ProCarManuals.com
Page 122 of 464
122 Controls in detailLightingSwitching on fog lamps
Switching on front fog lamps
Make sure the low beam headlamps
are switched on.
Pull out exterior lamp switch to first
stop.
The green indicator lamp‡ beside
the lamp switch comes on.Switching on rear fog lamp
Make sure the low beam headlamps
are switched on.
Pull out exterior lamp switch to second
stop.
The yellow indicator lamp† beside
the lamp switch comes on.
Warning!
G
In low ambient lighting or foggy conditions,
only switch from position U to B with
the vehicle at a standstill. Switching from
U to B will briefly switch off the head-
lamps. Doing so while driving in low ambient
lighting conditions may result in an acci-
dent.iFog lamps will operate with the parking
lamps and/or the low beam headlamps
on. Fog lamps should only be used in
conjunction with low beam headlamps.
Consult your State or Province Motor
Vehicle Regulations regarding permis-
sible lamp operation.
iThe front fog lamps and rear fog lamp
cannot be switched on manually with
exterior lamp switch in positionU.
To activate the fog lamps, turn exterior
lamp switch to positionB and pull
the exterior lamp switch to first or sec-
ond stop (
page 122).
ProCarManuals.com
Page 123 of 464
123 Controls in detail
Lighting
Combination switch

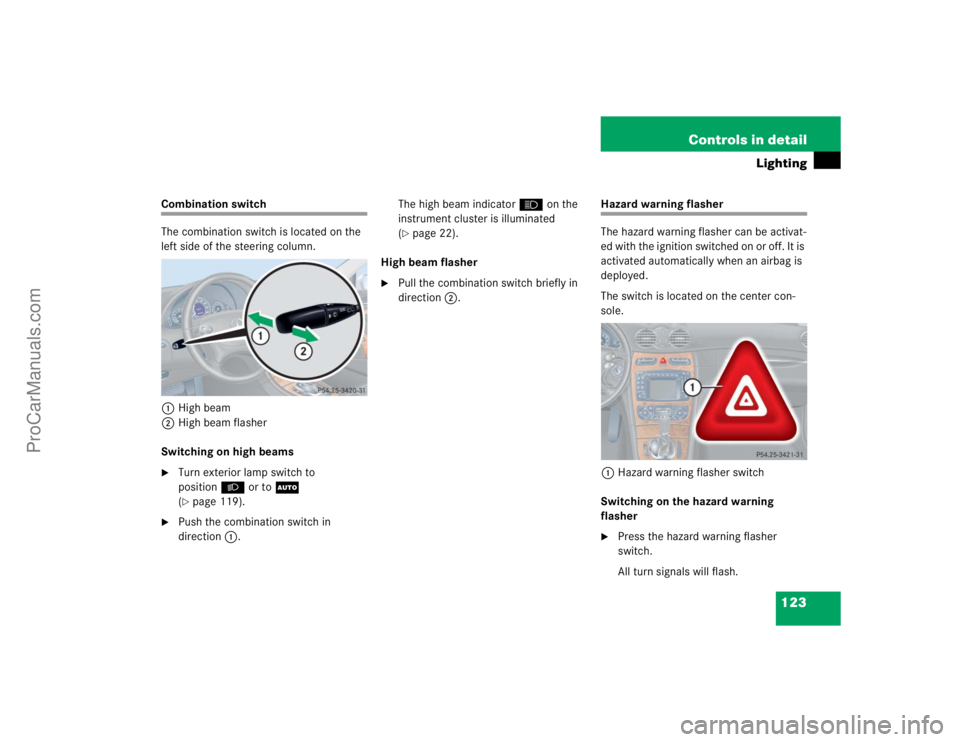

The combination switch is located on the
left side of the steering column.
1High beam
2High beam flasher
Switching on high beams
Turn exterior lamp switch to
positionB or toU
(page 119).
Push the combination switch in
direction1.The high beam indicator A on the
instrument cluster is illuminated
(
page 22).
High beam flasher
Pull the combination switch briefly in
direction2.
Hazard warning flasher
The hazard warning flasher can be activat-
ed with the ignition switched on or off. It is
activated automatically when an airbag is
deployed.
The switch is located on the center con-
sole.
1Hazard warning flasher switch
Switching on the hazard warning
flasher
Press the hazard warning flasher
switch.
All turn signals will flash.
ProCarManuals.com
Page 124 of 464
124 Controls in detailLightingSwitching off the hazard warning
flasher
Press hazard warning flasher switch
again.
Interior lighting
The controls are located in the overhead
control panel.
1Left front reading lamp
2Rocker switch for automatic control
system
3Right front reading lampActivating automatic control
Press the rocker switch2 to the cen-
ter position.
Interior lamps are switched on in dark-
ness, even when you:
unlock the vehicle
open a door
remove the SmartKey from the
starter switch
The interior lamps are switched off after a
preset time (
page 148).
iWith the hazard warning flasher acti-
vated and the combination switch set
for either left or right turn, only the re-
spective left or right turn signal will op-
erate when the SmartKey in the starter
switch is in position1 or2.iIf the hazard warning flasher was acti-
vated automatically, press switch1
twice.
iIf the door remains open, the interior
lamps switch off automatically after ap-
proximately five minutes when the
SmartKey is removed or in starter
switch position 0.
ProCarManuals.com
Page 125 of 464
125 Controls in detail
Lighting
Deactivating automatic control
Press the = symbol on rocker
switch2.
The interior lighting remains switched
off in darkness, even when you:
unlock the vehicle
open a door
remove the SmartKey from the
starter switch
Manual control
Switching all front interior lights on and
off
Press the W symbol on rocker
switch2.
The front interior lights come on.
Press rocker switch2 to center
position to activate the automatic
control.Switching right front reading lamp on
and off
Press right button X.
The right reading lamp comes on.
Press right button X again.
The right reading lamp goes out.
Switching left front reading lamp on and
off
Press left button X.
The left reading lamp comes on.
Press left button X again.
The left reading lamp goes out.
Door entry lamps
The appropriate door entry lamp switches
on if a door is opened in darkness and if
the interior lighting is switched to automat-
ic function.
The entry lamp switches off automatically
when the door is closed.
iIf you turn the SmartKey in the starter
switch to position0 and switch off the
exterior headlamps, the door entry
lamps will remain lit for approximately
five minutes.
ProCarManuals.com
Page 126 of 464
126 Controls in detailInstrument cluster
Instrument clusterA full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 22).
The instrument cluster is activated when
you
open a door
turn on the ignition
press the reset button, see
(page 126)
switch on the exterior lamps
You can change the instrument cluster set-
tings in the Instrument cluster submenu of
the control system (
page 142).
Instrument cluster illumination
1Reset button
Use the reset button to adjust the illumina-
tion brightness for the instrument cluster.To brighten illumination
Turn reset button1 in the instrument
cluster clockwise.
The instrument cluster illumination will
brighten.
To dim illumination
Turn reset button1 in the instrument
cluster counterclockwise.
The instrument cluster illumination will
dim.
iThe instrument cluster illumination is
dimmed or brightened automatically to
suit ambient light conditions.
The instrument cluster illumination will
also be adjusted automatically when
you switch on the vehicle’s exterior
lamps.
ProCarManuals.com
Page 127 of 464
127 Controls in detail
Instrument cluster
Coolant temperature indicatorDuring severe operating conditions, e.g.
stop-and-go traffic, the coolant tempera-
ture may rise close to 120°C.
The engine should not be operated with
the coolant temperature above 120°C. Do-
ing so may cause serious engine damage
which is not covered by the
Mercedes-Benz Limited Warranty.
Trip odometer
Make sure you are viewing the trip odome-
ter display (
page 129).
I f i t i s n o t d i s p l a y e d , p r e s s b u t t o nè
orÿ on the multifunction steering
wheel repeatedly until the trip odome-
ter appears.
Press and hold reset button1 on the
instrument cluster (
page 126) until
the trip odometer is reset.
Tachometer
The red marking on the tachometer de-
notes excessive engine speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
CLK 55 AMG
The tachometer of the CLK 55 AMG does
not have a red marking denoting excessive
engine speed
To help protect the engine, the fuel supply
is interrupted if the engine is operated at
an excessive engine speed.
Warning!
G
Driving when your engine is overheated
can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously
burned.
Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.iExcessive coolant temperature triggers
a warning in the multifunction display
(page 329) and the red coolant warn-
ing lamp in the instrument cluster
comes on (
page 315).
!Avoid driving at excessive engine
speeds, as it may result in serious en-
gine damage that is not covered by the
Mercedes-Benz Limited Warranty.
ProCarManuals.com
Page 128 of 464
128 Controls in detailInstrument clusterOutside temperature indicator
The outside temperature is displayed in
the multifunction display (
page 22). For
information on how to select the unit of the
displayed temperature, i.e. degrees Cel-
sius (°C) or degrees Fahrenheit (°F), see
“Selecting temperature display mode”
(
page 142)The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. This
means that the accuracy of the displayed
temperature can only be verified by com-
parison to a thermometer placed next to
the sensor, not by comparison to external
displays (e.g. bank signs etc.).When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or

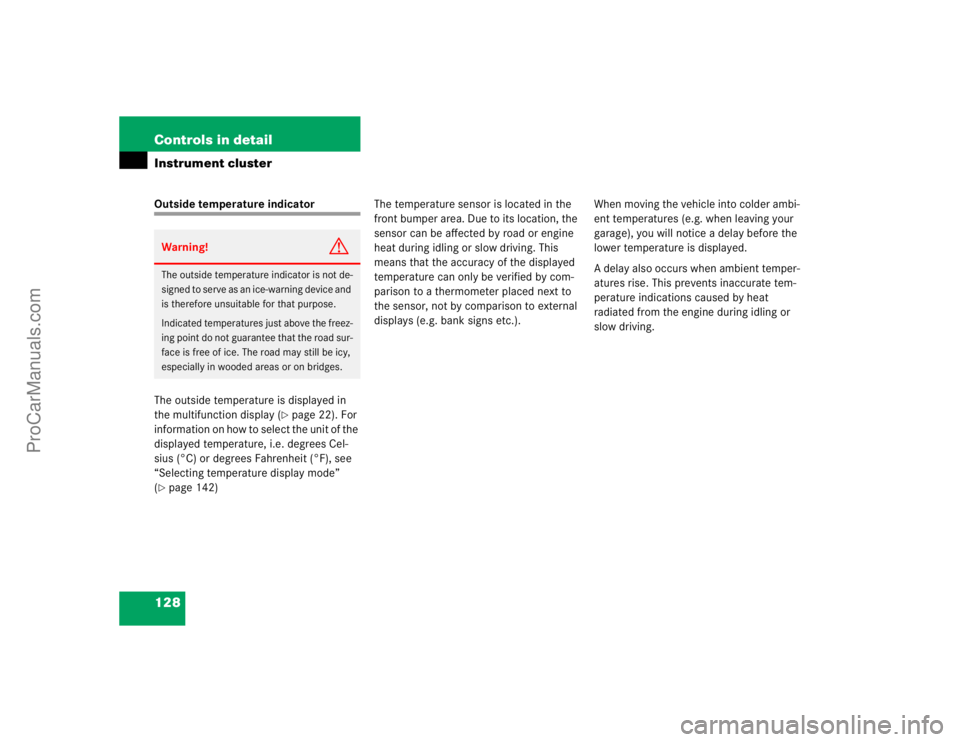

slow driving.Warning!
G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.
ProCarManuals.com
Page 129 of 464
129 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1 or as soon as the
KEYLESS-GO* start/stop button is in
position1. The control system enables you
to
call up information about your vehicle
change vehicle settings
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the instrument cluster dis-
play, and much more.
The control system relays information to
the multifunction display.

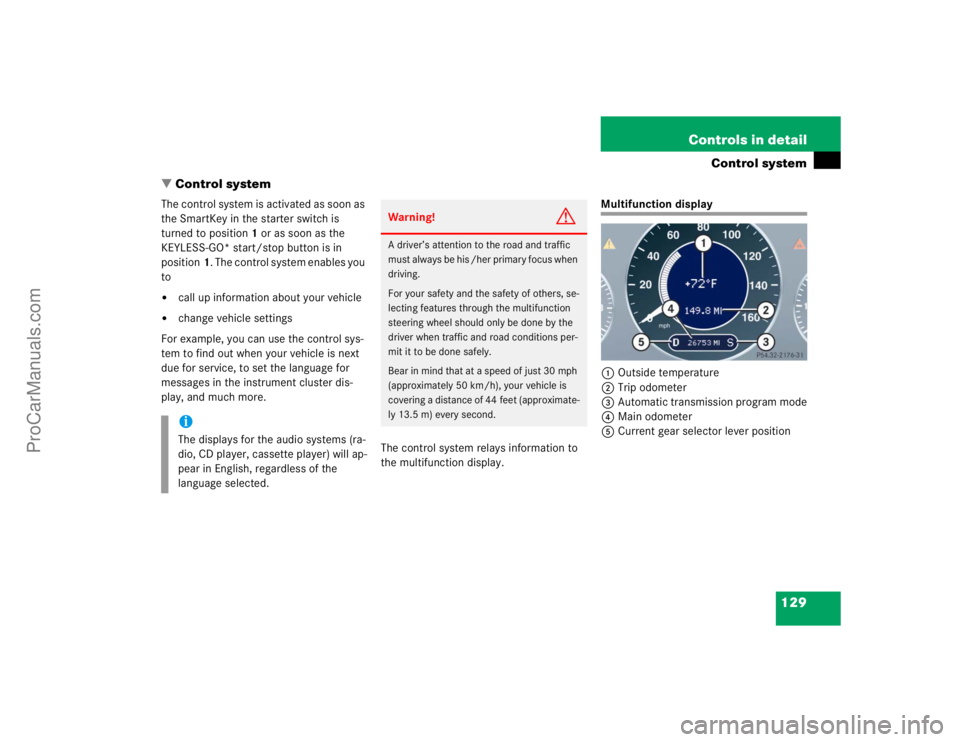

Multifunction display
1Outside temperature
2Trip odometer
3Automatic transmission program mode
4Main odometer
5Current gear selector lever position
iThe displays for the audio systems (ra-
dio, CD player, cassette player) will ap-
pear in English, regardless of the
language selected.
Warning!
G
A driver’s attention to the road and traffic
must always be his /her primary focus when
driving.
For your safety and the safety of others, se-
lecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions per-
mit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 13.5 m) every second.
ProCarManuals.com
Page 130 of 464
130 Controls in detailControl systemMultifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multifunc-
tion steering wheel (
page 24).Pressing any of the buttons on the multi-
function steering wheel will alter what is
shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
Audio
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.

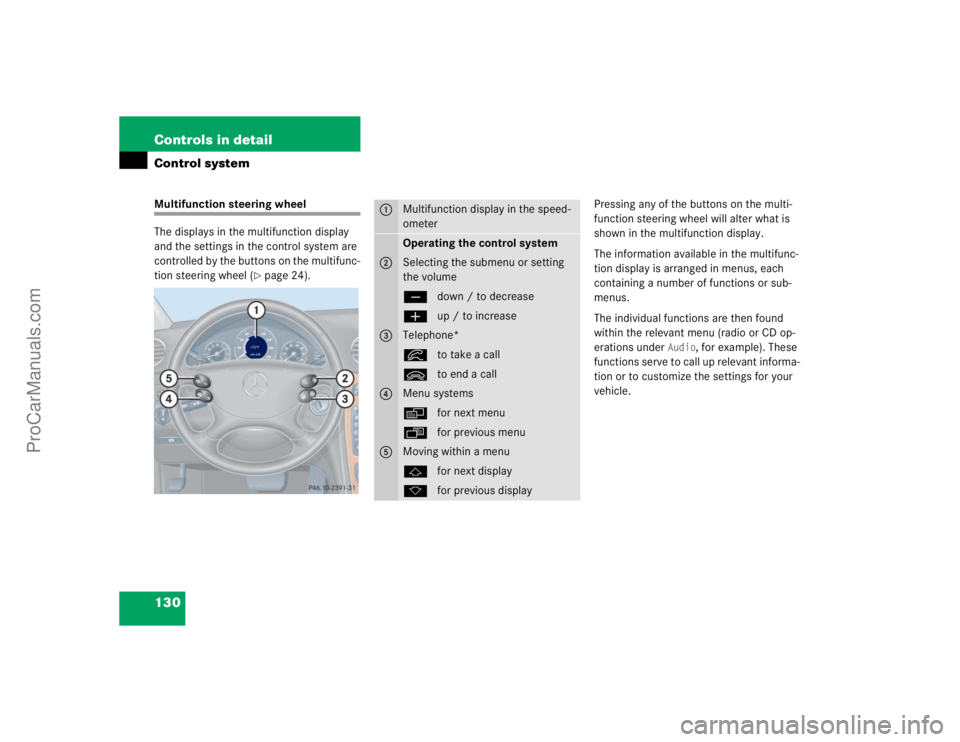

1
Multifunction display in the speed-
ometerOperating the control system
2
Selecting the submenu or setting
the volumeçdown / to decreaseæup / to increase
3
Telephone*íto take a callìto end a call
4
Menu systemsèfor next menuÿfor previous menu
5
Moving within a menujfor next displaykfor previous display
ProCarManuals.com
