131 Controls in detail
Control system
It is helpful to think of the menus, and the
functions within each menu, as being ar-
ranged in a circular pattern.

If you press buttonè orÿ re-
peatedly, you will pass through each
menu one after the other.


If you press buttonk orj re-
peatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings
menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For in-
structions on using these submenus, see
“Settings menu” (page 139).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
The menus are described on the following
pages.
ProCarManuals.com

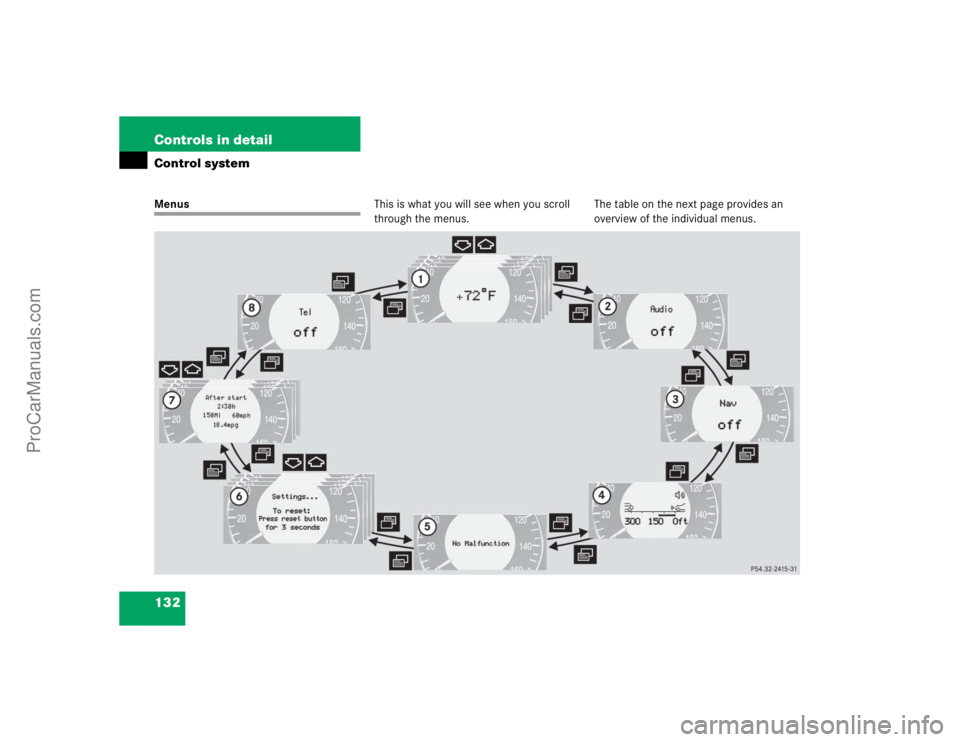

132 Controls in detailControl systemMenusThis is what you will see when you scroll
through the menus.The table on the next page provides an
overview of the individual menus.
ProCarManuals.com

133 Controls in detail
Control system
Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Menu7
Menu8
Commands/submenusStandard dis-
play
AUDIO
NAVI*
Distronic*
Malfunction
memory
Settings
Trip computer
Telephone
Digital speed-
ometer
Select radio
station
Activate
route guid-
ance
Call up set-
tings
Call up malfunc-
tion messages
Reset to factory
settings
Fuel consumption
statistics after
start
Load phone
book
Call up FSS
Select
satellite ra-
dio station
Instrument clus-
ter submenu
Fuel consumption
statistics since
the last reset
Search for
name in
phone book
Check engine oil
level
Operate CD
player*
Time submenu
Call up range
Operate cas-
sette player
Lighting sub-
menuVehicle sub-
menuConvenience
submenu
ProCarManuals.com

134 Controls in detailControl system
Standard display menu
You can select the functions in the stan-
dard display menu with buttonk
orj.
The following functions are available:
Display digital speedometer
Press the j or k button repeat-
edly until you see the digital speedom-
eter appear in the display.
The current vehicle speed is shown in
the multifunction display.
AUDIO menu
The functions in the
Audio
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
Audio off
is shown in the
display.
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Call up digital speedometer
134
Call up FSS
303
Check engine oil level
289
Function
Page
Select radio station
135
Select satellite radio station*
135
Operate CD player*
136
Operate cassette player
136
ProCarManuals.com

135 Controls in detail
Control system
Select radio station
Turn on the radio (
page 186). Vehi-
cles with COMAND*: Refer to separate
operating instructions.

Press buttonè orÿ repeatedly
until you see the currently tuned sta-
tion in the display.
1Waveband
2Setting for station selection using
memory
3Station frequency

Press buttonk orj repeatedly
until the desired station is found.The type of search depends on the setting
for the station tuning (
page 149):


The next stored station is selected (
SP)


Station searchSelect satellite radio station*
The Sirius -Satellite - Radio is treated as a
radio application.

Select SAT radio with the correspond-
ing softkey in the radio menu.
1SAT mode and preset number
2Setting for station selection using
memory
3Channel name or number

Press buttonk orj repeatedly
until the desired channel is found.
iYou can only store new stations using
the designated feature on the radio
(page 191). Vehicles with
COMAND*: Refer to separate operat-
ing instructions.
You can also operate the radio in the
usual manner.
ProCarManuals.com

136 Controls in detailControl system
Operate the CD player*
Turn on the radio and select the CD
player (
page 199). Vehicles with
COMAND*: Refer to separate operat-
ing instructions.

Press buttonè orÿ repeatedly
until the settings for the CD currently
being played are shown in the display.
1Current CD (for CD changer*)
2Current track

Press buttonk orj repeatedly
until the desired track is selected.Operate the Cassette player*

Turn on the radio and select the cas-
sette player (
page 196). Vehicles
with COMAND*: Refer to separate op-
erating instructions.

Press buttonè orÿ repeatedly
until the settings for the cassette cur-
rently being played are shown in the
display.
1Current side

Press buttonj to fast forward to
the next track.

Press buttonk to rewind the cas-
sette to the beginning of the current
track.
iFeature description is based on prelim-
inary information available at time of
printing.
For more information on satellite radio
operation, see “Satellite radio (SAT)*
(USA only)” (
page 192).
Vehicles with COMAND*: Refer to sep-
arate operating instructions.
iTo select a CD from the magazine,
press a number on the audio system or
the COMAND* system key pad located
in the center dashboard.
ProCarManuals.com

137 Controls in detail
Control system
NAV menu
The
Nav
menu contains the functions need-
ed to operate your navigation system.

Press buttonè orÿ repeatedly
until you see the message
Nav
in the
display.


If the navigation system is switched off,
the message
Nav off
is shown in the
display.


If the navigation system is on, the mes-
sage
Nav active
is shown in the dis-
play.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
Distronic* menu
Use the Distronic menu to display the cur-
rent settings for your Distronic system.
What information is shown in the display
depends on whether the Distronic system
is active or inactive.
Please refer to the “Driving systems” sec-
tion of this manual (
page 229) for in-
structions on how to activate Distronic.

Press buttonè orÿ repeatedly
until you see one of the following two
pictures in the display.Distronic deactivated
When Distronic is deactivated you will see
the standard display in the display.
1Vehicle ahead, if detected
2Actual distance to vehicle ahead
3Preset distance threshold to vehicle
ahead
4Your vehicle
5Symbol for activated distance warning
function
iTo select the reverse side of the tape,
press button below track number on
the audio system display, or enter re-
quest on the COMAND* system locat-
ed in the center dashboard.
ProCarManuals.com

138 Controls in detailControl systemDistronic activated
When you activate Distronic, you will see
the set speed for about five seconds in the
Distronic display. The following display
then appears:
1Distronic activated
Malfunction memory menu
Use the malfunction memory menu to scan
malfunction and warning messages that
may be stored in the system. What infor-
mation is shown in the display depends on
whether malfunctions have actually oc-
curred.

Press buttonè orÿ repeatedly
until you see the malfunction message
memory in the display.
No malfunction messages
If no malfunctions have occurred, the mes-
sage in the display is:
No MalfunctionMalfunctions have occurred
If malfunctions have occurred, you will see
the number of malfunctions in the display:
1Number of malfunctions
Press buttonk orj.
The stored messages will now be dis-
played in order. See the “Practical
hints” section for malfunction and
warning messages (
page 320).
Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 320).
ProCarManuals.com

139 Controls in detail
Control system
Should any malfunctions occur while driv-
ing, the number of malfunctions will reap-
pear in the display when the SmartKey in
the starter switch is turned to position0 or
removed from the starter switch.
Settings menu
In the
Settings
menu there are two func-
tions:


The function
Reset to factory set-
tings?
, with which you can reset all the
settings to the original factory settings.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press buttonè orÿ repeatedly
until the
Settings
menu is seen in the
display.Resetting all settings
You can reset all the functions of all sub-
menus to the factory settings.

Press the reset button in the instru-
ment cluster for approximately three
seconds.
In the display you will see the request
to press the reset button again to con-
firm.

Press the reset button again.
The functions of all the submenus will
reset to factory settings.
iThe message memory will be cleared
when you turn the SmartKey in the
starter switch to position1 or2. You
will then only see High-priority malfunc-
tions (
page 320).
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time. After approximately five seconds,
you will see the
Settings...
menu
again.
ProCarManuals.com

140 Controls in detailControl systemSubmenus in the Settings menu
Press buttonk orj.
In the display you see the collection of
the submenus.

Press buttonç.
The selection marker moves to the next
submenu.The submenus are arranged by hierarchy.
Scroll down with theç button, scroll up
with theæ button.
Move within the submenus with thek
orj button to the individual functions.
The settings themselves are made with
buttonæ orç.Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.

Move to a function in the submenu.

Press the reset button (
page 126) in
the instrument cluster for approximate-
ly three seconds.
In the display you will see the request
to press the reset button again to con-
firm.

Press the reset button again.
All functions of the submenu will reset
to factory settings.
