Page 371 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 371 Practical hints
Opening/closing in an emergency
hLocking
Insert hex wrench into soft top locking
mechanism screw.

Turn the soft top locking mechanism
screw with hex wrench counterclock-
wise

Page 372 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 372 Practical hintsReplacing bulbs
Replacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in go

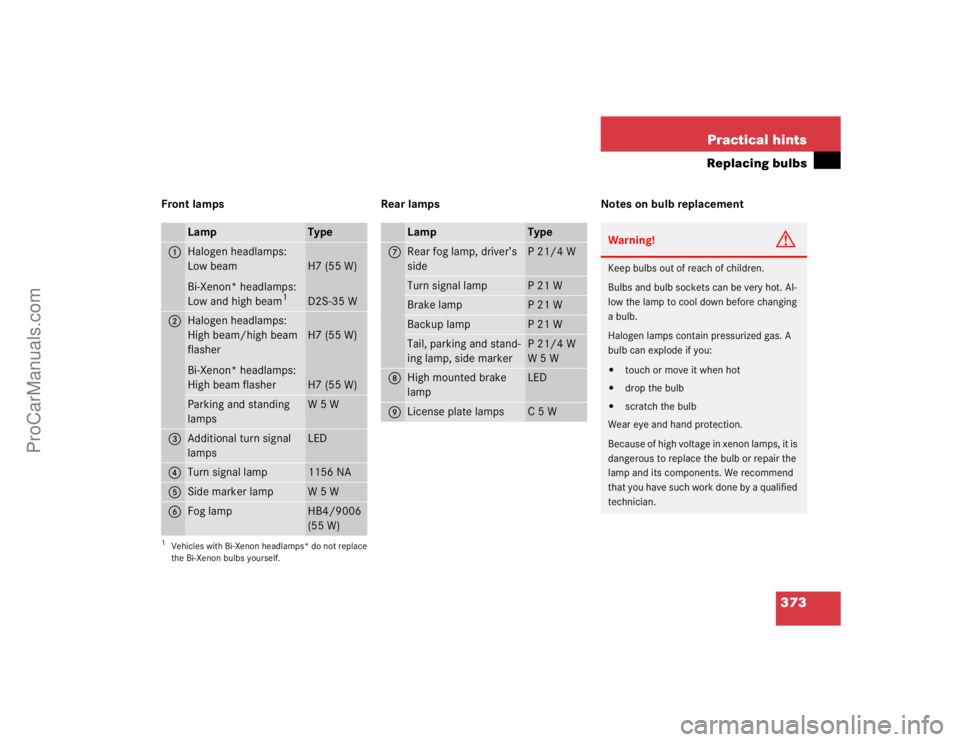

Page 373 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 373 Practical hints
Replacing bulbs
Front lamps Rear lamps Notes on bulb replacement
Lamp
Type
1
Halogen headlamps:
Low beam
Bi-Xenon* headlamps:
Low and high beam
1
1Vehicles with Bi-Xenon headlamps*

Page 374 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 374 Practical hintsReplacing bulbs
Only use 12 volt bulbs of the same type
and with the specified watt rating.

Switch lights off before changing a bulb
to prevent short circuits.

Always use a

Page 375 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 375 Practical hints
Replacing bulbs
Low beam and high beam bulb
Switch off the lights.

Open the hood (
page 287).

Turn housing cover1 or 2 counter-
clockwise and remove.

Turn bulb holder 4 or

Page 376 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 376 Practical hintsReplacing bulbsFront lamps Bi-Xenon*-type
1Bulb socket for turn signal lamp
2Housing cover for high beam flasher
lamp
3Housing cover for Bi-Xenon* lamp4High beam flasher bulb
5Park

Page 377 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 377 Practical hints
Replacing bulbs
Front turn signal lamp bulb
Switch off the lights.

Open the hood (
page 287).

Twist bulb socket1 counterclockwise
and pull out.

Push bulb into socket, turn

Page 378 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 378 Practical hintsReplacing bulbsReplacing bulbs for rear lamps
Tail lamp assemblies
1Brake lamp
2Turn signal lamp
3Backup lamp
4Standing and side marker lamp
5Rear fog lamp (driver’s side)/tail
S

Page 379 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 379 Practical hints
Replacing wiper blades
Replacing wiper blades
Removing wiper blades
Fold the wiper arm forward.
1Lock
2Unlock

Pull the tab in direction of arrow2 and
remove windshield wiper.

Page 380 of 464

MERCEDES-BENZ CLK-CLASS 2004  Owners Manual 380 Practical hintsFlat tire
Flat tirePreparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering w
