MERCEDES-BENZ CLK COUPE 2006 C209 Owners Manual

90 Safety and SecurityDriving safety systemsESP
®
The E
lectronic S
tability P
rogram (ESP
®) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP
® recognizes when a wheel is
spinning or if the vehicle starts to skid. By
applying brakes to the appropriate wheel
and by limiting the engine output, the ESP
®
works to stabilize the vehicle. The ESP
® is
especially useful while driving off and on
wet or slippery road surfaces. The ESP®
also stabilizes the vehicle during braking
maneuvers.
The ESP
® warning lamp v in the instru-
ment cluster flashes when the ESP
® is
engaged.
The warning lamp v in the instrument
cluster comes on when you switch on the
ignition. It goes out when the engine is
running.
Warning!
G
Never switch off the ESP
® when you see the
ESP
® warning lamp v flashing in the in-
strument cluster. In this case, proceed as
follows:


While driving off, apply as little throttle
as possible.


While driving, ease upon the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP
® cannot prevent accidents result-
ing from excessive speed.
Warning!
G
The ESP
® cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
®
cannot prevent accidents, including those
resulting from excessive speed in turns or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The
capabilities of an ESP
® equipped vehicle
must never be exploited in a reckless or dan-
gerous manner which could jeopardize the
user’s safety or the safety of others.

91 Safety and Security
Driving safety systems
For more information, see the "Practical
hints" section (
page 365) and
(
page 374).Switching off the ESP
®
To improve the vehicle’s traction, turn off
the ESP
® in driving situations where it
would be advantageous to have the drive
wheels spin and thus cut into surfaces for
better grip such as:


when driving with snow chains


in deep snow


in sand or gravelWhen you switch off the ESP
®


the ESP
® does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the traction control will still brake a
spinning wheel


the ESP
® continues to operate when
you are braking
!Because of the ESP
®’s automatic
operation, the engine must be shut off
when


the parking brake is being tested on
a brake test dynamometer


the vehicle is being towed with the
front axle raised
Active braking action through the ESP
®
may otherwise seriously damage the
brake system.
iThe ESP
® will only function properly if
you use wheels of the recommended
tire size.
Warning!
G
The ESP
® should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.
Do not switch off the ESP
® when a Minis-
pare whiel is mounted.
!Turn on the ESP
® immediately if the
aforementioned circumstances do not
apply anymore.
iWhen the ESP
® is switched off and one
or more drive wheels are spinning, the
ESP
® warning lampv in the instru-
ment cluster flashes. However, the
ESP® will then not stabilize the vehicle.

92 Safety and SecurityDriving safety systemsThe switch is located on the center con-
sole.
1ESP
® switch (off/on)

Press switch1.
The ESP
® warning lamp v in the in-
strument cluster comes on.
The ESP® is deactivated.Switching on the ESP
®

Press switch1 again.
The ESP
® warning lamp v in the in-
strument cluster goes out.
You are now again in normal driving
mode with ESP
® switched on.
Warning!
G
When the ESP
® warning lampv is
illuminated continuously, the ESP
® is
switched off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!Avoid spinning of a drive wheel for an
extended period with the ESP
®
switched off. This may cause serious
damage to the drivetrain which is not
covered by the Mercedes-Benz Limited
Warranty.

93 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*

Turn off the engine by means of the
start/stop button (
page 35) on the
gear selector lever.

Open the driver’s door.Deactivating
With the SmartKey

Insert the SmartKey in the starter
switch.
With KEYLESS-GO*

Switch on the ignition (
page 36).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk


the hood.
The alarm will stay on even if the activating
element (e.g. a door) is immediately
closed.
The alarm system will also be triggered
when


someone attempts to raise the vehicle
(only vehicles with tow-away alarm).


the vehicle is opened with the
mechanical key.


someone opens a door from the inside.


someone opens the trunk with the
emergency release button.
iStarting the engine will also deactivate
the immobilizer.
In case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).

94 Safety and SecurityAnti-theft systemsArming the alarm system
The indicator lamp is in the center console.
1Indicator lamp (vehicles with tow-away
alarm)1Indicator lamp (vehicles without
tow-away alarm)

Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times,
and an acoustic signal sounds three
times (if equipped and feature activat-
ed), to indicate that the alarm system is
armed.
Indicator lamp1 begins to flash after
approximately 30 seconds after arming
the alarm system.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 279) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iIf the turn signal lamps do not flash
three times, and the acoustic signal do
not sounds three times (if equipped
and feature activated), one of the fol-
lowing elements may not be properly
closed:

a door


the trunk
Close the respective element and lock
the vehicle again.

95 Safety and Security
Anti-theft systems
Disarming the alarm system
Unlock your vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once, and
an acoustic signal sounds once (if
equipped and feature activated), to
indicate that the alarm system is
disarmed.Canceling the alarm
With the SmartKey

Press the Œ or ‹button on the
SmartKey.
or

Insert the SmartKey in the starter
switch.
With KEYLESS-GO*

Pull an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
Tow-away alarm*
Depending on vehicle production date,
your vehicle may not be equipped with the
tow-away alarm.
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
neither a door nor the trunk lid was
opened.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 279) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.

96 Safety and SecurityAnti-theft systemsArming tow-away alarm
Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The tow-away alarm is automatically
armed after about 30 seconds.Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.
The switch is located on the center
console.
1Tow-away alarm off switch
2Indicator lamp

Switch off the ignition (
page 36).

Remove the SmartKey.

Press tow-away alarm off switch1.
Indicator lamp2 in tow-away alarm
off switch1 comes on briefly.

Exit the vehicle.

Lock the vehicle with the SmartKey or
(vehicles with KEYLESS-GO*) the lock
button on each outside door handle or
trunk.
The tow-away alarm remains disarmed
until you lock the vehicle again.
iWhen you unlock the vehicle, the
tow-away protection disarms
automatically. The tow-away alarm
remains disarmed until you lock the
vehicle again.
iYou cannot disarm the tow-away alarm
while the ignition is switched on.

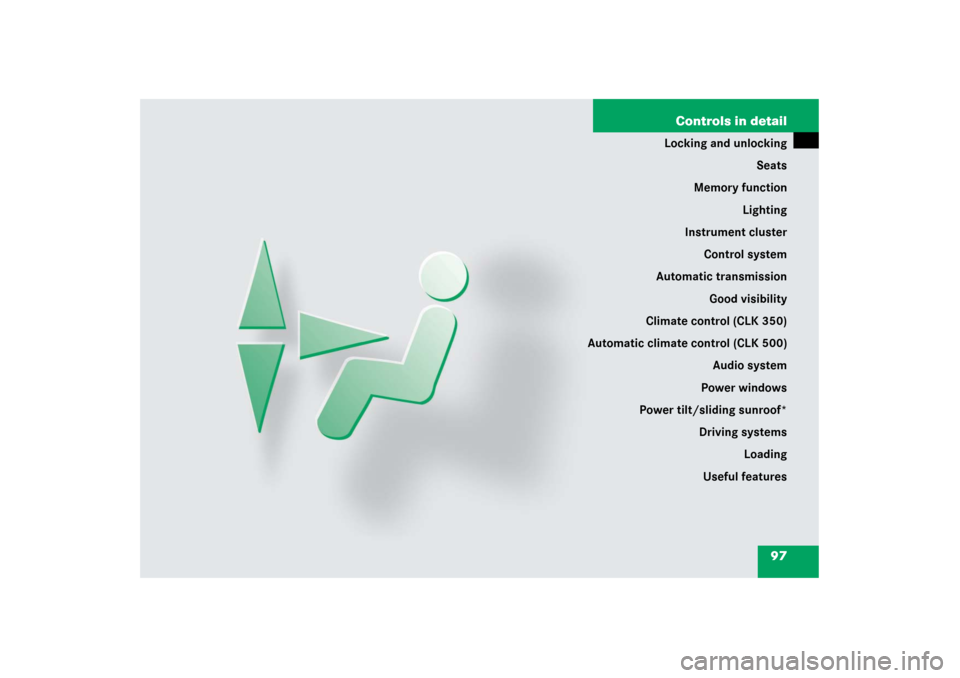

97 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Climate control (CLK 350)
Automatic climate control (CLK 500)
Audio system
Power windows
Power tilt/sliding sunroof*
Driving systems
Loading
Useful features

98 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.Locking and unlocking
For more information on locking and
unlocking, see “Getting started”
(page 32) and (
page 57).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a
different color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with remote control1‹Lock button
2Š Opening button for trunk
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 86)

99 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious injury.!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of
electromagnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iYou can also open and close the power
windows and power tilt/sliding sun-
roof* using the SmartKey, see “Sum-
mer opening feature” (
page 249) and
see “Convenience closing feature”
(
page 250).
