130 Controls in detailInstrument clusterFor a full view illustration of the instrument
cluster, see “Instrument cluster”
(page 24).

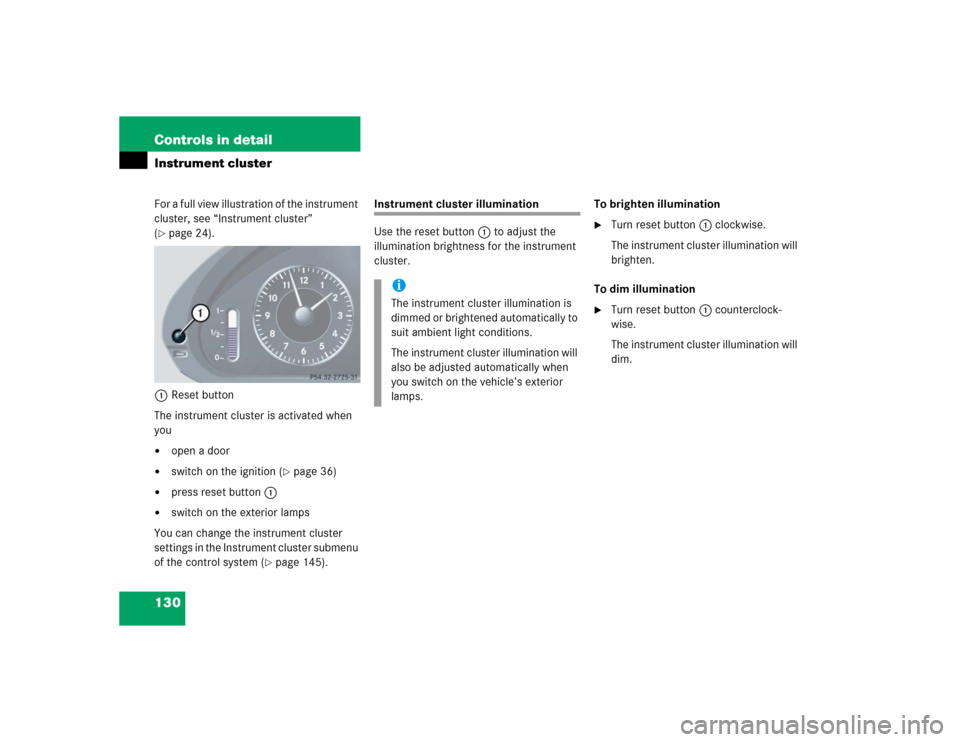

1Reset button
The instrument cluster is activated when
you


open a door


switch on the ignition (
page 36)


press reset button1


switch on the exterior lamps
You can change the instrument cluster
settings in the Instrument cluster submenu
of the control system (
page 145).
Instrument cluster illumination
Use the reset button1 to adjust the
illumination brightness for the instrument
cluster.To brighten illumination

Turn reset button1 clockwise.
The instrument cluster illumination will
brighten.
To dim illumination

Turn reset button1 counterclock-
wise.
The instrument cluster illumination will
dim.
iThe instrument cluster illumination is
dimmed or brightened automatically to
suit ambient light conditions.
The instrument cluster illumination will
also be adjusted automatically when
you switch on the vehicle’s exterior
lamps.

131 Controls in detail
Instrument cluster
Coolant temperature indicator
The coolant temperature indicator is on
the right side in the instrument cluster
(page 24).
During severe operating conditions, e.g.
stop-and-go traffic, the coolant tempera-
ture may rise close to 120°C.
The engine should not be operated with
the coolant temperature above 120°C.
Doing so may cause serious engine
damage which is not covered by the
Mercedes-Benz Limited Warranty.
Trip odometer
Make sure you are viewing the stan-
dard display in the multifunction dis-
play (
page 138).

If it is not displayed, press buttonè
orÿ on the multifunction steering
wheel repeatedly until the standard dis-
play appears (
page 134).

Press and hold the reset button on the
instrument cluster (
page 130) until
the trip odometer is reset.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
iExcessive coolant temperature triggers
a warning in the multifunction display
(page 377) and the red coolant warn-
ing lamp in the instrument cluster
comes on (
page 357).

132 Controls in detailInstrument clusterTachometer
The red marking on the tachometer
(page 24) denotes excessive engine
speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
Outside temperature indicator
The outside temperature is indicated in the
multifunction display (
page 133). For
information on how to select the unit of the
indicated temperature, i.e. degrees
Celsius (°C) or degrees Fahrenheit (°F),
see “Selecting temperature display mode”
(
page 145).The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. This
means that the accuracy of the displayed
temperature can only be verified by com-
parison to a thermometer placed next to
the sensor, not by comparison to external
displays (e.g. bank signs etc.).
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.
!Avoid driving at excessive engine
speeds, as it may result in serious
engine damage that is not covered by
the Mercedes-Benz Limited Warranty.
Warning!
G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.

133 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1 or as soon as the
KEYLESS-GO* start/stop button is in
position1. The control system enables you
to

call up information about your vehicle


change vehicle settings
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the instrument cluster dis-
play, and much more.
The control system relays information to
the multifunction display.
Multifunction display

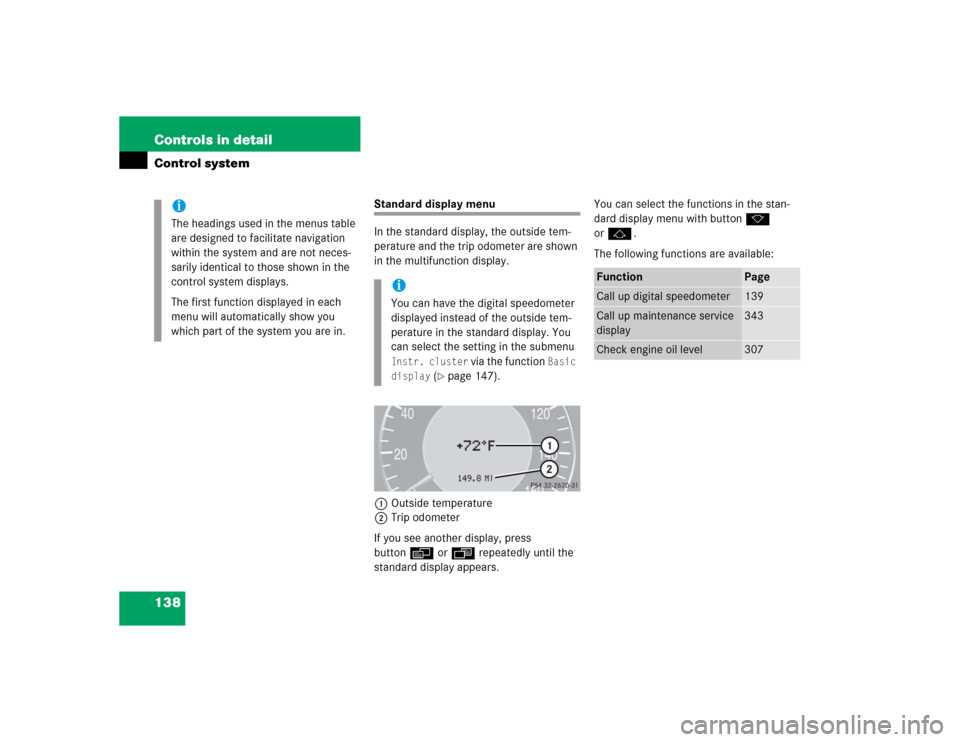

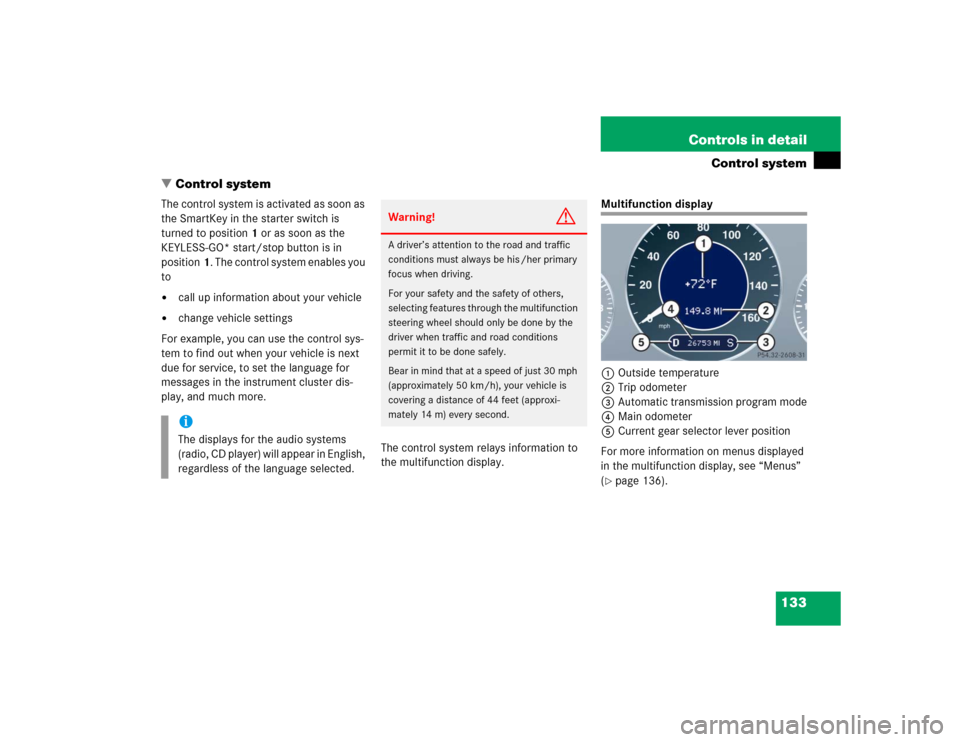

1Outside temperature
2Trip odometer
3Automatic transmission program mode
4Main odometer
5Current gear selector lever position
For more information on menus displayed
in the multifunction display, see “Menus”
(page 136).
iThe displays for the audio systems
(radio, CD player) will appear in English,
regardless of the language selected.
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his /her primary
focus when driving.
For your safety and the safety of others,
selecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions
permit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approxi-
mately 14 m) every second.

134 Controls in detailControl systemMultifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multifunc-
tion steering wheel (
page 26).Pressing any of the buttons on the multi-
function steering wheel will alter what is
shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
Audio
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.

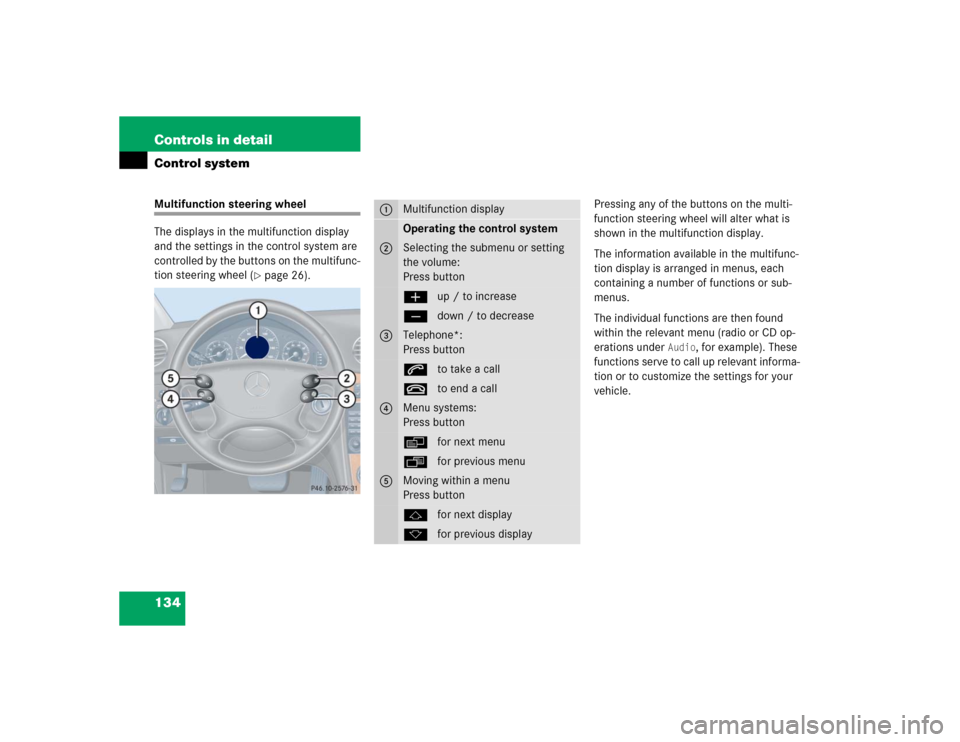

1
Multifunction displayOperating the control system
2
Selecting the submenu or setting
the volume:
Press buttonæup / to increaseçdown / to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu
Press buttonjfor next displaykfor previous display

135 Controls in detail
Control system
It is helpful to think of the menus, and the
functions within each menu, as being
arranged in a circular pattern.

If you press buttonè orÿ
repeatedly, you will pass through each
menu one after the other.


If you press buttonk orj
repeatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings
menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For
instructions on using these submenus, see
“Submenus in the Settings menu”
(
page 143).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
The menus are described on the following
pages.

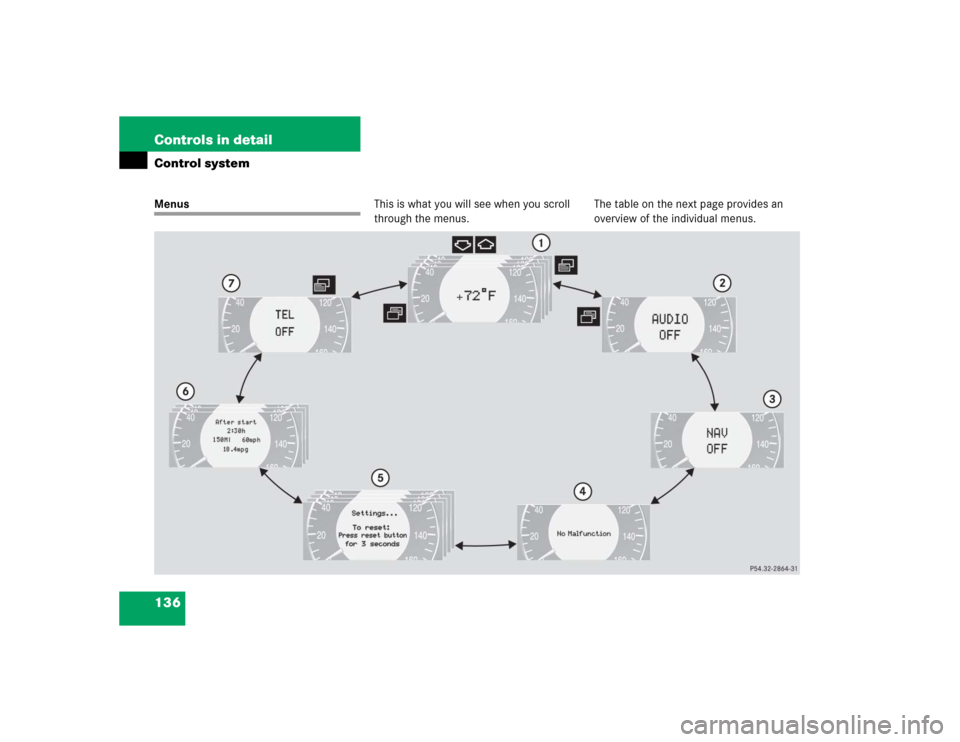

136 Controls in detailControl systemMenusThis is what you will see when you scroll
through the menus.The table on the next page provides an
overview of the individual menus.

137 Controls in detail
Control system
Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Menu7
Commands/submenusStandard dis-
play
AUDIO
NAV*
Vehicle status
message memory
Settings
Trip computer
Telephone
(page 138)
(page 139)
(page 141)
(page 141)
(page 142)
(page 158)
(page 160)
Digital speed-
ometer
Select radio
station
Activate route
guidance
Call up vehicle
malfunction, warning
and system status
messages stored in
memory
Reset to factory
settings
Fuel consumption
statistics after
start
Load phone
book
Call up mainte-
nance service
display
Select satellite
radio station*
(USA only)
Instrument clus-
ter submenu
Fuel consumption
statistics since the
last reset
Search for name
in phone book
Check engine
oil level
Operate CD
player
Time/Date sub-
menu
Call up range
Lighting
submenuVehicle submenuConvenience
submenu

138 Controls in detailControl system
Standard display menu
In the standard display, the outside tem-
perature and the trip odometer are shown
in the multifunction display.
1Outside temperature
2Trip odometer
If you see another display, press
buttonè orÿ repeatedly until the
standard display appears.You can select the functions in the stan-
dard display menu with buttonk
orj.
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
iYou can have the digital speedometer
displayed instead of the outside tem-
perature in the standard display. You
can select the setting in the submenu Instr. cluster
via the function
Basic
display
(page 147).
Function
Page
Call up digital speedometer
139
Call up maintenance service
display
343
Check engine oil level
307

139 Controls in detail
Control system
Display digital speedometer
Press buttonj ork repeatedly
until the digital speedometer appears
in the multifunction display.
The current vehicle speed is shown in
the multifunction display and the sta-
tus line appears.

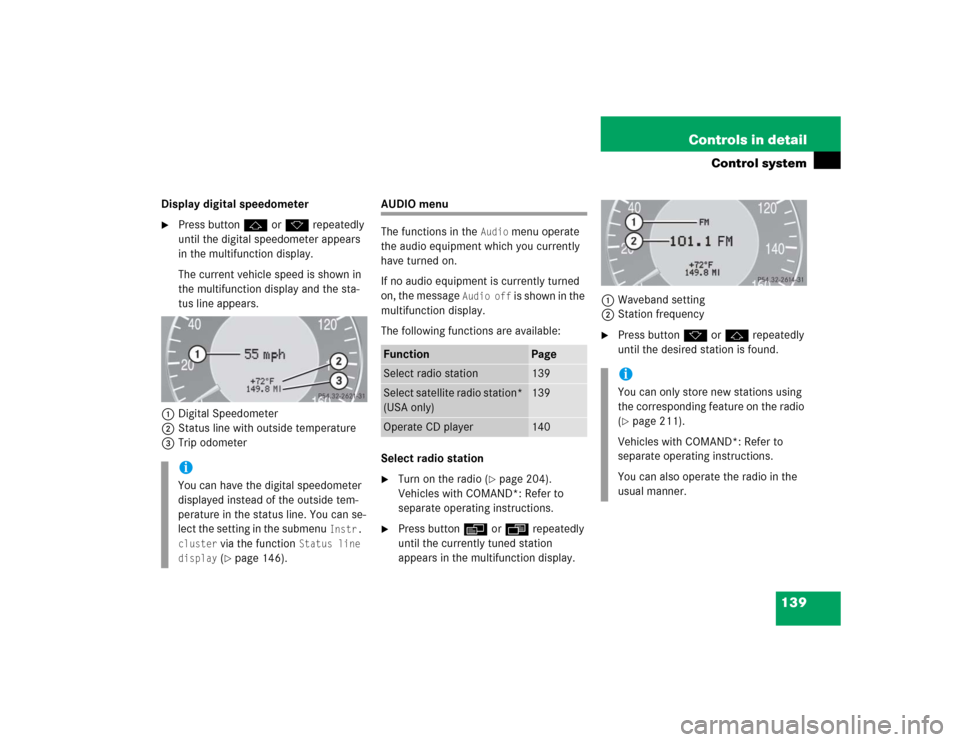

1Digital Speedometer
2Status line with outside temperature
3Trip odometer
AUDIO menu
The functions in the
Audio
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
Audio off
is shown in the
multifunction display.
The following functions are available:
Select radio station

Turn on the radio (
page 204).
Vehicles with COMAND*: Refer to
separate operating instructions.

Press buttonè orÿ repeatedly
until the currently tuned station
appears in the multifunction display.1Waveband setting
2Station frequency

Press buttonk orj repeatedly
until the desired station is found.
iYou can have the digital speedometer
displayed instead of the outside tem-
perature in the status line. You can se-
lect the setting in the submenu
Instr.
cluster
via the function
Status line
display
(page 146).
Function
Page
Select radio station
139
Select satellite radio station*
(USA only)
139
Operate CD player
140
iYou can only store new stations using
the corresponding feature on the radio
(page 211).
Vehicles with COMAND*: Refer to
separate operating instructions.
You can also operate the radio in the
usual manner.
