MERCEDES-BENZ CLK350 2007 A209 Owner's Manual

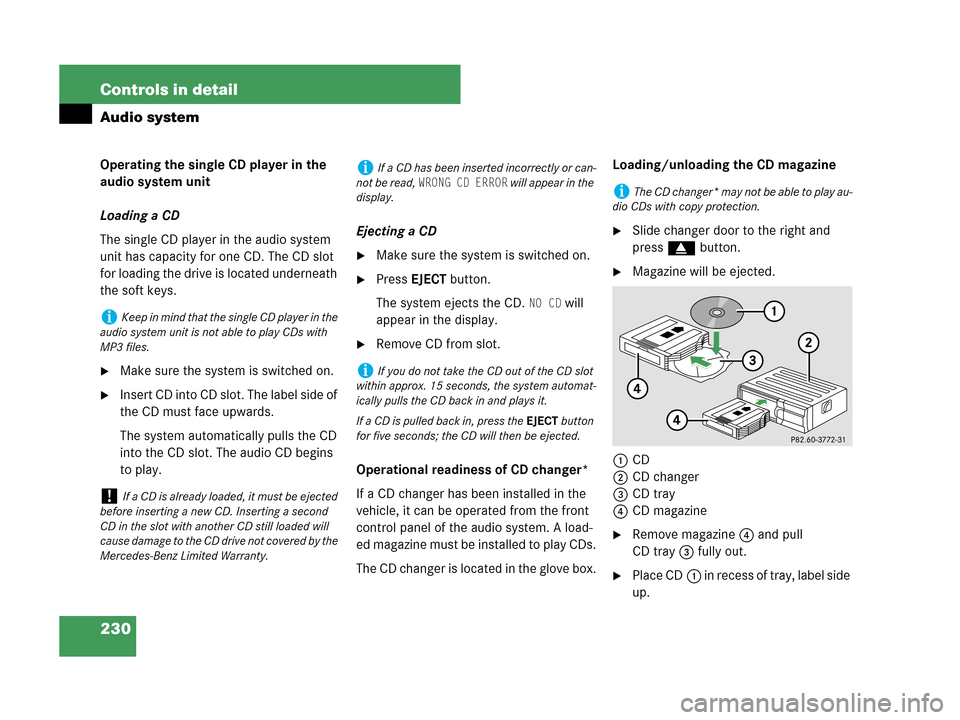

230 Controls in detail
Audio system
Operating the single CD player in the
audio system unit
Loading a CD
The single CD player in the audio system
unit has capacity for one CD. The CD slot
for loading the drive is located underneath
the soft keys.
Make sure the system is switched on.
Insert CD into CD slot. The label side of
the CD must face upwards.
The system automatically pulls the CD
into the CD slot. The audio CD begins
to play.Ejecting a CD
Make sure the system is switched on.
Press EJECTbutton.
The system ejects the CD.
NO CD will
appear in the display.
Remove CD from slot.
Operational readiness of CD changer*
If a CD changer has been installed in the
vehicle, it can be operated from the front
control panel of the audio system. A load-
ed magazine must be installed to play CDs.
The CD changer is located in the glove box.Loading/unloading the CD magazine
Slide changer door to the right and
press gbutton.
Magazine will be ejected.
1CD
2CD changer
3CD tray
4CD magazine
Remove magazine4 and pull
CD tray3 fully out.
Place CD1 in recess of tray, label side
up.
iKeep in mind that the single CD player in the
audio system unit is not able to play CDs with
MP3 files.
!If a CD is already loaded, it must be ejected
before inserting a new CD. Inserting a second
CD in the slot with another CD still loaded will
cause damage to the CD drive not covered by the
Mercedes-Benz Limited Warranty.
iIf a CD has been inserted incorrectly or can-
not be read,
WRONG CD ERROR will appear in the
display.
iIf you do not take the CD out of the CD slot
within approx. 15 seconds, the system automat-
ically pulls the CD back in and plays it.
If a CD is pulled back in, press the EJECTbutton
for five seconds; the CD will then be ejected.
iThe CD changer* may not be able to play au-
dio CDs with copy protection.

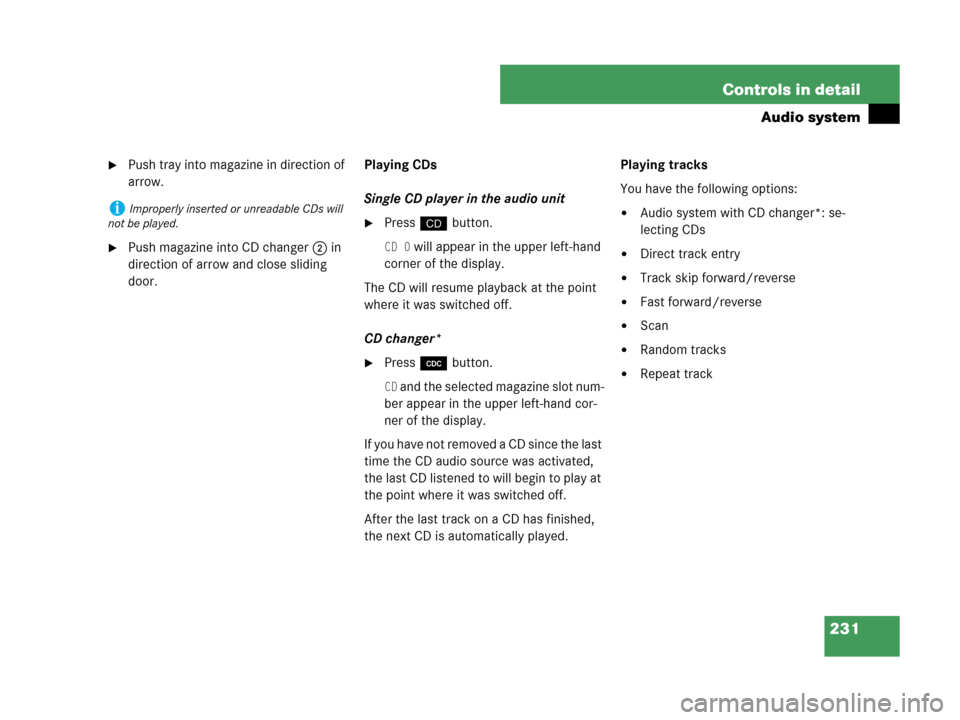

231 Controls in detail
Audio system
Push tray into magazine in direction of
arrow.
Push magazine into CD changer2 in
direction of arrow and close sliding
door.Playing CDs
Single CD player in the audio unit
Pressi button.
CD 0 will appear in the upper left-hand
corner of the display.
The CD will resume playback at the point
where it was switched off.
CD changer*
Press Q button.
CD and the selected magazine slot num-
ber appear in the upper left-hand cor-
ner of the display.
If you have not removed a CD since the last
time the CD audio source was activated,
the last CD listened to will begin to play at
the point where it was switched off.
After the last track on a CD has finished,
the next CD is automatically played.Playing tracks
You have the following options:

Audio system with CD changer*: se-
lecting CDs

Direct track entry

Track skip forward/reverse

Fast forward/reverse

Scan

Random tracks

Repeat track
iImproperly inserted or unreadable CDs will
not be played.

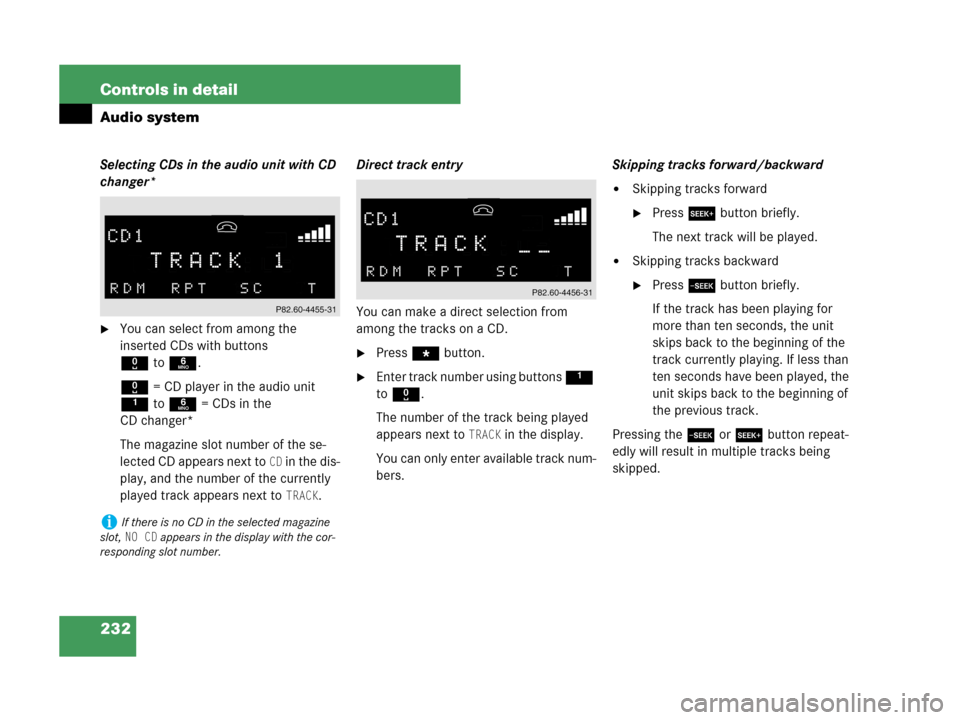

232 Controls in detail
Audio system
Selecting CDs in the audio unit with CD
changer*
You can select from among the
inserted CDs with buttons
Rto6.
R = CD player in the audio unit
1to6 = CDs in the
CD changer*
The magazine slot number of the se-
lected CD appears next to
CD in the dis-
play, and the number of the currently
played track appears next to
TRACK.Direct track entry
You can make a direct selection from
among the tracks on a CD.
Press * button.
Enter track number using buttons 1
to R.
The number of the track being played
appears next to
TRACK in the display.
You can only enter available track num-
bers.Skipping tracks forward/backward

Skipping tracks forward
Press S button briefly.
The next track will be played.

Skipping tracks backward
Press T button briefly.
If the track has been playing for
more than ten seconds, the unit
skips back to the beginning of the
track currently playing. If less than
ten seconds have been played, the
unit skips back to the beginning of
the previous track.
Pressing the T or S button repeat-
edly will result in multiple tracks being
skipped.
iIf there is no CD in the selected magazine
slot,
NO CD appears in the display with the cor-
responding slot number.

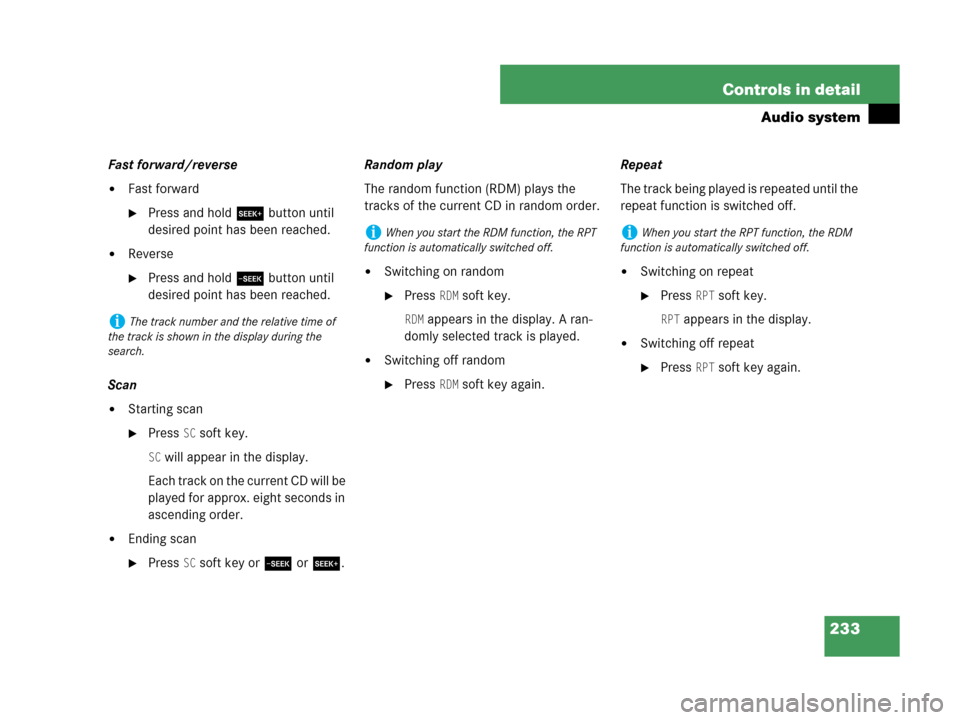

233 Controls in detail
Audio system
Fast forward/reverse

Fast forward
Press and hold S button until
desired point has been reached.

Reverse
Press and hold T button until
desired point has been reached.
Scan

Starting scan
Press SC soft key.
SC will appear in the display.
Each track on the current CD will be
played for approx. eight seconds in
ascending order.

Ending scan
Press SC soft key or T or S.Random play
The random function (RDM) plays the
tracks of the current CD in random order.

Switching on random
Press RDM soft key.
RDM appears in the display. A ran-
domly selected track is played.

Switching off random
Press RDM soft key again.Repeat
The track being played is repeated until the
repeat function is switched off.

Switching on repeat
Press RPT soft key.
RPT appears in the display.

Switching off repeat
Press RPT soft key again.
iThe track number and the relative time of
the track is shown in the display during the
search.
iWhen you start the RDM function, the RPT
function is automatically switched off.iWhen you start the RPT function, the RDM
function is automatically switched off.

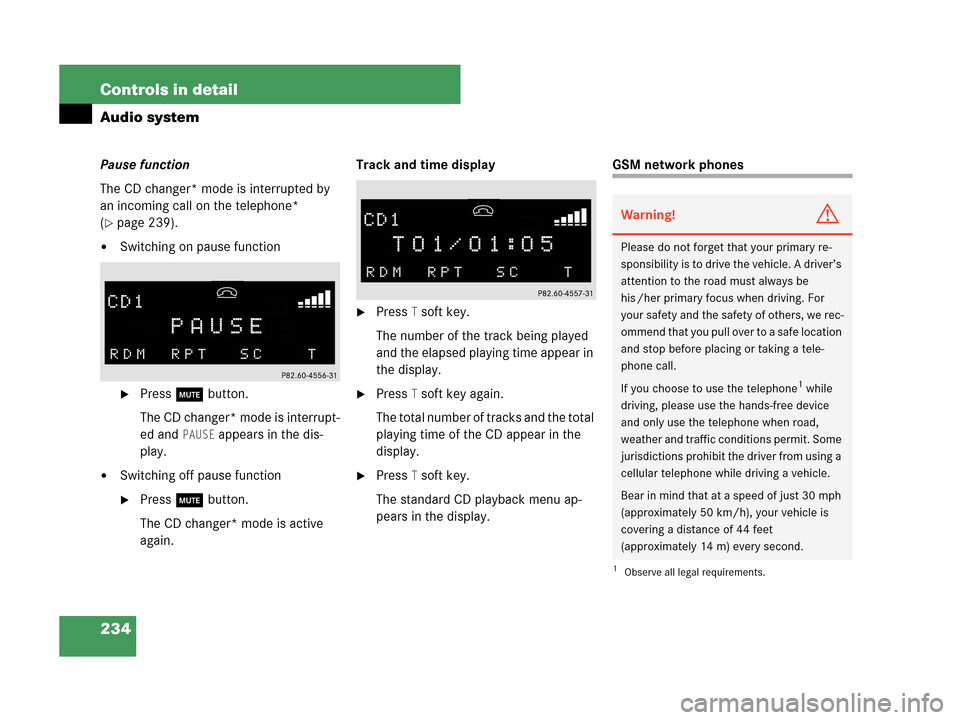

234 Controls in detail
Audio system
Pause function
The CD changer* mode is interrupted by
an incoming call on the telephone*
(
page 239).

Switching on pause function
Press U button.
The CD changer* mode is interrupt-
ed and
PAUSE appears in the dis-
play.

Switching off pause function
Press U button.
The CD changer* mode is active
again.Track and time display
Press T soft key.
The number of the track being played
and the elapsed playing time appear in
the display.
Press T soft key again.
The total number of tracks and the total
playing time of the CD appear in the
display.
Press T soft key.
The standard CD playback menu ap-
pears in the display.
GSM network phones
Warning!G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his /her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
1Observe all legal requirements.

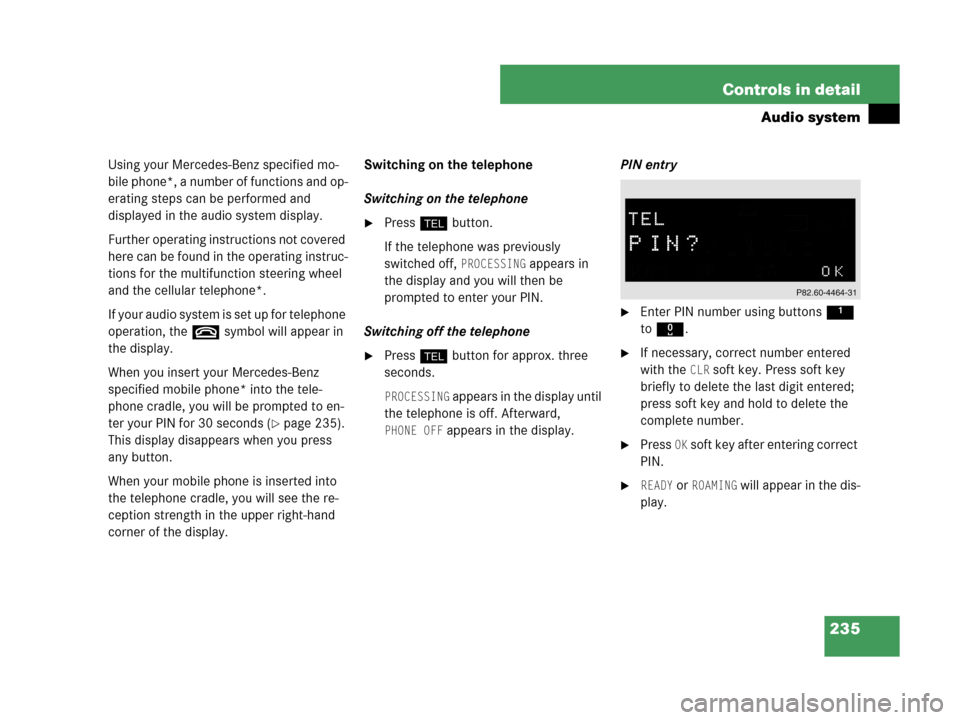

235 Controls in detail
Audio system
Using your Mercedes-Benz specified mo-
bile phone*, a number of functions and op-
erating steps can be performed and
displayed in the audio system display.
Further operating instructions not covered
here can be found in the operating instruc-
tions for the multifunction steering wheel
and the cellular telephone*.
If your audio system is set up for telephone
operation, the tsymbol will appear in
the display.
When you insert your Mercedes-Benz
specified mobile phone* into the tele-
phone cradle, you will be prompted to en-
ter your PIN for 30 seconds (
page 235).
This display disappears when you press
any button.
When your mobile phone is inserted into
the telephone cradle, you will see the re-
ception strength in the upper right-hand
corner of the display.Switching on the telephone
Switching on the telephone
Pressh button.
If the telephone was previously
switched off,
PROCESSING appears in
the display and you will then be
prompted to enter your PIN.
Switching off the telephone
Pressh button for approx. three
seconds.
PROCESSING appears in the display until
the telephone is off. Afterward,
PHONE OFF appears in the display.PIN entry
Enter PIN number using buttons 1
to R.
If necessary, correct number entered
with the
CLR soft key. Press soft key
briefly to delete the last digit entered;
press soft key and hold to delete the
complete number.
Press OK soft key after entering correct
PIN.
READY or ROAMING will appear in the dis-
play.

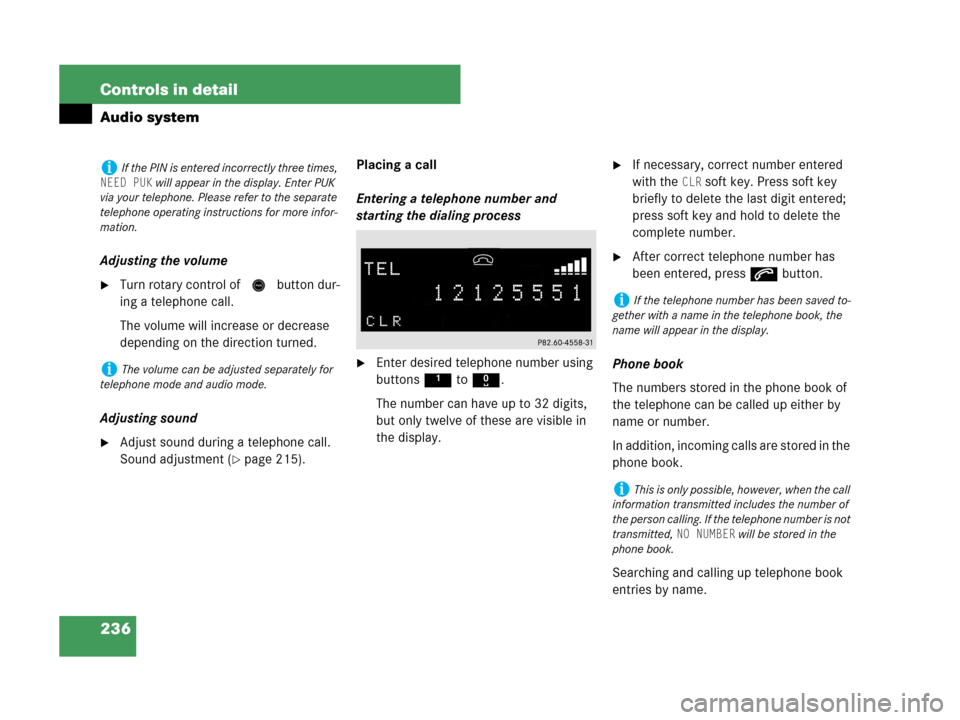

236 Controls in detail
Audio system
Adjusting the volume
Turn rotary control of N button dur-
ing a telephone call.
The volume will increase or decrease
depending on the direction turned.
Adjusting sound
Adjust sound during a telephone call.
Sound adjustment (
page 215).Placing a call
Entering a telephone number and
starting the dialing process
Enter desired telephone number using
buttons 1 to R.
The number can have up to 32 digits,
but only twelve of these are visible in
the display.
If necessary, correct number entered
with the
CLR soft key. Press soft key
briefly to delete the last digit entered;
press soft key and hold to delete the
complete number.
After correct telephone number has
been entered, press s button.
Phone book
The numbers stored in the phone book of
the telephone can be called up either by
name or number.
In addition, incoming calls are stored in the
phone book.
Searching and calling up telephone book
entries by name.
iIf the PIN is entered incorrectly three times,
NEED PUK will appear in the display. Enter PUK
via your telephone. Please refer to the separate
telephone operating instructions for more infor-
mation.
iThe volume can be adjusted separately for
telephone mode and audio mode.
iIf the telephone number has been saved to-
gether with a name in the telephone book, the
name will appear in the display.
iThis is only possible, however, when the call
information transmitted includes the number of
the person calling. If the telephone number is not
transmitted,
NO NUMBER will be stored in the
phone book.

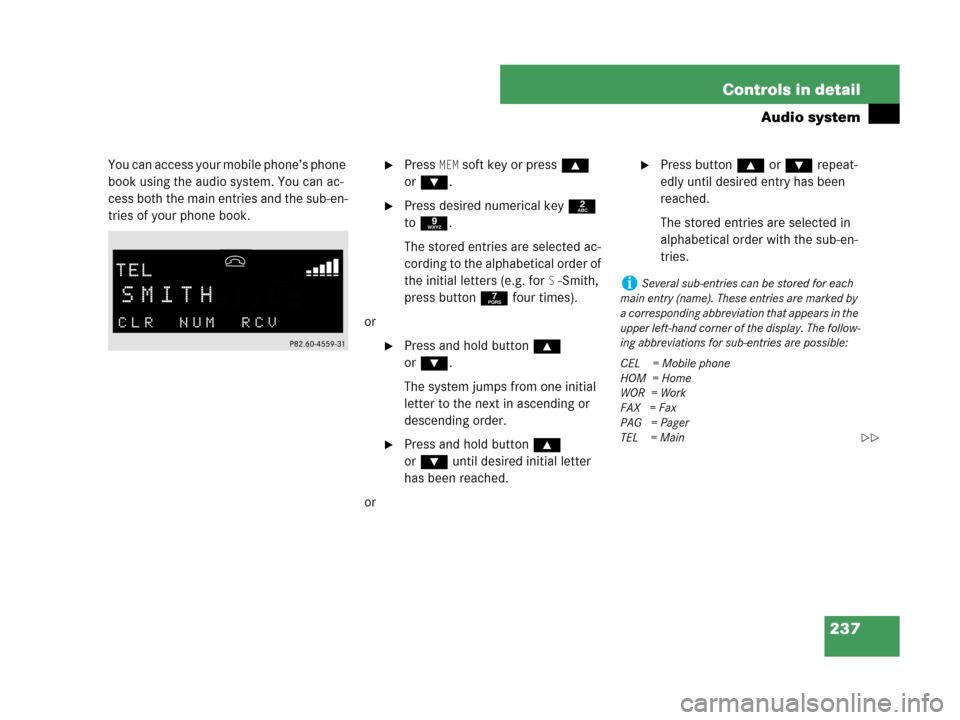

237 Controls in detail
Audio system
You can access your mobile phone’s phone
book using the audio system. You can ac-
cess both the main entries and the sub-en-
tries of your phone book.Press MEM soft key or press ‚
orƒ.
Press desired numerical key 2
to 9.
The stored entries are selected ac-
cording to the alphabetical order of
the initial letters (e.g. for
S-Smith,
press button 7 four times).
or
Press and hold button ‚
orƒ.
The system jumps from one initial
letter to the next in ascending or
descending order.
Press and hold button ‚
orƒ until desired initial letter
has been reached.
or
Press button ‚or ƒ repeat-
edly until desired entry has been
reached.
The stored entries are selected in
alphabetical order with the sub-en-
tries.
iSeveral sub-entries can be stored for each
main entry (name). These entries are marked by
a corresponding abbreviation that appears in the
upper left-hand corner of the display. The follow-
ing abbreviations for sub-entries are possible:
CEL = Mobile phone
HOM = Home
WOR = Work
FAX = Fax
PAG = Pager
TEL = Main

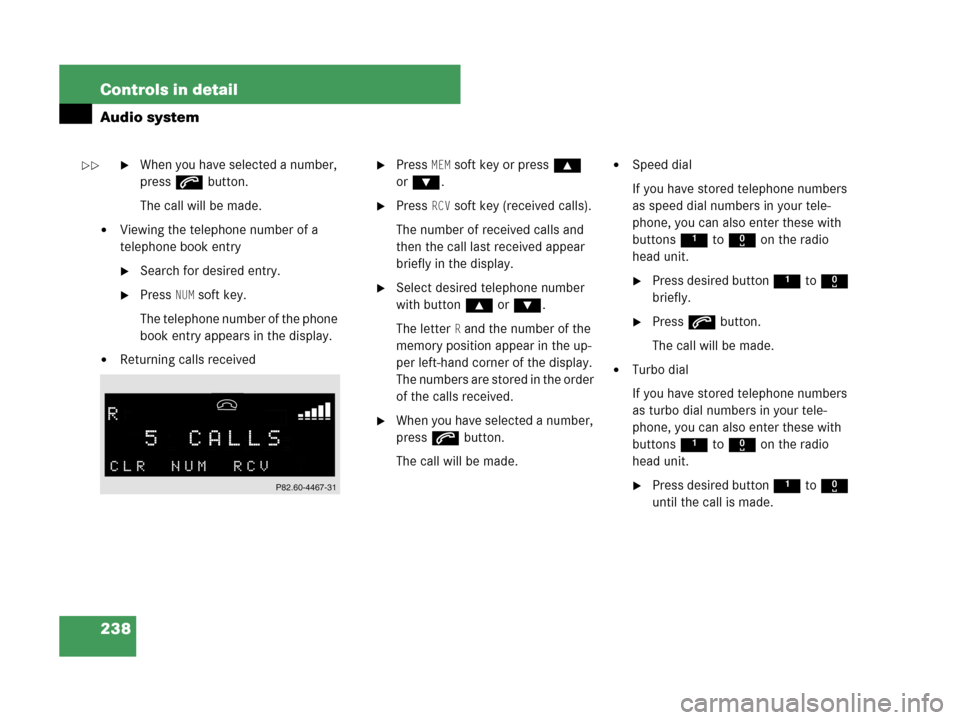

238 Controls in detail
Audio system
When you have selected a number,
press s button.
The call will be made.

Viewing the telephone number of a
telephone book entry
Search for desired entry.
Press NUM soft key.
The telephone number of the phone
book entry appears in the display.

Returning calls received
Press MEM soft key or press ‚
orƒ.
Press RCV soft key (received calls).
The number of received calls and
then the call last received appear
briefly in the display.
Select desired telephone number
with button ‚or ƒ.
The letter
R and the number of the
memory position appear in the up-
per left-hand corner of the display.
The numbers are stored in the order
of the calls received.
When you have selected a number,
press s button.
The call will be made.

Speed dial
If you have stored telephone numbers
as speed dial numbers in your tele-
phone, you can also enter these with
buttons 1 to R on the radio
head unit.
Press desired button 1 to R
briefly.
Press s button.
The call will be made.

Turbo dial
If you have stored telephone numbers
as turbo dial numbers in your tele-
phone, you can also enter these with
buttons 1 to R on the radio
head unit.
Press desired button 1 to R
until the call is made.

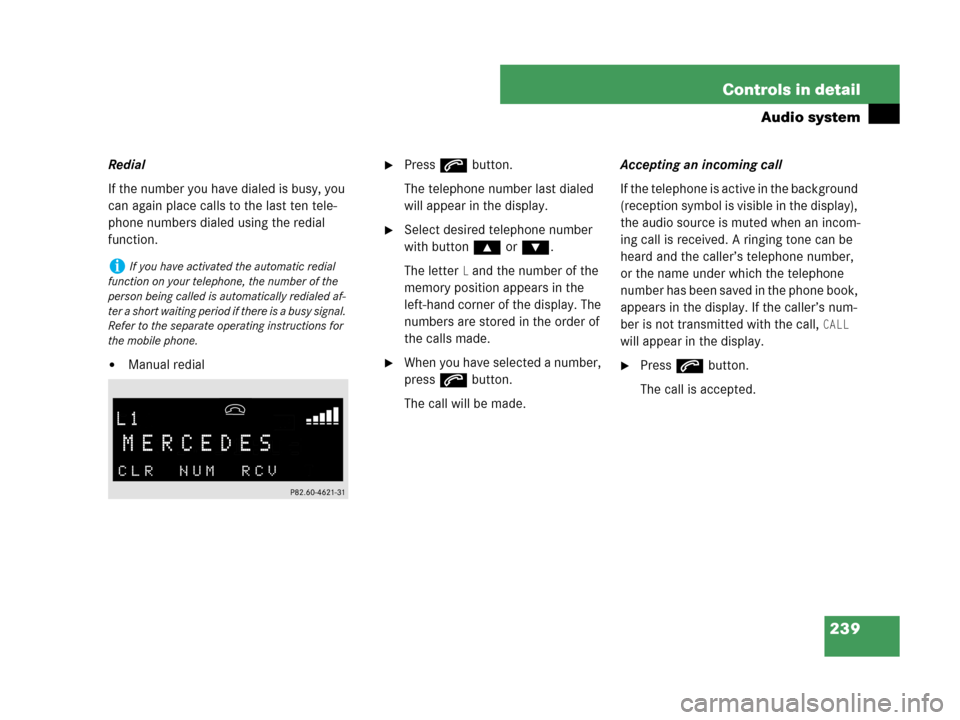

239 Controls in detail
Audio system
Redial
If the number you have dialed is busy, you
can again place calls to the last ten tele-
phone numbers dialed using the redial
function.

Manual redial
Press s button.
The telephone number last dialed
will appear in the display.
Select desired telephone number
with button ‚or ƒ.
The letter
L and the number of the
memory position appears in the
left-hand corner of the display. The
numbers are stored in the order of
the calls made.
When you have selected a number,
press s button.
The call will be made.Accepting an incoming call
If the telephone is active in the background
(reception symbol is visible in the display),
the audio source is muted when an incom-
ing call is received. A ringing tone can be
heard and the caller’s telephone number,
or the name under which the telephone
number has been saved in the phone book,
appears in the display. If the caller’s num-
ber is not transmitted with the call,
CALL
will appear in the display.
Press s button.
The call is accepted.
iIf you have activated the automatic redial
function on your telephone, the number of the
person being called is automatically redialed af-
ter a short waiting period if there is a busy signal.
Refer to the separate operating instructions for
the mobile phone.
