250 Controls in detail

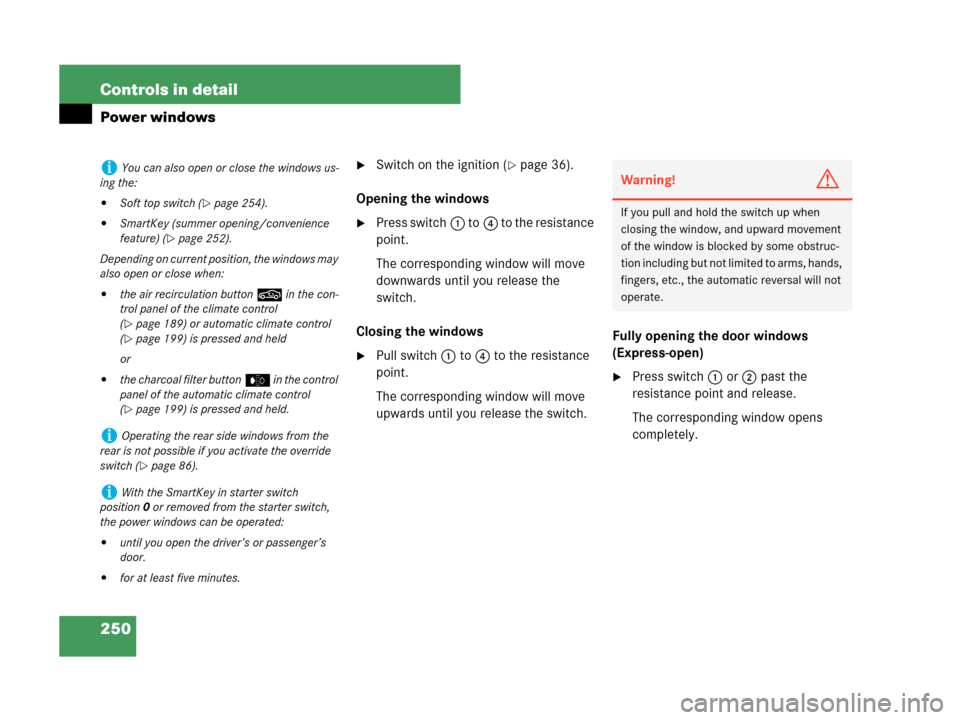

Power windows
Switch on the ignition (page 36).
Opening the windows
Press switch1 to4 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows
Pull switch1 to4 to the resistance
point.
The corresponding window will move
upwards until you release the switch.Fully opening the door windows
(Express-open)
Press switch1 or2 past the
resistance point and release.
The corresponding window opens
completely.
iYou can also open or close the windows us-
ing the:

Soft top switch (page 254).

SmartKey (summer opening/convenience
feature) (
page 252).
Depending on current position, the windows may
also open or close when:

the air recirculation button, in the con-
trol panel of the climate control
(
page 189) or automatic climate control
(
page 199) is pressed and held
or

the charcoal filter buttone in the control
panel of the automatic climate control
(
page 199) is pressed and held.
iOperating the rear side windows from the
rear is not possible if you activate the override
switch (
page 86).
iWith the SmartKey in starter switch
position0 or removed from the starter switch,
the power windows can be operated:

until you open the driver’s or passenger’s
door.

for at least five minutes.
Warning!G
If you pull and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.

251 Controls in detail
Power windows

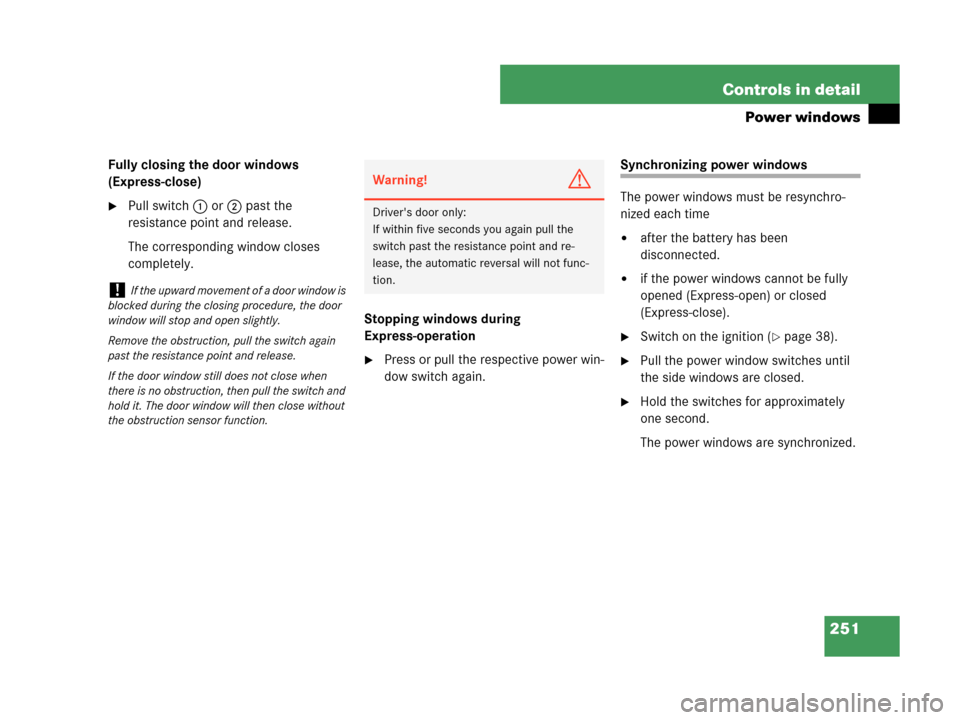

Fully closing the door windows
(Express-close)
Pull switch1 or2 past the
resistance point and release.
The corresponding window closes
completely.
Stopping windows during
Express-operation
Press or pull the respective power win-
dow switch again.
Synchronizing power windows
The power windows must be resynchro-
nized each time

after the battery has been
disconnected.

if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).
Switch on the ignition (page 38).
Pull the power window switches until
the side windows are closed.
Hold the switches for approximately
one second.
The power windows are synchronized.
!If the upward movement of a door window is
blocked during the closing procedure, the door
window will stop and open slightly.
Remove the obstruction, pull the switch again
past the resistance point and release.
If the door window still does not close when
there is no obstruction, then pull the switch and
hold it. The door window will then close without
the obstruction sensor function.
Warning!G
Driver's door only:
If within five seconds you again pull the
switch past the resistance point and re-
lease, the automatic reversal will not func-
tion.

252 Controls in detail
Power windows

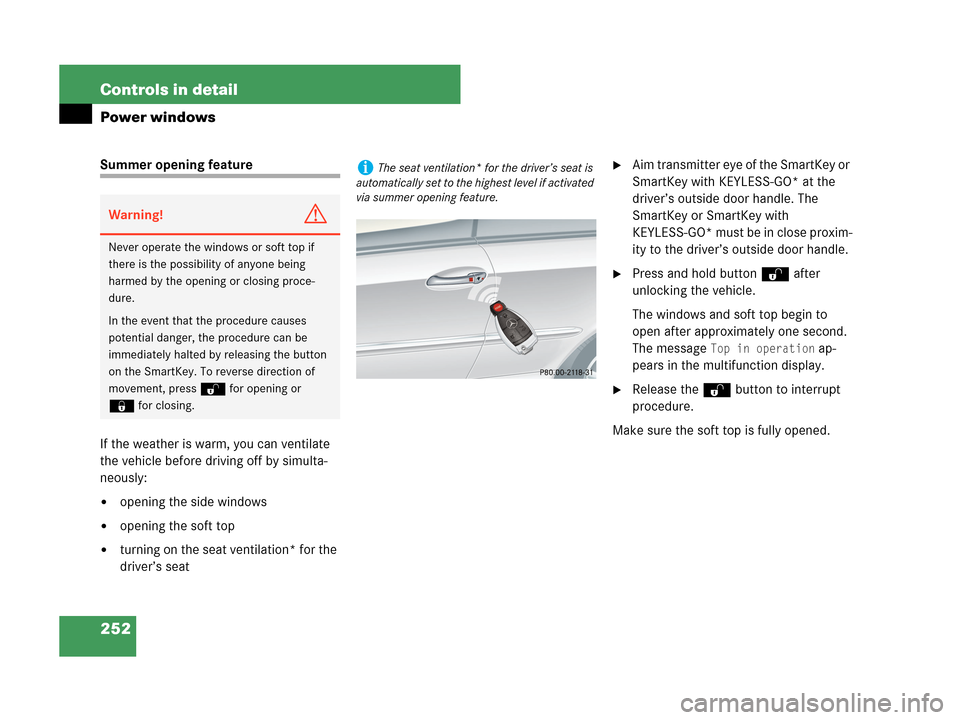

Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows

opening the soft top

turning on the seat ventilation* for the
driver’s seat
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle. The
SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the driver’s outside door handle.
Press and hold button Πafter
unlocking the vehicle.
The windows and soft top begin to
open after approximately one second.
The message
Top in operation ap-
pears in the multifunction display.
Release the Πbutton to interrupt
procedure.
Make sure the soft top is fully opened.
Warning!G
Never operate the windows or soft top if
there is the possibility of anyone being
harmed by the opening or closing proce-
dure.
In the event that the procedure causes
potential danger, the procedure can be
immediately halted by releasing the button
on the SmartKey. To reverse direction of
movement, press Πfor opening or
‹for closing.
iThe seat ventilation* for the driver’s seat is
automatically set to the highest level if activated
via summer opening feature.

253 Controls in detail
Power windows

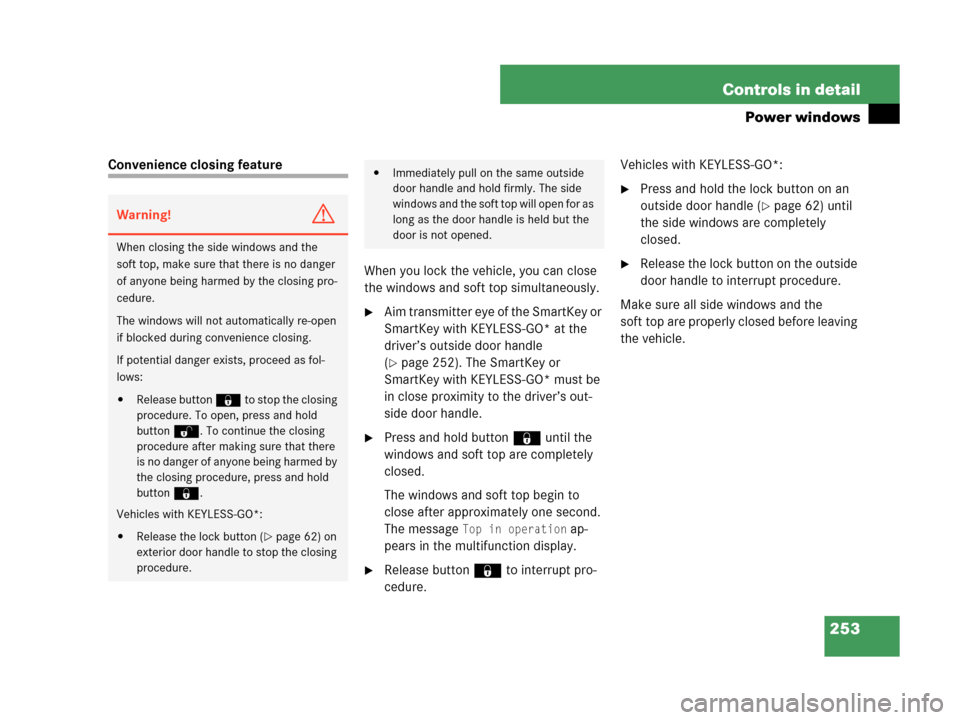

Convenience closing feature
When you lock the vehicle, you can close
the windows and soft top simultaneously.
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle
(
page 252). The SmartKey or
SmartKey with KEYLESS-GO* must be
in close proximity to the driver’s out-
side door handle.
Press and hold button ‹until the
windows and soft top are completely
closed.
The windows and soft top begin to
close after approximately one second.
The message
Top in operation ap-
pears in the multifunction display.
Release button ‹to interrupt pro-
cedure.Vehicles with KEYLESS-GO*:
Press and hold the lock button on an
outside door handle (
page 62) until
the side windows are completely
closed.
Release the lock button on the outside
door handle to interrupt procedure.
Make sure all side windows and the
soft top are properly closed before leaving
the vehicle.
Warning!G
When closing the side windows and the
soft top, make sure that there is no danger
of anyone being harmed by the closing pro-
cedure.
The windows will not automatically re-open
if blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:

Release button ‹to stop the closing
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button ‹.
Vehicles with KEYLESS-GO*:

Release the lock button (page 62) on
exterior door handle to stop the closing
procedure.

Immediately pull on the same outside
door handle and hold firmly. The side
windows and the soft top will open for as
long as the door handle is held but the
door is not opened.

254 Controls in detail
Power windows

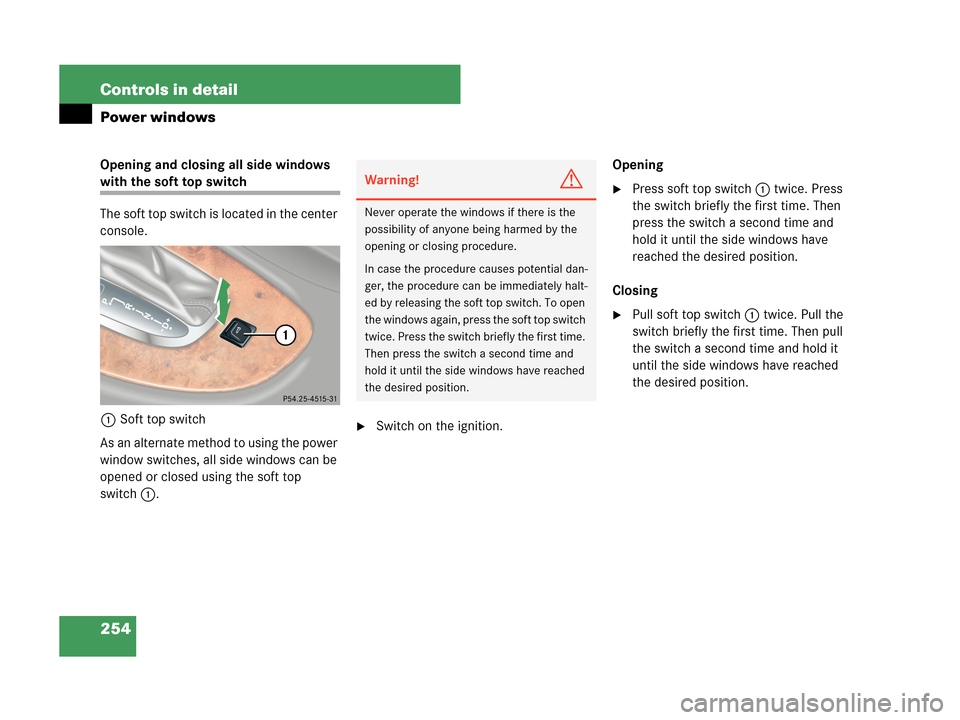

Opening and closing all side windows
with the soft top switch
The soft top switch is located in the center
console.
1Soft top switch
As an alternate method to using the power
window switches, all side windows can be
opened or closed using the soft top
switch1.
Switch on the ignition.Opening
Press soft top switch1 twice. Press
the switch briefly the first time. Then
press the switch a second time and
hold it until the side windows have
reached the desired position.
Closing
Pull soft top switch1 twice. Pull the
switch briefly the first time. Then pull
the switch a second time and hold it
until the side windows have reached
the desired position.
Warning!G
Never operate the windows if there is the
possibility of anyone being harmed by the
opening or closing procedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the soft top switch. To open
the windows again, press the soft top switch
twice. Press the switch briefly the first time.
Then press the switch a second time and
hold it until the side windows have reached
the desired position.

255 Controls in detail
Soft top

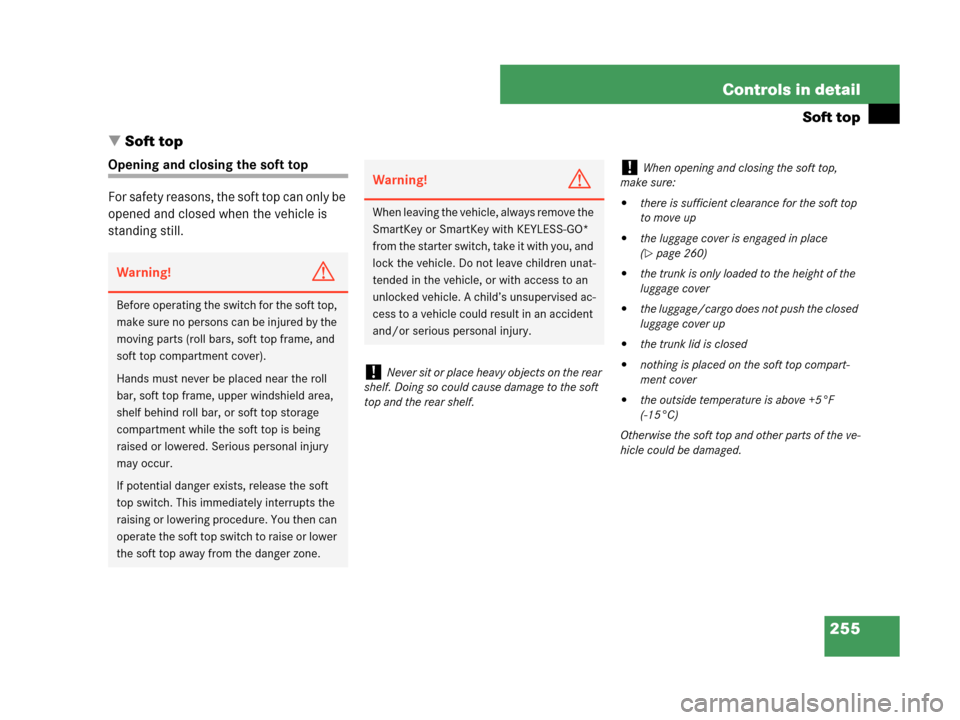

Soft top
Opening and closing the soft top
For safety reasons, the soft top can only be
opened and closed when the vehicle is
standing still.
Warning!G
Before operating the switch for the soft top,
make sure no persons can be injured by the
moving parts (roll bars, soft top frame, and
soft top compartment cover).
Hands must never be placed near the roll
bar, soft top frame, upper windshield area,
shelf behind roll bar, or soft top storage
compartment while the soft top is being
raised or lowered. Serious personal injury
may occur.
If potential danger exists, release the soft
top switch. This immediately interrupts the
raising or lowering procedure. You then can
operate the soft top switch to raise or lower
the soft top away from the danger zone.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
!Never sit or place heavy objects on the rear
shelf. Doing so could cause damage to the soft
top and the rear shelf.
!When opening and closing the soft top,
make sure:

there is sufficient clearance for the soft top
to move up

the luggage cover is engaged in place
(
page 260)

the trunk is only loaded to the height of the
luggage cover

the luggage/cargo does not push the closed
luggage cover up

the trunk lid is closed

nothing is placed on the soft top compart-
ment cover

the outside temperature is above +5°F
(-15°C)
Otherwise the soft top and other parts of the ve-
hicle could be damaged.

256 Controls in detail
Soft top

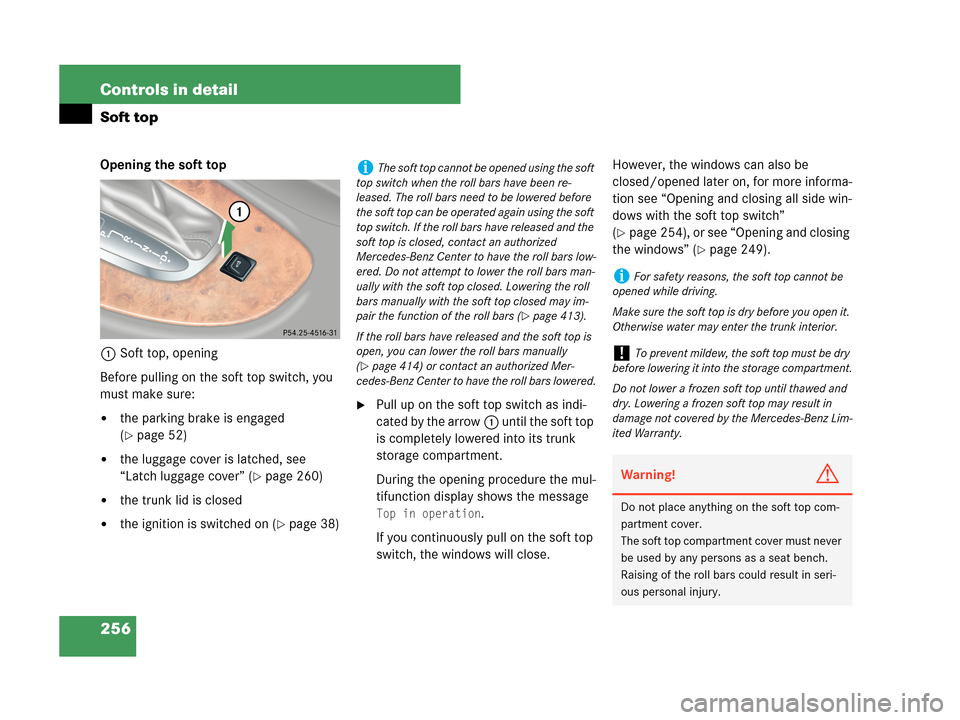

Opening the soft top
1Soft top, opening
Before pulling on the soft top switch, you
must make sure:

the parking brake is engaged
(
page 52)

the luggage cover is latched, see
“Latch luggage cover” (
page 260)

the trunk lid is closed

the ignition is switched on (page 38)
Pull up on the soft top switch as indi-
cated by the arrow1 until the soft top
is completely lowered into its trunk
storage compartment.
During the opening procedure the mul-
tifunction display shows the message
Top in operation.
If you continuously pull on the soft top
switch, the windows will close.However, the windows can also be
closed/opened later on, for more informa-
tion see “Opening and closing all side win-
dows with the soft top switch”
(
page 254), or see “Opening and closing
the windows” (
page 249).
iThe soft top cannot be opened using the soft
top switch when the roll bars have been re-
leased. The roll bars need to be lowered before
the soft top can be operated again using the soft
top switch. If the roll bars have released and the
soft top is closed, contact an authorized
Mercedes-Benz Center to have the roll bars low-
ered. Do not attempt to lower the roll bars man-
ually with the soft top closed. Lowering the roll
bars manually with the soft top closed may im-
pair the function of the roll bars (
page 413).
If the roll bars have released and the soft top is
open, you can lower the roll bars manually
(
page 414) or contact an authorized Mer-
cedes-Benz Center to have the roll bars lowered.
iFor safety reasons, the soft top cannot be
opened while driving.
Make sure the soft top is dry before you open it.
Otherwise water may enter the trunk interior.
!To prevent mildew, the soft top must be dry
before lowering it into the storage compartment.
Do not lower a frozen soft top until thawed and
dry. Lowering a frozen soft top may result in
damage not covered by the Mercedes-Benz Lim-
ited Warranty.
Warning!G
Do not place anything on the soft top com-
partment cover.
The soft top compartment cover must never
be used by any persons as a seat bench.
Raising of the roll bars could result in seri-
ous personal injury.

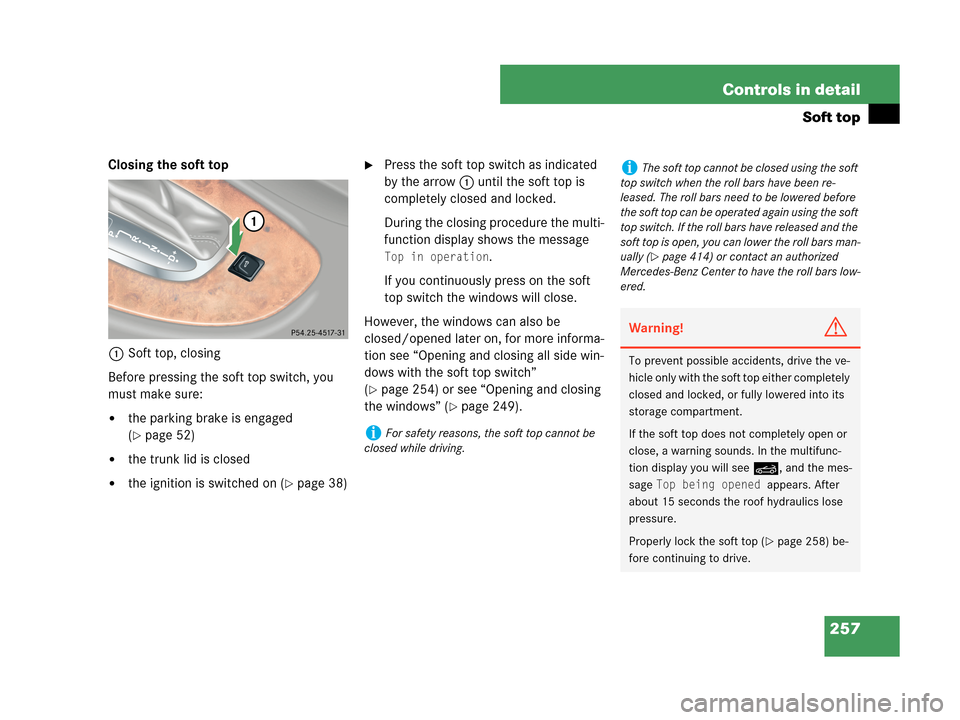

257 Controls in detail
Soft top
Closing the soft top
1Soft top, closing
Before pressing the soft top switch, you
must make sure:

the parking brake is engaged
(
page 52)

the trunk lid is closed

the ignition is switched on (page 38)
Press the soft top switch as indicated
by the arrow1 until the soft top is
completely closed and locked.
During the closing procedure the multi-
function display shows the message
Top in operation.
If you continuously press on the soft
top switch the windows will close.
However, the windows can also be
closed/opened later on, for more informa-
tion see “Opening and closing all side win-
dows with the soft top switch”
(
page 254) or see “Opening and closing
the windows” (
page 249).
iFor safety reasons, the soft top cannot be
closed while driving.
iThe soft top cannot be closed using the soft
top switch when the roll bars have been re-
leased. The roll bars need to be lowered before
the soft top can be operated again using the soft
top switch. If the roll bars have released and the
soft top is open, you can lower the roll bars man-
ually (
page 414) or contact an authorized
Mercedes-Benz Center to have the roll bars low-
ered.
Warning!G
To prevent possible accidents, drive the ve-
hicle only with the soft top either completely
closed and locked, or fully lowered into its
storage compartment.
If the soft top does not completely open or
close, a warning sounds. In the multifunc-
tion display you will see K, and the mes-
sage
Top being opened appears. After
about 15 seconds the roof hydraulics lose
pressure.
Properly lock the soft top (
page 258) be-
fore continuing to drive.

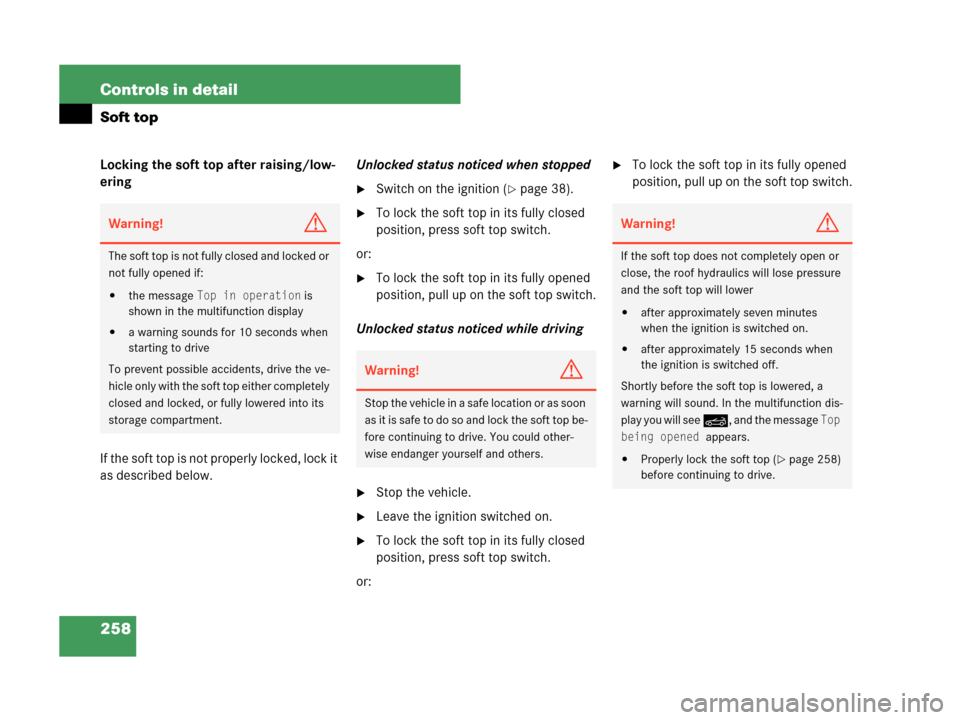

258 Controls in detail
Soft top
Locking the soft top after raising/low-
ering
If the soft top is not properly locked, lock it
as described below.Unlocked status noticed when stopped
Switch on the ignition (page 38).
To lock the soft top in its fully closed
position, press soft top switch.
or:
To lock the soft top in its fully opened
position, pull up on the soft top switch.
Unlocked status noticed while driving
Stop the vehicle.
Leave the ignition switched on.
To lock the soft top in its fully closed
position, press soft top switch.
or:
To lock the soft top in its fully opened
position, pull up on the soft top switch.
Warning!G
The soft top is not fully closed and locked or
not fully opened if:

the message Top in operation is
shown in the multifunction display

a warning sounds for 10 seconds when
starting to drive
To prevent possible accidents, drive the ve-
hicle only with the soft top either completely
closed and locked, or fully lowered into its
storage compartment.
Warning!G
Stop the vehicle in a safe location or as soon
as it is sa fe to do s o and lock the soft top be-
fore continuing to drive. You could other-
wise endanger yourself and others.
Warning!G
If the soft top does not completely open or
close, the roof hydraulics will lose pressure
and the soft top will lower

after approximately seven minutes
when the ignition is switched on.

after approximately 15 seconds when
the ignition is switched off.
Shortly before the soft top is lowered, a
warning will sound. In the multifunction dis-
play you will see K, and the message
Top
being opened
appears.

Properly lock the soft top (page 258)
before continuing to drive.

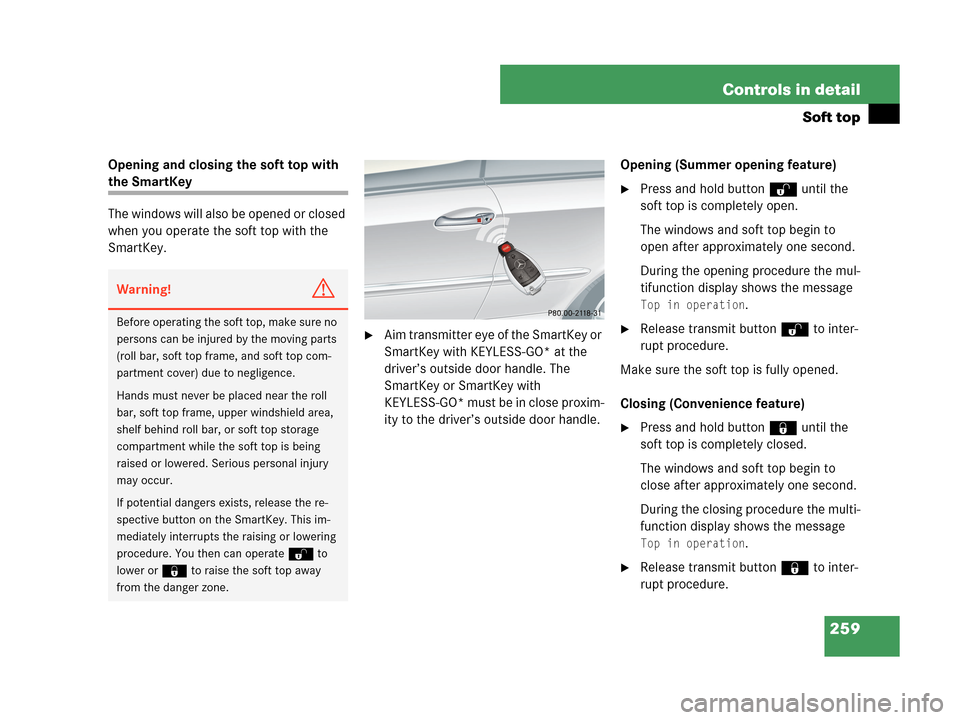

259 Controls in detail
Soft top
Opening and closing the soft top with
the SmartKey
The windows will also be opened or closed
when you operate the soft top with the
SmartKey.
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle. The
SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the driver’s outside door handle.Opening (Summer opening feature)
Press and hold button Πuntil the
soft top is completely open.
The windows and soft top begin to
open after approximately one second.
During the opening procedure the mul-
tifunction display shows the message
Top in operation.
Release transmit button Πto inter-
rupt procedure.
Make sure the soft top is fully opened.
Closing (Convenience feature)
Press and hold button ‹until the
soft top is completely closed.
The windows and soft top begin to
close after approximately one second.
During the closing procedure the multi-
function display shows the message
Top in operation.
Release transmit button ‹to inter-
rupt procedure.
Warning!G
Before operating the soft top, make sure no
persons can be injured by the moving parts
(roll bar, soft top frame, and soft top com-
partment cover) due to negligence.
Hands must never be placed near the roll
bar, soft top frame, upper windshield area,
shelf behind roll bar, or soft top storage
compartment while the soft top is being
raised or lowered. Serious personal injury
may occur.
If potential dangers exists, release the re-
spective button on the SmartKey. This im-
mediately interrupts the raising or lowering
procedure. You then can operate Πto
lower or ‹to raise the soft top away
from the danger zone.
