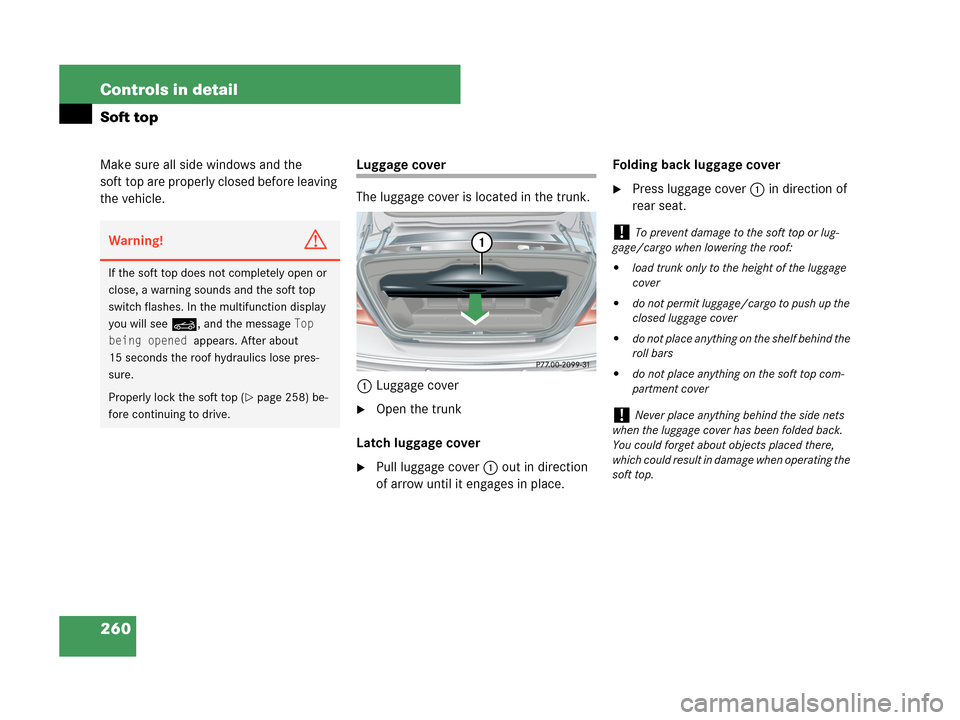

Page 261 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 260 Controls in detail
Soft top
Make sure all side windows and the
soft top are properly closed before leaving
the vehicle.Luggage cover
The luggage cover is located in the trunk.
1Luggage cover
Op

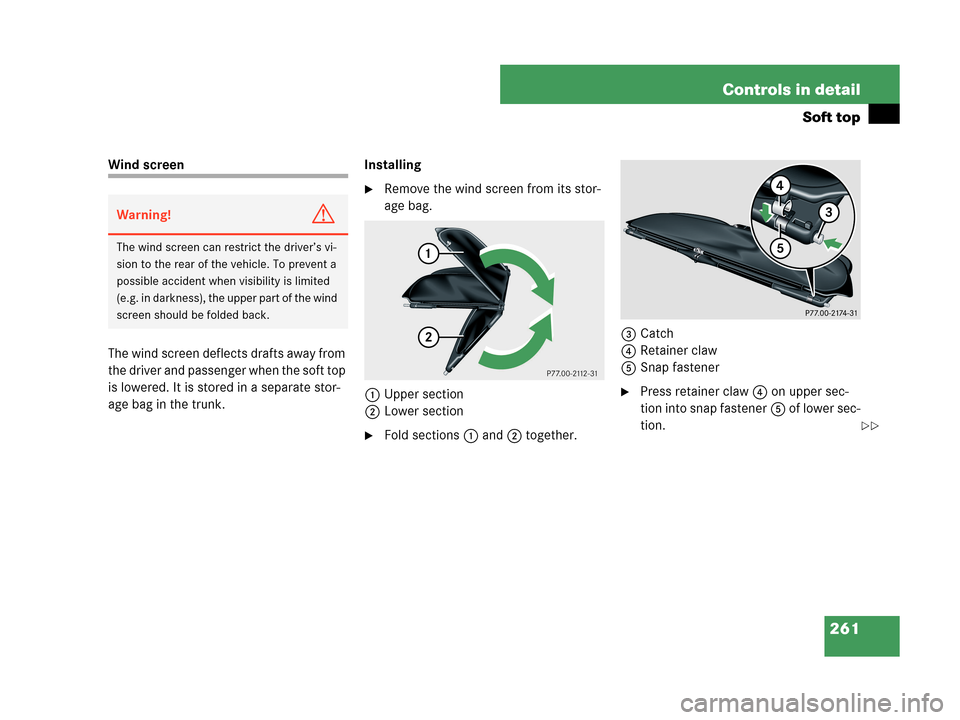

Page 262 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 261 Controls in detail
Soft top
Wind screen
The wind screen deflects drafts away from
the driver and passenger when the soft top
is lowered. It is stored in a separate stor-
age bag in the trunk.Ins

Page 263 of 505

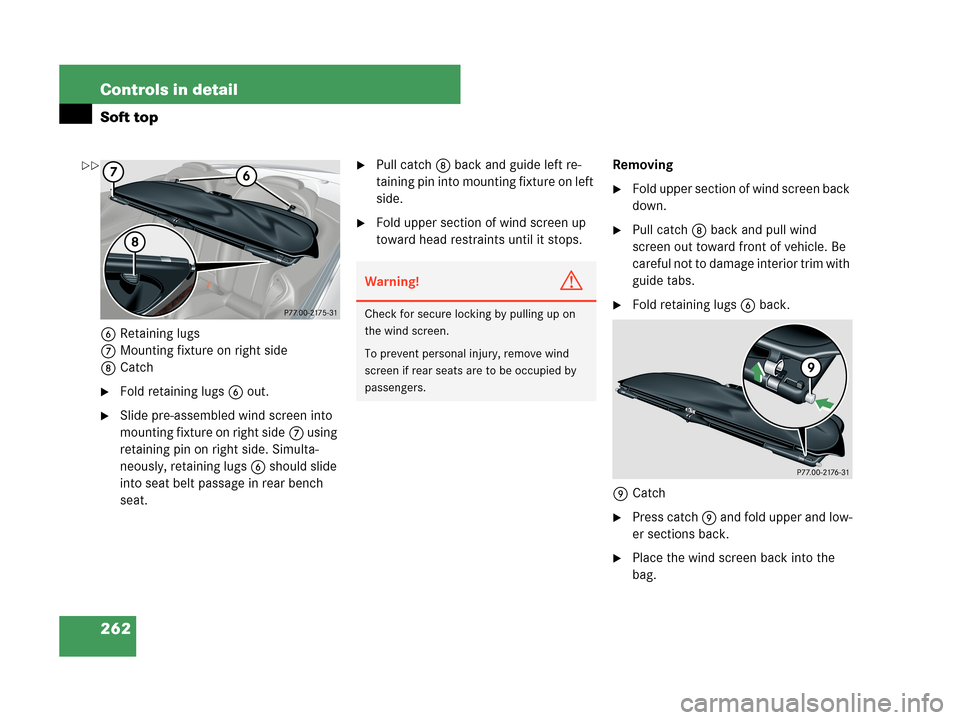

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 262 Controls in detail
Soft top
6Retaining lugs
7Mounting fixture on right side
8Catch
Fold retaining lugs6 out.
Slide pre-assembled wind screen into
mounting fixture on right side7 using
retainin

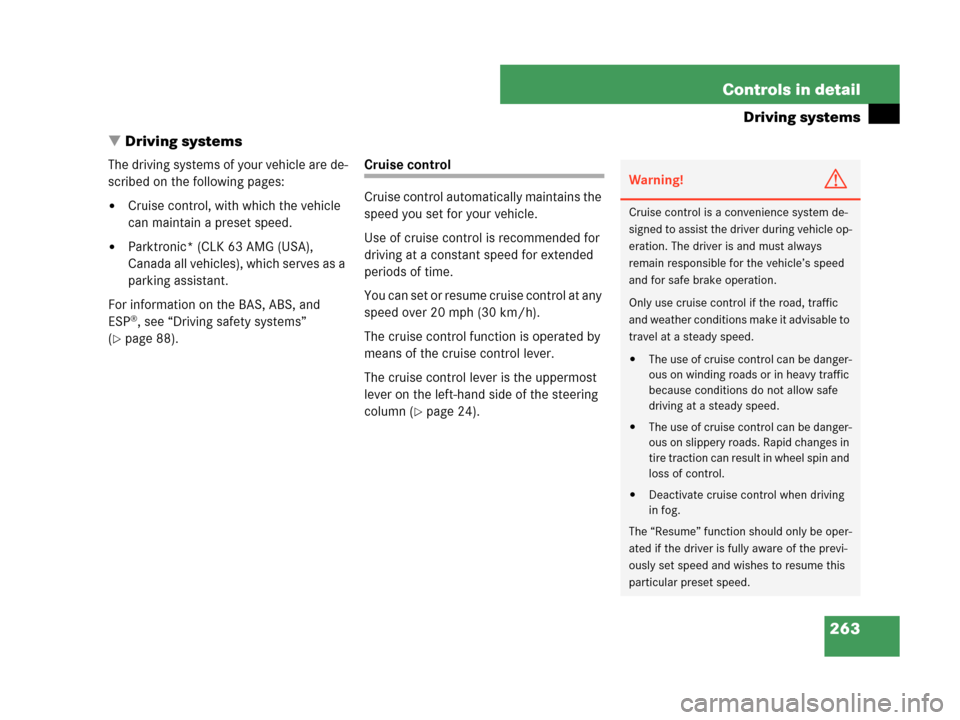

Page 264 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 263 Controls in detail
Driving systems
Driving systems
The driving systems of your vehicle are de-
scribed on the following pages:
Cruise control, with which the vehicle
can maintain a preset speed

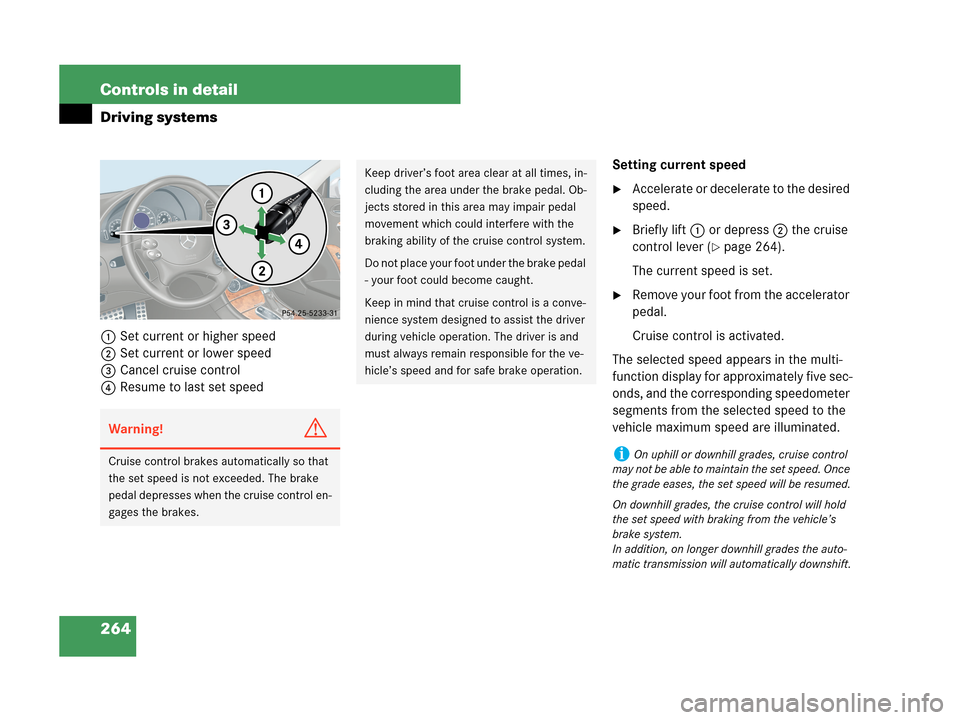

Page 265 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 264 Controls in detail
Driving systems
1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume to last set speedSetting current speed
Accelerate or decelerate to the d

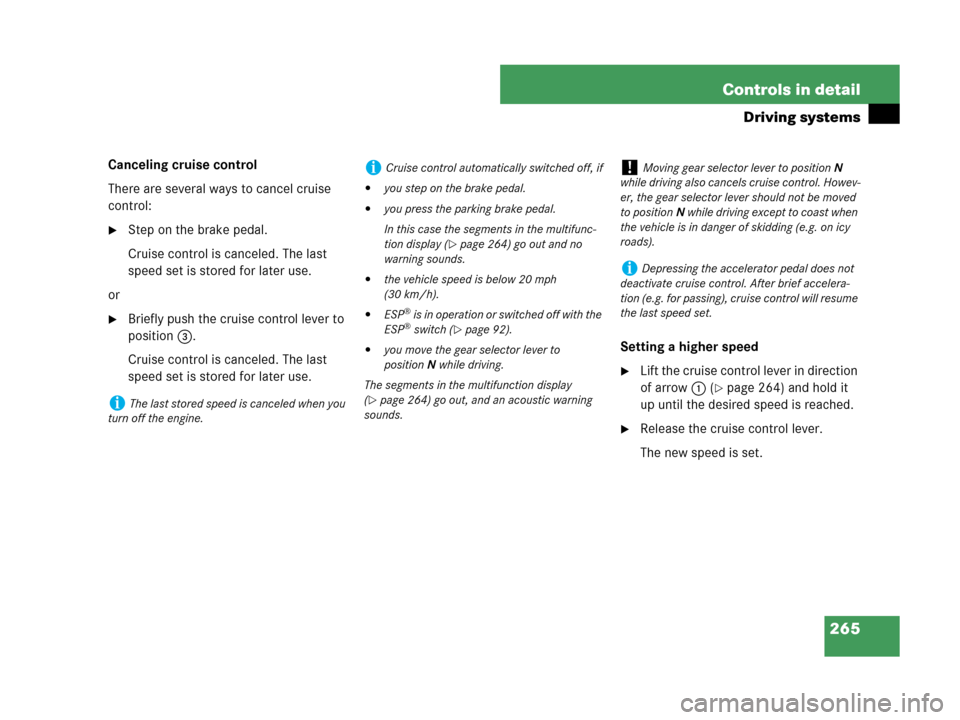

Page 266 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 265 Controls in detail
Driving systems
Canceling cruise control
There are several ways to cancel cruise
control:
Step on the brake pedal.
Cruise control is canceled. The last
speed set is stored fo

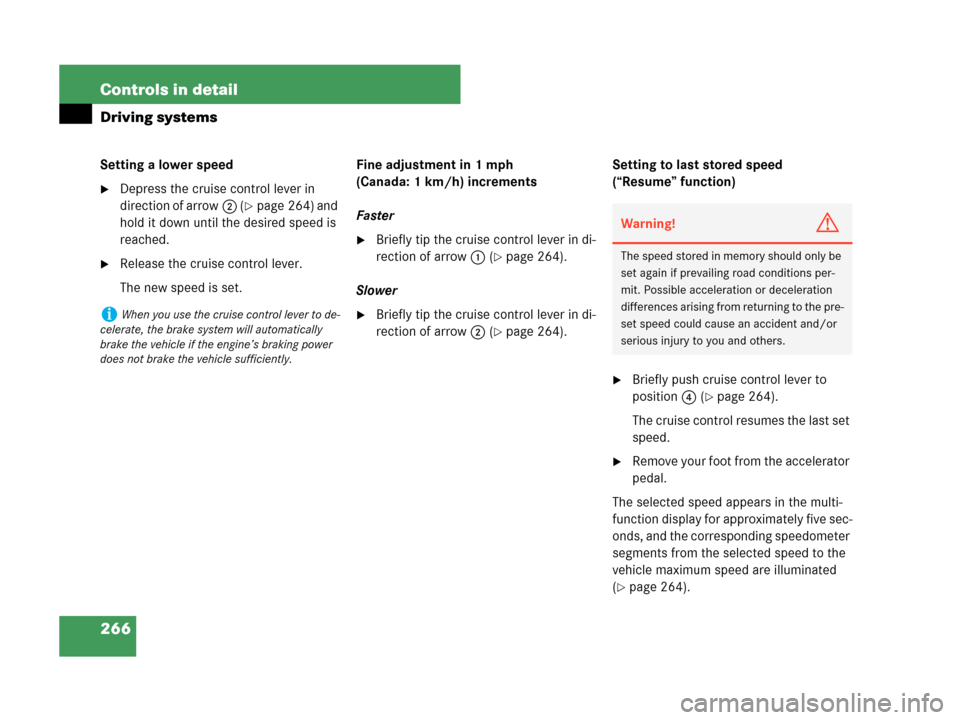

Page 267 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 266 Controls in detail
Driving systems
Setting a lower speed
Depress the cruise control lever in
direction of arrow2 (
page 264) and
hold it down until the desired speed is
reached.
Release the

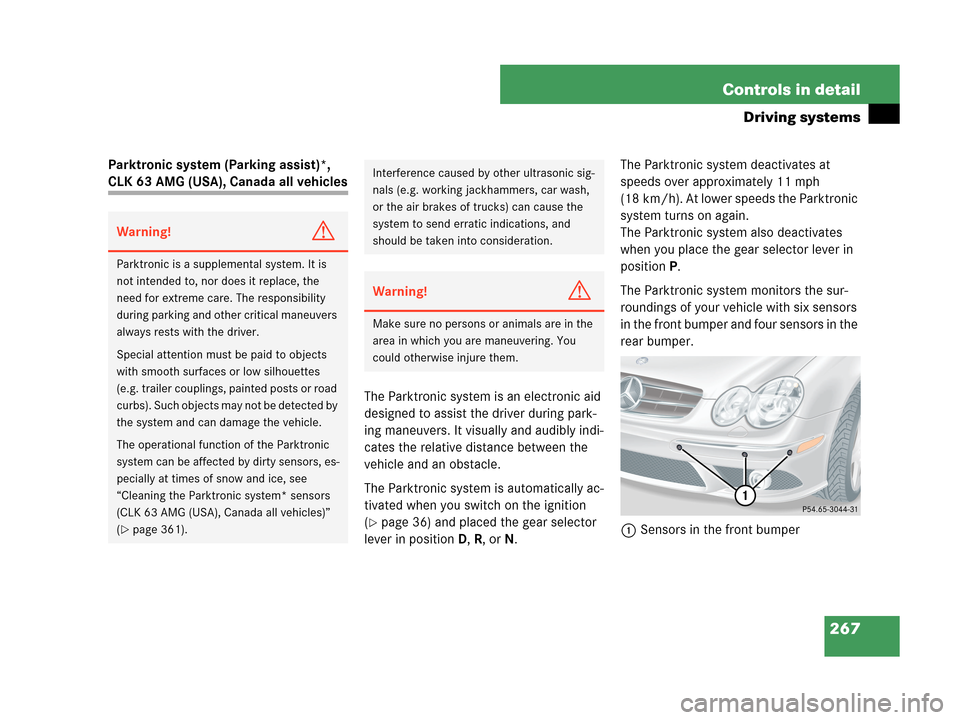

Page 268 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 267 Controls in detail
Driving systems
Parktronic system (Parking assist)*,
CLK 63 AMG (USA), Canada all vehicles
The Parktronic system is an electronic aid
designed to assist the driver during park

Page 269 of 505

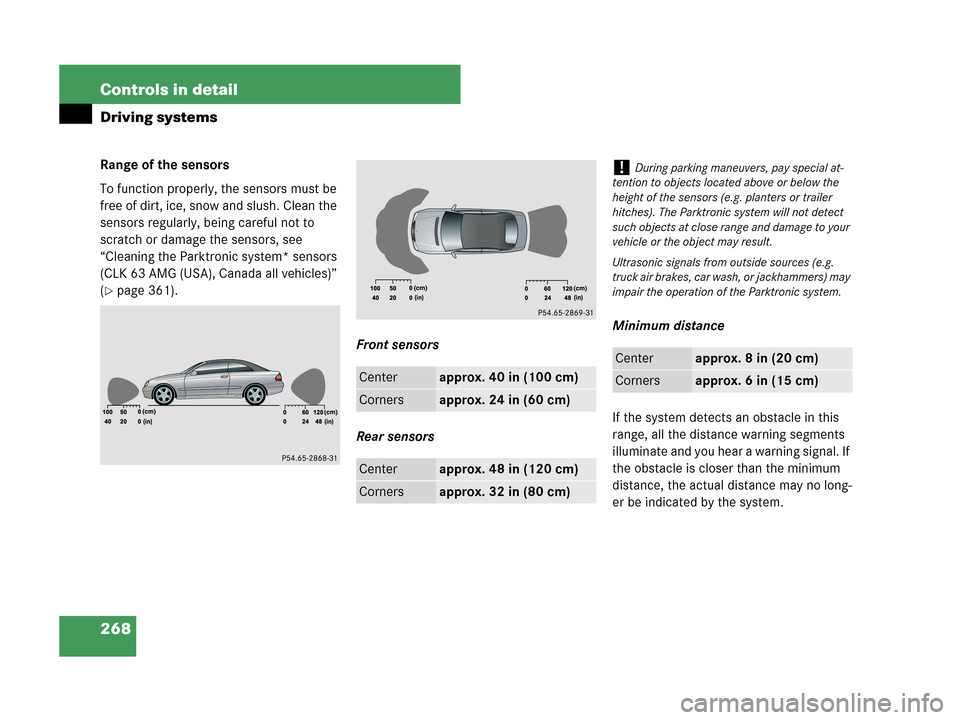

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 268 Controls in detail
Driving systems
Range of the sensors
To function properly, the sensors must be
free of dirt, ice, snow and slush. Clean the
sensors regularly, being careful not to
scratch or

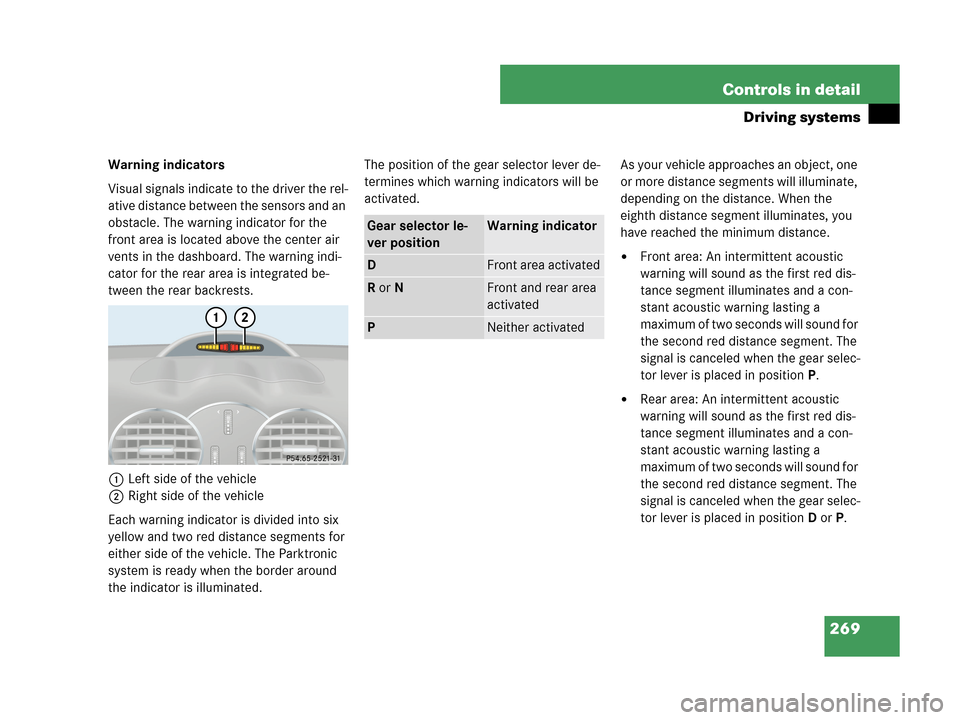

Page 270 of 505

MERCEDES-BENZ CLK350 2007 A209 Owners Manual 269 Controls in detail
Driving systems
Warning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle. The warning indicator for the
front area
