MERCEDES-BENZ CLK350 2007 A209 Owner's Manual

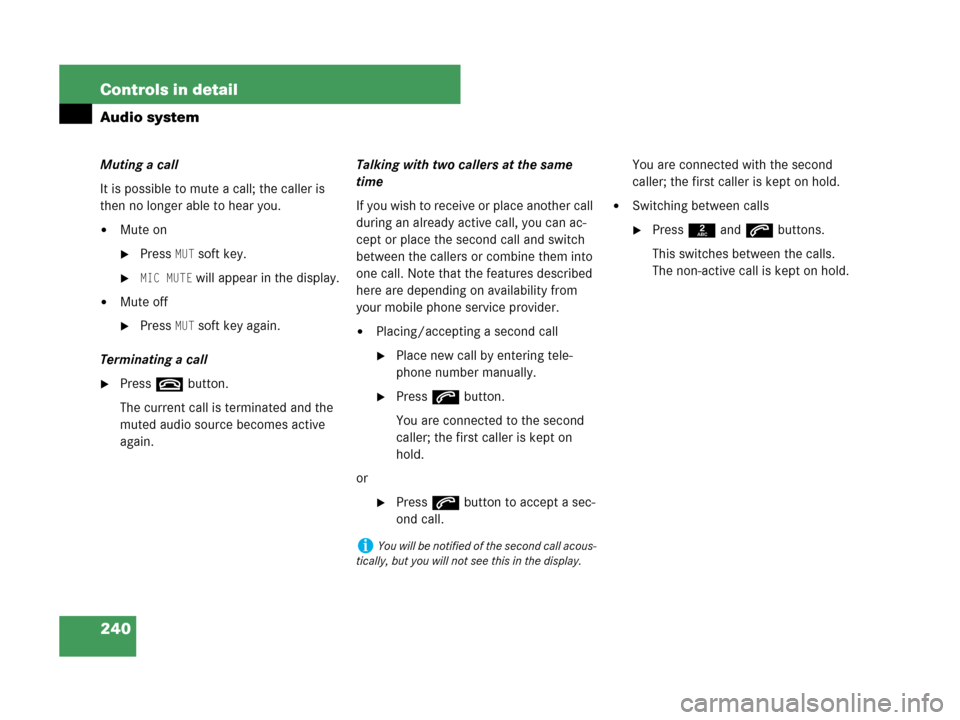

240 Controls in detail
Audio system
Muting a call
It is possible to mute a call; the caller is
then no longer able to hear you.

Mute on
PressMUT soft key.
MIC MUTE will appear in the display.

Mute off
PressMUT soft key again.
Terminating a call
Press t button.
The current call is terminated and the
muted audio source becomes active
again.Talking with two callers at the same
time
If you wish to receive or place another call
during an already active call, you can ac-
cept or place the second call and switch
between the callers or combine them into
one call. Note that the features described
here are depending on availability from
your mobile phone service provider.

Placing/accepting a second call
Place new call by entering tele-
phone number manually.
Press s button.
You are connected to the second
caller; the first caller is kept on
hold.
or
Press s button to accept a sec-
ond call.You are connected with the second
caller; the first caller is kept on hold.

Switching between calls
Press 2 and s buttons.
This switches between the calls.
The non-active call is kept on hold.
iYou will be notified of the second call acous-
tically, but you will not see this in the display.

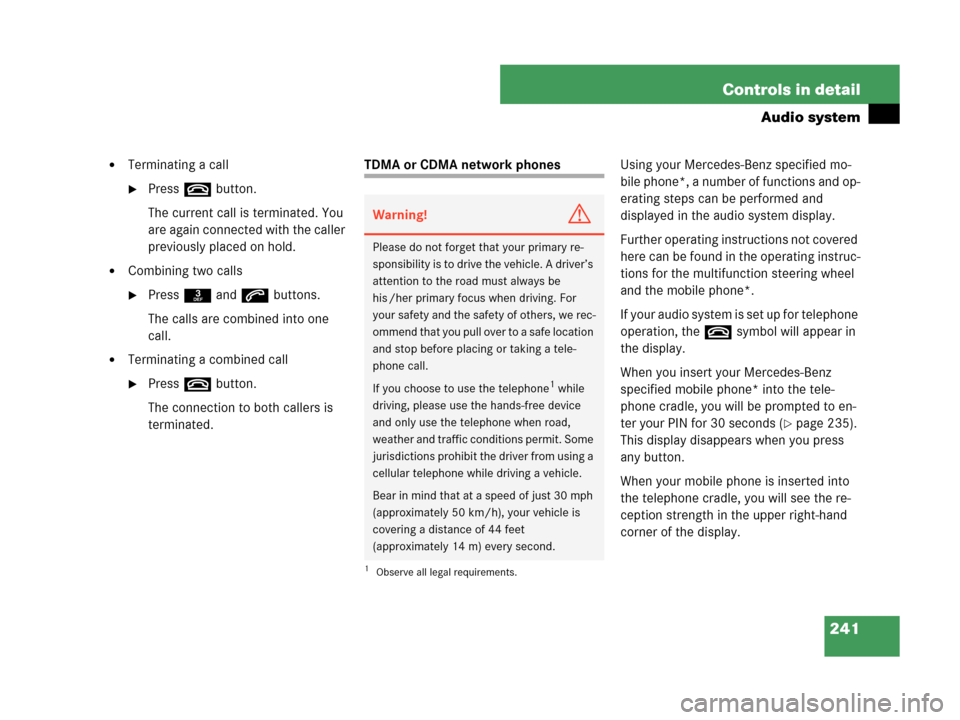

241 Controls in detail
Audio system

Terminating a call
Press t button.
The current call is terminated. You
are again connected with the caller
previously placed on hold.

Combining two calls
Press 3 and s buttons.
The calls are combined into one
call.

Terminating a combined call
Press t button.
The connection to both callers is
terminated.
TDMA or CDMA network phonesUsing your Mercedes-Benz specified mo-
bile phone*, a number of functions and op-
erating steps can be performed and
displayed in the audio system display.
Further operating instructions not covered
here can be found in the operating instruc-
tions for the multifunction steering wheel
and the mobile phone*.
If your audio system is set up for telephone
operation, the t symbol will appear in
the display.
When you insert your Mercedes-Benz
specified mobile phone* into the tele-
phone cradle, you will be prompted to en-
ter your PIN for 30 seconds (
page 235).
This display disappears when you press
any button.
When your mobile phone is inserted into
the telephone cradle, you will see the re-
ception strength in the upper right-hand
corner of the display.
Warning!G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his /her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
1Observe all legal requirements.

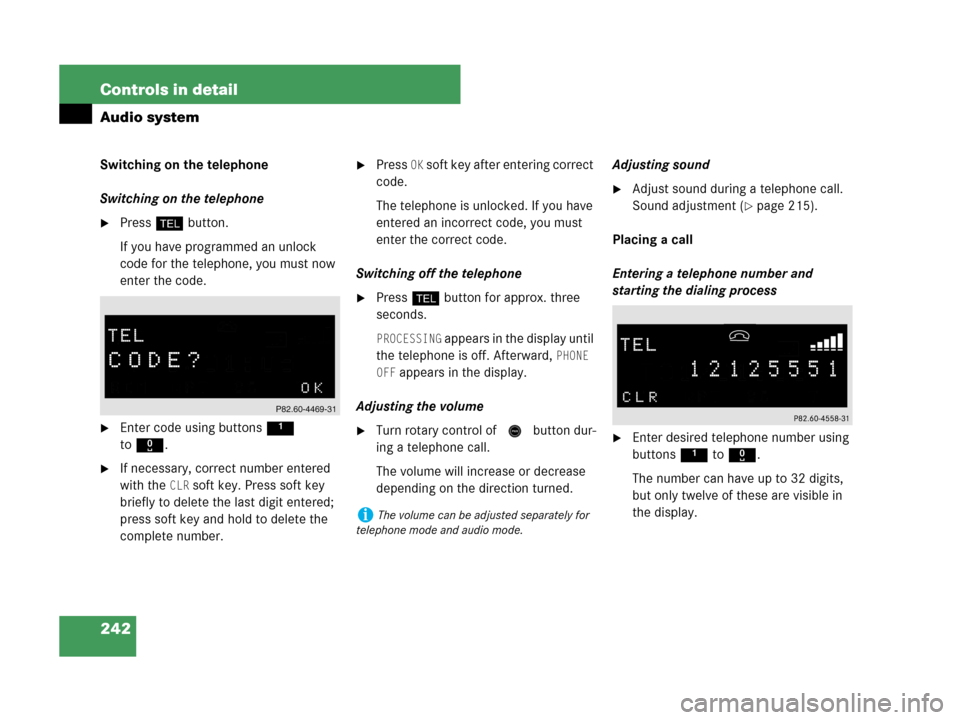

242 Controls in detail
Audio system
Switching on the telephone
Switching on the telephone
Press h button.
If you have programmed an unlock
code for the telephone, you must now
enter the code.
Enter code using buttons 1
toR.
If necessary, correct number entered
with the
CLR soft key. Press soft key
briefly to delete the last digit entered;
press soft key and hold to delete the
complete number.
Press OK soft key after entering correct
code.
The telephone is unlocked. If you have
entered an incorrect code, you must
enter the correct code.
Switching off the telephone
Press h button for approx. three
seconds.
PROCESSING appears in the display until
the telephone is off. Afterward,
PHONE
OFF
appears in the display.
Adjusting the volume
Turn rotary control of N button dur-
ing a telephone call.
The volume will increase or decrease
depending on the direction turned.Adjusting sound
Adjust sound during a telephone call.
Sound adjustment (
page 215).
Placing a call
Entering a telephone number and
starting the dialing process
Enter desired telephone number using
buttons 1 to R.
The number can have up to 32 digits,
but only twelve of these are visible in
the display.
iThe volume can be adjusted separately for
telephone mode and audio mode.

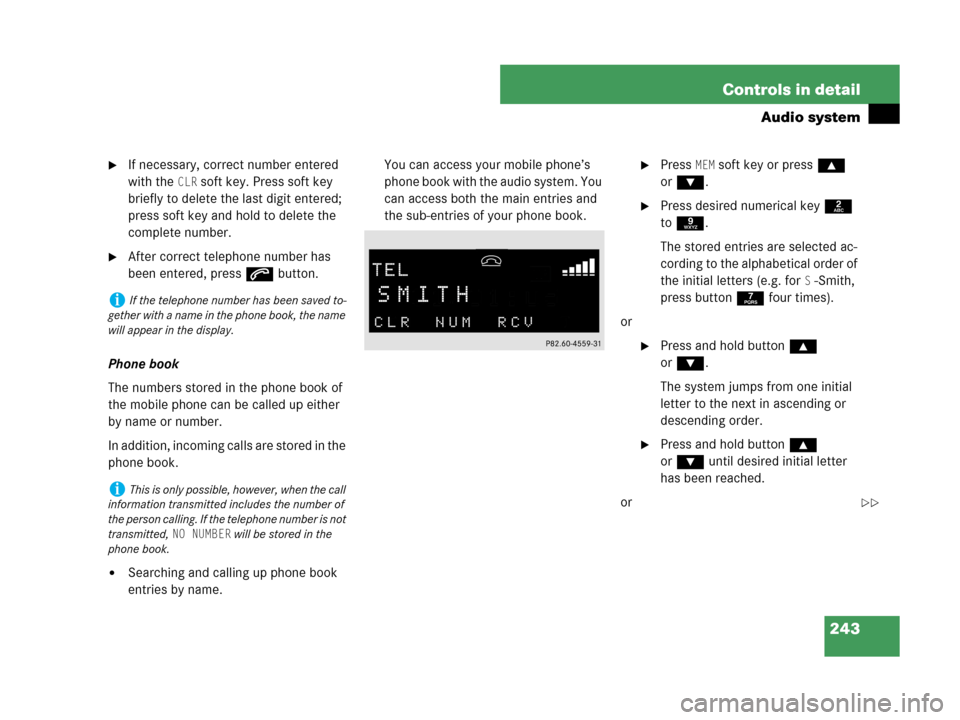

243 Controls in detail
Audio system
If necessary, correct number entered
with the
CLR soft key. Press soft key
briefly to delete the last digit entered;
press soft key and hold to delete the
complete number.
After correct telephone number has
been entered, press s button.
Phone book
The numbers stored in the phone book of
the mobile phone can be called up either
by name or number.
In addition, incoming calls are stored in the
phone book.

Searching and calling up phone book
entries by name.You can access your mobile phone’s
phone book with the audio system. You
can access both the main entries and
the sub-entries of your phone book.
Press MEM soft key or press ‚
orƒ.
Press desired numerical key 2
to 9.
The stored entries are selected ac-
cording to the alphabetical order of
the initial letters (e.g. for
S-Smith,
press button 7 four times).
or
Press and hold button ‚
orƒ.
The system jumps from one initial
letter to the next in ascending or
descending order.
Press and hold button ‚
orƒ until desired initial letter
has been reached.
or
iIf the telephone number has been saved to-
gether with a name in the phone book, the name
will appear in the display.
iThis is only possible, however, when the call
information transmitted includes the number of
the person calling. If the telephone number is not
transmitted,
NO NUMBER will be stored in the
phone book.

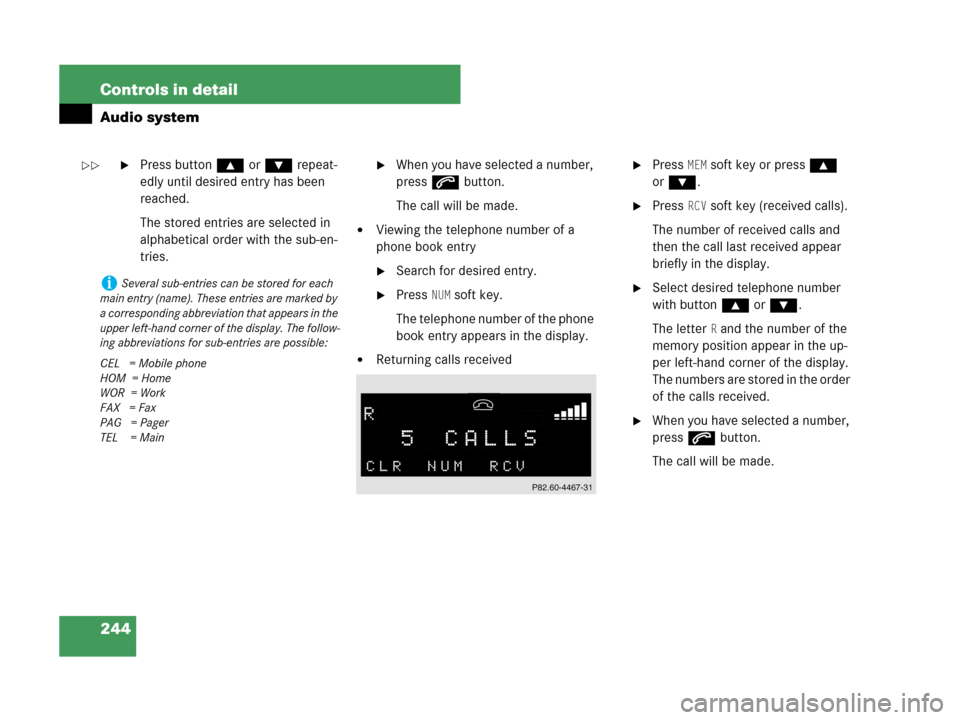

244 Controls in detail
Audio system
Press button ‚or ƒ repeat-
edly until desired entry has been
reached.
The stored entries are selected in
alphabetical order with the sub-en-
tries.When you have selected a number,
press s button.
The call will be made.

Viewing the telephone number of a
phone book entry
Search for desired entry.
Press NUM soft key.
The telephone number of the phone
book entry appears in the display.

Returning calls received
Press MEM soft key or press ‚
orƒ.
Press RCV soft key (received calls).
The number of received calls and
then the call last received appear
briefly in the display.
Select desired telephone number
with button ‚or ƒ.
The letter
R and the number of the
memory position appear in the up-
per left-hand corner of the display.
The numbers are stored in the order
of the calls received.
When you have selected a number,
press s button.
The call will be made.
iSeveral sub-entries can be stored for each
main entry (name). These entries are marked by
a corresponding abbreviation that appears in the
upper left-hand corner of the display. The follow-
ing abbreviations for sub-entries are possible:
CEL = Mobile phone
HOM = Home
WOR = Work
FAX = Fax
PAG = Pager
TEL = Main

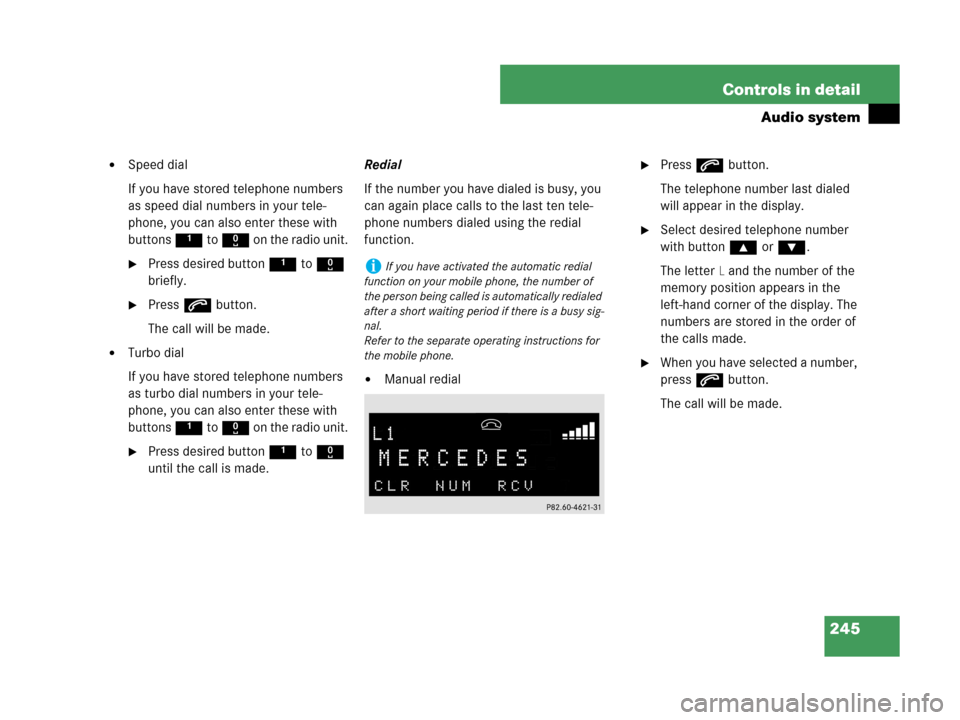

245 Controls in detail
Audio system

Speed dial
If you have stored telephone numbers
as speed dial numbers in your tele-
phone, you can also enter these with
buttons 1 to R on the radio unit.
Press desired button 1 to R
briefly.
Press s button.
The call will be made.

Turbo dial
If you have stored telephone numbers
as turbo dial numbers in your tele-
phone, you can also enter these with
buttons 1 to R on the radio unit.
Press desired button 1 to R
until the call is made.Redial
If the number you have dialed is busy, you
can again place calls to the last ten tele-
phone numbers dialed using the redial
function.

Manual redial
Press s button.
The telephone number last dialed
will appear in the display.
Select desired telephone number
with button ‚ orƒ.
The letter
L and the number of the
memory position appears in the
left-hand corner of the display. The
numbers are stored in the order of
the calls made.
When you have selected a number,
press s button.
The call will be made.
iIf you have activated the automatic redial
function on your mobile phone, the number of
the person being called is automatically redialed
after a short waiting period if there is a busy sig-
nal.
Refer to the separate operating instructions for
the mobile phone.

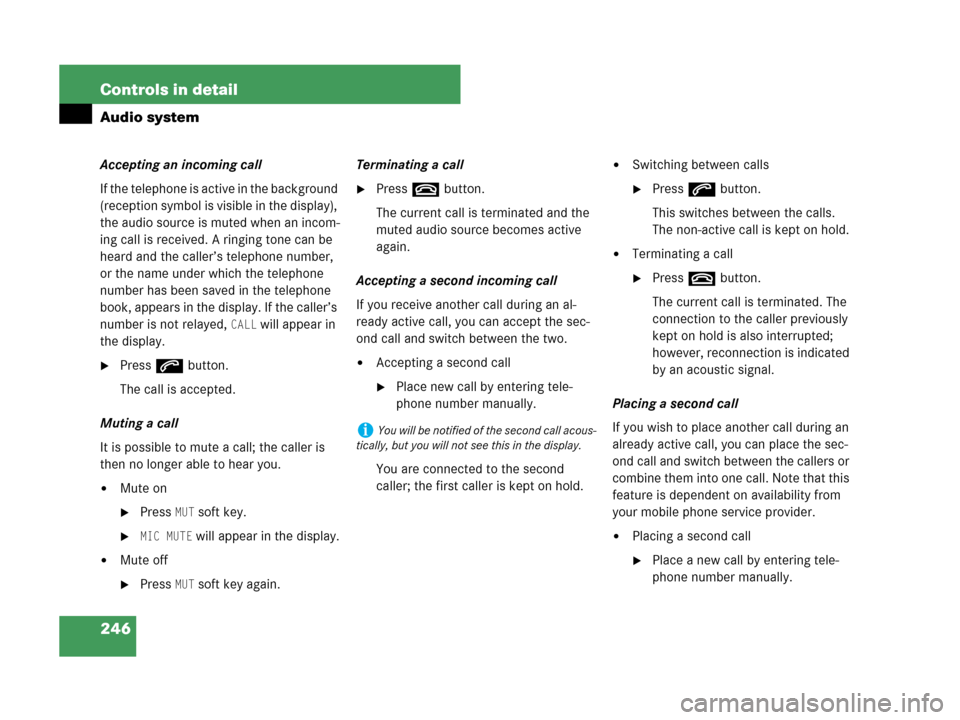

246 Controls in detail
Audio system
Accepting an incoming call
If the telephone is active in the background
(reception symbol is visible in the display),
the audio source is muted when an incom-
ing call is received. A ringing tone can be
heard and the caller’s telephone number,
or the name under which the telephone
number has been saved in the telephone
book, appears in the display. If the caller’s
number is not relayed,
CALL will appear in
the display.
Press s button.
The call is accepted.
Muting a call
It is possible to mute a call; the caller is
then no longer able to hear you.

Mute on
PressMUT soft key.
MIC MUTE will appear in the display.

Mute off
PressMUT soft key again.Terminating a call
Press t button.
The current call is terminated and the
muted audio source becomes active
again.
Accepting a second incoming call
If you receive another call during an al-
ready active call, you can accept the sec-
ond call and switch between the two.

Accepting a second call
Place new call by entering tele-
phone number manually.
You are connected to the second
caller; the first caller is kept on hold.

Switching between calls
Press s button.
This switches between the calls.
The non-active call is kept on hold.

Terminating a call
Press t button.
The current call is terminated. The
connection to the caller previously
kept on hold is also interrupted;
however, reconnection is indicated
by an acoustic signal.
Placing a second call
If you wish to place another call during an
already active call, you can place the sec-
ond call and switch between the callers or
combine them into one call. Note that this
feature is dependent on availability from
your mobile phone service provider.

Placing a second call
Place a new call by entering tele-
phone number manually.
iYou will be notified of the second call acous-
tically, but you will not see this in the display.

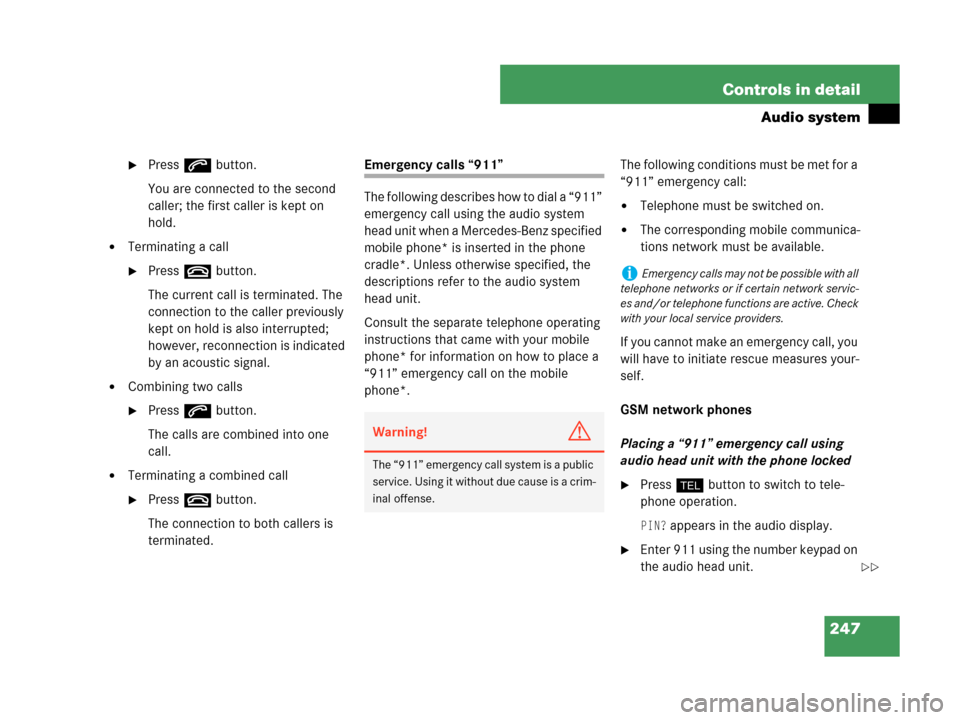

247 Controls in detail
Audio system
Press s button.
You are connected to the second
caller; the first caller is kept on
hold.

Terminating a call
Press t button.
The current call is terminated. The
connection to the caller previously
kept on hold is also interrupted;
however, reconnection is indicated
by an acoustic signal.

Combining two calls
Press s button.
The calls are combined into one
call.

Terminating a combined call
Press t button.
The connection to both callers is
terminated.
Emergency calls “911”
The following describes how to dial a “911”
emergency call using the audio system
head unit when a Mercedes-Benz specified
mobile phone* is inserted in the phone
cradle*. Unless otherwise specified, the
descriptions refer to the audio system
head unit.
Consult the separate telephone operating
instructions that came with your mobile
phone* for information on how to place a
“911” emergency call on the mobile
phone*. The following conditions must be met for a
“911” emergency call:

Telephone must be switched on.

The corresponding mobile communica-
tions network must be available.
If you cannot make an emergency call, you
will have to initiate rescue measures your-
self.
GSM network phones
Placing a “911” emergency call using
audio head unit with the phone locked
Press hbutton to switch to tele-
phone operation.
PIN? appears in the audio display.
Enter 911 using the number keypad on
the audio head unit.
Warning!G
The “911” emergency call system is a public
service. Using it without due cause is a crim-
inal offense.
iEmergency calls may not be possible with all
telephone networks or if certain network servic-
es and/or telephone functions are active. Check
with your local service providers.

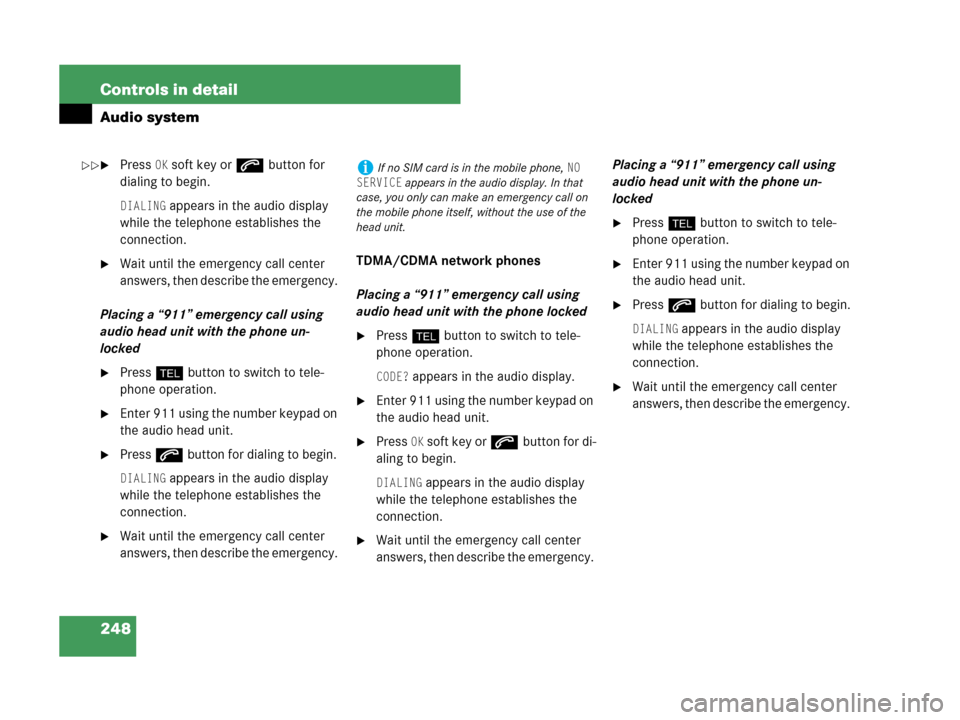

248 Controls in detail
Audio system
Press OK soft key or sbutton for
dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency.
Placing a “911” emergency call using
audio head unit with the phone un-
locked
Press hbutton to switch to tele-
phone operation.
Enter 911 using the number keypad on
the audio head unit.
Press sbutton for dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency. TDMA/CDMA network phones
Placing a “911” emergency call using
audio head unit with the phone locked
Press hbutton to switch to tele-
phone operation.
CODE? appears in the audio display.
Enter 911 using the number keypad on
the audio head unit.
Press OK soft key or sbutton for di-
aling to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency. Placing a “911” emergency call using
audio head unit with the phone un-
locked
Press hbutton to switch to tele-
phone operation.
Enter 911 using the number keypad on
the audio head unit.
Press sbutton for dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency.
iIf no SIM card is in the mobile phone, NO
SERVICE
appears in the audio display. In that
case, you only can make an emergency call on
the mobile phone itself, without the use of the
head unit.

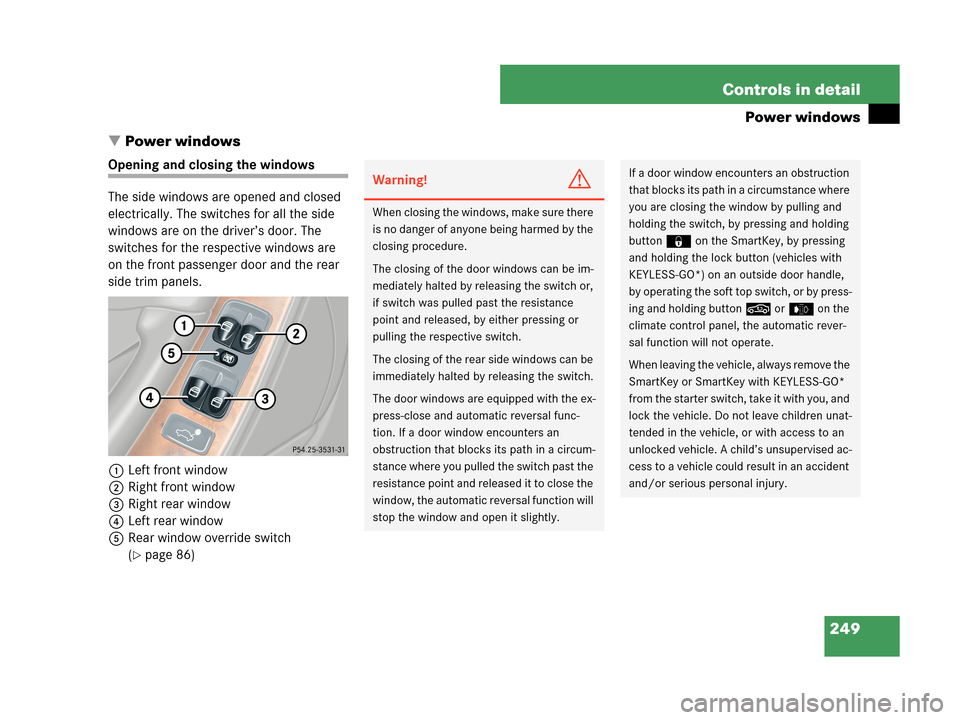

249 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows are opened and closed
electrically. The switches for all the side
windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
side trim panels.
1Left front window
2Right front window
3Right rear window
4Left rear window
5Rear window override switch
(
page 86)
Warning!G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
The closing of the rear side windows can be
immediately halted by releasing the switch.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If a door window encounters an
obstruction that blocks its path in a circum-
stance where you pulled the switch past the
resistance point and released it to close the
window, the automatic reversal function will
stop the window and open it slightly.
If a door window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, by pressing and holding
button ‹on the SmartKey, by pressing
and holding the lock button (vehicles with
KEYLESS-GO*) on an outside door handle,
by operating the soft top switch, or by press-
ing and holding button, ore on the
climate control panel, the automatic rever-
sal function will not operate.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
