MERCEDES-BENZ CLK350 2007 A209 Owner's Manual

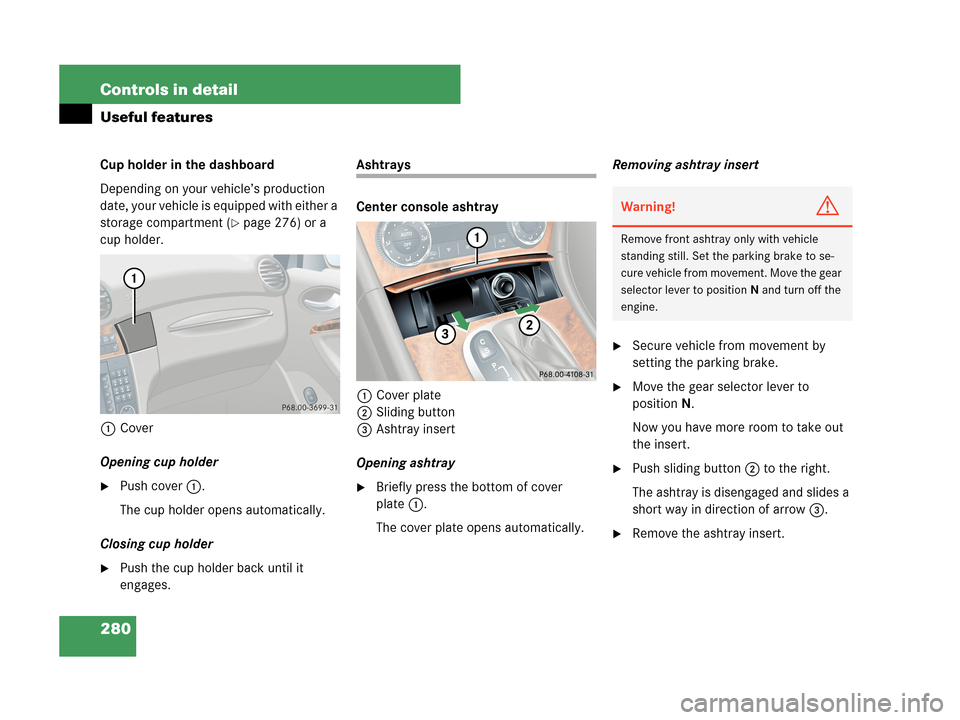

280 Controls in detail
Useful features
Cup holder in the dashboard
Depending on your vehicle’s production
date, your vehicle is equipped with either a
storage compartment (
page 276) or a
cup holder.
1Cover
Opening cup holder
Push cover1.
The cup holder opens automatically.
Closing cup holder
Push the cup holder back until it
engages.
Ashtrays
Center console ashtray
1Cover plate
2Sliding button
3Ashtray insert
Opening ashtray
Briefly press the bottom of cover
plate1.
The cover plate opens automatically.Removing ashtray insert
Secure vehicle from movement by
setting the parking brake.
Move the gear selector lever to
positionN.
Now you have more room to take out
the insert.
Push sliding button2 to the right.
The ashtray is disengaged and slides a
short way in direction of arrow3.
Remove the ashtray insert.
Warning!G
Remove front ashtray only with vehicle
standing still. Set the parking brake to se-
cure vehicle from movement. Move the gear
selector lever to positionN and turn off the
engine.

281 Controls in detail
Useful features

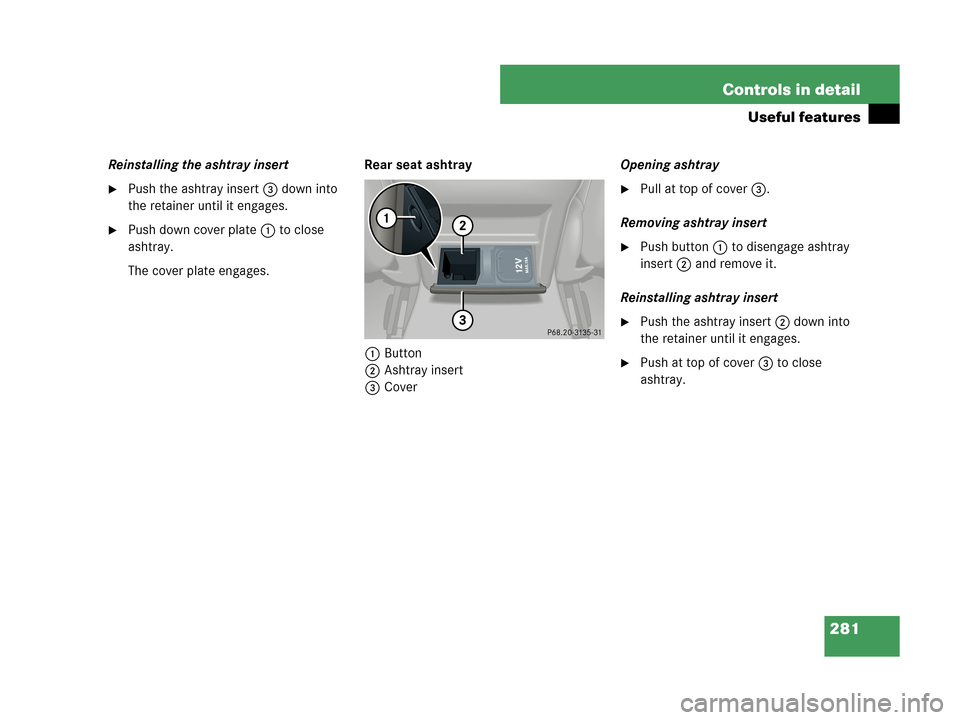

Reinstalling the ashtray insert
Push the ashtray insert 3 down into
the retainer until it engages.
Push down cover plate1 to close
ashtray.
The cover plate engages.Rear seat ashtray
1Button
2Ashtray insert
3CoverOpening ashtray
Pull at top of cover3.
Removing ashtray insert
Push button1 to disengage ashtray
insert2 and remove it.
Reinstalling ashtray insert
Push the ashtray insert2 down into
the retainer until it engages.
Push at top of cover3 to close
ashtray.

282 Controls in detail
Useful features

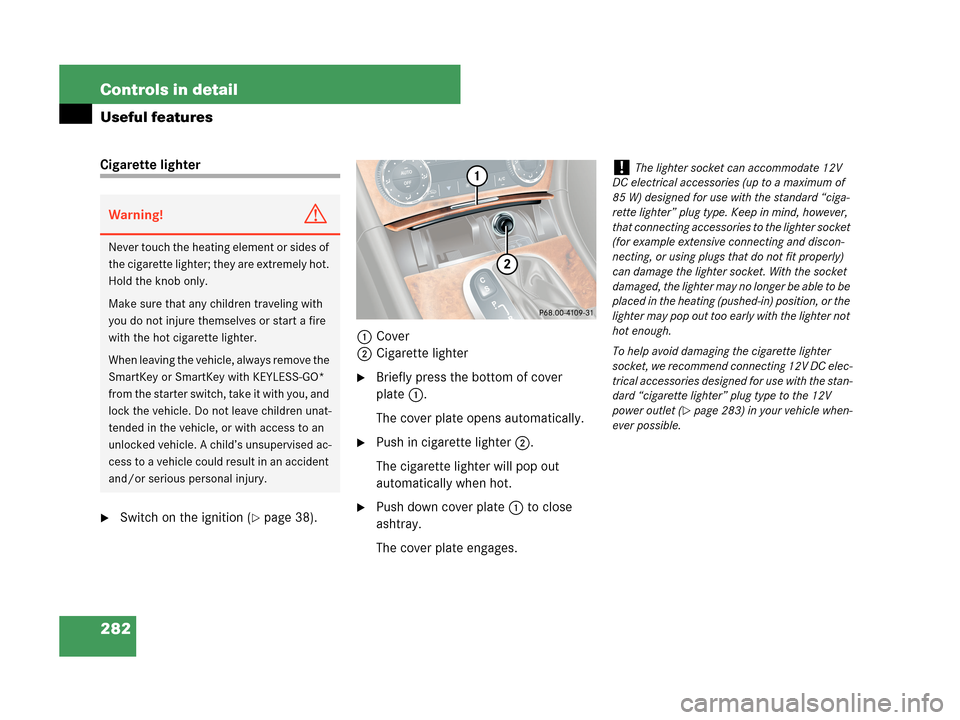

Cigarette lighter
Switch on the ignition (page 38).1Cover
2Cigarette lighter
Briefly press the bottom of cover
plate1.
The cover plate opens automatically.
Push in cigarette lighter2.
The cigarette lighter will pop out
automatically when hot.
Push down cover plate1 to close
ashtray.
The cover plate engages.
Warning!G
Never touch the heating element or sides of
the cigarette lighter; they are extremely hot.
Hold the knob only.
Make sure that any children traveling with
you do not injure themselves or start a fire
with the hot cigarette lighter.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
!The lighter socket can accommodate 12V
DC electrical accessories (up to a maximum of
85 W) designed for use with the standard “ciga-
rette lighter” plug type. Keep in mind, however,
that connecting accessories to the lighter socket
(for example extensive connecting and discon-
necting, or using plugs that do not fit properly)
can damage the lighter socket. With the socket
damaged, the lighter may no longer be able to be
placed in the heating (pushed-in) position, or the
lighter may pop out too early with the lighter not
hot enough.
To help avoid damaging the cigarette lighter
socket, we recommend connecting 12V DC elec-
trical accessories designed for use with the stan-
dard “cigarette lighter” plug type to the 12V
power outlet (
page 283) in your vehicle when-
ever possible.

283 Controls in detail
Useful features

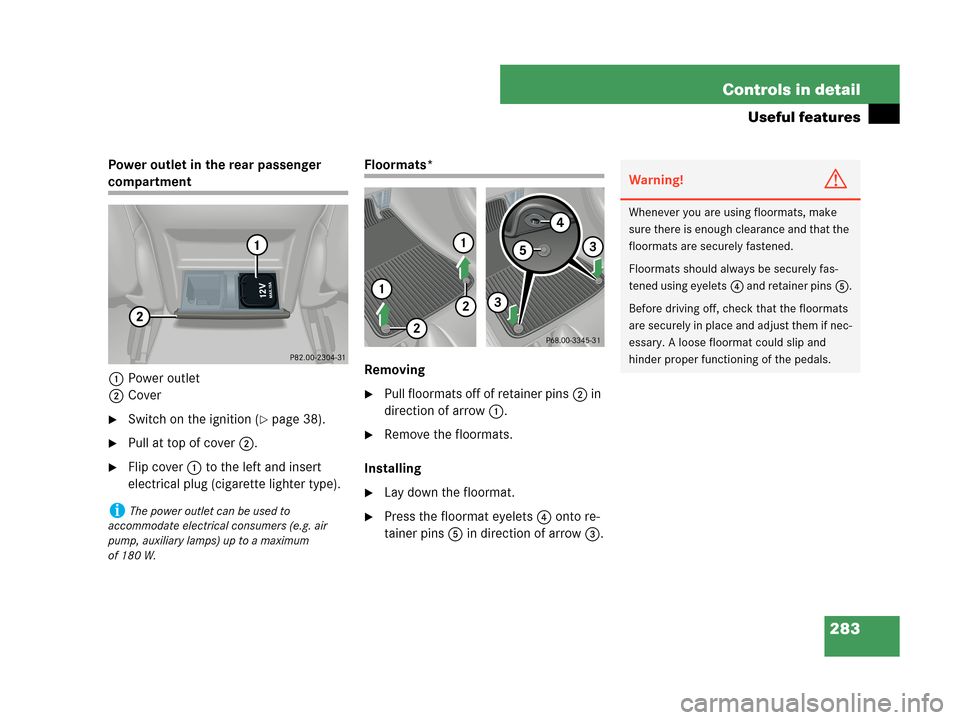

Power outlet in the rear passenger
compartment
1Power outlet
2Cover
Switch on the ignition (page 38).
Pull at top of cover2.
Flip cover1 to the left and insert
electrical plug (cigarette lighter type).
Floormats*
Removing
Pull floormats off of retainer pins2 in
direction of arrow1.
Remove the floormats.
Installing
Lay down the floormat.
Press the floormat eyelets4 onto re-
tainer pins5 in direction of arrow3.iThe power outlet can be used to
accommodate electrical consumers (e.g. air
pump, auxiliary lamps) up to a maximum
of 180 W.
Warning!G
Whenever you are using floormats, make
sure there is enough clearance and that the
floormats are securely fastened.
Floormats should always be securely fas-
tened using eyelets4 and retainer pins5.
Before driving off, check that the floormats
are securely in place and adjust them if nec-
essary. A loose floormat could slip and
hinder proper functioning of the pedals.

284 Controls in detail
Useful features

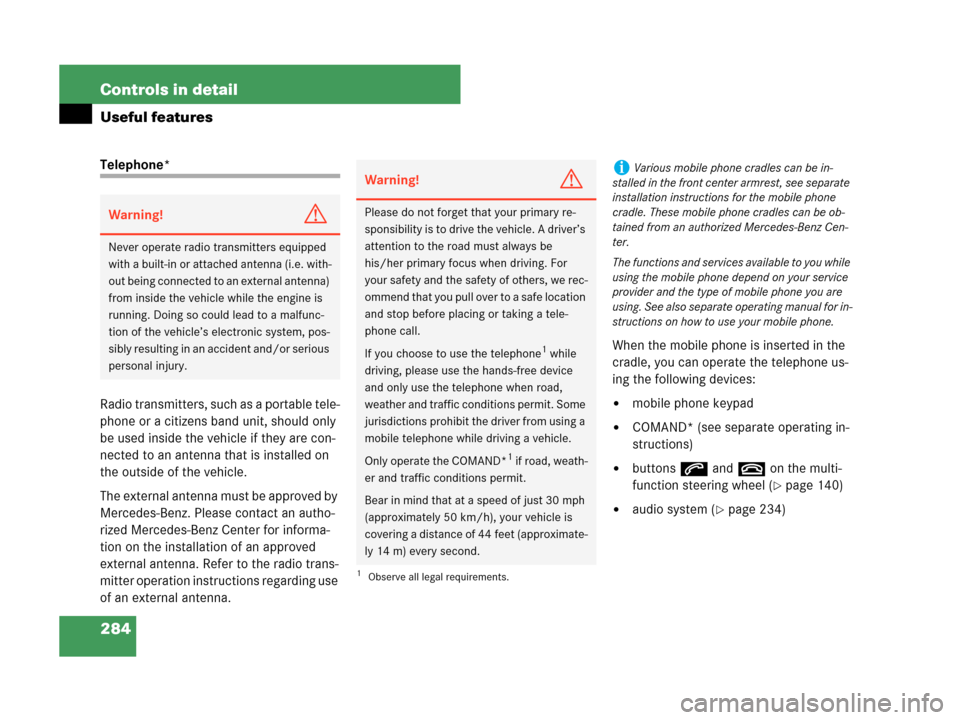

Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.When the mobile phone is inserted in the
cradle, you can operate the telephone us-
ing the following devices:

mobile phone keypad

COMAND* (see separate operating in-
structions)

buttonss andt on the multi-
function steering wheel (
page 140)

audio system (page 234)
Warning!G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.
Warning!G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
mobile telephone while driving a vehicle.
Only operate the COMAND*
1 if road, weath-
er and traffic conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
1Observe all legal requirements.
iVarious mobile phone cradles can be in-
stalled in the front center armrest, see separate
installation instructions for the mobile phone
cradle. These mobile phone cradles can be ob-
tained from an authorized Mercedes-Benz Cen-
ter.
The functions and services available to you while
using the mobile phone depend on your service
provider and the type of mobile phone you are
using. See also separate operating manual for in-
structions on how to use your mobile phone.

285 Controls in detail
Useful features

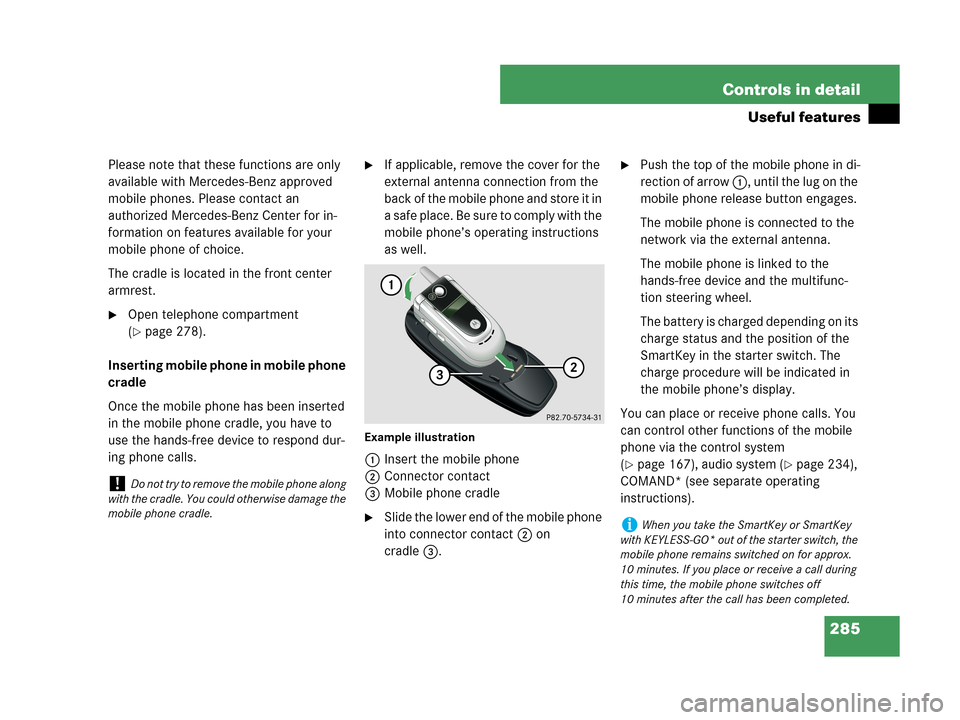

Please note that these functions are only
available with Mercedes-Benz approved
mobile phones. Please contact an
authorized Mercedes-Benz Center for in-
formation on features available for your
mobile phone of choice.
The cradle is located in the front center
armrest.
Open telephone compartment
(
page 278).
Inserting mobile phone in mobile phone
cradle
Once the mobile phone has been inserted
in the mobile phone cradle, you have to
use the hands-free device to respond dur-
ing phone calls.
If applicable, remove the cover for the
external antenna connection from the
back of the mobile phone and store it in
a s a f e p l a c e . B e s u r e t o c o m p l y w i t h t h e
mobile phone’s operating instructions
as well.
Example illustration
1Insert the mobile phone
2Connector contact
3Mobile phone cradle
Slide the lower end of the mobile phone
into connector contact 2 on
cradle3.
Push the top of the mobile phone in di-
rection of arrow 1, until the lug on the
mobile phone release button engages.
The mobile phone is connected to the
network via the external antenna.
The mobile phone is linked to the
hands-free device and the multifunc-
tion steering wheel.
The battery is charged depending on its
charge status and the position of the
SmartKey in the starter switch. The
charge procedure will be indicated in
the mobile phone’s display.
You can place or receive phone calls. You
can control other functions of the mobile
phone via the control system
(
page 167), audio system (page 234),
COMAND* (see separate operating
instructions).
!Do not try to remove the mobile phone along
with the cradle. You could otherwise damage the
mobile phone cradle.
iWhen you take the SmartKey or SmartKey
with KEYLESS-GO* out of the starter switch, the
mobile phone remains switched on for approx.
10 minutes. If you place or receive a call during
this time, the mobile phone switches off
10 minutes after the call has been completed.

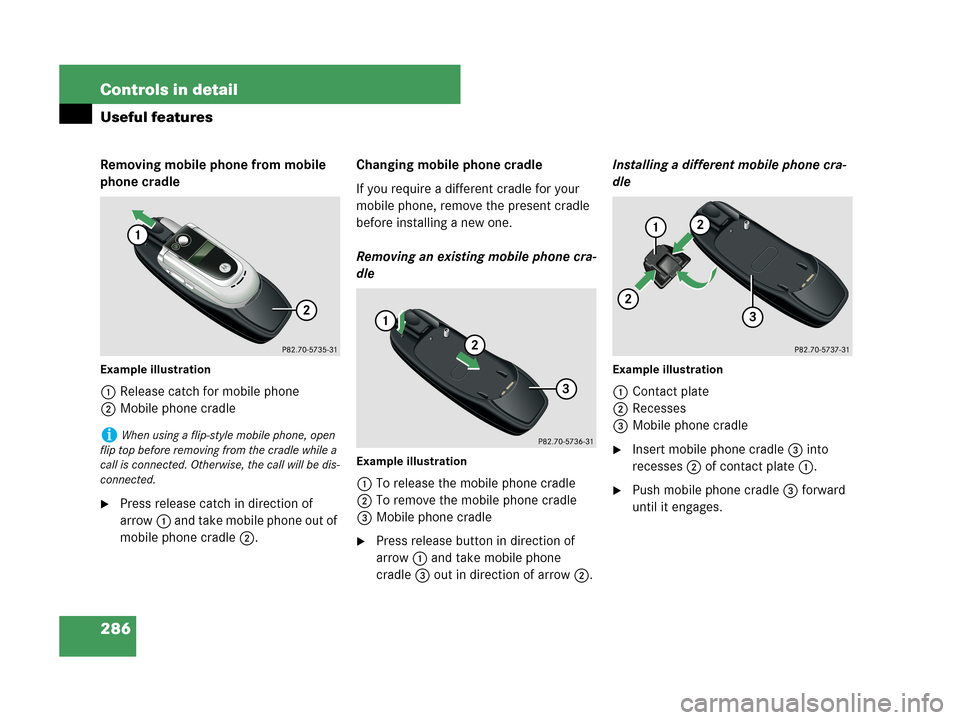

286 Controls in detail
Useful features
Removing mobile phone from mobile
phone cradle
Example illustration
1Release catch for mobile phone
2Mobile phone cradle
Press release catch in direction of
arrow1 and take mobile phone out of
mobile phone cradle2.Changing mobile phone cradle
If you require a different cradle for your
mobile phone, remove the present cradle
before installing a new one.
Removing an existing mobile phone cra-
dle
Example illustration
1To release the mobile phone cradle
2To remove the mobile phone cradle
3Mobile phone cradle
Press release button in direction of
arrow1 and take mobile phone
cradle3 out in direction of arrow2.Installing a different mobile phone cra-
dle
Example illustration
1Contact plate
2Recesses
3Mobile phone cradle
Insert mobile phone cradle3 into
recesses2 of contact plate1.
Push mobile phone cradle3 forward
until it engages.
iWhen using a flip-style mobile phone, open
flip top before removing from the cradle while a
call is connected. Otherwise, the call will be dis-
connected.

287 Controls in detail
Useful features

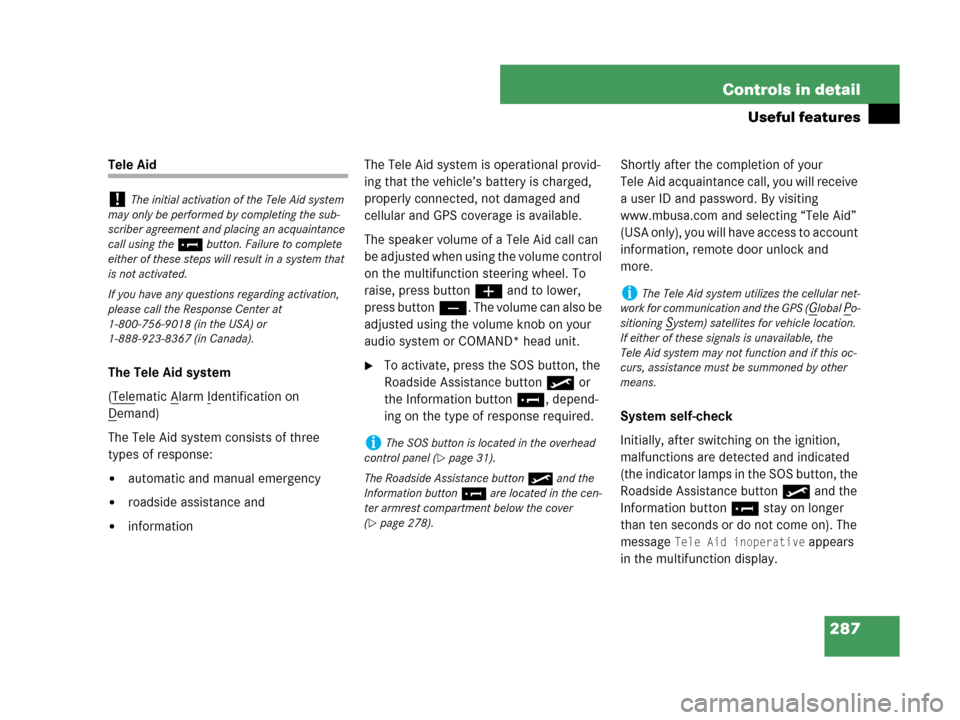

Tele Aid
The Tele Aid system
(Tele
matic Alarm Identification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency

roadside assistance and

informationThe Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and
cellular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the multifunction steering wheel. To
raise, press buttonæ and to lower,
press buttonç. The volume can also be
adjusted using the volume knob on your
audio system or COMAND* head unit.
To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.Shortly after the completion of your
Tele Aid acquaintance call, you will receive
a user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.
System self-check
Initially, after switching on the ignition,
malfunctions are detected and indicated
(the indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than ten seconds or do not come on). The
message
Tele Aid inoperative appears
in the multifunction display.
!The initial activation of the Tele Aid system
may only be performed by completing the sub-
scriber agreement and placing an acquaintance
call using the¡ button. Failure to complete
either of these steps will result in a system that
is not activated.
If you have any questions regarding activation,
please call the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
iThe SOS button is located in the overhead
control panel (
page 31).
The Roadside Assistance button• and the
Information button¡ are located in the cen-
ter armrest compartment below the cover
(
page 278).
iThe Tele Aid system utilizes the cellular net-
work for communication and the GPS (
Global Po-
sitioning
System) satellites for vehicle location.
If either of these signals is unavailable, the
Tele Aid system may not function and if this oc-
curs, assistance must be summoned by other
means.

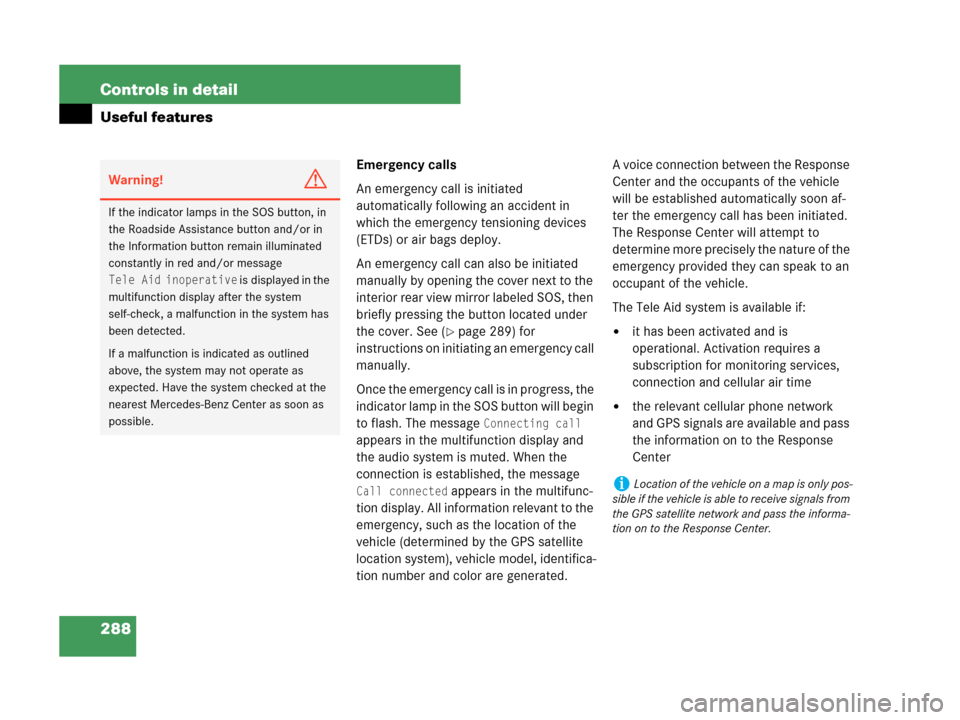

288 Controls in detail
Useful features
Emergency calls
An emergency call is initiated
automatically following an accident in
which the emergency tensioning devices
(ETDs) or air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 289) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call
appears in the multifunction display and
the audio system is muted. When the
connection is established, the message
Call connected appears in the multifunc-
tion display. All information relevant to the
emergency, such as the location of the
vehicle (determined by the GPS satellite
location system), vehicle model, identifica-
tion number and color are generated.A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
emergency provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if:

it has been activated and is
operational. Activation requires a
subscription for monitoring services,
connection and cellular air time

the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
Warning!G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button remain illuminated
constantly in red and/or message
Tele Aid inoperative is displayed in the
multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
iLocation of the vehicle on a map is only pos-
sible if the vehicle is able to receive signals from
the GPS satellite network and pass the informa-
tion on to the Response Center.

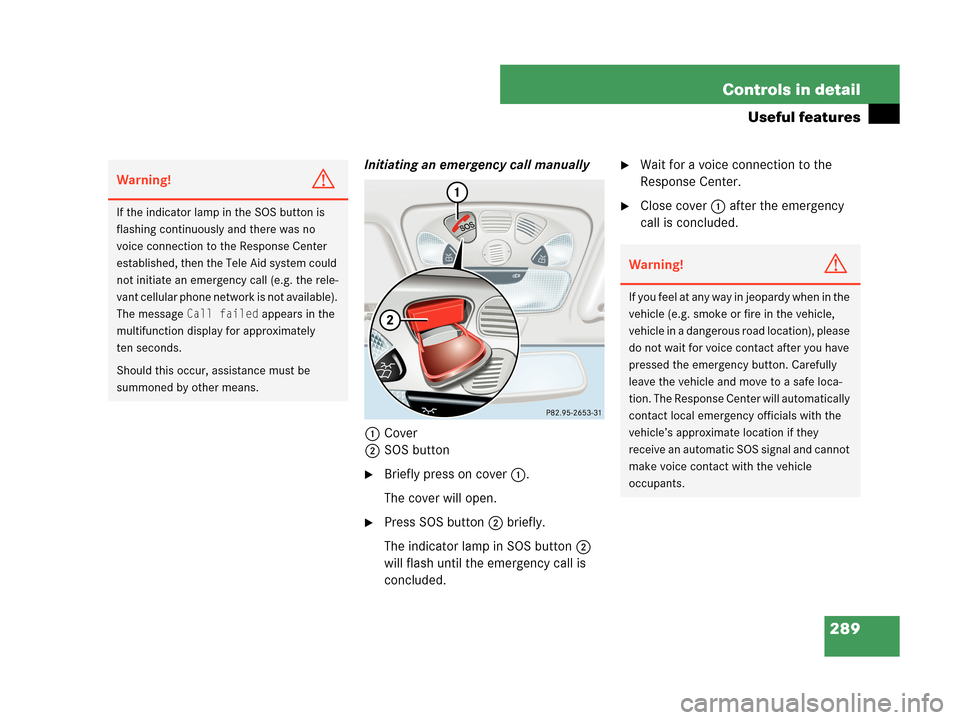

289 Controls in detail
Useful features
Initiating an emergency call manually
1Cover
2SOS button
Briefly press on cover1.
The cover will open.
Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.
Wait for a voice connection to the
Response Center.
Close cover1 after the emergency
call is concluded.
Warning!G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed appears in the
multifunction display for approximately
ten seconds.
Should this occur, assistance must be
summoned by other means.
Warning!G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they
receive an automatic SOS signal and cannot
make voice contact with the vehicle
occupants.
