sensor system. DISTRONIC PLUS brakes
automaticallysot hat the set speed is not
exceeded.
Change into alower gear in good time on long
and steep downhill gradients. This is
especially important if the vehicle is laden. By
doing so, you will make use of the braking
effect of the engine. This relieves the load on
the brake system and prevents the brakes
from overheating and wearing too quickly.
If DISTRONIC PLUS detects that there is arisk
of ac ollision, you will be warned visually and
acoustically.D ISTRONIC PLUS cannot
prevent acollision without your intervention.
An intermittent warning tone will then sound
and the distance warning lamp will light up in
the instrument cluster. Brake immediately in
order to increase the distance to the vehicle
in front or take evasive action provided it is
safe to do so.
For DISTRONIC PLUS to assist you, the radar
sensor system must be operational.
If there is no vehicle in front,D ISTRONIC
PLUS operates in the same way as cruise
control in the speed range between 20 mph
(Canada: 30 km/h) and 120 mph (Canada:
200 km/h). If avehicle is driving in front of
you, it operates in the speed range between
0m ph (0 km/h) and 120 mph (Canada:
200 km/h).
Do not use DISTRONIC PLUS while driving on
roads with steep gradients.
As DISTRONIC PLUS transmits radar waves,
it can resemble the radar detectors of the
responsible authorities. You can refer to the
relevant chapter in the Operator's Manual if
questions are asked aboutt his.
i USA only: This device has been approved
by the FCC as a"VehicularR adar System".
The radar sensor is intended for use in an
automotive radar system only. Removal,
tampering ,oralterin gofthedevice will void
any warranties, and is no tpermitted by the
FCC. Do not tamper with, alter, or use in
any non-approved way. Anyu
nauthorized modification to this
device could void the user's authorit yto
operate the equipment.
i Canada only: This device complies with
RSS-210 of Industry Canada. Operation is
subject to the following two conditions:
1. This device may not cause harmful
interference, and
2. this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Removal, tampering, or altering of the
device will void any warranties, and is not
permitted. Do not tamper with, alter, or use
in any non-approved way.
Anyu nauthorized modification to this
device could void the user's authorit yto
operate the equipment.
Cruise control lever 001A
To stor ethe curren tspeed or ahigher
speed
0010 To stor ethe curren tspeed or alower
speed
0024 To deactivate DISTRONIC PLUS
0021 To stor ethe curren tspeed or call up the
last stored speed
001E To set the specified minimum distance Driving systems
179Driving and parking Z

Activating DISTRONIC PLUS
Activation conditions
In order to activat
eDISTR ONICPLUS, the
followin gconditi onsm ustbef ulfilled:
R the engin emust be started. It may take up
to two minutes after pulling away before
DISTRONIC PLUS is operational.
R the parkin gbrake must be released.
R ESP ®
must be active, but not intervening.
R Active Parkin gAssist must not be
activated.
R the transmission must be in position D.
R the hood must be closed.
R the driver's door must be closed when you
shift from Pto Dor your seat belt must be
fastened.
R the front-passenger door and rear doors
must be closed.
R the vehicle must not skid.
Activating X
Briefly pull the cruise control lever towards
you 0010or press it up 001Aor down 0024.
DISTRONIC PLUS is selected.
X Press the cruise control lever repeatedly
up 001A or down 0024until the desired speed
is set.
X Remove your foot from the accelerator
pedal.
Your vehicle adapts its speed to that of the
vehicle in front, but only up to the desired
stored speed. When driving at speeds below 20 mph
(30 km/h)
,you can only activate DISTRONIC
PLUS if the vehicle in front has been detected
and is shown in the multifunction display .If
the vehicl einfront is no longe rdetected and
displayed, DISTRONIC PLUS switches off and
at ones ounds.
i If you do not fully release the accelerator
pedal, the DISTRONIC PLUS Override message appears in the multifunction
display. The set distanc
etoaslower-
movin gvehicle in fron twill then not be
maintained. You will be driving at the speed
you determine by the position of the
accelerator pedal.
Activating when driving toward sa
stationary vehicle
X Briefly pull the cruise control lever towards
you 0021or press it up 001Aor down 0010.
DISTRONIC PLUS is selected.
X Press the cruise control lever repeatedly
up 001A or down 0010until the desired speed
is set.
If the vehicle in fron tofyou is stationary, you
can only activate DISTRONIC PLUS once your
vehicle is stationary as well.
i DISTRONIC PLUS can only be activated at
under 20 mph (30 km/h) if avehicle in front
has been detected. Therefore, the
DISTRONIC PLUS distanc edisplay in the
instrument cluster should be activated
(Y page 227).
i You can use the cruise control lever to set
the stored speed and the control on the
cruise control lever to set the specified
minimum distanc e(Ypage 183).
Activating at the current speed/last
stored speed G
WARNING
If you call up the stored speed and it differs
from the curren tspeed, the vehicle
accelerates or decelerates. If you do not know
the stored speed, the vehicle could accelerate 180
Driving systemsDriving and parking

or brake unexpectedly. There is
arisk of an
accident.
Pay attention to the road and traffic
conditions before calling up the stored speed.
If you do not know the stored speed, store the
desired speed again. X
Briefly pull the cruise control lever towards
you 001A.
X Remove your foot from the accelerator
pedal.
DISTRONIC PLUS is activated. The first
time it is activated, the current speed is
stored. Otherwise, it sets the vehicle cruise
speed to the previously stored value.
Driving with DISTRONIC PLUS Pulling away and driving X
If you want to pull away with
DISTRONIC PLUS: remove your foot from
the brake pedal.
X Briefly pull the cruise control lever towards
you 001A
or
X Accelerate briefly.
Your vehicle pulls away and adapts its
speed to that of the vehicle in front.
i The vehicle can also pull away when it is
facing an unidentified obstacle or is driving
on adifferent line from another vehicle. The
vehicle then brakes automatically. There is
ar isk of an accident .Beready to brake at
all times.
If there is no vehicle in front,D ISTRONIC
PLUS operates in the same way as cruise
control.
If DISTRONIC PLUS detect sthat the vehicle
in front has slowed down, it brakes your
vehicle. In this way, the distance you have
selected is maintained.
If DISTRONIC PLUS detect safaster-moving
vehicle in front,iti ncreases the driving speed.
However, the vehicle is only accelerated up
to the speed you have stored.
Changing lanes
If you change to the passing lane, DISTRONIC
PLUS supports you when:
R you are driving faster than 40 mph
(60 km/h)
R DISTRONIC PLUS is maintaining the
distance to avehicle in front
R you switch on the appropriate turn signal
R DISTRONIC PLUS does not detect adanger
of collision
If these conditions are fulfilled, your vehicle
is accelerated. Acceleration will be
interrupted if changing lanes takes too long
or if the distance between your vehicle and
the vehicle in front becomes too small.
i When changing lanes, DISTRONIC PLUS
monitors the left lane on left-hand drive Driving systems
181Driving and parking Z

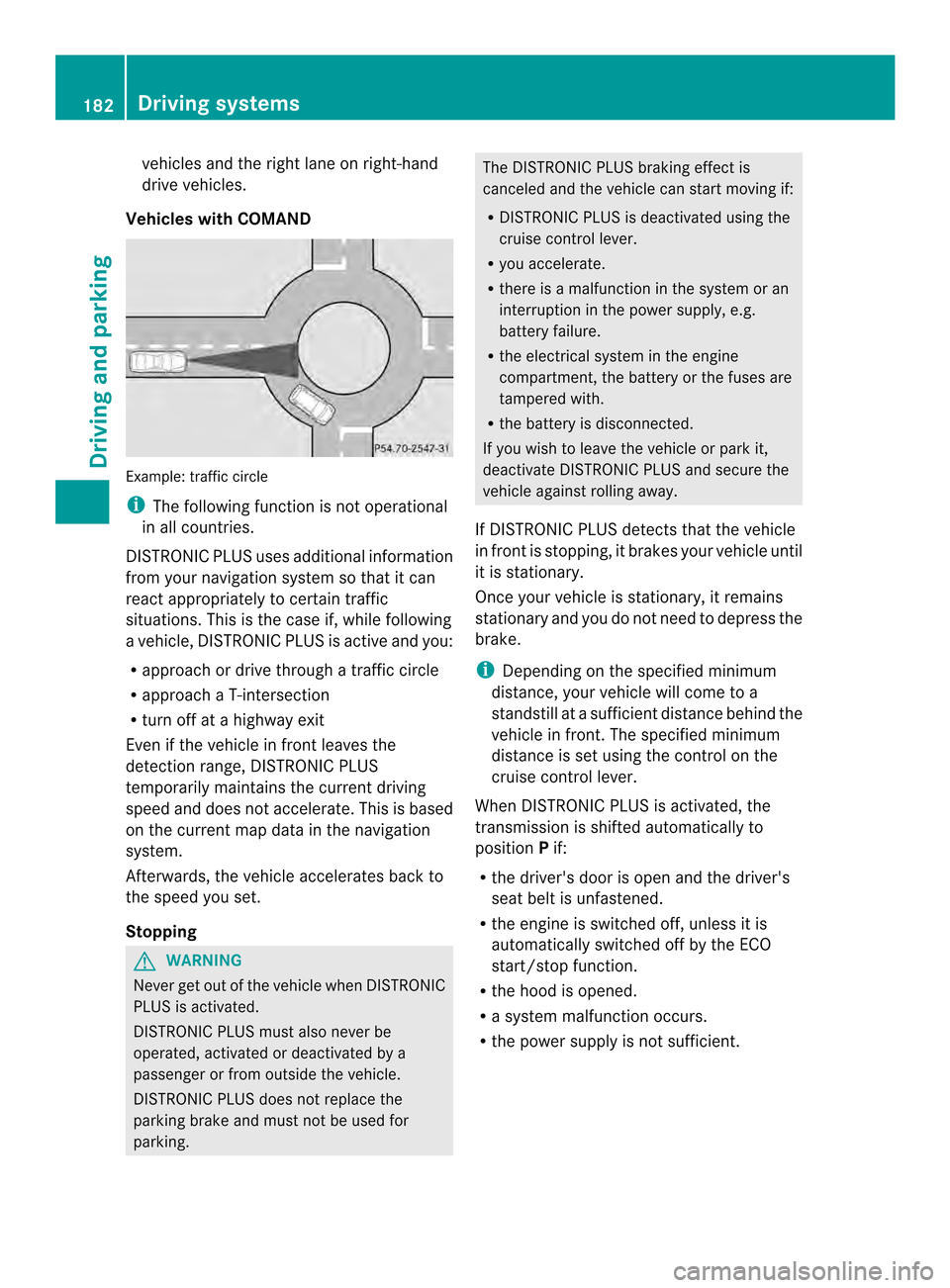

vehicles and the right lane on right-hand
drive vehicles.
Vehicles with COMAND Example
:traffic circle
i The following function is not operational
in all countries.
DISTRONIC PLUS usesa dditionalinformation
from yourn avigation system so that it can
react appropriately to certain traffic
situations. This is the case if, while following
av ehicle, DISTRONIC PLUS is active and you:
R approach or drive through atraffic circle
R approach aT-intersection
R turn off at ahighwaye xit
Even if the vehicl einfront leaves the
detection range, DISTRONIC PLUS
temporarily maintains the current driving
spee dand does not accelerate. This is based
on the current map data in the navigation
system.
Afterwards, the vehicl eaccelerates back to
the spee dyou set.
Stopping G
WARNING
Never get out of the vehicl ewhen DISTRONIC
PLUS is activated.
DISTRONIC PLUS must alson ever be
operated, activated or deactivated by a
passenger or from outside the vehicle.
DISTRONIC PLUS does not replace the
parking brake and must not be used for
parking. The DISTRONIC PLUS braking effect is
canceled and the vehicl
ecan start moving if:
R DISTRONIC PLUS is deactivated using the
cruise control lever.
R you accelerate.
R there is amalfunction in the system or an
interruption in the power supply,e .g.
battery failure.
R the electrica lsystem in the engine
compartment, the battery or the fuses are
tampere dwith.
R the battery is disconnected.
If you wishtol eave the vehicl eorpark it,
deactivate DISTRONIC PLUS and secure the
vehicl eagainst rolling away.
If DISTRONIC PLUS detects that the vehicle
in front is stopping, it brakes yourv ehicle until
it is stationary.
Oncey our vehicle is stationary, it remains
stationary and you do not need to depress the
brake.
i Depending on the specified minimum
distance, your vehicle will come to a
standstill at asufficien tdistanc ebehin dthe
vehicle in front .The specified minimum
distance is set using the control on the
cruise control lever.
When DISTRONIC PLUS is activated, the
transmission is shifted automatically to
position Pif:
R the driver's door is open and the driver's
seat belt is unfastened.
R the engine is switched off, unless it is
automatically switched off by the ECO
start/stop function.
R the hood is opened.
R as ystem malfunction occurs.
R the power supply is not sufficient. 182
Driving systemsDriving and parking

Setting
aspeed X
Press the cruise control lever up 001Afor a
highe rspeed or down 0010for alower speed.
X To adjust the set speed in 1mph
increment s(1km/h increments): briefly
press the cruise contro llever up 001Aor
down 0010to the pressure point.
Ever ytime the cruise contro llever is
pressed up 001Aor down 0010,the last speed
stored is increased or reduced.
X To adjust the set speed in 5mph
increment s(10 km/h increments):
briefly press the cruise contro llever
up 001A or down 0010to the pressure point.
Ever ytime the cruise contro llever is
pressed up 001Aor down 0010,the last speed
stored is increased or reduced.
i If you accelerate to overtake, DISTRONIC
PLUS adjusts the vehicle's speed to the last
speed stored after you have finished
overtaking.
Setting the specified minimum distance You can set the specified minimum distance
for DISTRONIC PLUS by varying the time span
between one and two seconds. With this
function ,you can set the minimum distance
that DISTRONIC PLUS keeps to the vehicle in
front, dependen tonvehicle speed. You can
see this distanc einthe multifunction display
(Y page 184).
i Make sure that you maintain asufficient
distanc etothe vehicle in fron tand comply with the minimu
mdistanc easrequire dby
law. Adjust the distanc etothe vehicle in
front if necessary. You can set the specified minimum distance
for DISTRONIC PLUS by varyin gthe tim espan
between one and two seconds .With this
function ,you can set the minimum distance
that DISTRONIC PLUS keep stothe vehicle in
front ,dependent on vehicle speed. You can
see this distanc einthe multifunction display
(Y page 184).
X To increase: turnc ontrol 0010in direction
0024.
DISTRONIC PLUS the nmaintains agreater
distanc ebetween your vehicle and the
vehicle in front.
X To decrease: turnc ontrol 0010in
direction 001A.
DISTRONI CPLUSthen maintains ashorter
distance between your vehicle and the
vehicle in front.
DISTRONIC PLUS displays in the
speedometer Driving systems
183Driving and parking Z

When DISTRONIC PLUS is activated, one or
two segments
0010in the set speed range light
up.
If DISTRONIC PLUS detect savehicle in front,
segments 0010between speed of the vehicle in
front 001Aand stored speed 0024light up.
i For design reasons, the speed displayed
in the speedometer may differ slightly from
the speed set for DISTRONIC PLUS.
DISTRONIC PLUS displays in the
multifunction display General notes
In the assistanc
egraphics display menu
(Y page 227)oft he on-board computer, you
can select the assistanc egraphics display.
Display when DISTRONIC PLUS is
deactivated 001A
Vehicle in front, if detected
0010 Distance indicator, curren tdistanc eto
the vehicle in front
0024 Specified minimum distanc etothe
vehicle in front; adjustable
0021 Own vehicle
X Select the DistanceDisplay function
using the on-board computer
(Y page 227). Display when DISTRONIC PLUS is
activated
001A
Vehicle in front, if detected
0010 Specified minimum distanc etothe
vehicle in front; adjustable
0024 Own vehicle
0021 DISTRONIC PLUS active (tex tonly
appears when the cruise control lever is
actuated)
You will see the stored speed for about five
seconds when you activat eDISTRONIC PLUS.
X Select the DistanceDisplay function
using the on-board computer
(Y page 227).
i You will see the stored speed for about
five seconds when you activate DISTRONIC
PLUS.
Deactivating DISTRONIC PLUS 184
Driving systemsDriving and parking

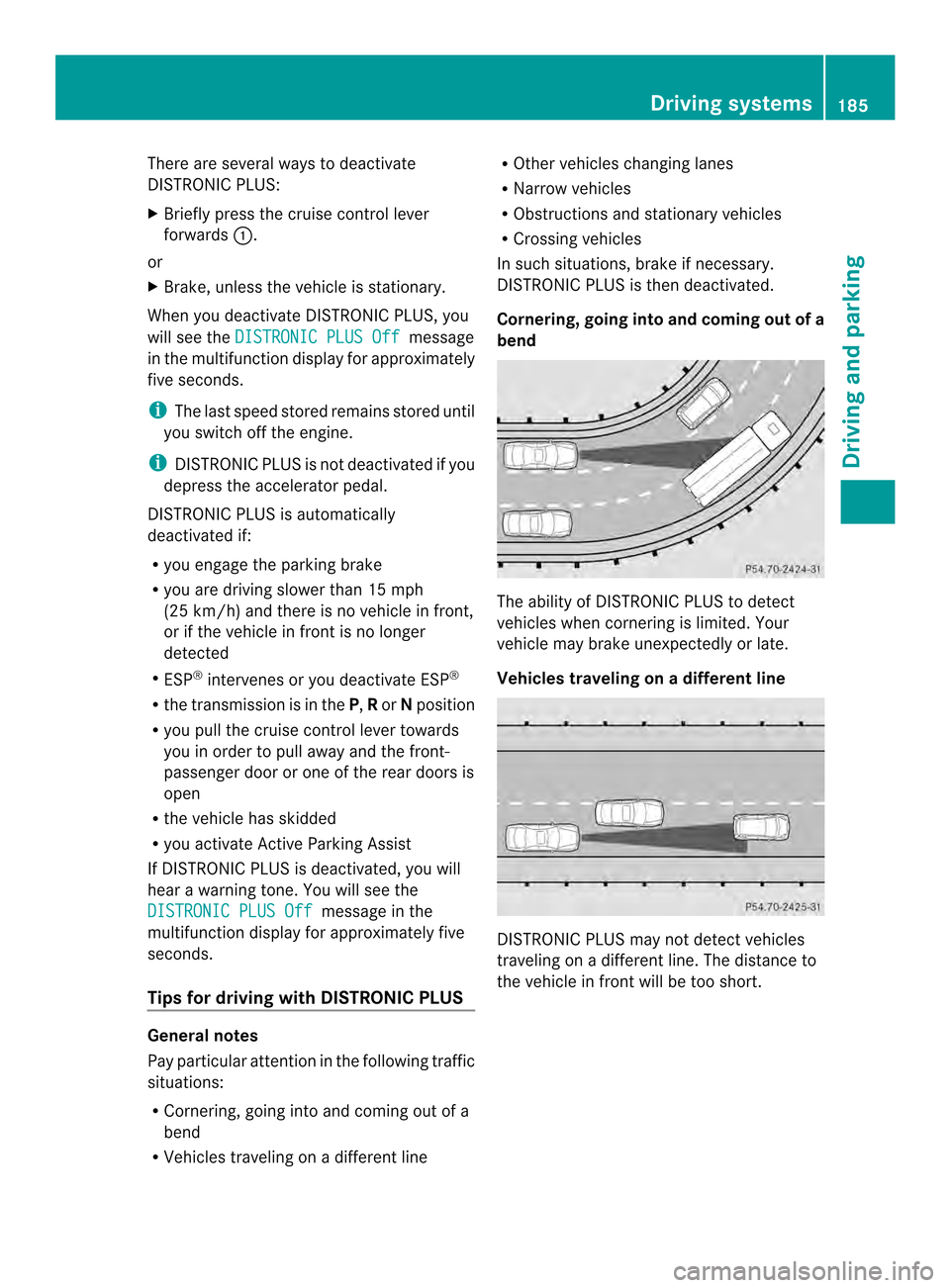

There are several ways to deactivate
DISTRONIC PLUS:
X
Briefly press the cruise control lever
forwards 001A.
or
X Brake, unless the vehicle is stationary.
When you deactivate DISTRONIC PLUS, you
will see the DISTRONIC PLUS Off message
in the multifunction display for approximately
five seconds.
i The last speed stored remains stored until
you switch off the engine.
i DISTRONIC PLUS is not deactivated if you
depress the accelerator pedal.
DISTRONIC PLUS is automatically
deactivated if:
R you engage the parking brake
R you are driving slower than 15 mph
(25 km/h) and there is no vehicle in front,
or if the vehicle in frontisnol onger
detected
R ESP ®
intervenes or you deactivate ESP ®
R the transmission is in the P,Ror Nposition
R you pull the cruise control lever towards
you in order to pull away and the front-
passenger door or one of the rear doors is
open
R the vehicle has skidded
R you activat eActive Parking Assist
If DISTRONIC PLUS is deactivated, you will
hear awarning tone. You will see the
DISTRONIC PLUS Off message in the
multifunction display for approximately five
seconds.
Tips for driving with DISTRONIC PLUS General notes
Pay particular attention in the following traffic
situations:
R Cornering, going into and coming out of a
bend
R Vehicles traveling on adifferent line R
Other vehicles changin glanes
R Narrow vehicles
R Obstructions and stationary vehicles
R Crossing vehicles
In such situations, brake if necessary.
DISTRONIC PLUS is then deactivated.
Cornering, going into and coming out of a
bend The ability of DISTRONIC PLUS to detect
vehicles when cornering is limited. Your
vehicle may brake unexpectedly or late.
Vehicles traveling on
adifferent line DISTRONIC PLUS may not detec
tvehicles
traveling on adifferent line. The distance to
the vehicle in fron twill be too short. Driving systems
185Driving and parking Z

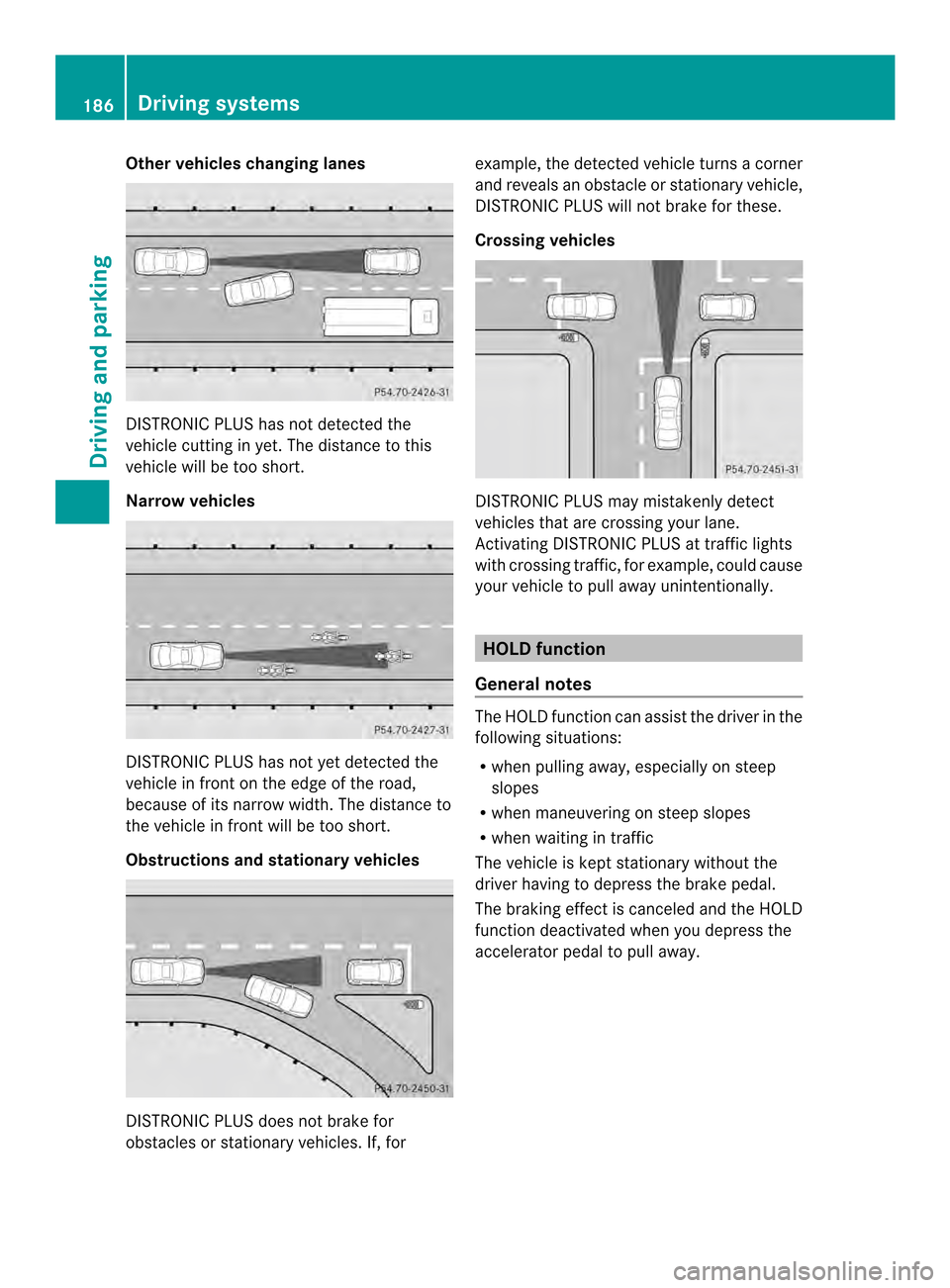

Other vehicles changing lanes
DISTRONIC PLUS has not detected the
vehicle cutting in yet. The distanc etothis
vehicle will be too short.
Narrow vehicles DISTRONIC PLUS has not yet detected the
vehicle in fron tonthe edge of the road,
because of its narrow width. The distance to
the vehicle in front will be too short.
Obstructions and stationary vehicles DISTRONIC PLUS does not brake for
obstacles or stationary vehicles. If, for example, the detected vehicle turns
acorner
and reveals an obstacle or stationary vehicle,
DISTRONIC PLUS will not brake for these.
Crossing vehicles DISTRONIC PLUS may mistakenly detect
vehicles that are crossing your lane.
Activating DISTRONIC PLUS at traffic lights
with crossing traffic, for example, could cause
your vehicle to pull away unintentionally.
HOLD function
General notes The HOLD function can assist the driver in the
following situations:
R
when pulling away,e speciallyonsteep
slopes
R when maneuvering on steep slopes
R when waiting in traffic
The vehicle is kept stationary without the
driver having to depress the brake pedal.
The braking effect is canceled and the HOLD
function deactivated when you depress the
accelerator pedal to pull away. 186
Driving systemsDriving and parking

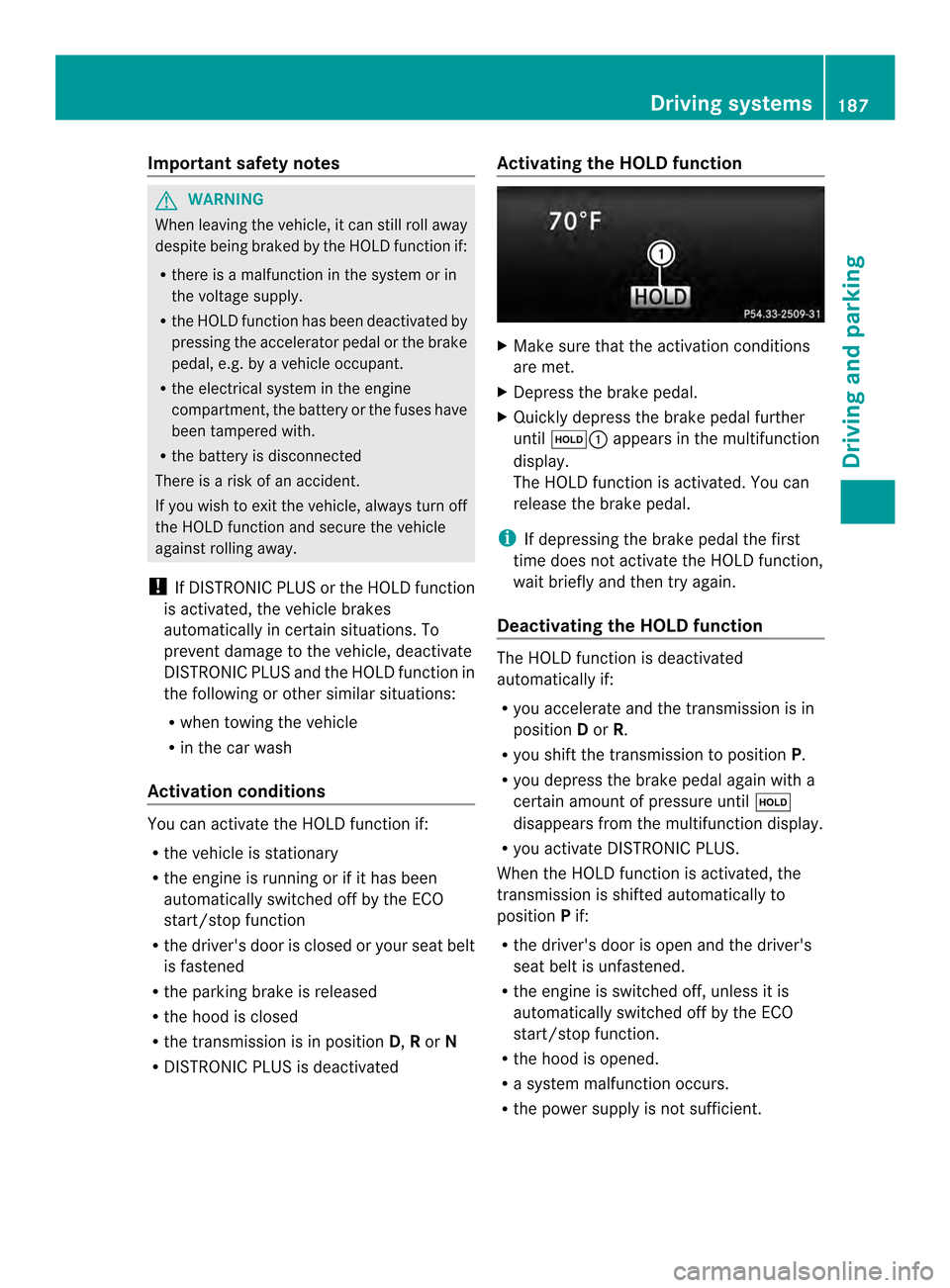

Important safety notes
G
WARNING
When leaving th evehicle, it can still rol laway
despit ebein gbraked by th eHOLD function if:
R there is amalfunction in the system or in
the voltage supply.
R the HOLD function has been deactivated by
pressing the accelerator pedal or the brake
pedal,e .g. byavehicle occupant.
R the electrical system in the engine
compartment,t he battery or the fuses have
been tampered with.
R the battery is disconnected
There is arisk of an accident.
If you wish to exit the vehicle, always turn off
the HOLD function and secure the vehicle
against rolling away.
! If DISTRONIC PLUS or the HOLD function
is activated, the vehicle brakes
automaticallyinc ertain situations. To
prevent damage to the vehicle, deactivate
DISTRONIC PLUS and the HOLD function in
the following or other similars ituations:
R when towin gthe vehicle
R in the car wash
Activation conditions You can activat
ethe HOL Dfunction if:
R the vehicle is stationary
R the engine is running or if it has been
automatically switched off by the ECO
start/stop function
R the driver's door is closed or your seat belt
is fastened
R the parking brak eisreleased
R the hood is closed
R the transmission is in position D,Ror N
R DISTRONIC PLUS is deactivated Activating th
eHOLD function X
Make sure that the activation conditions
are met.
X Depress the brak epedal.
X Quickly depres sthe brak epedal further
until 0007001A appears in the multifunction
display.
The HOL Dfunction is activated. You can
release the brak epedal.
i If depressing the brak epedal the first
tim edoes not activat ethe HOL Dfunction,
wait briefly and the ntry again.
Deactivatin gthe HOLD function The HOLD function is deactivated
automatically if:
R
you accelerate and the transmission is in
position Dor R.
R you shift the transmission to position P.
R you depress the brake peda lagain with a
certain amount of pressure until 0007
disappears from the multifunction display.
R you activate DISTRONIC PLUS.
When the HOLD function is activated ,the
transmission is shifted automatically to
position Pif:
R the driver's door is open and the driver's
seat beltisu nfastened.
R the engine is switched off, unless it is
automaticallys witched off by the ECO
start/stop function.
R the hood is opened.
R as ystem malfunction occurs.
R the power supplyisn ot sufficient. Driving systems
187Driving and parking Z

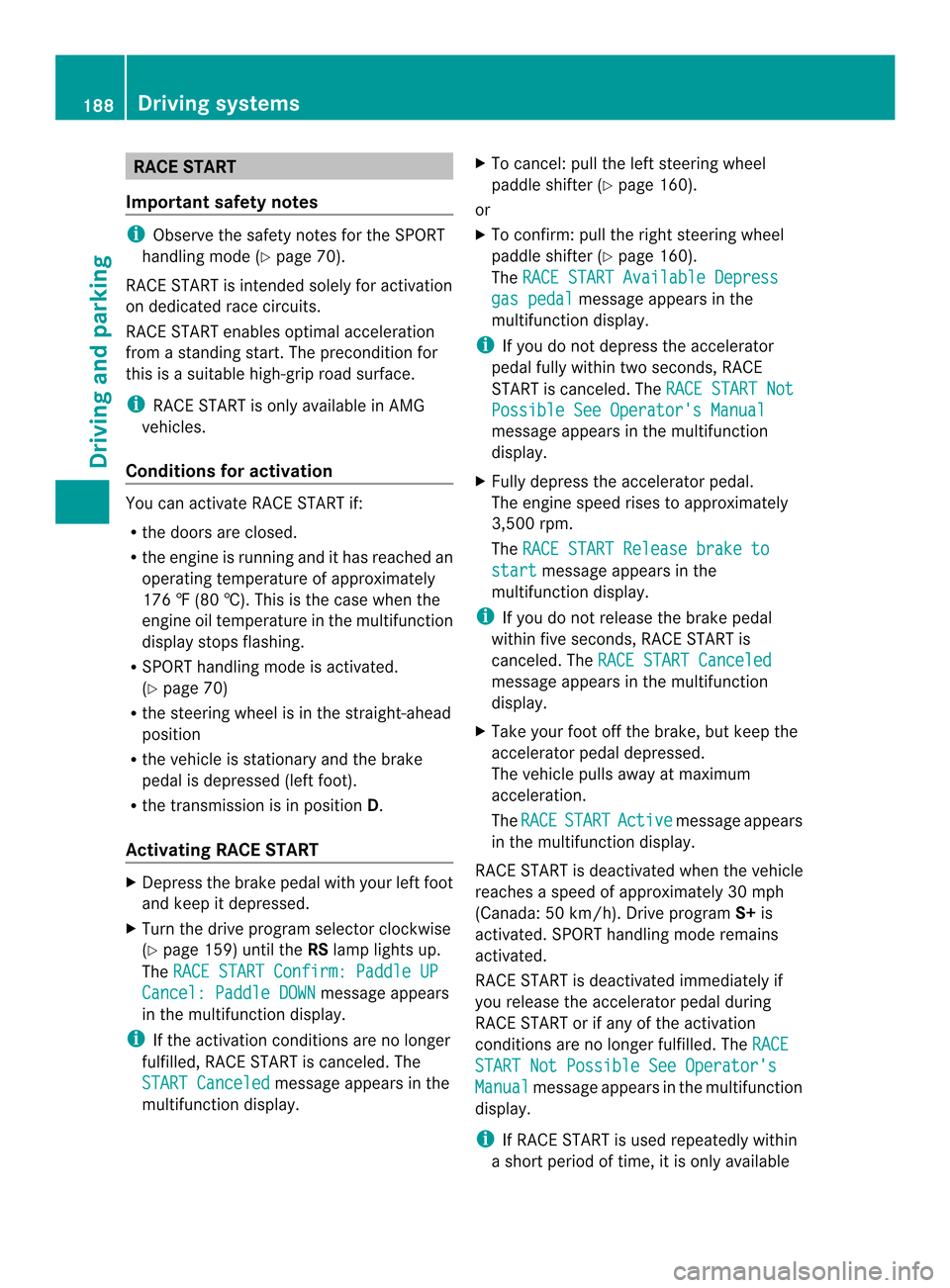

RAC
ESTART
Important safety notes i
Observe the safety notes for the SPORT
handling mod e(Ypage 70).
RAC ESTART is intended solely for activation
on dedicated race circuits.
RACE START enables optimal acceleration
from astandin gstart .The precondition for
this is asuitable high-grip road surface.
i RACE START is only available in AMG
vehicles.
Conditions for activation You can activat
eRACE START if:
R the doors are closed.
R the engine is runnin gand it has reached an
operating temperature of approximately
176 ‡(80 †). This is the case when the
engine oil temperature in the multifunction
display stops flashing.
R SPORT handling mode is activated.
(Y page 70)
R the steerin gwheel is in the straight-ahead
position
R the vehicle is stationary and the brake
pedal is depressed (left foot).
R the transmission is in position D.
Activating RACE START X
Depress the brake pedal with your left foot
and keep it depressed.
X Turn the drive program selector clockwise
(Y page 159) until the RSlamp lights up.
The RACE START Confirm: Paddle UP Cancel: Paddle DOWN message appears
in the multifunction display.
i If the activation conditions are no longer
fulfilled, RACE START is canceled. The
START Canceled message appears in the
multifunction display. X
To cancel: pull the left steerin gwheel
paddle shifter (Y page 160).
or
X To confirm: pull the right steerin gwheel
paddle shifter (Y page 160).
The RACE START Available Depress gas pedal message appears in the
multifunction display.
i If you do not depress the accelerator
pedal fully within two seconds, RACE
START is canceled. The RACE START Not Possible See Operator's Manual
message appears in the multifunction
display.
X Fully depress the accelerator pedal.
The engine speed rises to approximately
3,500 rpm.
The RACE START Release brake to start message appears in the
multifunction display.
i If you do not release the brake pedal
within five seconds, RACE START is
canceled. The RACE START Canceled message appears in the multifunction
display.
X Take your foot off the brake, but keep the
accelerator pedal depressed.
The vehicle pulls away at maximum
acceleration.
The RACE START Active message appears
in the multifunction display.
RACE START is deactivated when the vehicle
reaches aspeed of approximately 30 mph
(Canada: 50 km/h) .Drive program S+is
activated. SPORT handling mode remains
activated.
RACE START is deactivated immediately if
you release the accelerator pedal during
RACE START or if any of the activation
conditions are no longer fulfilled. The RACE START Not Possible See Operator's
Manual message appears in the multifunction
display.
i If RACE START is used repeatedly within
as hort period of time, it is only available 188
Driving systemsDriving and parking
