Page 341 of 373

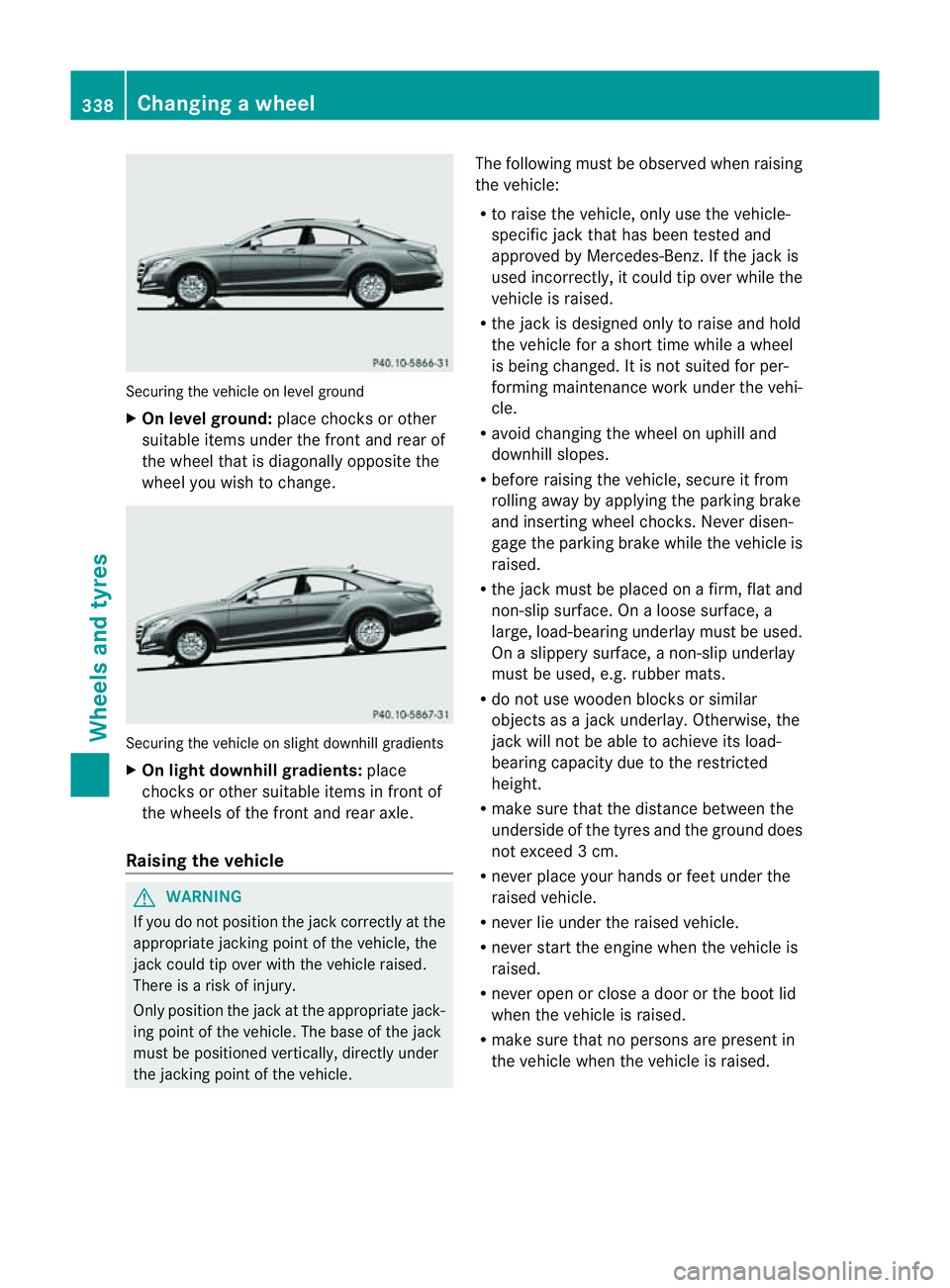

Securing the vehicle on level ground
X
On level ground: place chocks or other
suitabl eitem sunder the front and rea rof
the whee ltha tisd iagonally opposite the
wheel you wish to change. Securing the vehicle on slight downhill gradients
X
On light downhill gradients: place
chocks or other suitablei tems in front of
the wheels of the front and rear axle.
Raising the vehicle G
WARNING
If you do not position the jack correctly at the
appropriate jacking point of the vehicle, the
jack could tip over with the vehicle raised.
There is arisk of injury.
Only position the jack at the appropriate jack-
ing point of the vehicle. The base of the jack
must be positioned vertically, directly under
the jacking point of the vehicle. The following must be observed when raising
the vehicle:
R
to raise the vehicle, only use the vehicle-
specific jack that has been tested and
approved by Mercedes-Benz.Ift he jack is
used incorrectly, it could tip over while the
vehicle is raised.
R the jack is designed only to raise and hold
the vehicle for ashort time while awheel
is being changed. It is not suited for per-
forming maintenance work under the vehi-
cle.
R avoid changing the wheel on uphilla nd
downhill slopes.
R before raising the vehicle, secure it from
rolling awaybya pplying the parking brake
and inserting wheel chocks. Never disen-
gage the parking brake while the vehicle is
raised.
R the jack must be placed on afirm, flat and
non-slip surface. On aloose surface, a
large, load-bearing underlay must be used.
On aslippery surface, anon-slip underlay
must be used, e.g. rubber mats.
R do not use wooden blocks or similar
objects as ajack underlay.O therwise, the
jack will no tbea ble to achiev eits load-
bearin gcapacity due to the restricted
height.
R mak esure that the distanc ebetween the
underside of the tyre sand the groun ddoes
not exceed 3cm.
R never place your hands or feet under the
raised vehicle.
R never lie under the raised vehicle.
R never start the engine when the vehicle is
raised.
R never open or clos eadoor or the boot lid
when the vehicle is raised.
R mak esure that no persons are present in
the vehicle when the vehicle is raised. 338
Changin
gawheelWheels and tyres
Page 342 of 373

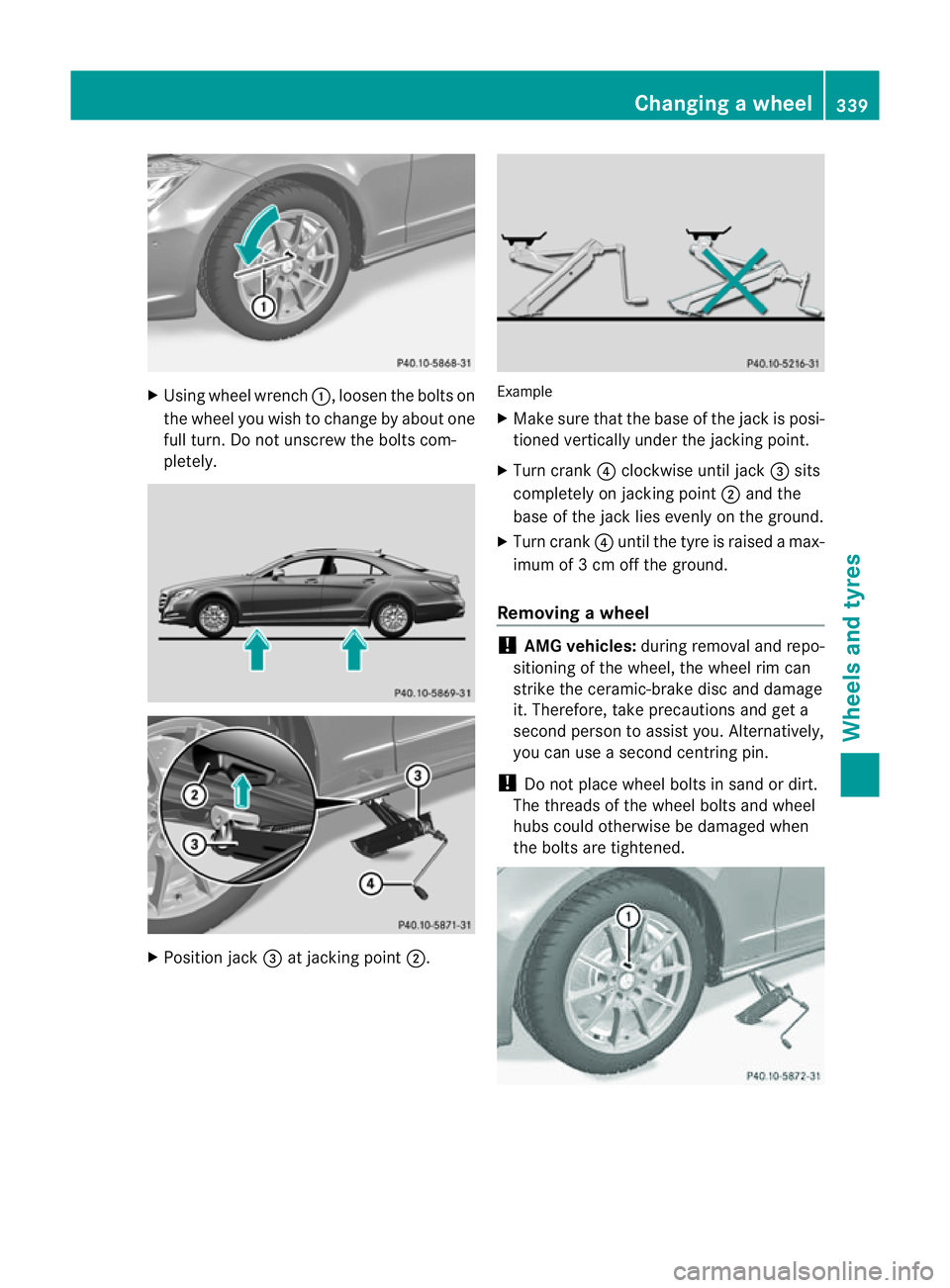

X
Using wheel wrench :,loosen the bolts on
the wheel you wish to change by abouto ne
full turn. Do not unscrew the bolts com-
pletely. X
Positio njack =at jackin gpoint ;. Example
X
Mak esure that th ebase of th ejackisp osi-
tioned vertically under the jacking point.
X Turn crank ?clockwise until jack =sits
completely on jacking point ;and the
base of the jack lies evenly on the ground.
X Turn crank ?until the tyre is raised amax-
imum of 3cmoff the ground.
Removing awheel !
AMG vehicles: during removaland repo-
sitioning of the wheel, the wheel rim can
strike the ceramic-brake disc and damage
it. Therefore, take precautions and get a
second perso ntoassist you. Alternatively,
you can use asecond centring pin.
! Do not place wheel bolts in sand or dirt.
The threads of the wheel bolts and wheel
hubs could otherwise be damaged when
the bolts are tightened. Changing
awheel
339Wheels and tyres Z
Page 343 of 373

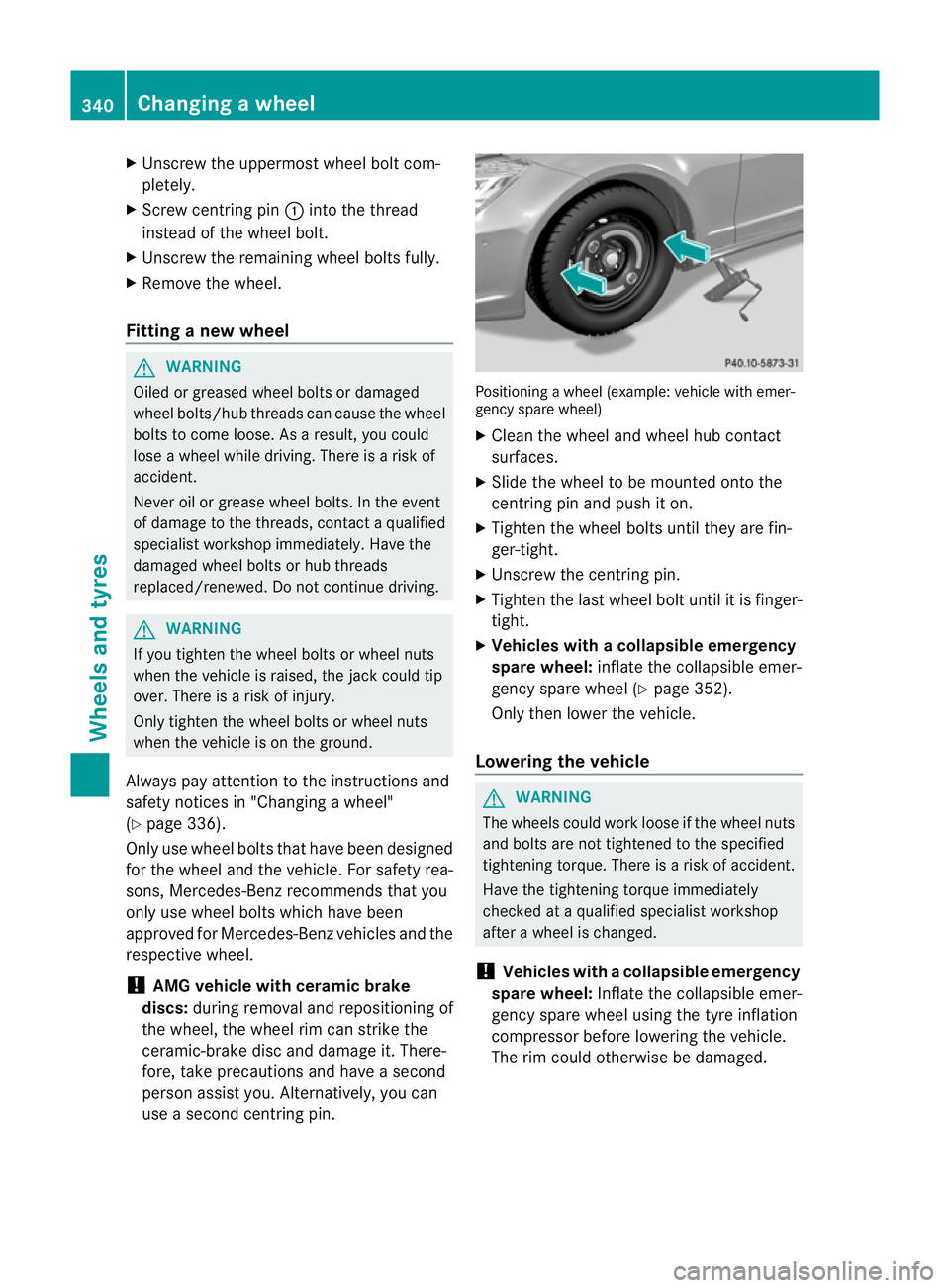

X
Unscrew the uppermost wheel bolt com-
pletely.
X Screw centring pin :into the thread
instead of the wheel bolt.
X Unscrew the remaining wheel bolts fully.
X Remove the wheel.
Fitting anew wheel G
WARNING
Oiled or greased wheel bolt sordamaged
wheel bolts/hub threads can cause th ewheel
bolt stoc omeloose .Asa result, you could
lose awheel while driving. There is arisk of
accident.
Never oil or grease wheel bolts. In the event
of damage to the threads, contact aqualified
specialist workshop immediately.H ave the
damage dwheel bolt sorhub threads
replaced/renewed. Do no tcontinue driving. G
WARNING
If you tighten the wheel bolts or wheel nuts
when the vehicle is raised, the jack could tip
over. There is arisk of injury.
Only tighten the wheel bolts or wheel nuts
when the vehicle is on the ground.
Always pay attention to the instructions and
safety notices in "Changing awheel"
(Y page 336).
Only use wheel bolts that have been designed
for the wheel and the vehicle. For safety rea-
sons, Mercedes-Benz recommends that you
only use wheel bolts which have been
approved for Mercedes-Benz vehicles and the
respective wheel.
! AMG vehicle with ceramic brake
discs: during removal and repositionin gof
the wheel, the wheel rim can striket he
ceramic-brake disc and damage it. There-
fore, take precautions and have asecond
person assist you. Alternatively, you can
use asecond centring pin. Positioning
awheel (example: vehicle with emer-
gency spare wheel)
X Clean the wheel and wheel hub contact
surfaces.
X Slide the wheel to be mounted ontot he
centring pin and push it on.
X Tighten the wheel bolts until they are fin-
ger-tight.
X Unscrew the centring pin.
X Tighten the last wheel bolt until it is finger-
tight.
X Vehicles with acollapsible emergency
spare wheel: inflate thecollapsible emer-
gency spare wheel (Y page 352).
Only then lower th evehicle.
Lowering th evehicle G
WARNING
The wheels could work loose if th ewheel nuts
and bolt sare not tightene dtothe specified
tightening torque. There is arisk of accident.
Have the tightening torque immediately
checked at aqualified specialist workshop
after awheel is changed.
! Vehicles with acollapsible emergency
spare wheel: Inflatethe collapsible emer-
gency spare wheel usin gthe tyreinflation
compressor before lowering th evehicle.
The rim could otherwise be damaged. 340
Changing
awheelWheels and tyres

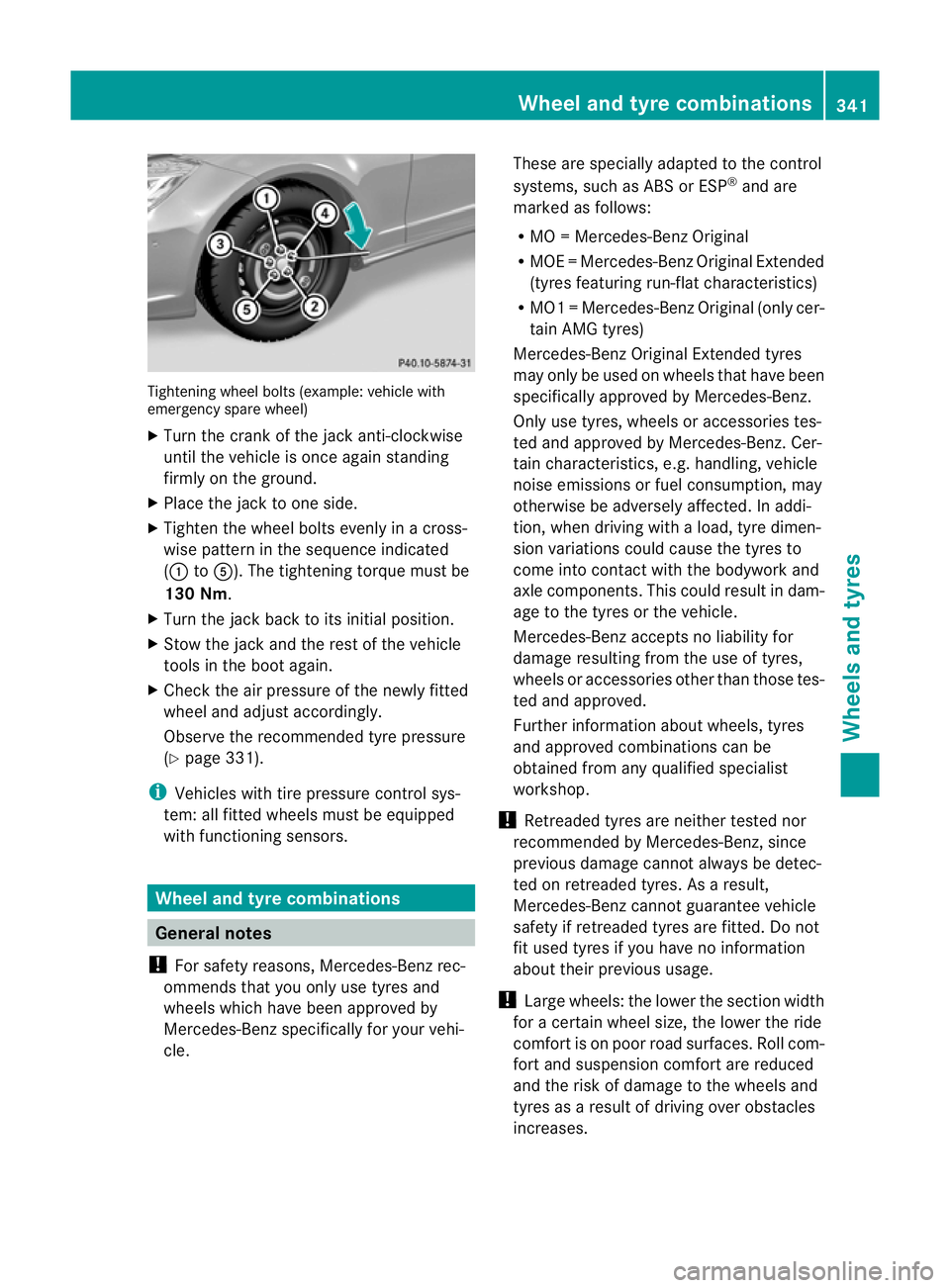

Page 344 of 373

Tightenin
gwheel bolts (example: vehicle with
emergenc yspare wheel)
X Turn the crank of the jack anti-clockwise
until the vehicle is once again standing
firmly on the ground.
X Place the jack to one side.
X Tighten the wheel bolts evenly in across-
wise pattern in the sequence indicated
(: toA). The tightening torque must be
130 Nm.
X Turn the jack back to its initial position.
X Stow the jack and the rest of the vehicle
tools in the boot again.
X Check the air pressure of the newly fitted
wheel and adjust accordingly.
Observe the recommended tyre pressure
(Y page 331).
i Vehicles with tire pressure control sys-
tem: all fitted wheels must be equipped
with functioning sensors. Wheel and tyrec
ombinations General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle. These are specially adapted to the control
systems, such as ABS or ESP
®
and are
marked as follows:
R MO =Mercedes-BenzO riginal
R MOE =Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 =Mercedes-BenzO riginal (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be usedonw heels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with aload, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components.T his could result in dam-
age to the tyres or the vehicle.
Mercedes-Ben zaccepts no liability for
damag eresulting from the us eoftyres,
wheel soraccessorie sothe rthan those tes-
ted and approved.
Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz, since
previous damage cannot always be detec-
ted on retreaded tyres. As aresult,
Mercedes-Ben zcannot guarante evehicle
safety if retreade dtyres are fitted. Do not
fit used tyres if you have no information
about their previous usage.
! Large wheels :the lower the section width
for acertain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as aresult of driving over obstacles
increases. Wheel and tyrec
ombinations
341Wheels and tyres Z

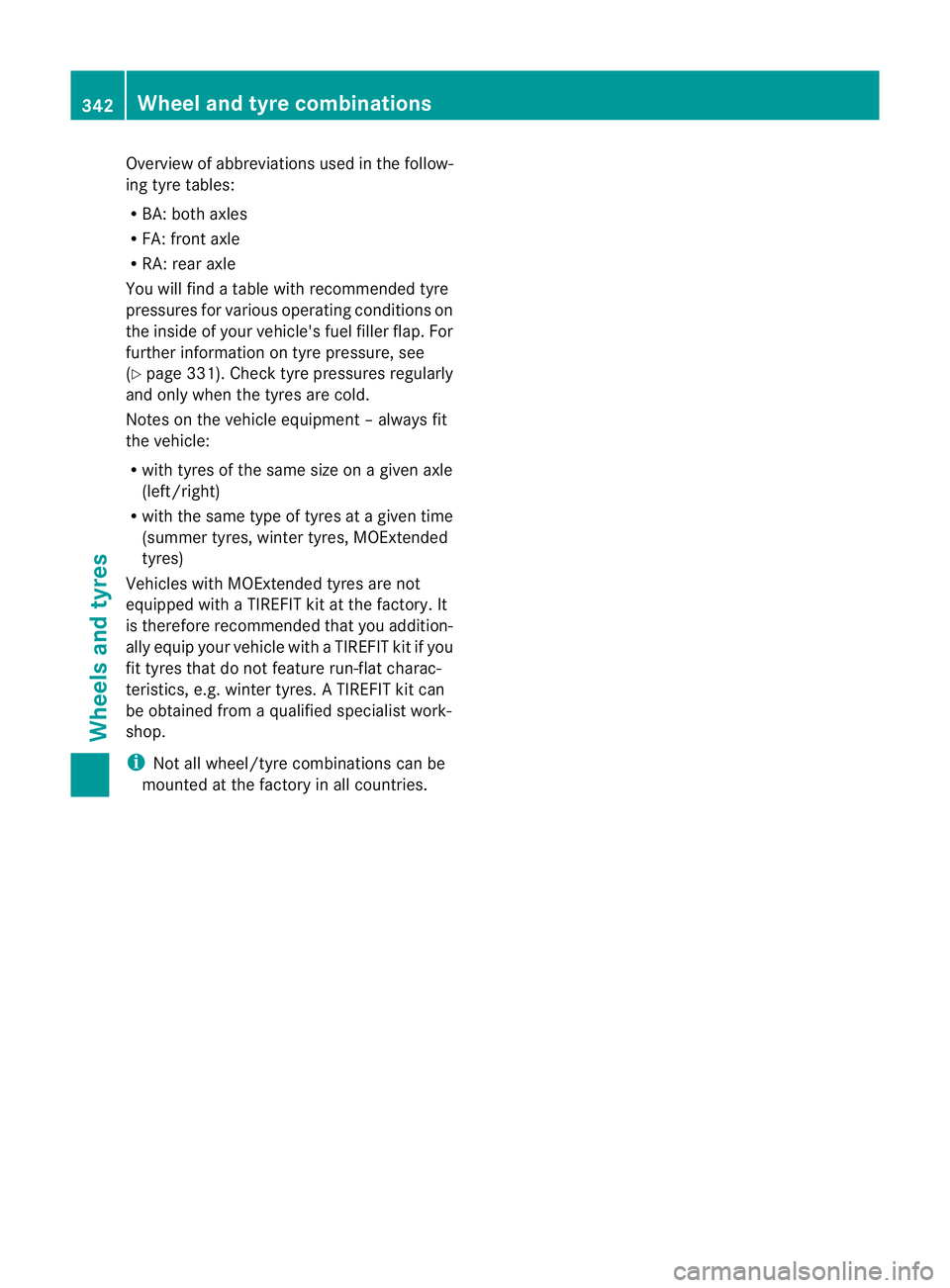

Page 345 of 373

Overview of abbreviations used in the follow-
ing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
You will find atable with recommended tyre
pressures for various operating conditions on
the inside of your vehicle's fuel filler flap. For
further information on tyre pressure, see
(Y page 331). Check tyre pressures regularly
and only when the tyres are cold.
Notes on the vehicle equipment –always fit
the vehicle:
R with tyre softhe same size on agiven axle
(left/right)
R with the same type of tyre satagiven time
(summer tyres, winter tyres, MOExtended
tyres)
Vehicles with MOExtende dtyre sare not
equipped with aTIREFIT kit at the factory. It
is therefore recommende dthat you addition-
ally equip your vehicle with aTIREFIT kit if you
fit tyre sthat do not feature run-flat charac-
teristics, e.g. winter tyres. ATIREFIT kit can
be obtained fro maqualified specialist work-
shop.
i Not all wheel/tyre combinations can be
mounted at the factory in all countries. 342
Wheel and tyrec
ombinationsWheels and tyres
Page 346 of 373

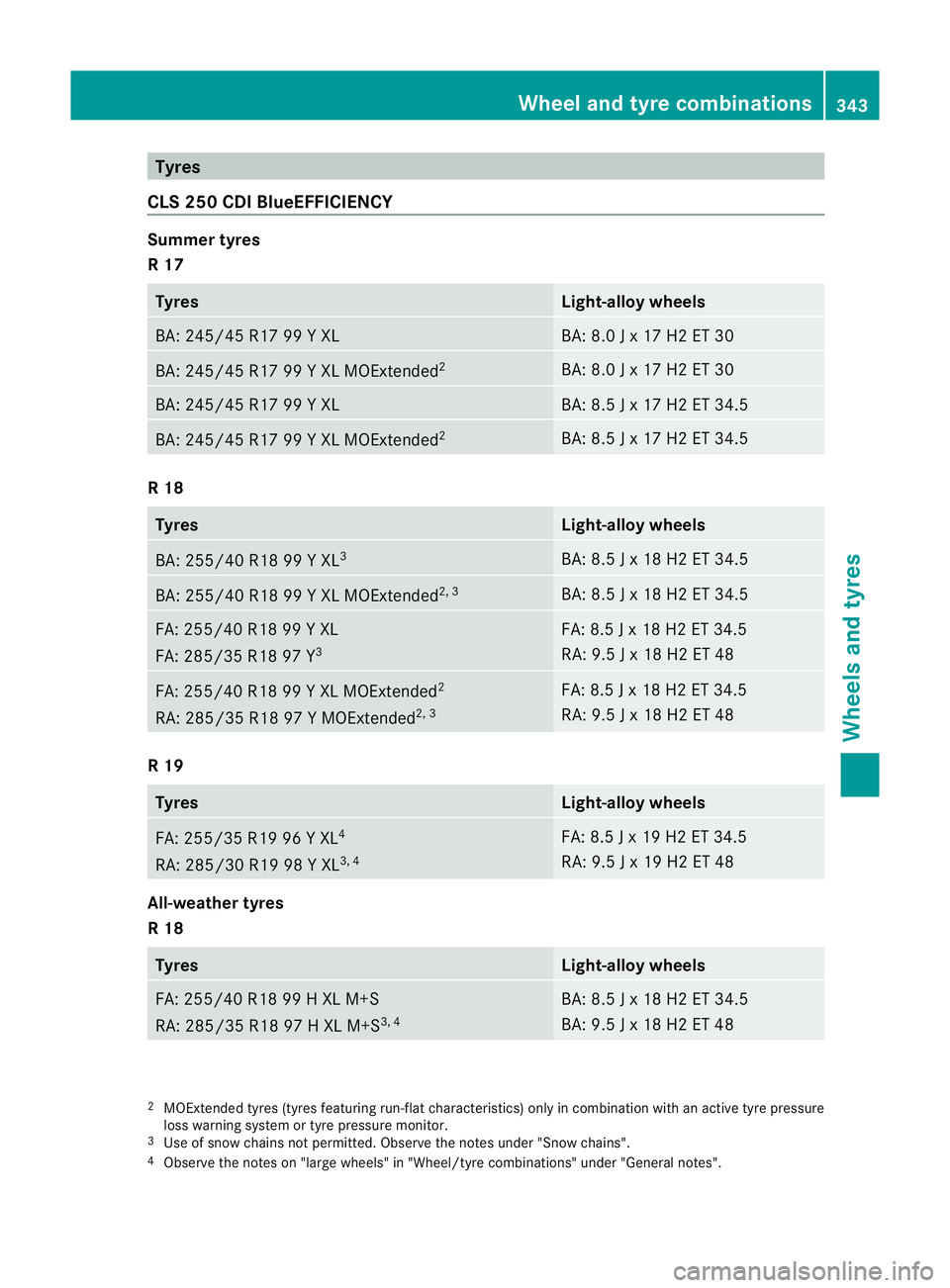

Tyres
CL S2 50 CDIBlueEFFICIENCY Summe
rtyres
R17 Tyres Light-alloy wheels
BA: 245/4
5R1799 YXL BA: 8.0
Jx17H2ET30 BA: 245/45 R17 99
YXLMOExtended 2 BA: 8.0
Jx17H2ET30 BA: 245/45 R17 99
YXL BA: 8.5
Jx17H2ET3 4.5 BA: 245/45 R17 99
YXLMOExtended 2 BA: 8.5
Jx17H2ET3 4.5 R18
Tyres Light-allo
ywheels BA: 255/40 R18 99
YXL3 BA: 8.5
Jx18H2ET3 4.5 BA: 255/40 R18 99
YXLMOExtended 2, 3 BA: 8.5
Jx18H2ET3 4.5 FA: 255/40 R18 99
YXL
FA: 285/35 R18 97 Y 3 FA: 8.5
Jx18H2ET3 4.5
RA: 9.5 Jx18H2ET48 FA: 255/40 R18 99
YXLMOExtended 2
RA: 285/35 R18 97 YMOExtended 2, 3 FA: 8.5
Jx18H2ET3 4.5
RA: 9.5 Jx18H2ET48 R19
Tyres Light-alloy wheels
FA: 255/35 R19 96
YXL4
RA: 285/30 R19 98 YXL3, 4 FA: 8.5
Jx19H2ET3 4.5
RA: 9.5 Jx19H2ET48 All-weather tyres
R18
Tyres Light-alloy wheels
FA: 255/40 R18 99
HXLM+S
RA: 285/35 R18 97 HXLM+S3, 4 BA: 8.5
Jx18H2ET3 4.5
BA: 9.5 Jx18H2ET48 2
MOExtended tyres (tyre sfeaturing run-fla tcharacteristics) only in combination with an active tyre pressure
loss warning system or tyre pressure monitor.
3 Use of snow chains not permitted. Observe the notes under "Snow chains".
4 Observe the notes on "large wheels" in "Wheel/tyre combinations" under "General notes". Wheel and tyrec
ombinations
343Wheels and tyres Z
Page 347 of 373

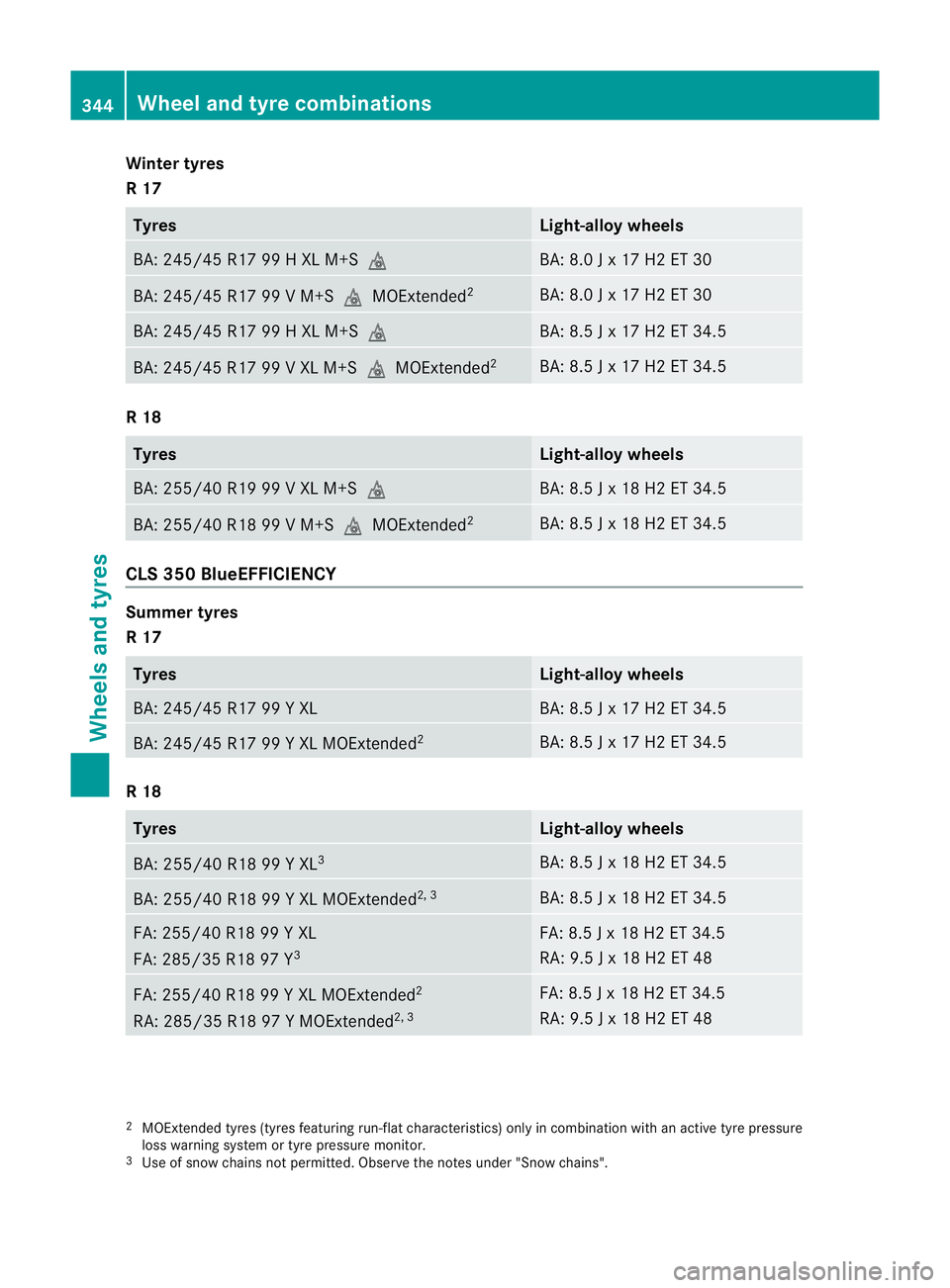

Winter tyres
R17
Tyres Light-alloy wheels
BA: 245/45 R17 99
HXLM+Si BA: 8.0
Jx17H2ET30 BA: 245/45 R17 99
VM+SiMOExtended 2 BA: 8.0
Jx17H2ET30 BA: 245/45 R17 99
HXLM+Si BA: 8.5
Jx17H2ET3 4.5 BA: 245/45 R17 99
VXLM +SiMOExtended 2 BA: 8.5
Jx17H2ET3 4.5 R18
Tyres Light-alloy wheels
BA: 255/40 R19 99
VXLM+Si BA: 8.5
Jx18H2ET3 4.5 BA: 255/40 R18 99
VM+SiMOExtended 2 BA: 8.5
Jx18H2ET3 4.5 CLS3
50 BlueEFFICIENCY Summer tyres
R17
Tyres Light-alloy wheels
BA: 245/45 R17 99
YXL BA: 8.5
Jx17H2ET3 4.5 BA: 245/45 R17 99
YXLMOExtended 2 BA: 8.5
Jx17H2ET3 4.5 R18
Tyres Light-alloy wheels
BA: 255/40 R18 99
YXL3 BA: 8.5
Jx18H2ET3 4.5 BA: 255/40 R18 99
YXLMOExtended 2, 3 BA: 8.5
Jx18H2ET3 4.5 FA: 255/40 R18 99
YXL
FA: 285/35 R18 97 Y 3 FA: 8.5
Jx18H2ET3 4.5
RA: 9.5 Jx18H2ET48 FA: 255/40 R18 99
YXLMOExtended 2
RA: 285/35 R18 97 YMOExtended 2, 3 FA: 8.5
Jx18H2ET3 4.5
RA: 9.5 Jx18H2ET48 2
MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an active tyre pressure
loss warning system or tyre pressure monitor.
3 Use of snow chains not permitted. Observe the notes under "Snow chains". 344

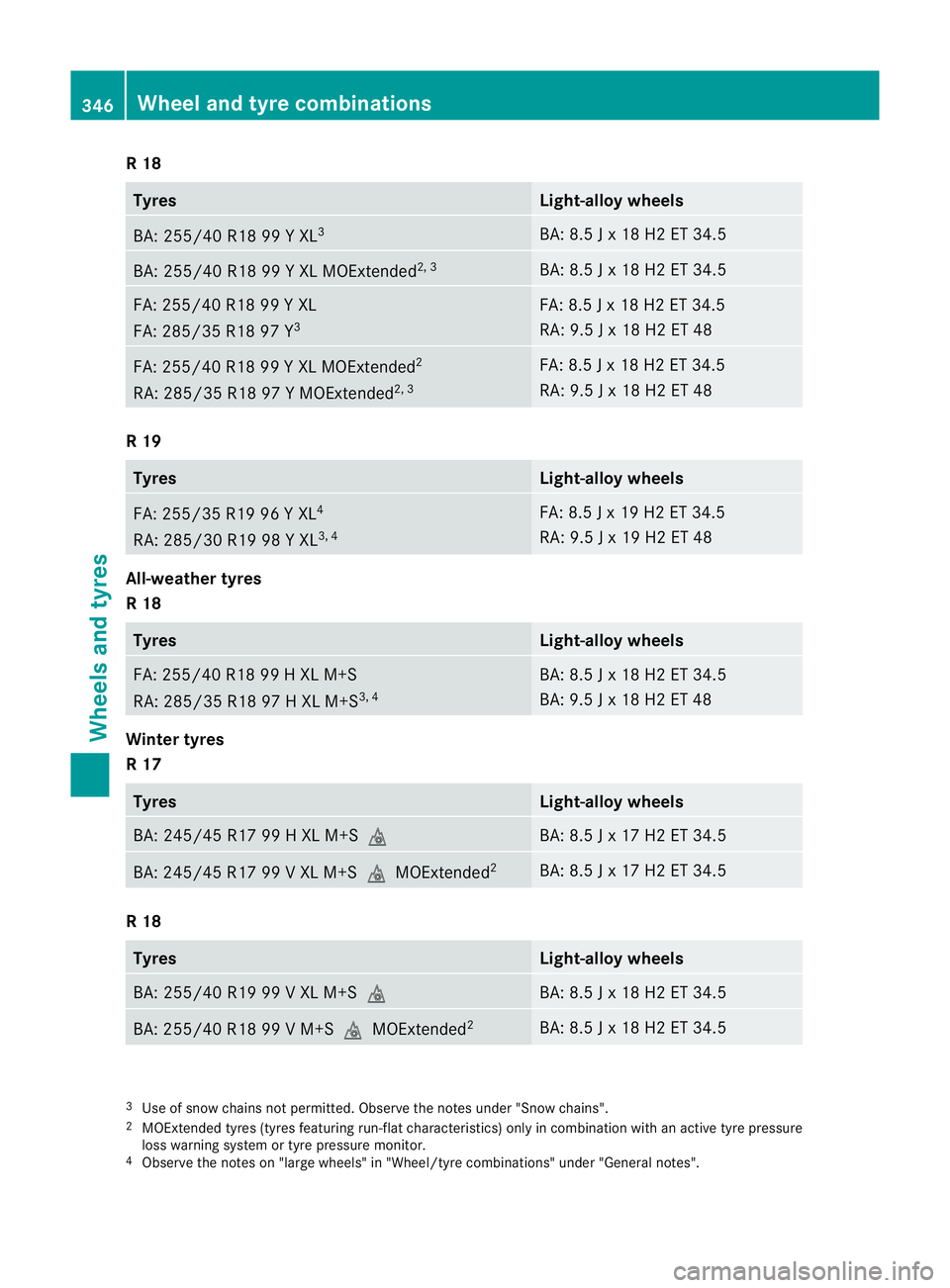

Wheel and tyrec
ombinationsWheels and tyres
Page 348 of 373

R19
Tyres Light-allo
ywheels FA: 255/35 R19 96
YXL4
RA: 285/30 R19 98 YXL3, 4 FA: 8.5
Jx19H2ET3 4.5
RA: 9.5 Jx19H2ET48 All-weather tyres
R18
Tyres Light-alloy wheels
FA: 255/40 R18 99
HXLM+S
RA: 285/35 R18 97 HXLM+S3, 4 BA: 8.5
Jx18H2ET3 4.5
BA: 9.5 Jx18H2ET48 Winter tyres
R17
Tyres Light-alloy wheels
BA: 245/45 R17 99
HXLM+Si BA: 8.5
Jx17H2ET3 4.5 BA: 245/45 R17 99
VXLM +SiMOExtended 2 BA: 8.5
Jx17H2ET3 4.5 R18
Tyres Light-alloy wheels
BA: 255/40 R19 99
VXLM+Si BA: 8.5
Jx18H2ET3 4.5 BA: 255/40 R18 99
VM+SiMOExtended 2 BA: 8.5
Jx18H2ET3 4.5 CLS3
50 CDIB lueEFFICIENCY Summer tyres
R17
Tyres Light-alloy wheels
BA: 245/45 R17 99
YXL BA: 8.5
Jx17H2ET3 4.5 BA: 245/45 R17 99
YXLMOExtended 2 BA: 8.5
Jx17H2ET3 4.5 4
Observ ethe notes on "large wheels" in "Wheel/tyr ecombinations" under "General notes".
3 Use of snow chains not permitted. Observ ethe notes under "Snow chains".
2 MOExtended tyres (tyre sfeaturing run-fla tcharacteristics) only in combination with an active tyre pressure

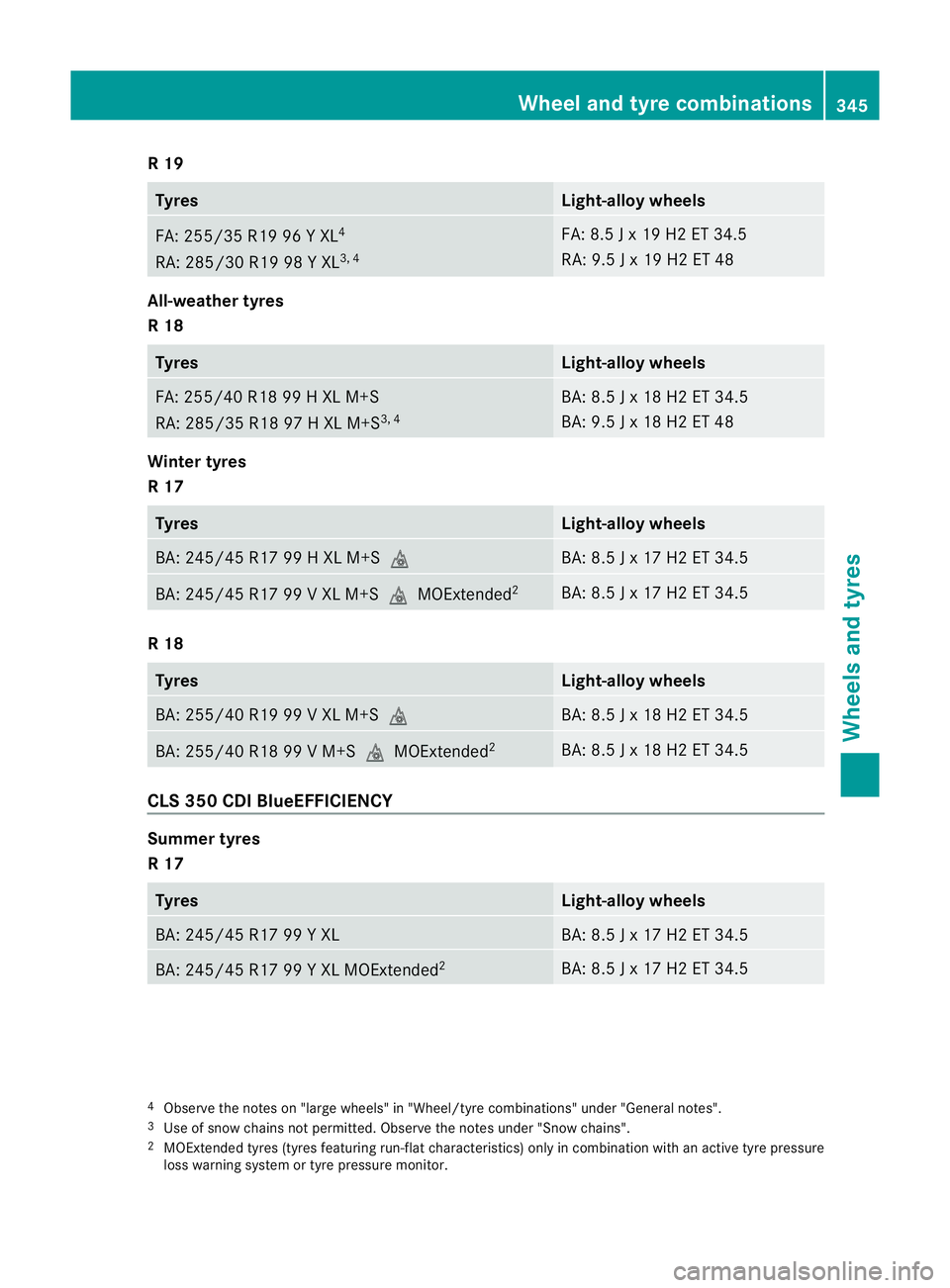

loss warning system or tyre pressure monitor. Wheel and tyrec
ombinations
345Wheels and tyres Z
Page 349 of 373

R18
Tyres Light-allo
ywheels BA: 255/40 R18 99
YXL3 BA: 8.5
Jx18H2ET3 4.5 BA: 255/40 R18 99
YXLMOExtended 2, 3 BA: 8.5
Jx18H2ET3 4.5 FA: 255/40 R18 99
YXL
FA: 285/35 R18 97 Y 3 FA: 8.5
Jx18H2ET3 4.5
RA: 9.5 Jx18H2ET48 FA: 255/40 R18 99
YXLMOExtended 2
RA: 285/35 R18 97 YMOExtended 2, 3 FA: 8.5
Jx18H2ET3 4.5
RA: 9.5 Jx18H2ET48 R19
Tyres Light-alloy wheels
FA: 255/35 R19 96
YXL4
RA: 285/30 R19 98 YXL3, 4 FA: 8.5
Jx19H2ET3 4.5
RA: 9.5 Jx19H2ET48 All-weather tyres
R18
Tyres Light-alloy wheels
FA: 255/40 R18 99
HXLM+S
RA: 285/35 R18 97 HXLM+S3, 4 BA: 8.5
Jx18H2ET3 4.5
BA: 9.5 Jx18H2ET48 Winter tyres
R17
Tyres Light-alloy wheels
BA: 245/45 R17 99
HXLM+Si BA: 8.5
Jx17H2ET3 4.5 BA: 245/45 R17 99
VXLM +SiMOExtended 2 BA: 8.5
Jx17H2ET3 4.5 R18
Tyres Light-alloy wheels
BA: 255/40 R19 99
VXLM+Si BA: 8.5
Jx18H2ET3 4.5 BA: 255/40 R18 99
VM+SiMOExtended 2 BA: 8.5
Jx18H2ET3 4.5 3
Use of snow chains not permitted. Observ ethe notes under "Snow chains".
2 MOExtended tyres (tyre sfeaturing run-fla tcharacteristics) only in combination with an active tyre pressure
loss warning system or tyre pressure monitor.
4 Observe the notes on "large wheels" in "Wheel/tyre combinations" under "General notes". 346
Wheel and tyrec
ombinationsWheels and tyres
Page 350 of 373

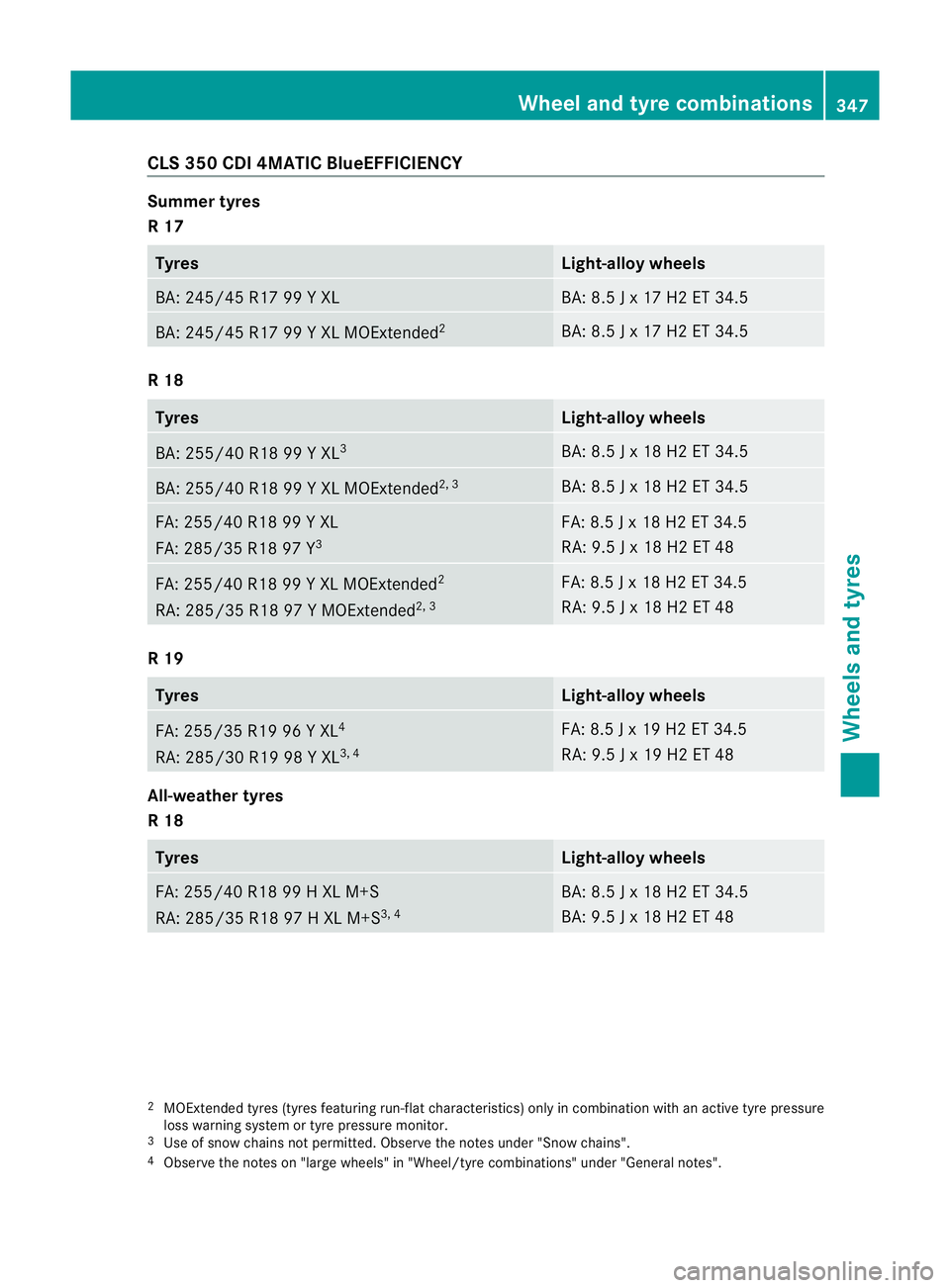

CLS 350 CDI 4MATIC BlueEFFICIENCY
Summer tyres
R17
Tyres Light-alloy wheels
BA
:245/4 5R17 99 YXL BA
:8.5Jx1 7H2ET3 4.5 BA
:245/4 5R17 99 YXLM OExtended 2 BA
:8.5Jx1 7H2ET3 4.5 R18
Tyres Light-alloy wheels
BA
:255/4 0R18 99 YXL3 BA
:8.5Jx1 8H2ET3 4.5 BA
:255/4 0R18 99 YXLM OExtended 2, 3 BA
:8.5Jx1 8H2ET3 4.5 FA
:255/4 0R18 99 YXL
FA :285/3 5R18 97 Y 3 FA
:8.5Jx1 8H2ET3 4.5
RA: 9. 5Jx18H2ET48 FA
:255/4 0R18 99 YXLM OExtended 2
RA: 285/35 R18 97 YMOExtended 2, 3 FA
:8.5Jx1 8H2ET3 4.5
RA: 9. 5Jx18H2ET48 R19
Tyres Light-alloy wheels
FA
:255/3 5R19 96 YXL4
RA: 285/30 R19 98 YXL3, 4 FA
:8.5Jx1 9H2ET3 4.5
RA: 9. 5Jx19H2ET48 All-weather tyres
R18
Tyres Light-alloy wheels
FA
:255/4 0R18 99 HXLM +S
RA: 285/35 R18 97 HXLM+S3, 4 BA
:8.5Jx1 8H2ET3 4.5
BA :9.5Jx1 8H2ET48 2
MOExtended tyres (tyres featurin grun-flat characteristics) only in combinatio nwith an active tyre pressure
loss warnin gsyste mort yre pressur emonitor.
3 Use of snow chains no tpermitted. Observe the notes under "Snow chains".
4 Observe the notes on "large wheels" in "Wheel/tyre combinations" under "General notes". Wheel and tyrec
ombinations
347Wheels and tyres Z
