Removi
ngthe emergenc ykey element X
Push releas ecatch :in the direction of
the arro wand at the same tim eremove
emergency key element ;from th ekey. Battery of th
ekey
Important safety notes It is advisable to have batteries replaced at a
qualified specialist workshop, e.g
.ata
Mercedes-Ben zService Centre. G
Risk of poisoning
Batteries are toxic and contain caustic sub-
stances. For this reason ,keep batteries out of
the reac hofchildren.
If ab attery has been swallowed, visit adoctor
immediately. H
Environmental note
Do not dispose of batteries with the house-
hold rubbish. They contain highly toxi csub-
stances.
Take discharge dbatteries to aqualified spe-
cialist workshop, e.g. aMercedes-Benz
Servic eCentre, or to aspecial collection point
for old batteries.
Checking the battery X
Press the &or% button.
The batter yisworking properly if the bat-
ter yc heck lam plights up briefly. Changing the battery You require
aCR20253Vc ell battery.
X Take the emergency key elemen tout of the
key (Y page 67). X
Press the emergency key element into the
opening in the key in the direction of
arrow ;until cover :of the battery tray
opens .Donot hold the cover closed while
doing so. X
Remove the cover of the battery tray.
X Repeatedly tap the key against your palm
until battery =falls out.
X Insert the new battery with the positive
pole facing upwards. Use alint-free clot hto
do so.
X Insert the fron ttabs of the battery tray's
cover firs tand then pres stoclose it.
X Check the function of all key buttons on the
vehicle. 68
KeyOpening and closing
BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite68
Page 72 of 333

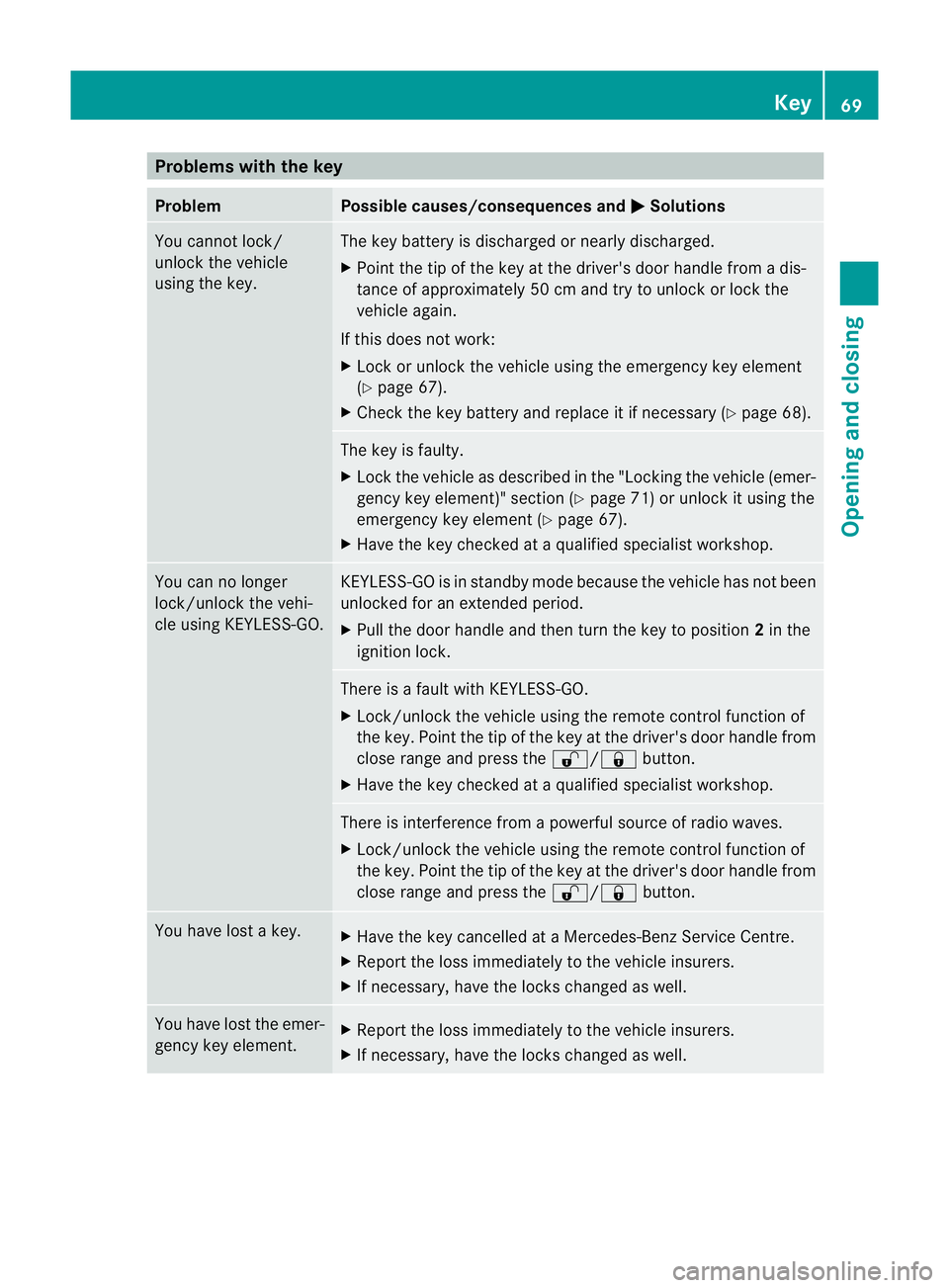

Problems wit
hthe key Problem Possible causes/consequences and
M Solutions
Yo
uc annot lock/
unlock the vehicle
using the key. The key battery is discharged or nearly discharged.
X
Point the tip of the key at the driver' sdoor handl efrom adis-
tanc eofa pproximately 50 cm and try to unloc korlock the
vehicle again.
If this does not work:
X Loc koru nlock the vehicl eusing the emergenc ykey element
(Y page 67).
X Check the key batter yand replace it if necessary (Y page68). Th
ek ey is faulty.
X Loc kthe vehicle as described in the "Locking the vehicle (emer-
genc ykey element)" section (Y page 71)orunlock it using the
emergency key element (Y page67).
X Have the key checked at aqualified specialist workshop. You can no longer
lock/unlock the vehi-
cle using KEYLESS-GO. KEYLESS-GO is in standby mode because the vehicle has not been
unlocked for an extended period.
X
Pull the door handle and then turn the key to position 2in the
ignition lock. There is
afault with KEYLESS-GO.
X Lock/unlock the vehicle using the remote control function of
the key. Point the tip of the key at the driver' sdoor handl efrom
close rang eand pres sthe %/ &button.
X Hav ethe key chec kedataq ualified specialist workshop. There is interference from
apowerfu lsource of radio waves.
X Lock/unloc kthe vehicle usin gthe remote con trolfunction of
the key. Point the tip of the key at the driver' sdoor handl efrom
close rang eand pres sthe %/ &button. You hav
elost akey. X
Hav ethe key cancelled at aMercedes-Benz Servic eCentre.
X Report the loss immediately to the vehicle insurers.
X If necessary, have the locks changed as well. You have lost the emer-
gency key element.
X
Report the loss immediately to the vehicle insurers.
X If necessary, have the locks changed as well. Key
69Opening and closing
BA 207ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 69 Z
Page 73 of 333
Problem Possible causes/consequences and
M Solutions
The key cannot be
turned in the ignition
lock. The key has been in position
0for aconsiderable time.
X Remove the key and reinsert it int othe ignition lock.
X Chec kthe starter battery and charge it if necessary
(Y page 285).
X Star tthe engine. The on-boar
dvoltage is too low.
X Switch off non-essential consumers, e.g. seat heatin gorinterior
lighting ,and try to turn the key again.
If this doe snot work:
X Check the starter battery and charge it if necessary
(Y page 285).
or
X Jump-start the vehicle (Y page 289).
or
X Consult aqualified specialist workshop. Doors
Unlocking and opening doors from
the inside
You can open adoor from inside the vehicle
even if it has been locked. X
Pull door handle ;.
If the door is locked, locking knob :pops
up. The door is unlocked and can be
opened.
i When adoor is opened, the side window
on that side opens slightly .When the door
is closed ,the side window closes again. !
The side windows will not open/close if
the battery is discharged or if the side win-
dows hav eiced up. It wil lthen not be pos-
sible to close the door. Do not attemp tto
force th edoor to close. You coul dother-
wise damage the doo rorthe side window. Centrally locking and unlocking the
vehicle from th einside G
Risk of accident
Do not leav echildren unsupervised in the
vehicle. They coul dopen adoor from the
inside –even if it is locke d–and thereby
endanger themselves and others. 70
DoorsOpening and closing
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa
Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 70
Page 74 of 333
X
To unlock: press button :.
X To lock: press button ;. Automati
clocking feature
i Thev ehicle is locked automaticall ywhen
the ignition is switched on and the wheels
begi ntot urn. There is arisk of being locked
out when the vehicle is being pushed or
tested on adynamometer. X
To deactivate: press and holdbutton :
for about five seconds until atones ounds.
X To activate: press and hold button ;for
about fiv eseconds until atones ounds.
You can switc hthe automatic lockin gfunc-
tion on and off using the on-board computer
(Y page 208). Unlockin
gthe driver' sdoor (emer-
gency key element)
If the vehicle can no longer be unlocked cen-
trally with the key or KEYL ESS-GO: X
Take the emergency key element out of the
key (Y page67). X
Insert the emergency key element into the
lock of the driver's door as far as it wil lgo.
X Tur nthe emergenc ykey elemen tanti-
clockwise to position 1.
The doo risu nlocked.
i On right -hand-drive vehicles, turn the
emergenc ykey elemen tclockwise.
X Turn the emergenc ykey elemen tback and
remove it. Locking the vehicle (emergency key
element)
Emergency locking X
Open the driver' sdoor.
X Close the front-passenger door and the
boot lid.
X Press the lockin gbutton (Y page 70).
X Make sure that the locking knob on the
front-passenger door is still visible. Press
down the locking knob by hand, if neces-
sary.
X Close the driver' sdoor.
X Take the emergenc ykey elemen tout of the
key (Y page 67). Doors
71Openingand closing
BA 20 7ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 71 Z
Page 75 of 333
X
Insert th eemergenc ykey element into the
lock of the driver' sdoor as far as it will go.
X Tur nthe emergenc ykey element clockwise
as far as it will go to position 1.
i On right-hand-drive vehicles ,turn the
emergency key element anti-clockwise.
X Turn the emergency key element back and
remove it.
X Make sure that the doors and the boot lid
are locked. Boot
Important safety notes
G
Risk of poisoning
Exhaust fumes could enter the vehicle interior
if the engine is running and the boot lid is
open. This could poiso nyou. Therefore, you
should mak esure that the boot lid is always
closed when the engine is running.
! The boot lid swings upwards when
opened. Therefore, make sure that there is
sufficient clearance above the boot lid.
Do not leave the key in the boot. You could
otherwise lock yourself out.
The boot lid can be:
R opene dand closed manually
R opened automatically from outside
R opened automatically from inside Opening/closing manually
Opening X
Pres sthe % button on the key. X
Pull handle :.
Closing G
Risk of inju
ry
Make sur ethat nobody can becom etrapped
when closing th eboot lid. X
Pull the boot lid down firmly using
recess ;or=.
X Loc kthe vehicle if necessar ywith
the & button on the key or with KEY-
LESS-GO (Y page 66).
i If you leave aKEYLESS-GO key in the
boot, the boo tlid will not lock. 72
BootOpening and closing
BA 20
7ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 72
Page 76 of 333
Locking th
eboot separately
! The boot lid swings upwards when
opened. Therefore, mak esure that there is
sufficient clearanc eabove th eboot lid.
If th eboot can no longer be unlocked with the
key or KEYLESS-GO:
X Take th eemergency key element ou tofthe
ke y( Ypage 67). X
Inser tthe emergenc ykey elemen tinto the
boo tlid lock as far as the stop.
X Turn the emergenc ykey elemen tanti-
clockwise as far as it will go to position
1 and pull the boo tlid handle.
The boot is unlocked.
X Turn the emergenc ykey elemen tback and
remove it. Opening automatically from outside
You can unlock and open the boot lid simul-
taneously with the key.
X To unlock and open: press and hold
the F button on the key until the boot
lid opens. Opening automatically from inside
You can unlock and open the boot lid simul-
taneously with the key.
X To unlock and open: press and hold
the F button on the key until the boot
lid opens. Boot emergency release
! The boot lid swings upwards when
opened .Therefore, make sur ethat ther eis
sufficient clearanc eabove the boot lid.
If the boot can no longer be unlocked with the
key or KEYLESS-GO:
X Take the emergency key elemen tout of the
key (Y page 67). X
Insert the emergency key element into the
boot lid lock as far as the stop.
X Turn the emergency key element anti-
clockwise as far as it will go to position
1 and pull the boot lid handle.
The boot is unlocked.
X Turn the emergency key element back and
remove it. Side windows
Important safety notes
G
Risk of injury
Make sure that nobody can become trapped
between the side window and the door frame
when aside window is opened. Do not touch
or lean against the side window during the
opening procedure. You could become trap-
ped between the side window and the door
frame as the side window moves down. If
there is arisk of becoming trapped, release
the switch or pull the switch upwards to close
the side window again. Side windows
73Opening and closing
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 73 Z
Page 77 of 333
G
Risk of injury
Make sure that nob odyc an become trapped
as yo ucloseas idew indow .Ifthere is arisk
of becoming trapped, release the switch or
press it again to open the side window again. G
Risk of injury
Children may injur ethemselves if they open
or close the side windows.
Never leav echildren unsupervised in the vehi-
cle. Always tak ethe key with you when leaving
the vehicle, even if you ar eonly leaving it for
as hort time. G
Risk of injury
Do not leav echildren unsupervised in the
vehicle, even if they ar esecured in achild
restraint system .The children could:
R be seriously or even fatall yinjured on parts
of the vehicle
R be seriously or even fatally injured by pro-
longed exposure to extremely hig hor
extremely low temperatures
If children open adoor, they could:
R seriously or even fatally injure other people
R get out of the vehicle and injure them-
selves, or be seriously or even fatally
injure dbyap assing vehicle
Activate the override feature if children are
travelling in the vehicle. They could otherwise
open side windows while the vehicle is in
motion and thereby injure themselves or oth-
ers. Openin
gand closing th eside win-
dows :
Front left
; Front right
= Rear right
? Rear left

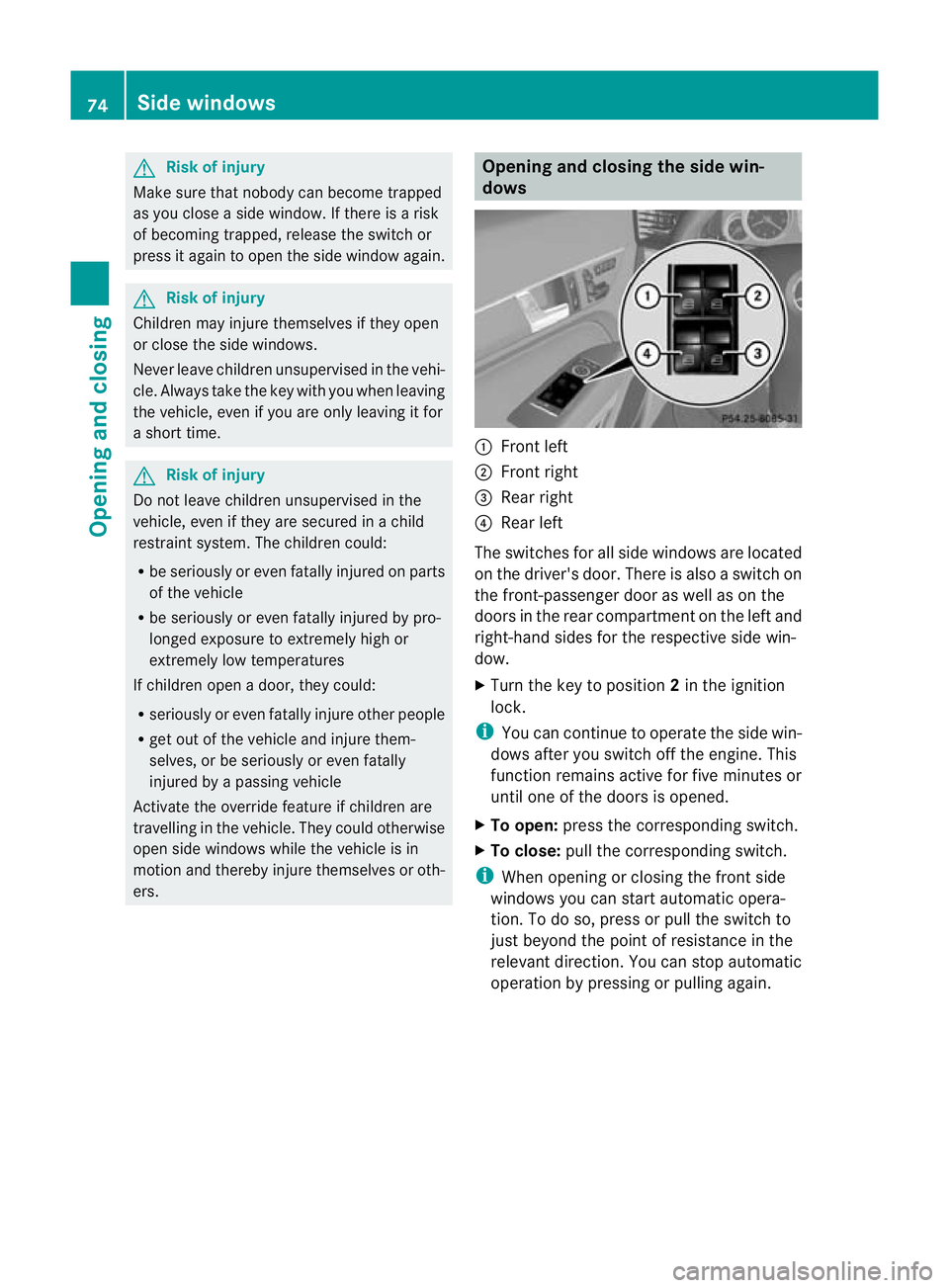

The switches for all side windows are located
on the driver' sdoor. There is also aswitch on
the front-passenger door as well as on the
doors in the rear compartmen tonthe lef tand
right-hand sides for the respective sid ewin-
dow.
X Turn the key to position 2in the ignition
lock.
i You can continue to operate the side win-
dows after you switch off the engine. This
func tion remains active for fiv eminutes or
until one of the doors is opened.
X To open: press the corresponding switch.
X To close: pull the corresponding switch.
i When opening or closing the front side
windows you can start automatic opera-
tion. To do so, press or pull the switch to
just beyond the point of resistance in the
relevan tdirection .You can stop automatic
operation by pressin gorpulling again. 74
Side windo
wsOpening and closing
BA 20 7ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 74
Page 78 of 333

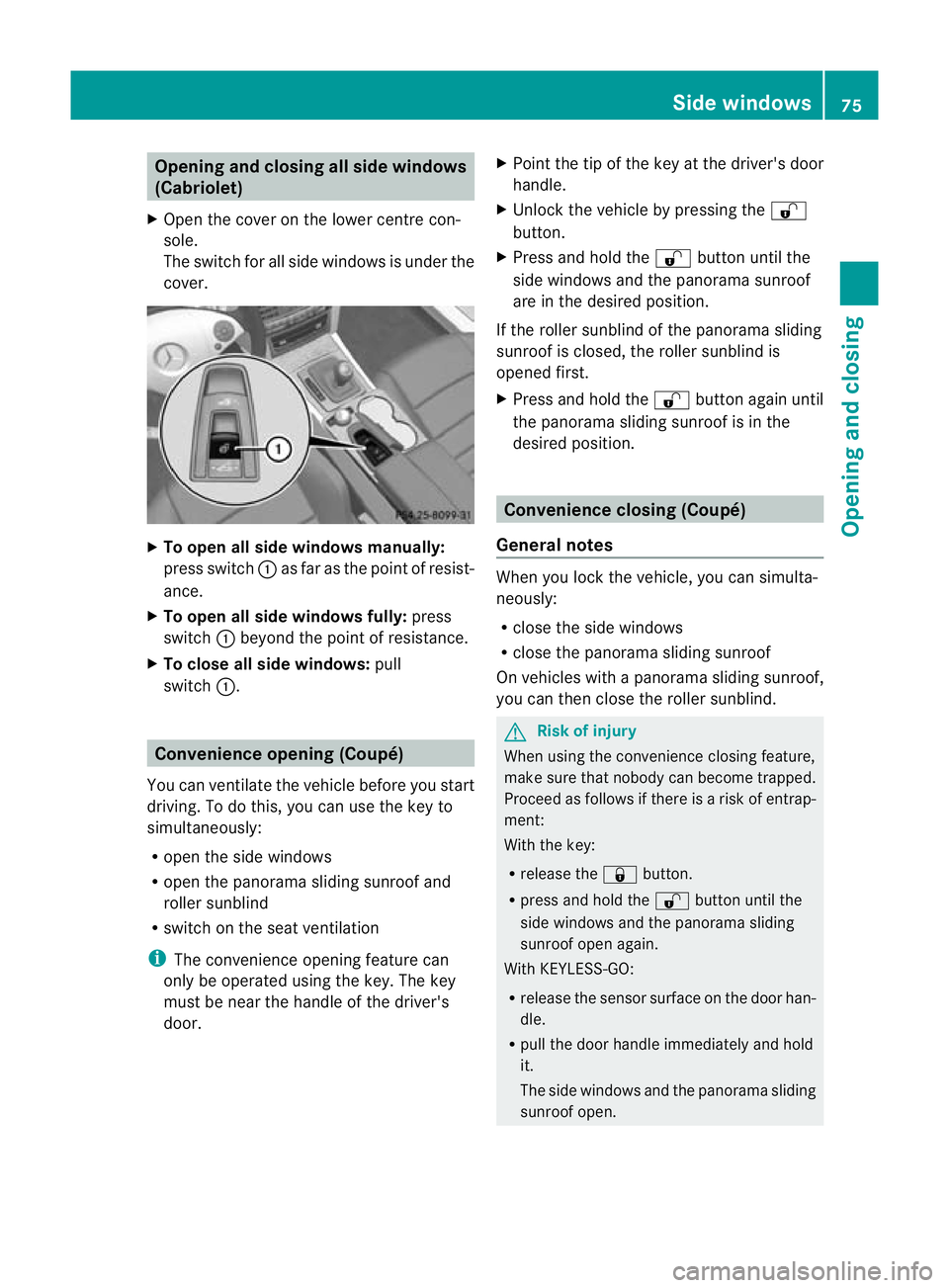

Opening and closing all side windows
(Cabriolet)
X Open the cover on the lower centr econ-
sole.
The switc hfor all side window sisunder the
cover. X
To open all side window smanually:
press switch :as far as the point of resist-
ance.
X To open all side windows fully: press
switch :beyon dthe point of resistance.
X To close all side windows: pull
switch :. Convenience opening (Coupé)
You can ven tilate the vehicle before you start
driving. To do this, you can use the key to
simultaneously:
R open the side windows
R open the panoram asliding sunroof and
roller sunblind
R switch on the seat ventilation
i The convenience opening featur ecan
only be operated using the key. The key
must be near the handle of the driver's
door. X
Point the tip of the key at the driver' sdoor
handle.
X Unloc kthe vehicle by pressing the %
button.
X Press and hold the %button until the
side windows and the panorama sunroof
ar eint he desired position.
If the roller sunblind of the panorama sliding
sunroof is closed ,the roller sunblind is
opened first.
X Press and hold the %button again until
the panorama slidin gsunroof is in the
desired position. Convenienc
eclosing (Coupé)
Genera lnotes When you lock the vehicle, you can simulta-
neously:
R
close the side windows
R close the panoram asliding sunroof
On vehicles with apanorama sliding sunroof,
you can then close the roller sunblind. G
Risk of injury
When using the convenience closing feature,
make sure that nobody can become trapped.
Proceed as follows if there is arisk of entrap-
ment:
With the key:
R release the &button.
R press and hold the %button until the
side windows and the panoram asliding
sunroof open again.
With KEYLESS-GO:
R release the sensor surfac eonthe door han-
dle.
R pull the door handl eimmediatel yand hold
it.
The sid ewindows and the panoram asliding
sunroof open. Side windows
75Opening and closing
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 75 Z
Page 79 of 333
Using th
ekey i
The key must be near the handle of the
driver 'sdoor.
X Point the tip of the key at the driver' sdoor
handle.
X Loc kthe vehicle by pressin gthe & but-
ton.
X Press and hold the &button until the
side windows and the panorama sliding
sunroo fare full yclosed.
X Make sure that all the side windows and the
panorama sliding sunroof are closed.
On vehicles with apanorama sliding sunroof:
X Press and hold the &button again until
the roller sunblind of the panorama sliding
sunroof closes.
Using KEYLESS-GO X
Touch the senso rsurface on door han-
dle :until the side windows and the pan-
orama sliding sunroof are full yclosed.
i Make sure you only touch sensor sur-
face :.
X Make sure that all the side windows and the
panorama sliding sunroof are closed.
On vehicles with apanorama sliding sunroof:
X Touch senso rsurface :on the door han-
dle again until the roller sunblind of the
panorama sliding sunroof closes. Problems with the side windows
Problem: aside window cannot be closed
because an object is obstructin gthe side
window.
X Remove the object(s).
X Close the side window.
Problem :aside window cannot be closed,
and you cannot see th ecause. G
Ris
kofi njury
Closing the side windows with increased for ce
or withou tthe anti-entrapmen tfeature could
lead to serious or even fatal injury .Make sure
that nobody can becom etrapped when clos-
ing the side windows.
If as ide window is obstructed during closing
and reopen sagain slightly:
X Im me diately aft er the window blocks ,pull
on the corresponding switch again until the
side window has closed.
The side window is closed with increased
force.
If as ide window is obstructed again during
closing and reopens again slightly:
X Immediately after the window blocks, pull
on the corresponding switch again until the
side window has closed.
The side window is closed without the anti-
entrapment feature. Soft top (Cabriolet)
Important safet
ynotes
You can open or close the soft top either
when the vehicle is stationary or when driving
up to aspeed of 40 km/h.
If there is astron ghead wind, it may not be
possible to close the soft top fully. In this
case, reduc espeed or stop in order to close
the soft top fully.
For safety reasons, Mercedes-Ben zrecom-
mends that you only open or close the soft
top when the vehicle is stationary. 76
Soft top (Cabriolet)Opening and closing
BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 76
Page 80 of 333
G
Risk of accident and injury
Onl ydrive with th esoft top fully ope nor
closed.
If the soft top doe snot ope norclose fully, the
soft-top hydraulics are depressurised and the
soft top is lowered:
R after about seven minutes if the ignition is
switched on
R immediately if the ignition is switched off
Aw arning ton esounds shortly beforehand.
The Topb eing opened messageappear sin
the multifunction display.
Loc kthe soft top again befor edriving on. Oth-
erwise, th eunlocke dsoft top coul dopen dur-
ing the journey and cause you to lose control
of your vehicle. You or other persons could be
injured as aresult.
! Never sit on the soft-top compartment
cover and do not store any heavy objects
on it. You will otherwise damage the soft
top and soft-top compartmen tcover of the
vehicle.
! The soft top swings upwards when it is
opened or closed. In order to avoid dam-
aging the soft top or other parts of the vehi-
cle when openin gorclosing the soft top,
observe the following:
R there must be sufficient clearance above
the vehicle.
R the boot separator must be closed and
must not be pushed upwards by the load.
R there must not be any object sonthe
soft -top compartmen tcover.
R the boot lid must be closed.
R the fabric must not be dirty, wet or fro-
zen. Opening and closing with th
esoft-top
switch

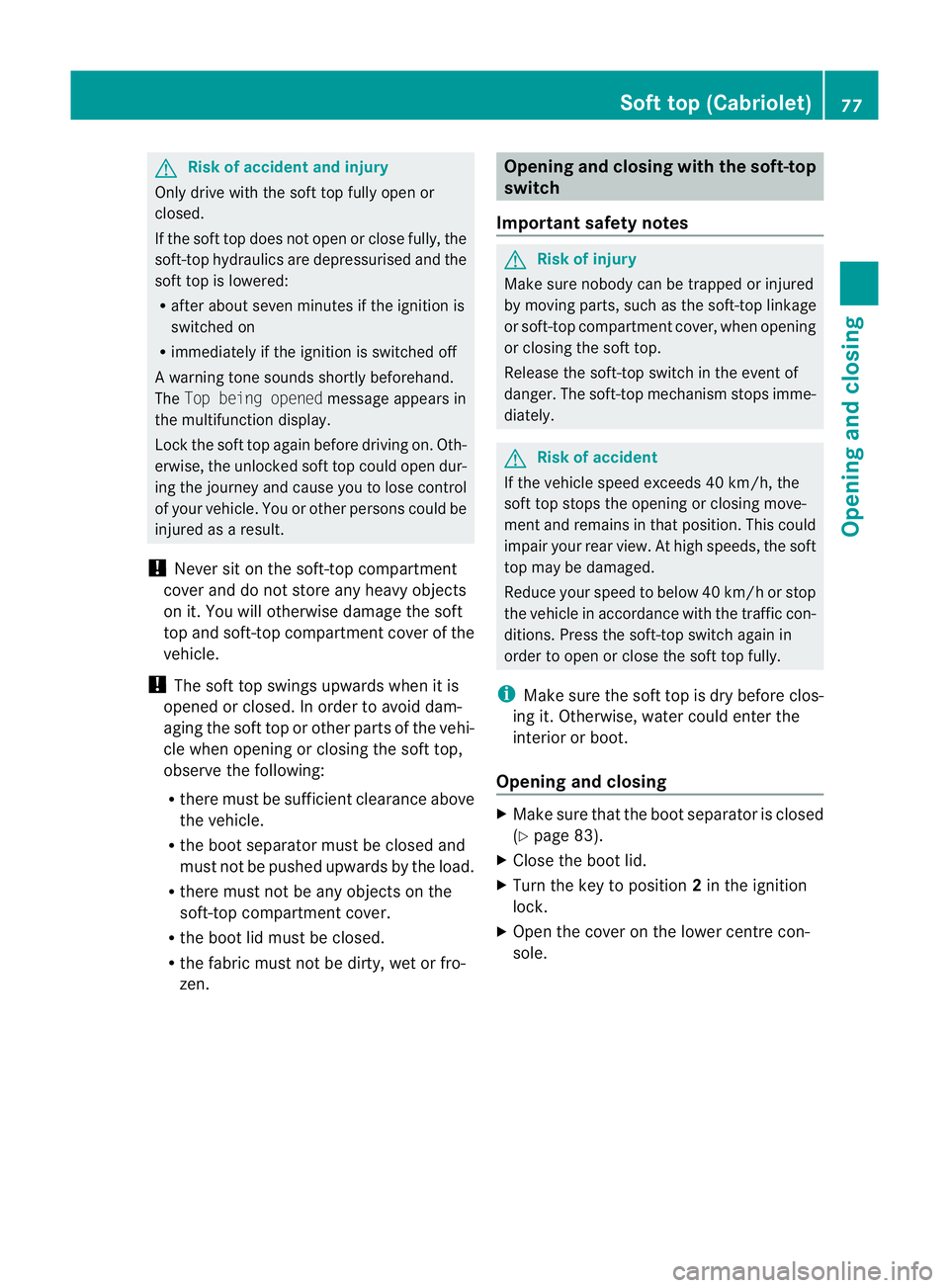

Important safety notes G
Risk of injury
Make sure nobody can be trapped or injured
by movin gparts, such as the soft-top linkage
or soft-top compartmen tcover ,when opening
or closing the soft top.
Release the soft -top switc hinthe even tof
danger .The soft -top mechanism stops imme-
diately. G
Risk of accident
If the vehicle speed exceeds 40 km /h,the
soft top stops the openin gorclosing move-
ment and remain sinthat position. This could
impair your rea rview. At high speeds, the soft
top may be damaged.
Reduce your speed to below 40 km/ horstop
the vehicle in accordanc ewith the traffic con-
ditions. Press the soft-top switc hagain in
order to open or clos ethe soft top fully.
i Make sure the soft top is dry befor eclos-
ing it. Otherwise, water could enter the
interior or boot.
Opening and closing X
Make sure that the boot separator is closed
(Y page 83).
X Close the boot lid.
X Turn the key to position 2in the ignition
lock.
X Open the cover on the lower centr econ-
sole. Soft top (Cabriolet)
77Opening and closing
BA 207ECE ÄJ 2010/1a; 1; 2, en-GB
mkalaf aV ersion: 3.0.2.11
2010-01-26T13:03:22+01:00
-Seite 77 Z
