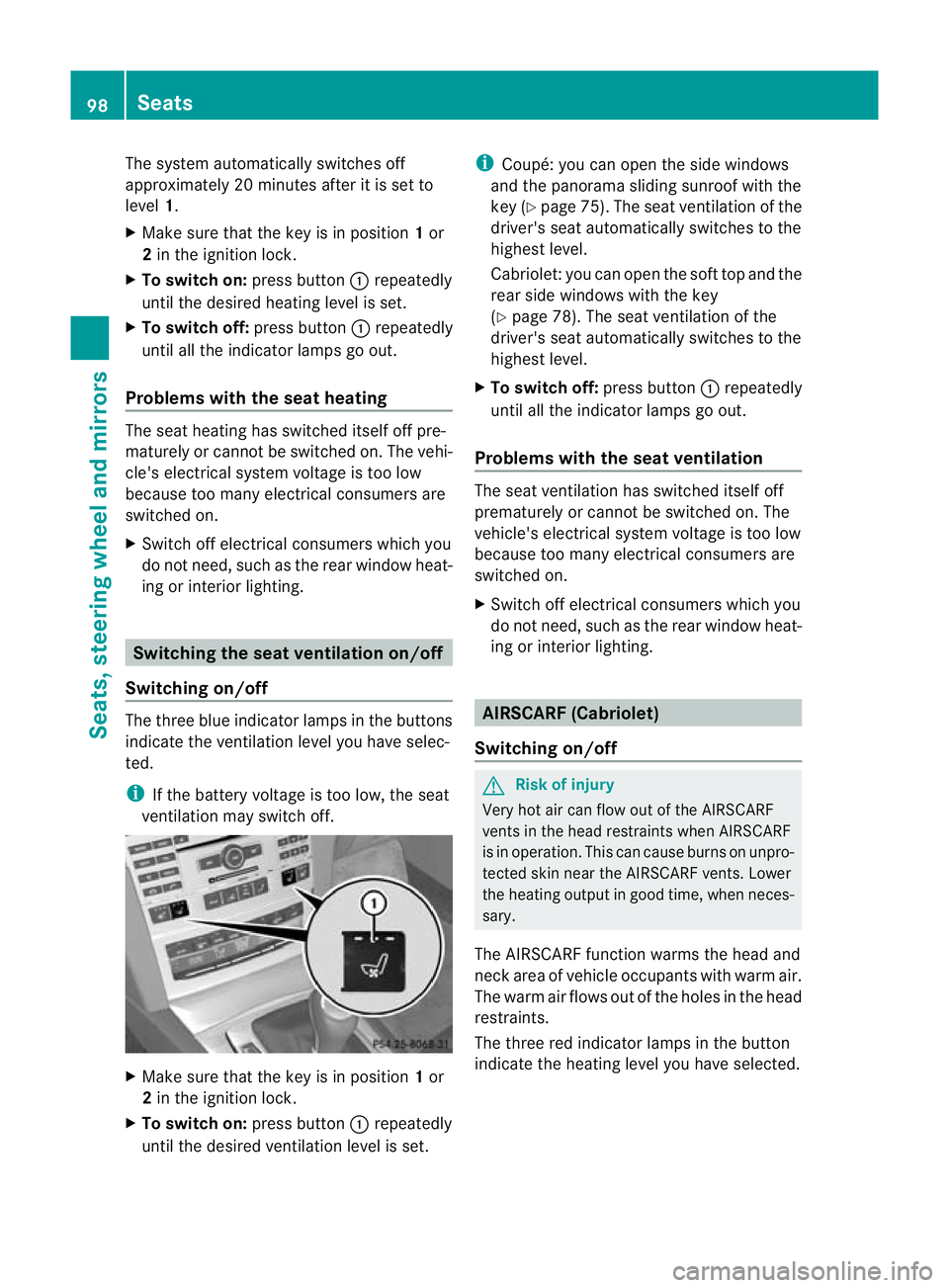

MERCEDES-BENZ E-CLASS CABRIOLET 2010 Owners Manual

The system automatically switches off
approximately 20 minutes after it is set to
level 1.
X Make sure that the key is in position 1or
2 in the ignition lock.
X To switc hon:press button :repeatedly
until the desired heatin glevel is set.
X To switc hoff:press button :repeatedly
until all th eindicato rlamps go out.
Problems with the seat heating The seat heating has switched itself off pre-
maturely or cannot be switched on. The vehi-
cle's electrical system voltage is too low
because too many electrical consumers are
switched on.
X Switc hoff electrical consumers which you
do not need, such as th erear window heat-
ing or interior lighting. Switching the seat ventilation on/off
Switching on/off The three blue indicator lamps in the buttons
indicate the ven tilation level you have selec-
ted.
i If the battery voltage is too low, the seat
ventilation may switch off. X
Make sure that the key is in position 1or
2 in the ignition lock.
X To switch on: press button:repeatedly
until the desired ventilation level is set. i
Coupé: you can open the side windows
and the panoram asliding sunroof with the
key (Y page 75). The seat ventilation of the
driver's seat automatically switches to the
highes tlevel.
Cabriolet: you can open the soft top and the
rear side windows with the key
(Y page 78). The seat ven tilation of the
driver's seat automatically switches to the
highes tlevel.
X To switc hoff:press button :repeatedly
until all th eindicato rlamps go out.
Problems with the seat ventilation The seat ventilation has switched itself off
prematurely or cannot be switched on. The
vehicle's electrical system voltage is too low
because too many electrical consumers are
switched on.
X Switc hoff electrical consumers which you
do not need, such as th erear window heat-
ing or interior lighting. AIRSCARF (Cabriolet)
Switching on/off G
Risk of inju
ry
Very hot air can flow out of the AIRSCARF
ven tsin the head restraints when AIRSCARF
is in operation. This can cause burns on unpro-
tected skin near the AIRSCARF vents. Lower
the heating output in good time, when neces-
sary.
The AIRSCARF func tion warms the head and
nec karea of vehicl eoccupants with warm air.
Th ew arm air flows out of the hole sinthe head
rest raints.
The three red indicator lamps in the button
indicate the heating level you have selected. 98
SeatsSeats, steerin
gwhee land mirrors
BA 20 7ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 98

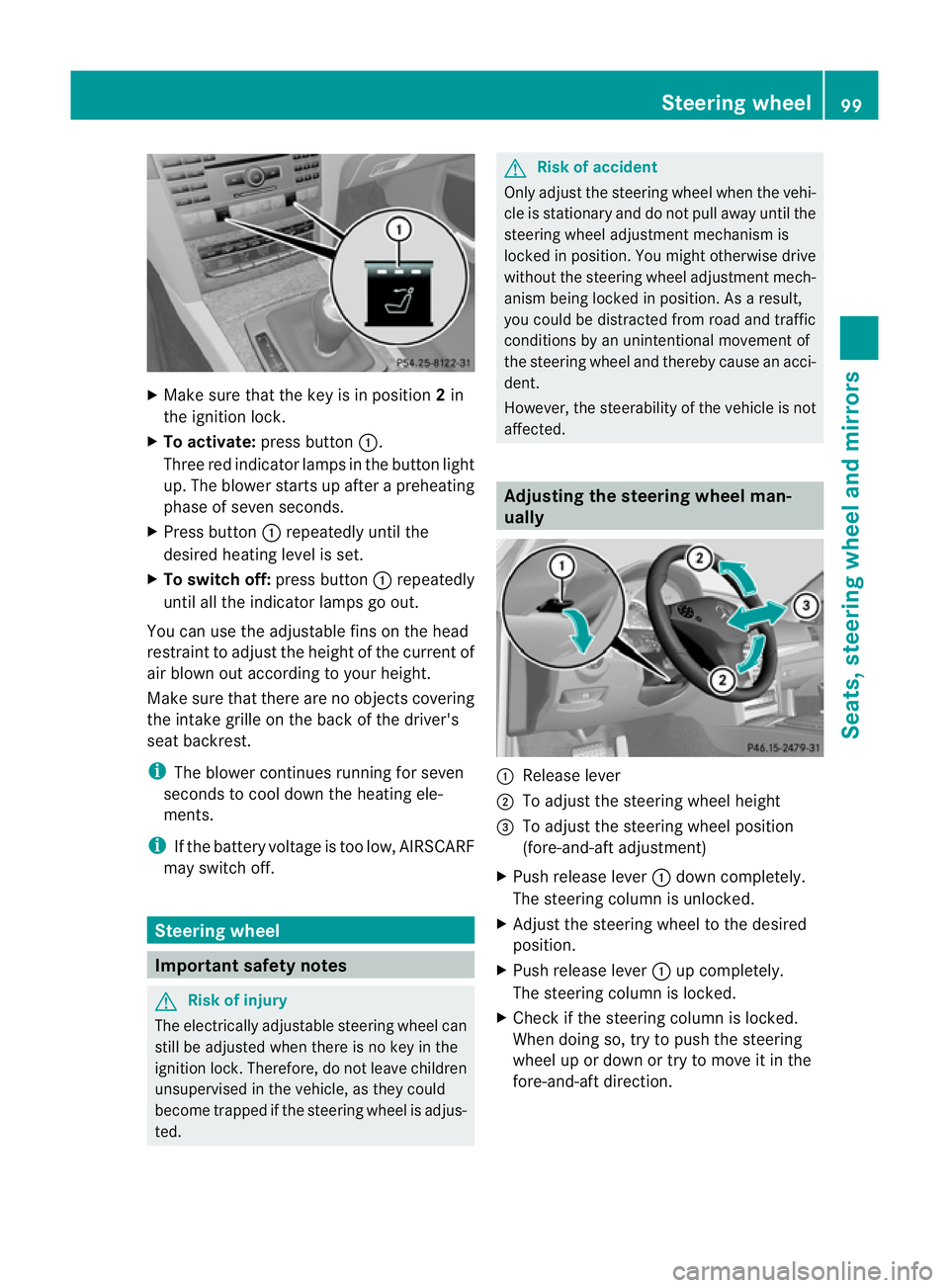

X
Make sur ethat the key is in position 2in
the ignition lock.
X To activate: press button :.
Three red indicator lamps in the button light
up. The blower starts up after apreheating
phas eofseven seconds.
X Press button :repeatedly until the
desired heatin glevel is set.
X To switc hoff:press button :repeatedly
until all th eindicato rlamps go out.
You can use the adjustable fins on the head
restraint to adjust the height of the current of
air blown out according to your height.
Make sure that there are no objects covering
the intake grille on the back of the driver's
seat backrest.
i The blower continues running for seven
seconds to cool down the heating ele-
ments.
i If the battery voltage is too low, AIRSCARF
may switch off. Steering wheel
Important safety notes
G
Risk of injury
The electrically adjustable steering wheel can
still be adjusted when there is no key in the
ignition lock. Therefore, do not leave children
unsupervised in the vehicle, as they could
become trapped if the steering wheel is adjus-
ted. G
Risk of accident
Only adjust the steering wheel when the vehi-
cle is stationary and do not pull away until the
steering wheel adjustment mechanism is
locked in position. You might otherwise drive
without the steering wheel adjustment mech-
anism being locked in position. As aresult,
you could be distracted from road and traffic
condition sbyanunintentional movement of
the steering wheel and thereby cause an acci-
dent.
However, the steerability of the vehicl eisnot
affected. Adjusting th
esteerin gwheel man-
ually :
Release lever
; To adjus tthe steering wheel height
= To adjust the steering wheel position
(fore-and-af tadjustment)
X Push release lever :down completely.
The steerin gcolum nisu nlocked.
X Adjus tthe steering wheel to the desired
position.
X Push release lever :up completely.
The steering column is locked.
X Chec kifthe steering column is locked.
When doing so, tr ytopush the steering
wheel up or down or try to move it in the
fore-and-aft direction. Steering wheel
99Seats, steeringwhee land mirrors
BA 20 7ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 99 Z

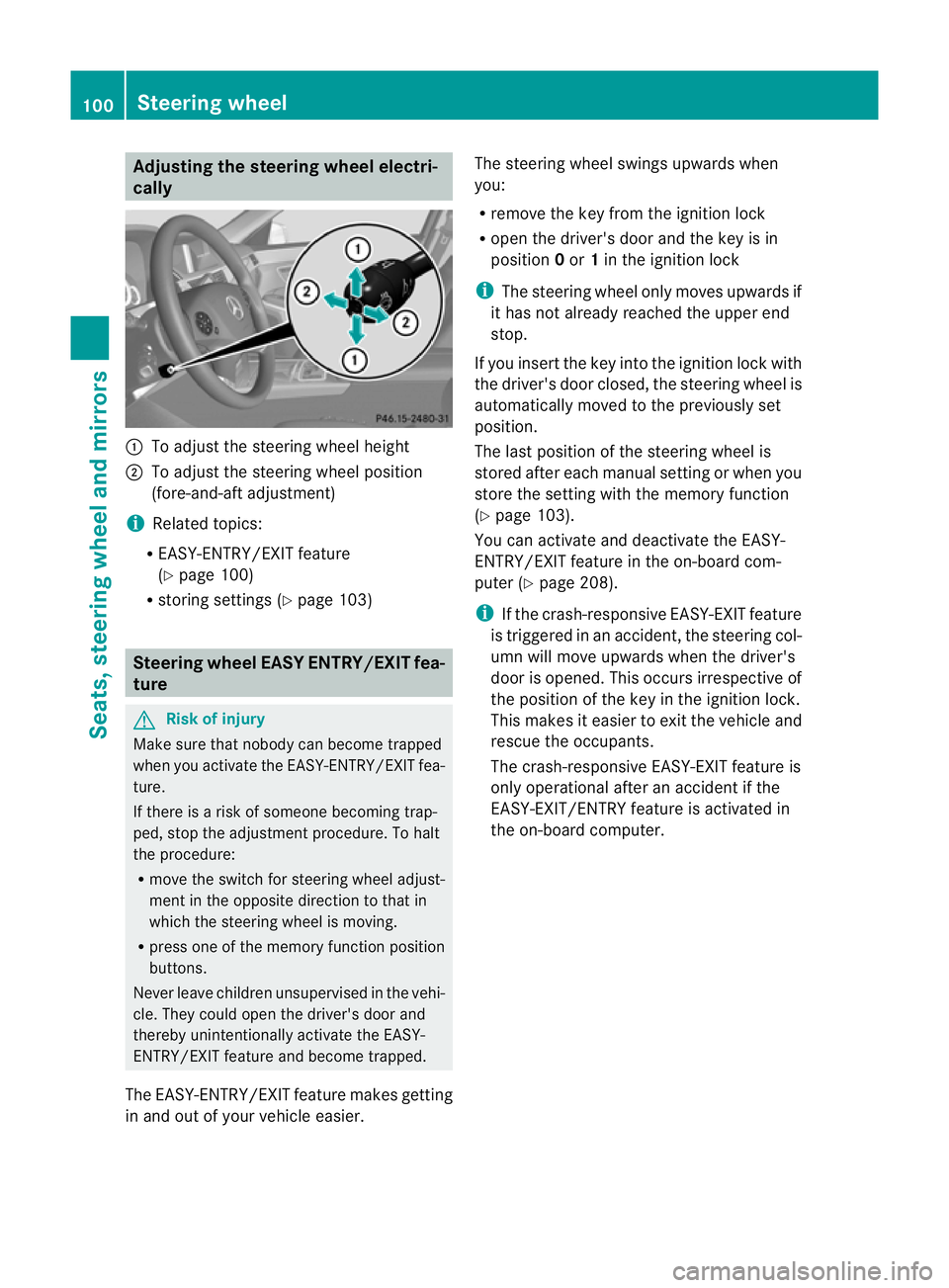

Adjusting th
esteering wheel electri-
cally :
To adjust th esteering whee lheight
; To adjust th esteering whee lposi tion
(fore-and-af tadjustment)
i Related topics:
R EASY-ENTRY/EXIT feature
(Y page 100)
R storing setting s(Ypage 103) Steering whee
lEASY ENTRY/EXIT fea-
ture G
Ris
kofi njury
Mak esuret hat nob ody can become trapped
when you activa tethe EASY-ENTRY/EXIT fea-
ture.
If there is arisk of someon ebecoming trap-
ped, stop th eadjustmen tprocedure. To ha lt
the procedure:
R move the switch for steering whee ladjust-
ment in the opposite direction to that in
which the steerin gwheel is moving.
R press one of the memory function position
buttons.
Never leave children unsu pervis edin the vehi-
cle. They could open the driver's door and
thereby unintentionally activate the EASY-
ENTRY/EXIT featur eand become trapped.
The EASY-ENTRY/EXIT feature makes getting
in and out of you rvehicle easier. The steering wheel swings upwards when
you:
R
remove the key from the ignition lock
R open the driver' sdoor and the key is in
position 0or 1in the ignition lock
i The steering wheel only moves upwards if
it has not already reached the upper end
stop.
If you inser tthe key int othe ignition lock with
the driver's door closed ,the steering wheel is
automatically moved to the previously set
position.
The last position of the steering wheel is
stored after eac hmanual setting or when you
store the setting with the memory function
(Y page 103).
You can activate and deactivat ethe EASY-
ENTRY/ EXIT feature in th eon-board com-
puter (Y page208).
i If the crash-responsive EASY-EXIT feature
is trigge redinana ccident,the steering col-
um nw ill move upwards when the driver's
door is opened. This occur sirrespective of
th ep osition of the key in the ignition lock.
This makes it easier to exit the vehicle and
rescue the occupants.
The crash-responsive EASY- EXIT feature is
only operational afte ranaccidentif the
EASY-EXIT/ENTRY featur eisactivate din
the on-board computer. 100
Steerin
gwheelSeats, steering wheel an dmirrors
BA 207ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 100

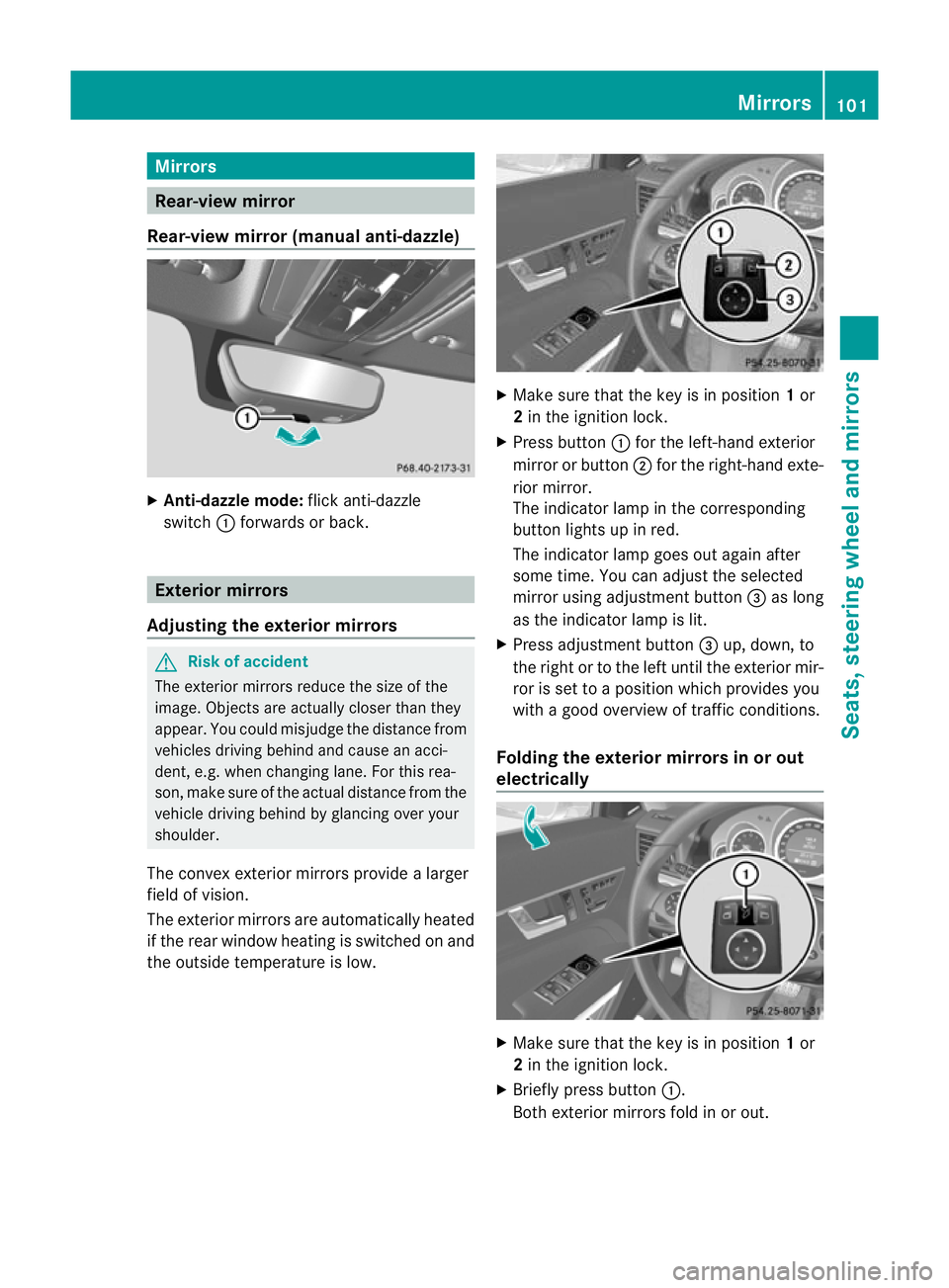

Mirrors
Rear-view mirror
Rear-view mirror (manual anti-dazzle) X
Anti-dazzl emode: flick anti-dazzle
switch :forwards or back. Exterior mirrors
Adjusting the exterior mirrors G
Risk of accident
The exterior mirrors reduce the size of the
image .Object sare actu ally closer than they
appear. You could misjudge the distance from
vehicles driving behind and cause an acci-
dent, e.g. when changing lane. For this rea-
son, make sure of the actual distance from the
vehicle driving behind by glancing over your
shoulder.
The convex exterior mirrors provide alarger
field of vision.
The exterior mirrors are automatically heated
if the rear window heating is switched on and
the outside temperature is low. X
Make sure that the key is in position 1or
2 in the ignition lock.
X Press button :for the left-hand exterior
mirror or button ;for the right-hand exte-
rior mirror.
The indicator lamp in the corresponding
button lights up in red.
The indicator lamp goes out again after
some time. You can adjust the selected
mirror using adjustmen tbutton =as long
as the indicator lamp is lit.
X Press adjustment button =up, down, to
the right or to the left until the exterior mir-
ror is se ttoaposition which provides you
with agood overview of traffic conditions.
Folding th eexterior mirror sinorout
electrically X
Make sure that th ekey is in position 1or
2 in the ignition lock.
X Briefly press button :.
Bot hexterior mirrors fold in or out. Mirrors
101Seats, steering whee land mirrors
BA 20 7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite1 01 Z

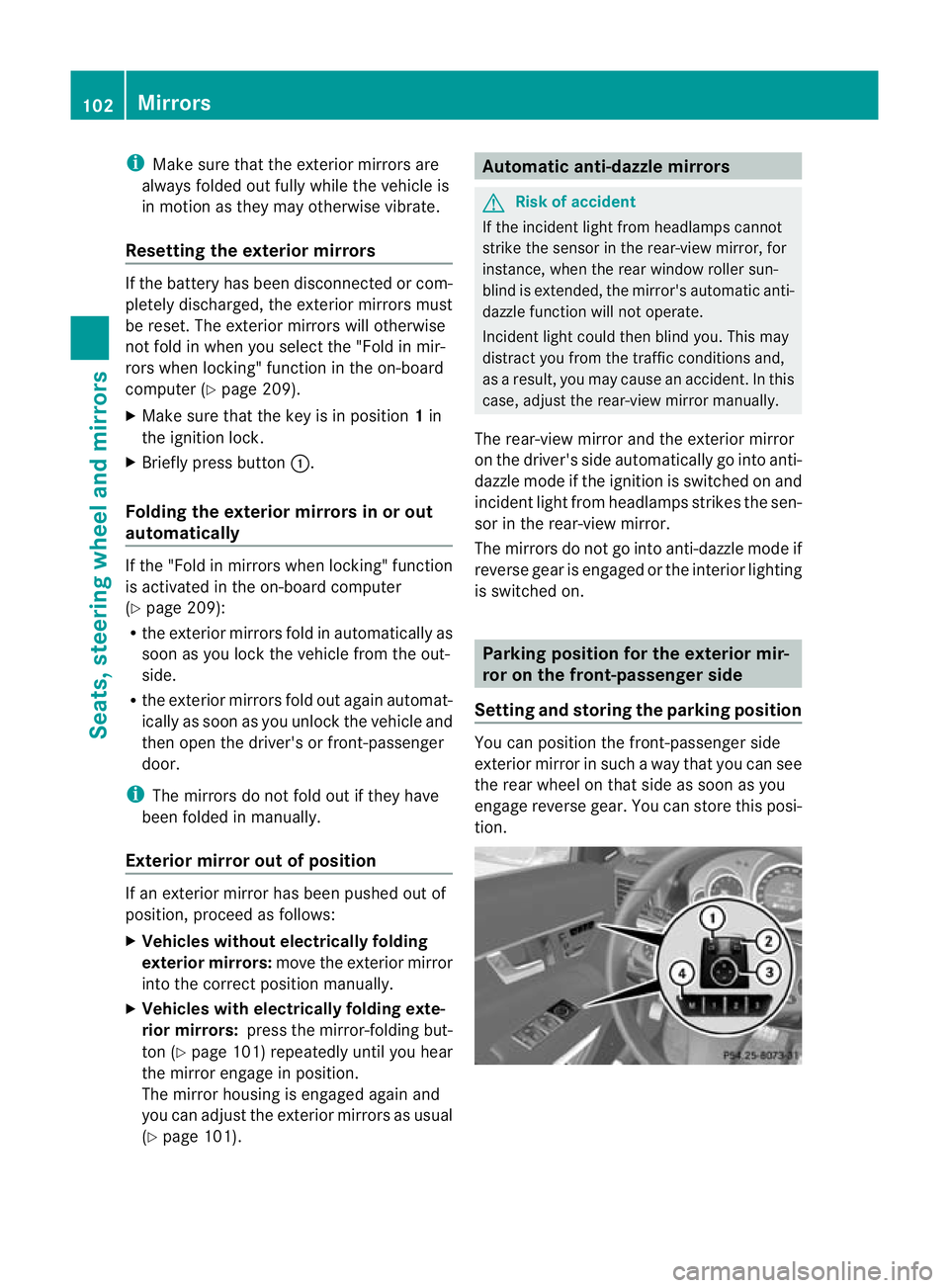

i
Make sur ethat the exterior mirrors are
always folded out fully while the vehicle is
in motion as they ma yotherwis evibrate.
Resetting the exterior mirrors If the battery has been disconnected or com-
pletely discharged, the exterior mirrors must
be reset. The exterior mirrors will otherwise
not fold in when you select the "Fold in mir-
rors when locking" func tion in the on-board
computer (Y page 209).
X Make sure that the key is in position 1in
the ignition lock.
X Briefl ypres sbutton :.
Folding the exterior mirrors in or out
automatically If the "Fold in mirrors when locking" function
is activated in the on-board computer
(Y page 209):
R the exterior mirrors fold in automatically as
soo nasyou lock the vehicle from the out-
side.
R the exterior mirror sfold out again automat-
ically as soon as you unloc kthe vehicle and
then open the driver's or front-passenger
door.
i The mirrors do not fol dout if they have
been folded in manually.
Exterior mirror out of position If an exterior mirror has been pushed out of
position, proceed as follows:
X Vehicles without electrically folding
exterior mirrors: move the exterior mirror
into the correct position manually.
X Vehicles with electrically folding exte-
rior mirrors: press the mirror-folding but-
ton (Y page 101 )repeatedly until you hear
the mirror engage in position.
The mirror housing is engaged again and
you can adjust the exterior mirror sasusual
(Y page 101). Automatic anti-dazzle mir
rors G
Risk of accident
If the incident ligh tfrom headl ampscannot
strike the senso rinthe rear-vie wmirror ,for
instance, when the rea rwindow roller sun-
blind is extended, the mirror' sautomatic anti-
dazzle function will not operate.
Incident light could then blind you. This may
distract you from the traffic conditions and,
as aresult, you may cause an accident. In this
case, adjust the rear-view mirror manually.
The rear-view mirror and the exterior mirror
on the driver' sside automatically go into anti-
dazzle mode if the ignition is switched on and
incident light from headlamps strikes the sen-
sor in the rear-view mirror.
The mirrors do not go into anti-daz zlem ode if
reverse gear is engaged or the interior lighting
is switched on. Parking position for th
eexterior mir-
ror on th efront-passenger side
Settin gand storing th eparking position Yo
uc an position the front-passenger side
exterior mirror in such away that you can see
the rear wheel on that side as soon as you
engage reverse gear. You can store this posi-
tion. 102
MirrorsSeats
,steering whee land mirrors
BA 20 7ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 102

X

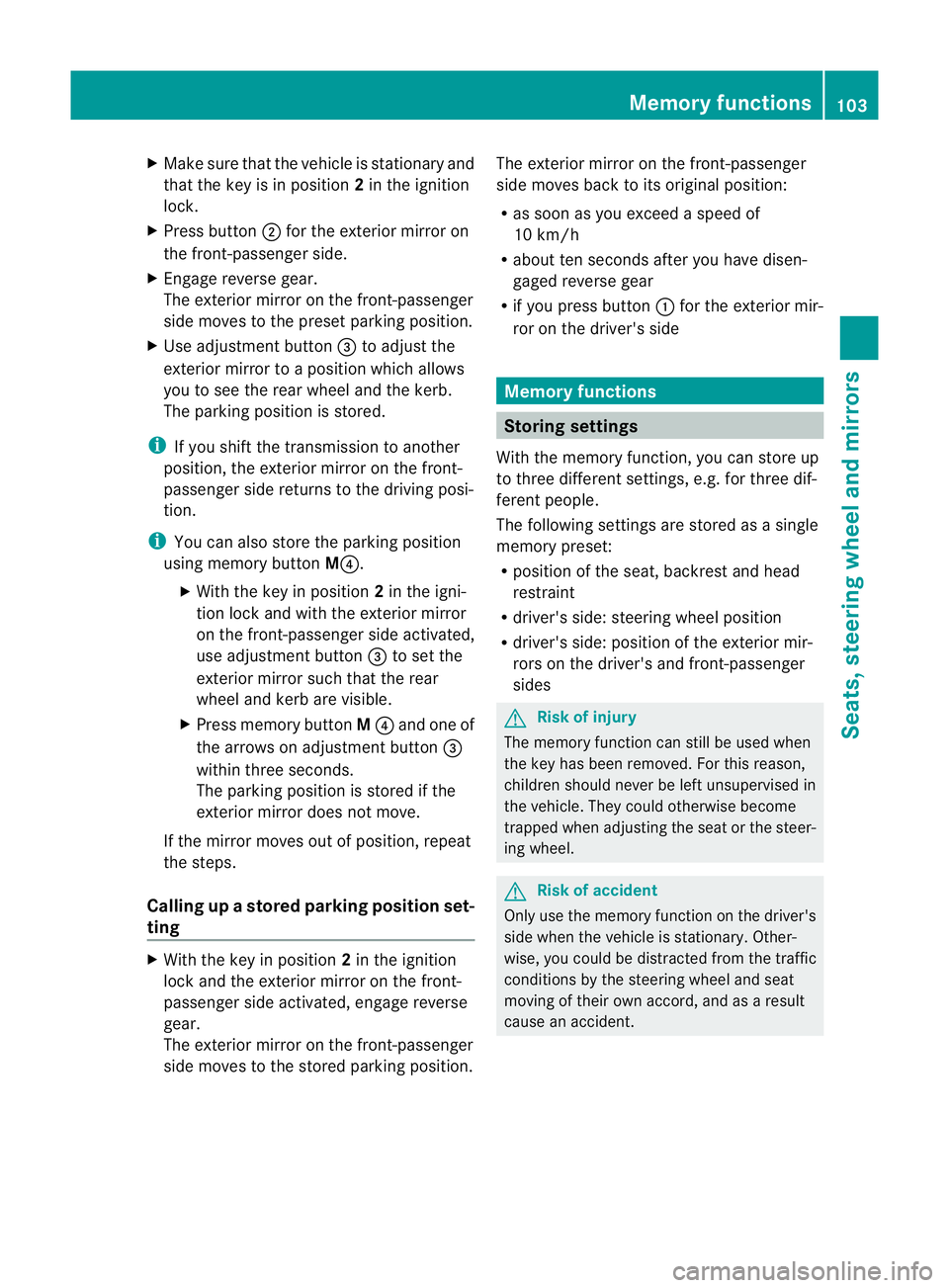

Make sur ethat the vehicle is stationary and
that the key is in position 2in the ignition
lock.
X Press button ;for the exterior mirror on
the front-passenger side.
X Engage reverse gear.
The exterior mirror on the front-passenger
side moves to the preset parkin gposition.
X Use adjustment button =to adjust the
exterior mirror to aposition which allows
you to see the rea rwheel and the kerb.
The parkin gposition is stored.
i If you shift the transmission to another
position ,the exterior mirror on the front-
passenger side returns to the drivin gposi-
tion.
i You can also stor ethe parkin gposition
using memory button M?.
X With the key in position 2in the igni-
tion lock and with the exterior mirror
on the front-passenger side activated,
use adjustment button =to set the
exterior mirror such that the rear
wheel and ker bare visible.
X Press memory button M? and one of
th ea rrow sona djustment button =
within three seconds.
The parking position is stored if the
exterior mirror does not move.
If the mirror moves out of position, repeat
the steps.
Calling up astore dparkin gposition set-
ting X
With the key in position 2in the ignition
lock and the exterior mirror on the front-
passenge rside activated, engage reverse
gear.
The exterior mir roront he front-passenger
side moves to the store dparking posi tion. The exterior mir
roront he front-passenger
side moves bac ktoits original position:
R as soo nasyou exceed aspeed of
10 km/h
R about ten seconds after you have disen-
gaged rev ersegear
R if you press button :for the exterior mir-
ror on the driv er'sside Me
mo ry functions Storing settings
With the memory function ,you can store up
to three differen tsettings, e.g. for three dif-
ferent people.
The followi ngsettings ar estore dasa single
mem orypreset:
R position of the seat ,backrest and head
restraint
R driver's side: steerin gwheel position
R driver' sside: position of the exterior mir-
ror so nthe driver' sand front-passenger
sides G
Risk of injury
The memor yfunction can still be used when
the key has been removed. For this reason,
children should never be left unsupervised in
the vehicle. They could otherwise become
trapped when adjusting the seat or the steer-
ing wheel. G
Risk of accident
Only use the memory function on the driver's
side when the vehicle is stationary. Other-
wise, you could be distracted fro mthe traffic
conditions by the steering wheel and seat
moving of their own accord, and as aresult
cause an accident. Memory functions
103Seats, steering wheel and mirrors
BA 207ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 103 Z

X

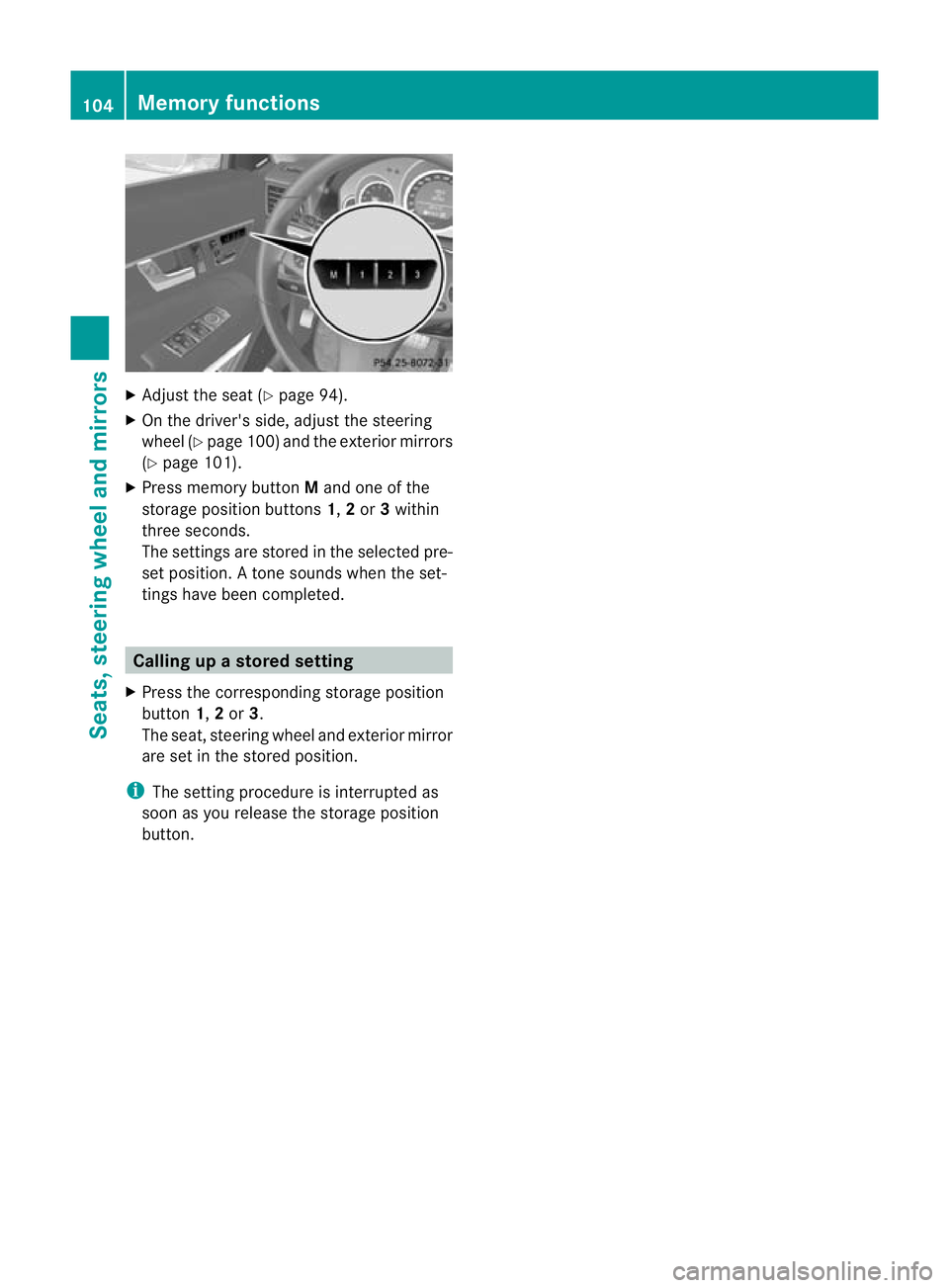

Adjust the sea t(Ypage 94).
X On the driver' sside, adjust the steering
wheel (Y page 100 )and the exterio rmirrors
(Y page 101).
X Press memory button Mand one of the
storage position buttons 1,2or 3within
three seconds.
The settings are stored in the selected pre-
set position .Atone sounds when the set-
tings have been completed. Calling up
astore dsetting
X Pres sthe co rresponding storage position
button 1,2or 3.
The seat ,steerin gwheel and exteri or mirror
are set in the store dposition.
i The settin gprocedure is interrup tedas
soon as you release the storage position
but ton. 104
Memory functionsSeats, steering wheel and mirrors
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa
Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite1 04

Vehicl
eequipment ............................ 106
Exterior lighting ................................ 106
Interior lighting ................................. 112
Changing bulbs ................................. 113
Windscreen wipers ...........................115 105Lights and windscreen wipers
BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 105

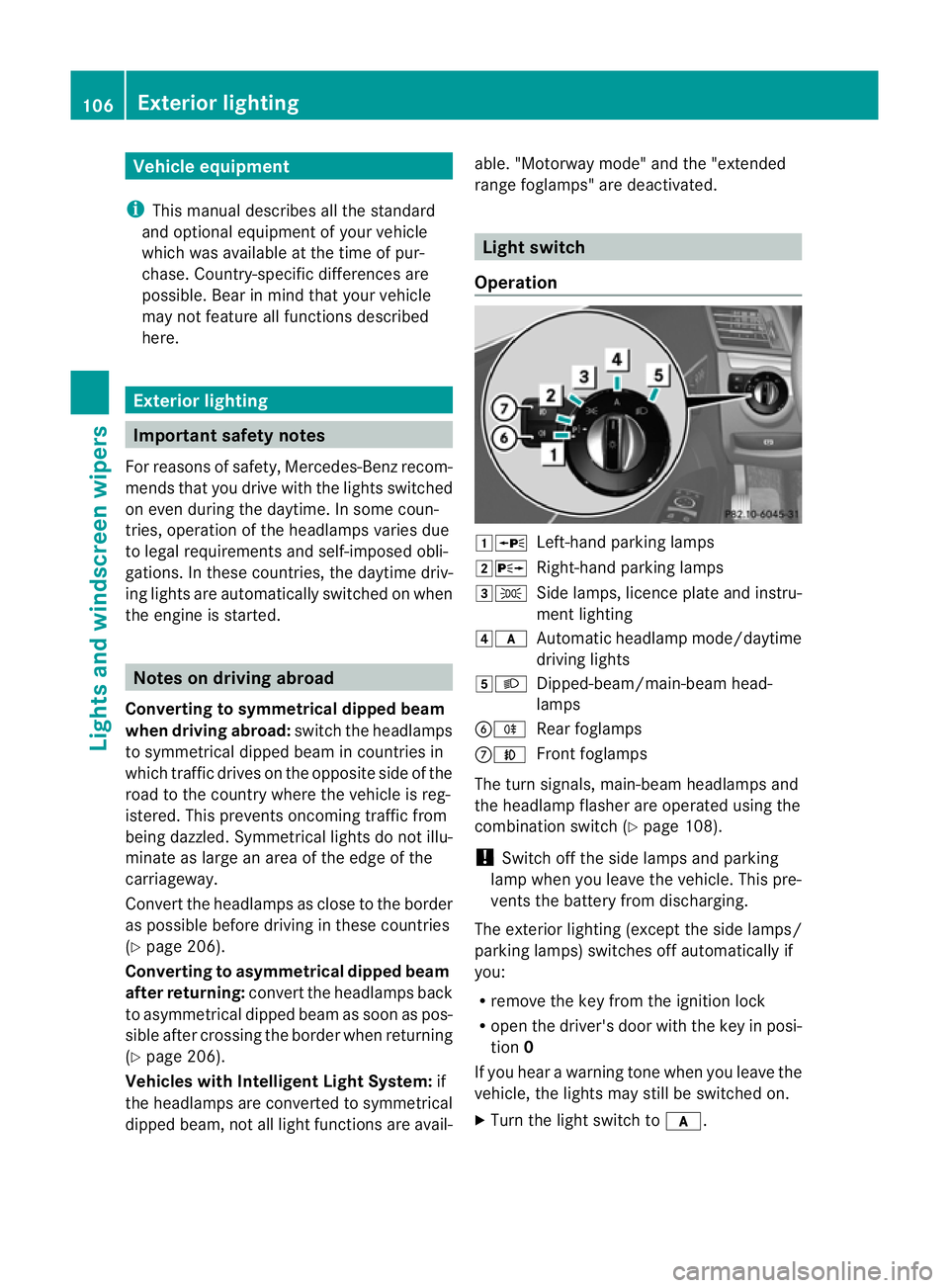

Vehicl
eequipment
i Thismanua ldesc ribe sallthe standard
and optional equipment of your vehicle
which wa savailable at th etime of pur-
chase. Countr y-specif ic differences are
possible. Bear in mind tha tyour vehicle
ma ynot featur eall function sdescribed
here. Exterio
rlighting Important safet
ynotes
For reasons of safety, Mercedes-Ben zrecom-
mends that you driv ewith the lights switched
on even during the daytime. In some coun-
tries, operation of the headlamps varies due
to legal requirement sand self-imposed obli-
gations. In these countries, the daytime driv-
ing lights are automatically switche donwhen
the engin eisstarted. Notes on driving abroad
Converting to symmetrical dipped beam
when drivin gabroad: switch the headlamps
to symmetrical dipped beam in countries in
which traffic drives on the opposite side of the
road to the countr ywhere the vehicle is reg-
istered. This prevents oncomi ngtraffic from
being dazzled .Symmetrical lights do not illu-
minate as large an area of the edg eofthe
carriageway.
Convert the headlamps as close to the border
as possible before drivin ginthese countries
(Y page 206).
Converting to asymmetrica ldipped beam
after retu rning: conver tthe headlamps back
to asymmetrical dipped beam as soon as pos-
sible after crossing the border when returning
(Y page 206).
Vehicle swith Intelligent Light System: if
the headlamps are converted to symmetrical
dipped beam, not all light functions are avail- able. "Motorway mode" and the "extended
range foglamps" are deactivated. Light switch
Opera tion 1W
Left-hand parking lamps
2X Right-hand parking lamps
3T Side lamps, licence plate and instru-
ment lighting
4c Automatic headlamp mode/daytime
driving lights
5L Dipped-beam/main-beam head-
lamps
BR Rear foglamps
CN Front foglamps
The turn signals ,main-beam headlamps and
the headlamp flasher are operated using the
combination switch (Y page 108).
! Switch off the side lamps and parking
lamp when you leave the vehicle. This pre-
vent sthe battery from discharging.
The exterior lighting (except the side lamps/
parkin glamps) switches off automatically if
you:
R remove the key from the ignition lock
R open the driver' sdoor with the key in posi-
tion 0
If you hear awarning tone when you leave the
vehicle, the lights may still be switched on.
X Turn the light switch to c.106
Exterior lightingLights and windscree
nwipers
BA 207ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 106

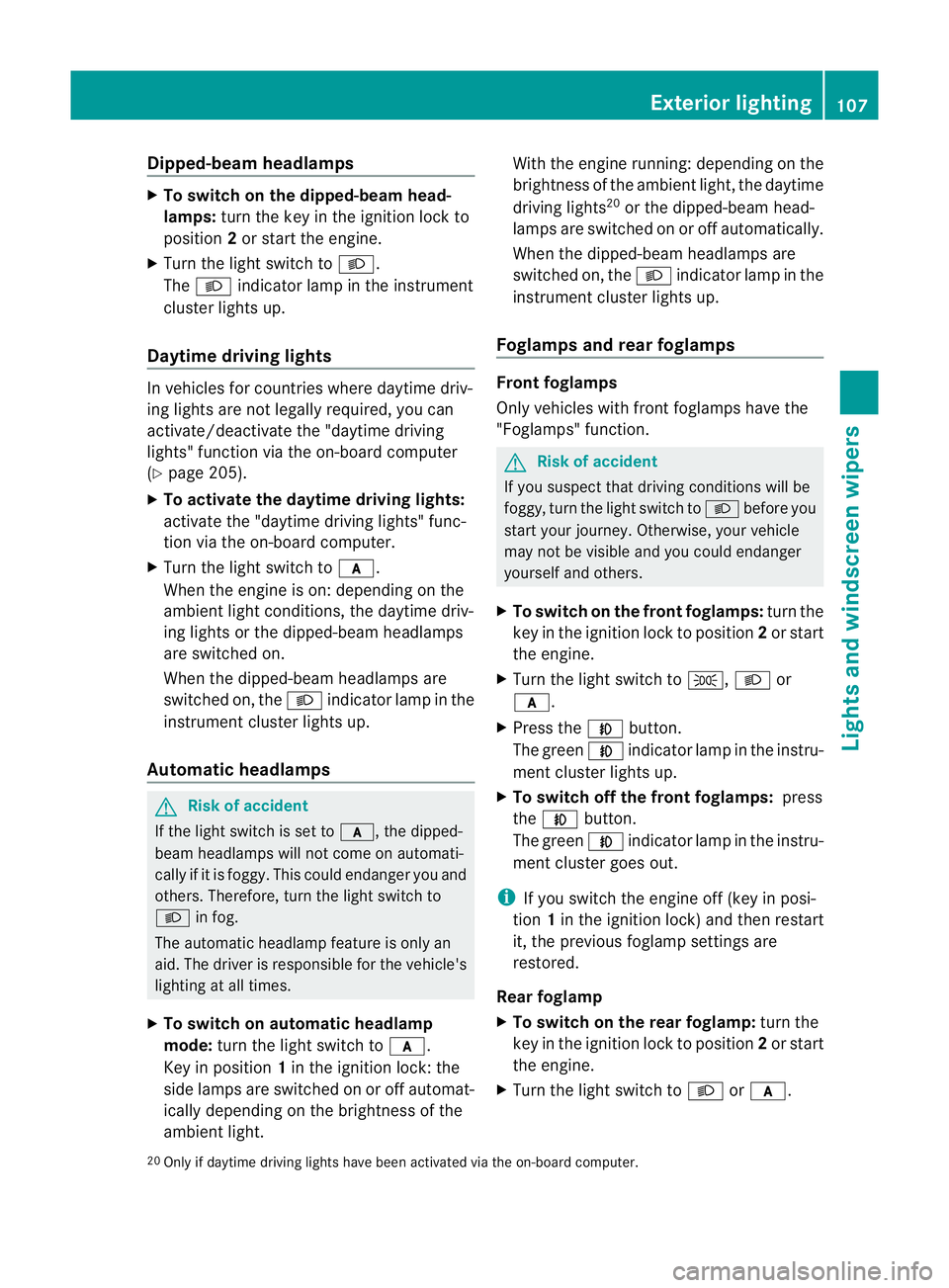

Dipped-bea
mheadlamps X
To switch on th edipped -bea mh ead-
lamps: turn thekeyin th eignition loc kto
posi tion 2or star tthe engine.
X Tur nthe light switc htoL.
The L indicator lam pint he instrument
cluster lights up.
Daytime driving lights In vehicles for countries wher
edaytime driv-
ing lights are not legall yrequired, you can
activate/deactivate the "daytime driving
lights" function via the on-boar dcomputer
(Y page 205).
X To activat ethe daytime drivin glights:
activate the "daytime driving lights" func-
tion via the on-board computer.
X Turn the light switch to c.
When the engine is on: depending on the
ambient light conditions, the daytim edriv-
ing lights or th edipped-bea mheadlamps
are switched on.
When the dipped-beam headlamps are
switched on, the Lindicator lam pinthe
instrumen tcluster lights up.
Automatic headlamps G
Risk of accident
If the light switch is set to c,the dipped-
beam headlamps will not com eonautomati-
cally if it is foggy. This could endanger you and
others. Therefore, turn the light switch to
L in fog.
The automatic headlamp feature is only an
aid. The driver is responsible for the vehicle's
lighting at all times.
X To switch on automatic headlamp
mode: turn the ligh tswitch to c.
Key in position 1in the ignition lock: the
side lamps are switched on or off automat-
ically depending on the brightness of the
ambient light. With the engine running: depending on the
brightness of the ambient light, the daytime
driving lights
20
or the dipped-beam head-
lamps are switched on or off automatically.
When the dipped-beam headlamps are
switched on, the Lindicator lamp in the
instrument cluster lights up.
Foglamps and rear foglamps Front foglamps
Only vehicles with fron
tfoglamps have the
"Foglamps" func tion. G
Risk of accident
If you suspec tthat drivin gconditions will be
foggy ,turn the light switch to Lbefore you
start your journey. Otherwise, your vehicle
may not be visible and you could endanger
yourself and others.
X To switch on the front foglamps: turn the
key in the ignitio nlock to position 2or start
the engine.
X Tur nthe light switc htoT,Lor
c.
X Press the Nbutton.
The green Nindicator lam pint he inst ru-
ment cluster lights up.
X To switc hoff the fron tfoglamps: press
the N button.
The green Nindicator lamp in the instru-
ment cluster goes out.
i If you switch the engine off (key in posi-
tion 1in the ignition lock) and then restart
it, the previous foglamp settings are
restored.
Rear foglamp
X To switch on the rear foglamp: turn the
key in the ignition lock to position 2or start
the engine.
X Turn the light switch to Lorc.
20 Only if daytim edrivin glights have been activated via the on-board computer. Exterior lighting
107Lights and windscree nwipers
BA 207ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 107 Z
