Press the Rbutton.
The yellow Rindicator lam pinthe
instrumen tcluster lights up.
X To switch off the rear foglam p:press the
R button.
The yellow Rindicator lamp in the
instrument cluster goes out.
Vehicles with fron tfoglamps: when the light
switc hisint heT position, the rea rfog-
lam pcan only be switched on if the foglamps
(without dipped-beam headlamps )are
switche don.
i If you switch the engine off (key in posi-
tion 1in the ignition lock) and then restart
it, the previous rear foglamp settings are
resto red. Combination switch
Tur nsignals :
Main-beam headlamps
; Right tur nsignal
= Headlamp flasher
? Left turn signal
X To indicate briefly: press the combination
switch briefly to the pressure point in the
direction of arrow ;or?.
The correspondin gturn signal flashes three
times.
X To indicate: press the combination switch
beyond the pressure point in the direction
of arrow ;or?. Main-beam headlamps X
To switch on the main-beam head-
lamps: turn the key in the ignition lock to
position 2or start the engine.
X Turn the light switch to Lorc.
X Press the combination switch beyond the
pressure point in the direction of
arrow :.
In the cposition, the main-beam head-
lamps are only switched on when it is dark
and the engine is running.
The K indicator lamp in the instrument
cluster lights up when the main-beam head-
lamps are switched on.
X To switch off the main-beam head-
lamps: move the combination switch back
to its normal position.
The K indicator lamp in the instrument
cluster goes out.
Adaptive Highbeam Assist G
Risk of accident
Adaptive Highbeam Assis tiso nly an aid
designe dtoassist driving. The driver is
responsible for adjustin gthe vehicle' slighting
to the prevailin glight, vision and traffic con-
ditions.
The system may be impaired or deactivated:
R if there is poor visibility, e.g. due to snow,
rain, fog or spray
R if the area of the windscreen around the
optical sensor is dirty, misted up or covered
up, e.g. by asticker
The syste mmay not recognise the following
road users:
R road users that have no lighting, e.g. pedes-
trians
R road users that have poor lighting, e.g.
cyclists 108
Exterior lightingLights and windscreen wipers
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalaf
aV ersion: 3.0.2.11
2010-01-26T13:03:22+01:00
-Seite 108

R
roa dusers whose lighting is not clearly visi-
ble, e.g. roa dusers behind acras hb arrier
R on rare occasions: road users that have
lights that may be recognise dtoo late or not
at all
The automatic main-beam headlamps will not
be deactivated, or they may be activated
despite road users travelling in front of or
approaching the vehicle.
Thus, you coul dcaus eana ccident and injure
yoursel fand others. Always observe traffic
conditions and, if necessary ,dip the lights
manu ally.
You can use this function to set the head-
lamps to change between dipped bea mand
mai nbeama utomatically. The system rec og-
nises vehicles with thei rlights on, either
approaching from the opposit edirection or
travelling in front of your vehicle, and conse-
quently switches the headlamps from main
beam to dipped beam.
The system automatically adapts the dipped-
beam headlamp range depending on the dis-
tance to the other vehicle. Once the system
no longer detect sany other vehicles, it reac-
tivates the main-bea mheadlamps.
The system's optica lsensor is located behind
the windscreen near the overhead control
panel. X
To activate: activate the Adaptive High-
beam Assist function using the on-board
computer (Y page 206).
X Turn the light switc htoc.
X Press the combination switc hbeyond the
pressur epoint in the direction of arrow :
(Y page 108).
When the dipped-beam headlamps are
switched on, the _indica torlamp in the
instrument cluster lights up.
If you are driving at speeds above
40 km/h:
the headlamp range is set automatically
depending on the distanc ebetween the
vehicle and other road users.
If you are driving at speeds above
55 km /hand no other road users are rec-
ognised:
the main-beam headlamps are switched on
automatically. The Kindicator lamp in
the instrument cluster also lights up.
If you are driving at speeds below
45 km/ horother road users are recog-
nised or the roads are adequately lit:
the main-beam headlamps are switched off
automatically. The Kindicator lamp in
the instrument cluster goe sout. The _ Exterior lighting
109Lights and windscreen wipers
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 109 Z

indicator lamp in the instrumen
tcluster
stays on.
X To deactivate: movethe combina tion
switc hback to its normal posi tion.
The _ indicator lam pinthe instrument
cluster goes out.
Headlam pflasher X
To switch on: turnthe key in the igni tion
lock to position 1or 2or star tthe engine.
X Pull the combina tion switc hbrieflyint he
direction of arrow =.Ha
zard warning lamps The hazar
dwarnin glamps automatically
switc hon:
R if an airbag is deployed
R if the vehicle decelerates rapidl yfrom a
speed of more than 70 km/h and comes to
as tandstill
X To switch on the hazar dwarning lamps:
press button :.
All turn signals flash. If you now switch on
at urn signal using the combination switch,
only the turn signal lamp on the corre-
sponding side of the vehicle will flash.
X To switch off the haza rdwarning
lamps: press button :.
The hazard warning lamp switche soff auto-
matically if th evehicle reaches aspeed of
over 10 km/ hagain after full brake applica-
tion. i
The hazard warnin glamps still operate if
the ignition is switched off. Adjusting the headlamp range (halo-
gen headlamps)
The headlamp range control allow syou to
adjust the con eoflight from the headlamps
to suit the vehicle load. g
Driver' sseat and front-passenger seat
occupied
1 Driver's seat, front-passenger seat and
rear seats occupied
2 Driver's seat, front-passenger seat and
rear seats occupied, boot laden
3 Driver's and front-passenger seats occu-
pied and maximu mpermissible rear axle
load utilised, e.g. when towing atrailer
X Start th eengine.
X Turn headlamp range control to the posi-
tion which corresponds to the load in your
vehicle. Headlamp clean
ings ystem
Th eh eadlamps are cleaned automatically if
the "Wipe with washer fluid" function is oper-
ated ten times while the lights are on and the
engine is running (Y page 116). When you
switc hoff th eignition, the automatic head-
lam pcleaning system is reset and countin gis
resume dfrom 0. 110
Exterior lightingLi
gh ts and windscreen wipers
BA 207 ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 110

Intelligent Light System
Active light function The active light fun
ction is asystem that
moves the headlamps according to the steer-
ing movement softhe front wheels. In this
way, relevant areas remain illuminated while
driving. This allows you to recognise pedes-
trians, cyclists and animals.
Active: when the lights ar eswitched on.
Cornering light function The cornering light func
tion improves the illu-
mination of the roa dover awide angle in the
direction you are turning, enabling better vis-
ibility in tight bends, for example. It can only
be activated when the dipped-bea mhead-
lamps are switched on.
Active: if you are driving at speeds below
40 km /hand switch on the turn signals or
turn the steering wheel.
Not active: if you are driving at speeds above
40 km/ horswitch off the turn signal or turn the steerin
gwheel to the straight-ahea dposi-
tion.
The cor nering ligh tfunction may remain lit for
as hort time, but is automatically switc hed off
after no more than three minutes.
Motorway mode Motorway mode inc
reases the range of the
beam.
Active:
R if you are driving at speeds above
110 km/ hand do not make any large steer-
ing movements for 1000 m
R if yo uare drivin gatspeed sabove
130 km/h
Not active: if youare drivin gatspeed sbelow
80 km/h following activation.
Extended rang efogla mps The extende
drange foglamps reduce the
glar eexperience dbythe driver and im prove
the illumin ationoft he edge of the carriage-
way. Exterior lighting
111Lights and windscreen wipers
BA 207ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 111 Z

Active:
if you are driving at speeds below
70 km/h and you switc honthe rear foglamp.
No tactive: if you are driving at speeds above
10 0k m/h or yo uswitch off the rear foglamp
following activat ion. Interior lighting
Overv
iewofi nterio rlighting Overhead control panel (example: Coupé)
:
u To switc hthe rea rinterior lighting
on/off (Coupé only)
; | To switc hthe automa tici nterior
lighting control on/off
= p To switc hthe right-han dreading
lam pon/off
? c To switch the fron tinterior lighting
on/off
A p To switch the left-hand reading lamp
on/off Automatic interior lighting control
X To switch on/off: pressthe | button.
When the automatic interior lighting con-
trol is activa ted, the button is flush with the
overhead control panel.
The interior lighting automatically switches
on if you:
R unloc kthe vehicle
R open adoor
R remove the key from the ignition lock The interior lightin
gdelayed switch-off must
be activated (Y page 207)
The interior lightin gswitches off after adelay.
You can set the delayed switch-off using the
on-board computer.
i The interior lighting switches off automat-
icall yafter five minutes in certain condi-
tions. This is th ecase when adoor stays
open and the key in the ignition lock is in
position 0or is removed. Manua
linterior lighting control
! If the interior lightin ghas been switched
on manually, it will not be switched off
automatically.
This can cause the batter ytodischarge.
Make sure that the interior lighting does
not remain switched on too long after the
engine has been switched off.
X To switch the front interior lighting on/
off: press the cbutton.
X To switch the rear interior lighting on/
off: press the ubutton.
X To switch the reading lamp son/off:
press the pbutton. Crash-responsive emergency lighting
If the interior lightin gisset to automatic ,the
interior lighting is activated automatically if
the vehicle is involved in an accident.
X To switch of fthe crash-responsive
emergenc ylighting: press the hazard
warning lamp button.
or
X Lock and then unlock the vehicle using the
key. 112
Interior lightingLights and windscreen wipers
BA 20
7ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 112

Changing bulbs
Important safety notes
Xenon bulbs If your vehicle is equipped wit
hxenon bulb s,
you ca nrecognise this by th efollowing: the
cone of light from th exenon bulbs moves
from th etop to the bottomand back again
whe nyou star tthe engine. Fo rthis to be
observed ,the lights must be switched on
before startin gthe engine. G
Risk of injury
Xenon bulb scarry ahigh voltage. You could
get an electric shock and be seriously or even

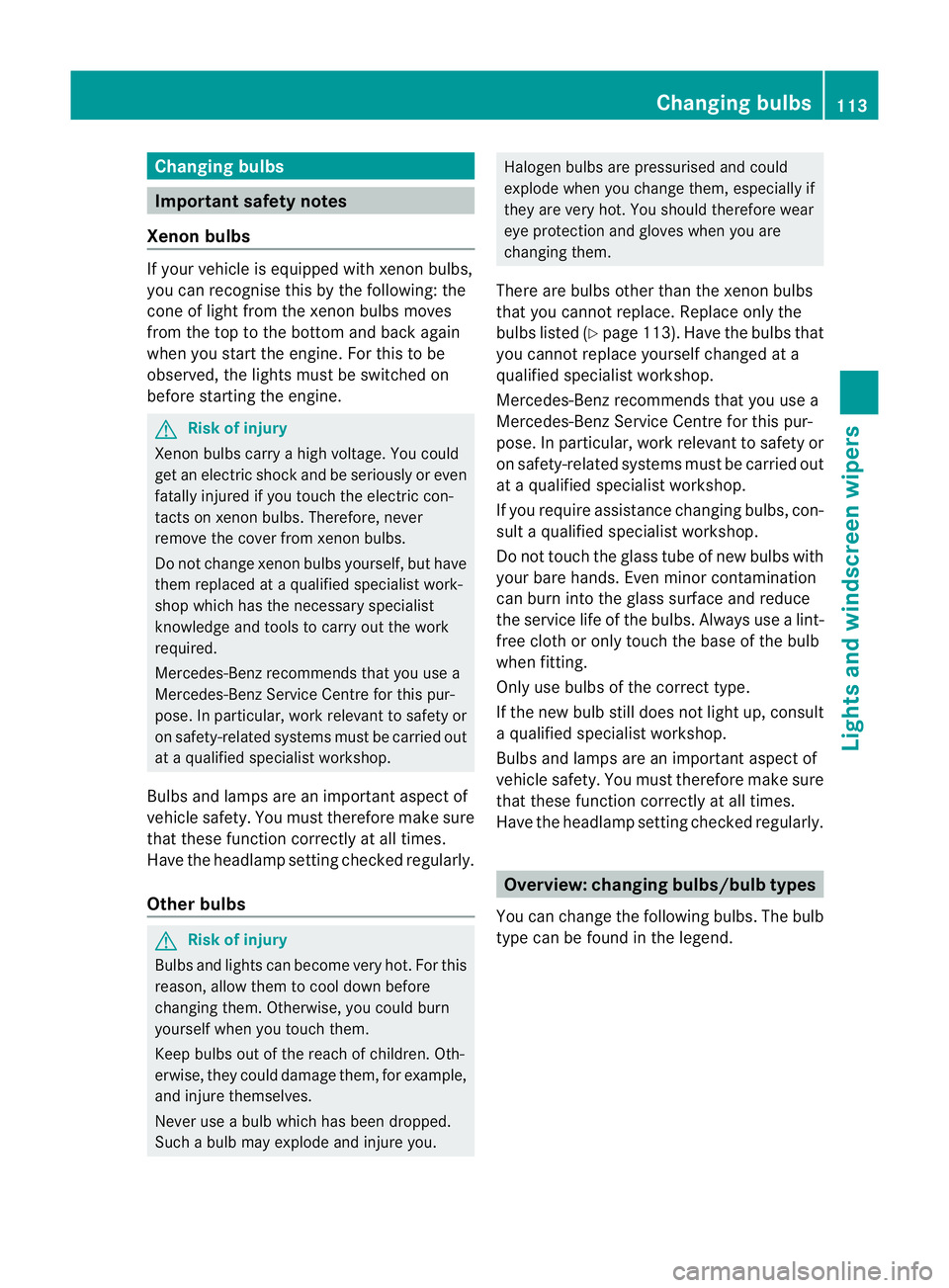

fatally injured if you touch the electric con-
tacts on xenon bulbs. Therefore, never
remov ethe cover from xenon bulbs.
Do not change xenon bulbs yourself, but have
them replaced at aqualified specialist work-
sho pwhich has the necessar yspecialist
knowledge and tools to carry out the work
required.
Mercedes-Ben zrecom mends that you use a
Mercedes-Benz Service Centre for this pur-
pose. In particular, work relevant to safety or
on safety-related systems must be carried out
at aq ualified specialist workshop.
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that thes efunction correctly at all times.
Have the headlamp setting checked regularly.
Other bulbs G
Risk of injury
Bulbs and lights can become very hot. For this
reason, allow them to cool down before
changin gthem. Otherwise, you coul dburn
yourself when you touch them.
Keep bulbs out of the reach of children. Oth-
er wise ,they could damage them, for example,
and inj uret hemselves.
Never use abulbw hich ha sbeend ropped.
Suc hab ulbm ay explod eand injure you. Halogen bulb
sare pressu rised and could
explode when yo uchange them, especiall yif
the yarever yhot. Yo ushould therefor ewear
eye protec tion and gloves when you are
changing them.
There are bulbs other than the xenon bulbs
that you cannot replace. Replace only the
bulbs listed (Y page 113). Hav ethe bulbs that
you cannot replac eyourself changed at a
qualified specialist workshop.
Mercedes-Ben zrecom mends that you use a
Mercedes-Ben zService Cent refor this pur-
pose .Inp articular, work relevant to safety or
on safety-related systems must be carried out
at aq ualified specialist workshop.
If you require assistanc echangi ngbulbs, con-
sult aqualified specialist workshop.
Do not touch the glass tube of new bulbs with
your bare hands. Even minor contamination
can burn int othe glass surface and reduce
the servic elife of the bulbs. Always use alint-
free clot horonly touch the bas eofthe bulb
when fit ting.
Only use bulb softhe cor rect type.
If the new bul bstill doe snot light up, consult
aq ualified specialist workshop.
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that these function correctly at all times.
Have the headlamp setting checked regularly. Overview: changing bulbs/bulb types
You can change the following bulbs .The bulb
typ ecan be found in the legend. Changin
gbulbs
113Lightsand windscreen wipers
BA 20 7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 113 Z

Halogen he
adlamps
: Dipped-bea mheadlamps 21
:H755W
; Main-bea mheadlamp: H7 55 W
= Side lamp/parkin glamp: W5W
? Turnsignal lamp 21
:PY21W Bi-xenon headlamps
:
Cornering lamp :H755W Changing the front bulbs
Dipped-beam headlamps (halogen
headlamps) Due to their location, have the bulbs in the
left-hand headlamp changed at
aqualified
specialist workshop, e.g. aMercedes-Benz
Ser vice Centre.
X Switch off the lights.
X Open the bonnet.
X Turn housing cover :anti-clockwise and
pul lito ut.
X Turn bulb holder ;anti-clockwise and pull
it out.
X Take the bulb out of bulb holder ;.
X Inser tthe new bulb int obulb holder ;.
X Insert bulb holder ;into the lamp and turn
it clockwise.
X Align housing cover :and turn it clock-
wise until it engages.
21 Due to their location, have the bulbs in the left-hand headlamp changed at aqualified specialis tworkshop,
e.g. aMercedes-Ben zService Centre. 114
Changing bulbsLights and windscreen wipers
BA 20
7ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 114

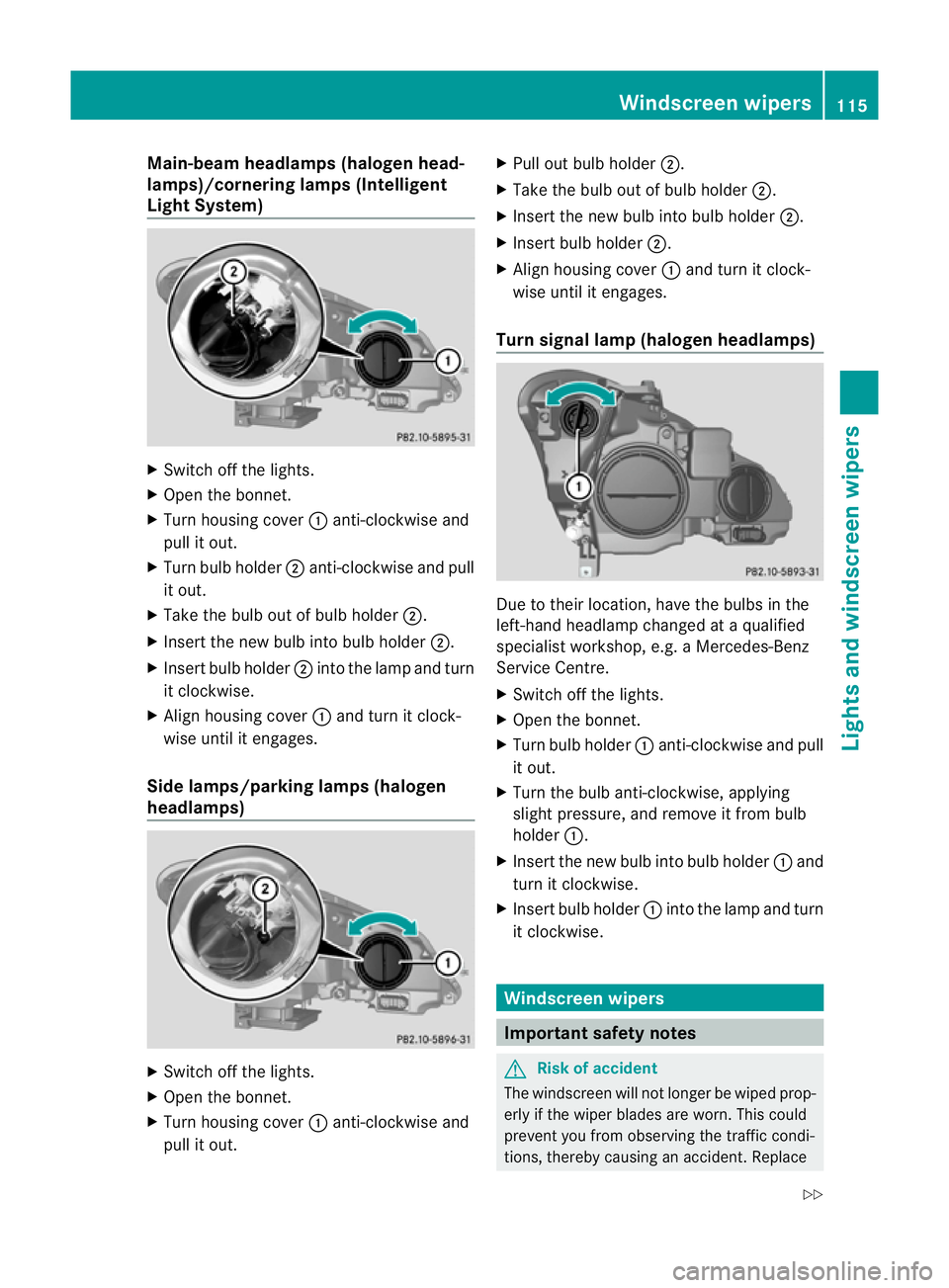

Main-beam headlamps (hal
ogen head-
lamps)/cornering lamps (Intelligent
Light System) X
Switch off the lights.
X Open the bonnet.
X Turn housing cover :anti-clockwis eand
pul lito ut.
X Turn bul bholder ;anti-clockwise and pull
it out.
X Take the bulb out of bulb holder ;.
X Insert the new bulb int obulbh older ;.
X Insert bulb holder ;intothe lamp and turn
it clockwise.
X Alig nhousing cover :and tur nitclock-
wis euntil it enga ges.
Side lamps/parking lamps (halogen
headlamps) X
Switc hoff th elights.
X Open the bonnet.
X Turn housing cover :anti-clockwis eand
pul lito ut. X
Pul lout bul bholder ;.
X Take the bulb out of bulb holder ;.
X Insert the new bulb int obulbh older ;.
X Insert bulb holder ;.
X Align housing cover :and tur nitclock-
wis euntil it enga ges.
Turn signal lam p(haloge nheadlamps) Due to their location, have the bulbs in the
left-hand headlamp changed at
aqualified
specialist workshop, e.g. aMercedes-Benz
Ser vice Centre.
X Switch off the lights.
X Open the bonnet.
X Turn bul bholder :anti-cloc kwise and pull
it out.
X Turn the bulb anti-clockwise, applying
slight pressure, and remov eitfrom bulb
holder :.
X Insert the new bul binto bulb holder :and
turn it clockwise.
X Insert bulb holder :into the lamp and turn
it clockwise. Windscreen wipers
Important safety notes
G
Risk of accident
The windscreen will not longer be wipe dprop-
erl yift he wiper blades ar eworn.This could
prevent you from observing the traffic condi-
tions, thereby causing an accident .Replace Windscreen wipers
115Lights and windscreen wipers
BA 207ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 115 Z

the wipe
rblades twic eayear, ideally in spring
and autumn. Switchin
gthe windscreen wipers on/

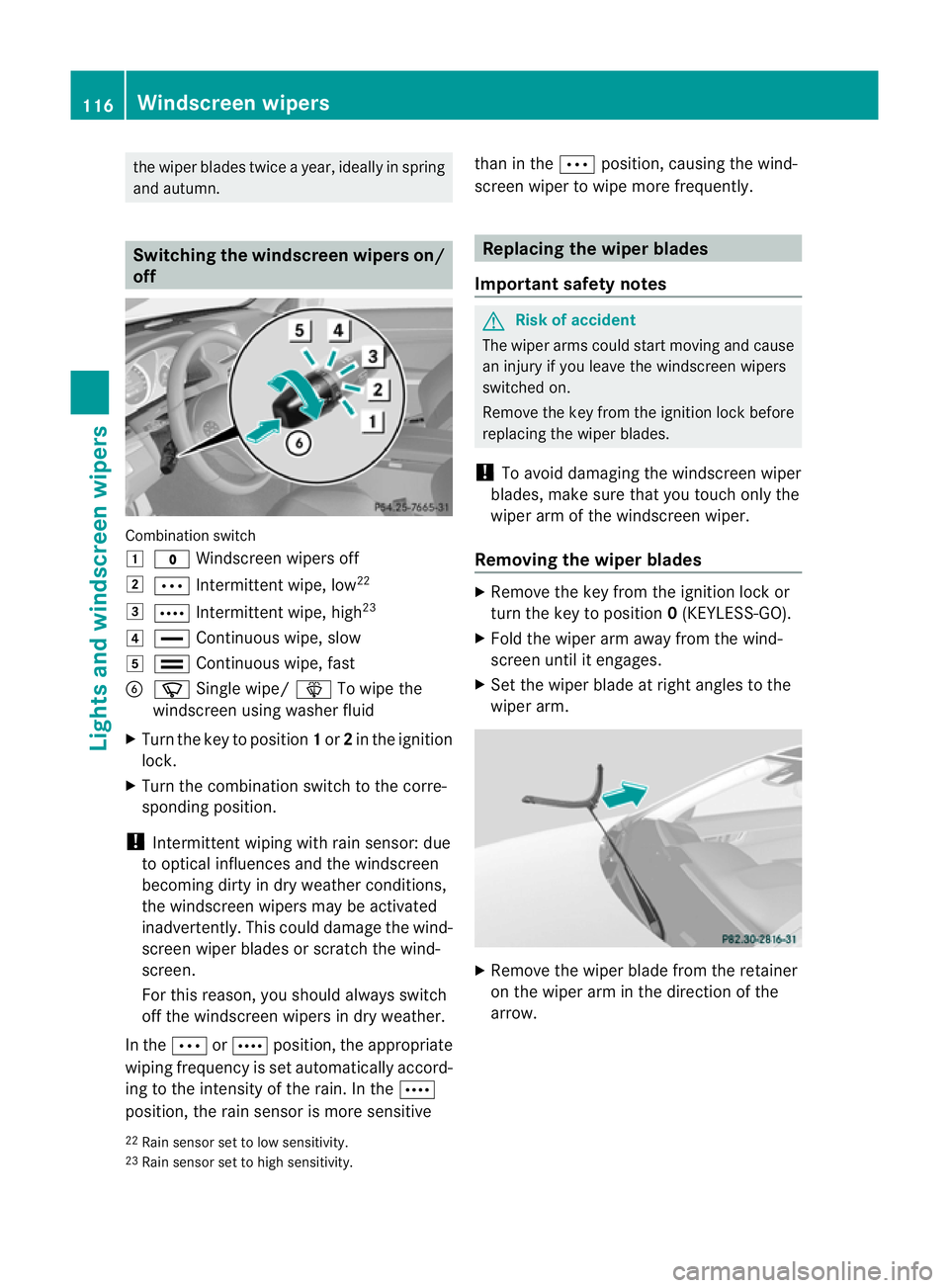

off Combination switch
1
$ Windscreen wipers off
2 Ä Intermitten twipe, low 22
3 Å Intermitten twipe, high 23
4 ° Continuous wipe, slow
5 ¯ Continuous wipe, fast
B í Single wipe/ îTo wipe the
windscreen using washer fluid
X Turn the key to position 1or 2in the ignition
lock.
X Turn the combination switc htothe corre-
sponding position.
! Intermi tten tw iping with rain sensor: due
to optical influences and the windscreen
becoming dirt yindry weather conditio ns,
the winds creen wipers may be activated
inadvertently. This could damage the wind-
screen wiper blades or scratc hthe wind-
screen.
For this reason ,you should always switch
off the windscreen wiper sindry weather.
In the ÄorÅ position, th eappropriate
wiping frequenc yisset automatically accord-
ing to the intensity of the rain. In the Å
position, the rai nsensor is mor esensitive than in the
Äposition, causin gthe wind-
screen wiper to wipe mor efrequently. Replacing the wiper blades
Important safety notes G
Ris
kofa ccident
The wiper arms could star tmovin gand cause
an injury if you leave the windscreen wipers
switched on.
Remove the key from the ignition lock before
replacing the wipe rblades.
! To avoid damaging the windscreen wiper
blades, make sure that you touch only the
wiper arm of the windscreen wiper.
Removing the wiper blades X
Remove the key from the ignition lock or
turn the key to position 0(KEYL ESS-GO ).
X Fold the wiper arm away from the wind-
screen until it engages.
X Set the wiper blade at right angles to the
wiper arm. X
Remov ethe wiper blade from the retainer
on the wiper ar minthe direction of the
arrow.
22 Rai nsensor set to low sensitivity.
23 Rain sensor set to high sensitivity. 116
Windscreen wipersLights and windscreen wipers
BA 20
7ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 116

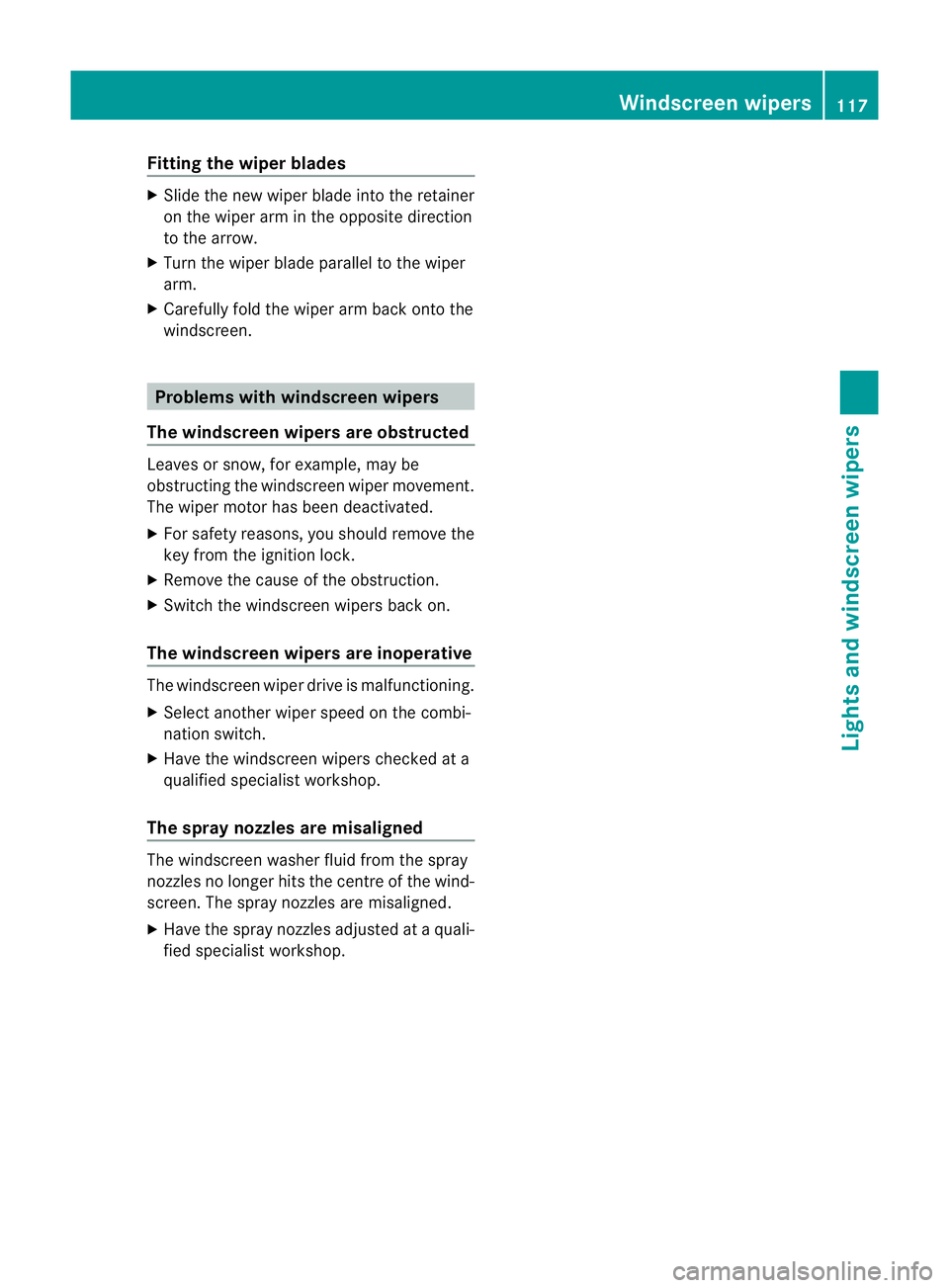

Fitting th
ewiper blades X
Slide th enew wi per blade int othe retainer
on th ewiper arm in th eopposite direc tion
to the arrow.
X Tur nthe wiper blade parallel to the wiper
arm.
X Carefully fol dthe wiper ar mback ont othe
windscreen. Problems wit
hwindscreen wipers
The windscree nwipers ar eobstructed Leaves or snow, for example, may be
obstructin gthe windscreen wiper movement.
The wiper motor has been deactivated.
X For safety reasons ,you should remov ethe
key from the igni tion lock.
X Remove the cause of the obstruction.
X Swit chthe windscreen wipers back on.
The windscreen wipers ar einoper ative The windscreen wiper driv
eismalfunctioning.
X Select another wiper spee donthe combi-
nation switch.
X Hav ethe windscreen wiper schecked at a
qualified specialist workshop.
Th es pray nozzles ar emisaligned The windscreen washer fluid from the spray
nozzles no longer hits the centre of the wind-
screen. The spray nozzles are misaligned.
X Hav ethe spra ynozzles adjusted at aquali-
fied specialist workshop. Windsc
reen wipers
117Lights and windscreen wipers
BA 207ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 117 Z
