Soft
top Opening/closing
the soft top using the so ft-
to p switch &
WARNING Risk of becoming trapped
due tothe soft top lo wering unexpect‐
ed ly
If yo u do not fully open/close the soft top,
th e soft-to phy draulics depressurise af ter a
short time.
This causes the soft topto lowe r unexpect‐
edly and may cause you or others tobe trap‐
ped. #
Alw ays fully open or close the soft top. &
WARNING Risk of becoming trapped
when opening/closing the soft top .
When opening or closing the soft top, there
is a risk that parts of the body could become
trapped bymoving parts such as thero of
mechanism, the boot lid, or the side win‐
do ws. #
When opening or closing, make sure
that no body parts are in the vicinity of
moving components. #
Release the button if somebody
becomes trapped. *
NO
TEPossible damage tothe soft top
when opening or closing The soft
top can be damaged when opening
or closing. #
Make sure there is suf ficient clearance
ab ove it. #
Only load the boot below the boot sepa‐
ra tor so that it will not be pushed
upwards. #
Make sure that the boot lid is closed. #
Ifth e soft top is dirty, wet or frozen, do
not open the soft top. *
NO
TEDama getothe soft top caused by
heavy objects Heavy objects placed on
the soft-to p com‐
partment co ver can dama gethe soft top or
soft-to p compartment co ver. #
Do not place he avy objects on the soft-
to p compartment co ver. #
Do not sit on the soft-to p compartment
co ver. Fo
r saf etyre asons, Mercedes-Benz recommends
opening or closing the soft top when theve hicle
is stationar y.
Do not exceed a speed of maximum 50 km/h
when driving (max. 60 km/h toavoid inter rupt‐
ing the closing process while slightly exceeding
th is speed). #
Make sure that the boot separator is closed. #
Close the boot lid. #
Switch the ignition on. #
Keep the brake pedal depressed when the
ve hicle is stationar y. 78
Opening and closing

#
Toopen: pull and hold soft- top switch 1
until the soft top is fully opened.
The multifunction display sho wsthe opening
process of the soft top. #
Toclose: press and hold soft- top switch 1
until the soft top is fully closed.
The multifunction display sho wsthe closing
process of the soft top. &
WARNING Risk of accident due to too
high speed during the soft-to p opening
or closing procedure
If th eve hicle speed exceeds 60 km/h the
soft topstops during the opening or closing
procedure.
This impairs your view tothere ar. #
Reduce theve hicle speed tobelow
60 km/h or stop theve hicle, paying
attention toroad and traf fic conditions. #
Ope rate the soft-to p switch again in
order toopen or close the soft top full y. The cur
rent procedu reisstopped at a speed
abo ve60 km/h. The Open/close top completely
messa geis shown on the multifunction displa y. #
Reduce your speed and press or pull soft- top
switch 1again.
If th e soft top does not close fully because of
stro ng headwinds, drive sl ower or stop. Re
locking the soft top &
WARNING Risk of becoming trapped
due tothe soft top lo wering unexpect‐
ed ly
If yo u do not fully open/close the soft top,
th e soft-to phy draulics depressurise af ter a
short time.
This causes the soft topto lowe r unexpect‐
edly and may cause you or others tobe trap‐
ped. #
Alw ays fully open or close the soft top. If
th e soft top is not loc ked fully:
R theOpen/close top completely message is
shown in the multifunction displa y.
R you hear a warning tone for up to te n sec‐
onds when pulling away or while driving. #
Pull over and stop theve hicle safely as soon
as possible, paying attention toroad and traf‐
fi c conditions. #
Switch the ignition on. Opening and closing
79

#
Fully close the soft top using the soft-top
switch. Opening/closing
the boot sepa rator The boot separator co
vers luggage or loads in
th e boot.
Depending on the equipment, theve hicle may be
equipped with a manual or automatic boot sepa‐
ra tor.
The soft top can be opened only when the man‐
ual boot separator is closed.
In vehicles with an automatic boot separator,
th is automatically closes when the soft top is
opened.
* NO
TEDama getothe soft top or load The soft
top or load may be damaged with
th e soft top open. #
Do not place any overly long objects
inside or behind the side luggage nets
when the boot separator is open. #
Make sure that the load does not push
th e boot separator upwards. #
Vehicles with a manual boot separator: to
open, press boot separator 2bythe handle
against the direction of the ar row toits upper
end position. #
Vehicles with a manual boot separator: to
close, pull boot separator 2bythe handle in
the direction of the ar row until it rests on
th e sides of the boot. #
Vehicles with an automatic boot separa‐
to r:press but ton1.
Boot separator 2opens or closes au tomati‐
cally.
% Ifth ere is sy stem failure, the automatic boot
separator can be closed manually. Ac
tivating/deactivating AI RCAP AI
RCA Pre duces the draught in the front and
re ar compartment when driving with the soft top
open.
In particular lyturbulent ai r,e.g. crosswind, AIR‐
CA P's ef fect may be reduced.
AIR CAP consists of:
R a wind deflector abo vethe windscreen
R a draught stop behind bo threar seat head
re stra ints
When AI RCAP is activated, the wind deflector
and the draught stop extend simultaneously. 80
Opening and closing

AIR
CAP can be activated or deactivated at
speeds of up toappr oximately 160 km/h. &
WARNING Risk of becoming trapped
when retracting AIR CAP
When retracting AIR CAP,persons could
become trapped in the moving mechanism. #
Make sure that persons do not hold
on to the upper frame of the windscreen
and do not touch the AIR CAP wind
deflector. #
Switch the ignition on. #
Toactivate: pull switch 1.
AIR CAPex tends and the indicator lamp in
switch 1lights up. #
Todeactivate: press switch 1.
AIR CAPre tracts and the indicator lamp in
switch 1goes out. If
th eve hicle is par ked with the soft top open
and the po wer supp lyis switched off, AI RCAP
re tracts au tomatical ly.
When youre start the engine af ter having been
par ked, AIR CAPex tends au tomatically. Fi
tting/ removing the folding draught stop &
WARNING Risk of accident when using
th e draught stop in poor visibility condi‐
tions
The draught stop impairs your view tothe
re ar, particular ly when darkor in poor visibil‐
ity conditions. #
Only use the draught stop in good visi‐
bility conditions. &
WARNING Risk of accident and inju ry
due toan incor rectly fitted draught stop
If th e draught stop is not cor rectly fitted it
can come loose du ring the journey and
endanger other road users. Opening and closing
81

#
Fitthe draught stop as described. #
Do not place objects on thefitted
draught stop. *
NO
TEDama getothefo lding draught
st op or vehicle interior The
vehicle interior or thefo lding draught
st op can be damaged if fitted when the soft
to p closed. #
Tofit, open the soft top. *
NO
TEFront seat backrest position The
folding draught stop may collide with the
front seat backrests when fitted. #
Adjust the backrest positions of the
front seats. The
folding draught stop is fitted overth ere ar
seats toprotect against wind when driving with
th e soft top open. Only the front seats can be
occupied when thefo lding draught stop is fitted. The bag containing
thefo lding draught stop is
attached totheth ro ugh-loading feature behind
th ere ar seats. If youwa nttouse theth ro ugh-
loading feature, loosen the bag's lashing stra ps
and stow them in the boot. Fasten the lashing
st ra ps tothe luggage hook.
Yo u should preferably per form operations in volv‐
in g th efo lding draught stop on the side facing
aw ay from traf fic. #
Open all side windo wsand the soft top. #
Foldthere ar seats forw ard toremo vethe
bag. #
Remo vethefo lding draught stop from the
bag. #
Fold out folding draught stop 1 as shown. #
Fold out the two brac kets 2 tothe left and
ri ght. 82
Opening and closing

#
Align brac kets 2 offolding draught stop 1
with two rear fixtures 3ontheve hicle. Pe
rform thefo llowing steps in sequence on bo th
sides of theve hicle: #
Pull handle 5inthe direction of the ar row. #
Align folding draught stop 1 with side fix‐
ture 4ontheve hicle from abo veand insert. #
Push handle 5onfolding draught stop 1
back as far as it will go.
Fo lding draught stop 1 is loc ked.
Fo llow the instructions in reve rse order to
re mo vethefo lding draught stop. Problems with
the soft top Problem
Possible causes/consequences and M
MSolutions
The soft top will not open or close. The ignition is not switched on. Opening and closing
83

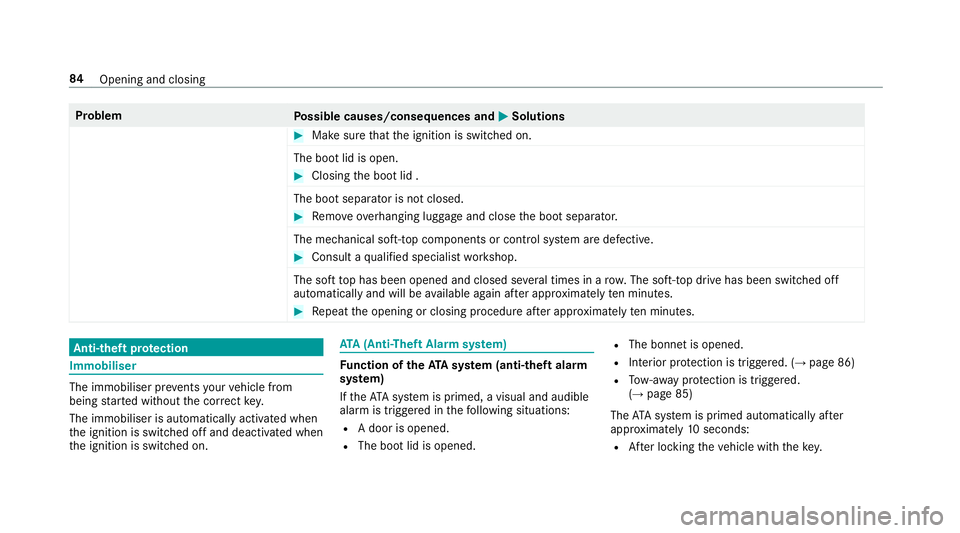

Problem
Possible causes/consequences and M
MSolutions #
Make sure that the ignition is switched on.
The boot lid is open. #
Closing the boot lid .
The boot separator is not closed. #
Remo ve ov erhanging luggage and close the boot separator.
The mechanical soft-to p components or control sy stem are defective. #
Consult a qualified specialist workshop.
The soft top has been opened and closed se veral times in a row. The soft-top drive has been switched off
au tomatical lyand will be available again af ter appro ximately ten minu tes. #
Repeat the opening or closing procedure af ter appro ximately ten minu tes. Anti-theft pr
otection Immobiliser
The immobiliser pr
events your vehicle from
being star ted without the cor rect key.
The immobiliser is automatically activated when
th e ignition is switched off and deactivated when
th e ignition is switched on. ATA
(Anti-Theft Alarm sy stem) Fu
nction of theATA system (anti-theft ala rm
sy stem)
If th eATA system is primed, a visual and audible
alarm is triggered in thefo llowing situations:
R A door is opened.
R The boot lid is opened. R
The bonn etis opened.
R Interior pr otection is triggered. (→ page 86)
R Tow- aw ay protection is triggered.
(→ page 85)
The ATA system is primed automatically af ter
appr oximately 10seconds:
R After locking theve hicle with thekey. 84
Opening and closing

R
After locking theve hicle using KEYLESS-GO. When
theATA system is primed, indicator lamp
1 flashes.
The ATA sy stem is automatically deactivated:
R After unlocking theve hicle with thekey.
R After pressing thest art/ stop button with the
ke y inside theve hicle. R
After unlocking theve hicle using KEYLESS-
GO.
% When the Mercedes‑Benz emer gency call
sy stem is active and the alarm stay s on for
more than 30 seconds, a message is auto‐
matically sent tothe Cus tomer Assis tance
Centre (→ page 310).
Deactivating theATA (anti-theft ala rmsys‐
te m) ala rm #
Press the%, &orp button on the
key.
or #
Press thest art/ stop button (the key is inside
th eve hicle).
St opping the ala rmusing KEYLESS-GO #
Grasp the outside door handle (with thekey
outside theve hicle). To
w- aw ay protection An audible and visual alarm is triggered if
your
ve hicle's angle of inclination is altered while tow-
aw ay protection is primed. To
w- aw ay protection is automatically primed
af te r about 60 seconds:
R After locking theve hicle with thekey.
R After locking theve hicle using KEYLESS-GO.
To w- aw ay protection is only primed when thefo l‐
lowing components are closed:
R Doo rs
R Boot lid
To w- aw ay protection is automatically deactiva‐
te d:
R After pressing the% orp button on
th ekey.
R After pressing thest art/ stop button with the
ke y inside theve hicle.
R After unlocking theve hicle using KEYLESS-
GO.
R When using HANDS-FREE ACCESS. Opening and closing
85

Priming/deactivating
tow- aw ay protection Multimedia sy
stem:
, Vehicle .
î Vehicle settings .
Tow-
away protection #
Activate Oor deacti vate ª the function.
To w- aw ay protection remains deactivated until:
R The vehicle is unloc ked again.
R A door is opened and closed again.
R The vehicle is loc ked again. Interior pr
otection When interior pr
otection is primed, a visual and
audible alarm is triggered if mo vement is de tec‐
te d in theve hicle interior.
Interior pr otection is primed automatically af ter
appr oximately 10seconds:
R After locking theve hicle with thekey.
R After locking theve hicle using KEYLESS-GO. Interior pr
otection is only primed when thefo l‐
lowing components are closed:
R Doo rs
R Boot lid
Interior pr otection is automatically deactivated:
R After pressing the% orp button on
th ekey.
R After pressing thest art/ stop button with the
ke y inside theve hicle.
R After unlocking theve hicle using KEYLESS-
GO.
R When using HANDS-FREE ACCESS.
The following situations can lead toafa lse
alarm:
R Moving objects such as masc ots in theve hi‐
cle interior.
R The side window is open. Priming/deactivating interior pr
otection Multimedia sy
stem:
, Vehicle .
î Vehicle settings .
Inte-
rior motion sensor #
Activate Oor deacti vate ª the function.
Interior pr otection remains deactivated until:
R The vehicle is unloc ked again.
R A door is opened and closed again.
R The vehicle is loc ked again. 86
Opening and closing

Cor
rect driver's seat position &
WARNING Risk of inju rythro ugh adjust‐
ing vehicle settings while theve hicle is in
motion
Yo u could lose cont rol of theve hicle in the
fo llowing situations:
R ifyo u adjust the driver's seat, the head
re stra ints, thesteering wheel or the mir‐
ro r while theve hicle is in motion
R ifyo ufast enyour seat belt while theve hi‐
cle is in motion #
Before starting the engine: adjust the
driver's seat, the head restra ints, the
st eering wheel or the mir ror and fasten
yo ur seat belt. Obser
vethefo llowing when adjusting steering
wheel 1, seat belt 2and driver's seat 3:
R you are as faraw ay from the driver's airbag
as possible
R you are sitting in a no rmal upright position
R your thighs are slight lysuppor tedby the seat
cushion R
your legs are not entirely stre tched and you
can dep ress the pedals properly
R the back of your head is suppo rted at eye
le ve lby the cent reofthe head restra int
R you can hold thesteering wheel with your
arms slightly bent
R you can mo veyour legs freely
R you can see all the displa ysinthe instrument
clus ter clea rly
R you should ha vea good overview of traf fic
conditions
R the seat belt is pulled snugly against the
body and must be routed across the cent re
of your shoulder and across your hips in the
pelvic area Seats and
stowing 87
