MERCEDES-BENZ E-CLASS ESTATE 2012 Owners Manual

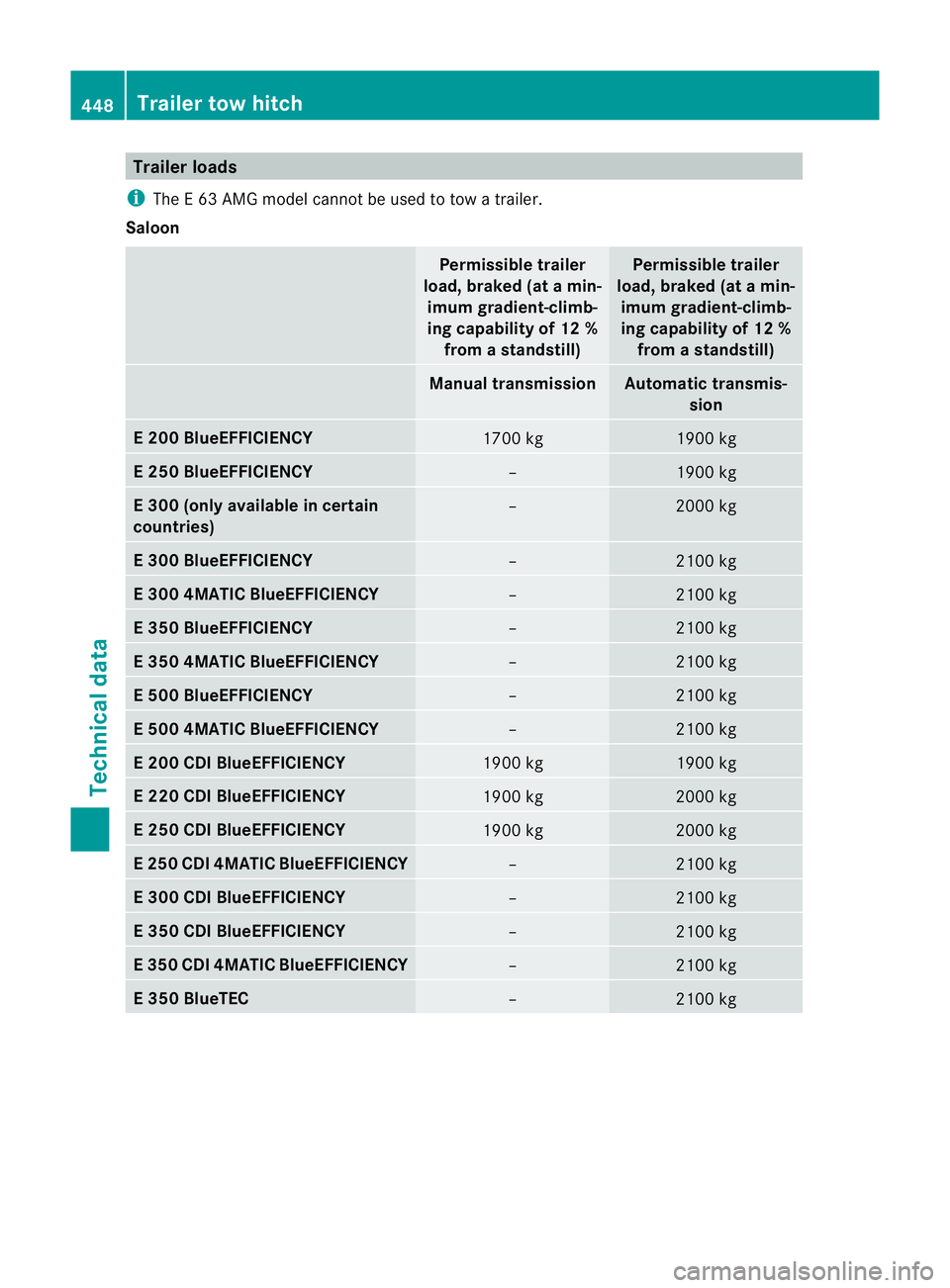

Trailer loads
i The E63A MG model cannot be used to tow a trailer.
Saloon Permissible trailer
load, braked (at a min- imum gradient-climb-
ing capability of 12 % from a standstill) Permissible trailer
load, braked (at a min- imum gradient-climb-
ing capability of 12 % from a standstill) Manual transmission Automatic transmis-
sion E 200 BlueEFFICIENCY
1700 kg 1900 kg
E 250 BlueEFFICIENCY
– 1900 kg
E 300 (only available in certain
countries)
– 2000 kg
E 300 BlueEFFICIENCY
– 2100 kg
E 300 4MATIC BlueEFFICIENCY
– 2100 kg
E 350 BlueEFFICIENCY
– 2100 kg
E 350 4MATIC BlueEFFICIENCY
– 2100 kg
E 500 BlueEFFICIENCY
– 2100 kg
E 500 4MATIC BlueEFFICIENCY
– 2100 kg
E 200 CDI BlueEFFICIENCY
1900 kg 1900 kg
E 220 CDI BlueEFFICIENCY
1900 kg 2000 kg
E 250 CDI BlueEFFICIENCY
1900 kg 2000 kg
E 250 CDI 4MATIC BlueEFFICIENCY
– 2100 kg
E 300 CDI BlueEFFICIENCY
– 2100 kg
E 350 CDI BlueEFFICIENCY
– 2100 kg
E 350 CDI 4MATIC BlueEFFICIENCY
– 2100 kg
E 350 BlueTEC
– 2100 kg448
Trailer tow hitchTechnical data

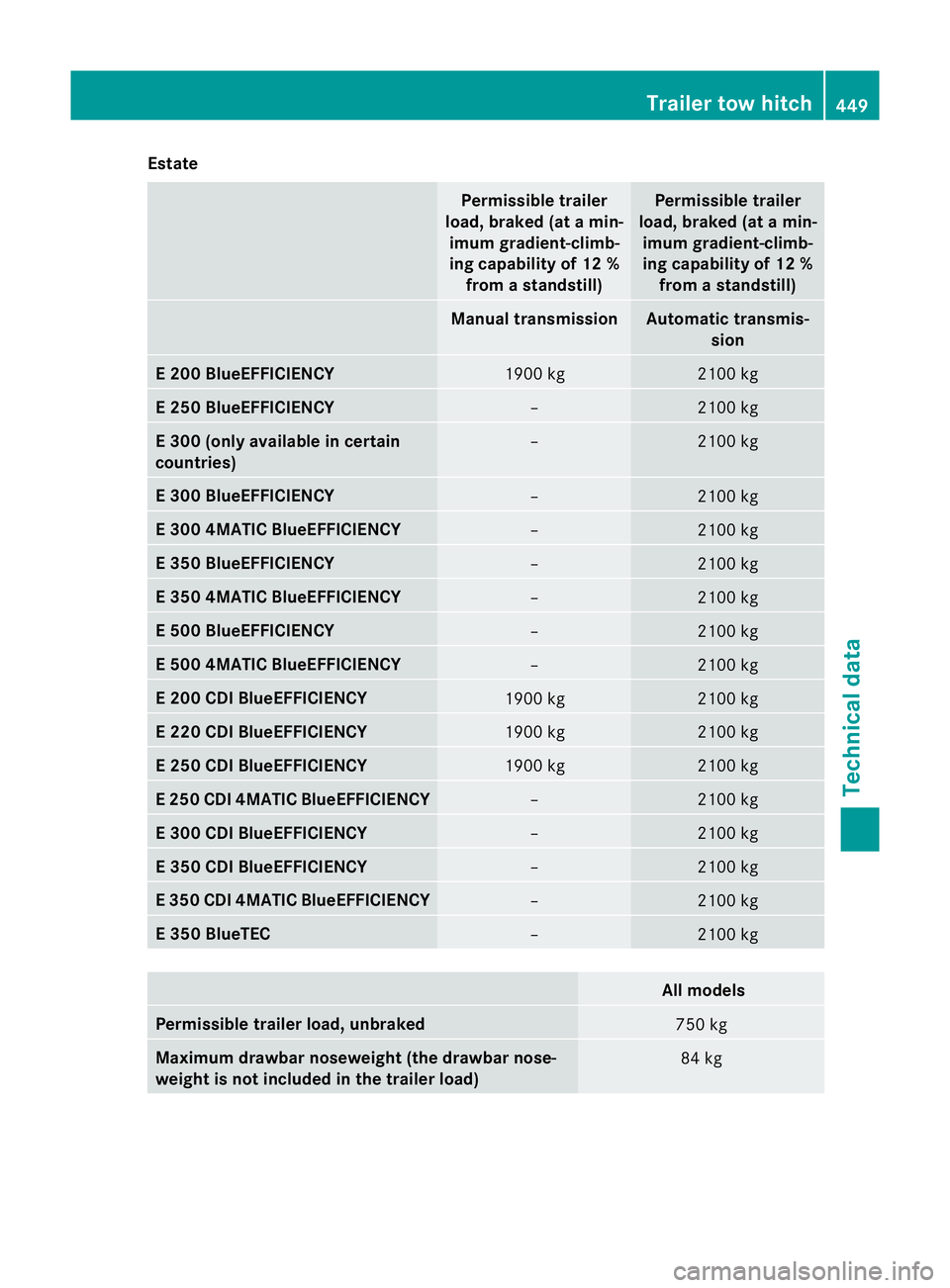

Estate
Permissible trailer
load, braked (at a min- imum gradient-climb-
ing capability of 12 % from a standstill) Permissible trailer
load, braked (at a min- imum gradient-climb-
ing capability of 12 % from a standstill) Manual transmission Automatic transmis-
sion E 200 BlueEFFICIENCY
1900 kg 2100 kg
E 250 BlueEFFICIENCY
– 2100 kg
E 300 (only available in certain
countries)
– 2100 kg
E 300 BlueEFFICIENCY
– 2100 kg
E 300 4MATIC BlueEFFICIENCY
– 2100 kg
E 350 BlueEFFICIENCY
– 2100 kg
E 350 4MATIC BlueEFFICIENCY
– 2100 kg
E 500 BlueEFFICIENCY
– 2100 kg
E 500 4MATIC BlueEFFICIENCY
– 2100 kg
E 200 CDI BlueEFFICIENCY
1900 kg 2100 kg
E 220 CDI BlueEFFICIENCY
1900 kg 2100 kg
E 250 CDI BlueEFFICIENCY
1900 kg 2100 kg
E 250 CDI 4MATIC BlueEFFICIENCY
– 2100 kg
E 300 CDI BlueEFFICIENCY
– 2100 kg
E 350 CDI BlueEFFICIENCY
– 2100 kg
E 350 CDI 4MATIC BlueEFFICIENCY
– 2100 kg
E 350 BlueTEC
– 2100 kg
All models
Permissible trailer load
,unbraked 750 kg
Maximum drawbar noseweight (the drawbar nose-
weight is not included in the trailer load) 84 kgTrailer tow hitch
449Technical data Z

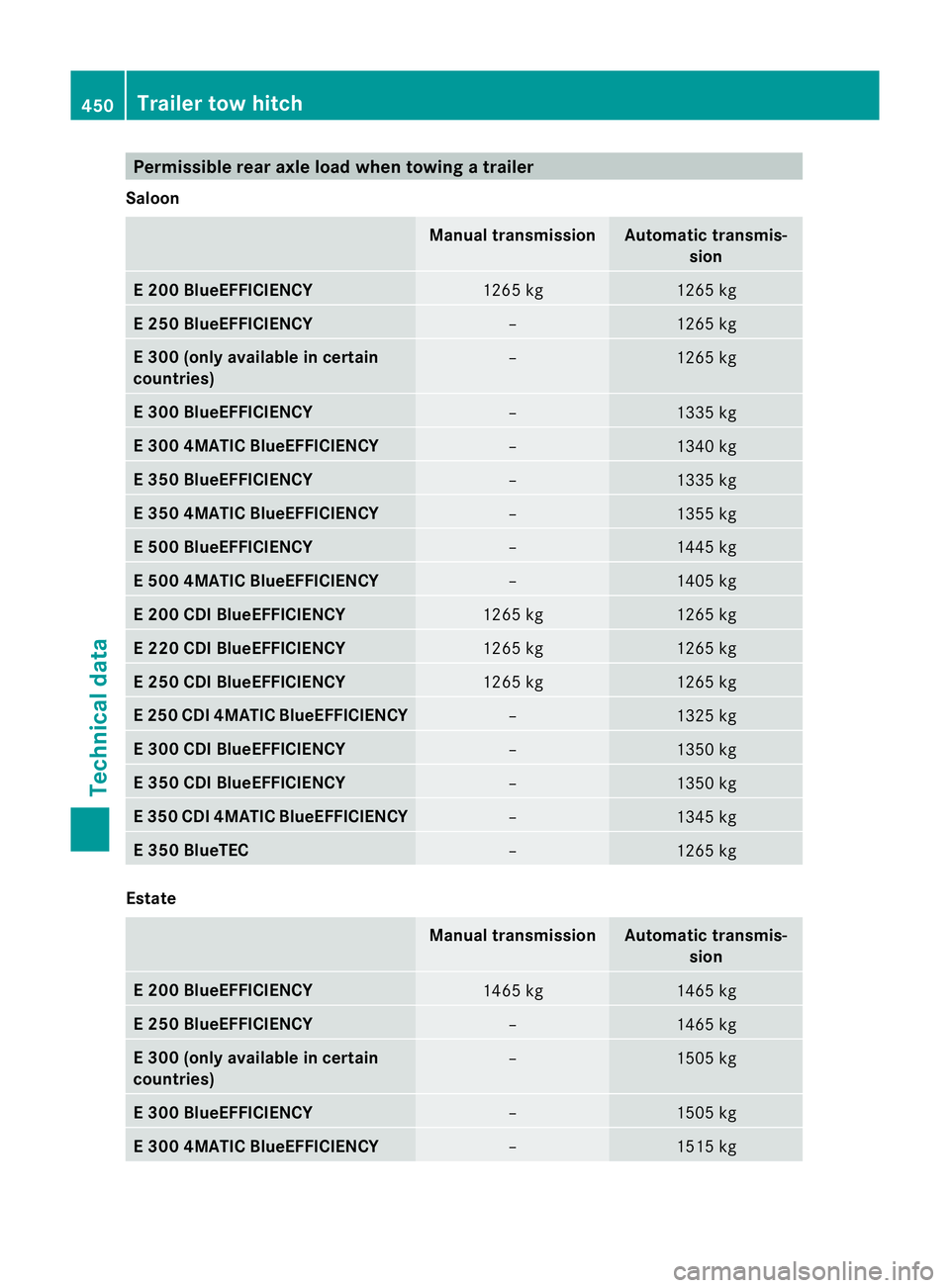

Permissible rear axle load when towing
atrailer
Saloon Manual transmission Automatic transmis-
sion E 200 BlueEFFICIENCY
1265 kg 1265 kg
E 250 BlueEFFICIENCY
– 1265 kg
E 300 (onl
yavailable in certain
countries) – 1265 kg
E 300 BlueEFFICIENCY
– 1335 kg
E 300 4MATIC BlueEFFICIENCY
– 1340 kg
E 350 BlueEFFICIENCY
– 1335 kg
E 350 4MATIC BlueEFFICIENCY
– 1355 kg
E 500 BlueEFFICIENCY
– 1445 kg
E 500 4MATIC BlueEFFICIENCY
– 1405 kg
E 200 CDI BlueEFFICIENCY
1265 kg 1265 kg
E 220 CDI BlueEFFICIENCY
1265 kg 1265 kg
E 250 CDI BlueEFFICIENCY
1265 kg 1265 kg
E 250 CDI 4MATIC BlueEFFICIENCY
– 1325 kg
E 300 CDI BlueEFFICIENCY
– 1350 kg
E 350 CDI BlueEFFICIENCY
– 1350 kg
E 350 CDI 4MATIC BlueEFFICIENCY
– 1345 kg
E 350 BlueTEC
– 1265 kg
Estate
Manual transmission Automatic transmis-
sion E 200 BlueEFFICIENCY
1465 kg 1465 kg
E 250 BlueEFFICIENCY
– 1465 kg
E 300 (only available in certain
countries)
– 1505 kg
E 300 BlueEFFICIENCY
– 1505 kg
E 300 4MATIC BlueEFFICIENCY
– 1515 kg450
Trailer tow hitchTechnical data

Manual transmission Automatic transmis-
sion E 350 BlueEFFICIENCY
– 1505 kg
E 350 4MATIC BlueEFFICIENCY
– 1520 kg
E 500 BlueEFFICIENCY
– 1560 kg
E 500 4MATIC BlueEFFICIENCY
– 1520 kg
E 200 CDI BlueEFFICIENCY
1480 kg 1480 kg
E 220 CDI BlueEFFICIENCY
1480 kg 1480 kg
E 250 CDI BlueEFFICIENCY
1480 kg 1480 kg
E 250 CDI 4MATIC BlueEFFICIENCY
– 1500 kg
E 300 CDI BlueEFFICIENCY
– 1520 kg
E 350 CDI BlueEFFICIENCY
– 1520 kg
E 350 CDI 4MATIC BlueEFFICIENCY
– 1515 kg
E 350 BlueTEC
– 1550 kg

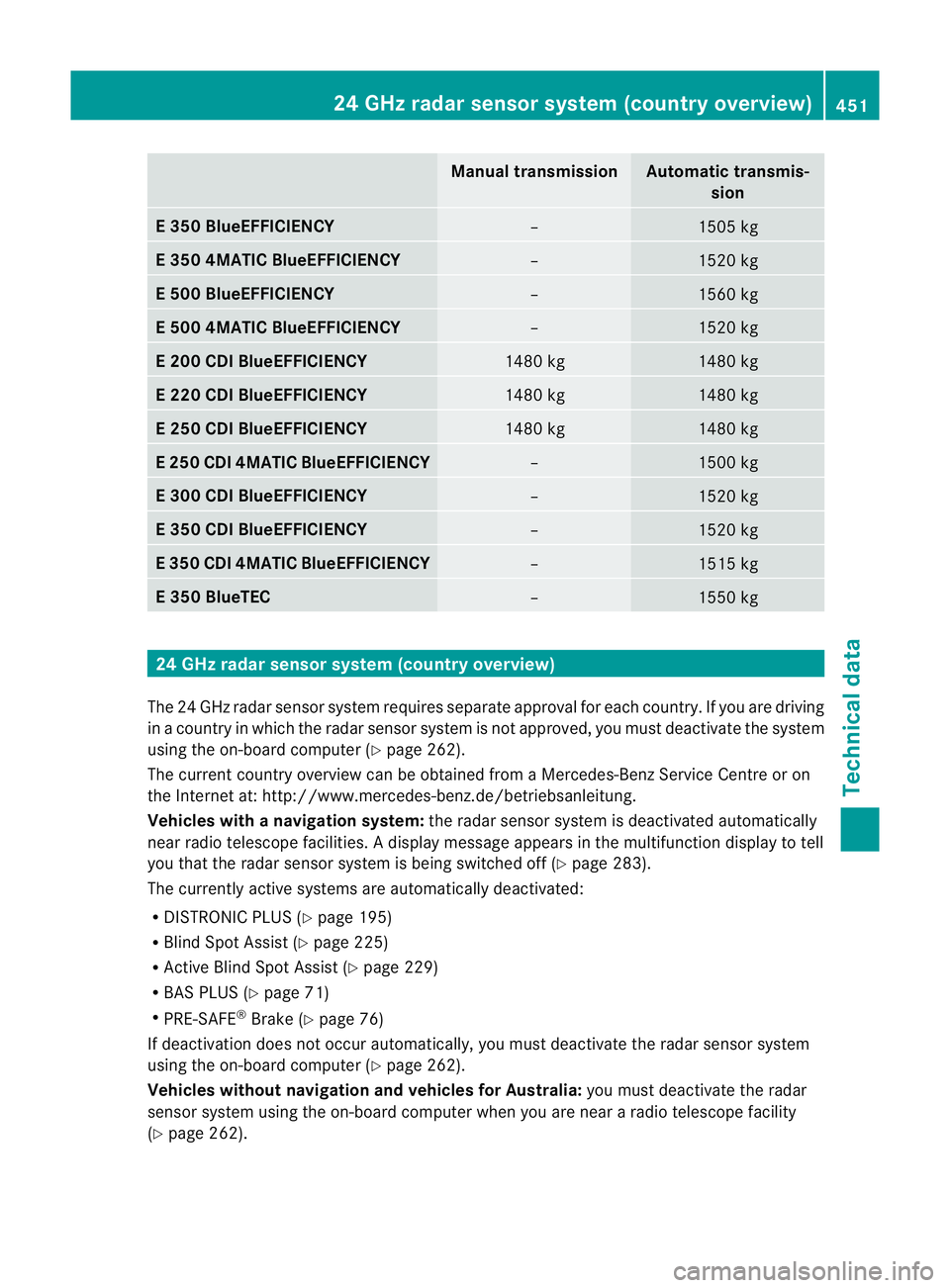

24 GHz radar sensor system (country overview)
The 24 GHz rada rsensor system requires separate approval for each country. If you are driving
in a country in which the radar sensor system is not approved, you must deactivate the system
using the on-board computer (Y page 262).
The current country overview can be obtained from a Mercedes-Benz Service Centre or on
the Internet at: http://www.mercedes-benz.de/betriebsanleitung.
Vehicles with anavigation system: the radar sensor system is deactivated automatically
near radio telescope facilities. Adisplay message appears in the multifunction display to tell
you that the radar sensor system is being switched off (Y page 283).
The currently active systems are automatically deactivated:
R DISTRONIC PLUS (Y page 195)
R Blind Spot Assist (Y page 225)
R Active Blind Spot Assist (Y page 229)
R BAS PLUS (Y page 71)
R PRE-SAFE ®
Brake (Y page 76)
If deactivation does not occur automatically, you must deactivate the radar sensor system
using the on-board computer (Y page 262).
Vehicles withou tnavigation and vehicles for Australia: you must deactivate the radar
sensor system using the on-board computer whe nyou are near a radio telescope facility
(Y page 262). 24 GHz radar sensor system (country overview)
451Technical data Z

452
