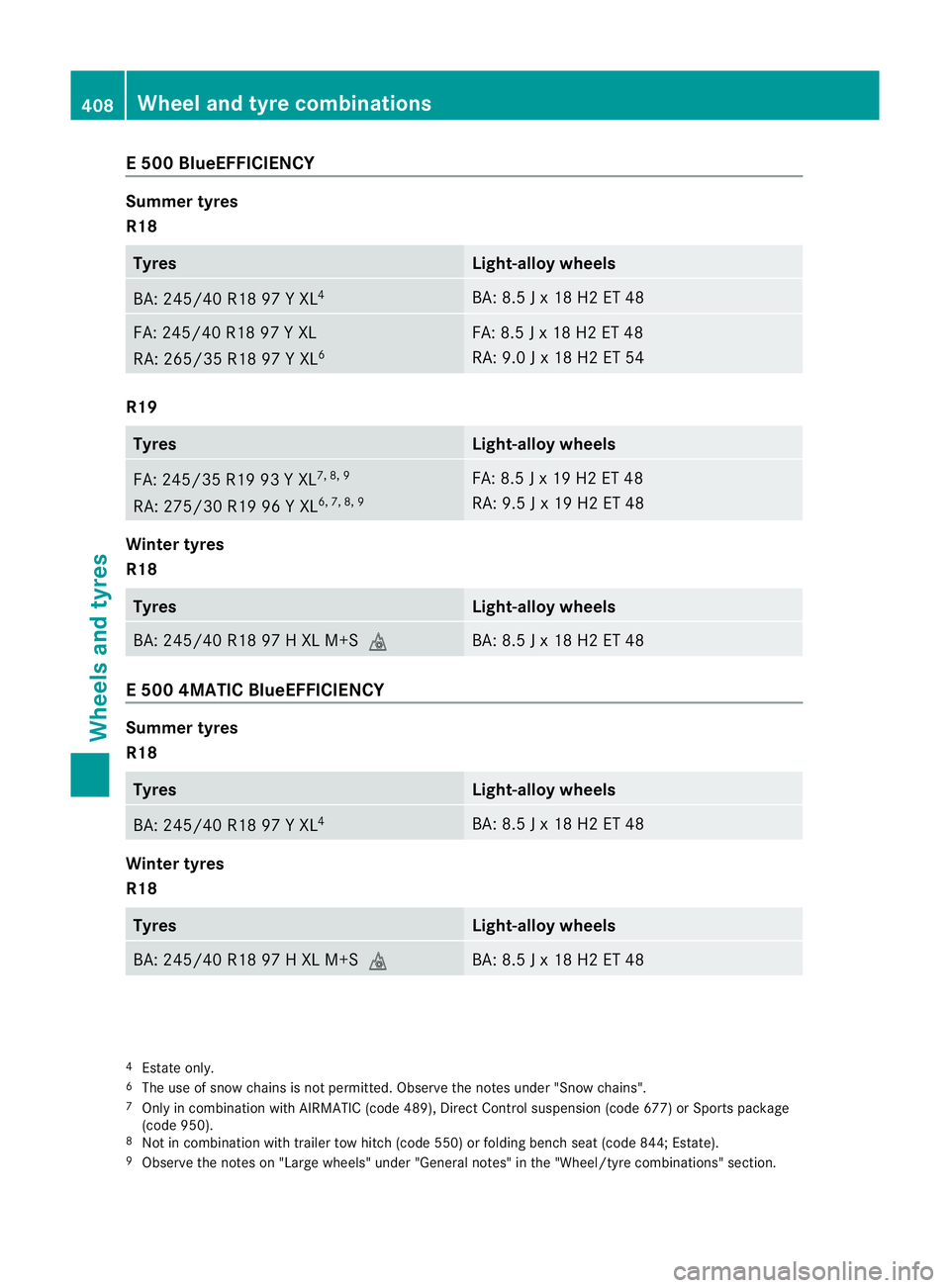

Page 411 of 457
E 500 BlueEFFICIENCY
Summer tyres
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 Y XL
4 BA: 8.5 J x 18 H2 ET 48
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL
6 FA: 8.5 J x 18 H2 ET 48
RA: 9.0 J x 18 H2 ET 54
R19
Tyres Light-alloy wheels
FA: 245/35 R19 93 Y XL
7, 8, 9
RA: 275/30 R19 96 Y XL 6, 7, 8, 9 FA: 8.5 J x 19 H2 ET 48
RA: 9.5 J x 19 H2 ET 48
Winter tyres
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 H XL M+Si BA: 8.5 J x 18 H2 ET 48
E 500 4MATIC BlueEFFICIENCY
Summer tyres
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 Y XL
4 BA: 8.5 J x 18 H2 ET 48
Winter tyres
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 H XL M+Si BA: 8.5 J x 18 H2 ET 48
4
Estate only.
6 The use of snow chains is no tpermitted. Observe the notes under "Snow chains".
7 Only in combination with AIRMATIC (code 489), Direc tControl suspension (code 677) or Sports package
(code 950).
8 Not in combination with trailer tow hitch (code 550) or folding bench seat (code 844; Estate).
9 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section. 408
Wheel and tyre combinationsWheels and tyres

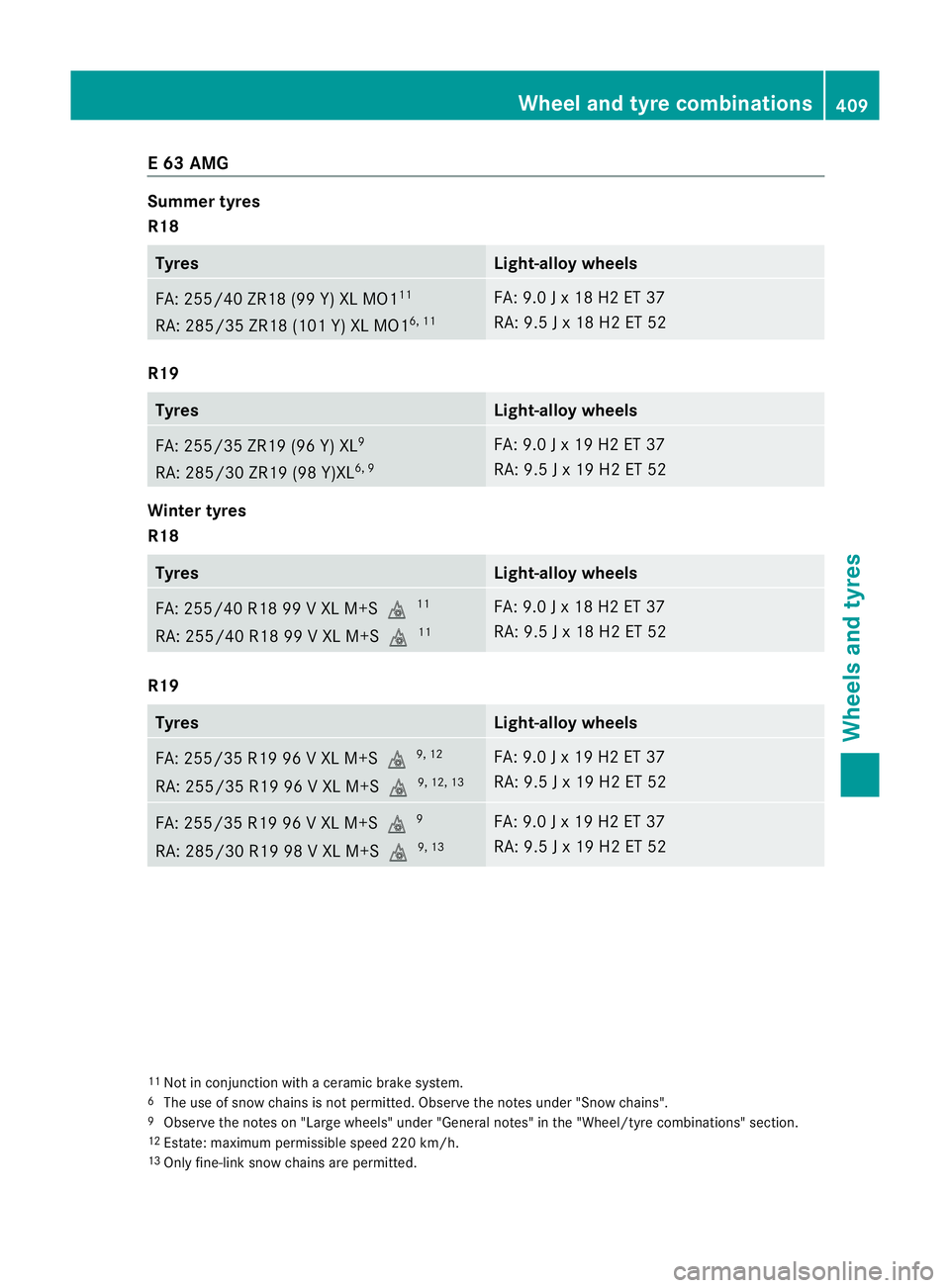

Page 412 of 457
E 63 AMG
Summer tyres
R18
Tyres Light-alloy wheels
FA: 255/40 ZR18 (99 Y) XL MO1
11
RA: 285/35 ZR18 (101 Y) XL MO1 6, 11 FA: 9.0 J x 18 H2 ET 37
RA: 9.5 J x 18 H2 ET 52
R19
Tyres Light-alloy wheels
FA: 255/35 ZR19 (96 Y) XL
9
RA: 285/30 ZR19 (98 Y)XL 6, 9 FA: 9.0 J x 19 H2 ET 37
RA: 9.5 J x 19 H2 ET 52
Winter tyres
R18
Tyres Light-alloy wheels
FA: 255/40 R18 99 V XL M+Si
11
RA: 255/40 R18 99 V XL M+Si 11 FA: 9.0 J x 18 H2 ET 37
RA: 9.5 J x 18 H2 ET 52
R19
Tyres Light-alloy wheels
FA: 255/35 R19 96 V XL M+Si
9, 12
RA: 255/35 R19 96 V XL M+Si 9, 12, 13 FA: 9.0 J x 19 H2 ET 37
RA: 9.5 J x 19 H2 ET 52
FA: 255/35 R19 96 V XL M+Si
9
RA: 285/30 R19 98 V XL M+Si 9, 13 FA: 9.0 J x 19 H2 ET 37
RA: 9.5 J x 19 H2 ET 52
11
Not in conjunction with a ceramic brake system.
6 The use of snow chains is no tpermitted. Observe the notes under "Snow chains".
9 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
12 Estate: maximum permissible speed 220 km/h.
13 Only fine-link snow chains are permitted. Wheel and tyre combinations
409Wheels and tyres Z

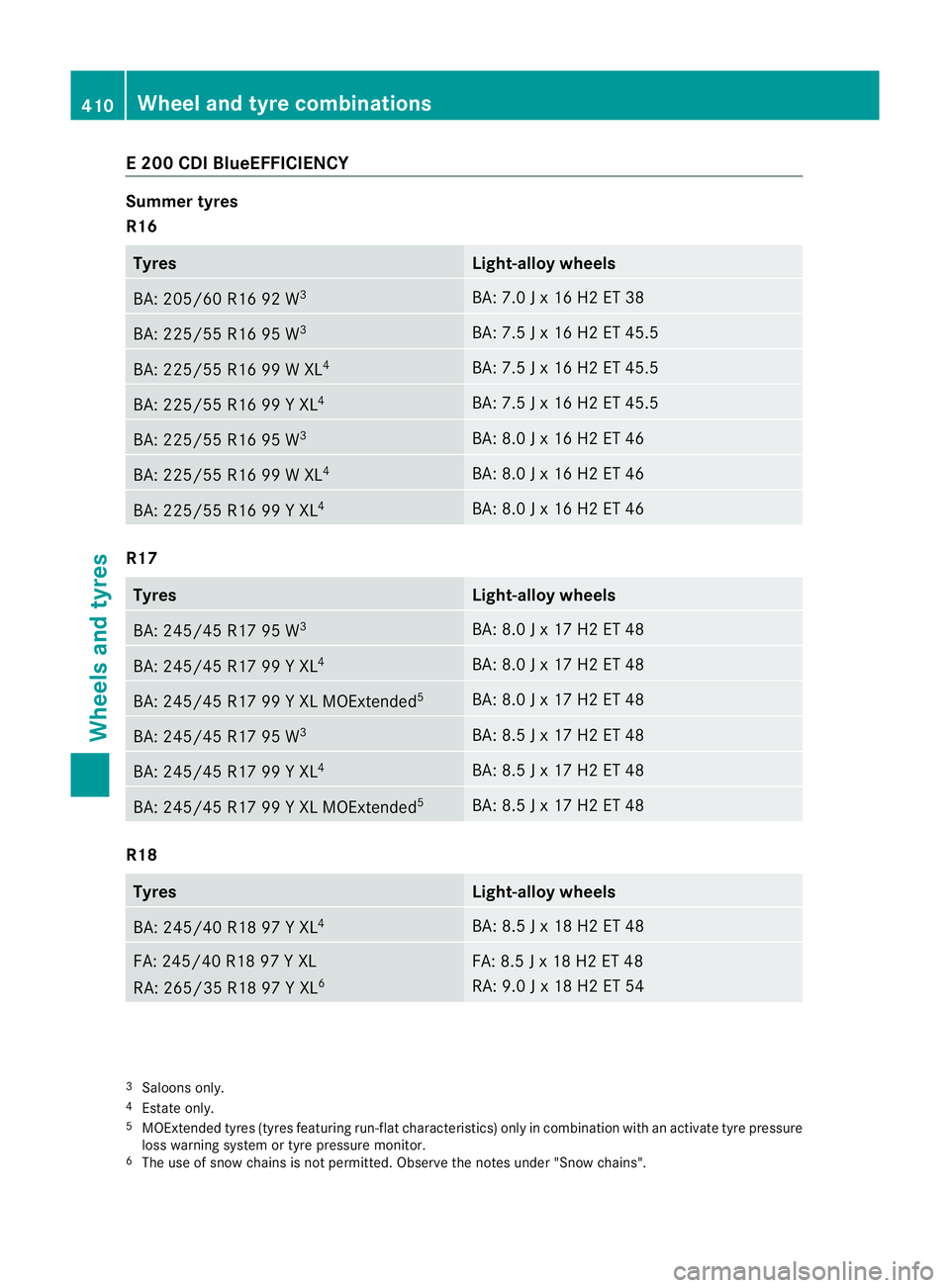

Page 413 of 457
E 200 CDI BlueEFFICIENCY
Summer tyres
R16
Tyres Light-alloy wheels
BA: 205/60 R16 92 W
3 BA: 7.0 J x 16 H2 ET 38
BA: 225/55 R16 95 W
3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 W XL
4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 Y XL
4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 W
3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 W XL
4 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 Y XL
4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 W
3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 W
3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 Y XL
4 BA: 8.5 J x 18 H2 ET 48
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL
6 FA: 8.5 J x 18 H2 ET 48
RA: 9.0 J x 18 H2 ET 54
3
Saloons only.
4 Estate only.
5 MOExtended tyres (tyres featuring run-flat characteristics) only in combinatio nwith an activate tyre pressure
loss warning syste mortyre pressure monitor.
6 The use of snow chains is no tpermitted. Observe the notes under "Snow chains". 410
Wheel and tyre combinationsWheels and tyres

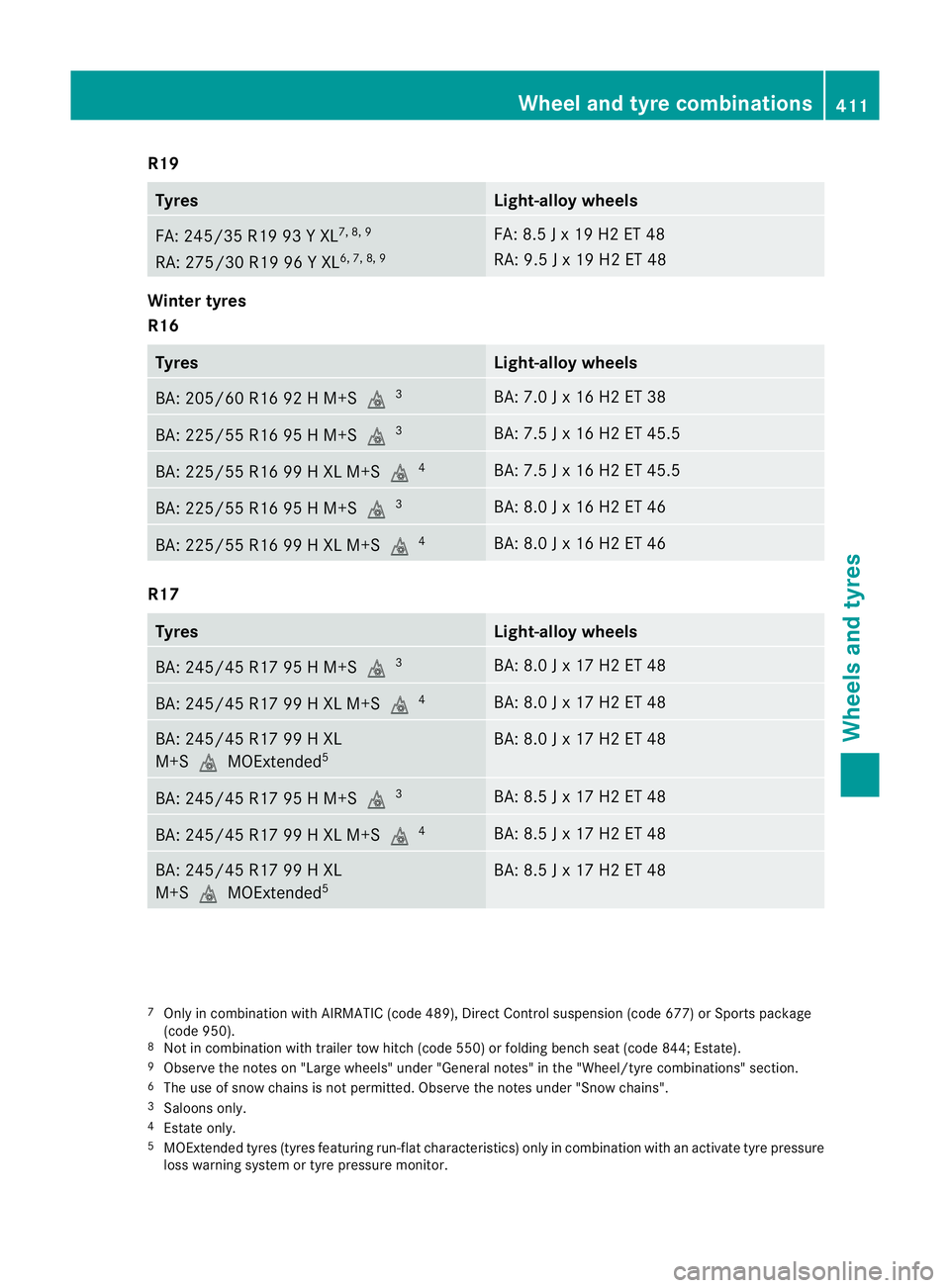

Page 414 of 457
R19
Tyres Light-allo
ywheels FA: 245/35 R19 93 Y XL
7, 8, 9
RA: 275/30 R19 96 Y XL 6, 7, 8, 9 FA: 8.5 J x 19 H2 ET 48
RA: 9.5 J x 19 H2 ET 48
Winter tyres
R16
Tyres Light-alloy wheels
BA: 205/60 R16 92 H M+S
i3 BA: 7.0 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 H XL M+S
i4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 H M+S
i3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 H XL M+S
i4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 H M+S
i3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 H M+S
i3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.5 J x 17 H2 ET 48
7
Only in combination with AIRMATIC (code 489), Direct Control suspension (code 677) or Sports package
(code 950).
8 Not in combination with trailer tow hitch (code 550) or folding bench seat (code 844; Estate).
9 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
6 The use of snow chains is not permitted. Observe the notes under "Snow chains".
3 Saloons only.
4 Estate only.
5 MOExtended tyres (tyre sfeaturing run-flat characteristics) only in combination with an activate tyre pressure
loss warning system or tyre pressure monitor. Wheel and tyre combinations
411Wheels and tyres Z

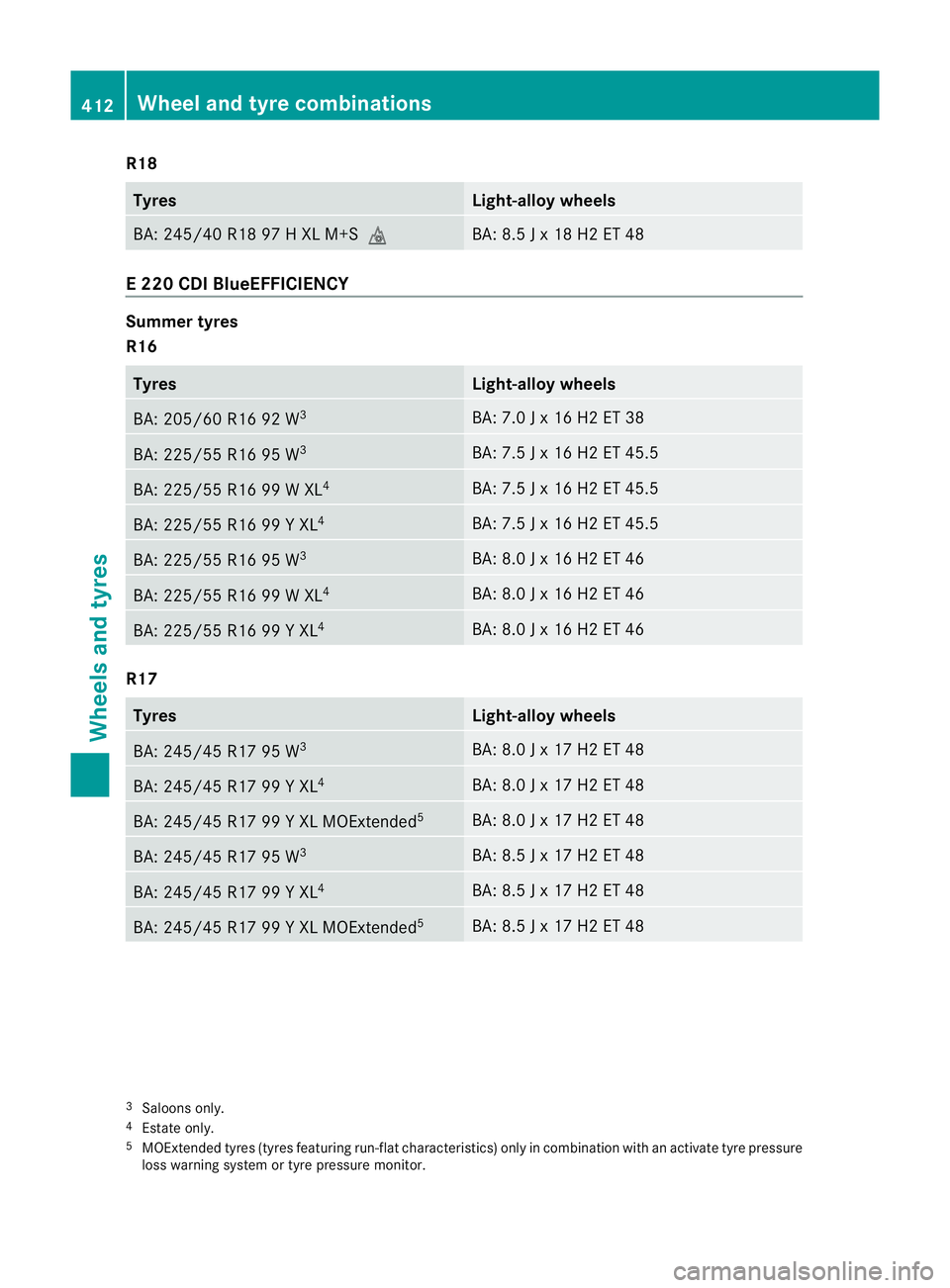

Page 415 of 457
R18
Tyres Light-allo
ywheels BA: 245/40 R18 97 H XL M+S
i BA: 8.5 J x 18 H2 ET 48
E 220 CDI BlueEFFICIENCY
Summer tyres
R16
Tyres Light-alloy wheels
BA: 205/60 R16 92 W
3 BA: 7.0 J x 16 H2 ET 38
BA: 225/55 R16 95 W
3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 W XL
4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 Y XL
4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 W
3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 W XL
4 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 Y XL
4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 W
3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 W
3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.5 J x 17 H2 ET 48
3
Saloons only.
4 Estate only.
5 MOExtended tyres (tyre sfeaturing run-flat characteristics) only in combination with an activate tyre pressure
loss warning system or tyre pressure monitor. 412
Wheel and tyre combinationsWheels and tyres

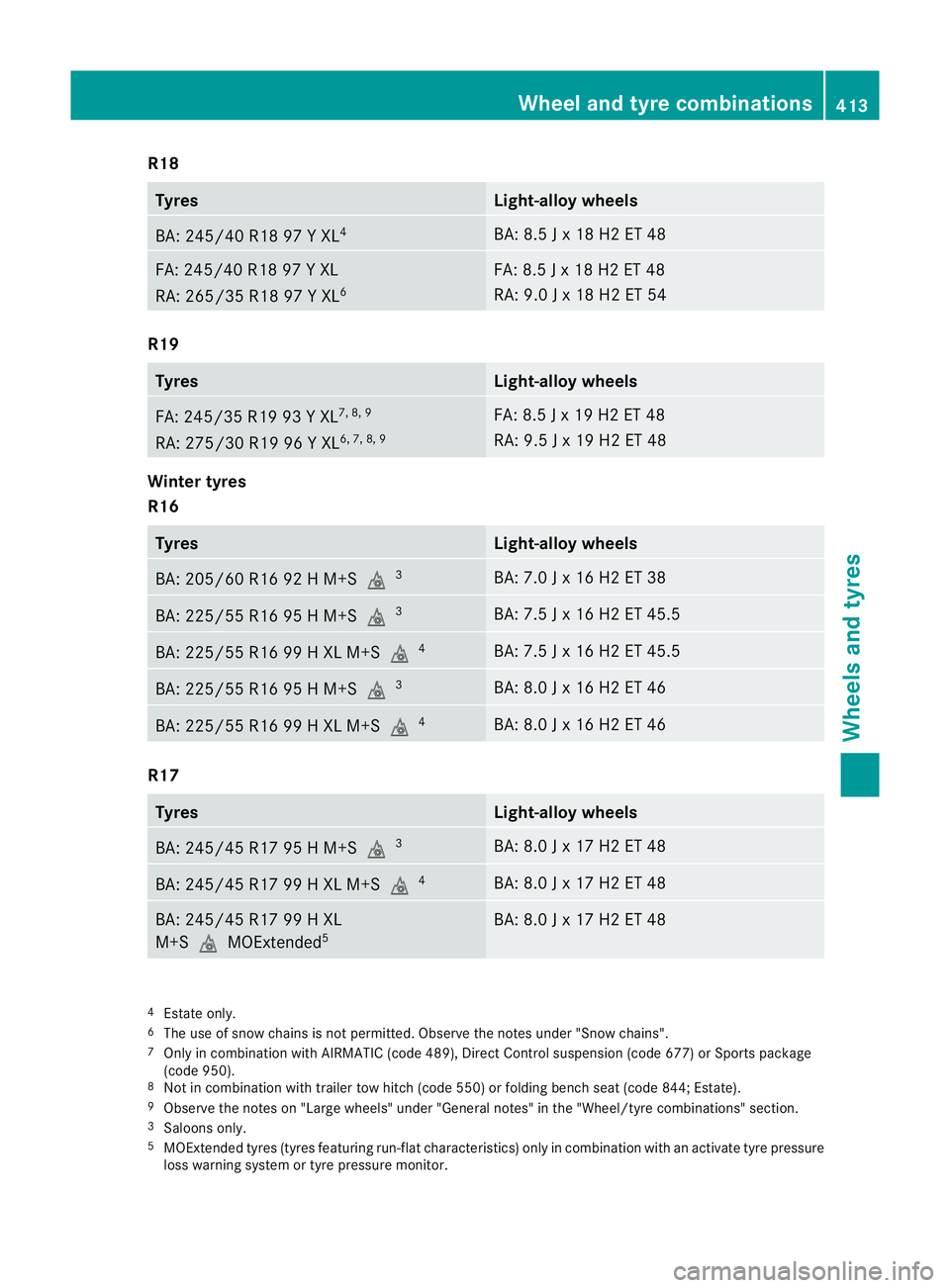

Page 416 of 457
R18
Tyres Light-allo
ywheels BA: 245/40 R18 97 Y XL
4 BA: 8.5 J x 18 H2 ET 48
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL
6 FA: 8.5 J x 18 H2 ET 48
RA: 9.0 J x 18 H2 ET 54
R19
Tyres Light-alloy wheels
FA: 245/35 R19 93 Y XL
7, 8, 9
RA: 275/30 R19 96 Y XL 6, 7, 8, 9 FA: 8.5 J x 19 H2 ET 48
RA: 9.5 J x 19 H2 ET 48
Winter tyres
R16
Tyres Light-alloy wheels
BA: 205/60 R16 92 H M+S
i3 BA: 7.0 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 H XL M+S
i4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 H M+S
i3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 H XL M+S
i4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 H M+S
i3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.0 J x 17 H2 ET 48
4
Estate only.
6 The use of snow chains is not permitted. Observe the notes under "Snow chains".
7 Only in combination with AIRMATIC (code 489), Direct Control suspension (code 677) or Sports package
(code 950).
8 Not in combination with trailer tow hitch (code 550) or folding bench seat (code 844; Estate).
9 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
3 Saloons only.
5 MOExtended tyres (tyre sfeaturing run-flat characteristics) only in combination with an activate tyre pressure
loss warning system or tyre pressure monitor. Wheel and tyre combinations
413Wheels and tyres Z

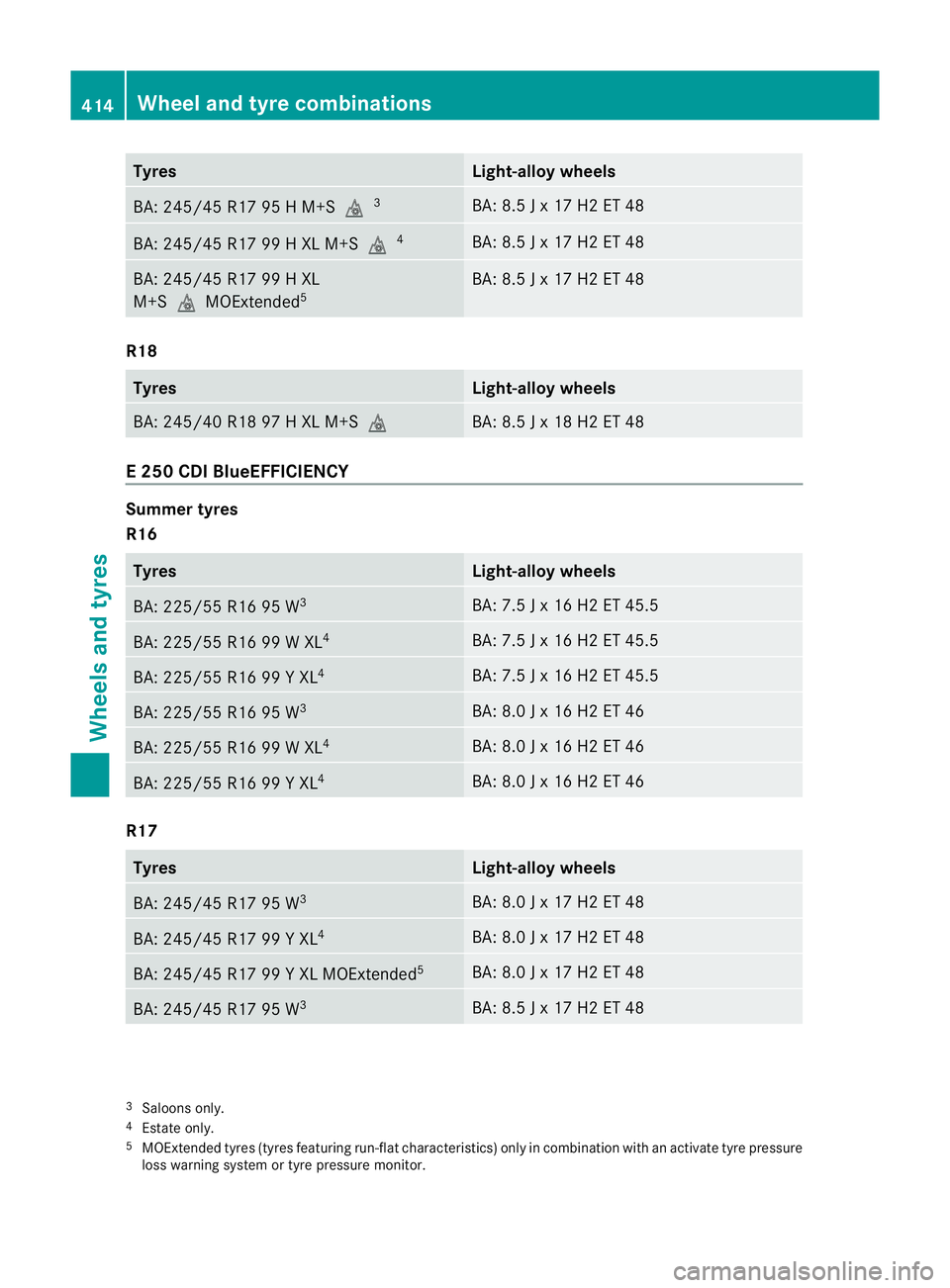

Page 417 of 457
Tyres Light-alloy wheels
BA: 245/45 R17 95 H M+S
i3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 H XL M+S
i BA: 8.5 J x 18 H2 ET 48
E 250 CDI BlueEFFICIENCY
Summer tyres
R16 Tyres Light-alloy wheels
BA: 225/55 R16 95 W
3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 W XL
4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 Y XL
4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 W
3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 W XL
4 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 Y XL
4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 W
3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 W
3 BA: 8.5 J x 17 H2 ET 48
3
Saloons only.
4 Estate only.
5 MOExtended tyres (tyres featuring run-flat characteristics) only in combinatio nwith an activate tyre pressure
loss warning syste mortyre pressure monitor. 414
Wheel and tyre combinationsWheels and ty
res

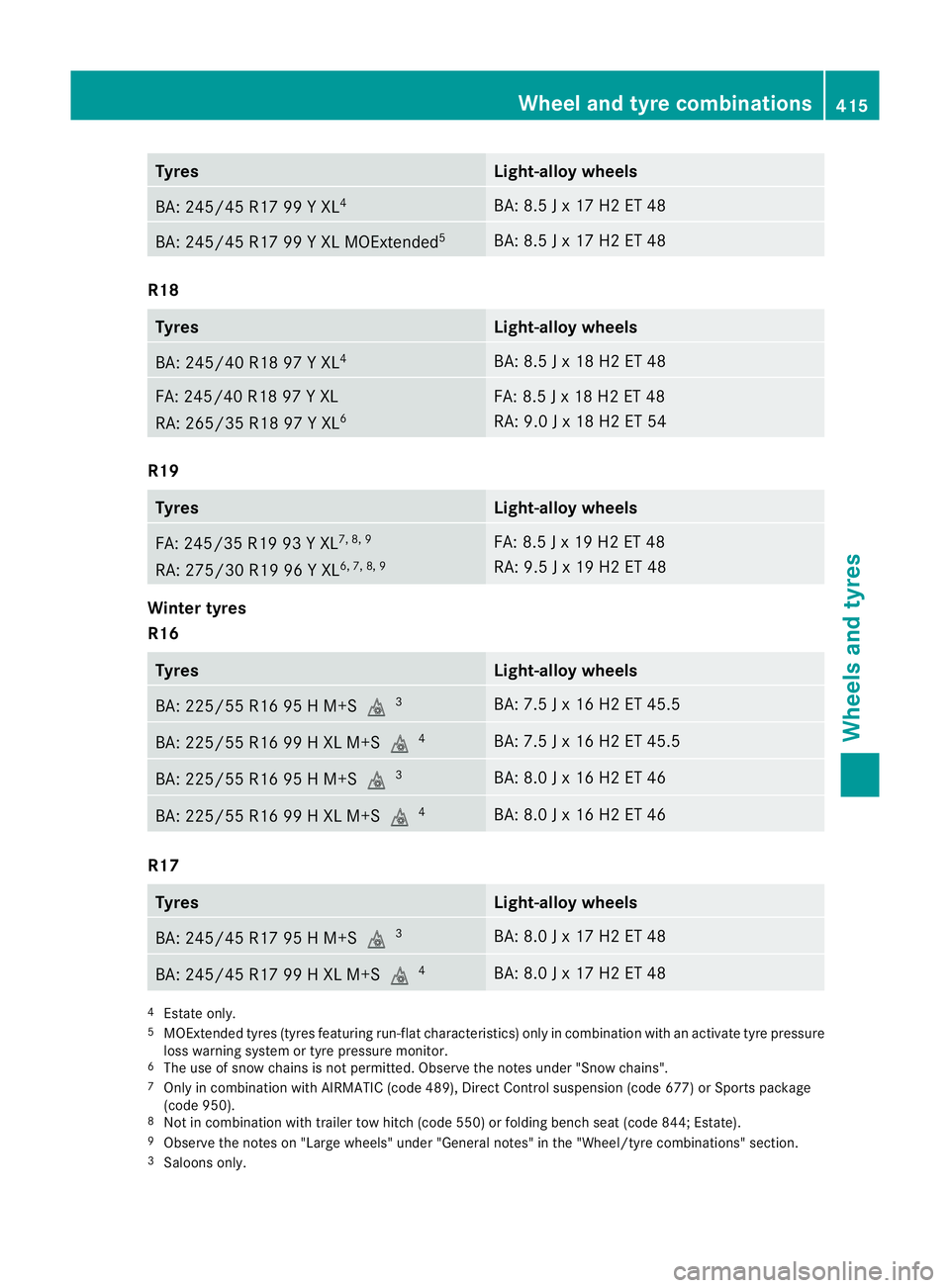

Page 418 of 457
Tyres Light-alloy wheels
BA: 245/45 R17 99 Y XL
4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 Y XL
4 BA: 8.5 J x 18 H2 ET 48
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL
6 FA: 8.5 J x 18 H2 ET 48
RA: 9.0 J x 18 H2 ET 54
R19
Tyres Light-alloy wheels
FA: 245/35 R19 93 Y XL
7, 8, 9
RA: 275/30 R19 96 Y XL 6, 7, 8, 9 FA: 8.5 J x 19 H2 ET 48
RA: 9.5 J x 19 H2 ET 48
Winter tyres
R16
Tyres Light-alloy wheels
BA: 225/55 R16 95 H M+S
i3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 H XL M+S
i4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 H M+S
i3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 H XL M+S
i4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 H M+S
i3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.0 J x 17 H2 ET 48
4
Estate only.
5 MOExtended tyres (tyres featuring run-flat characteristics) only in combinatio nwith an activate tyre pressure
loss warning syste mortyre pressure monitor.
6 The use of snow chains is no tpermitted. Observe the notes under "Snow chains".
7 Only in combination with AIRMATIC (code 489), Direc tControl suspension (code 677) or Sports package
(code 950).
8 Not in combination with trailer tow hitch (code 550) or folding bench seat (code 844; Estate).
9 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
3 Saloons only. Wheel and tyre combinations
415Wheels and tyres Z

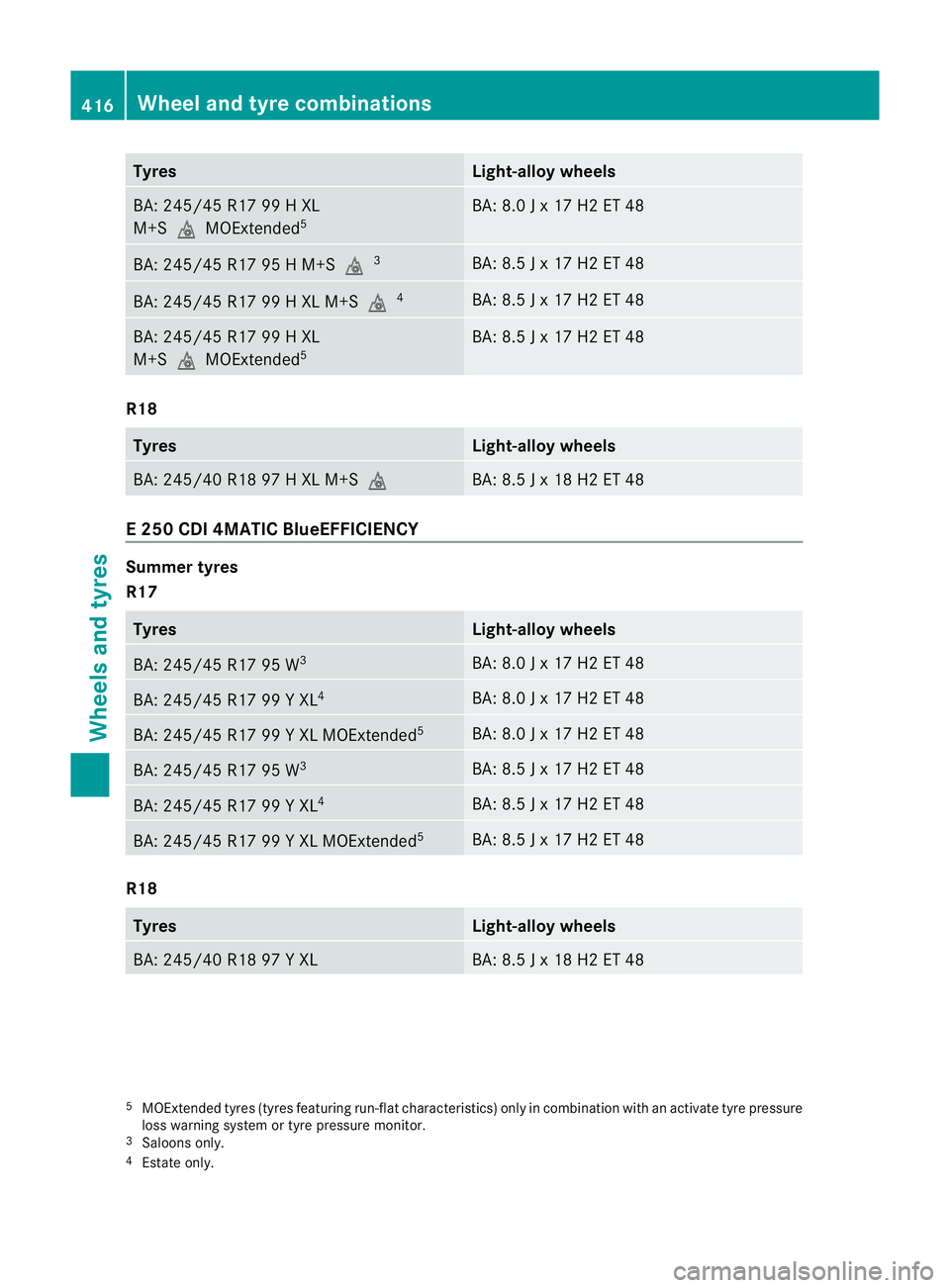

Page 419 of 457
Tyres Light-alloy wheels
BA: 245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 H M+S
i3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 H XL M+S
i BA: 8.5 J x 18 H2 ET 48
E 250 CDI 4MATIC BlueEFFICIENCY
Summer tyres
R17 Tyres Light-alloy wheels
BA: 245/45 R17 95 W
3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 W
3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 Y XL BA: 8.5 J x 18 H2 ET 48
5
MOExtended tyres (tyres featuring run-flat characteristics) only in combinatio nwith an activate tyre pressure
loss warning syste mortyre pressure monitor.
3 Saloons only.
4 Estate only. 416
Wheel and tyre combinationsWheels and ty
res

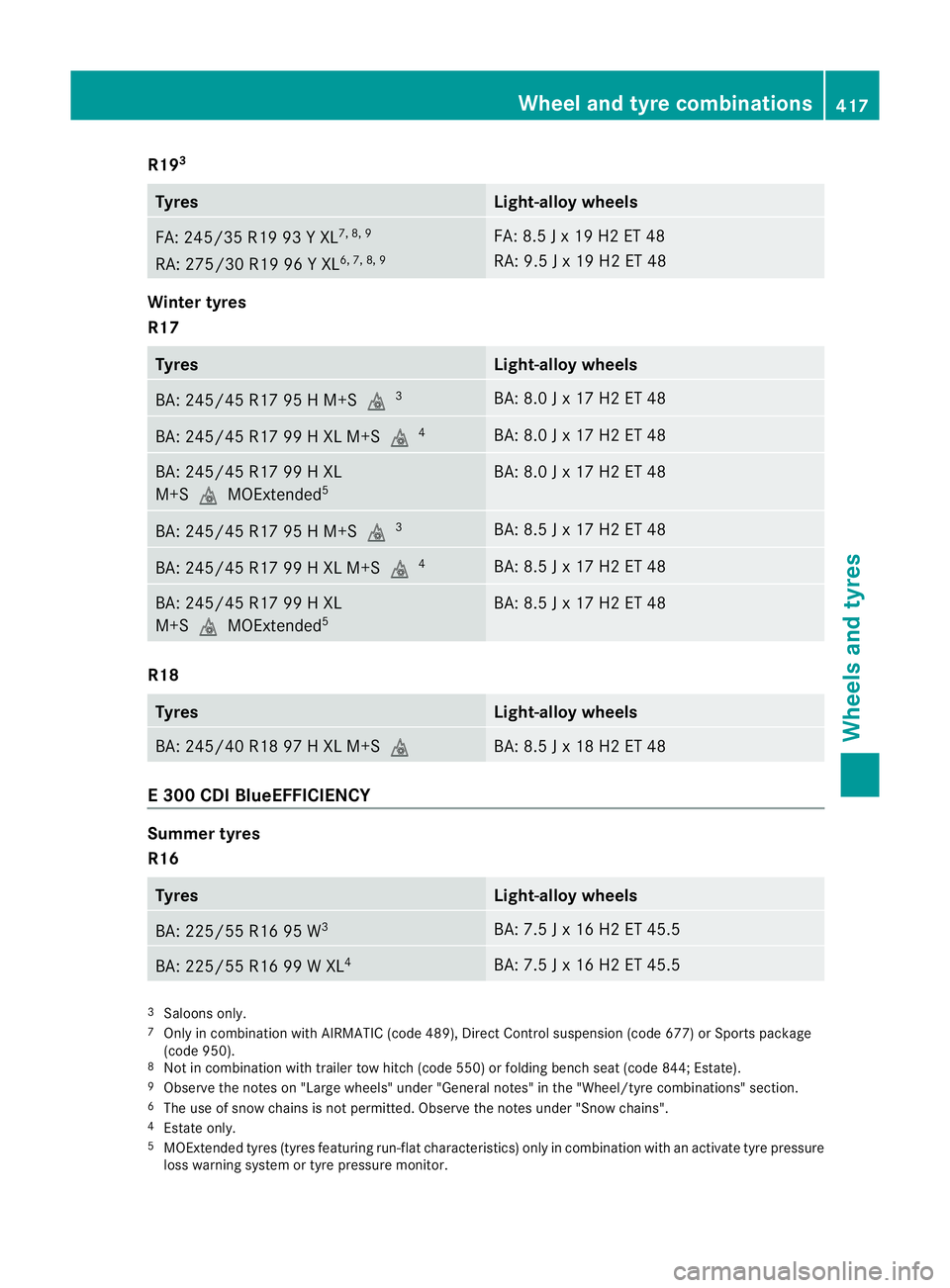

Page 420 of 457
R19
3 Tyres Light-allo
ywheels FA: 245/35 R19 93 Y XL
7, 8, 9
RA: 275/30 R19 96 Y XL 6, 7, 8, 9 FA: 8.5 J x 19 H2 ET 48
RA: 9.5 J x 19 H2 ET 48
Winter tyres
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 H M+S
i3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 H M+S
i3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 H XL M+S
i BA: 8.5 J x 18 H2 ET 48
E 300 CDI BlueEFFICIENCY
Summer tyres
R16
Tyres Light-alloy wheels
BA: 225/55 R16 95 W
3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 W XL
4 BA: 7.5 J x 16 H2 ET 45.5
3
Saloons only.
7 Only in combination with AIRMATIC (code 489), Direct Control suspension (code 677) or Sports package
(code 950).
8 Not in combination with trailer tow hitch (code 550) or folding bench seat (code 844; Estate).
9 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
6 The use of snow chains is not permitted. Observe the notes under "Snow chains".
4 Estate only.
5 MOExtended tyres (tyre sfeaturing run-flat characteristics) only in combination with an activate tyre pressure
loss warning system or tyre pressure monitor. Wheel and tyre combinations
417Wheels and tyres Z
