MERCEDES-BENZ E-CLASS ESTATE 2015 Owners Manual

by handle
:until it reaches the desired
position and engages in side ?.
X To close: disengage the EASY-PACK fold-
ing luggage-compartment floor and pull it
back.
X Press the EASY-PACK folding luggage-com-
partment floor down ;until it engages.

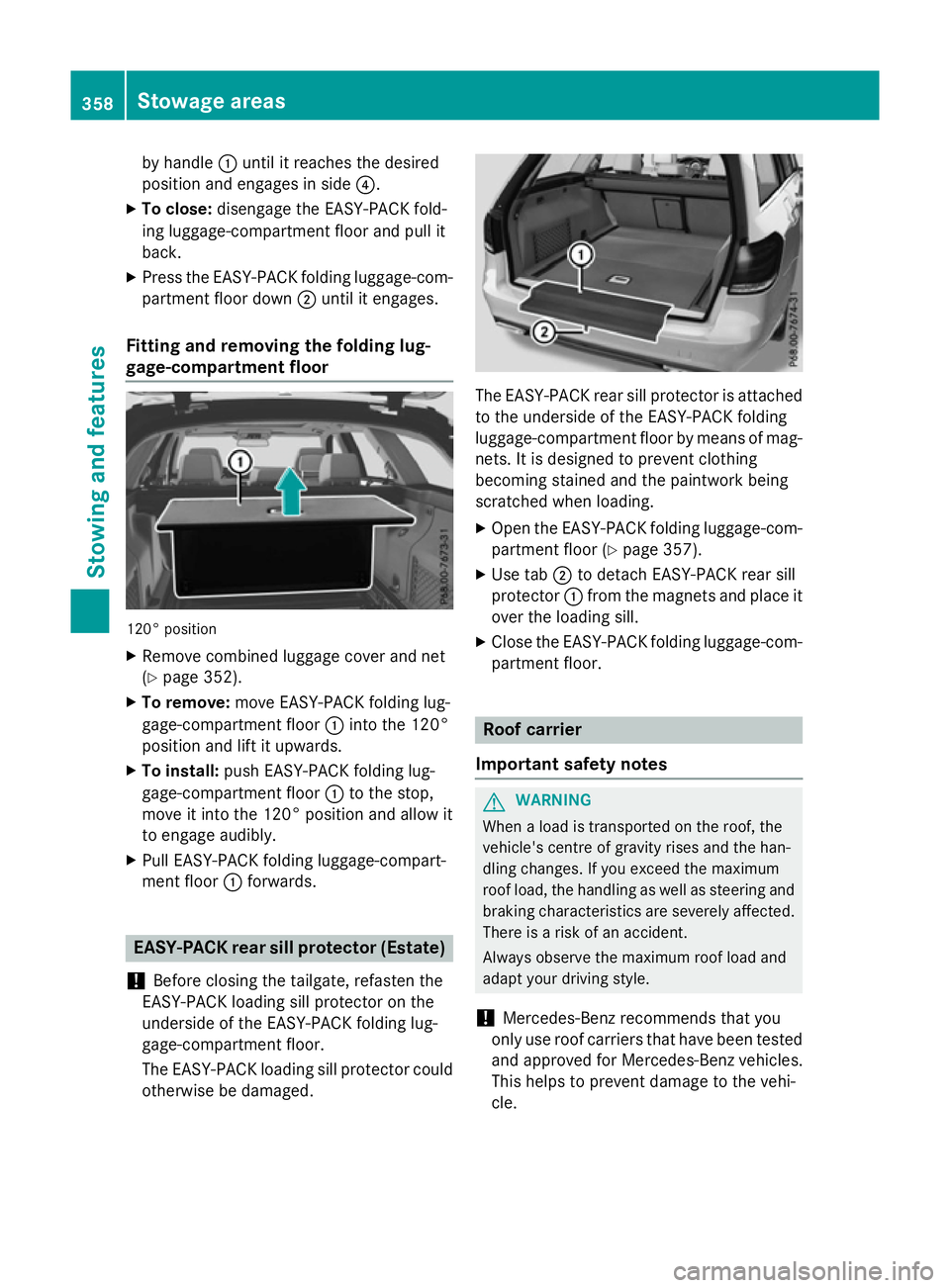

Fitting and removing the folding lug-
gage-compartment floor 120
°position
X Remove combined luggage cover and net
(Y page 352).
X To remove: move EASY-PACK folding lug-
gage-compartment floor :intot he 120°
position and lift it upwards.
X To install: push EASY-PACK folding lug-
gage-compartment floor :to the stop,
move it int othe 120 °position and allow it
to engage audibly.
X Pull EASY-PACK folding luggage-compart-
ment floor :forwards. EASY-PACK rear sill protector (Estate)
! Befor
eclosin gthe tailgate, refasten the
EASY-PACK loading sill protector on the
underside of the EASY-PACK folding lug-
gage-compartment floor.
The EASY-PACK loading sill protector could
otherwise be damaged. The EASY-PACK rear sill protector is attached
to the underside of the EASY-PACK folding
luggage-compartment floor by means of mag-
nets. It is designed to preven tclothing
becomin gstained and the paintwor kbeing
scratched when loading.
X Open the EASY-PACK folding luggage-com-
partment floor (Y page 357).
X Use tab ;to detach EASY-PACK rear sill
protector :from the magnet sand place it
over the loading sill.
X Close the EASY-PACK folding luggage-com-
partment floor. Roof carrier
Importan tsafet ynotes G
WARNING
When aload is transported on the roof, the
vehicle's centre of gravit yrises and the han-
dling changes. If you exceed the maximum
roof load, the handling as well as steering and brakin gcharacteristics are severely affected.
There is arisk of an accident.
Always observe the maximum roof load and
adapt your drivin gstyle.
! Mercedes-Benz recommends that you
only use roof carrier sthat have been tested
and approved for Mercedes-Benz vehicles.
This helps to preven tdamage to the vehi-
cle. 358
Stowage areasStowing and features

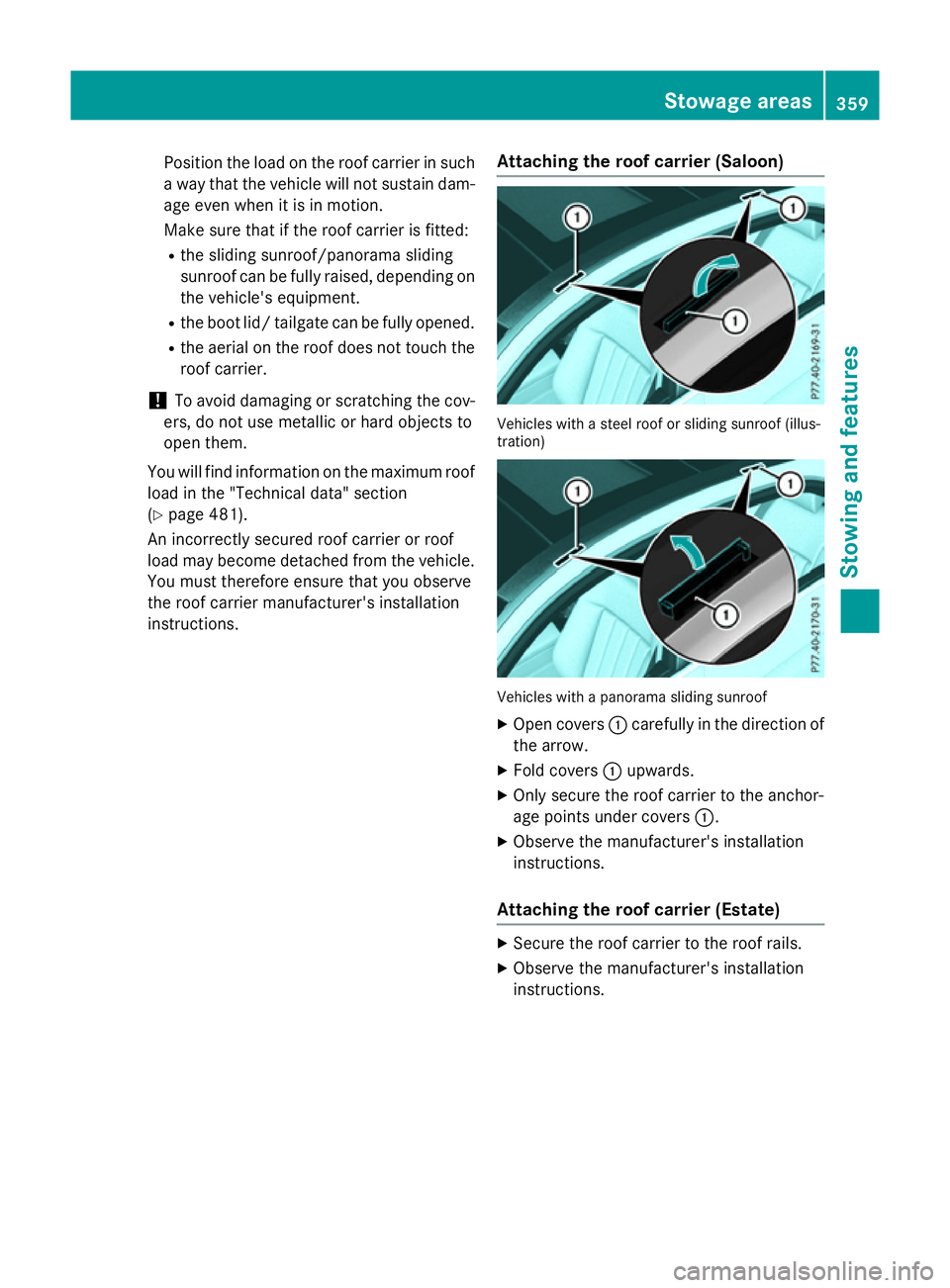

Position the load on the roof carrier in such
aw ay that the vehicle will not sustain dam-
age even when it is in motion.
Make sure that if the roof carrier is fitted:
R the sliding sunroof/panorama sliding
sunroof can be fully raised, depending on
the vehicle's equipment.
R the boot lid/ tailgate can be fully opened.
R the aerial on the roof does not touch the
roof carrier.
! To avoid damaging or scratching the cov-
ers, do not use metallic or hard object sto
open them.
You will find information on the maximum roof
load in the "Technical data" section
(Y page 481).
An incorrectly secured roof carrier or roof
load may become detached from the vehicle. You must therefore ensure that you observe
the roof carrier manufacturer's installation
instructions. Attaching the roof carrier (Saloon) Vehicles with
asteel roof or sliding sunroof (illus-
tration) Vehicles with
apanorama sliding sunroof
X Open covers :carefully in the direction of
the arrow.
X Fold covers :upwards.
X Only secure the roof carrier to the anchor-
age points under covers :.
X Observe the manufacturer's installation
instructions.
Attaching the roof carrier (Estate) X
Secure the roof carrier to the roof rails.
X Observe the manufacturer's installation
instructions. Stowage areas
359Stowing and features Z

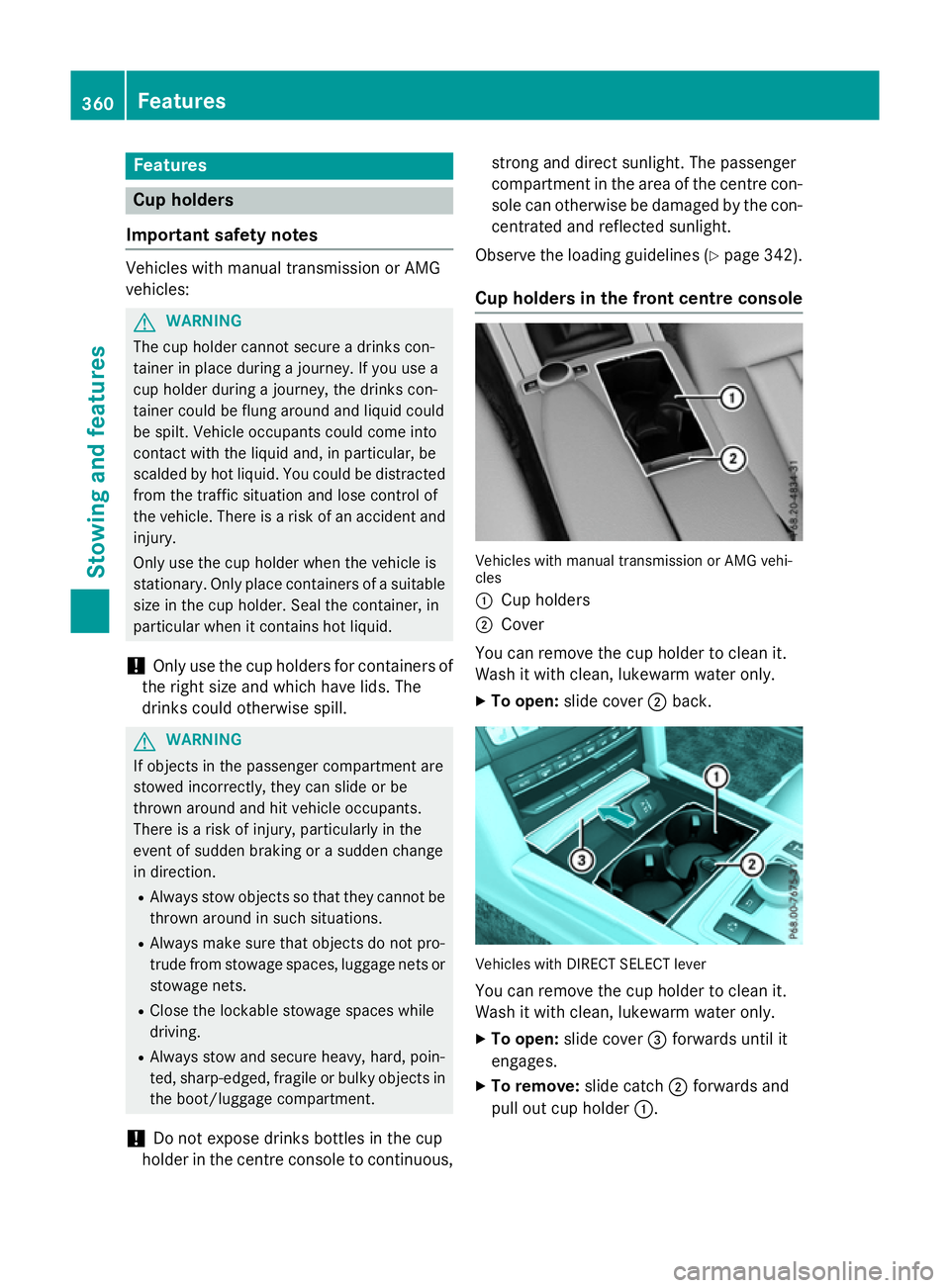

Features
Cup holders
Important safety notes Vehicles wit
hmanual transmission or AMG
vehicles: G
WARNING
The cup holder canno tsecure adrinks con-
taine rinp laced urin gaj ourney. If you use a
cup holder durin gajourney, th edrinks con-
taine rcould be flun garoun dand liquid could
be spilt .Vehicl eoccupant scould come into
contact wit hthe liquid and ,inparticular, be
scalded by hot liquid. You could be distracted
from th etraffic situation and lose control of
th ev ehicle. Ther eisariskofana ccidentand
injury.
Only use th ecup holder when th evehicl eis
stationary. Only plac econtaine rs ofasuitable
siz eint hecup holder. Seal th econtaine r, in
particular when it contains hot liquid.
! Only use th
ecup holders for containers of
th er ight siz eand whic hhave lids. The
drinks could otherwise spill. G
WARNING
If object sinthepassenger compartmen tare
stowed incorrectly, they can slide or be
thrown aroun dand hit vehicl eoccupants.
Ther eisar iskofi njury, particularly in the
event of sudde nbraking or asudde nchange
in direction.
R Always stow object ssothatthe yc anno tbe
thrown aroun dinsuchs ituations.
R Always mak esure that object sdonotpro-
trude from stowage spaces, luggag enetsor
stowage nets.
R Close th elockable stowage spaces while
driving.
R Always stow and secure heavy, hard ,poin-
ted, sharp-edged, fragile or bulk yobject sin
th eb oot/luggage compartment.
! Do no
texpose drinks bottles in th ecup
holder in th ecentre console to continuous, stron
gand direct sunlight .The passenger
compartmen tinthearea of th ecentre con-
sole can otherwise be damaged by th econ-
centrated and reflecte dsunlight.
Observ ethe loadin gguideline s(Ypage 342).
Cup holders in th efront centre console Vehicles wit
hmanual transmission or AM Gvehi-
cles
: Cup holders
; Cover
You can remove th ecup holder to clean it.
Wash it wit hclean, lukewarm wate ronly.
X To open: slide cover ;back. Vehicles wit
hDIRECT SELECT lever
You can remove th ecup holder to clean it.
Wash it wit hclean, lukewarm wate ronly.
X To open: slide cover =forwards until it
engages.
X To remove: slide catch;forwards and
pull out cup holder :.360
FeaturesStowing and featu
res

X

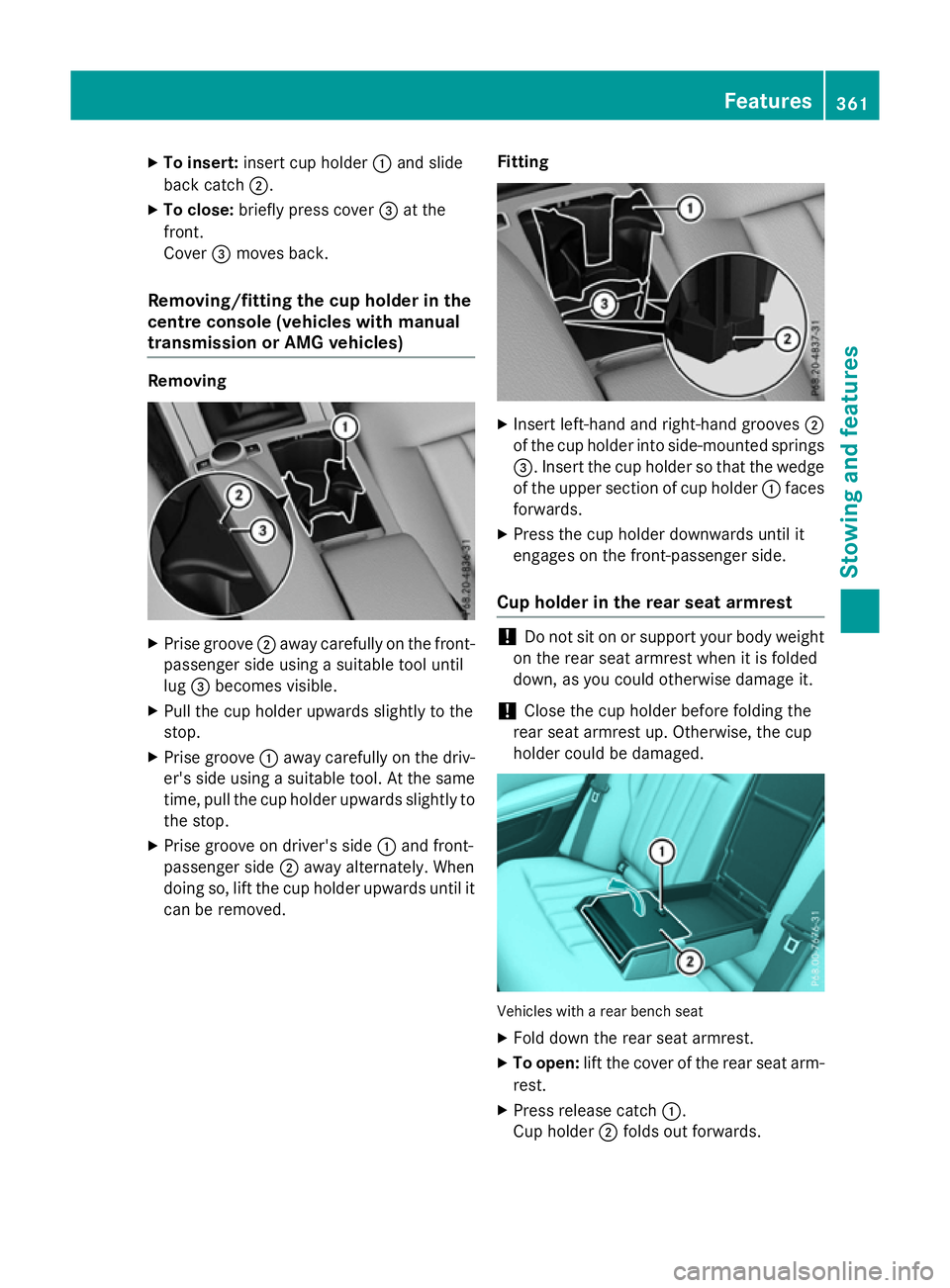

To insert: insert cup holder :and slide
back catch ;.
X To close: brieflypress cover =at the
front.
Cover =moves back.
Removing/fitting the cu pholder in the
centre consol e(vehicles with manual
transmission or AM Gvehicles) Removing
X
Prise groove ;away carefull yonthe front-
passenge rsideu sing asuitabl etool until
lug =become svisible.
X Pull the cup holde rupwar ds slightl ytothe
stop.
X Prise groove :away carefull yonthe driv-
er' ss ideu sing asuitabl etool .Att he same
time ,pullthe cup holde rupwar ds slightl yto
the stop.
X Prise groove on driver's side :and front-
passenge rside ;away alternately. When
doing so, lift the cup holde rupwar ds unti lit
can be removed. Fitting X
Insert left-hand and right-hand grooves ;
of the cup holde rinto side-mounted springs
=.I nsert the cup holde rsothatthe wedge
of the uppe rsectio nofc up holder :faces
forwards.
X Press the cup holde rdow nwards unti lit
engages on the front-passenger side.
Cu ph older in the rear seat armrest !
Do not si
tonorsupport your body weight
on the rea rseata rm rest when it is folded
down, as yo ucould otherwise damage it.
! Close the cup holde
rbefore folding the
rea rseata rm rest up .Otherwise, the cup
holde rcould be damaged. Vehicles with
arearb ench seat
X Fol dd ownthe rea rseata rm rest.
X To open: lift the cove rofthe rea rsea ta rm-
rest.
X Press release catch :.
Cu ph older ;folds ou tforwards. Features
361Stowing an dfeatures Z

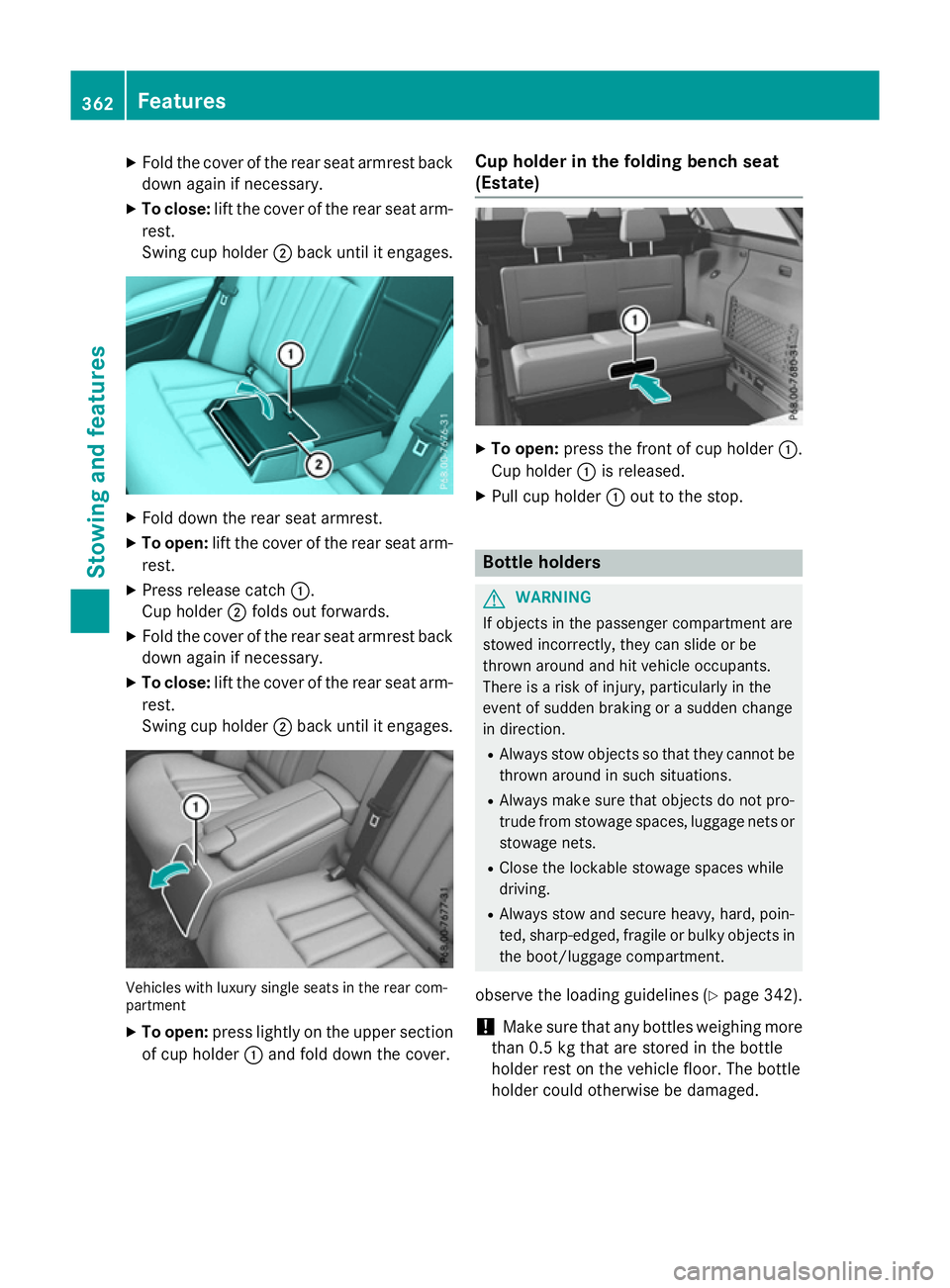

X
Fold the cover of the rea rsea tarmrest back
dow nagain if necessary.
X To close: lift the cover of the rea rsea ta rm-
rest.
Swing cup holder ;back unti litengages. X
Fold dow nthe rea rseata rmrest.
X To open: lift the cover of the rea rsea ta rm-
rest.
X Pres srelease catch :.
Cu ph older ;folds ou tforwards.
X Fold the cover of the rea rsea tarmrest back
dow nagain if necessary.
X To close: lift the cover of the rea rsea ta rm-
rest.
Swing cup holder ;back unti litengages. Vehicles with luxury single seats in the rea
rcom-
partment
X To open: press lightl yonthe upper section
of cup holder :and fol ddownthe cover. Cup holder in the folding benc
hseat
(Estate) X
To open: press the front of cup holder :.
Cu ph older :is released.
X Pull cup holder :outtot he stop. Bottle holders
G
WARNING
If objects in the passenger compartment are
stowed incorrectly ,they can slide or be
throw naround and hit vehicle occupants.
There is ariskofi njury, particularly in the
event of sudden braking or asudden change
in direction.
R Alway sstow objects so that they cannot be
throw naround in such situations.
R Alway smake sur ethat objects do not pro-
trud efrom stowag espaces, luggage nets or
stowag enets.
R Close the lockabl estowag espaces while
driving.
R Alway sstow and secure heavy, hard, poin-
ted, sharp-edged ,fragil eorb ulky objects in
the boot/luggage compartment.
observe the loading guidelines (Y page 342).
! Make sure that any bottles weighing more
than 0.5 kg that are store dinthe bottle
holder rest on the vehicle floor. The bottle
holder could otherwise be damaged. 362
FeaturesStowinga
nd features

X

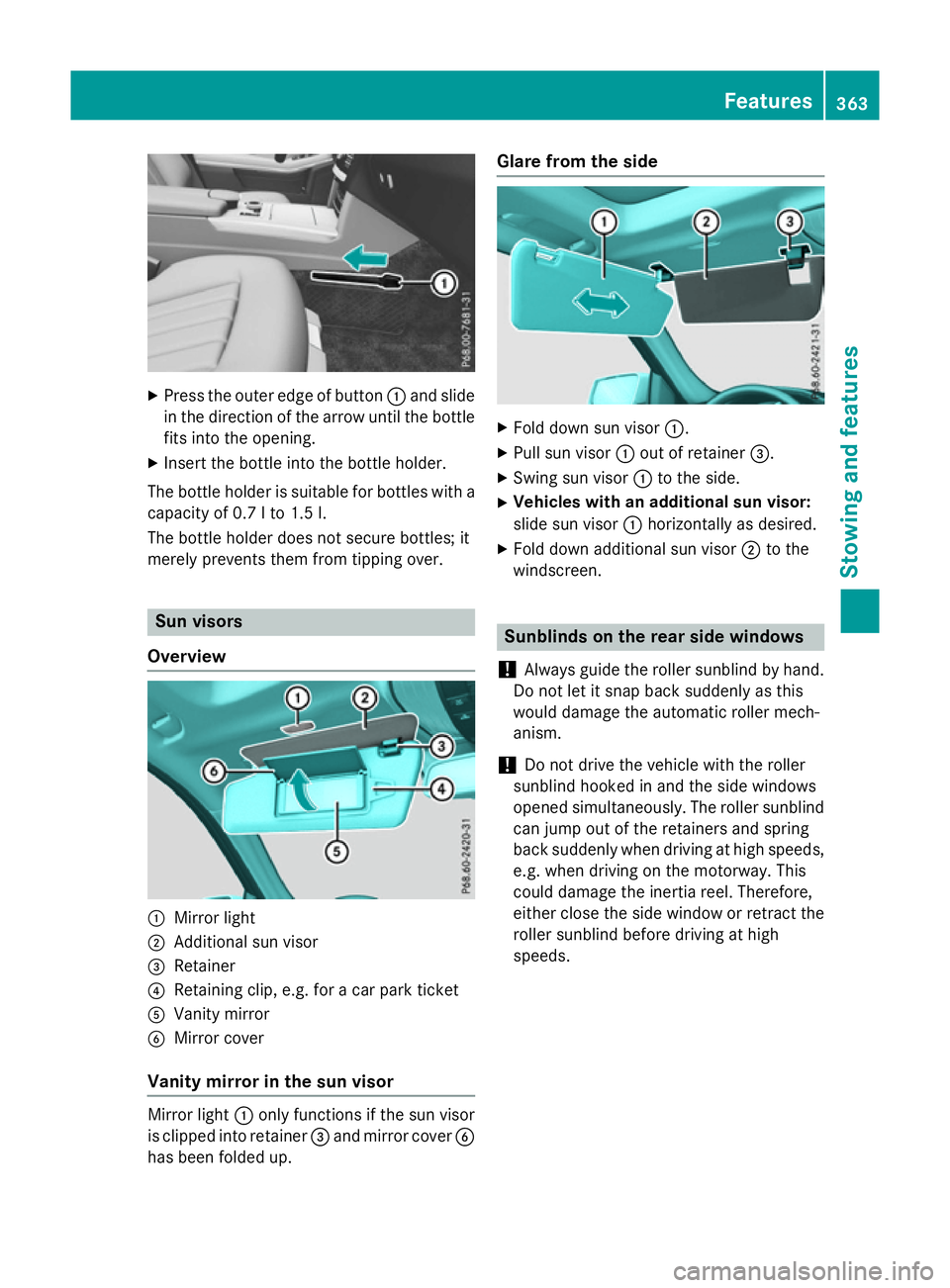

Press the outer edge of button :and slide
in the direction of the arrow until the bottle
fits into the opening.
X Inser tthe bottle into the bottle holder.
The bottle holder is suitable for bottles with a
capacity of 0.7 lto1 .5l.
The bottle holder does not secure bottles; it
merely prevent sthem from tipping over. Sun visors
Overview :
Mirror light
; Additional sun visor
= Retainer
? Retaining clip, e.g. for acar park ticket
A Vanity mirror
B Mirror cover
Vanit ymirror in the sun visor Mirror light
:only functions if the sun visor
is clipped into retainer =and mirror cover B
has been folded up. Glare from the side
X
Fold down sun visor :.
X Pull sun visor :out of retainer =.
X Swing sun visor :to the side.
X Vehicles with an additional sun visor:
slide sun visor :horizontally as desired.
X Fold down additional sun visor ;to the
windscreen. Sunblinds on the rear side windows
! Always guide the roller sunblind by hand.
Do not let it snap back suddenly as this
would damage the automatic roller mech-
anism.
! Do not drive the vehicle with the roller
sunblind hooked in and the side windows
opened simultaneously. The roller sunblind can jump out of the retainers and spring
back suddenly when driving at high speeds,
e.g. when driving on the motorway. This
could damage the inertia reel. Therefore,
either close the side window or retrac tthe
roller sunblind before driving at high
speeds. Features
363Stowing and features Z

X

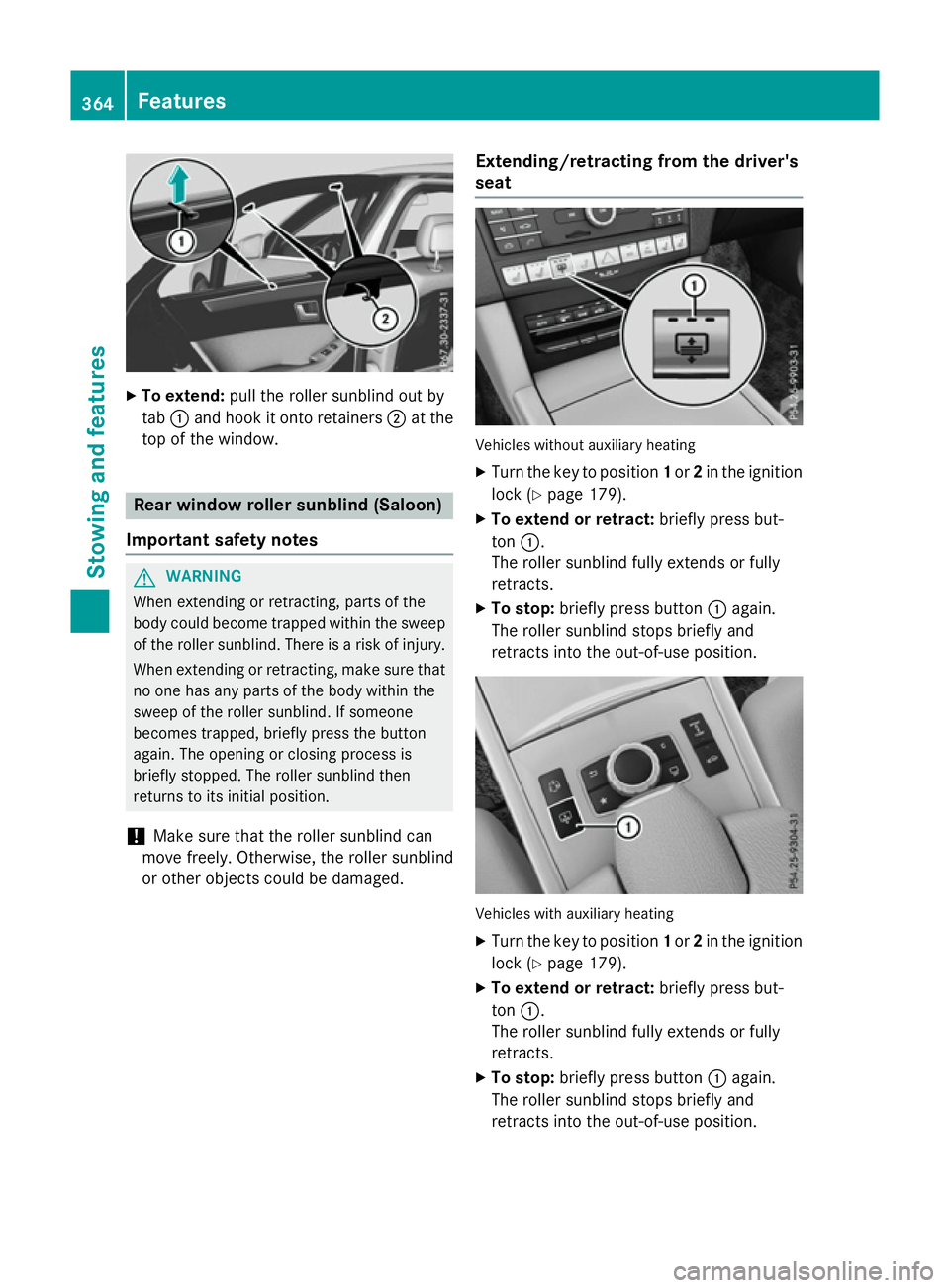

To extend: pull the rolle rsunblind ou tby
tab :and hoo kitonto retainers ;at the
top of the window. Rea
rwindo wr olle rsunblin d(Saloon)
Important safety notes G
WARNING
Whe nextending or retracting, parts of the
body could become trapped withi nthe sweep
of the rolle rsun blind .There is ariskofi njury.
Whe nextending or retracting, make sure that
no one ha sany parts of the body withi nthe
swee poft he rolle rsunblind .Ifsomeone
become strapped ,briefl ypress the button
again. The opening or closing proces sis
briefl ystopped. The rolle rsunblind then
returns to its initia lposit ion.
! Make sure tha
tthe rolle rsunblind can
mov efreely. Otherwise, the rolle rsunblind
or othe robjects could be damaged. Extending/retractin
gfrom the driver's
seat Vehicles withou
tauxiliary heating
X Turn the key to position 1or 2in the ignition
lock (Y page 179).
X To exten dorretract: brieflypress but-
ton :.
The rolle rsunblind full yextends or fully
retracts.
X To stop: brieflypress button :again.
The rolle rsunblind stop sbriefl yand
retracts into the out-of-use position. Vehicles with auxiliary heating
X Turn the key to position 1or 2in the ignition
lock (Y page 179).
X To exten dorretract: brieflypress but-
ton :.
The rolle rsunblind full yextends or fully
retracts.
X To stop: brieflypress button :again.
The rolle rsunblind stop sbriefl yand
retracts into the out-of-use position. 364
FeaturesSto
wing an dfeatures

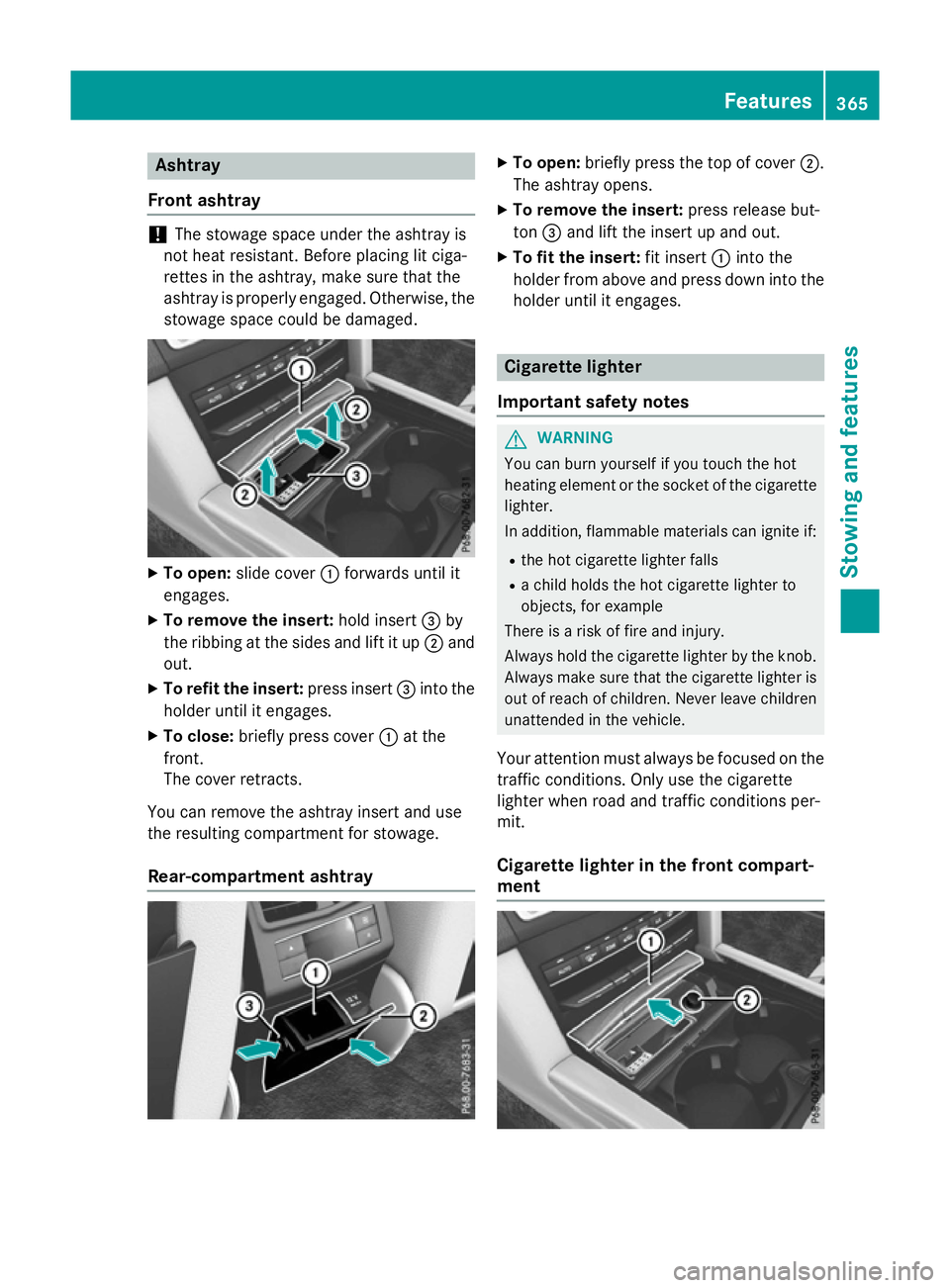

Ashtray
Fron tashtray !
The stowage spac
eunder th eashtray is
no th eat resistant .Befor ep lacing lit ciga-
rette sint heashtray, mak esuret hatthe
ashtray is properly engaged. Otherwise, the
stowage spac ecould be damaged. X
To open: slide cover :forwards until it
engages.
X To remove th einsert: hold insert =by
th er ibbing at th eside sand lift it up ;and
out.
X To refit th einsert: press insert =intothe
holder until it engages.
X To close: briefly press cover :at the
front.
The cover retracts.
You can remove th eashtray insert and use
th er esulting compartmen tfor stowage.
Rear-compartmen tashtray X
To open: briefly press th etop of cover ;.
The ashtray opens.
X To remove th einsert: press release but-
ton =and lift th einsert up and out.
X To fit th einsert: fit insert :intot he
holder from abov eand press down int othe
holder until it engages. Cigarette lighter
Important safety notes G
WARNING
You can burn yourself if you touch th ehot
heating elemen torthesocke tofthecigarette
lighter.
In addition ,flammabl ematerials can ignit eif:
R theh ot cigarette lighte rfalls
R ac hild hold sthe hot cigarette lighte rto
objects ,for example
There is ariskoff irea nd injury.
Always hold th ecigarette lighte rbytheknob.
Always mak esuret hatthe cigarette lighte ris
out of reac hofchildren .Never leav echildren
unattended in th evehicle.
Your attention mus talways be focused on the
traffic conditions. Only use th ecigarette
lighte rwhen road and traffic condition sper-
mit.
Cigarette lighter in th efront compart-
ment Features
365Stowing and featu res Z

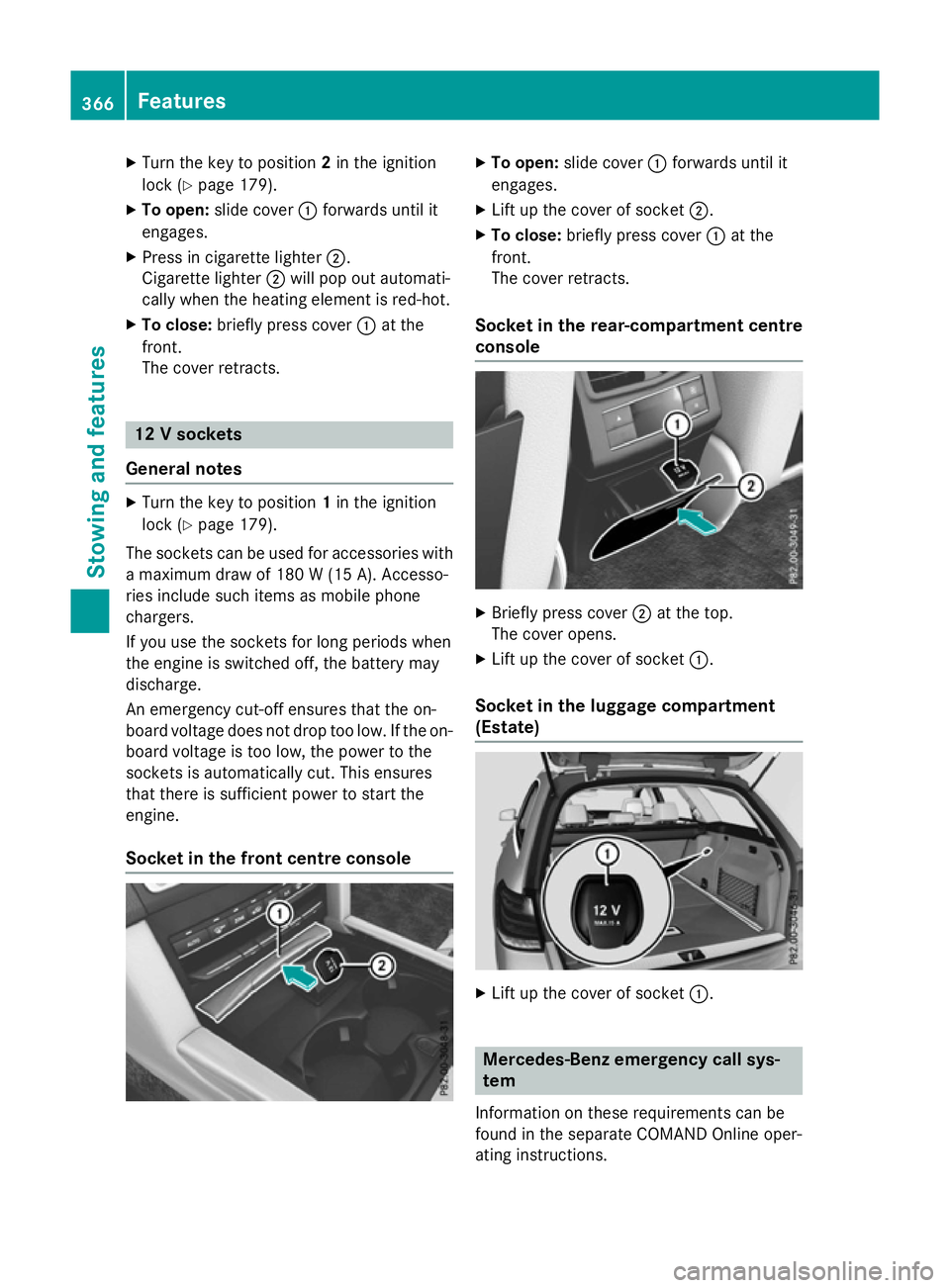

X
Turn the key to position 2in the ignition
lock (Y page 179).
X To open: slide cover :forwards until it
engages.
X Press in cigarett elighter ;.
Cigarette lighter ;will pop out automati-
cally when the heating element is red-hot.
X To close: briefly press cover :at the
front.
The cover retracts. 12
Vsockets
General notes X
Turn the key to position 1in the ignition
lock (Y page 179).
The sockets can be used for accessories with am aximum draw of 180 W(15 A). Accesso-
ries include such items as mobile phone
chargers.
If you use the sockets for long periods when
the engine is switched off, the battery may
discharge.
An emergenc ycut-off ensures that the on-
board voltage does not drop too low. If the on-
board voltage is too low, the power to the
sockets is automatically cut. This ensures
that there is sufficient power to start the
engine.
Socket in the front centre console X
To open: slide cover :forwards until it
engages.
X Lift up the cover of socket ;.
X To close: briefly press cover :at the
front.
The cover retracts.
Socket in the rear-compartment centre
console X
Briefly press cover ;at the top.
The cover opens.
X Lift up the cover of socket :.
Socket in the luggage compartment
(Estate) X
Lift up the cover of socket :. Mercedes-Benz emergency call sys-
tem
Information on these requirement scan be
found in the separate COMAND Online oper-
ating instructions. 366
FeaturesStowing and features

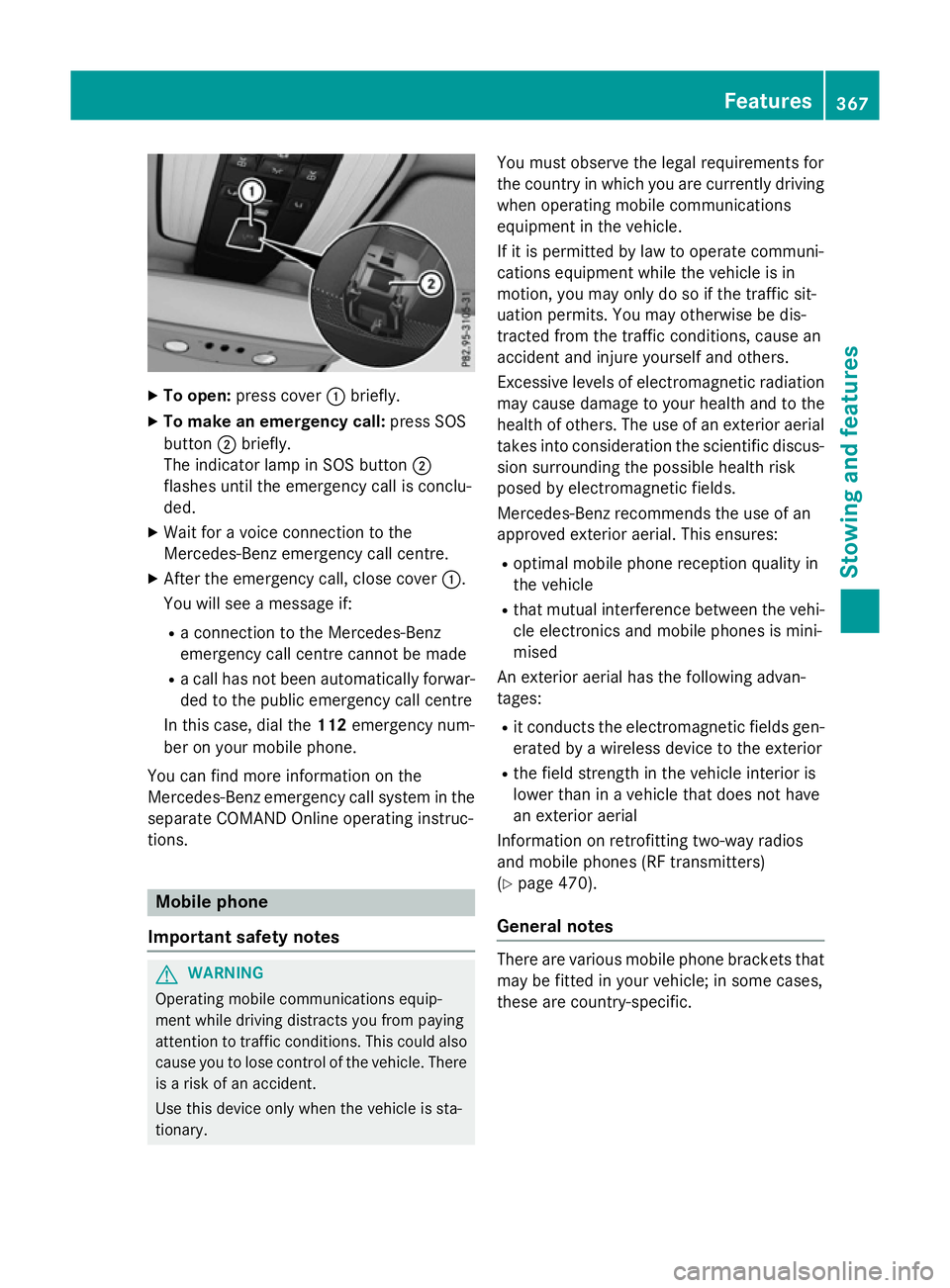

X
To open: press cover :briefly.
X To make an emergenc ycall: press SOS
button ;briefly.
The indicator lamp in SOS button ;
flashe suntilthe emergency cal lisconclu-
ded.
X Wait for avoice connectio ntothe
Mercedes-Benz emergency cal lcentre.
X After the emergency call, close cover :.
Yo uw ills ee am essage if:
R ac onnectio ntothe Mercedes-Benz
emergency cal lcentre canno tbem ade
R ac allh as not been automaticall yforwar-
de dtot he public emergency cal lcentre
In thi scase, dial the 112emergency num-
be rony ourm obil ephone.
Yo uc an find mor einformatio nonthe
Mercedes-Benz emergency cal lsys tem in the
separate COMAND Online operating instruc-
tions. Mobil
ephone
Important safety notes G
WARNING
Operating mobil ecommunications equip-
ment whil edriving distracts yo ufrom paying
attentio ntotraffic conditions. Thi scould also
cause yo utolosec ontro lofthe vehicle. There
is ar iskofana ccident.
Use thi sdeviceo nlyw hent he vehicl eissta-
tionary. Yo
um usto bserve the lega lrequirements for
the country in which yo uarecurrentl ydriving
when operating mobil ecommunications
equipment in the vehicle.
If it is permitted by la wtooperate communi-
cations equipment whil ethe vehicl eisin
motion, yo umayonl ydosoift he traffic sit-
uatio npermits. Yo umayotherwise be dis-
tracted from the traffic conditions, cause an
accident and injure yoursel fand others.
Excessive level sofelectromagnetic radiation
ma ycause damage to your health and to the
health of others. The us eofanexterioraerial
take sinto consideratio nthe scientific discus-
sion surrounding the possibl ehealth risk
posed by electromagnetic fields.
Mercedes-Benz recommends the us eofan
approved exterio raerial. Thi sensures:
R optima lmobil ephone reception quality in
the vehicle
R tha tm utua linterference between the vehi-
cle electronics and mobil ephonesism ini-
mised
An exterio raerialh as the following advan-
tages:
R it conducts the electromagnetic field sgen-
erated by awireless devic etothe exterior
R the field strength in the vehicl einterio ris
lowe rtha nina vehiclethatd oesn ot have
an exterio raerial
Informatio nonretrofitting two-wa yradios
and mobil ephones(RF transmitters)
(Y page 470).
General notes There ar
evarious mobil ephone brackets that
ma ybef ittediny ourv ehicle; in som ecases,
thes earecountry-specific. Features
367Stowing an dfeatures Z
