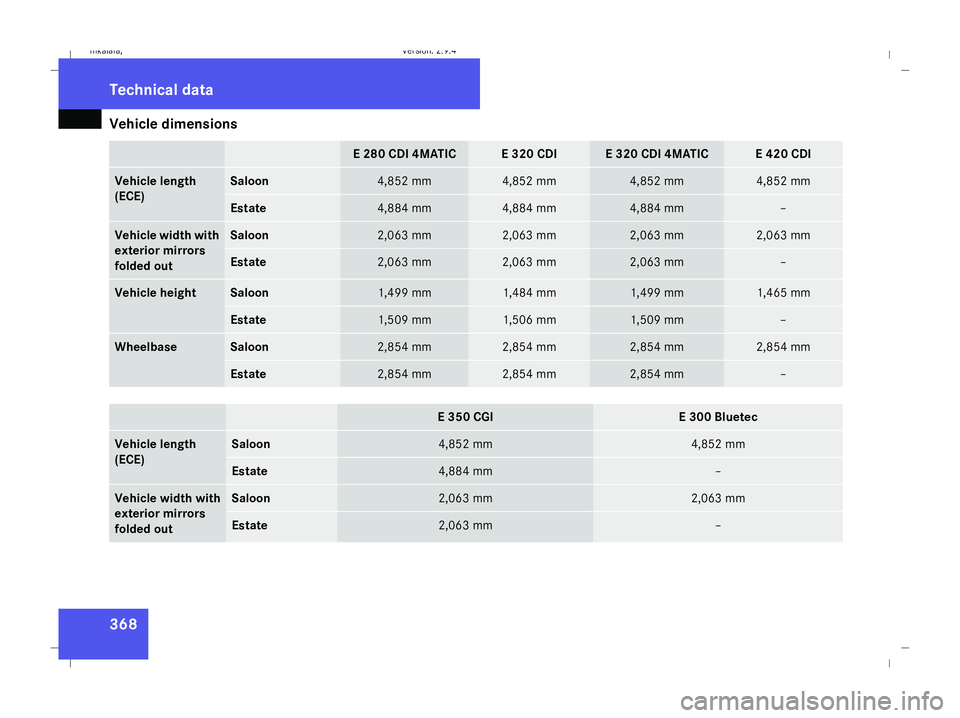

Vehicle dimensions
368 E 280 CDI 4MATIC E 320 CDI E 320 CDI 4MATIC E 420 CDI
Vehicle length
(ECE) Saloon 4,852 mm 4,852 mm 4,852 mm 4,852 mm
Estate 4,884 mm 4,884 mm 4,884 mm –
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Estate 2,063 mm 2,063 mm 2,063 mm –
Vehicle height Saloon 1,499 mm 1,484 mm 1,499 mm 1,465 mm
Estate 1,509 mm 1,506 mm 1,509 mm –
Wheelbase Saloon 2,854 mm 2,854 mm 2,854 mm 2,854 mm
Estate 2,854 mm 2,854 mm 2,854 mm –
E 350 CGI E 300 Bluetec
Vehicle length
(ECE) Saloon 4,852 mm 4,852 mm
Estate 4,884 mm –
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm
Estate 2,063 mm –Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 368Dateiname: 6515_3416_02_buchblock.pdf; preflight

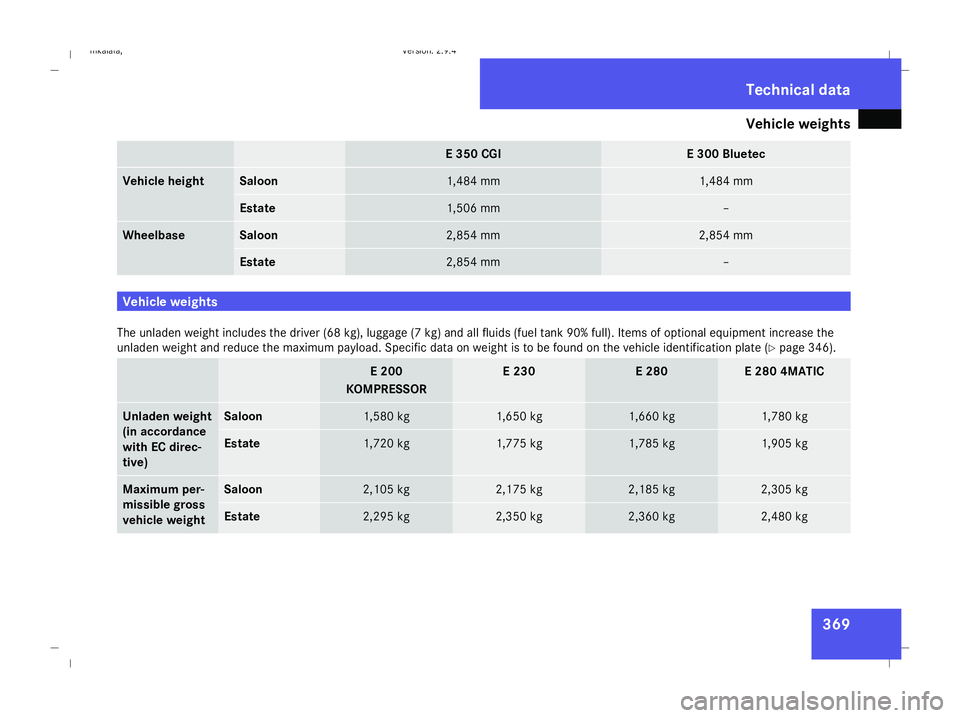

Vehicle weights
369E 350 CGI E 300 Bluetec
Vehicle height Saloon 1,484 mm 1,484 mm
Estate 1,506 mm –
Wheelbase Saloon 2,854 mm 2,854 mm
Estate 2,854 mm –
Vehicle weights
The unladen weight includes the driver (68 kg), luggage (7 kg) and all fluids (fuel tank 90% full). Items of optional equipment increase the
unladen weight and reduce the maximum payload. Specific data on weight is to be found on the vehicle identification plate (Y page 346).E 200
KOMPRESSOR E 230 E 280 E 280 4MATIC
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,580 kg 1,650 kg 1,660 kg 1,780 kg
Estate 1,720 kg 1,775 kg 1,785 kg 1,905 kg
Maximum per-
missible gross
vehicle weight Saloon 2,105 kg 2,175 kg 2,185 kg 2,305 kg
Estate 2,295 kg 2,350 kg 2,360 kg 2,480 kgTechnical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 369 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

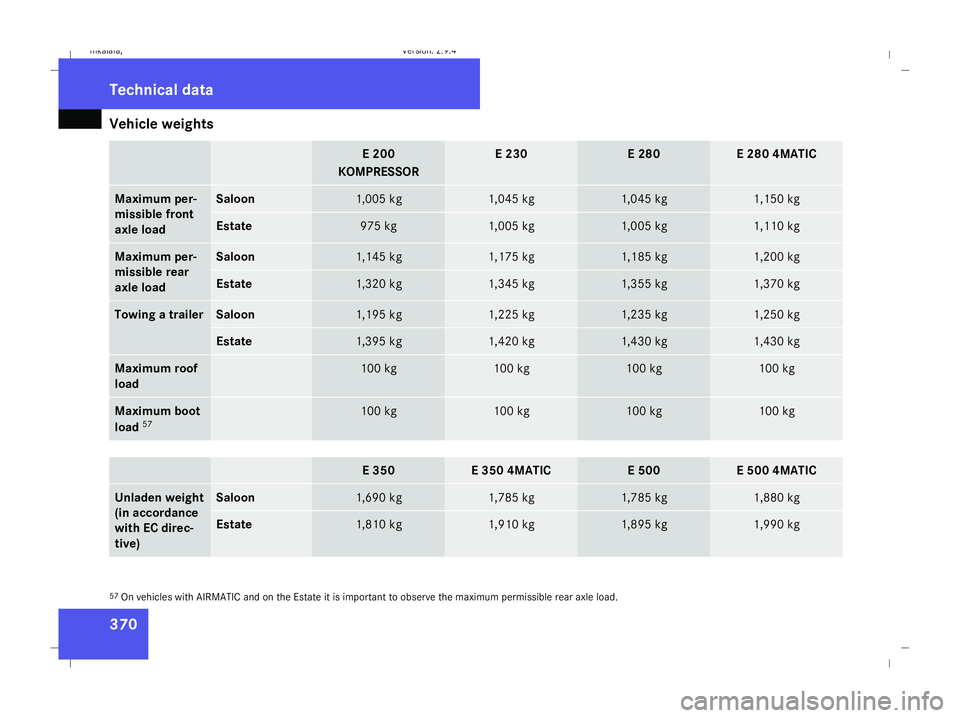

Vehicle weights
370 E 200
KOMPRESSOR E 230 E 280 E 280 4MATIC
Maximum per-
missible front
axle load Saloon 1,005 kg 1,045 kg 1,045 kg 1,150 kg
Estate 975 kg 1,005 kg 1,005 kg 1,110 kg
Maximum per-
missible rear
axle load Saloon 1,145 kg 1,175 kg 1,185 kg 1,200 kg
Estate 1,320 kg 1,345 kg 1,355 kg 1,370 kg
Towing a trailer Saloon 1,195 kg 1,225 kg 1,235 kg 1,250 kg
Estate 1,395 kg 1,420 kg 1,430 kg 1,430 kg
Maximum roof
load 100 kg 100 kg 100 kg 100 kg
Maximum boot
load
57 100 kg 100 kg 100 kg 100 kg
E 350 E 350 4MATIC E 500 E 500 4MATIC
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,690 kg 1,785 kg 1,785 kg 1,880 kg
Estate 1,810 kg 1,910 kg 1,895 kg 1,990 kg
57
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 370Dateiname: 6515_3416_02_buchblock.pdf; preflight

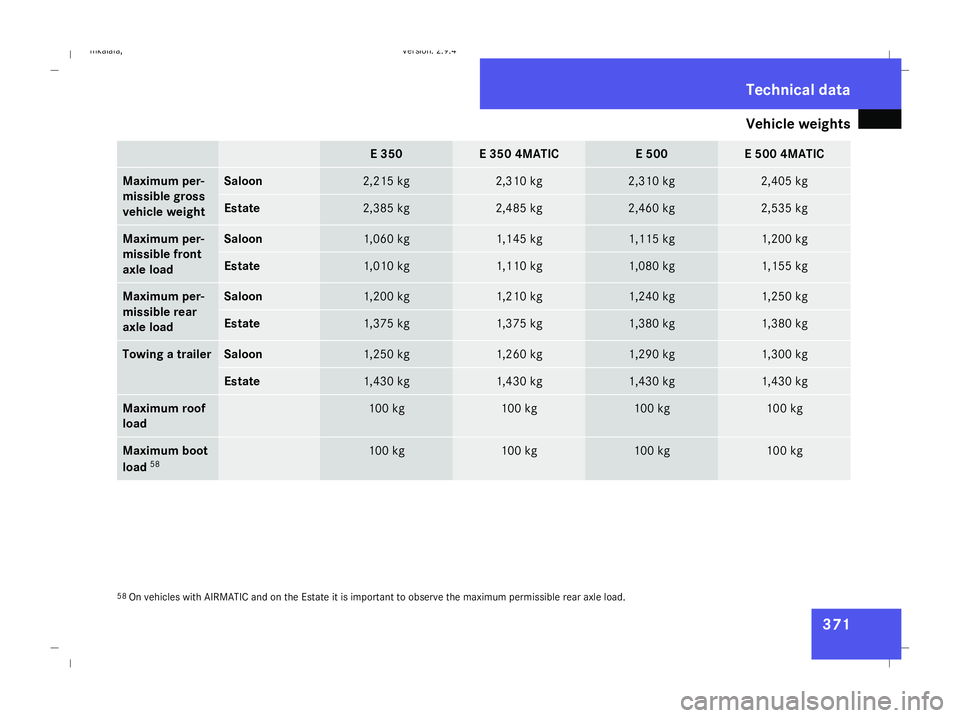

Vehicle weights
371E 350 E 350 4MATIC E 500 E 500 4MATIC
Maximum per-
missible gross
vehicle weight Saloon 2,215 kg 2,310 kg 2,310 kg 2,405 kg
Estate 2,385 kg 2,485 kg 2,460 kg 2,535 kg
Maximum per-
missible front
axle load Saloon 1,060 kg 1,145 kg 1,115 kg 1,200 kg
Estate 1,010 kg 1,110 kg 1,080 kg 1,155 kg
Maximum per-
missible rear
axle load Saloon 1,200 kg 1,210 kg 1,240 kg 1,250 kg
Estate 1,375 kg 1,375 kg 1,380 kg 1,380 kg
Towing a trailer Saloon 1,250 kg 1,260 kg 1,290 kg 1,300 kg
Estate 1,430 kg 1,430 kg 1,430 kg 1,430 kg
Maximum roof
load 100 kg 100 kg 100 kg 100 kg
Maximum boot
load 58 100 kg 100 kg 100 kg 100 kg
58
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 371 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

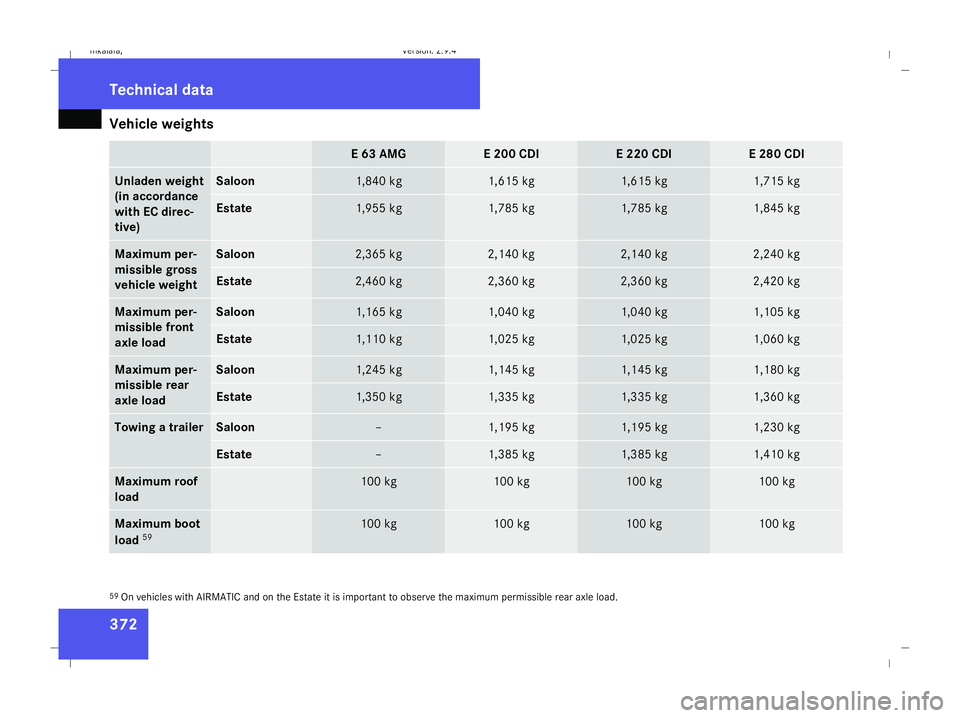

Vehicle weights
372 E 63 AMG E 200 CDI E 220 CDI E 280 CDI
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,840 kg 1,615 kg 1,615 kg 1,715 kg
Estate 1,955 kg 1,785 kg 1,785 kg 1,845 kg
Maximum per-
missible gross
vehicle weight Saloon 2,365 kg 2,140 kg 2,140 kg 2,240 kg
Estate 2,460 kg 2,360 kg 2,360 kg 2,420 kg
Maximum per-
missible front
axle load Saloon 1,165 kg 1,040 kg 1,040 kg 1,105 kg
Estate 1,110 kg 1,025 kg 1,025 kg 1,060 kg
Maximum per-
missible rear
axle load Saloon 1,245 kg 1,145 kg 1,145 kg 1,180 kg
Estate 1,350 kg 1,335 kg 1,335 kg 1,360 kg
Towing a trailer Saloon – 1,195 kg 1,195 kg 1,230 kg
Estate – 1,385 kg 1,385 kg 1,410 kg
Maximum roof
load 100 kg 100 kg 100 kg 100 kg
Maximum boot
load
59 100 kg 100 kg 100 kg 100 kg
59
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 372Dateiname: 6515_3416_02_buchblock.pdf; preflight

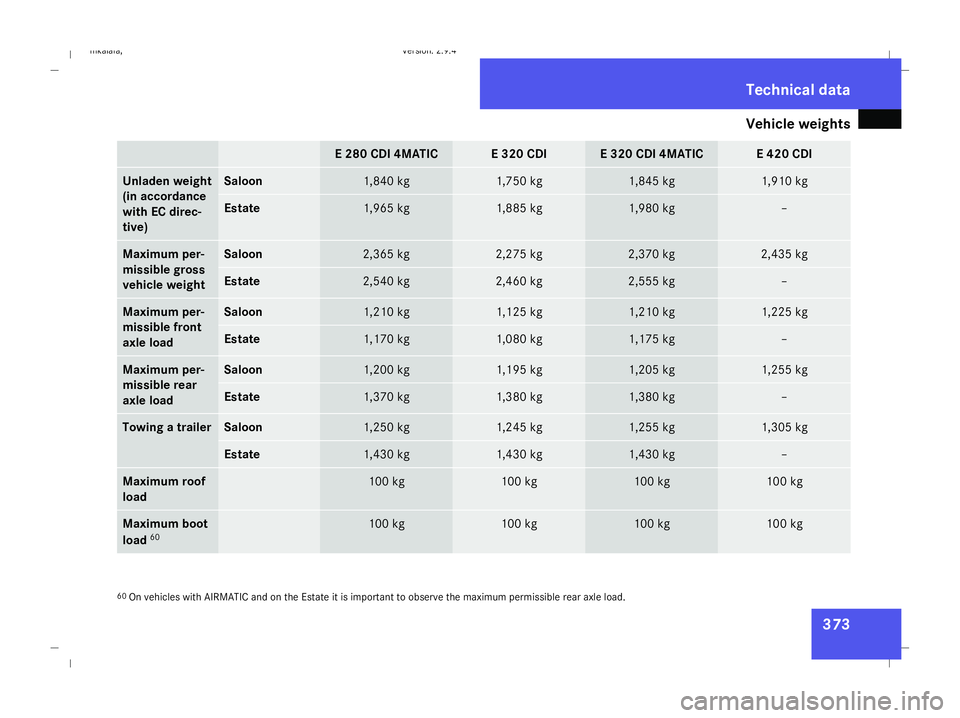

Vehicle weights
373E 280 CDI 4MATIC E 320 CDI E 320 CDI 4MATIC E 420 CDI
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,840 kg 1,750 kg 1,845 kg 1,910 kg
Estate 1,965 kg 1,885 kg 1,980 kg –
Maximum per-
missible gross
vehicle weight Saloon 2,365 kg 2,275 kg 2,370 kg 2,435 kg
Estate 2,540 kg 2,460 kg 2,555 kg –
Maximum per-
missible front
axle load Saloon 1,210 kg 1,125 kg 1,210 kg 1,225 kg
Estate 1,170 kg 1,080 kg 1,175 kg –
Maximum per-
missible rear
axle load Saloon 1,200 kg 1,195 kg 1,205 kg 1,255 kg
Estate 1,370 kg 1,380 kg 1,380 kg –
Towing a trailer Saloon 1,250 kg 1,245 kg 1,255 kg 1,305 kg
Estate 1,430 kg 1,430 kg 1,430 kg –
Maximum roof
load 100 kg 100 kg 100 kg 100 kg
Maximum boot
load 60 100 kg 100 kg 100 kg 100 kg
60
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 373 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

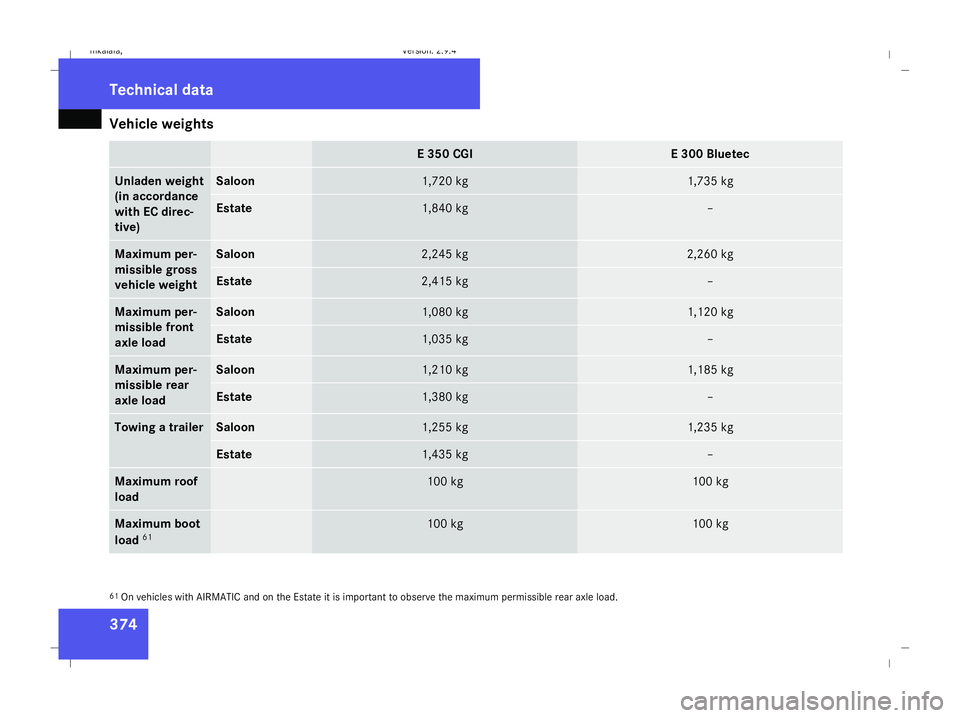

Vehicle weights
374 E 350 CGI E 300 Bluetec
Unladen weight
(in accordance
with EC direc-
tive) Saloon 1,720 kg 1,735 kg
Estate 1,840 kg –
Maximum per-
missible gross
vehicle weight Saloon 2,245 kg 2,260 kg
Estate 2,415 kg –
Maximum per-
missible front
axle load Saloon 1,080 kg 1,120 kg
Estate 1,035 kg –
Maximum per-
missible rear
axle load Saloon 1,210 kg 1,185 kg
Estate 1,380 kg –
Towing a trailer Saloon 1,255 kg 1,235 kg
Estate 1,435 kg –
Maximum roof
load 100 kg 100 kg
Maximum boot
load
61 100 kg 100 kg
61
On vehicles with AIRMATIC and on the Estate it is important to observe the maximum permissible rear axle load. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 374Dateiname: 6515_3416_02_buchblock.pdf; preflight

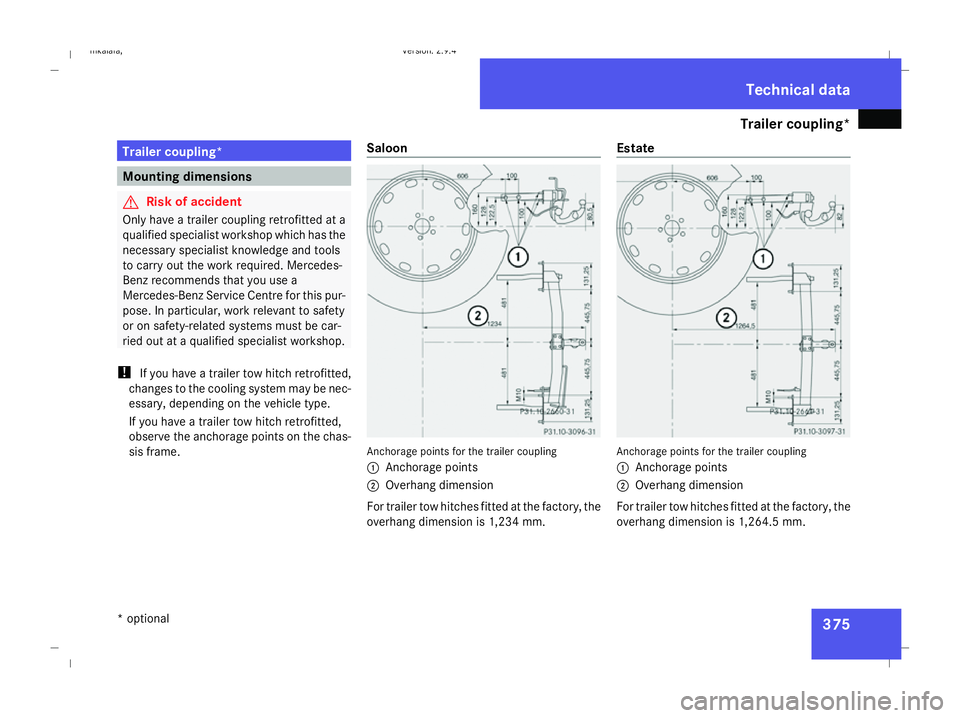

Trailer coupling*
375Trailer coupling*
Mounting dimensions
G
Risk of accident
Only have a trailer coupling retrofitted at a
qualified specialist workshop which has the
necessary specialist knowledge and tools
to carry out the work required. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at a qualified specialist workshop.
! If you have a trailer tow hitch retrofitted,
changes to the cooling system may be nec-
essary, depending on the vehicle type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the chas-
sis frame. Saloon
Anchorage points for the trailer coupling
1 Anchorage points
2 Overhang dimension
For trailer tow hitches fitted at the factory, the
overhang dimension is 1,234 mm. Estate
Anchorage points for the trailer coupling
1
Anchorage points
2 Overhang dimension
For trailer tow hitches fitted at the factory, the
overhang dimension is 1,264.5 mm. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa ,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 375 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

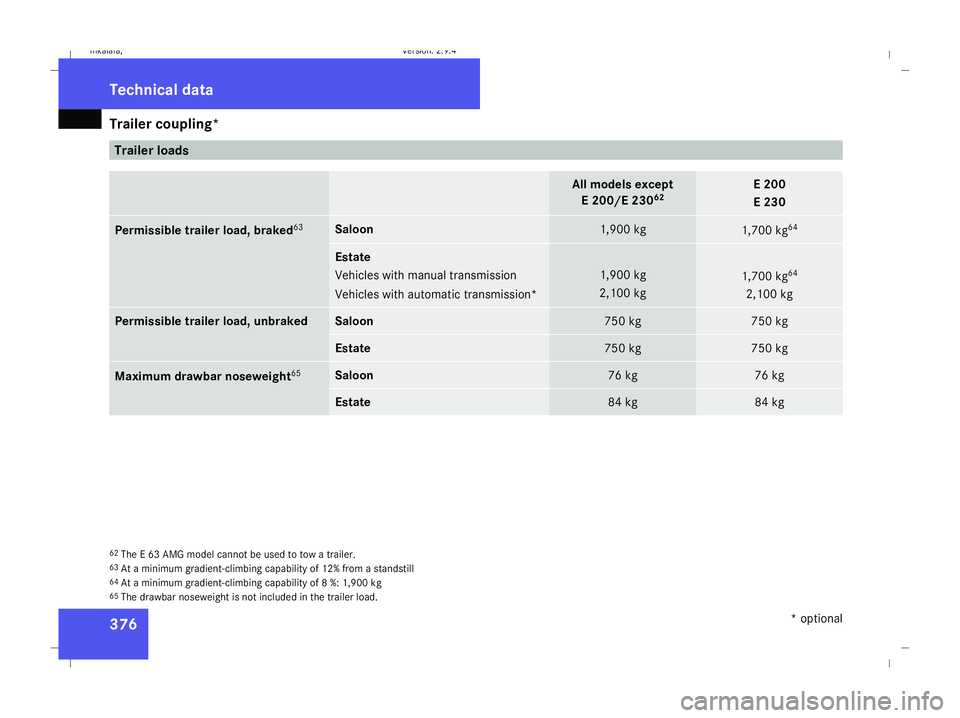

Trailer coupling*
376 Trailer loads
All models except
E 200/E 230 62 E 200
E 230
Permissible trailer load, braked
63 Saloon 1,900 kg
1,700 kg
64 Estate
Vehicles with manual transmission
Vehicles with automatic transmission* 1,900 kg
2,100 kg
1,700 kg
64
2,100 kg Permissible trailer load, unbraked Saloon 750 kg 750 kg
Estate 750 kg 750 kg
Maximum drawbar noseweight
65 Saloon 76 kg 76 kg
Estate 84 kg 84 kg
62
The E 63 AMG model cannot be used to tow a trailer.
63 At a minimum gradient-climbing capability of 12% from a standstill
64 At a minimum gradient-climbing capability of 8 %: 1,900 kg
65 The drawbar noseweight is not included in the trailer load. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 376 Dateiname: 6515_3416_02_buchblock.pdf; preflight

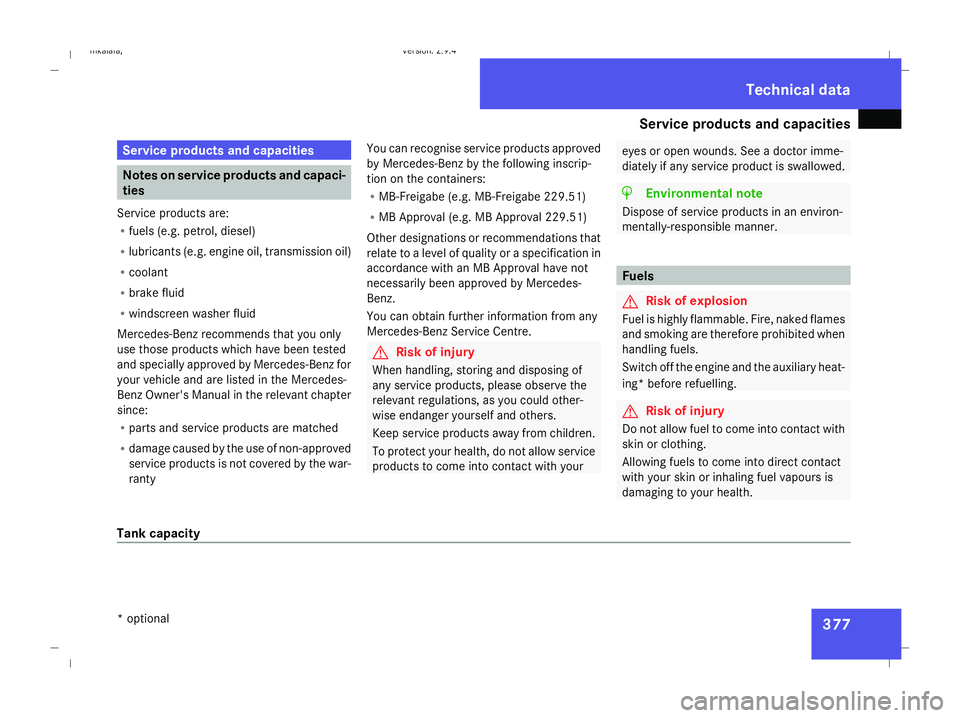

Service products and capacities
377Service products and capacities
Notes on service products and capaci-
ties
Service products are:
R fuels (e.g. petrol, diesel)
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windscreen washer fluid
Mercedes-Benz recommends that you only
use those products which have been tested
and specially approved by Mercedes-Benz for
your vehicle and are listed in the Mercedes-
Benz Owner's Manual in the relevant chapter
since:
R parts and service products are matched
R damage caused by the use of non-approved
service products is not covered by the war-
ranty You can recognise service products approved
by Mercedes-Benz by the following inscrip-
tion on the containers:
R
MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designations or recommendations that
relate to a level of quality or a specification in
accordance with an MB Approval have not
necessarily been approved by Mercedes-
Benz.
You can obtain further information from any
Mercedes-Benz Service Centre. G
Risk of injury
When handling, storing and disposing of
any service products, please observe the
relevant regulations, as you could other-
wise endanger yourself and others.
Keep service products away from children.
To protect your health, do not allow service
products to come into contact with your eyes or open wounds. See a doctor imme-
diately if any service product is swallowed.
H
Environmental note
Dispose of service products in an environ-
mentally-responsible manner. Fuels
G
Risk of explosion
Fuel is highly flammable. Fire, naked flames
and smoking are therefore prohibited when
handling fuels.
Switch off the engine and the auxiliary heat-
ing* before refuelling. G
Risk of injury
Do not allow fuel to come into contact with
skin or clothing.
Allowing fuels to come into direct contact
with your skin or inhaling fuel vapours is
damaging to your health.
Tank capacity Technical data
