Page 361 of 401

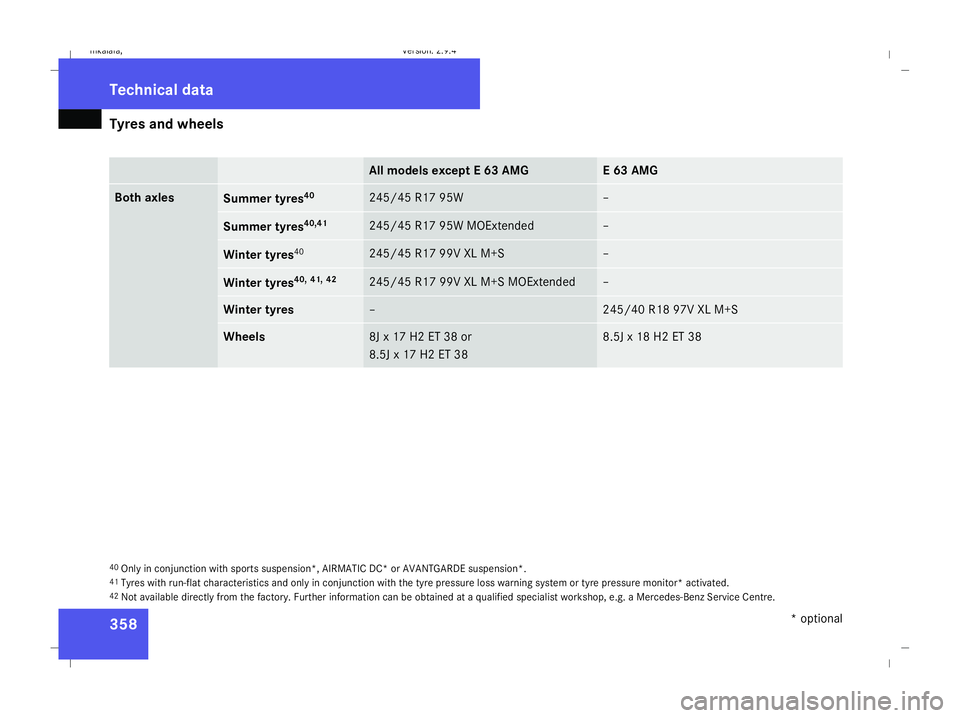

Tyres and wheels
358 All models except E 63 AMG E 63 AMG
Both axles
Summer tyres
40 245/4
5 R17 95W –
Su
mmer tyres 40,41 245/4
5 R17 95W MO Extended –
Winter tyres
40 245/45 R17 99V XL M+S –
Winter tyres
40
,4 1, 42 245/45 R17 99V XL M+S MOExtended –
Winter tyres – 245/40 R18 97V XL M+S
Wheels 8J x 17 H2 ET 38 or
8.5J x 17 H2 ET 38 8.5J x 18 H2 ET 38
40
Only in conjunction with sports suspension*, AIRMATIC DC* or AVANTGARDE suspension*.
41 Tyres with run-flat characteristics and only in conjunction with the tyre pressure loss warning system or tyre pressure monitor* activated.
42 Not available directly from the factory. Further information can be obtained at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 358Dateiname: 6515_3416_02_buchblock.pdf; preflight

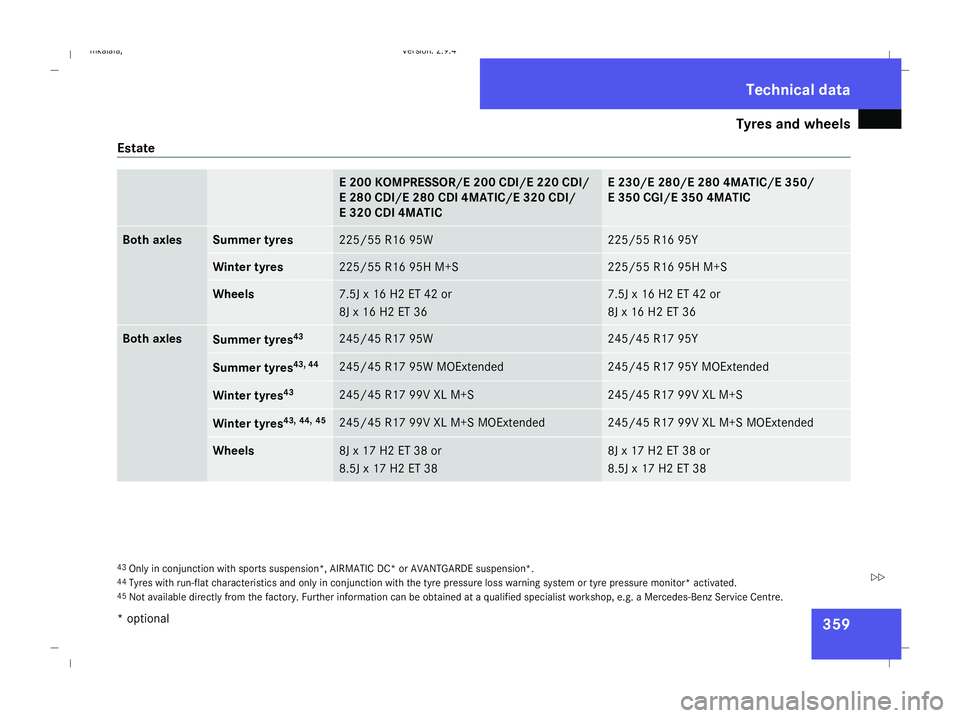

Page 362 of 401
Tyres and wheels
359
Estate E 200 KOMPRESSOR/E 200 CDI/E 220 CDI/
E 280 CDI/E 280 CDI 4MATIC/E 320 CDI/
E 320 CDI 4MATIC E 230/E 280/E 280 4MATIC/E 350/
E 350 CGI/E 350 4MATIC Both axles Summer tyres 225/5
5 R16 95W 225/55 R16 95Y
Winter
tyres 225/55 R16 95H M+S 225/55 R16 95H M+S
Wheels 7.5J x 16 H2 ET 42 or
8J x 16 H2 ET 36 7.5J x 16 H2 ET 42 or
8J x 16 H2 ET 36
Both axles
Summer tyres
43 245/45 R17 95W 245/45 R17 95Y
Summer tyres
43, 44 245/45 R17 95W MOExtended 245/45 R17 95Y MOExtended
Winter tyres
43 245/45 R17 99V XL M+S 245/45 R17 99V XL M+S
Winter tyres
43
,4 4, 45 245/45 R17 99V XL M+S MOExtended 245/45 R17 99V XL M+S MOExtended
Wheels 8J x 17 H2 ET 38 or
8.5J x 17 H2 ET 38 8J x 17 H2 ET 38 or
8.5J x 17 H2 ET 38
43
Only in conjunction with sports suspension*, AIRMATIC DC* or AVANTGARDE suspension*.
44 Tyres with run-flat characteristics and only in conjunction with the tyre pressure loss warning system or tyre pressure monitor* activated.
45 Not available directly from the factory. Further information can be obtained at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 359 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

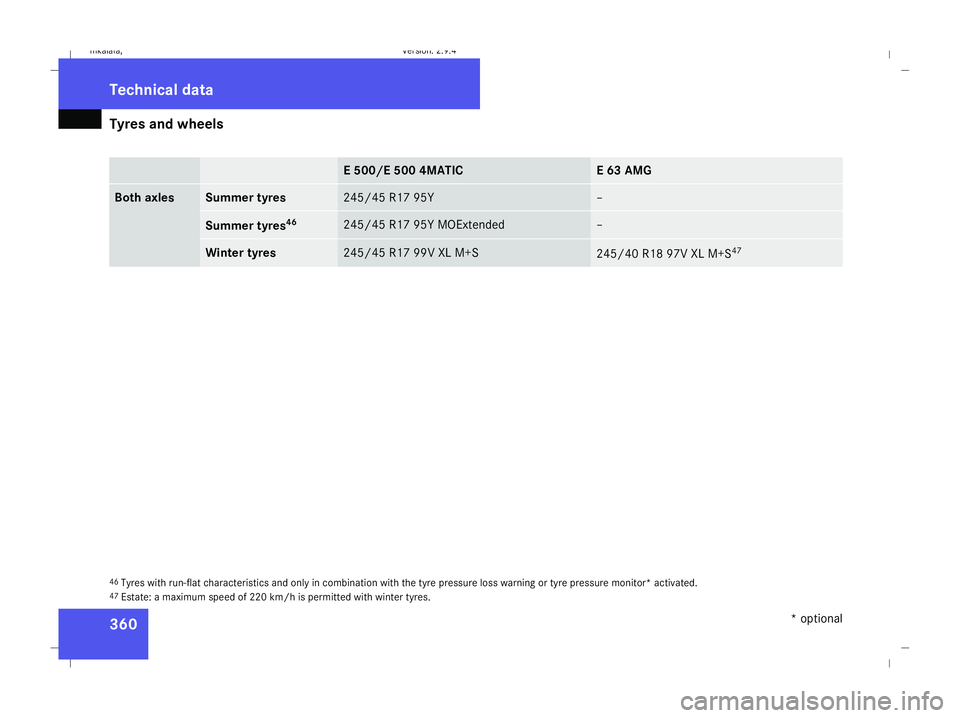

Page 363 of 401
Tyres and wheels
360 E 500/E 500 4MATIC E 63 AMG
Both axles Summer tyres 245/45 R17 95Y –
Summer tyres
46 245/4
5 R17 95Y MO Extended –
Winter tyres 245/45 R17 99V XL M+S
245/4
0 R18 97V XL M+S 47 46
Tyres with ru n-flat characteristics and only in combination with the tyre pressure loss warning or tyre pressure monitor* activated.
47 Estate: a maximum speed of 220 km/h is permitted with winter tyres. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 360 Dateiname: 6515_3416_02_buchblock.pdf; preflight

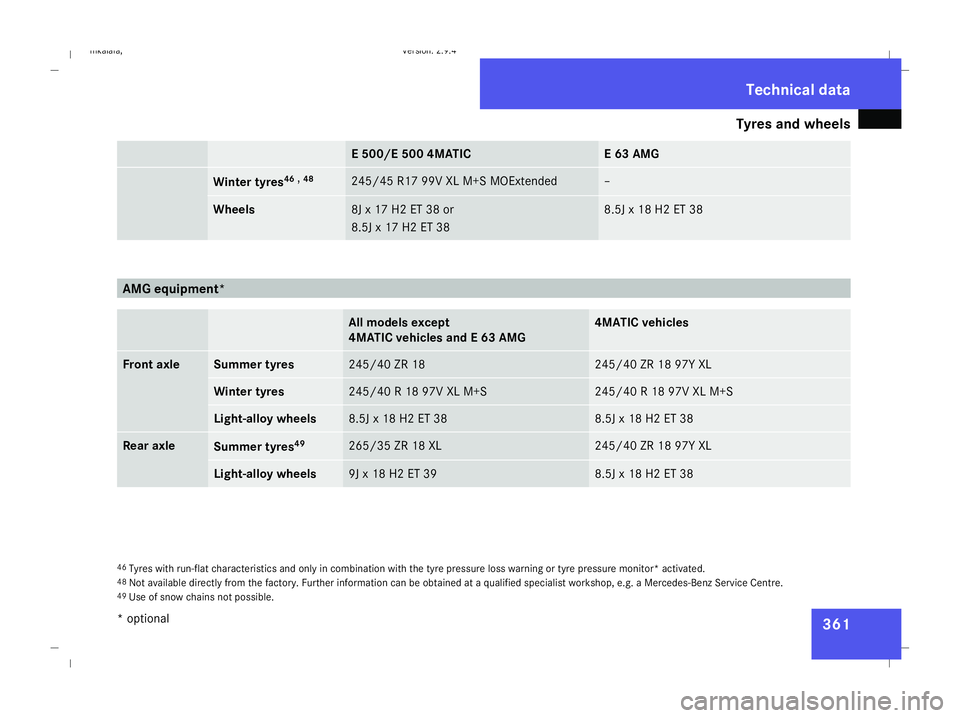

Page 364 of 401
Tyres and wheels
361E 500/E 500 4MATIC E 63 AMG
Winter tyres
46
,48 245/45 R17 99V XL M+S MOExtended –
Wheels 8J x 17 H2 ET 38 or
8.5J x 17 H2 ET 38 8.5J x 18 H2 ET 38
AMG equipment*
All models except
4MATIC vehicles and E 63 AMG 4MATIC vehicles
Front axle Summer tyres 245/40 ZR 18 245/40 ZR 18 97Y XL
Winter tyres 245/40 R 18 97V XL M+S 245/40 R 18 97V XL M+S
Light-alloy wheels 8.5J x 18 H2 ET 38 8.5J x 18 H2 ET 38
Rear axle
Summer tyres
49 265/35 ZR 18 XL 245/40 ZR 18 97Y XL
Light-alloy wheels 9J x 18 H2 ET 39 8.5J x 18 H2 ET 38
46
Tyres with run-flat characteristics and only in combination with the tyre pressure loss warning or tyre pressure monitor* activated.
48 Not available directly from the factory. Further information can be obtained at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre.
49 Use of snow chains not possible. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 361 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

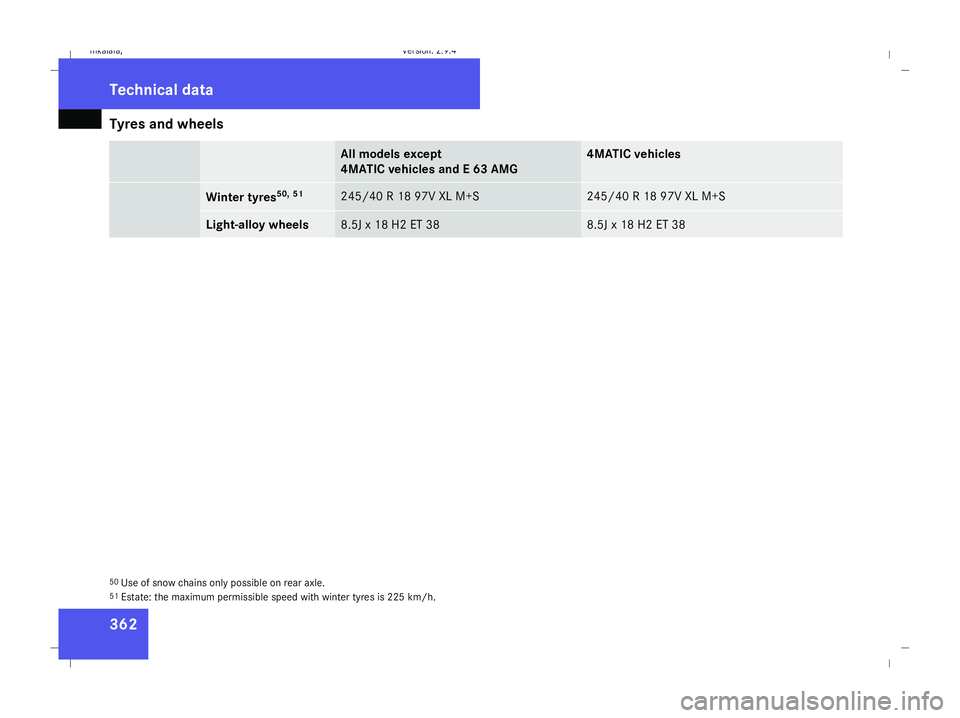

Page 365 of 401
Tyres and wheels
362 All models except
4MATIC vehicles and E 63 AMG 4MATIC vehicles
Winter tyres
50
,51 245/40 R 18 97V XL M+S 245/40 R 18 97V XL M+S
Light-alloy wheels 8.5J x 18 H2 ET 38 8.5J x 18 H2 ET 38
50
Use of snow chains only possible on rear axle.
51 Estate: the maximum permissible speed with winter tyres is 225 km/h. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 362Dateiname: 6515_3416_02_buchblock.pdf; preflight

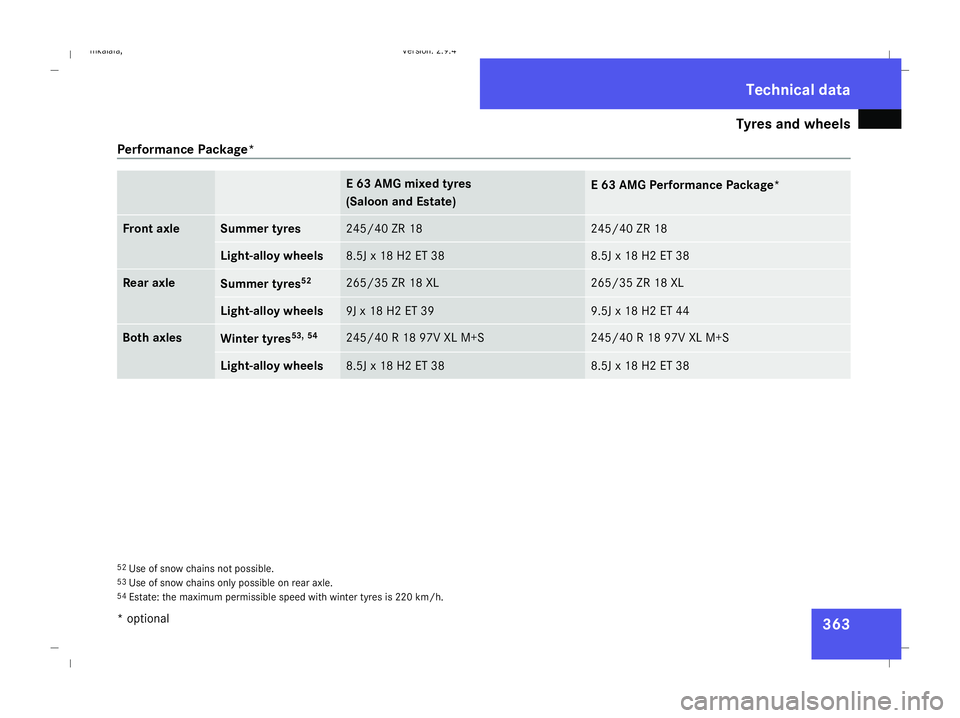

Page 366 of 401
Tyres and wheels
363
Performance Package* E 63 AMG mixed tyres
(Saloon and Estate)
E 63 AMG Performance Package*
Front axle Summer tyres 245/4
0 ZR 18 245/40 ZR 18
Light-alloy wheels 8.5J
x 18 H2 ET 38 8.5J x 18 H2 ET 38
Rear axle
Summer tyres
52 265/35 ZR 18 XL 265/35 ZR 18 XL
Light-alloy wheels 9J x 18 H2 ET 39 9.5J x 18 H2 ET 44
Both axles
Winter tyres
53
,54 245/40 R 18 97V XL M+S 245/40 R 18 97V XL M+S
Light-alloy wheels 8.5J x 18 H2 ET 38 8.5J x 18 H2 ET 38
52
Use of snow chains not possible.
53 Use of snow chains only possible on rear axle.
54 Estate: the maximum permissible speed with winter tyres is 220 km/h. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 363 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

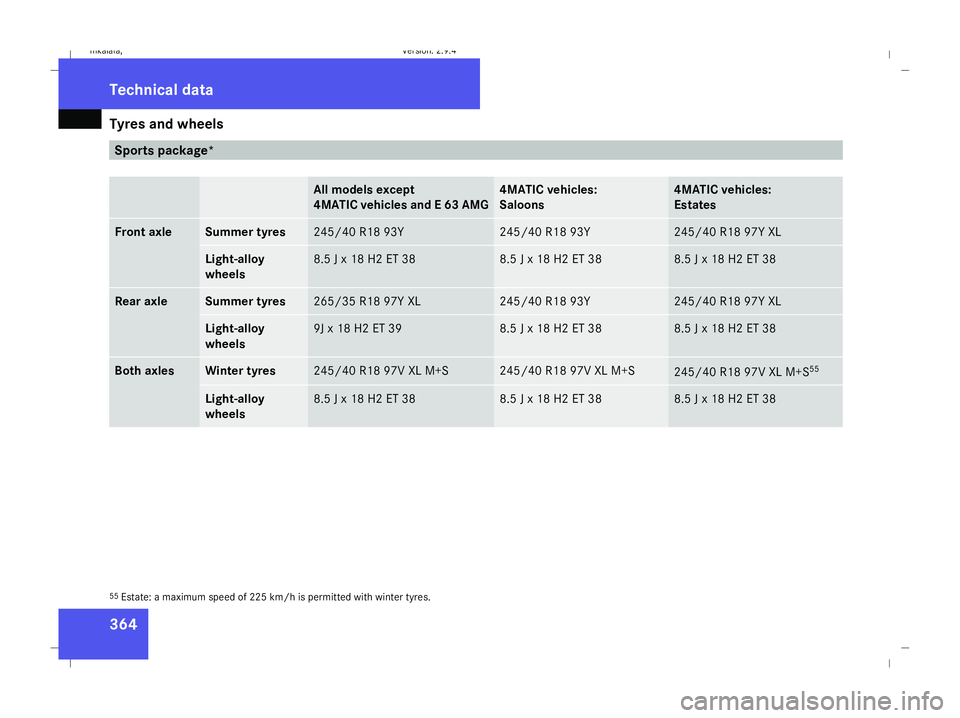

Page 367 of 401
Tyres and wheels
364 Sports package*
All models except
4MATIC vehicles and E 63 AMG 4MATIC vehicles:
Saloons 4MATIC vehicles:
Estates
Front axle Summer tyres 245/40 R18 93Y 245/40 R18 93Y 245/40 R18 97Y XL
Light-alloy
wheels 8.5 J x 18 H2 ET 38 8.5 J x 18 H2 ET 38 8.5 J x 18 H2 ET 38
Rear axle Summer tyres 265/35 R18 97Y XL 245/40 R18 93Y 245/40 R18 97Y XL
Light-alloy
wheels 9J x 18 H2 ET 39 8.5 J x 18 H2 ET 38 8.5 J x 18 H2 ET 38
Both axles Winter tyres 245/40 R18 97V XL M+S 245/40 R18 97V XL M+S
245/40 R18 97V XL M+S
55 Light-alloy
wheels 8.5 J x 18 H2 ET 38 8.5 J x 18 H2 ET 38 8.5 J x 18 H2 ET 38
55
Estate: a maximum speed of 225 km/h is permitted with winter tyres. Technical data
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 364 Dateiname: 6515_3416_02_buchblock.pdf; preflight
Page 368 of 401
Tyres and wheels

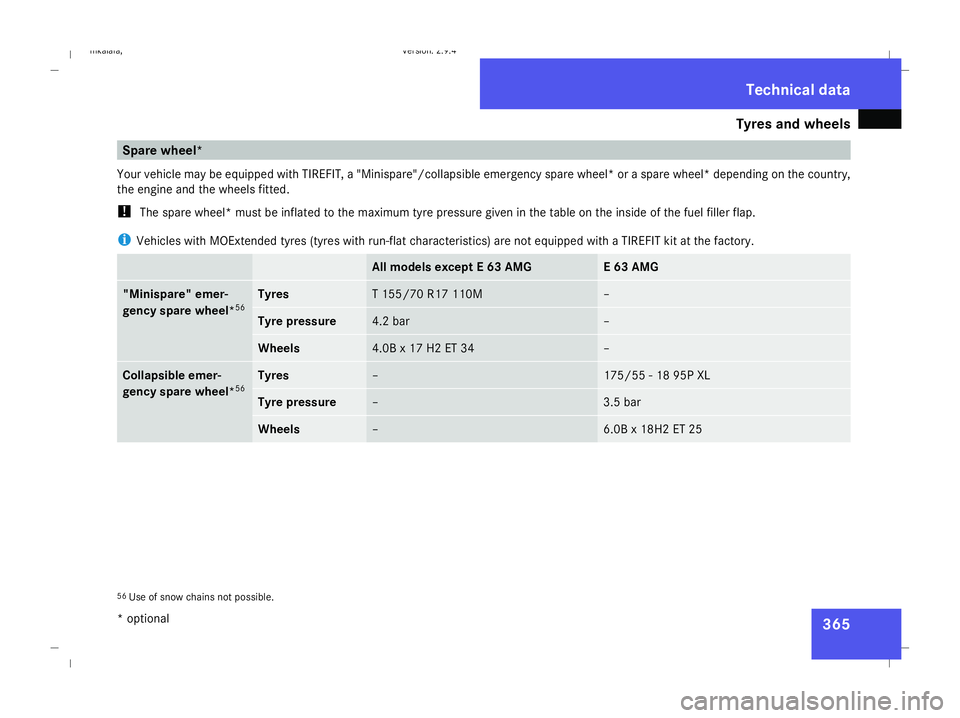

365Spare wheel*
Your vehicle may be equipped with TIREFIT, a "Minispare"/collapsible emergency spare wheel* or a spare wheel* depending on the country,
the engine and the wheels fitted.
! The spare wheel* must be inflated to the maximum tyre pressure given in the table on the inside of the fuel filler flap.
i Vehicles with MOExtended tyres (tyres with run-flat characteristics) are not equipped with a TIREFIT kit at the factory. All models except E 63 AMG E 63 AMG
"Minispare" emer-
gency spare wheel* 56 Tyres T 155/7
0 R17 110M –
Tyre pressure 4.2 bar –
Wheels 4.0B x 17 H2 ET 34 –
Collapsible emer-
gency spare wheel*
56 Tyres – 175/55 - 18 95P XL
Tyre pressure – 3.5 bar
Wheels – 6.0B x 18H2 ET 25
56
Use of snow chains not possible. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 365 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

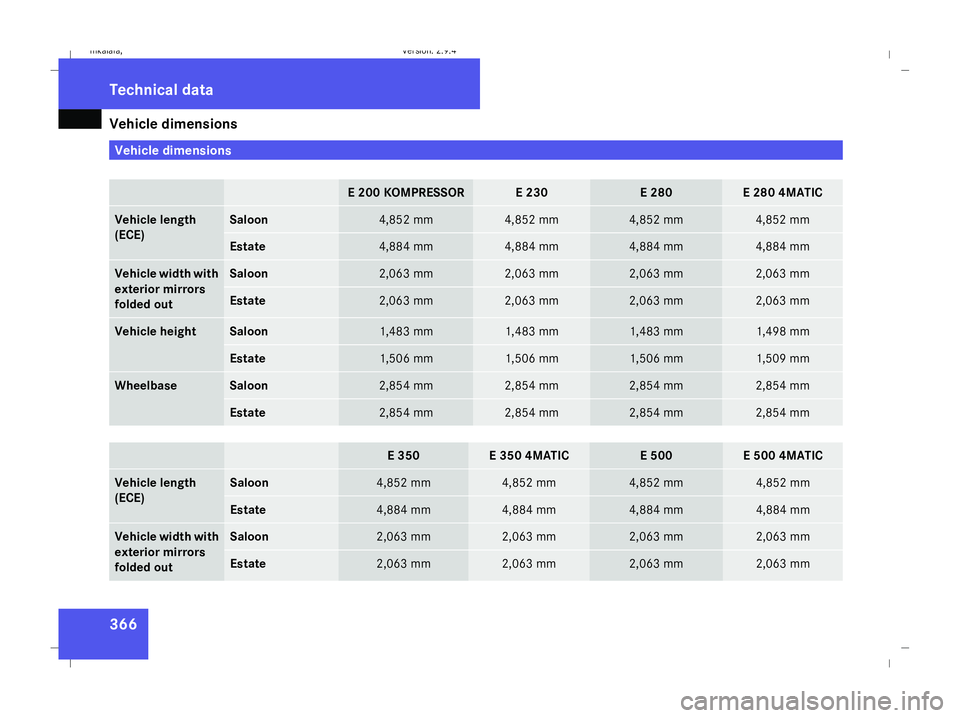

Page 369 of 401
Vehicle dimensions
366 Vehicle dimensions
E 200 KOMPRESSOR E 230 E 280 E 280 4MATIC
Vehicle length
(ECE) Saloon 4,852 mm 4,852 mm 4,852 mm 4,852 mm
Estate 4,884 mm 4,884 mm 4,884 mm 4,884 mm
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Estate 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Vehicle height Saloon 1,483 mm 1,483 mm 1,483 mm 1,498 mm
Estate 1,506 mm 1,506 mm 1,506 mm 1,509 mm
Wheelbase Saloon 2,854 mm 2,854 mm 2,854 mm 2,854 mm
Estate 2,854 mm 2,854 mm 2,854 mm 2,854 mm
E 350 E 350 4MATIC E 500 E 500 4MATIC
Vehicle length
(ECE) Saloon 4,852 mm 4,852 mm 4,852 mm 4,852 mm
Estate 4,884 mm 4,884 mm 4,884 mm 4,884 mm
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Estate 2,063 mm 2,063 mm 2,063 mm 2,063 mmTechnical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 366Dateiname: 6515_3416_02_buchblock.pdf; preflight

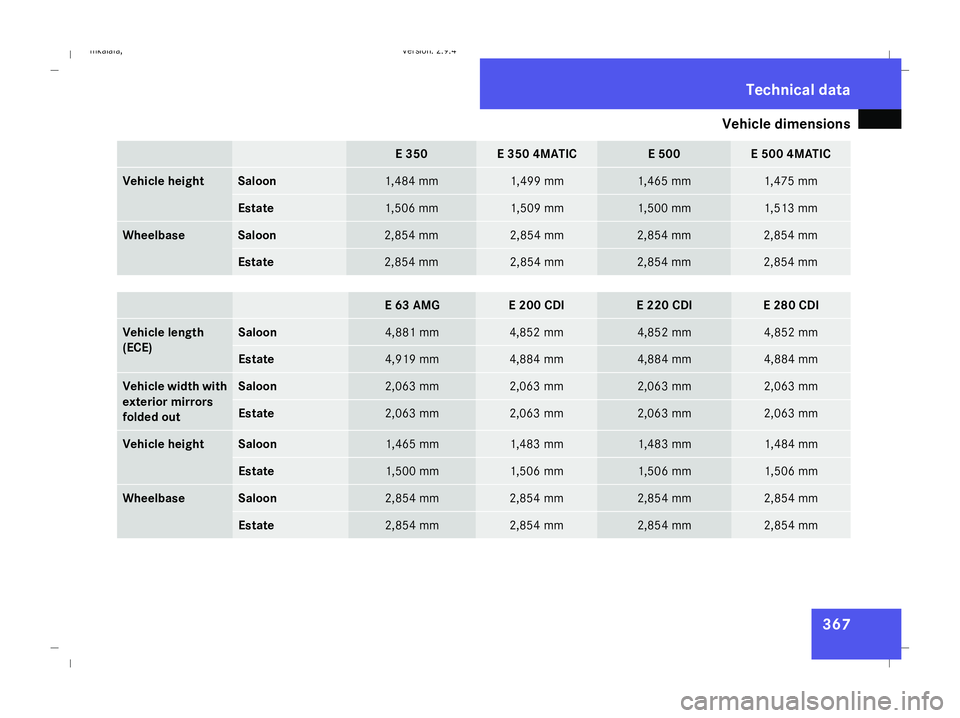

Page 370 of 401
Vehicle dimensions
367E 350 E 350 4MATIC E 500 E 500 4MATIC
Vehicle height Saloon 1,484 mm 1,499 mm 1,465 mm 1,475 mm
Estate 1,506 mm 1,509 mm 1,500 mm 1,513 mm
Wheelbase Saloon 2,854 mm 2,854 mm 2,854 mm 2,854 mm
Estate 2,854 mm 2,854 mm 2,854 mm 2,854 mm
E 63 AMG E 200 CDI E 220 CDI E 280 CDI
Vehicle length
(ECE) Saloon 4,881 mm 4,852 mm 4,852 mm 4,852 mm
Estate 4,919 mm 4,884 mm 4,884 mm 4,884 mm
Vehicle width with
exterior mirrors
folded out Saloon 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Estate 2,063 mm 2,063 mm 2,063 mm 2,063 mm
Vehicle height Saloon 1,465 mm 1,483 mm 1,483 mm 1,484 mm
Estate 1,500 mm 1,506 mm 1,506 mm 1,506 mm
Wheelbase Saloon 2,854 mm 2,854 mm 2,854 mm 2,854 mm
Estate 2,854 mm 2,854 mm 2,854 mm 2,854 mmTechnical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 367 ZDateiname: 6515_3416_02_buchblock.pdf; preflight
