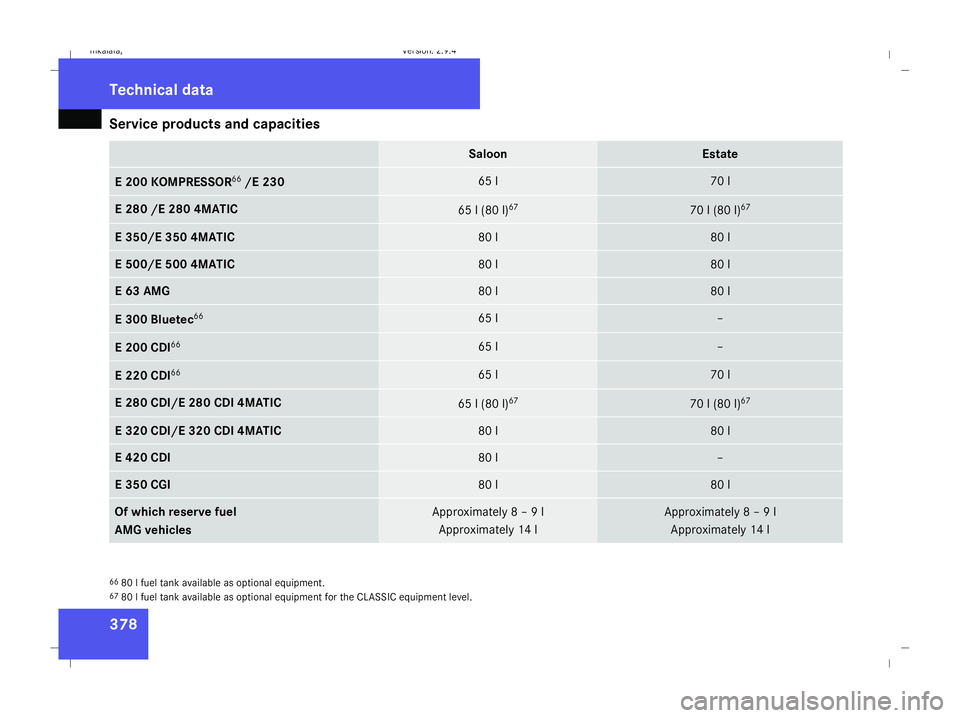

Service products and capacities
378 Saloon Estate
E 200 KOMPRESSOR
66
/E 230 65 l 70 l
E 280 /E 280 4MATIC
65 l (80 l)
67 70 l (80 l)
67 E 350/E 350 4MATIC 80 l 80 l
E 500/E 500 4MATIC 80 l 80 l
E 63 AMG 80 l 80 l
E 300 Bluetec
66 65 l –
E 200 CDI
66 65 l –
E 220 CDI
66 65 l 70 l
E 280 CDI/E 280 CDI 4MATIC
65 l (80 l)
67 70 l (80 l)
67 E 320 CDI/E 320 CDI 4MATIC 80 l 80 l
E 420 CDI 80 l –
E 350 CGI 80 l 80 l
Of which reserve fuel
AMG vehicles Approximately 8 – 9 l
Approximately 14 l Approximately 8 – 9 l
Approximately 14 l 66
80 l fuel tank available as optional equipment.
67 80 l fuel tank available as optional equipment for the CLASSIC equipment level. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 378Dateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities
379
!

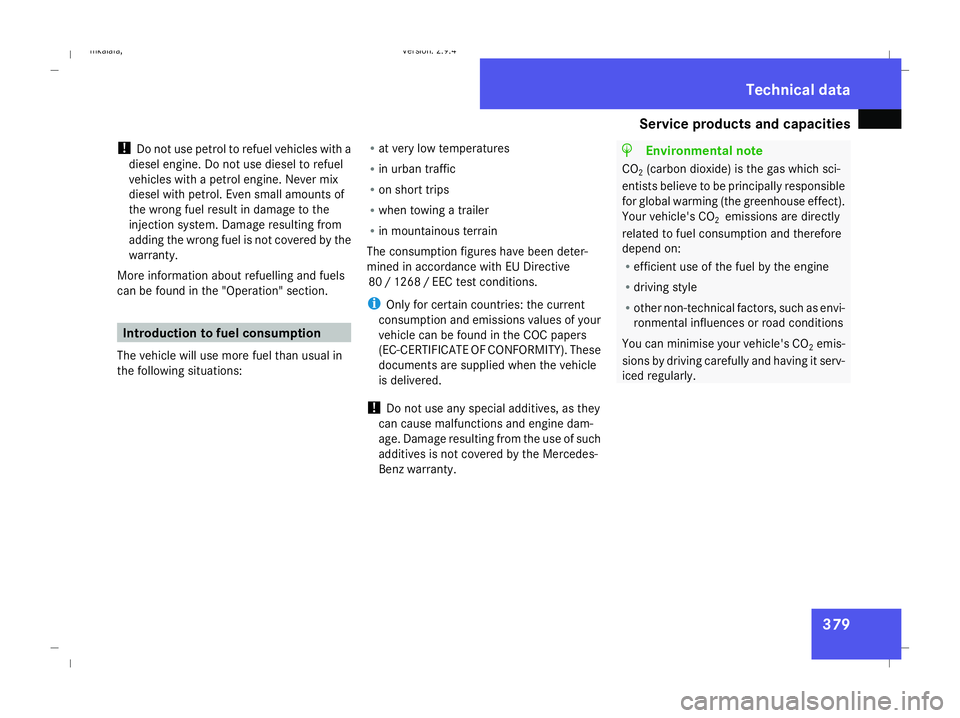

Do not use petrol to refuel vehicles with a
diesel engine. Do not use diesel to refuel
vehicles with a petrol engine. Never mix
diesel with petrol. Even small amounts of
the wrong fuel result in damage to the
injection system. Damage resulting from
adding the wrong fuel is not covered by the
warranty.
More information about refuelling and fuels
can be found in the "Operation" section. Introduction to fuel consumption
The vehicle will use more fuel than usual in
the following situations: R
at very low temperatures
R in urban traffic
R on short trips
R when towing a trailer
R in mountainous terrain
The consumption figures have been deter-
mined in accordance with EU Directive 80 /1 268 /EEC test conditions.
i Only for certain countries: the current
consumption and emissions values of your
vehicle can be found in the COC papers
(EC-CERTIFICATE OF CONFORMITY). These
documents are supplied when the vehicle
is delivered.
! Do not use any special additives, as they
can cause malfunctions and engine dam-
age. Damage resulting from the use of such
additives is not covered by the Mercedes-
Benz warranty. H
Environmental note
CO 2(carbon dioxide) is the gas which sci-
entists believe to be principally responsible
for global warming (the greenhouse effect).
Your vehicle's CO 2emissions are directly
related to fuel consumption and therefore
depend on:
R efficient use of the fuel by the engine
R driving style
R other non-technical factors, such as envi-
ronmental influences or road conditions
You can minimise your vehicle's CO 2emis-
sions by driving carefully and having it serv-
iced regularly. Technical data
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 379 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities

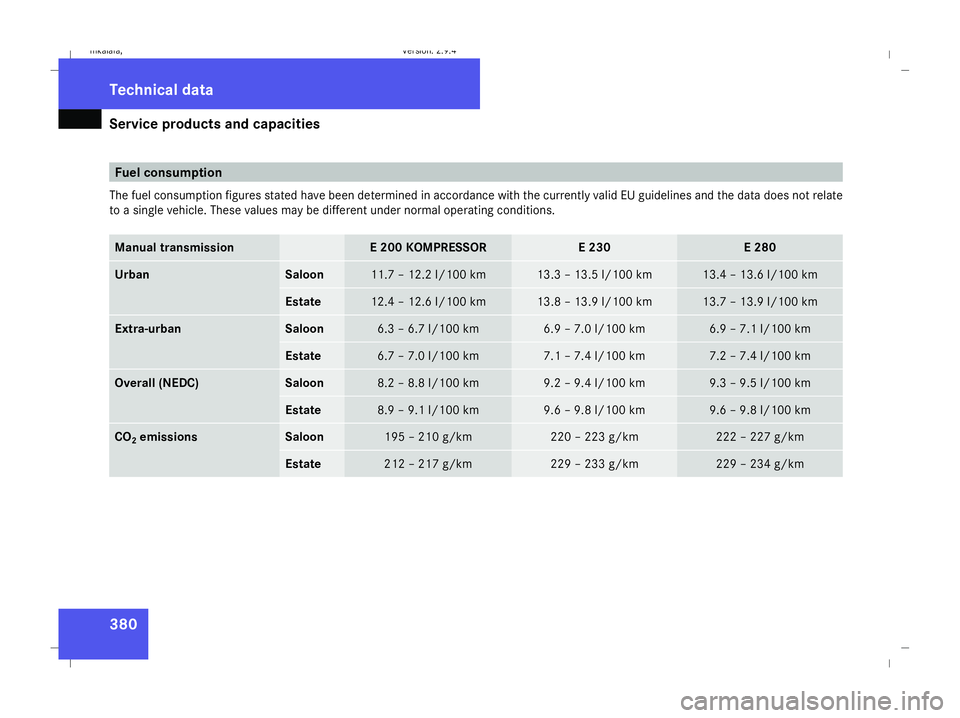

380 Fuel consumption
The fuel consumption figures stated have been determined in accordance with the currently valid EU guidelines and the data does not relate
to a single vehicle. These values may be different under normal operating conditions. Manual transmission E 200 KOMPRESSOR E 230 E 280
Urban Saloon 11.7 – 12.2 l/100 km 13.3 – 13.5 l/100 km 13.4 – 13.6 l/100 km
Estate 12.4 – 12.6 l/100 km 13.8 – 13.9 l/100 km 13.7 – 13.9 l/100 km
Extra-urban Saloon 6.3 – 6.7 l/100 km 6.9 – 7.0 l/100 km 6.9 – 7.1 l/100 km
Estate 6.7 – 7.0 l/100 km 7.1 – 7.4 l/100 km 7.2 – 7.4 l/100 km
Overall (NEDC) Saloon 8.2 – 8.8 l/100 km 9.2 – 9.4 l/100 km 9.3 – 9.5 l/100 km
Estate 8.9 – 9.1 l/100 km 9.6 – 9.8 l/100 km 9.6 – 9.8 l/100 km
CO
2emissions Saloon 195 – 210 g/km 220 – 223 g/km 222 – 227 g/km
Estate 212 – 217 g/km 229 – 233 g/km 229 – 234 g/kmTechnical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 380Dateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities

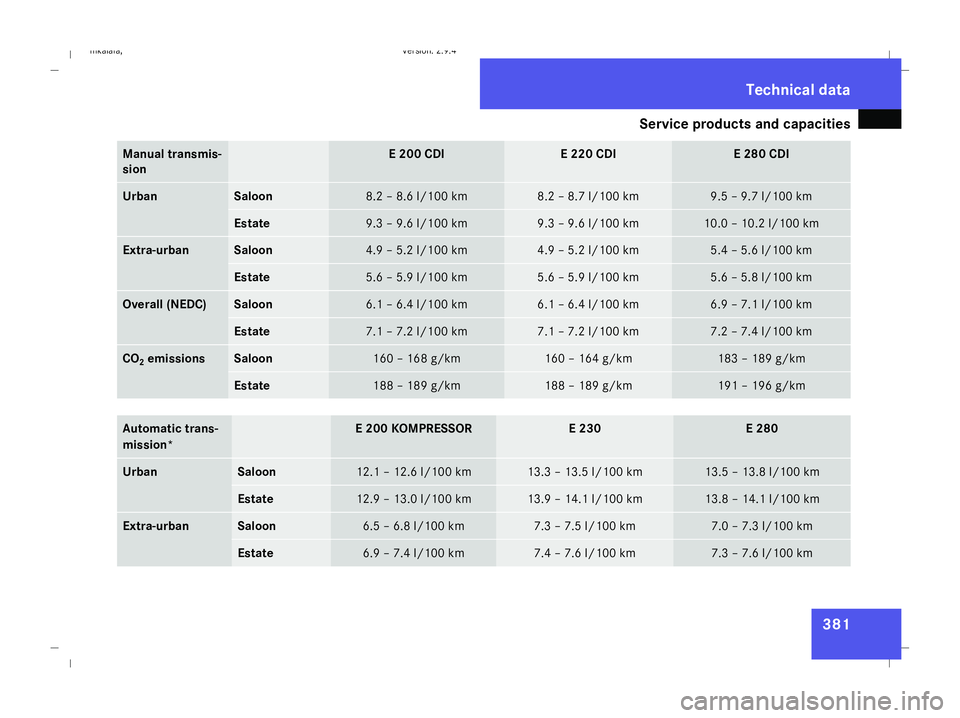

381Manual transmis-
sion E 200 CDI E 220 CDI E 280 CDI
Urban Saloon 8.2 – 8.6 l/100 km 8.2 – 8.7 l/100 km 9.5 – 9.7 l/100 km
Estate 9.3 – 9.6 l/100 km 9.3 – 9.6 l/100 km 10.0 – 10.2 l/100 km
Extra-urban Saloon 4.9 – 5.2 l/100 km 4.9 – 5.2 l/100 km 5.4 – 5.6 l/100 km
Estate 5.6 – 5.9 l/100 km 5.6 – 5.9 l/100 km 5.6 – 5.8 l/100 km
Overall (NEDC) Saloon 6.1 – 6.4 l/100 km 6.1 – 6.4 l/100 km 6.9 – 7.1 l/100 km
Estate 7.1 – 7.2 l/100 km 7.1 – 7.2 l/100 km 7.2 – 7.4 l/100 km
CO
2emissions Saloon 160 – 168 g/km 160 – 164 g/km 183 – 189 g/km
Estate 188 – 189 g/km 188 – 189 g/km 191 – 196 g/km
Automatic trans-
mission* E 200 KOMPRESSOR E 230 E 280
Urban Saloon 12.1 – 12.6 l/100 km 13.3 – 13.5 l/100 km 13.5 – 13.8 l/100 km
Estate 12.9 – 13.0 l/100 km 13.9 – 14.1 l/100 km 13.8 – 14.1 l/100 km
Extra-urban Saloon 6.5 – 6.8 l/100 km 7.3 – 7.5 l/100 km 7.0 – 7.3 l/100 km
Estate 6.9 – 7.4 l/100 km 7.4 – 7.6 l/100 km 7.3 – 7.6 l/100 km Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 381 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities

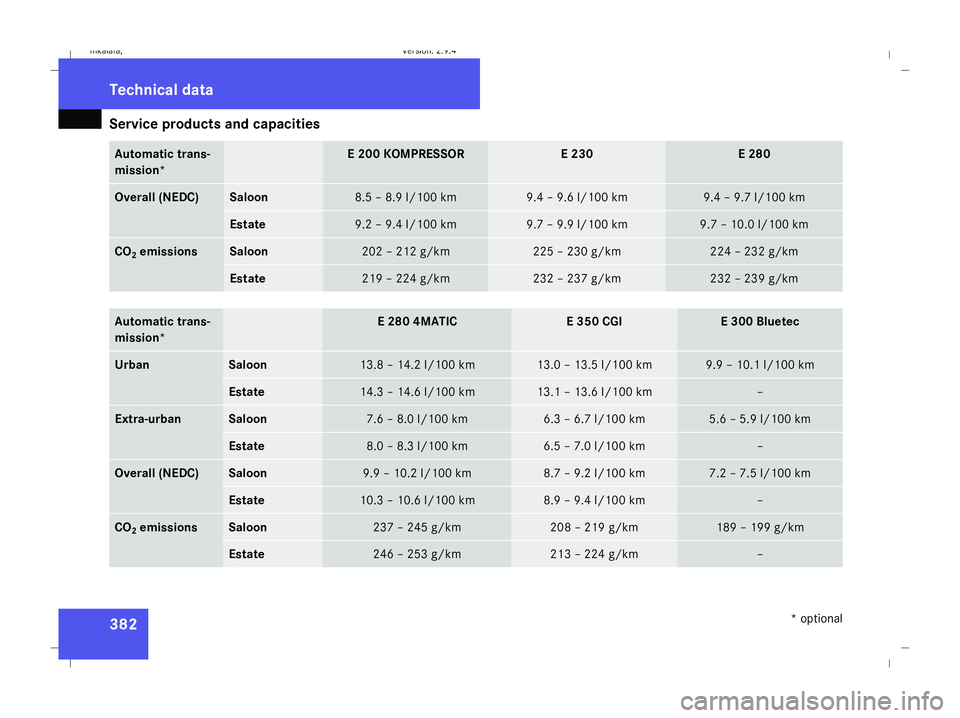

382 Automatic trans-
mission* E 200 KOMPRESSOR E 230 E 280
Overall (NEDC) Saloon 8.5 – 8.9 l/100 km 9.4 – 9.6 l/100 km 9.4 – 9.7 l/100 km
Estate 9.2 – 9.4 l/100 km 9.7 – 9.9 l/100 km 9.7 – 10.0 l/100 km
CO
2emissions Saloon 202 – 212 g/km 225 – 230 g/km 224 – 232 g/km
Estate 219 – 224 g/km 232 – 237 g/km 232 – 239 g/km
Automatic trans-
mission* E 280 4MATIC E 350 CGI E 300 Bluetec
Urban Saloon 13.8 – 14.2 l/100 km 13.0 – 13.5 l/100 km 9.9 – 10.1 l/100 km
Estate 14.3 – 14.6 l/100 km 13.1 – 13.6 l/100 km –
Extra-urban Saloon 7.6 – 8.0 l/100 km 6.3 – 6.7 l/100 km 5.6 – 5.9 l/100 km
Estate 8.0 – 8.3 l/100 km 6.5 – 7.0 l/100 km –
Overall (NEDC) Saloon 9.9 – 10.2 l/100 km 8.7 – 9.2 l/100 km 7.2 – 7.5 l/100 km
Estate 10.3 – 10.6 l/100 km 8.9 – 9.4 l/100 km –
CO
2emissions Saloon 237 – 245 g/km 208 – 219 g/km 189 – 199 g/km
Estate 246 – 253 g/km 213 – 224 g/km –Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 382Dateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities
383Automatic trans-
mission* E 350 E 350 4MATIC E 500
Urban Saloon 14.0 – 14.4 l/100 km 14.5 – 14.9 l/100 km 16.9 l/100 km
Estate 14.1 – 14.6 l/100 km 14.7 – 15.3 l/100 km 17.3 l/100 km
Extra-urban Saloon 7.2 – 7.8 l/100 km 8.0 – 8.3 l/100 km 8.2 l/100 km
Estate 7.5 – 8.0 l/100 km 8.3 – 8.5 l/100 km 8.5 l/100 km
Overall (NEDC) Saloon 9.7 – 10.2 l/100 km 10.4 – 10.7 l/100 km 11.5 l/100 km
Estate 9.9 – 10.4 l/100 km 10.6 – 11.0 l/100 km 11.8 l/100 km
CO
2emissions Saloon 231 – 244 g/km 247 – 255 g/km 273 g/km
Estate 236 – 248 g/km 253 – 261 g/km 280 g/km
Automatic trans-
mission* E 500 4MATIC E 63 AMG E 200 CDI
Urban Saloon 17.8 l/100 km 22.3 l/100 km 9.0 – 9.8 l/100 km
Estate 18.2 l/100 km 22.6 l/100 km 9.5 – 10.1 l/100 km
Extra-urban Saloon 9.2 l/100 km 9.8 l/100 km 5.2 – 5.5 l/100 km
Estate 9.5 l/100 km 9.9 l/100 km 5.7 – 6.1 l/100 km Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 383 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities

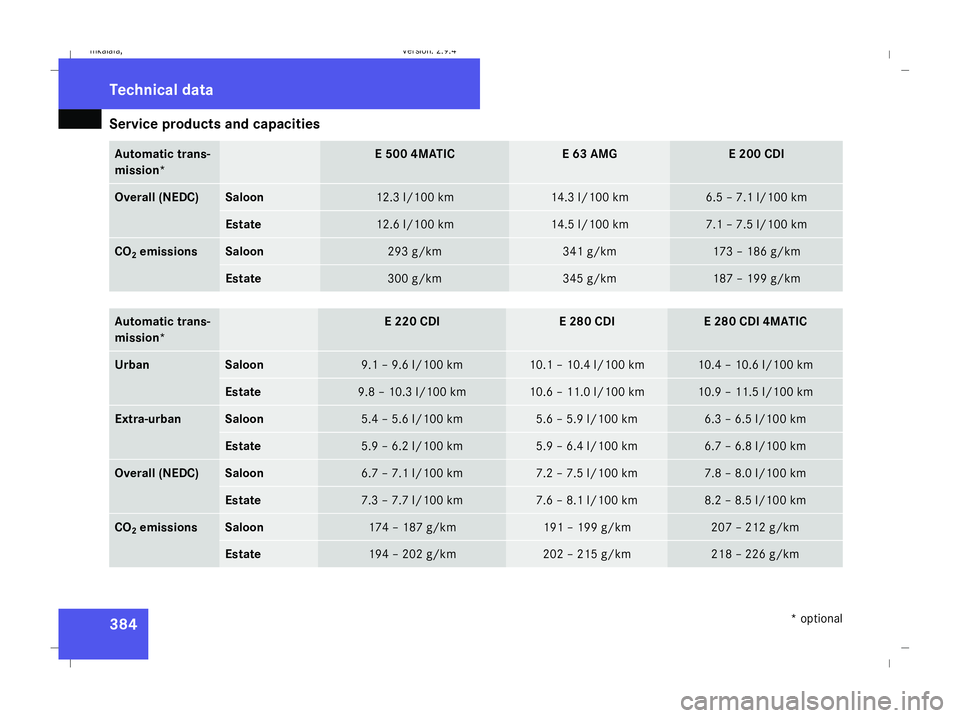

384 Automatic trans-
mission* E 500 4MATIC E 63 AMG E 200 CDI
Overall (NEDC) Saloon 12.3 l/100 km 14.3 l/100 km 6.5 – 7.1 l/100 km
Estate 12.6 l/100 km 14.5 l/100 km 7.1 – 7.5 l/100 km
CO
2emissions Saloon 293 g/km 341 g/km 173 – 186 g/km
Estate 300 g/km 345 g/km 187 – 199 g/km
Automatic trans-
mission* E 220 CDI E 280 CDI E 280 CDI 4MATIC
Urban Saloon 9.1 – 9.6 l/100 km 10.1 – 10.4 l/100 km 10.4 – 10.6 l/100 km
Estate 9.8 – 10.3 l/100 km 10.6 – 11.0 l/100 km 10.9 – 11.5 l/100 km
Extra-urban Saloon 5.4 – 5.6 l/100 km 5.6 – 5.9 l/100 km 6.3 – 6.5 l/100 km
Estate 5.9 – 6.2 l/100 km 5.9 – 6.4 l/100 km 6.7 – 6.8 l/100 km
Overall (NEDC) Saloon 6.7 – 7.1 l/100 km 7.2 – 7.5 l/100 km 7.8 – 8.0 l/100 km
Estate 7.3 – 7.7 l/100 km 7.6 – 8.1 l/100 km 8.2 – 8.5 l/100 km
CO
2emissions Saloon 174 – 187 g/km 191 – 199 g/km 207 – 212 g/km
Estate 194 – 202 g/km 202 – 215 g/km 218 – 226 g/kmTechnical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 384Dateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities

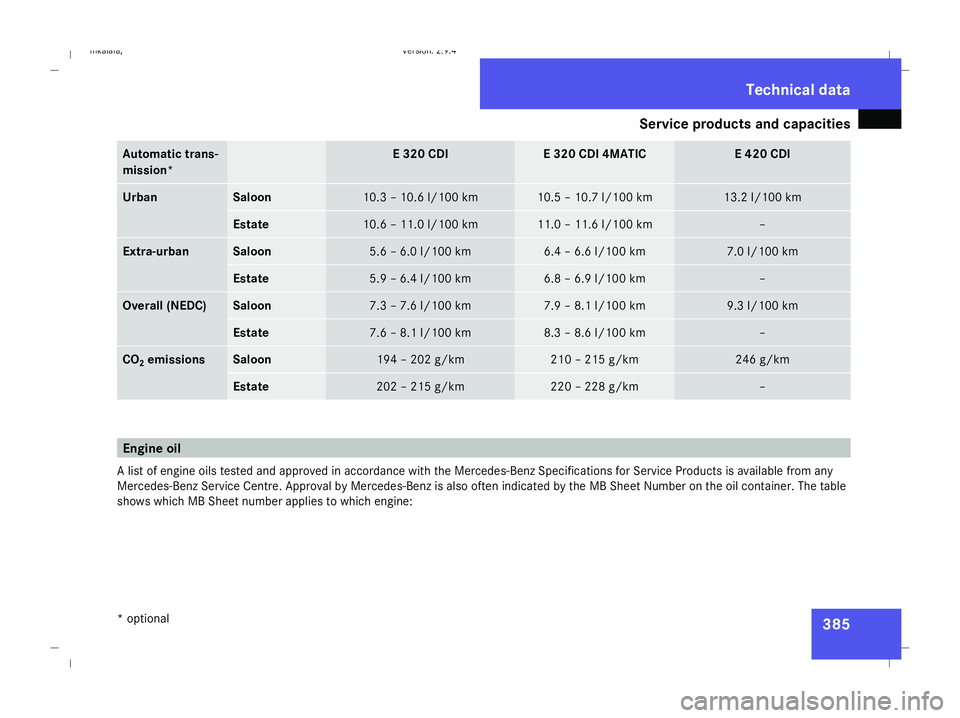

385Automatic trans-
mission* E 320 CDI E 320 CDI 4MATIC E 420 CDI
Urban Saloon 10.3 – 10.6 l/100 km 10.5 – 10.7 l/100 km 13.2 l/100 km
Estate 10.6 – 11.0 l/100 km 11.0 – 11.6 l/100 km –
Extra-urban Saloon 5.6 – 6.0 l/100 km 6.4 – 6.6 l/100 km 7.0 l/100 km
Estate 5.9 – 6.4 l/100 km 6.8 – 6.9 l/100 km –
Overall (NEDC) Saloon 7.3 – 7.6 l/100 km 7.9 – 8.1 l/100 km 9.3 l/100 km
Estate 7.6 – 8.1 l/100 km 8.3 – 8.6 l/100 km –
CO
2emissions Saloon 194 – 202 g/km 210 – 215 g/km 246 g/km
Estate 202 – 215 g/km 220 – 228 g/km –
Engine oil
A list of engine oils tested and approved in accordance with the Mercedes-Benz Specifications for Service Products is available from any
Mercedes-Benz Service Centre. Approval by Mercedes-Benz is also often indicated by the MB Sheet Number on the oil container. The table
shows which MB Sheet number applies to which engine: Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 385 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities

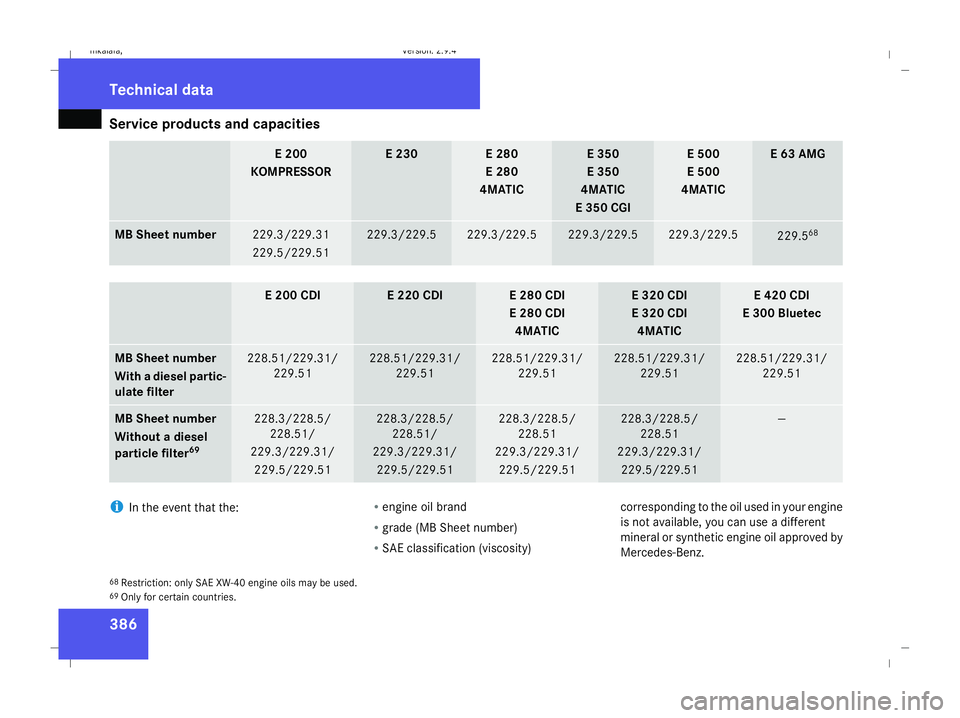

386 E 200
KOMPRESSOR E 230 E 280
E 280
4MATIC E 350
E 350
4MATIC
E 350 CGI E 500
E 500
4MATIC E 63 AMG
MB Sheet number 229.3/229.31
229.5/229.51 229.3/229.5 229.3/229.5 229.3/229.5 229.3/229.5
229.5
68 E 200 CDI E 220 CDI E 280 CDI
E 280 CDI
4MATIC E 320 CDI
E 320 CDI
4MATIC E 420 CDI
E 300 Bluetec MB Sheet number
With a diesel partic-
ulate filter 228.51/229.31/
229.51 228.51/229.31/
229.51 228.51/229.31/
229.51 228.51/229.31/
229.51 228.51/229.31/
229.51 MB Sheet number
Without a diesel
particle filter
69 228.3/228.5/
228.51/
229.3/229.31/ 229.5/229.51 228.3/228.5/
228.51/
229.3/229.31/ 229.5/229.51 228.3/228.5/
228.51
229.3/229.31/ 229.5/229.51 228.3/228.5/
228.51
229.3/229.31/ 229.5/229.51 —
i
In the event that the: R
engine oil brand
R grade (MB Sheet number)
R SAE classification (viscosity) corresponding to the oil used in your engine
is not available, you can use a different
mineral or synthetic engine oil approved by
Mercedes-Benz.
68 Restriction: only SAE XW-40 engine oils may be used.
69 Only for certain countries. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 386Dateiname: 6515_3416_02_buchblock.pdf; preflight

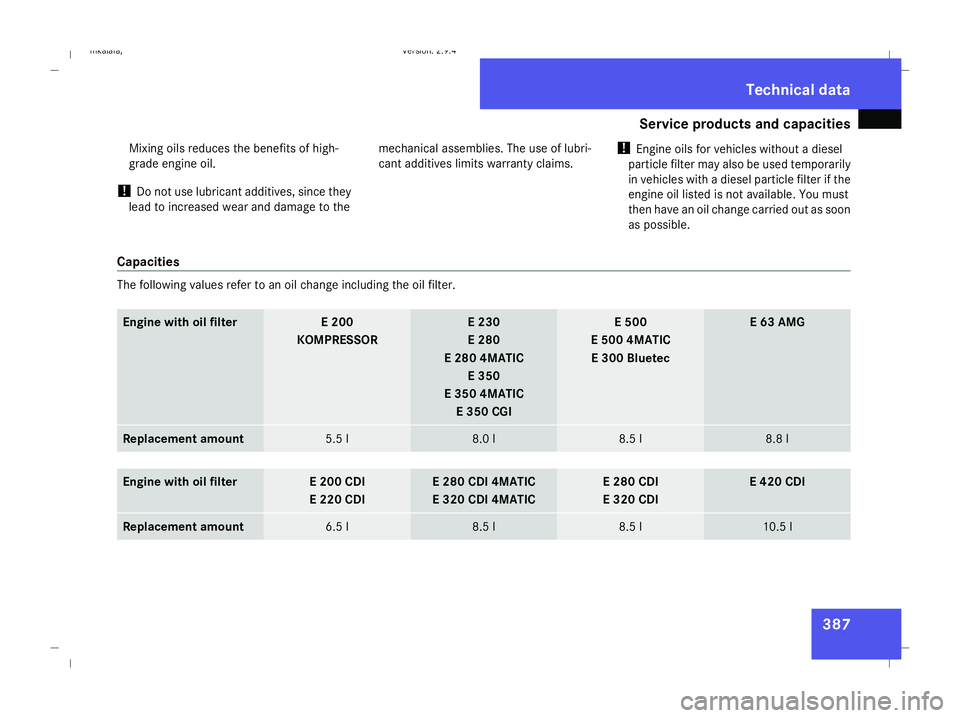

Service products and capacities
387
Mixing oils reduces the benefits of high-
grade engine oil.
! Do not use lubricant additives, since they
lead to increased wear and damage to the mechanical assemblies. The use of lubri-
cant additives limits warranty claims.
!
Engine oils for vehicles without a diesel
particle filter may also be used temporarily
in vehicles with a diesel particle filter if the
engine oil listed is not available. You must
then have an oil change carried out as soon
as possible.
Capacities The following values refer to an oil change including the oil filter.
Engine with oil filter E 200
KOMPRESSOR E 230
E 280
E 280 4MATIC E 350
E 350 4MATIC E 350 CGI E 500
E 500 4MATIC E 300 Bluetec E 63 AMG
Replacement amount 5.5 l 8.0 l 8.5 l 8.8 l
Engine with oil filter E 200 CDI
E 220 CDI E 280 CDI 4MATIC
E 320 CDI 4MATIC E 280 CDI
E 320 CDI E 420 CDI
Replacement amount 6.5 l 8.5 l 8.5 l 10.5 lTechnical data
