MERCEDES-BENZ E-CLASS SALOON 2009 Owners Manual

Trailer loads (Saloon)
77
,78 E 200 CGI BlueEFFICIENCY
E 250 CGI BlueEFFICIENCY
E 200 CDI BlueEFFICIENCY
E 220 CDI BlueEFFICIENCY (manual transmission)
E 220 CDI BlueEFFICIENCY
(Belgium) (manual transmis- sion)
E 250 CDI BlueEFFICIENCY (manual transmission) E 300
79
E 350 79
E 350 CGI BlueEFFICIENCY
E 220 CDI BlueEFFICIENCY (automatic transmission)
E 220 CDI BlueEFFICIENCY
(Belgium) (automatic trans- mission)
E 250 CDI BlueEFFICIENCY (automatic transmission) Permissible trailer
load, unbraked 750 kg 750 kg
Permissible trailer
load, braked 80 1900 kg
81 2000 kg
Maximum drawbar
noseweight
82 84 kg 84 kg
Permissible rear
axle load when tow-
ing a trailer
1265 kg 1265 kg
E 350 4MATIC
E 350 CDI BlueEFFICIENCY
E 350 CDI 4MATIC BlueEFFI- CIENCY
E 350 BlueTEC E 500
E 500 4MATIC Permissible trailer
load, unbraked 750 kg 750 kg
Permissible trailer
load, braked 83 2100 kg 2100 kg
77
Values for the Estate were not available at time of going to print.
78 The E 63 AMG model cannot be used to tow a trailer.
79 Only available in certain countries.
80 At a minimum gradient climbing ability of 12% from a standstill.
81 E 200 CGI BlueEFFICIENCY with manual transmission: 1700 kg.
82 The drawbar noseweight is not included in the trailer load.
83 At a minimum gradient climbing ability of 12% from a standstill. 358
Trailer coupling*Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 358
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:37; WK

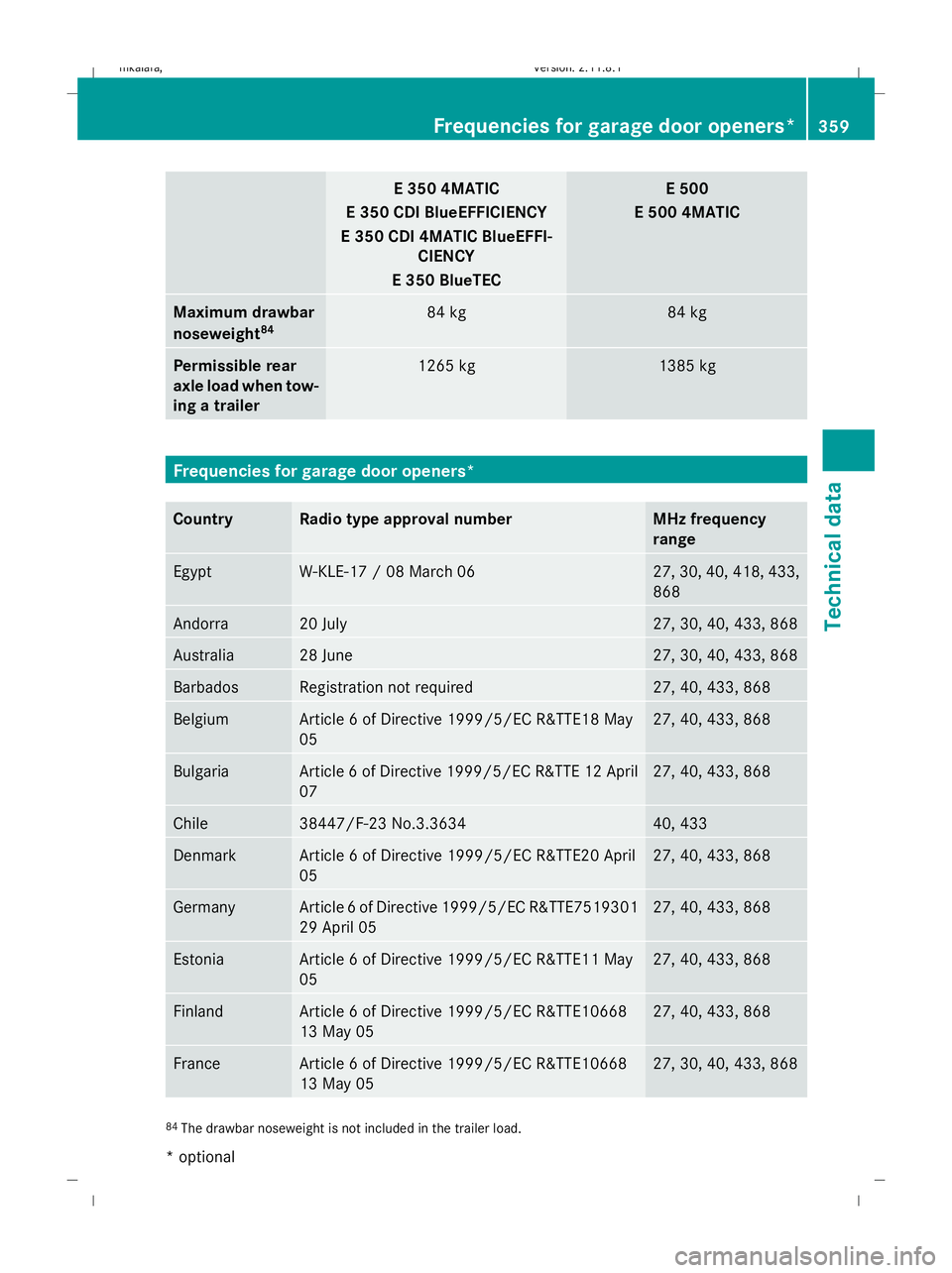

E 350 4MATIC
E 350 CDI BlueEFFICIENCY
E 350 CDI 4MATIC BlueEFFI- CIENCY
E 350 BlueTEC E 500
E 500 4MATIC Maximum drawbar
noseweight
84 84 kg 84 kg
Permissible rear
axle load when tow-
ing a trailer
1265 kg 1385 kg
Frequencies for garage door openers*
Country Radio type approval number MHz frequency
range
Egypt W-KLE-17 / 08 March 06 27, 30, 40, 418, 433,
868
Andorra 20 July 27, 30, 40, 433, 868
Australia 28 June 27, 30, 40, 433, 868
Barbados Registration not required 27, 40, 433, 868
Belgium Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
Bulgaria Article 6 of Directive 1999/5/EC R&TTE 12 April
07 27, 40, 433, 868
Chile 38447/F-23 No.3.3634 40, 433
Denmark Article 6 of Directive 1999/5/EC R&TTE20 April
05 27, 40, 433, 868
Germany Article 6 of Directive 1999/5/EC R&TTE7519301
29 April 05 27, 40, 433, 868
Estonia Article 6 of Directive 1999/5/EC R&TTE11 May
05 27, 40, 433, 868
Finland Article 6 of Directive 1999/5/EC R&TTE10668
13 May 05 27, 40, 433, 868
France Article 6 of Directive 1999/5/EC R&TTE10668
13 May 05 27, 30, 40, 433, 868
84
The drawbar noseweight is not included in the trailer load. Frequencies for garage door openers*
359Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 359 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:37; WK

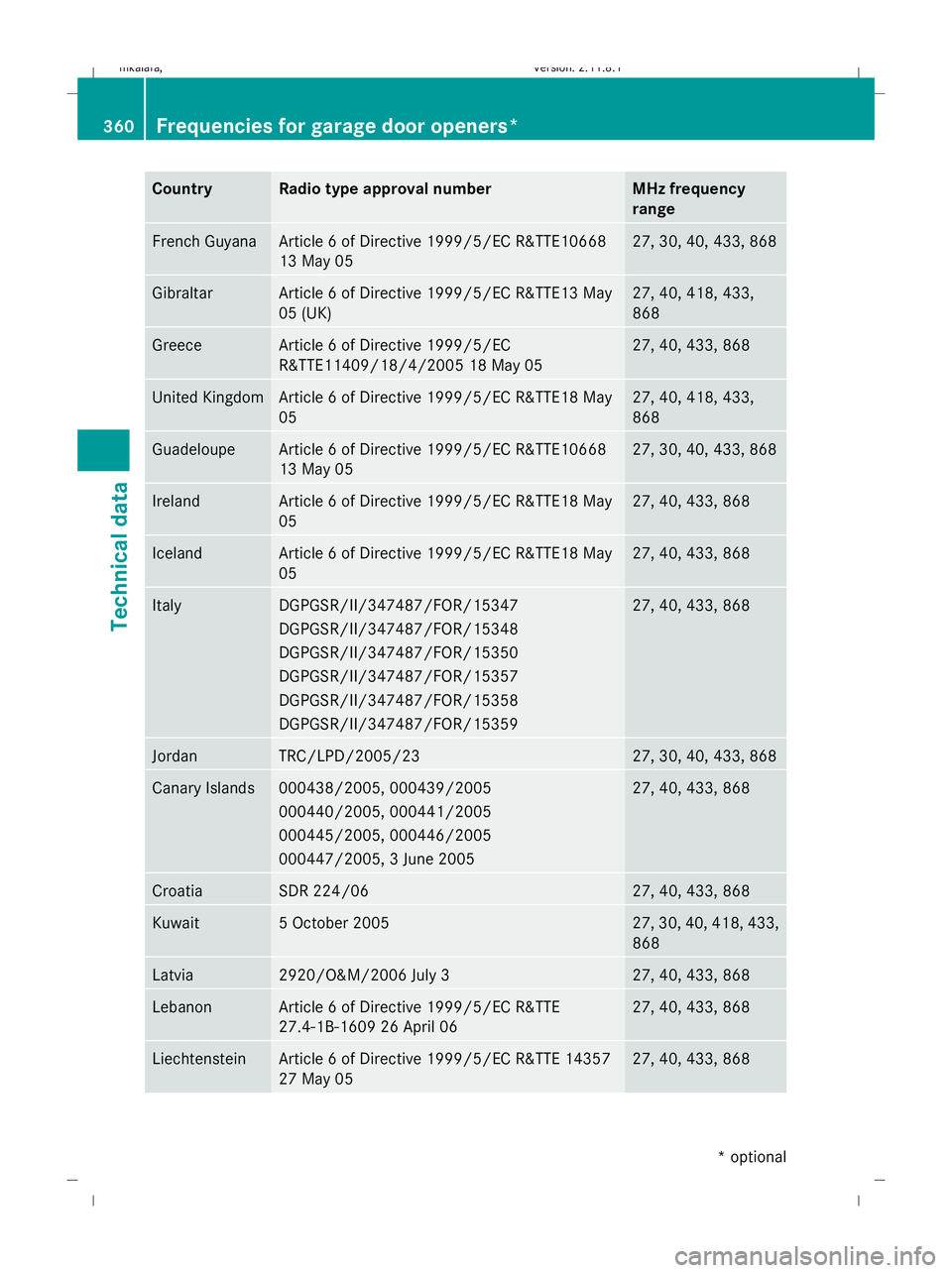

Country Radio type approval number MHz frequency
range
French Guyana Article 6 of Directive 1999/5/EC R&TTE10668
13 May 05 27, 30, 40, 433, 868
Gibraltar Article 6 of Directive 1999/5/EC R&TTE13 May
05 (UK) 27, 40, 418, 433,
868
Greece Article 6 of Directive 1999/5/EC
R&TTE11409/18/4/2005 18 May 05 27, 40, 433, 868
United Kingdom Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 418, 433,
868
Guadeloupe Article 6 of Directive 1999/5/EC R&TTE10668
13 May 05 27, 30, 40, 433, 868
Ireland Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
Iceland Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
Italy DGPGSR/II/347487/FOR/15347
DGPGSR/II/347487/FOR/15348
DGPGSR/II/347487/FOR/15350
DGPGSR/II/347487/FOR/15357
DGPGSR/II/347487/FOR/15358
DGPGSR/II/347487/FOR/15359 27, 40, 433, 868
Jordan TRC/LPD/2005/23 27, 30, 40, 433, 868
Canary Islands 000438/2005, 000439/2005
000440/2005, 000441/2005
000445/2005, 000446/2005
000447/2005, 3 June 2005 27, 40, 433, 868
Croatia SDR 224/06 27, 40, 433, 868
Kuwait 5 October 2005 27, 30, 40, 418, 433,
868
Latvia 2920/O&M/2006 July 3 27, 40, 433, 868
Lebanon Article 6 of Directive 1999/5/EC R&TTE
27.4-1B-1609 26 April 06 27, 40, 433, 868
Liechtenstein Article 6 of Directive 1999/5/EC R&TTE 14357
27 May 05 27, 40, 433, 868360
Frequencies for garage door openers*Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 360
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:37; WK

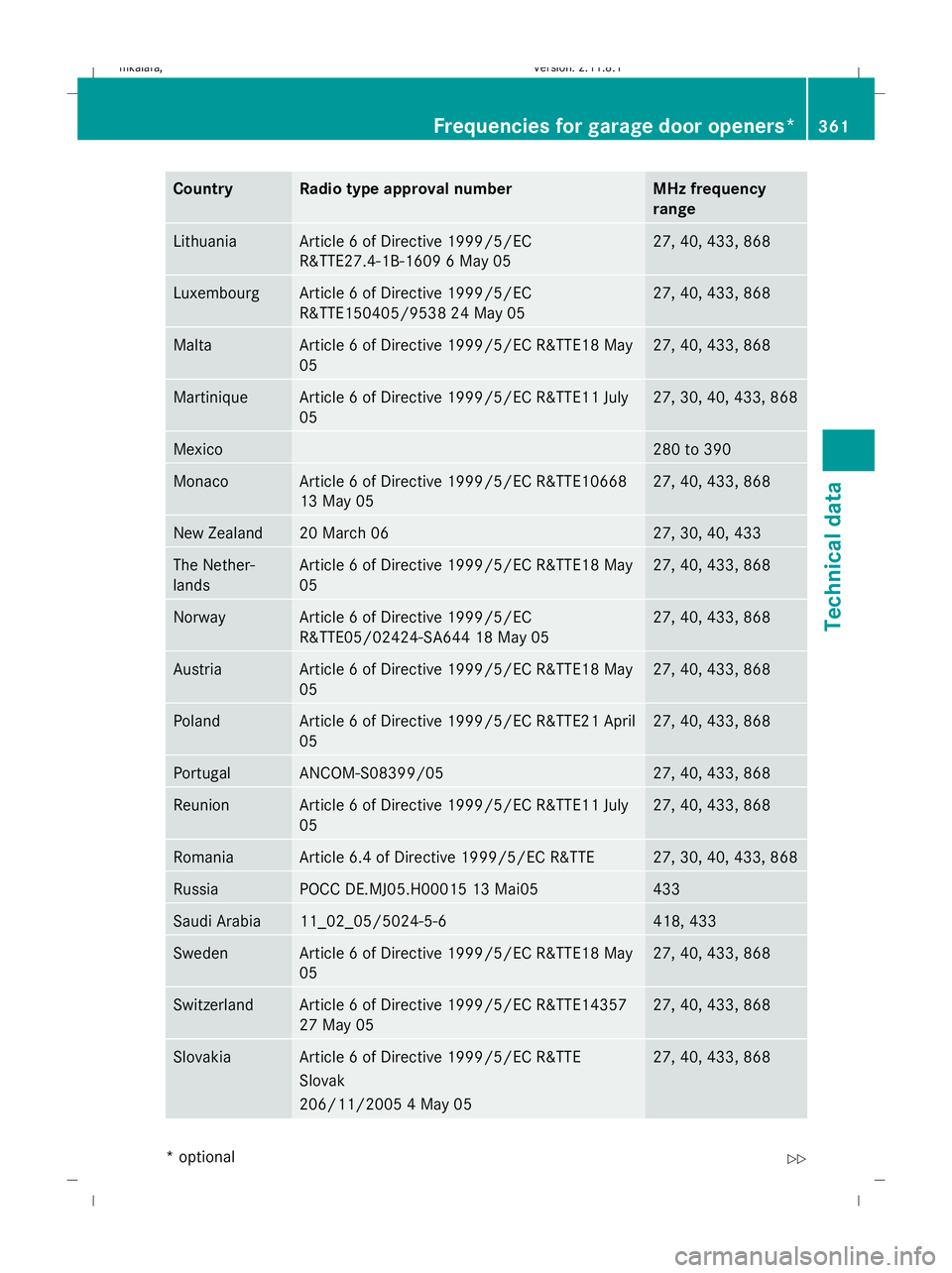

Country Radio type approval number MHz frequency
range
Lithuania Article 6 of Directive 1999/5/EC
R&TTE27.4-1B-1609 6 May 05 27, 40, 433, 868
Luxembourg Article 6 of Directive 1999/5/EC
R&TTE150405/9538 24 May 05 27, 40, 433, 868
Malta Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
Martinique Article 6 of Directive 1999/5/EC R&TTE11 July
05 27, 30, 40, 433, 868
Mexico 280 to 390
Monaco Article 6 of Directive 1999/5/EC R&TTE10668
13 May 05 27, 40, 433, 868
New Zealand 20 March 06 27, 30, 40, 433
The Nether-
lands Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
Norway Article 6 of Directive 1999/5/EC
R&TTE05/02424-SA644 18 May 05 27, 40, 433, 868
Austria Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
Poland Article 6 of Directive 1999/5/EC R&TTE21 April
05 27, 40, 433, 868
Portugal ANCOM-S08399/05 27, 40, 433, 868
Reunion Article 6 of Directive 1999/5/EC R&TTE11 July
05 27, 40, 433, 868
Romania Article 6.4 of Directive 1999/5/EC R&TTE 27, 30, 40, 433, 868
Russia POCC DE.MJ05.H00015 13 Mai05 433
Saudi Arabia 11_02_05/5024-5-6 418, 433
Sweden Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
Switzerland Article 6 of Directive 1999/5/EC R&TTE14357
27 May 05 27, 40, 433, 868
Slovakia Article 6 of Directive 1999/5/EC R&TTE
Slovak
206/11/2005 4 May 05 27, 40, 433, 868Frequencies for garage door openers*
361Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 361 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:38; WK

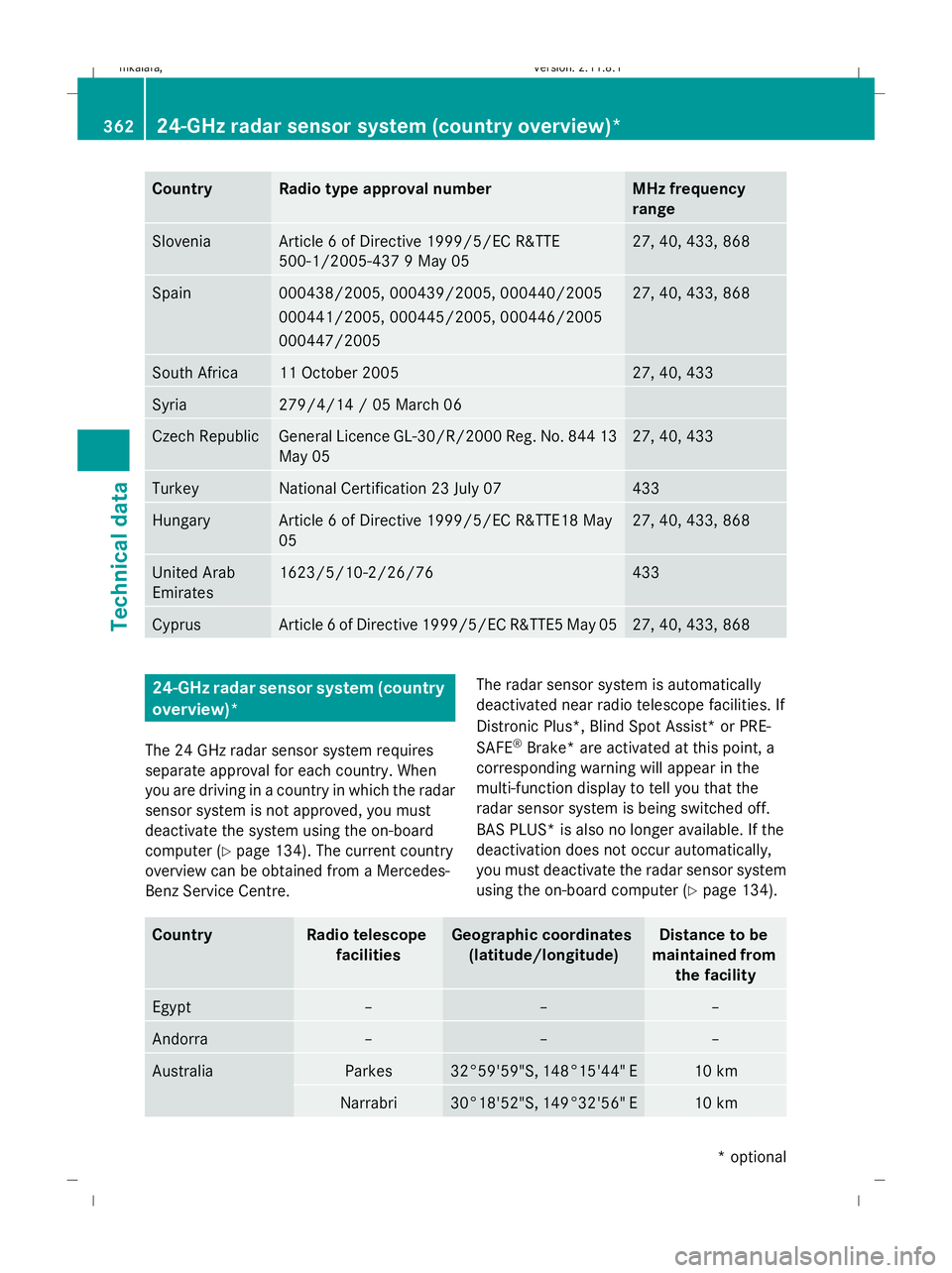

Country Radio type approval number MHz frequency
range
Slovenia Article 6 of Directive 1999/5/EC R&TTE
500-1/2005-437 9 May 05 27, 40, 433, 868
Spain 000438/2005, 000439/2005, 000440/2005
000441/2005, 000445/2005, 000446/2005
000447/2005 27, 40, 433, 868
South Africa 11 October 2005 27, 40, 433
Syria 279/4/14 / 05 March 06
Czech Republic General Licence GL-30/R/2000 Reg. No. 844 13
May 05 27, 40, 433
Turkey National Certification 23 July 07 433
Hungary Article 6 of Directive 1999/5/EC R&TTE18 May
05 27, 40, 433, 868
United Arab
Emirates 1623/5/10-2/26/76 433
Cyprus Article 6 of Directive 1999/5/EC R&TTE5 May 05 27, 40, 433, 868
24-GHz radar sensor system (country
overview)*
The 24 GHz radar sensor system requires
separate approval for each country. When
you are driving in a country in which the radar
sensor system is not approved, you must
deactivate the system using the on-board
computer (Y page 134). The current country
overview can be obtained from a Mercedes-
Benz Service Centre. The radar sensor system is automatically
deactivated near radio telescope facilities. If
Distronic Plus*, Blind Spot Assist* or PRE-
SAFE
®
Brake* are activated at this point, a
corresponding warning will appear in the
multi-function display to tell you that the
radar sensor system is being switched off.
BAS PLUS* is also no longer available. If the
deactivation does not occur automatically,
you must deactivate the radar sensor system
using the on-board computer (Y page 134).Country Radio telescope
facilities Geographic coordinates
(latitude/longitude) Distance to be
maintained from the facility Egypt – – –
Andorra – – –
Australia Parkes 32°59'59"S, 148°15'44" E 10 km
Narrabri 30°18'52"S, 149°32'56" E 10 km362
24-GHz radar sensor system (country overview)*Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 362
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:38; WK

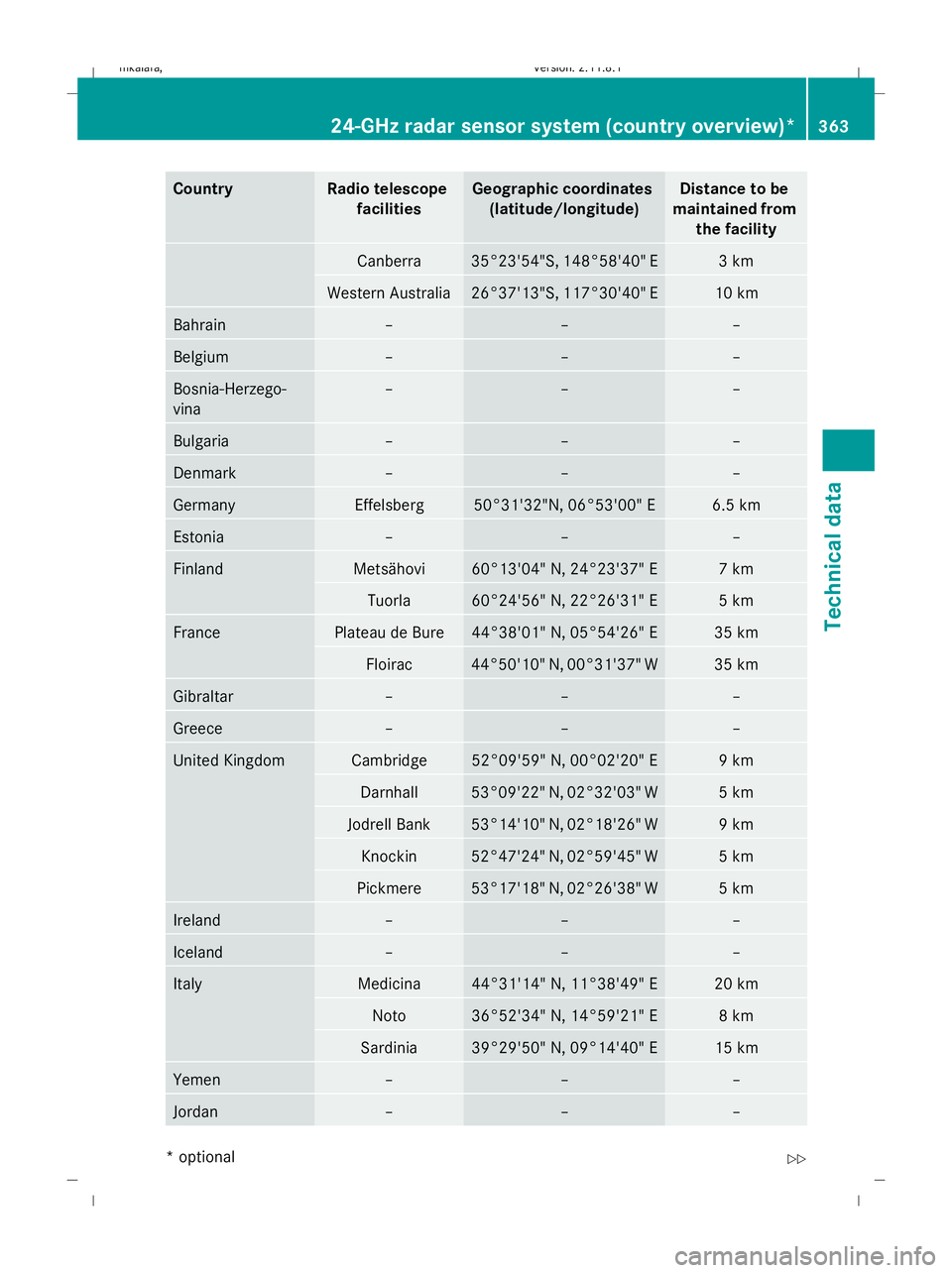

Country Radio telescope
facilities Geographic coordinates
(latitude/longitude) Distance to be
maintained from the facility Canberra 35°23'54"S, 148°58'40" E 3 km
Western Australia 26°37'13"S, 117°30'40" E 10 km
Bahrain – – –
Belgium – – –
Bosnia-Herzego-
vina – – –
Bulgaria – – –
Denmark – – –
Germany Effelsberg 50°31'32"N, 06°53'00" E 6.5 km
Estonia – – –
Finland Metsähovi 60°13'04" N, 24°23'37" E 7 km
Tuorla 60°24'56" N, 22°26'31" E 5 km
France Plateau de Bure 44°38'01" N, 05°54'26" E 35 km
Floirac 44°50'10" N, 00°31'37" W 35 km
Gibraltar – – –
Greece – – –
United Kingdom Cambridge 52°09'59" N, 00°02'20" E 9 km
Darnhall 53°09'22" N, 02°32'03" W 5 km
Jodrell Bank 53°14'10" N, 02°18'26" W 9 km
Knockin 52°47'24" N, 02°59'45" W 5 km
Pickmere 53°17'18" N, 02°26'38" W 5 km
Ireland – – –
Iceland – – –
Italy Medicina 44°31'14" N, 11°38'49" E 20 km
Noto 36°52'34" N, 14°59'21" E 8 km
Sardinia 39°29'50" N, 09°14'40" E 15 km
Yemen – – –
Jordan – – –24-GHz radar sensor system (country overview)*
363Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 363 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:38; WK

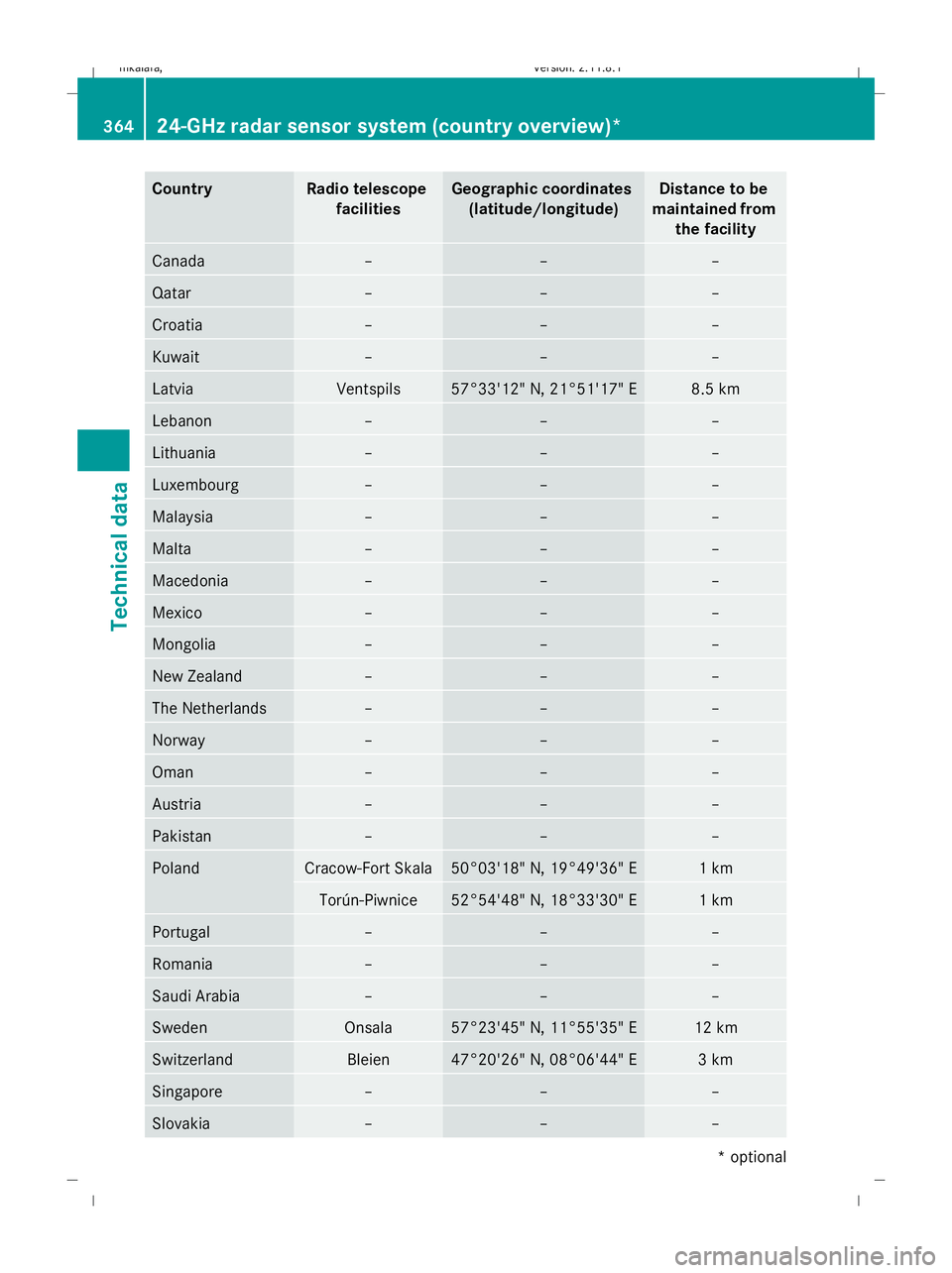

Country Radio telescope
facilities Geographic coordinates
(latitude/longitude) Distance to be
maintained from the facility Canada – – –
Qatar – – –
Croatia – – –
Kuwait – – –
Latvia Ventspils 57°33'12" N, 21°51'17" E 8.5 km
Lebanon – – –
Lithuania – – –
Luxembourg – – –
Malaysia – – –
Malta – – –
Macedonia – – –
Mexico – – –
Mongolia – – –
New Zealand – – –
The Netherlands – – –
Norway – – –
Oman – – –
Austria – – –
Pakistan – – –
Poland Cracow-Fort Skala 50°03'18" N, 19°49'36" E 1 km
Torún-Piwnice 52°54'48" N, 18°33'30" E 1 km
Portugal – – –
Romania – – –
Saudi Arabia – – –
Sweden Onsala 57°23'45" N, 11°55'35" E 12 km
Switzerland Bleien 47°20'26" N, 08°06'44" E 3 km
Singapore – – –
Slovakia – – –364
24-GHz radar sensor system (country overview)*Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 364
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:39; WK

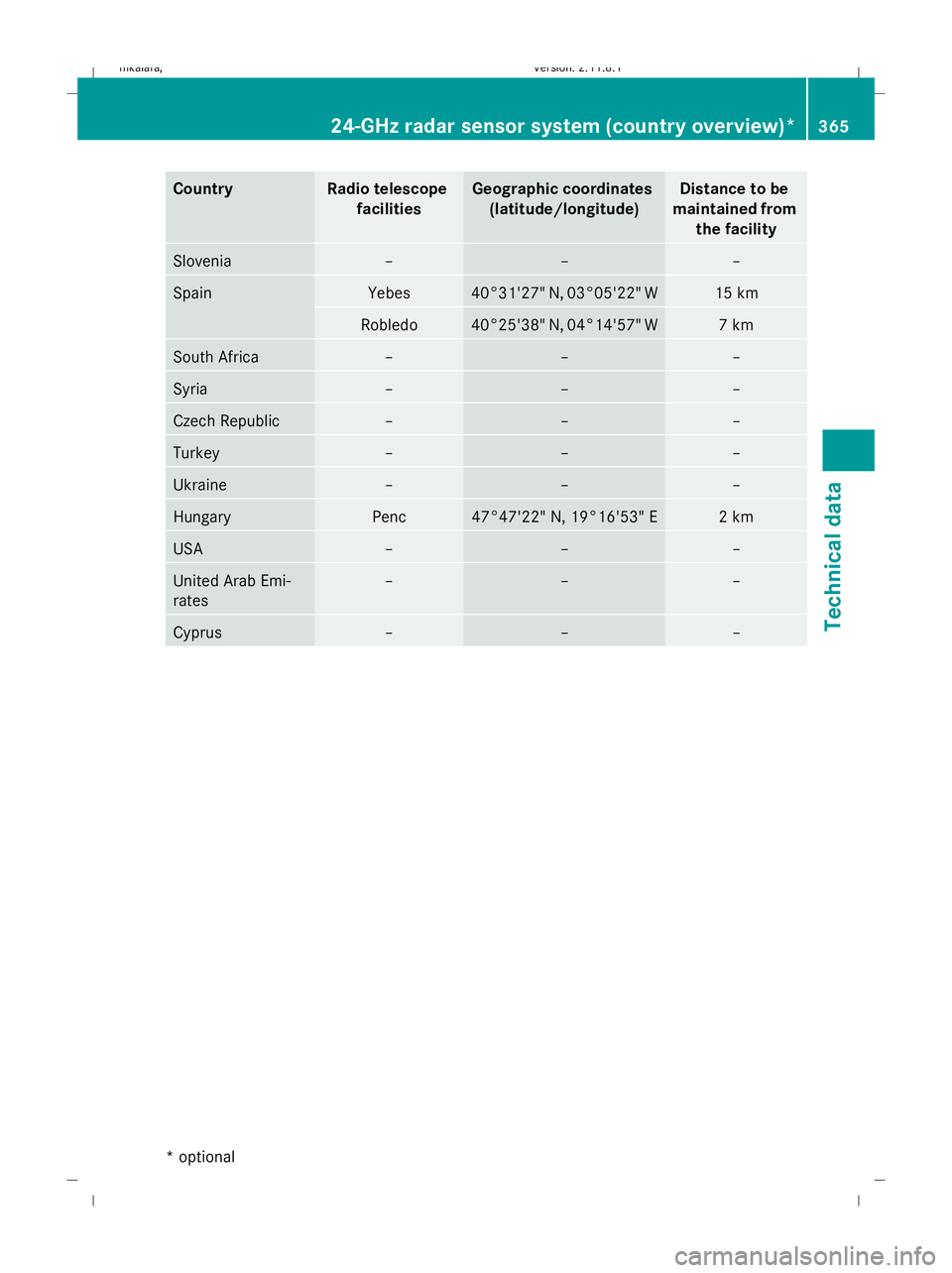

Country Radio telescope
facilities Geographic coordinates
(latitude/longitude) Distance to be
maintained from the facility Slovenia – – –
Spain Yebes 40°31'27" N, 03°05'22" W 15 km
Robledo 40°25'38" N, 04°14'57" W 7 km
South Africa – – –
Syria – – –
Czech Republic – – –
Turkey – – –
Ukraine – – –
Hungary Penc 47°47'22" N, 19°16'53" E 2 km
USA – – –
United Arab Emi-
rates – – –
Cyprus – – –24-GHz radar sensor system (country overview)*
365Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 365 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:39; WK

366 212_AKB; 2; 4, en-GB
mkalafa, Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 366Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:39; WK

367212_AKB; 2; 4, en-GB
mkalafa, Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 367Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:39; WK
