MERCEDES-BENZ E-CLASS SALOON 2009 Owners Manual

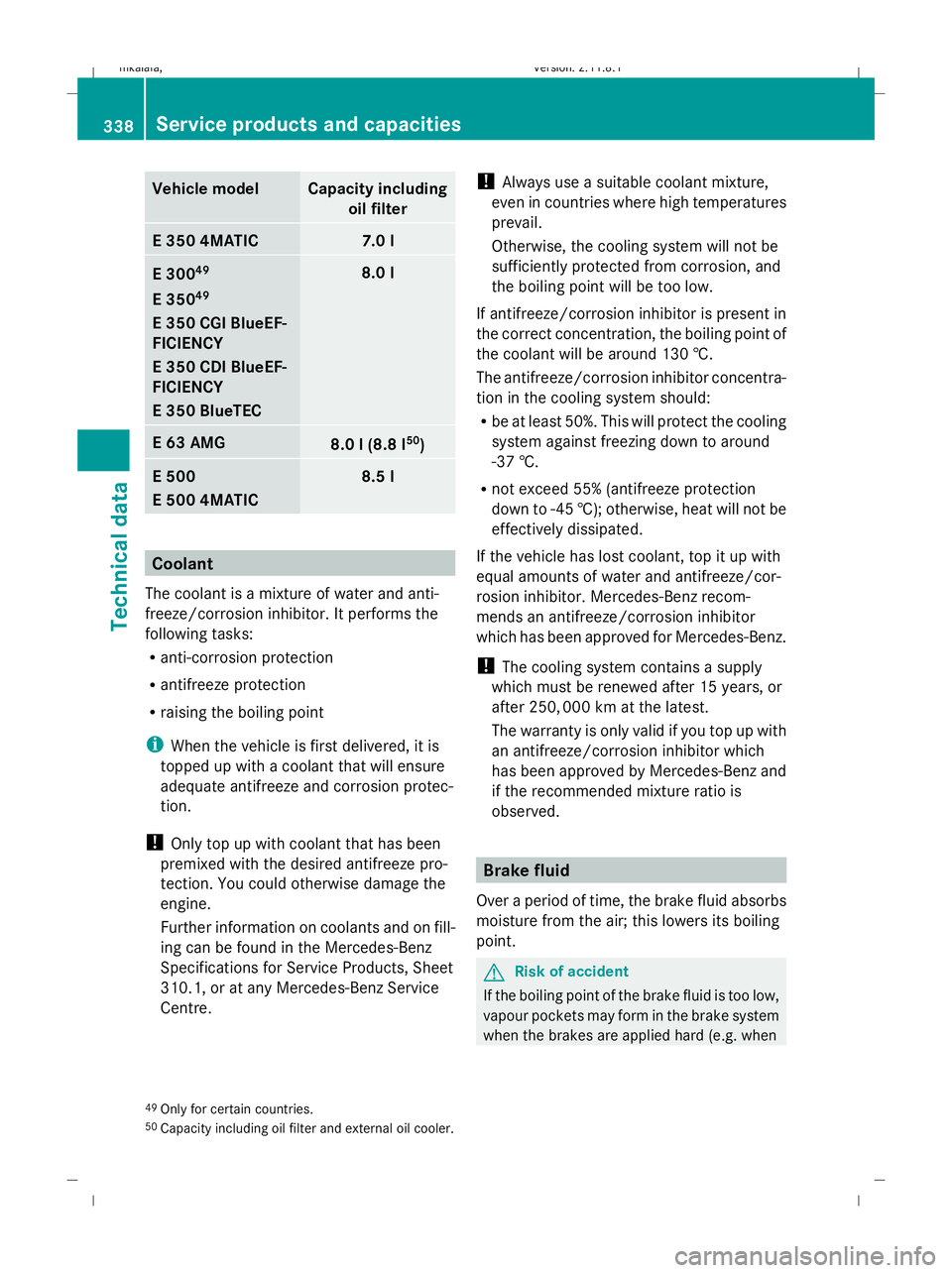

Vehicle model Capacity including
oil filter E 350 4MATIC 7.0 l
E 300
49
E 350 49
E 350 CGI BlueEF-
FICIENCY
E 350 CDI BlueEF-
FICIENCY
E 350 BlueTEC 8.0 l
E 63 AMG
8.0 l (8.8 l
50
) E 500
E 500 4MATIC 8.5 l
Coolant
The coolant is a mixture of water and anti-
freeze/corrosion inhibitor. It performs the
following tasks:
R anti-corrosion protection
R antifreeze protection
R raising the boiling point
i When the vehicle is first delivered, it is
topped up with a coolant that will ensure
adequate antifreeze and corrosion protec-
tion.
! Only top up with coolant that has been
premixed with the desired antifreeze pro-
tection. You could otherwise damage the
engine.
Further information on coolants and on fill-
ing can be found in the Mercedes-Benz
Specifications for Service Products, Sheet
310.1, or at any Mercedes-Benz Service
Centre. !
Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the cooling system will not be
sufficiently protected from corrosion, and
the boiling point will be too low.
If antifreeze/corrosion inhibitor is present in
the correct concentration, the boiling point of
the coolant will be around 130 †.
The antifreeze/corrosion inhibitor concentra-
tion in the cooling system should:
R be at least 50%. This will protect the cooling
system against freezing down to around
-37 †.
R not exceed 55% (antifreeze protection
down to -45 †); otherwise, heat will not be
effectively dissipated.
If the vehicle has lost coolant, top it up with
equal amounts of water and antifreeze/cor-
rosion inhibitor. Mercedes-Benz recom-
mends an antifreeze/corrosion inhibitor
which has been approved for Mercedes-Benz.
! The cooling system contains a supply
which must be renewed after 15 years, or
after 250, 000 km at the latest.
The warranty is only valid if you top up with
an antifreeze/corrosion inhibitor which
has been approved by Mercedes-Benz and
if the recommended mixture ratio is
observed. Brake fluid
Over a period of time, the brake fluid absorbs
moisture from the air; this lowers its boiling
point. G
Risk of accident
If the boiling point of the brake fluid is too low,
vapour pockets may form in the brake system
when the brakes are applied hard (e.g. when
49 Only for certain countries.
50 Capacity including oil filter and external oil cooler. 338
Service products and capacitiesTechnical data
212_AKB; 2; 4, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 338
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:33; WK

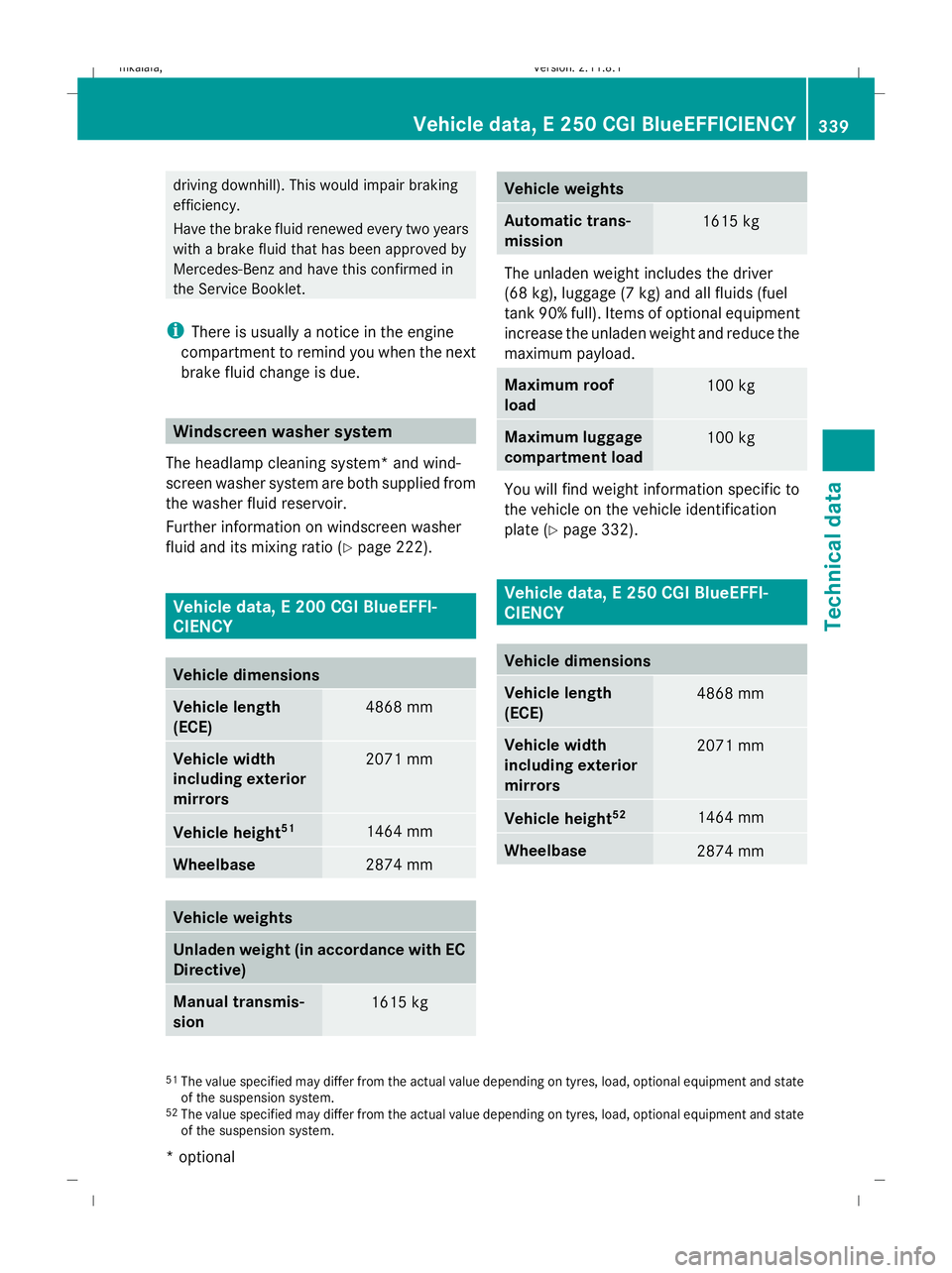

driving downhill). This would impair braking
efficiency.
Have the brake fluid renewed every two years
with a brake fluid that has been approved by
Mercedes-Benz and have this confirmed in
the Service Booklet.
i There is usually a notice in the engine
compartment to remind you when the next
brake fluid change is due. Windscreen washer system
The headlamp cleaning system* and wind-
screen washer system are both supplied from
the washer fluid reservoir.
Further information on windscreen washer
fluid and its mixing ratio ( Ypage 222). Vehicle data, E 200 CGI BlueEFFI-
CIENCY
Vehicle dimensions
Vehicle length
(ECE)
4868 mm
Vehicle width
including exterior
mirrors
2071 mm
Vehicle height
51 1464 mm
Wheelbase
2874 mm
Vehicle weights
Unladen weight (in accordance with EC
Directive)
Manual transmis-
sion
1615 kg Vehicle weights
Automatic trans-
mission
1615 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload.
Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y
page 332). Vehicle data, E 250 CGI BlueEFFI-
CIENCY
Vehicle dimensions
Vehicle length
(ECE)
4868 mm
Vehicle width
including exterior
mirrors
2071 mm
Vehicle height
52 1464 mm
Wheelbase
2874 mm
51
The value specified may differ from the actual value depending on tyres, load, optional equipment and state
of the suspension system.
52 The value specified may differ from the actual value depending on tyres, load, optional equipment and state
of the suspension system. Vehicle data, E 250 CGI BlueEFFICIENCY
339Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 339 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:33; WK

Vehicle weights
Unladen weight
(according to EC
directive)
1650 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification

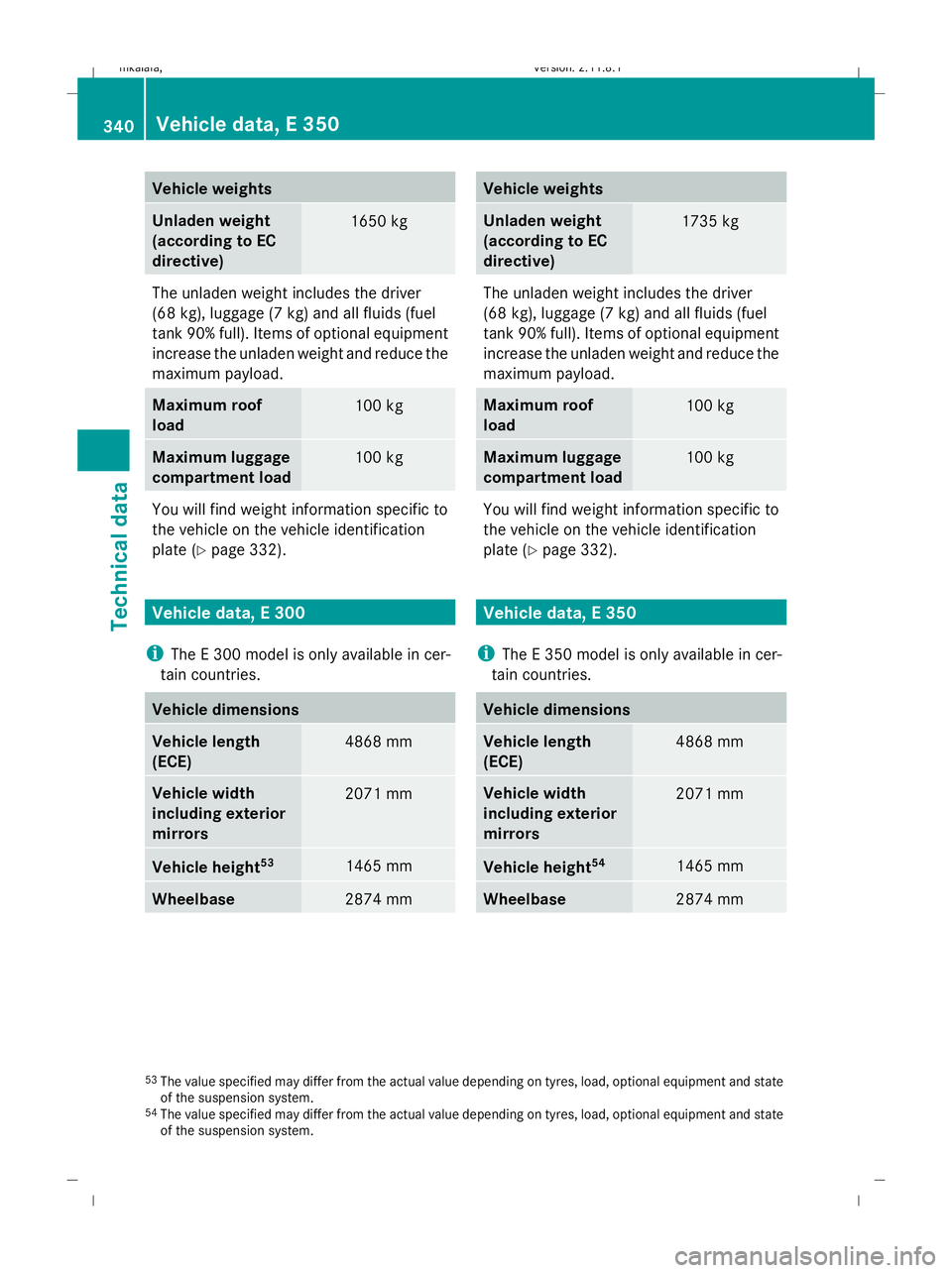

plate (Y page 332). Vehicle data, E 300
i The E 300 model is only available in cer-
tain countries. Vehicle dimensions
Vehicle length
(ECE)
4868 mm
Vehicle width
including exterior
mirrors
2071 mm
Vehicle height
53 1465 mm
Wheelbase
2874 mm Vehicle weights
Unladen weight
(according to EC
directive)
1735 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload.
Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y
page 332). Vehicle data, E 350
i The E 350 model is only available in cer-
tain countries. Vehicle dimensions
Vehicle length
(ECE)
4868 mm
Vehicle width
including exterior
mirrors 2071 mm
Vehicle height
54 1465 mm
Wheelbase
2874 mm
53
The value specified may differ from the actual value depending on tyres, load, optional equipment and state
of the suspension system.
54 The value specified may differ from the actual value depending on tyres, load, optional equipment and state
of the suspension system. 340
Vehicle data, E 350Technical data
212_AKB; 2; 4, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 340
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:33; WK

Vehicle weights
Unladen weight
(according to EC
directive) 1735 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification

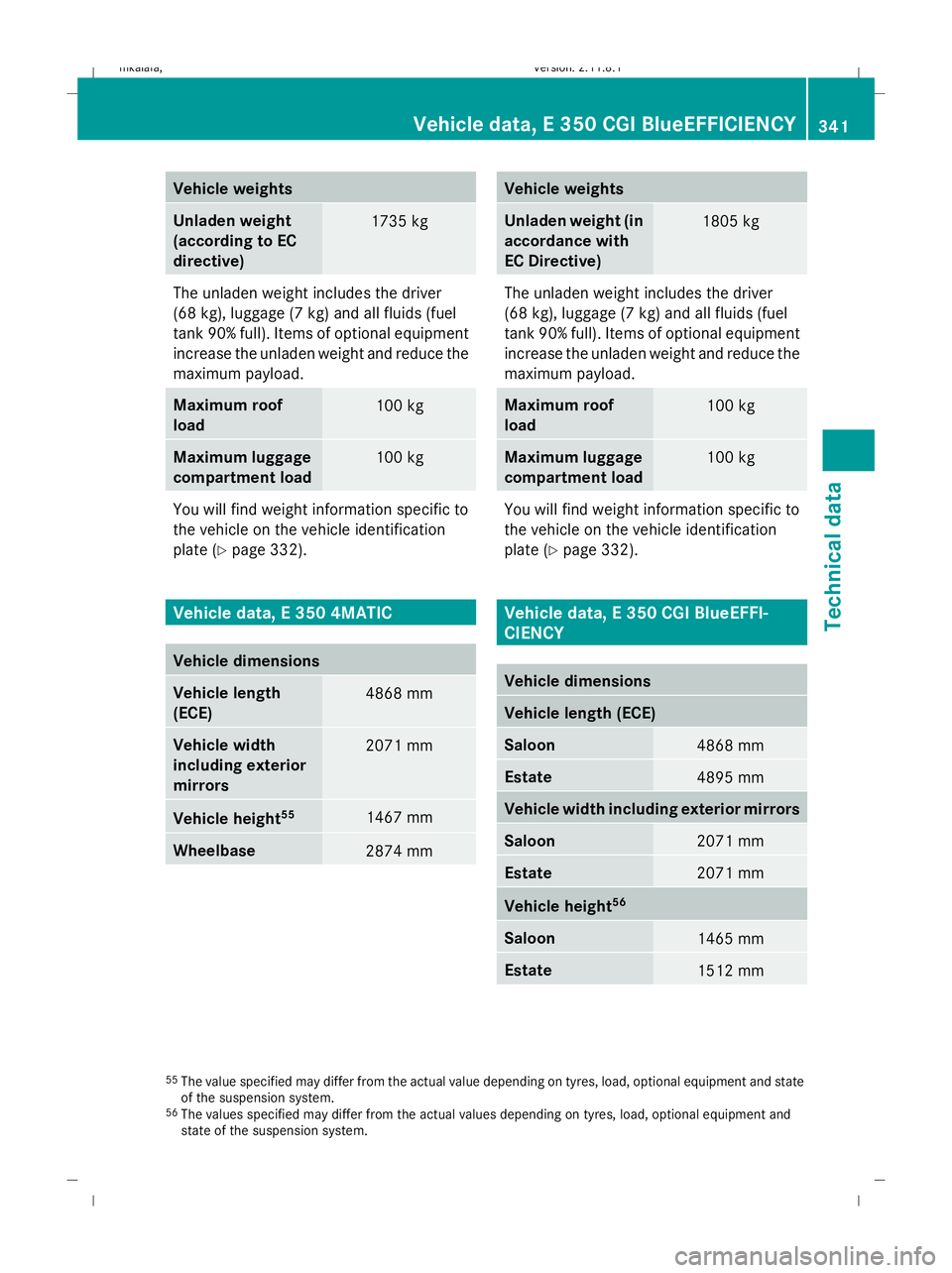

plate (Y page 332). Vehicle data, E 350 4MATIC
Vehicle dimensions
Vehicle length
(ECE)
4868 mm
Vehicle width
including exterior
mirrors
2071 mm
Vehicle height
55 1467 mm
Wheelbase
2874 mm Vehicle weights
Unladen weight (in
accordance with
EC Directive)
1805 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y
page 332). Vehicle data, E 350 CGI BlueEFFI-
CIENCY
Vehicle dimensions
Vehicle length (ECE)
Saloon
4868 mm
Estate
4895 mm
Vehicle width including exterior mirrors
Saloon
2071 mm
Estate
2071 mm
Vehicle height
56 Saloon
1465 mm
Estate
1512 mm
55
The value specified may differ from the actual value depending on tyres, load, optional equipment and state
of the suspension system.
56 The values specified may differ from the actual values depending on tyres, load, optional equipment and
state of the suspension system. Vehicle data, E 350 CGI BlueEFFICIENCY
341Technical data
212_AKB; 2; 4, en-GB
mkalafa,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 341 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:33; WK

Vehicle dimensions
Wheelbase
Saloon
2874 mm
Estate
2874 mm
Vehicle weights
Unladen weight (in accordance with EC
Directive) Saloon
1735 kg
Estate
1845 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification

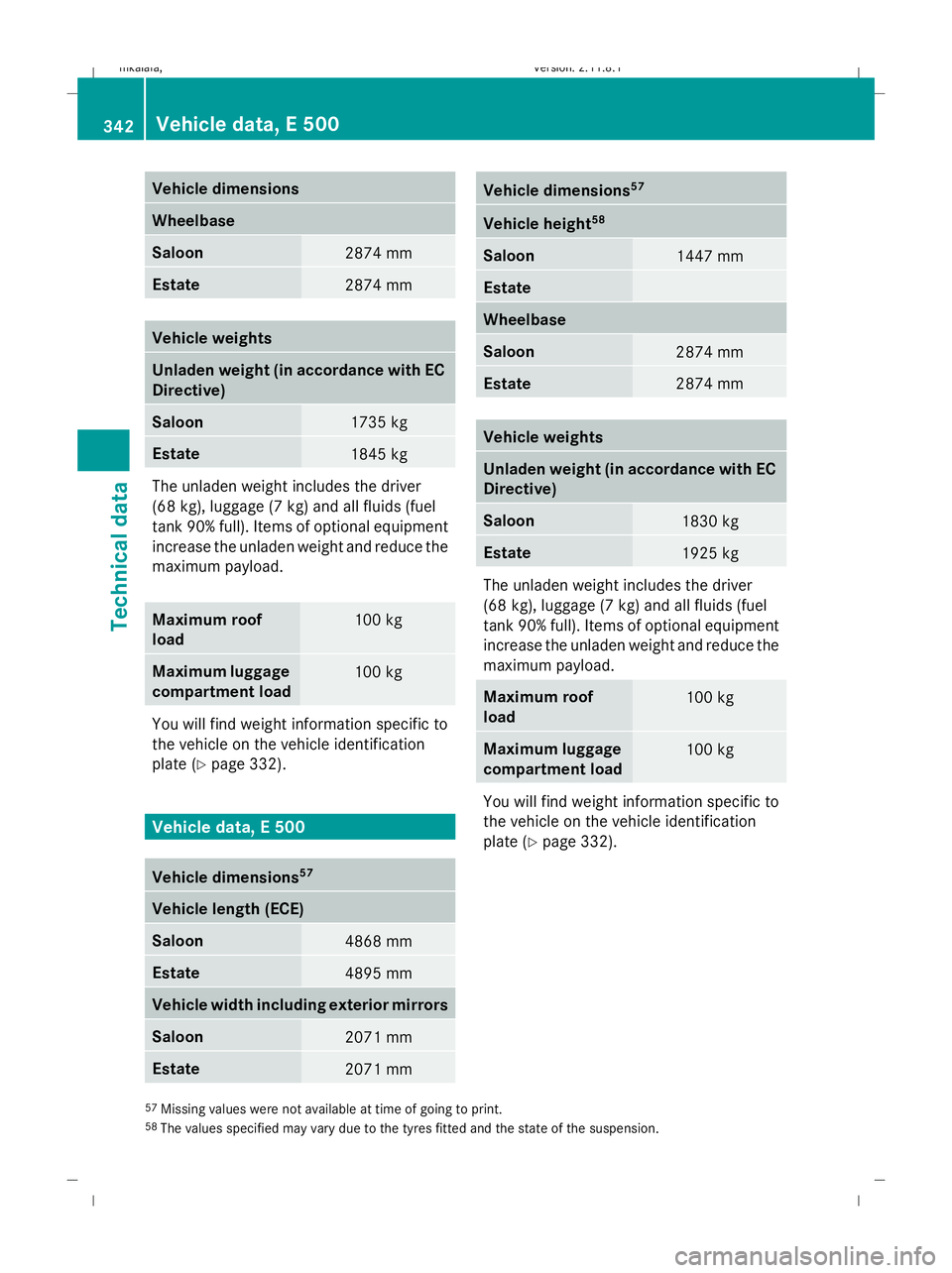

plate (Y page 332). Vehicle data, E 500
Vehicle dimensions
57 Vehicle length (ECE)
Saloon
4868 mm
Estate
4895 mm
Vehicle width including exterior mirrors
Saloon
2071 mm
Estate
2071 mm Vehicle dimensions
57 Vehicle height
58 Saloon
1447 mm
Estate
Wheelbase
Saloon
2874 mm
Estate
2874 mm
Vehicle weights
Unladen weight (in accordance with EC
Directive)
Saloon
1830 kg
Estate
1925 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload.
Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y
page 332). 57
Missing values were not available at time of going to print.
58 The values specified may vary due to the tyres fitted and the state of the suspension. 342
Vehicle data, E 500Technical data
212_AKB; 2; 4, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 342
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:33; WK

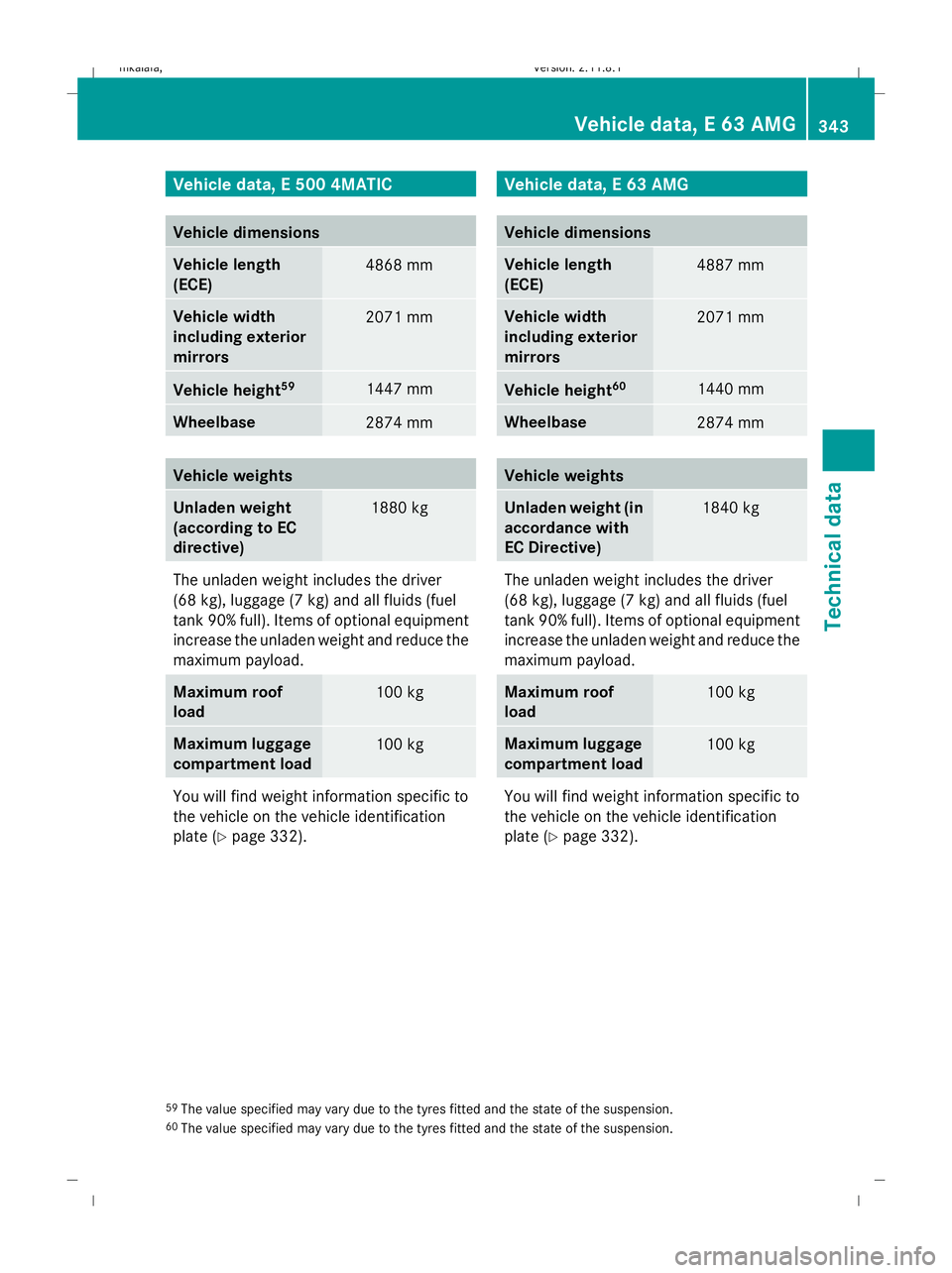

Vehicle data, E 500 4MATIC
Vehicle dimensions
Vehicle length
(ECE) 4868 mm
Vehicle width
including exterior
mirrors
2071 mm
Vehicle height
59 1447 mm
Wheelbase
2874 mm
Vehicle weights
Unladen weight
(according to EC
directive)
1880 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y page 332). Vehicle data, E 63 AMG
Vehicle dimensions
Vehicle length
(ECE)
4887 mm
Vehicle width
including exterior
mirrors
2071 mm
Vehicle height
60 1440 mm
Wheelbase
2874 mm
Vehicle weights
Unladen weight (in
accordance with
EC Directive)
1840 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y
page 332). 59
The value specified may vary due to the tyres fitted and the state of the suspension.
60 The value specified may vary due to the tyres fitted and the state of the suspension. Vehicle data, E 63 AMG
343Technical data
212_AKB; 2; 4, en-GB
mkalafa, Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 343 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:34; WK

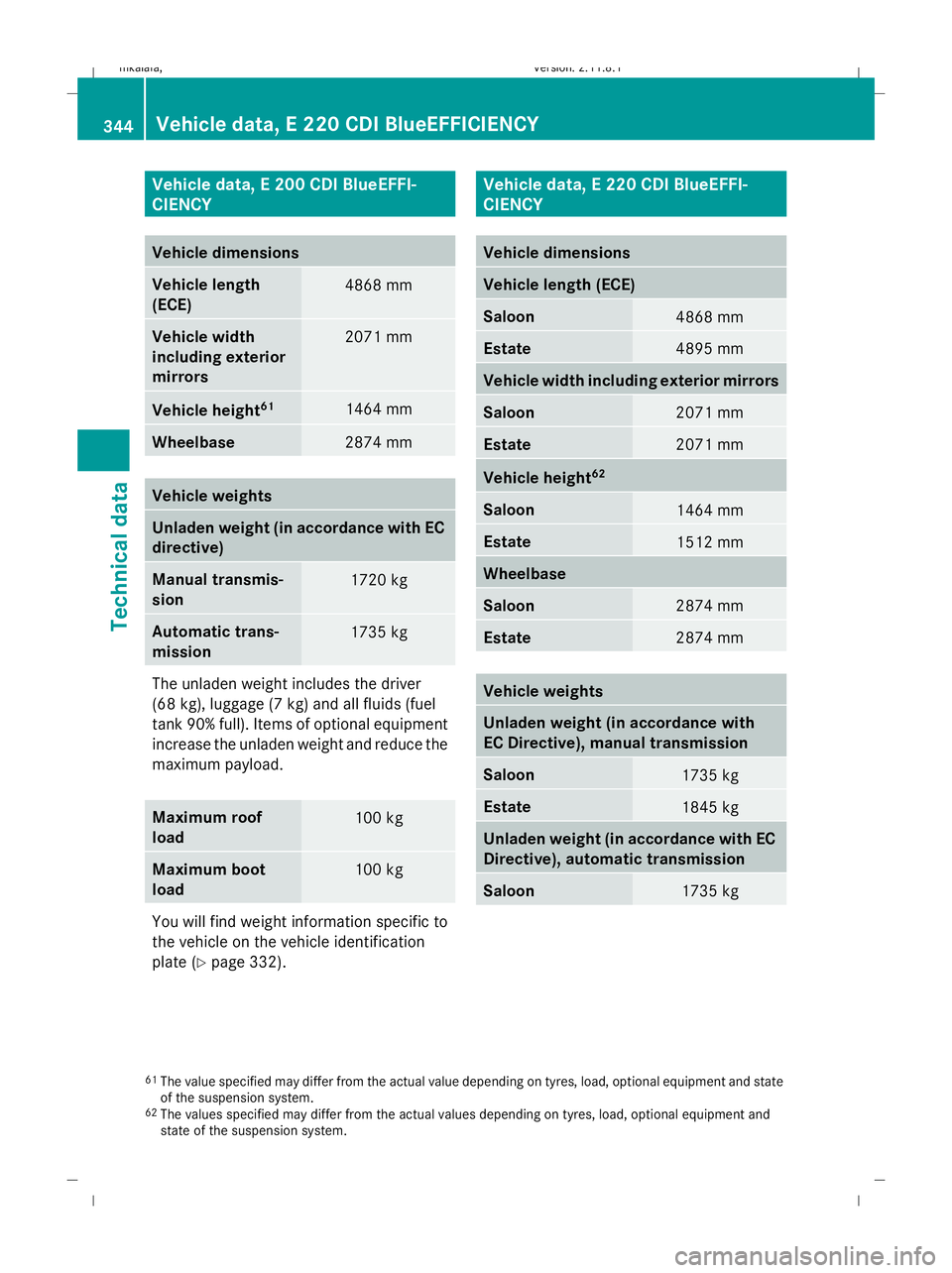

Vehicle data, E 200 CDI BlueEFFI-
CIENCY Vehicle dimensions
Vehicle length
(ECE)
4868 mm
Vehicle width
including exterior
mirrors
2071 mm
Vehicle height
61 1464 mm
Wheelbase
2874 mm
Vehicle weights
Unladen weight (in accordance with EC
directive) Manual transmis-
sion
1720 kg
Automatic trans-
mission
1735 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum boot
load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y page 332). Vehicle data, E 220 CDI BlueEFFI-
CIENCY
Vehicle dimensions
Vehicle length (ECE)
Saloon
4868 mm
Estate
4895 mm
Vehicle width including exterior mirrors
Saloon
2071 mm
Estate
2071 mm
Vehicle height
62 Saloon
1464 mm
Estate
1512 mm
Wheelbase
Saloon
2874 mm
Estate
2874 mm
Vehicle weights
Unladen weight (in accordance with
EC Directive), manual transmission
Saloon
1735 kg
Estate
1845 kg
Unladen weight (in accordance with EC
Directive), automatic transmission
Saloon
1735 kg
61
The value specified may differ from the actual value depending on tyres, load, optional equipment and state
of the suspension system.
62 The values specified may differ from the actual values depending on tyres, load, optional equipment and
state of the suspension system. 344
Vehicle data, E 220 CDI BlueEFFICIENCYTechnical data
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 344
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:34; WK

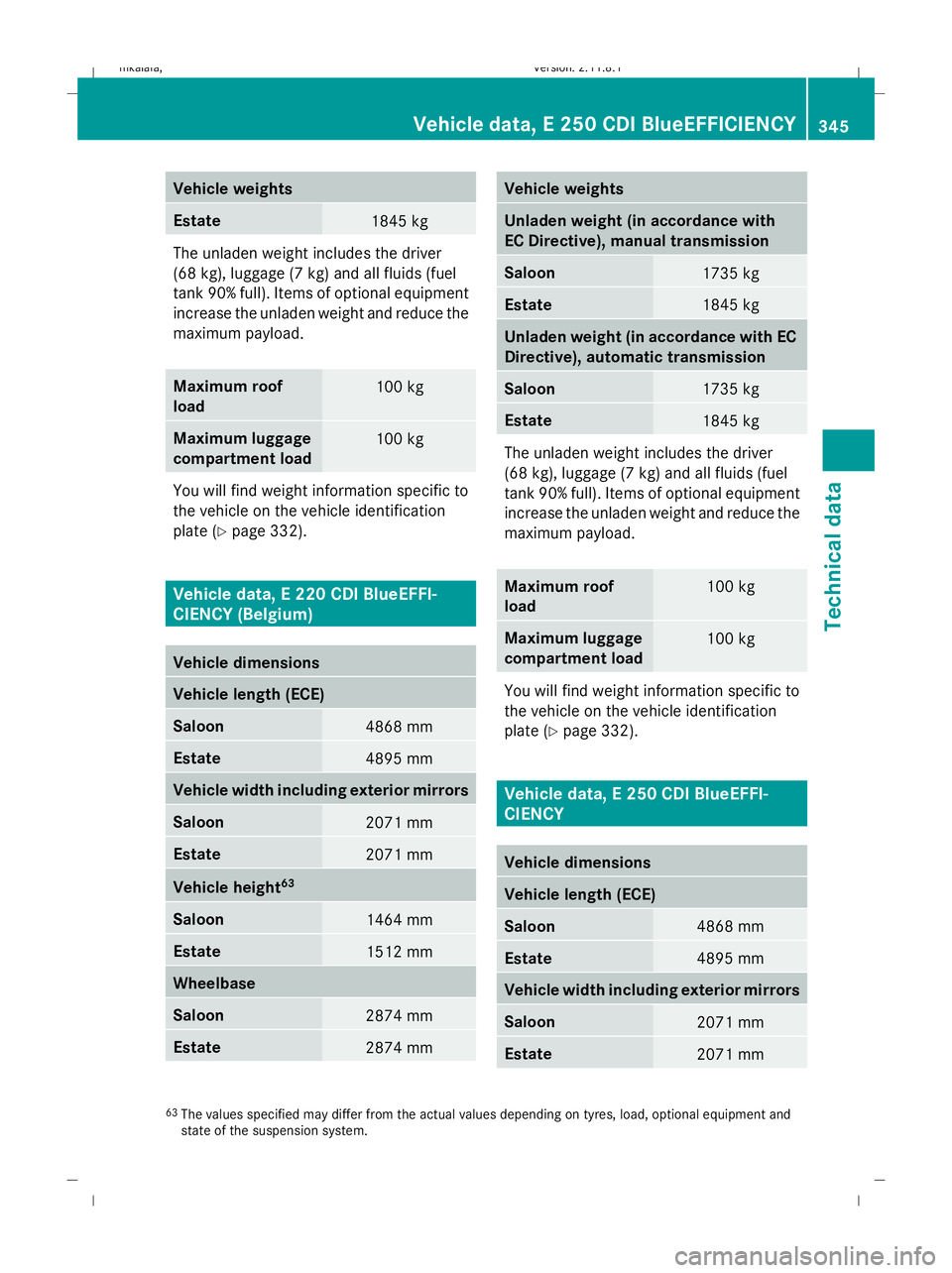

Vehicle weights
Estate
1845 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y page 332). Vehicle data, E 220 CDI BlueEFFI-
CIENCY (Belgium)
Vehicle dimensions
Vehicle length (ECE)
Saloon
4868 mm
Estate
4895 mm
Vehicle width including exterior mirrors
Saloon
2071 mm
Estate
2071 mm
Vehicle height
63 Saloon
1464 mm
Estate
1512 mm
Wheelbase
Saloon
2874 mm
Estate
2874 mm Vehicle weights
Unladen weight (in accordance with
EC Directive), manual transmission
Saloon
1735 kg
Estate
1845 kg
Unladen weight (in accordance with EC
Directive), automatic transmission
Saloon
1735 kg
Estate
1845 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y
page 332). Vehicle data, E 250 CDI BlueEFFI-
CIENCY
Vehicle dimensions
Vehicle length (ECE)
Saloon
4868 mm
Estate
4895 mm
Vehicle width including exterior mirrors
Saloon
2071 mm
Estate
2071 mm
63
The values specified may differ from the actual values depending on tyres, load, optional equipment and
state of the suspension system. Vehicle data, E 250 CDI BlueEFFICIENCY
345Technical data
212_AKB; 2; 4, en-GB
mkalafa,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 345 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:34; WK

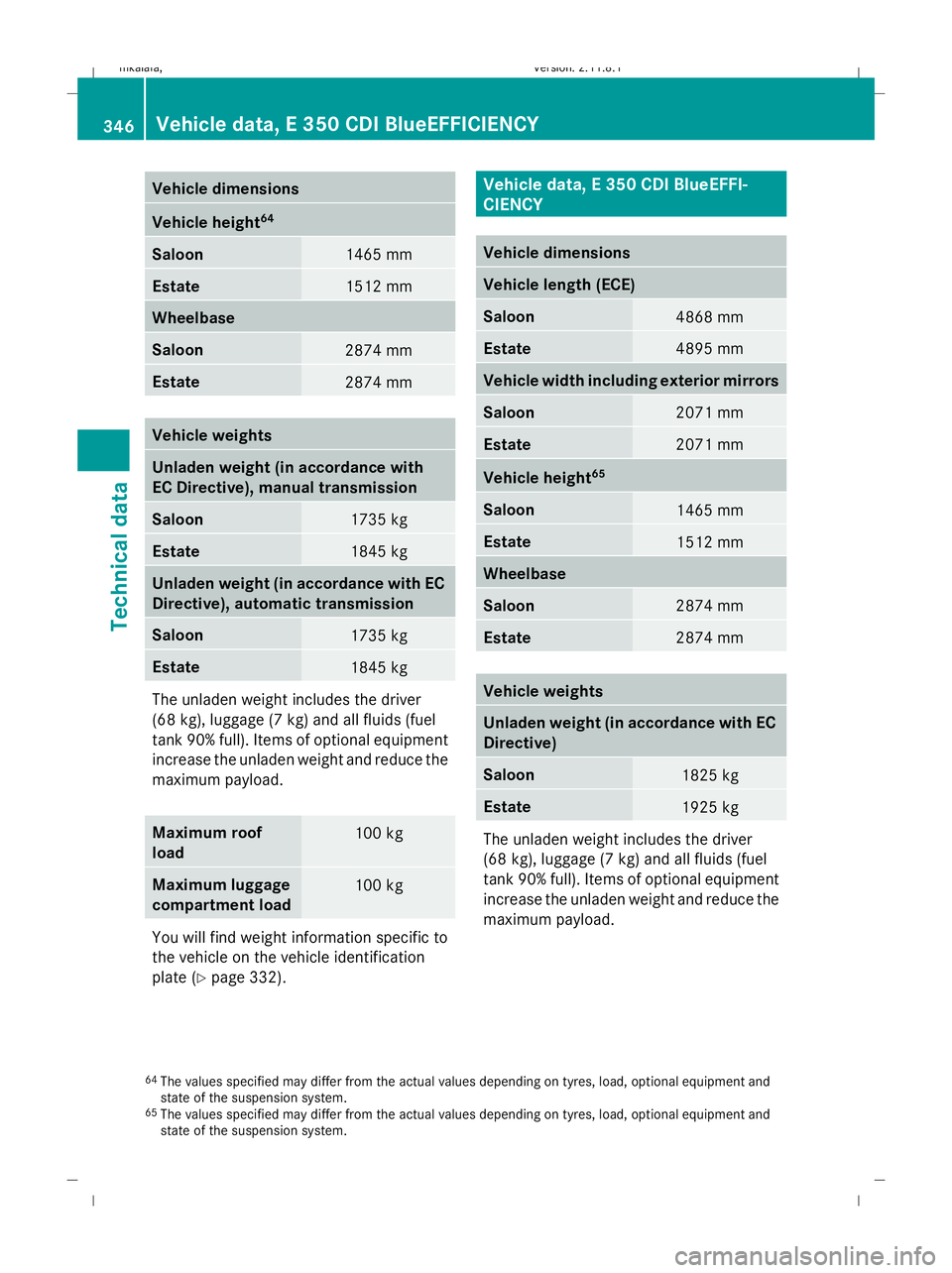

Vehicle dimensions
Vehicle height
64 Saloon
1465 mm
Estate
1512 mm
Wheelbase
Saloon
2874 mm
Estate
2874 mm
Vehicle weights
Unladen weight (in accordance with
EC Directive), manual transmission Saloon
1735 kg
Estate
1845 kg
Unladen weight (in accordance with EC
Directive), automatic transmission Saloon
1735 kg
Estate
1845 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y page 332). Vehicle data, E 350 CDI BlueEFFI-
CIENCY
Vehicle dimensions
Vehicle length (ECE)
Saloon
4868 mm
Estate
4895 mm
Vehicle width including exterior mirrors
Saloon
2071 mm
Estate
2071 mm
Vehicle height
65 Saloon
1465 mm
Estate
1512 mm
Wheelbase
Saloon
2874 mm
Estate
2874 mm
Vehicle weights
Unladen weight (in accordance with EC
Directive)
Saloon
1825 kg
Estate
1925 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload.
64
The values specified may differ from the actual values depending on tyres, load, optional equipment and
state of the suspension system.
65 The values specified may differ from the actual values depending on tyres, load, optional equipment and
state of the suspension system. 346
Vehicle data, E 350 CDI BlueEFFICIENCYTechnical data
212_AKB; 2; 4, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 346
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:34; WK

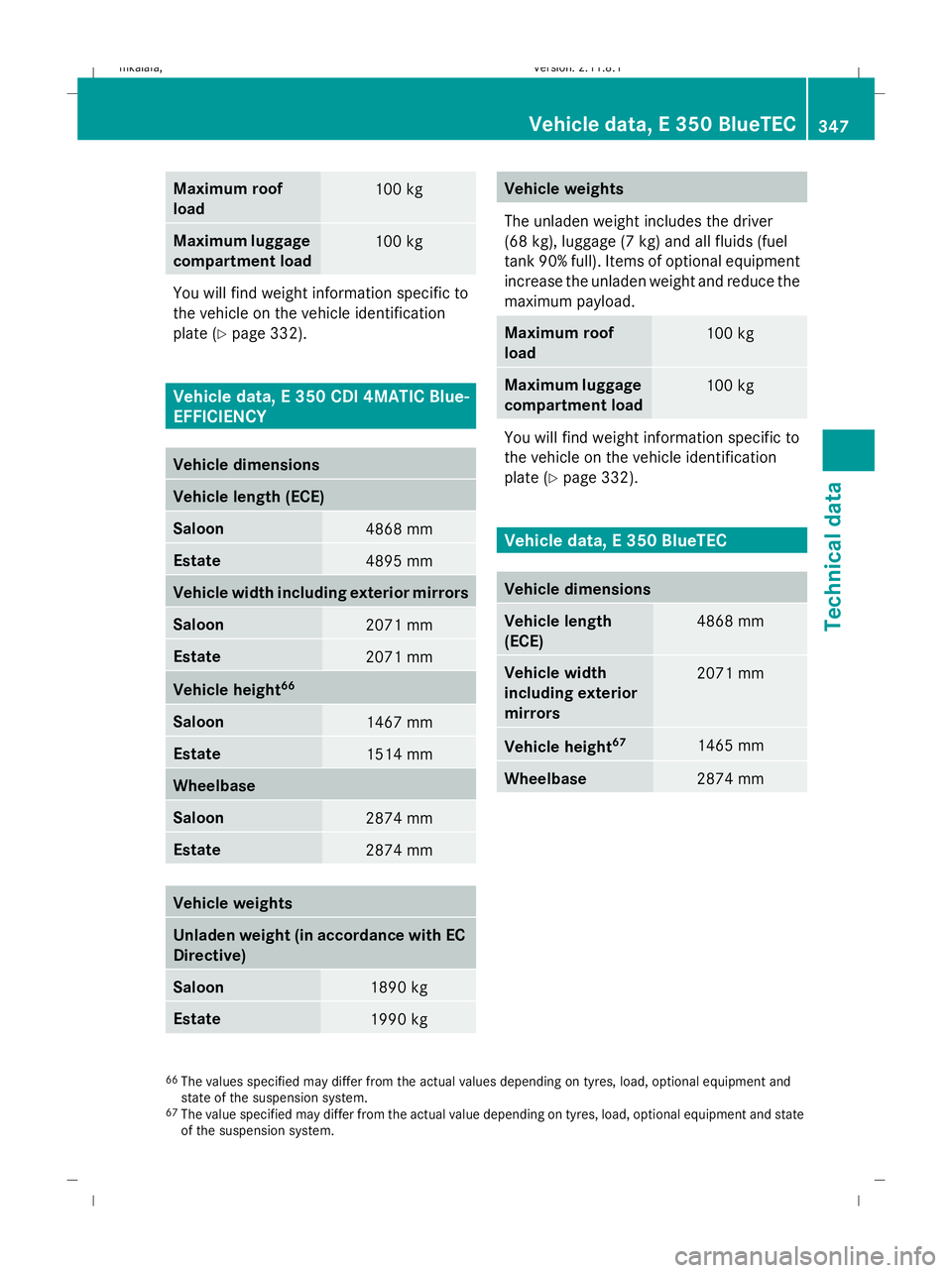

Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y page 332). Vehicle data, E 350 CDI 4MATIC Blue-
EFFICIENCY Vehicle dimensions
Vehicle length (ECE)
Saloon
4868 mm
Estate
4895 mm
Vehicle width including exterior mirrors
Saloon
2071 mm
Estate
2071 mm
Vehicle height
66 Saloon
1467 mm
Estate
1514 mm
Wheelbase
Saloon
2874 mm
Estate
2874 mm
Vehicle weights
Unladen weight (in accordance with EC
Directive) Saloon
1890 kg
Estate
1990 kg Vehicle weights
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload.
Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y
page 332). Vehicle data, E 350 BlueTEC
Vehicle dimensions
Vehicle length
(ECE)
4868 mm
Vehicle width
including exterior
mirrors
2071 mm
Vehicle height
67 1465 mm
Wheelbase
2874 mm
66
The values specified may differ from the actual values depending on tyres, load, optional equipment and
state of the suspension system.
67 The value specified may differ from the actual value depending on tyres, load, optional equipment and state
of the suspension system. Vehicle data, E 350 BlueTEC
347Technical data
212_AKB; 2; 4, en-GB
mkalafa, Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 347 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:34; WK
