MERCEDES-BENZ E-CLASS SALOON 2009 Owners Manual

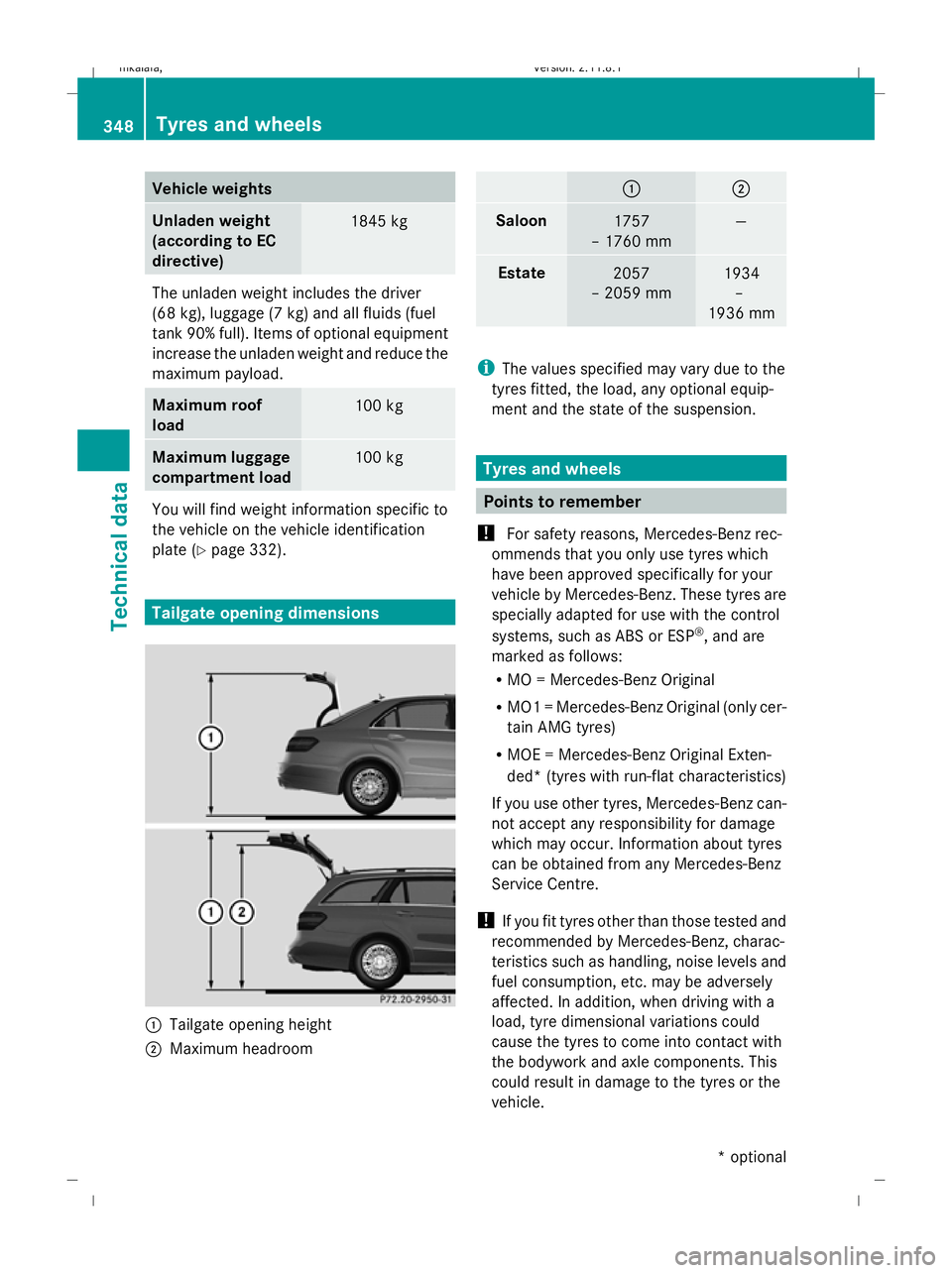

Vehicle weights
Unladen weight
(according to EC
directive)
1845 kg
The unladen weight includes the driver
(68 kg), luggage (7 kg) and all fluids (fuel
tank 90% full). Items of optional equipment
increase the unladen weight and reduce the
maximum payload. Maximum roof
load
100 kg
Maximum luggage
compartment load
100 kg
You will find weight information specific to
the vehicle on the vehicle identification
plate (Y page 332). Tailgate opening dimensions
:
Tailgate opening height
; Maximum headroom : ;
Saloon
1757
– 1760 mm —
Estate
2057
– 2059 mm 1934
–
1936 mm i
The values specified may vary due to the
tyres fitted, the load, any optional equip-
ment and the state of the suspension. Tyres and wheels
Points to remember
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres which
have been approved specifically for your
vehicle by Mercedes-Benz. These tyres are
specially adapted for use with the control
systems, such as ABS or ESP ®
, and are
marked as follows:
R MO = Mercedes-Benz Original
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tyres)
R MOE = Mercedes-Benz Original Exten-
ded* (tyres with run-flat characteristics)
If you use other tyres, Mercedes-Benz can-
not accept any responsibility for damage
which may occur. Information about tyres
can be obtained from any Mercedes-Benz
Service Centre.
! If you fit tyres other than those tested and
recommended by Mercedes-Benz, charac-
teristics such as handling, noise levels and
fuel consumption, etc. may be adversely
affected. In addition, when driving with a
load, tyre dimensional variations could
cause the tyres to come into contact with
the bodywork and axle components. This
could result in damage to the tyres or the
vehicle. 348
Tyres and wheelsTechnical data
* optional
212_AKB; 2; 4, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 348
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:35; WK

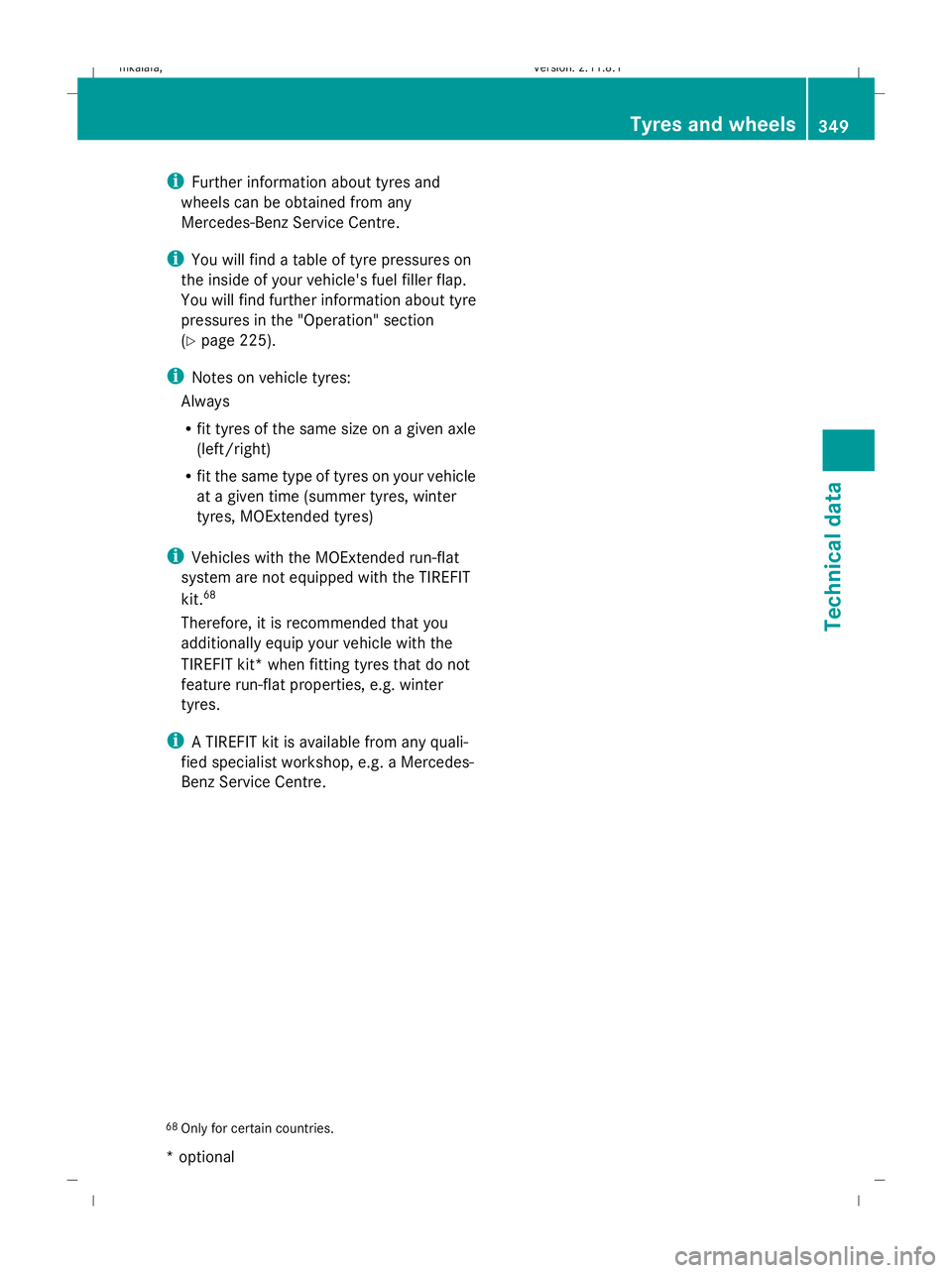

i
Further information about tyres and
wheels can be obtained from any
Mercedes-Benz Service Centre.
i You will find a table of tyre pressures on
the inside of your vehicle's fuel filler flap.
You will find further information about tyre
pressures in the "Operation" section
(Y page 225).
i Notes on vehicle tyres:
Always
R fit tyres of the same size on a given axle
(left/right)
R fit the same type of tyres on your vehicle
at a given time (summer tyres, winter
tyres, MOExtended tyres)
i Vehicles with the MOExtended run-flat
system are not equipped with the TIREFIT
kit. 68
Therefore, it is recommended that you
additionally equip your vehicle with the
TIREFIT kit* when fitting tyres that do not
feature run-flat properties, e.g. winter
tyres.
i A TIREFIT kit is available from any quali-
fied specialist workshop, e.g. a Mercedes-
Benz Service Centre.
68 Only for certain countries. Tyres and wheels
349Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 349 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:35; WK

Tyres
Tyres of the same dimensions Saloon
i
BA: Both axles E 200 CDI
BlueEFFICIENCY /
E 200 CGI
BlueEFFICIENCY /
E 220 CDI
BlueEFFICIENCY / E 250 CGI
BlueEFFICIENC
Y /
E 300 69
/
E 350 CGI
BlueEFFICIENCY /
E 250 CDI
BlueEFFICIENCY /
E 350 CDI
BlueEFFICIENCY /
E 350 BlueTEC 16" BA Summer tyres
205/60 R16 92W –
Winter tyres
205/60 R16 92H
M+S
i –
Light-alloy wheels
7.0J x 16 H2 ET 38 –
16" BA Summer tyres
225/55 R16 95W 225/55 R16 95W
Winter tyres
225/55 R16 95H
M+S
i 225/55 R16 95H
M+S
i Light-alloy wheels
7.5J x 16 H2 ET 45.5 or
8.0J x 16 H2 ET 46 7.5J x 16 H2 ET 45.5 or
8.0J x 16 H2 ET 46
69
Only for certain countries. 350
Tyres and wheelsTechnical data
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 350
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:35; WK

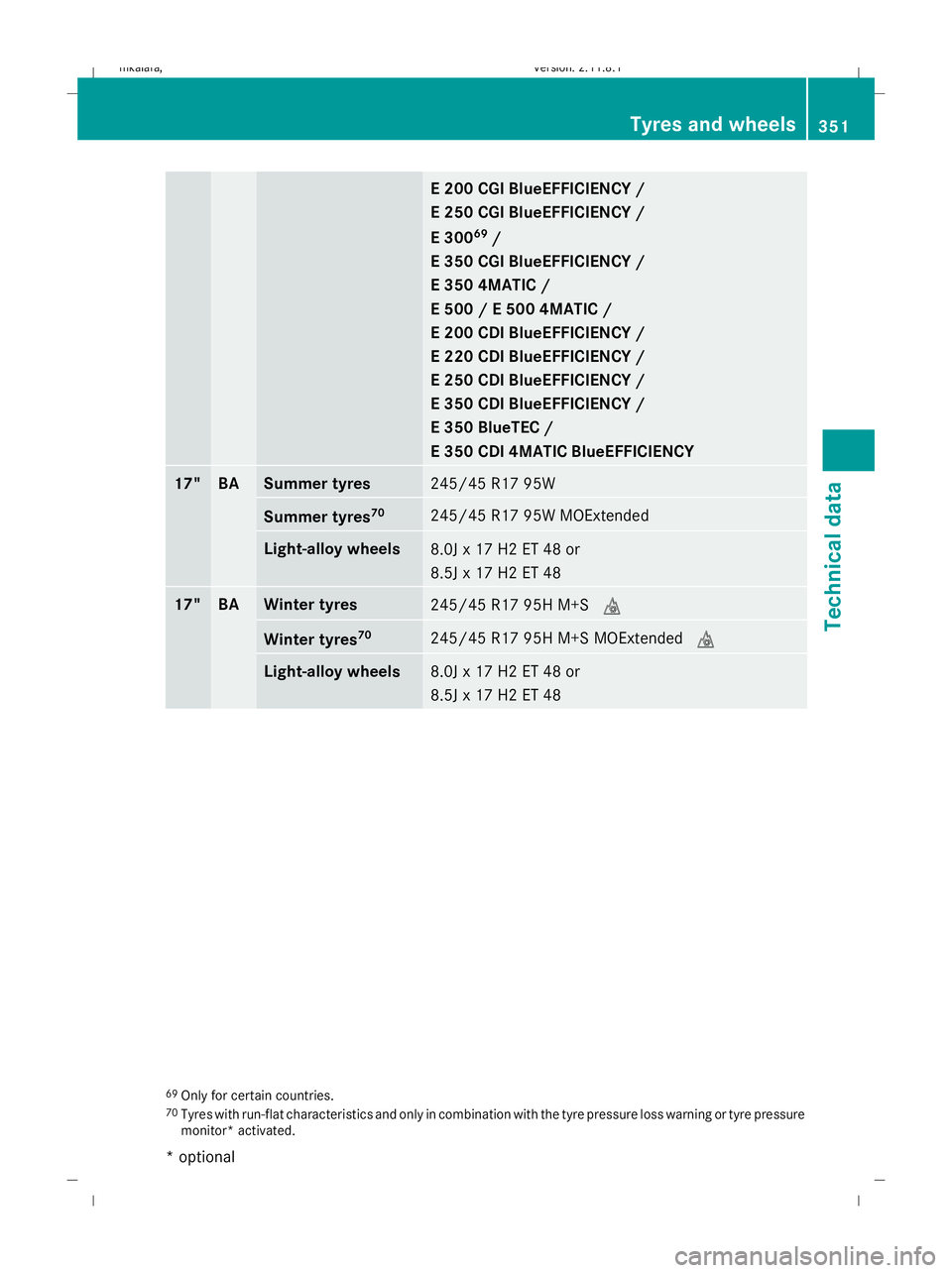

E 200 CGI BlueEFFICIENCY /
E 250 CGI BlueEFFICIENCY /
E 300
69
/
E 350 CGI BlueEFFICIENCY /
E 350 4MATIC /
E 500 / E 500 4MATIC /
E 200 CDI BlueEFFICIENCY /
E 220 CDI BlueEFFICIENCY /
E 250 CDI BlueEFFICIENCY /
E 350 CDI BlueEFFICIENCY /
E 350 BlueTEC /
E 350 CDI 4MATIC BlueEFFICIENCY 17" BA Summer tyres
245/45 R17 95W
Summer tyres
70 245/45 R17 95W MOExtended
Light-alloy wheels
8.0J x 17 H2 ET 48 or
8.5J x 17 H2 ET 48
17" BA Winter tyres
245/45 R17 95H M+S
i Winter tyres
70 245/45 R17 95H M+S MOExtended
i Light-alloy wheels
8.0J x 17 H2 ET 48 or
8.5J x 17 H2 ET 48
69
Only for certain countries.
70 Tyres with run-flat characteristics and only in combination with the tyre pressure loss warning or tyre pressure
monitor* activated. Tyres and wheels
351Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 351 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:35; WK

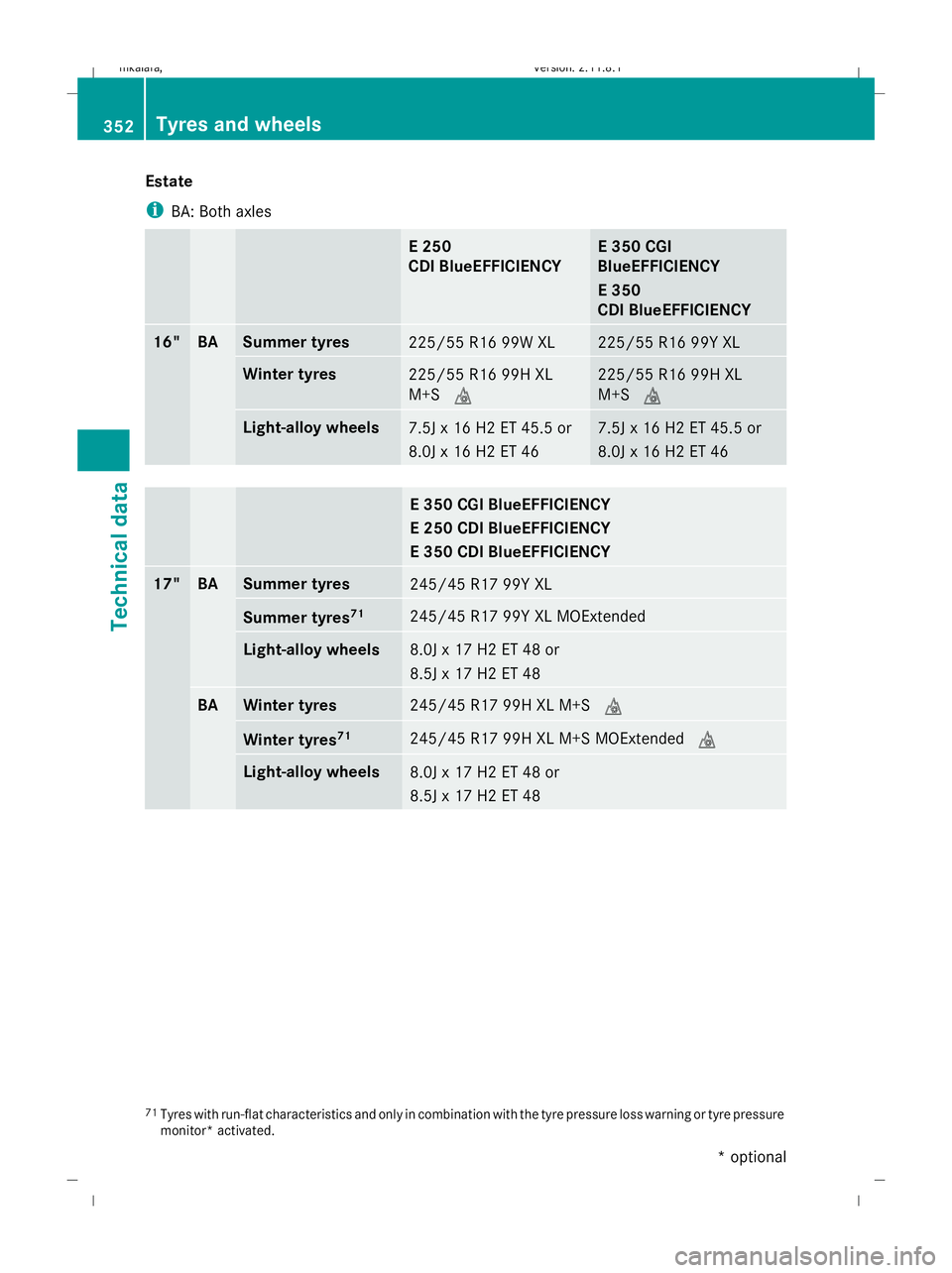

Estate
i
BA: Both axles E 250
CDI BlueEFFICIENCY E 350 CGI
BlueEFFICIENCY
E 350
CDI BlueEFFICIENCY
16" BA Summer tyres
225/55 R16 99W XL 225/55 R16 99Y XL
Winter tyres
225/55 R16 99H XL
M+S
i 225/55 R16 99H XL
M+S
i Light-alloy wheels
7.5J x 16 H2 ET 45.5 or
8.0J x 16 H2 ET 46 7.5J x 16 H2 ET 45.5 or
8.0J x 16 H2 ET 46 E 350 CGI BlueEFFICIENCY
E 250 CDI BlueEFFICIENCY
E 350 CDI BlueEFFICIENCY 17" BA Summer tyres
245/45 R17 99Y XL
Summer tyres
71 245/45 R17 99Y XL MOExtended
Light-alloy wheels
8.0J x 17 H2 ET 48 or
8.5J x 17 H2 ET 48
BA Winter tyres
245/45 R17 99H XL M+S
i Winter tyres
71 245/45 R17 99H XL M+S MOExtended
iLight-alloy wheels
8.0J x 17 H2 ET 48 or
8.5J x 17 H2 ET 48
71
Tyres with run-flat characteristics and only in combination with the tyre pressure loss warning or tyre pressure
monitor* activated. 352
Tyres and wheelsTechnical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 352
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:35; WK

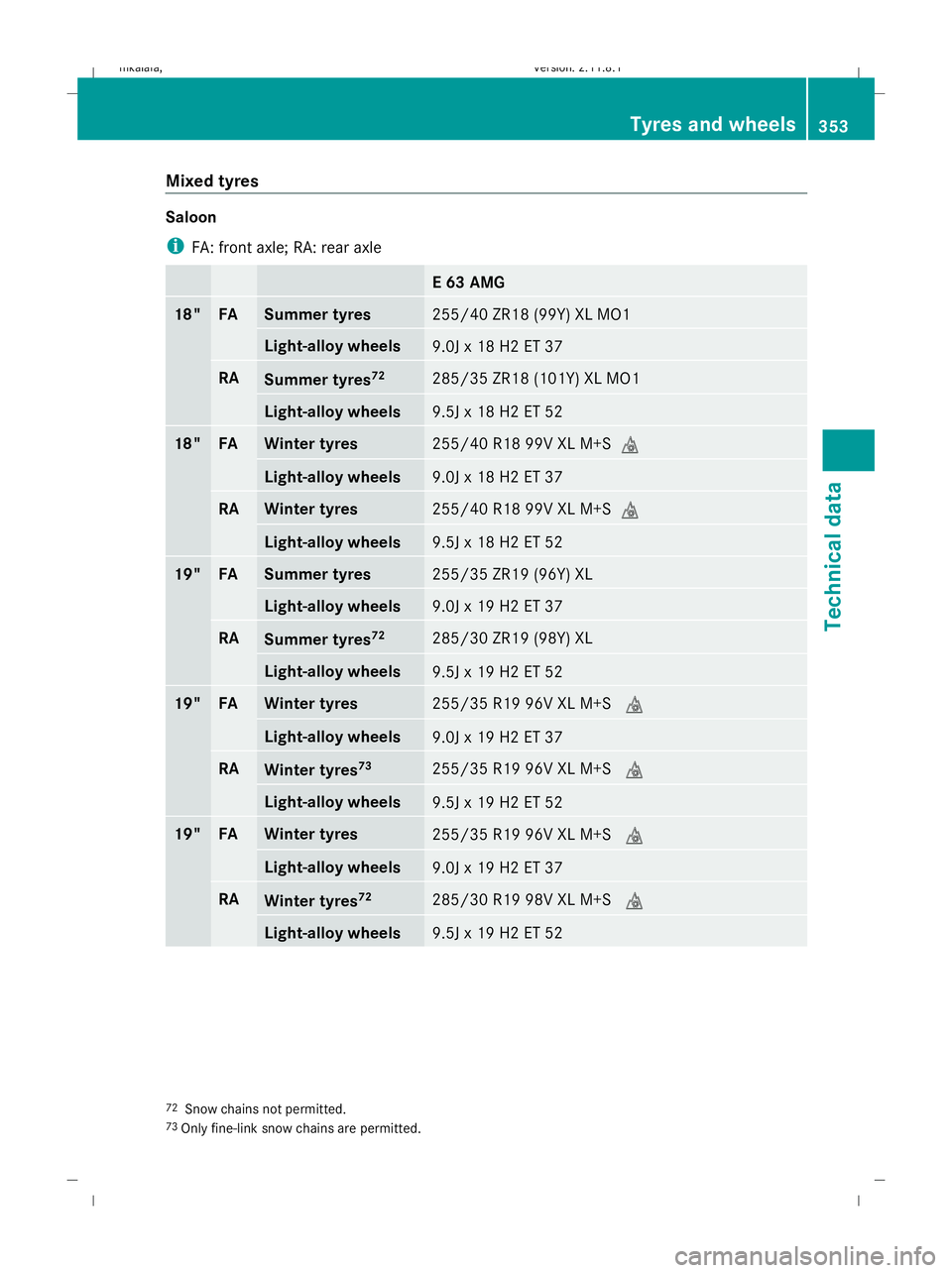

Mixed tyres
Saloon
i
FA: front axle; RA: rear axle E 63 AMG
18" FA Summer tyres
255/40 ZR18 (99Y) XL MO1
Light-alloy wheels
9.0J x 18 H2 ET 37
RA
Summer tyres
72 285/35 ZR18 (101Y) XL MO1
Light-alloy wheels
9.5J x 18 H2 ET 52
18" FA Winter tyres
255/40 R18 99V XL M+S
i Light-alloy wheels
9.0J x 18 H2 ET 37
RA Winter tyres
255/40 R18 99V XL M+S
i Light-alloy wheels
9.5J x 18 H2 ET 52
19" FA Summer tyres
255/35 ZR19 (96Y) XL
Light-alloy wheels
9.0J x 19 H2 ET 37
RA
Summer tyres
72 285/30 ZR19 (98Y) XL
Light-alloy wheels
9.5J x 19 H2 ET 52
19" FA Winter tyres
255/35 R19 96V XL M+S
i Light-alloy wheels
9.0J x 19 H2 ET 37
RA
Winter tyres
73 255/35 R19 96V XL M+S
i Light-alloy wheels
9.5J x 19 H2 ET 52
19" FA Winter tyres
255/35 R19 96V XL M+S
i Light-alloy wheels
9.0J x 19 H2 ET 37
RA
Winter tyres
72 285/30 R19 98V XL M+S
i Light-alloy wheels
9.5J x 19 H2 ET 52
72
Snow chains not permitted.
73 Only fine-link snow chains are permitted. Tyres and wheels
353Technical data
212_AKB; 2; 4, en-GB
mkalafa, Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 353 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:36; WK

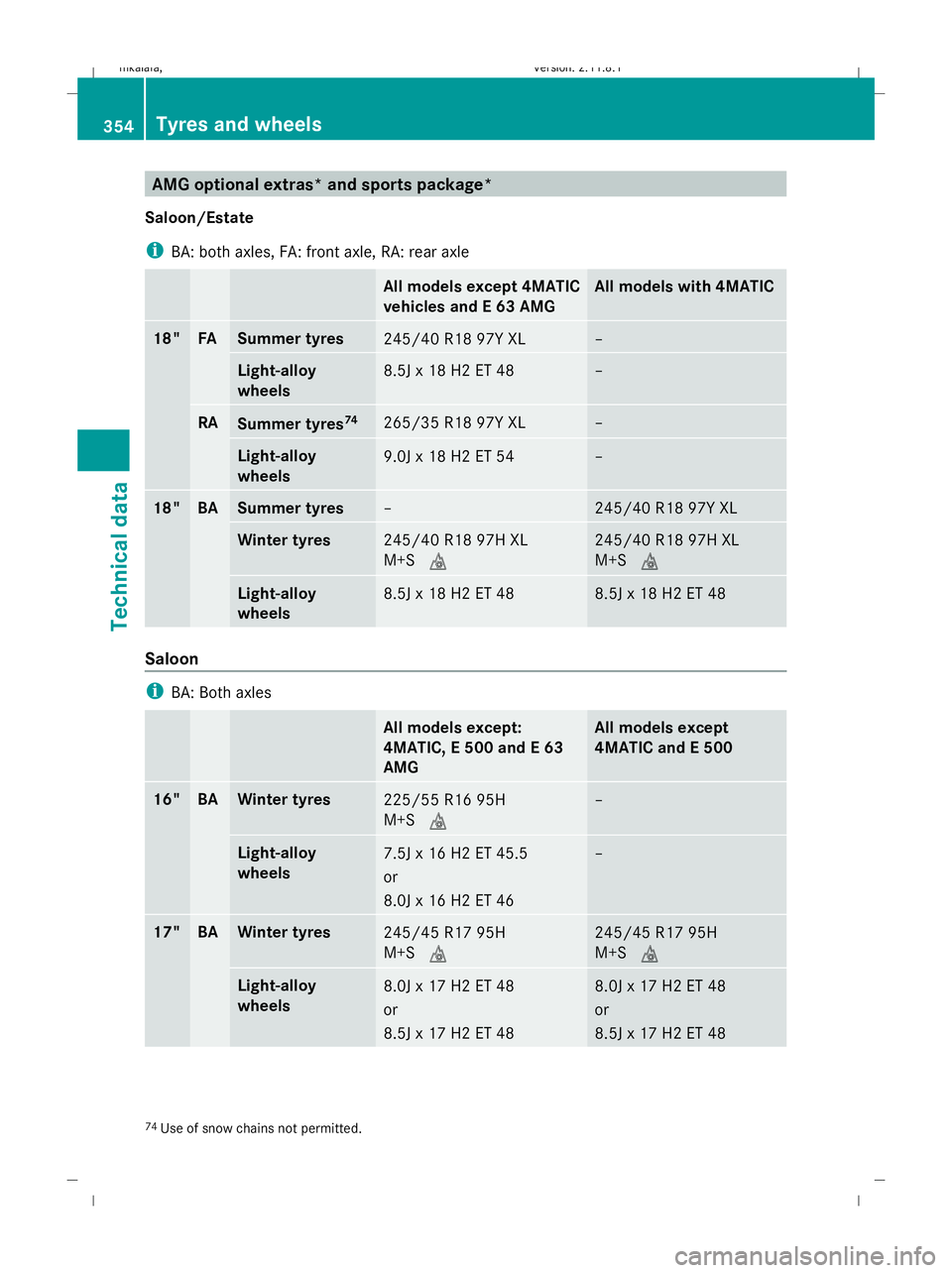

AMG optional extras* and sports package*
Saloon/Estate
i BA: both axles, FA: front axle, RA: rear axle All models except 4MATIC
vehicles and E 63 AMG All models with 4MATIC
18" FA Summer tyres
245/40 R18 97Y XL –
Light-alloy
wheels
8.5J x 18 H2 ET 48 –
RA
Summer tyres
74 265/35 R18 97Y XL –
Light-alloy
wheels
9.0J x 18 H2 ET 54 –
18" BA Summer tyres
– 245/40 R18 97Y XL
Winter tyres
245/40 R18 97H XL
M+S
i 245/40 R18 97H XL
M+S
i Light-alloy
wheels
8.5J x 18 H2 ET 48 8.5J x 18 H2 ET 48
Saloon
i
BA: Both axles All models except:
4MATIC, E 500 and E 63
AMG All models except
4MATIC and E 500
16" BA Winter tyres
225/55 R16 95H
M+S
i –
Light-alloy
wheels
7.5J x 16 H2 ET 45.5
or
8.0J x 16 H2 ET 46 –
17" BA Winter tyres
245/45 R17 95H
M+S
i 245/45 R17 95H
M+S
i Light-alloy
wheels
8.0J x 17 H2 ET 48
or
8.5J x 17 H2 ET 48 8.0J x 17 H2 ET 48
or
8.5J x 17 H2 ET 48
74
Use of snow chains not permitted. 354
Tyres and wheelsTechnical data
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 354
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:36; WK

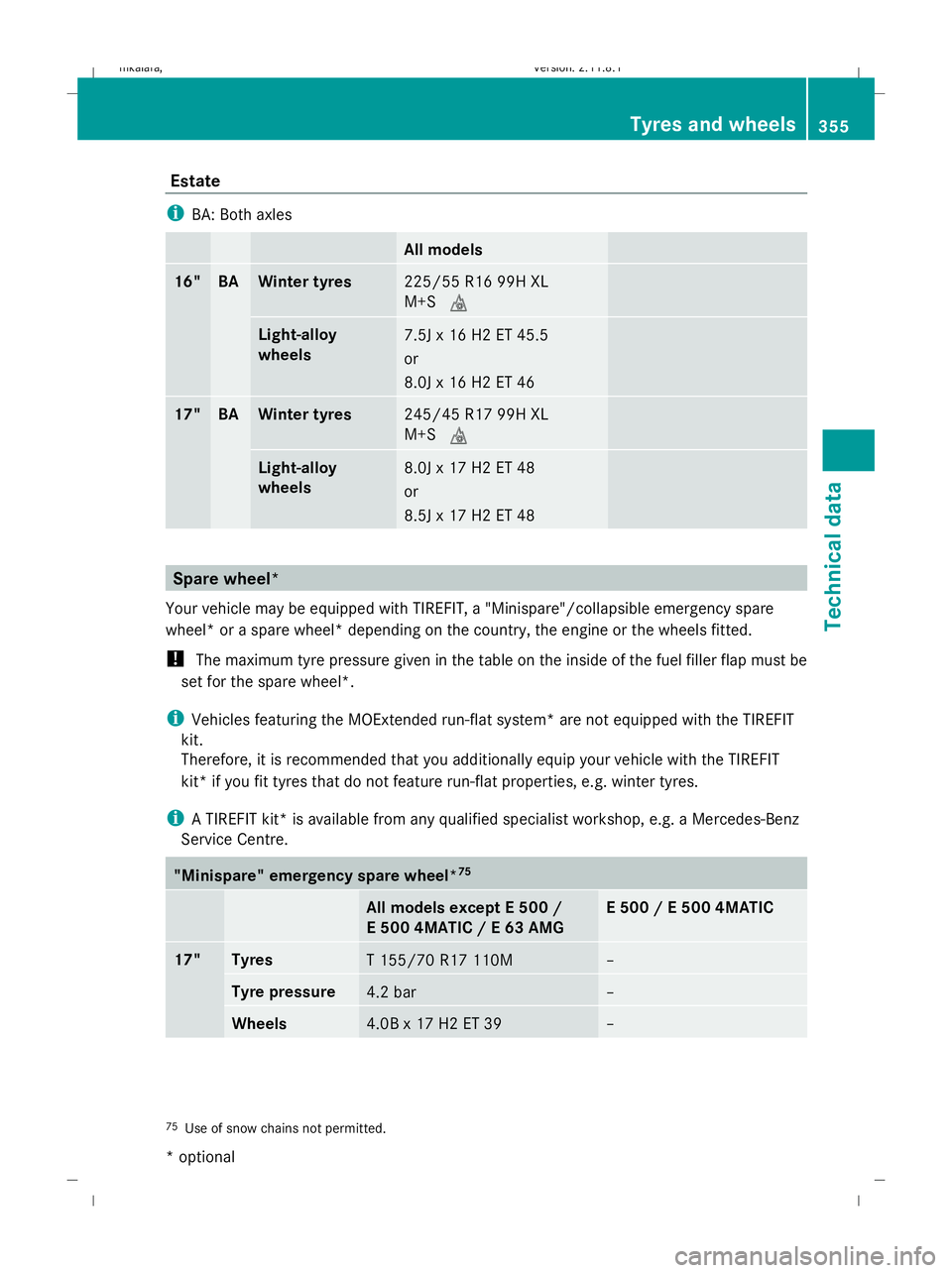

Estate
i
BA: Both axles All models
16" BA Winter tyres
225/55 R16 99H XL
M+S
i Light-alloy
wheels
7.5J x 16 H2 ET 45.5
or
8.0J x 16 H2 ET 46
17" BA Winter tyres
245/45 R17 99H XL
M+S
i Light-alloy
wheels
8.0J x 17 H2 ET 48
or
8.5J x 17 H2 ET 48
Spare wheel*
Your vehicle may be equipped with TIREFIT, a "Minispare"/collapsible emergency spare
wheel* or a spare wheel* depending on the country, the engine or the wheels fitted.
! The maximum tyre pressure given in the table on the inside of the fuel filler flap must be
set for the spare wheel*.
i Vehicles featuring the MOExtended run-flat system* are not equipped with the TIREFIT
kit.
Therefore, it is recommended that you additionally equip your vehicle with the TIREFIT
kit* if you fit tyres that do not feature run-flat properties, e.g. winter tyres.
i A TIREFIT kit* is available from any qualified specialist workshop, e.g. a Mercedes-Benz
Service Centre. "Minispare" emergency spare wheel*
75 All models except E 500 /
E 500 4MATIC / E 63 AMG E 500 / E 500 4MATIC
17" Tyres
T 155/70 R17 110M –
Tyre pressure
4.2 bar –
Wheels
4.0B x 17 H2 ET 39 –
75
Use of snow chains not permitted. Tyres and wheels
355Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 355 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:36; WK

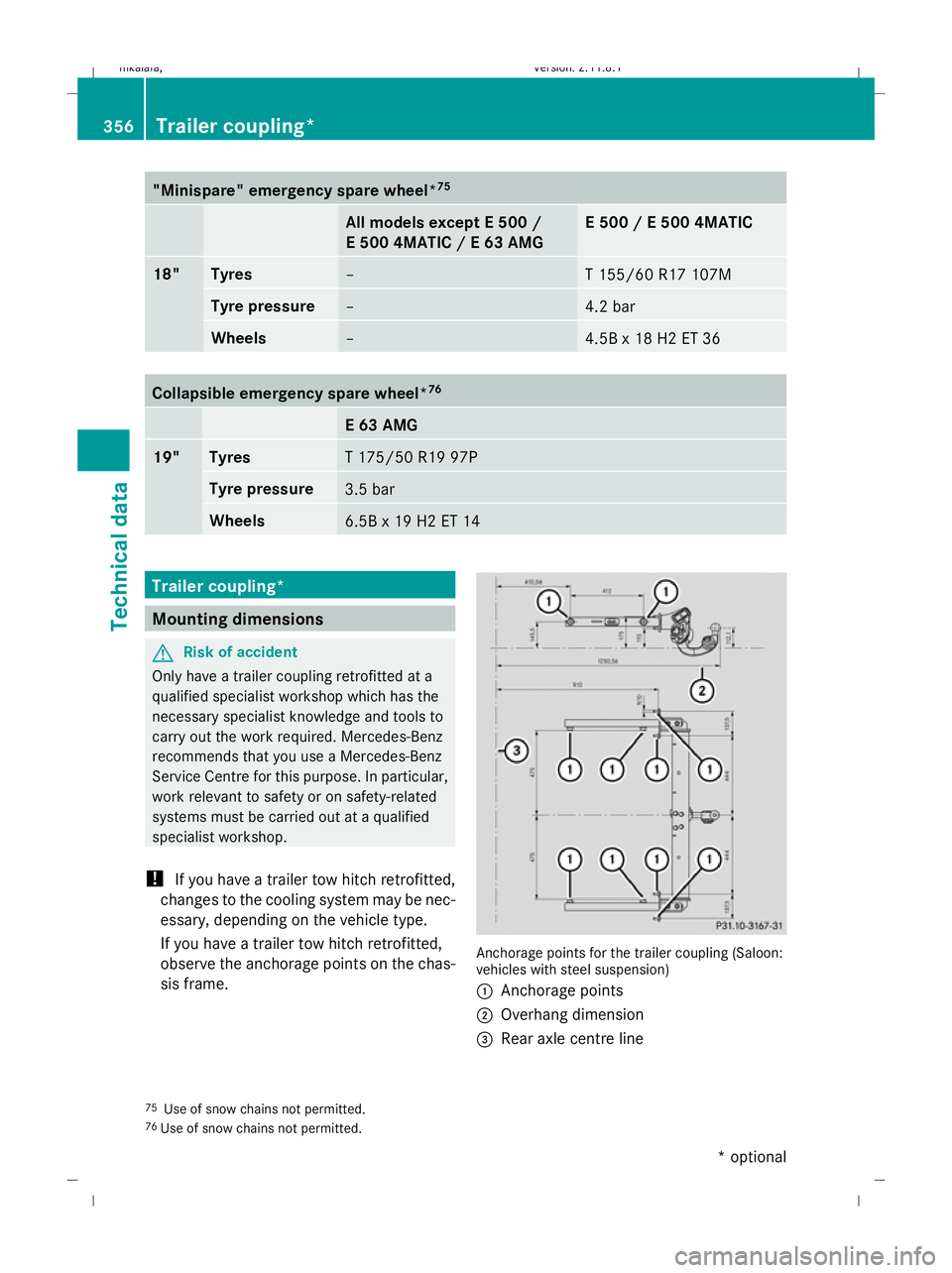

"Minispare" emergency spare wheel*
75 All models except E 500 /
E 500 4MATIC / E 63 AMG E 500 / E 500 4MATIC
18" Tyres
– T 155/60 R17 107M
Tyre pressure
– 4.2 bar
Wheels
– 4.5B x 18 H2 ET 36
Collapsible emergency spare wheel*
76 E 63 AMG
19" Tyres
T 175/50 R19 97P
Tyre pressure
3.5 bar
Wheels
6.5B x 19 H2 ET 14
Trailer coupling*
Mounting dimensions
G
Risk of accident
Only have a trailer coupling retrofitted at a
qualified specialist workshop which has the
necessary specialist knowledge and tools to
carry out the work required. Mercedes-Benz
recommends that you use a Mercedes-Benz
Service Centre for this purpose. In particular,
work relevant to safety or on safety-related
systems must be carried out at a qualified
specialist workshop.
! If you have a trailer tow hitch retrofitted,
changes to the cooling system may be nec-
essary, depending on the vehicle type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the chas-
sis frame. Anchorage points for the trailer coupling (Saloon:
vehicles with steel suspension)
:
Anchorage points
; Overhang dimension
= Rear axle centre line
75 Use of snow chains not permitted.
76 Use of snow chains not permitted. 356
Trailer coupling*Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa,
Version: 2.11.8.1 2009-05-05T14:17:16+02:00 - Seite 356
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:36; WK

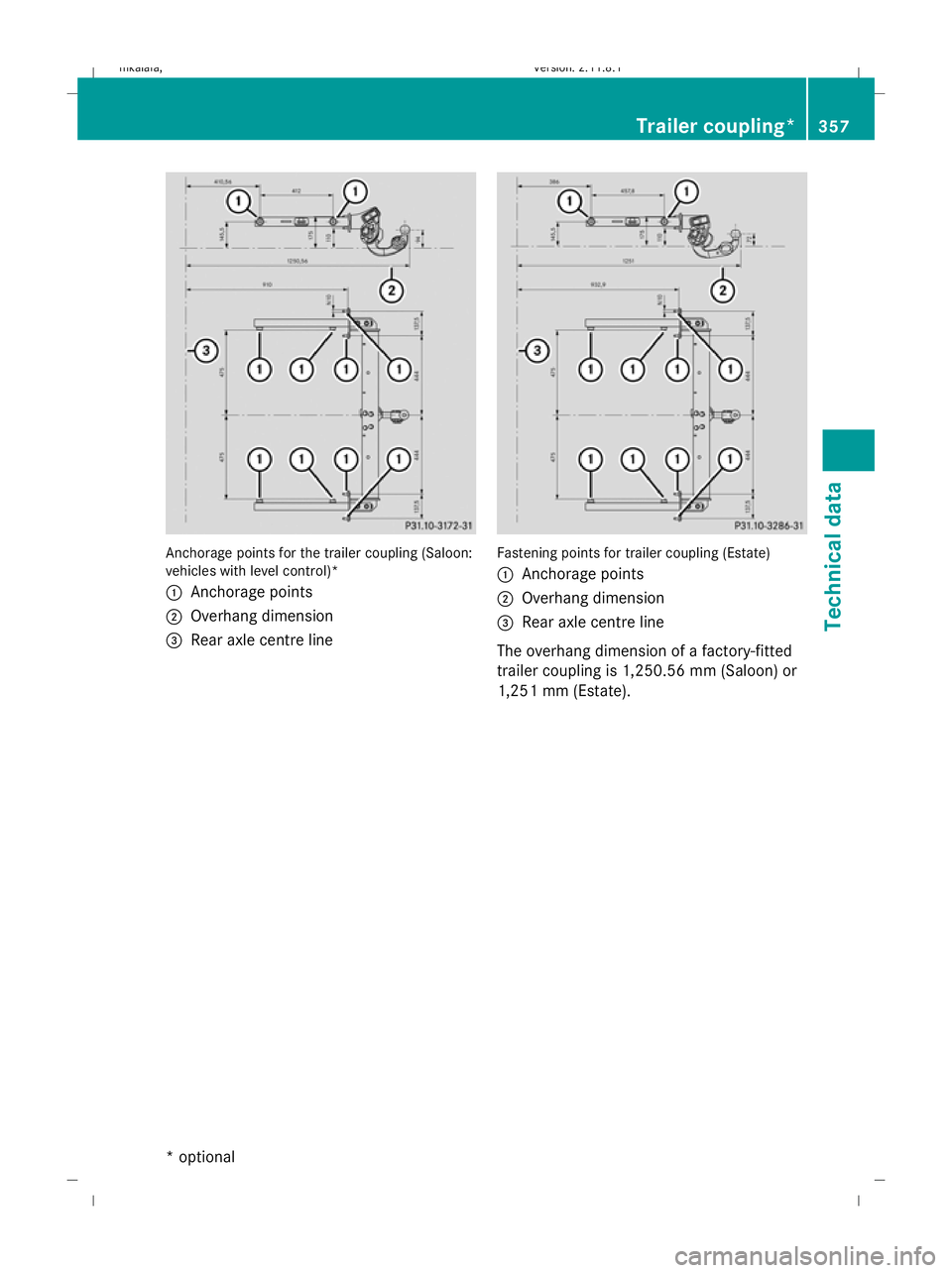

Anchorage points for the trailer coupling (Saloon:
vehicles with level control)*
:
Anchorage points
; Overhang dimension
= Rear axle centre line Fastening points for trailer coupling (Estate)
:
Anchorage points
; Overhang dimension
= Rear axle centre line
The overhang dimension of a factory-fitted
trailer coupling is 1,250.56 mm (Saloon) or
1,251 mm (Estate). Trailer coupling*
357Technical data
* optional
212_AKB; 2; 4, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-05-05T14:17:16+02:00 - Seite 357 Z
Dateiname: 6515346702_buchblock.pdf; erzeugt am 07. May 2009 14:17:37; WK
