MERCEDES-BENZ E-Class SEDAN 2015 W212 Owner's Manual

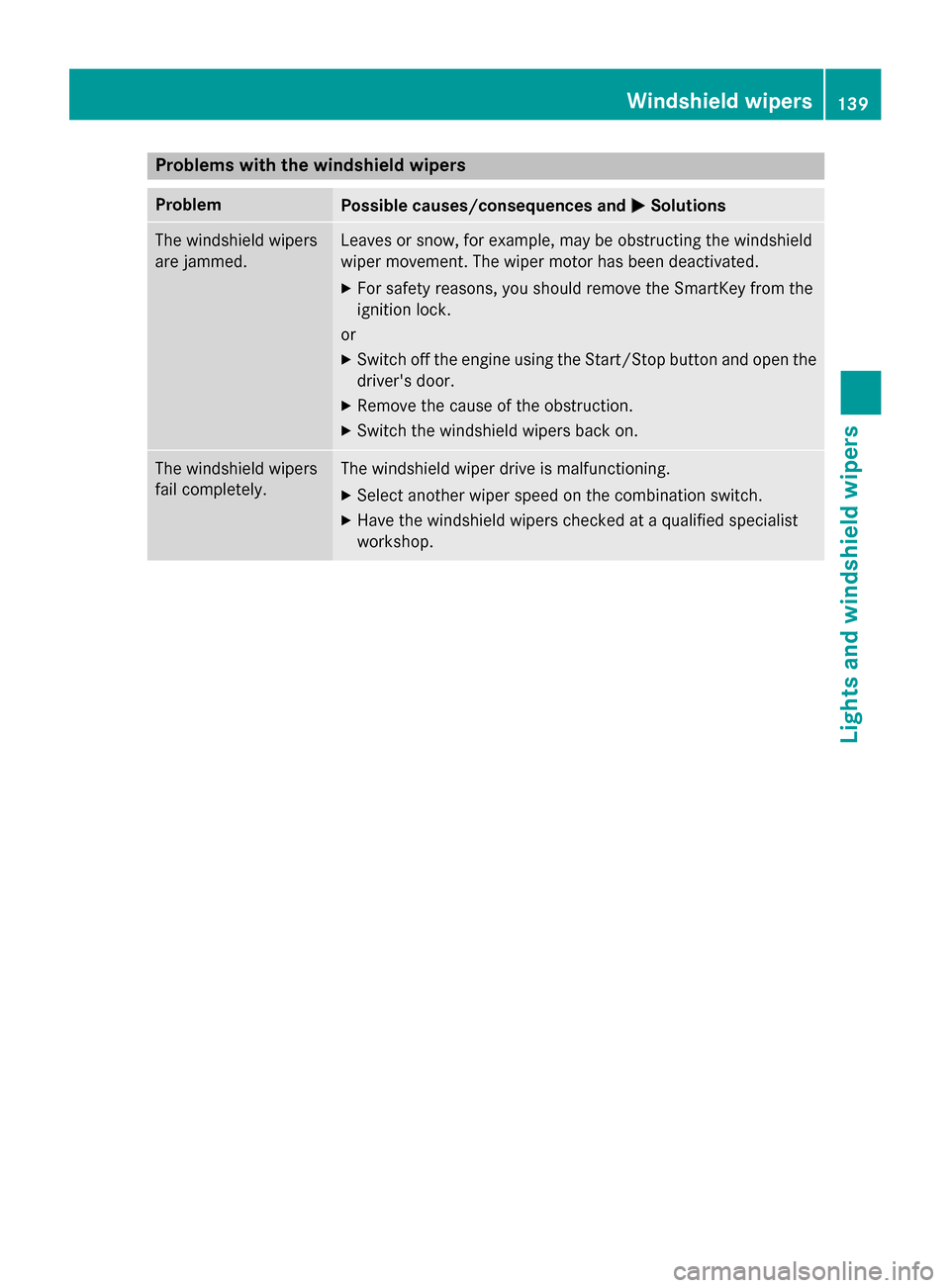

Problems with the windshield wipers
Problem
Possible causes/consequences and
0050
0050Solutions The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
X For safety reasons, you should remove the SmartKey from the
ignition lock.
or X Switch off the engine using the Start/Stop button and open the
driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. The windshield wipers
fail completely. The windshield wiper drive is malfunctioning.
X Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop. Windshield wipers
139Lights and windshield wipers Z

140

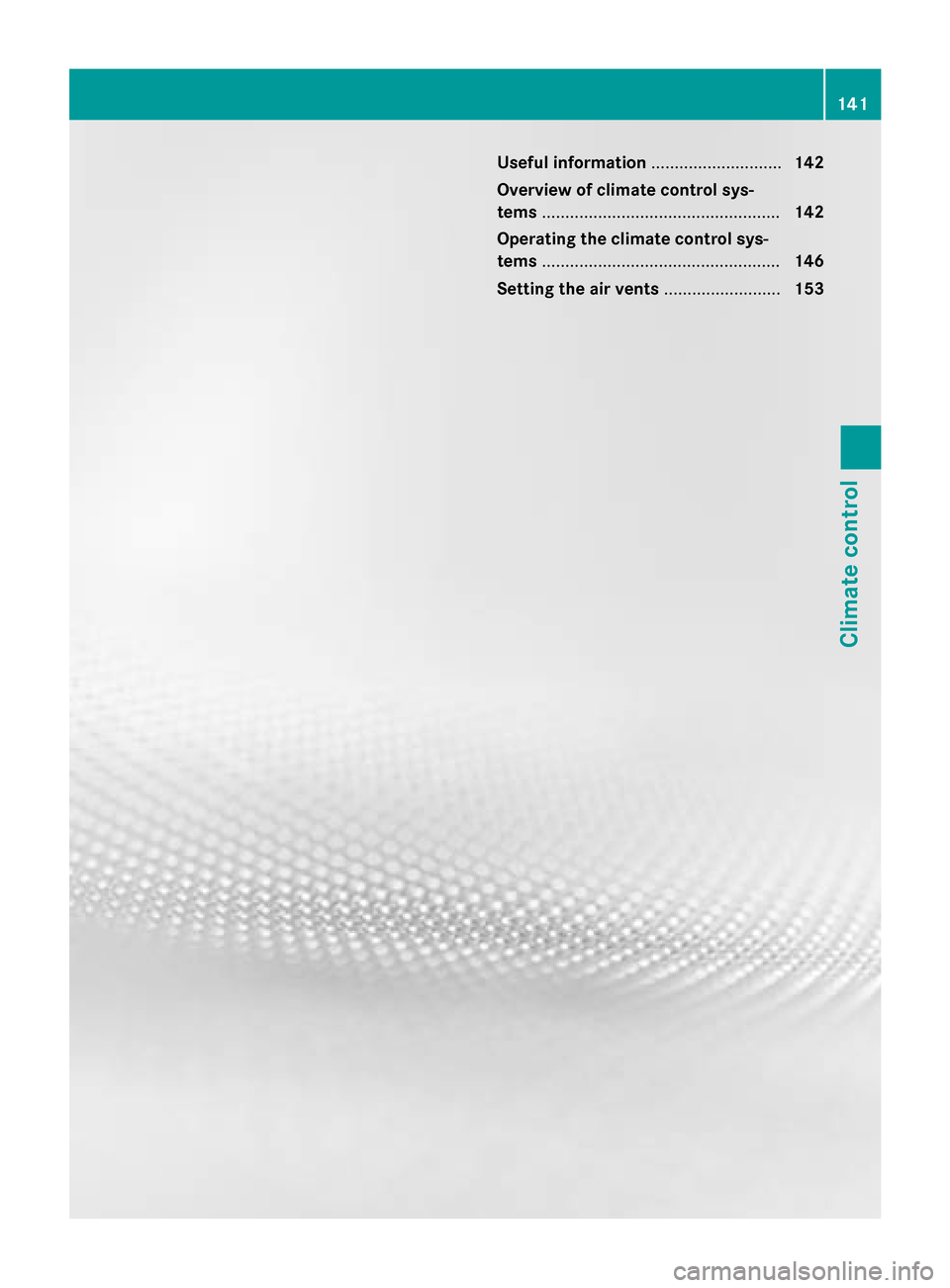

Useful information
............................142
Overview of climate control sys-
tems ................................................... 142
Operating the climate control sys-
tems ................................................... 146
Setting the air vents .........................153 141Climate control

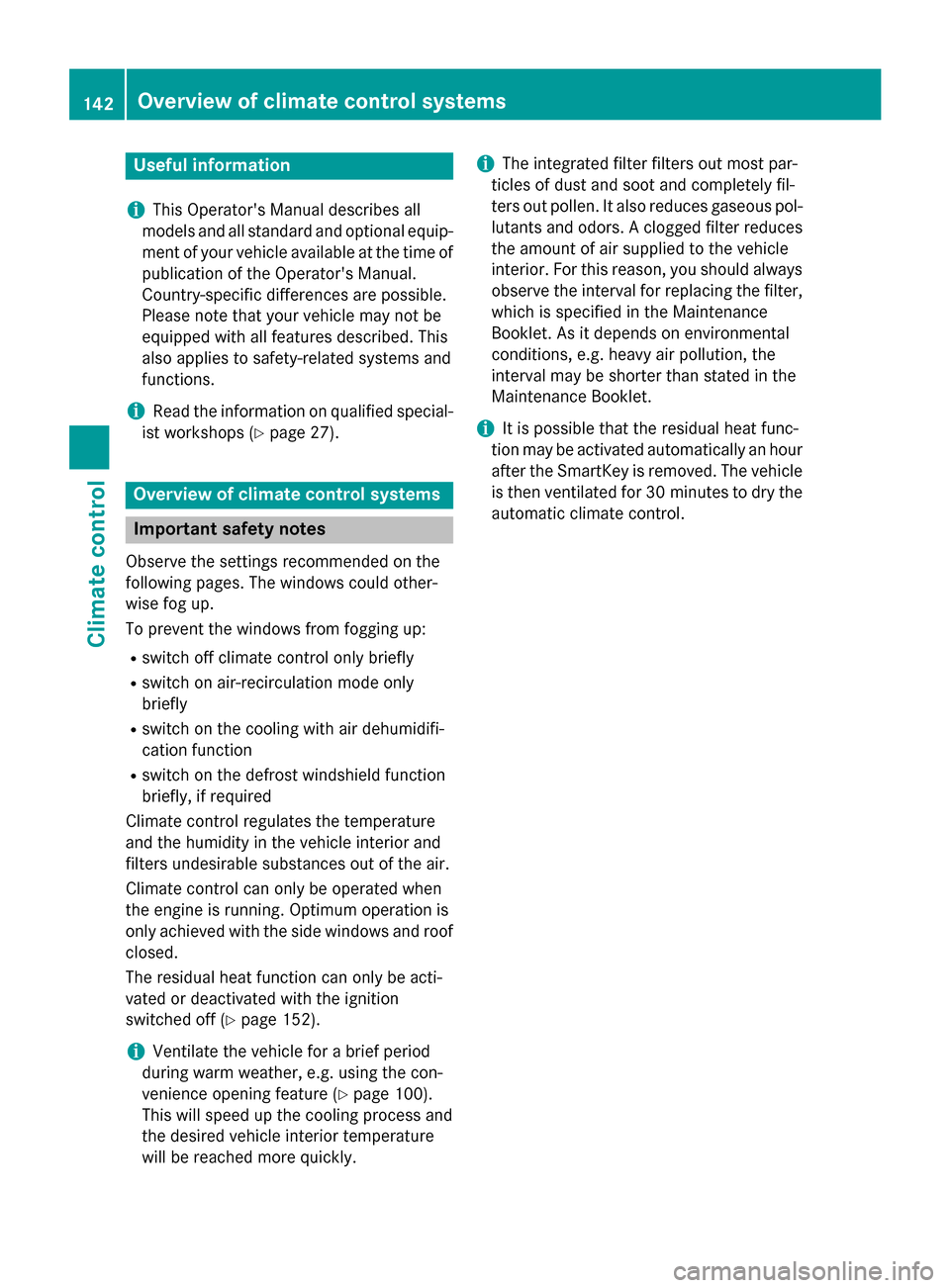

Useful information
i This Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 27). Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air dehumidifi-
cation function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (Y page 152).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (Y page 100).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly. i
The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces the amount of air supplied to the vehicle
interior. For this reason, you should alwaysobserve the interval for replacing the filter,which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet.
i It is possible that the residual heat func-
tion may be activated automatically an hour
after the SmartKey is removed. The vehicle is then ventilated for 30 minutes to dry the automatic climate control. 142
Overview of climate control systemsClimate control

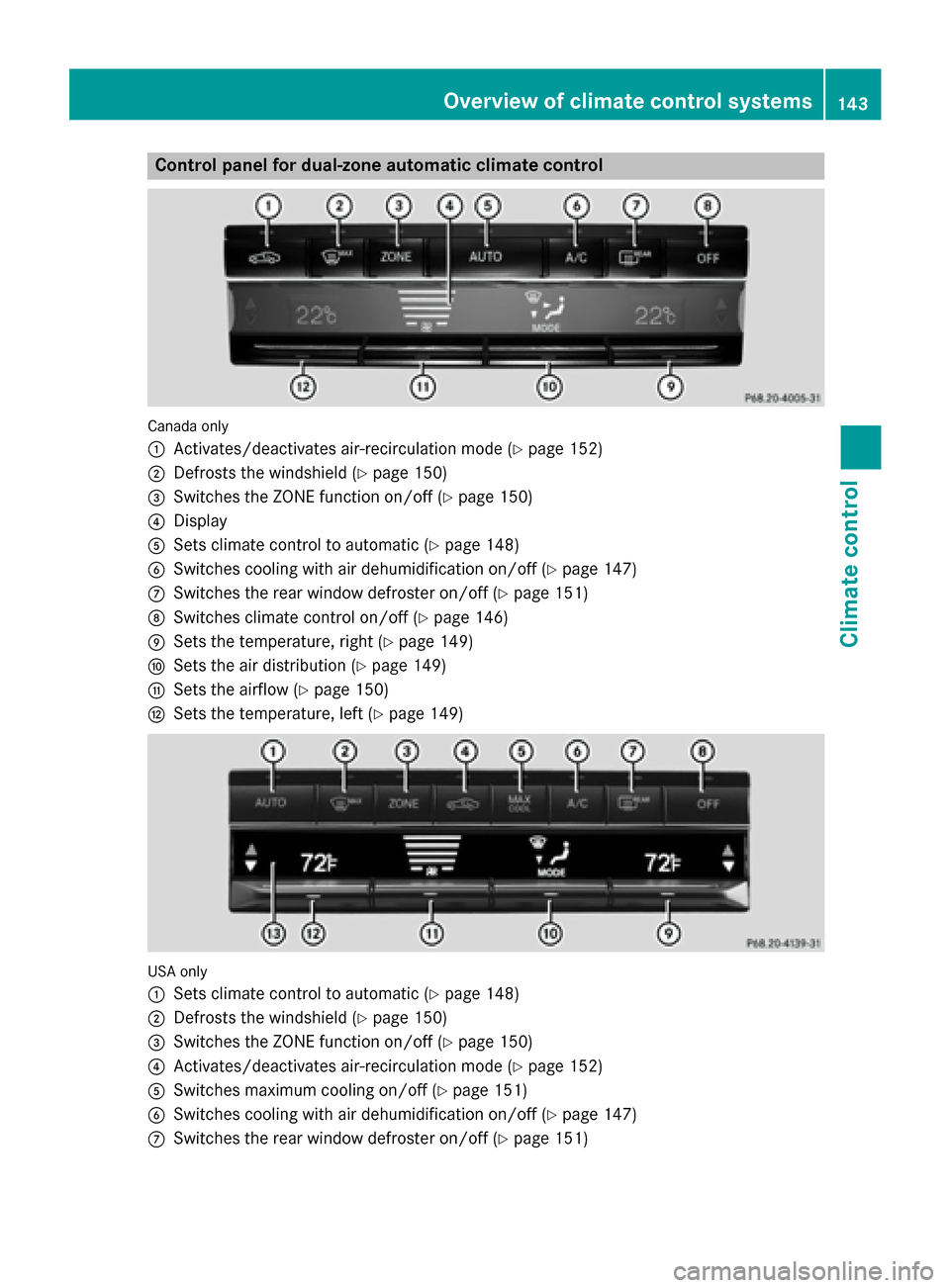

Control panel for dual-zone automatic climate control
Canada only
0043
Activates/deactivates air-recirculation mode (Y page 152)
0044 Defrosts the windshield (Y page 150)
0087 Switches the ZONE function on/off (Y page 150)
0085 Display
0083 Sets climate control to automatic (Y page 148)
0084 Switches cooling with air dehumidification on/off (Y page 147)
006B Switches the rear window defroster on/off (Y page 151)
006C Switches climate control on/off (Y page 146)
006D Sets the temperature, right (Y page 149)
006E Sets the air distribution (Y page 149)
006F Sets the airflow (Y page 150)
0070 Sets the temperature, left (Y page 149)USA only
0043
Sets climate control to automatic (Y page 148)
0044 Defrosts the windshield (Y page 150)
0087 Switches the ZONE function on/off (Y page 150)
0085 Activates/deactivates air-recirculation mode (Y page 152)
0083 Switches maximum cooling on/off (Y page 151)
0084 Switches cooling with air dehumidification on/off (Y page 147)
006B Switches the rear window defroster on/off (Y page 151) Overview of climate control systems
143Climate control

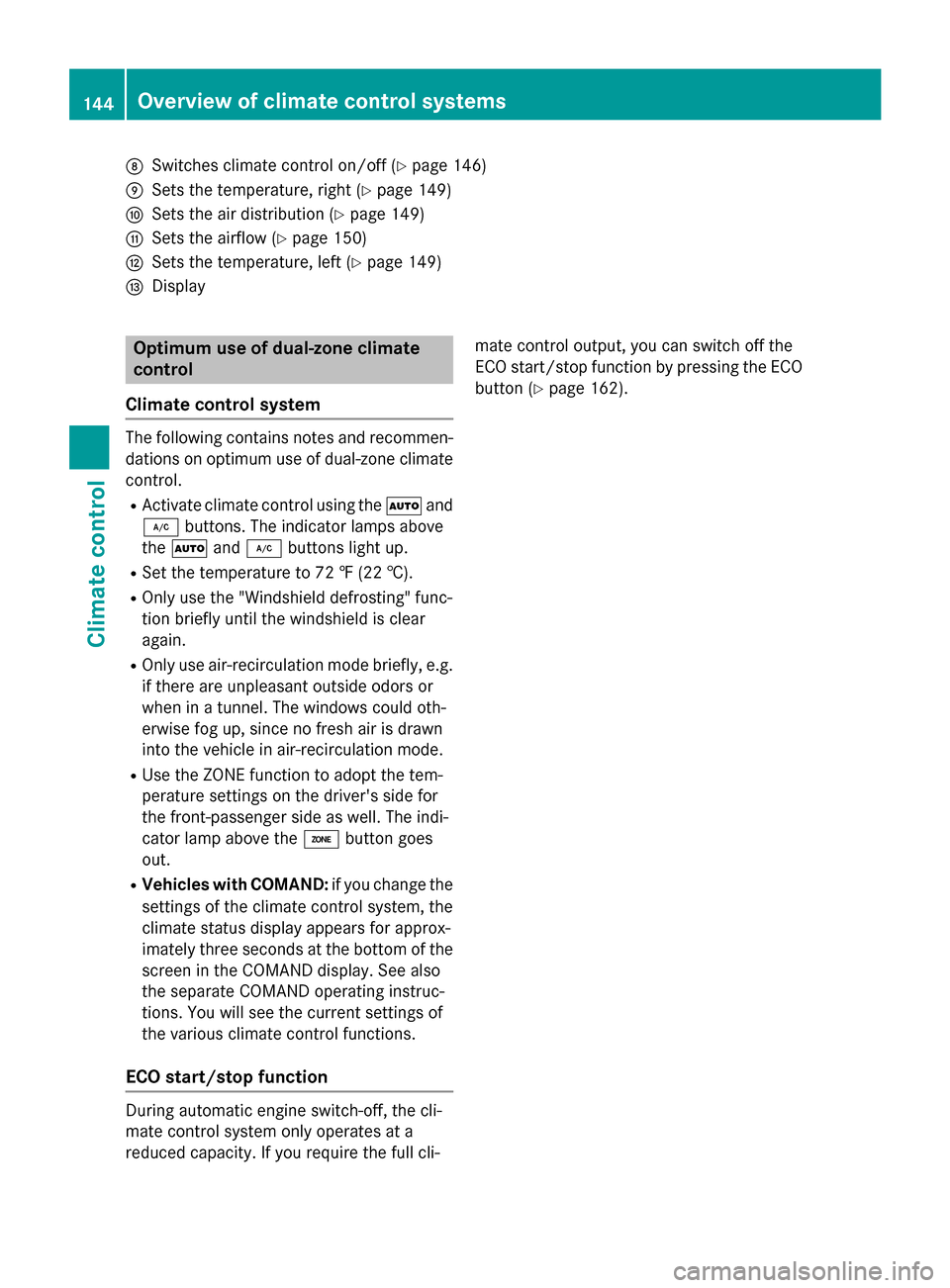

006C
Switches climate control on/off (Y page 146)
006D Sets the temperature, right (Y page 149)
006E Sets the air distribution (Y page 149)
006F Sets the airflow (Y page 150)
0070 Sets the temperature, left (Y page 149)
0071 Display Optimum use of dual-zone climate
control
Climate control system The following contains notes and recommen-
dations on optimum use of dual-zone climate control.
R Activate climate control using the 0058and
005A buttons. The indicator lamps above
the 0058 and005A buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp above the 00D6button goes
out.
R Vehicles with COMAND: if you change the
settings of the climate control system, the
climate status display appears for approx-
imately three seconds at the bottom of the
screen in the COMAND display. See also
the separate COMAND operating instruc-
tions. You will see the current settings of
the various climate control functions.
ECO start/stop function During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli- mate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Y page 162). 144
Overview of climate control systemsClimate control

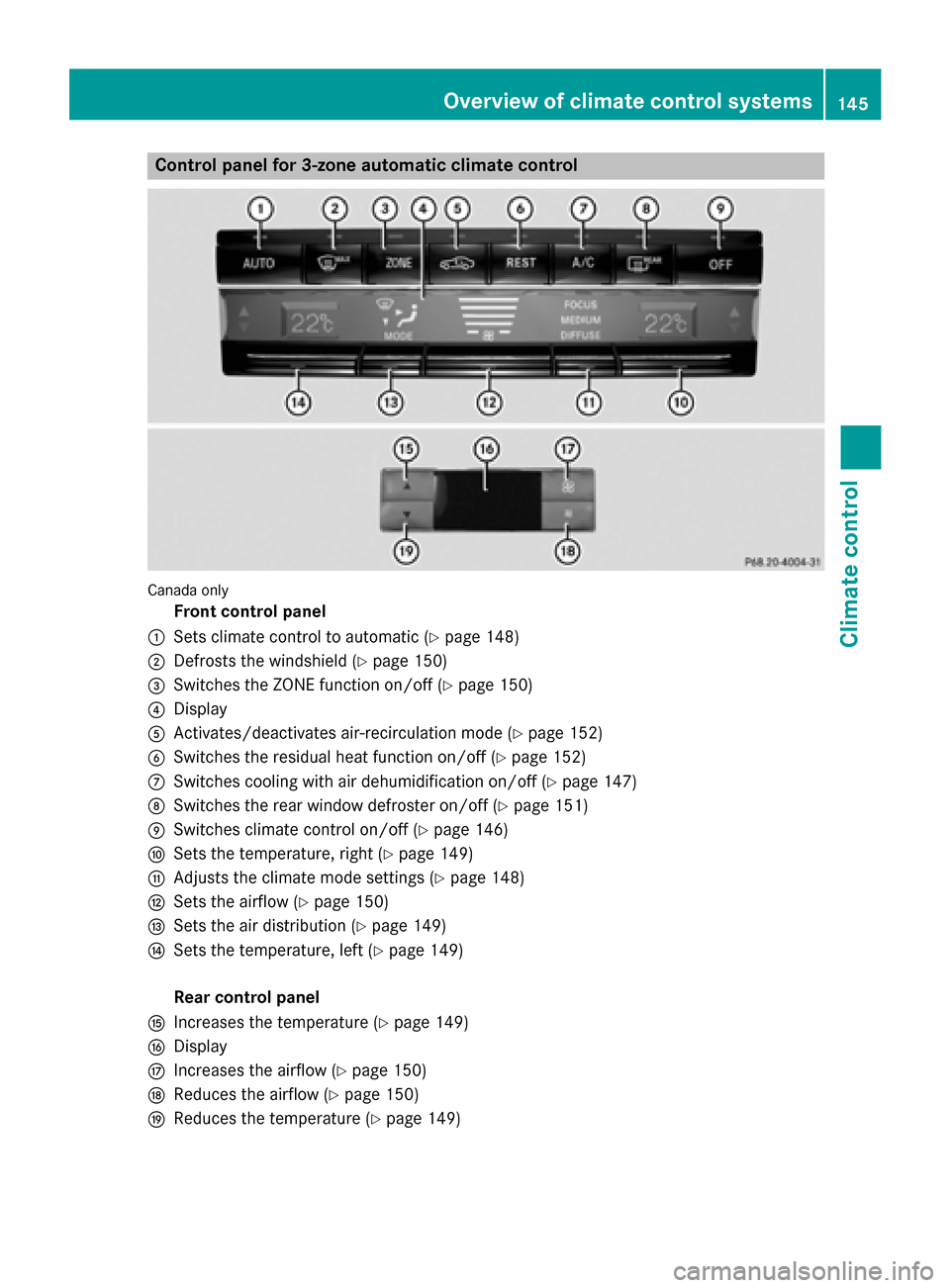

Control panel for 3-zone automatic climate control
Canada only
Front control panel
0043 Sets climate control to automatic (Y page 148)
0044 Defrosts the windshield (Y page 150)
0087 Switches the ZONE function on/off (Y page 150)
0085 Display
0083 Activates/deactivates air-recirculation mode (Y page 152)
0084 Switches the residual heat function on/off (Y page 152)
006B Switches cooling with air dehumidification on/off (Y page 147)
006C Switches the rear window defroster on/off (Y page 151)
006D Switches climate control on/off (Y page 146)
006E Sets the temperature, right (Y page 149)
006F Adjusts the climate mode settings (Y page 148)
0070 Sets the airflow (Y page 150)
0071 Sets the air distribution (Y page 149)
0072 Sets the temperature, left (Y page 149)
Rear control panel
0073 Increases the temperature (Y page 149)
0074 Display
0075 Increases the airflow (Y page 150)
0076 Reduces the airflow (Y page 150)
0077 Reduces the temperature (Y page 149) Overview of climate control systems
145Climate control

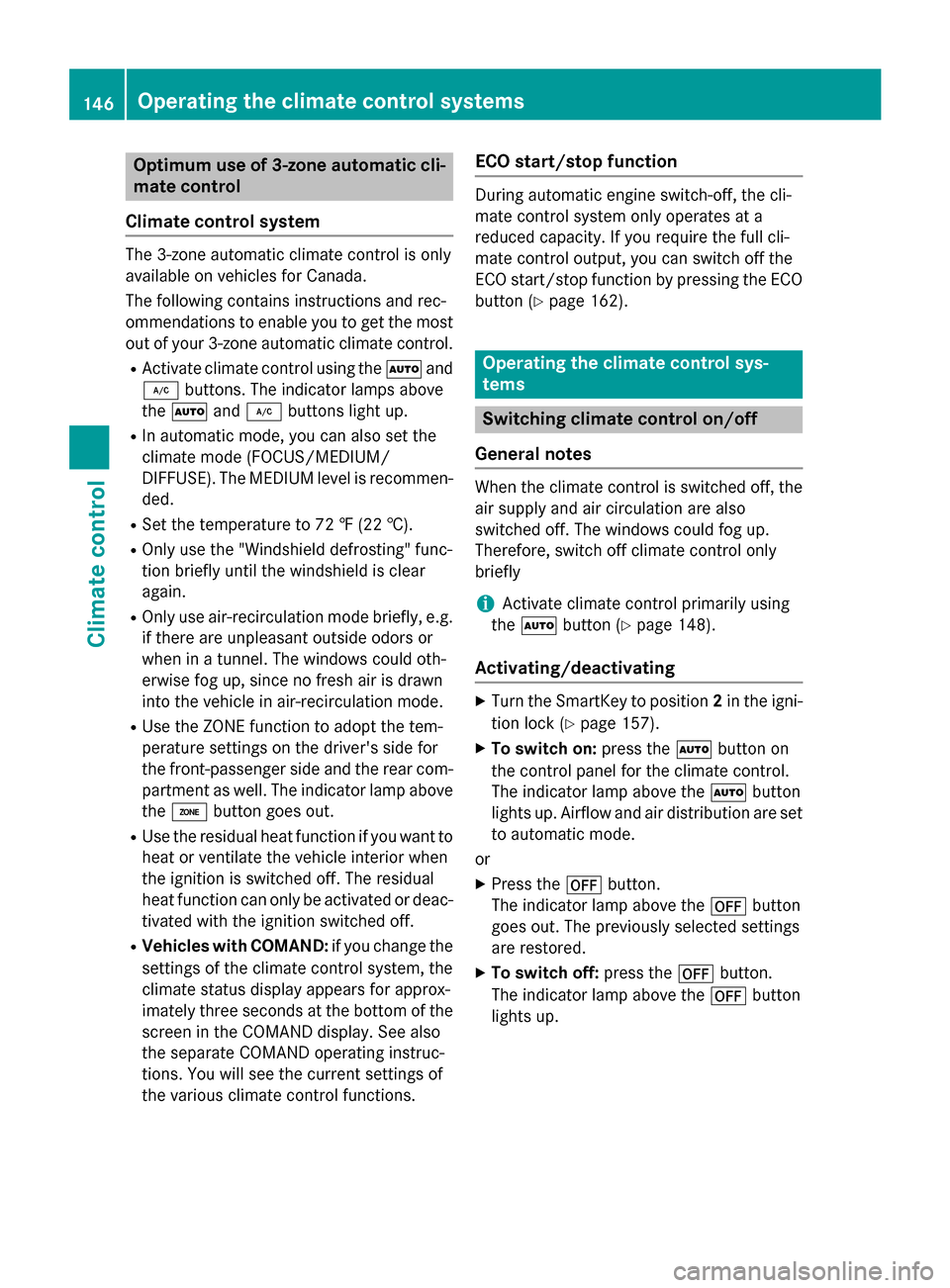

Optimum use of 3-zone automatic cli-
mate control
Climate control system The 3-zone automatic climate control is only
available on vehicles for Canada.
The following contains instructions and rec-
ommendations to enable you to get the most
out of your 3-zone automatic climate control.
R Activate climate control using the 0058and
005A buttons. The indicator lamps above
the 0058 and005A buttons light up.
R In automatic mode, you can also set the
climate mode (FOCUS/MEDIUM/
DIFFUSE). The MEDIUM level is recommen-
ded.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side and the rear com-
partment as well. The indicator lamp above the 00D6 button goes out.
R Use the residual heat function if you want to
heat or ventilate the vehicle interior when
the ignition is switched off. The residual
heat function can only be activated or deac-
tivated with the ignition switched off.
R Vehicles with COMAND: if you change the
settings of the climate control system, the
climate status display appears for approx-
imately three seconds at the bottom of the
screen in the COMAND display. See also
the separate COMAND operating instruc-
tions. You will see the current settings of
the various climate control functions. ECO start/stop function During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECO button (Y page 162). Operating the climate control sys-
tems
Switching climate control on/off
General notes When the climate control is switched off, the
air supply and air circulation are also
switched off. The windows could fog up.
Therefore, switch off climate control only
briefly
i Activate climate control primarily using
the 0058 button (Y page 148).
Activating/deactivating X
Turn the SmartKey to position 2in the igni-
tion lock (Y page 157).
X To switch on: press the0058button on
the control panel for the climate control.
The indicator lamp above the 0058button
lights up. Airflow and air distribution are set
to automatic mode.
or X Press the 0078button.
The indicator lamp above the 0078button
goes out. The previously selected settings
are restored.
X To switch off: press the0078button.
The indicator lamp above the 0078button
lights up. 146
Operating the climate control systemsClimate control

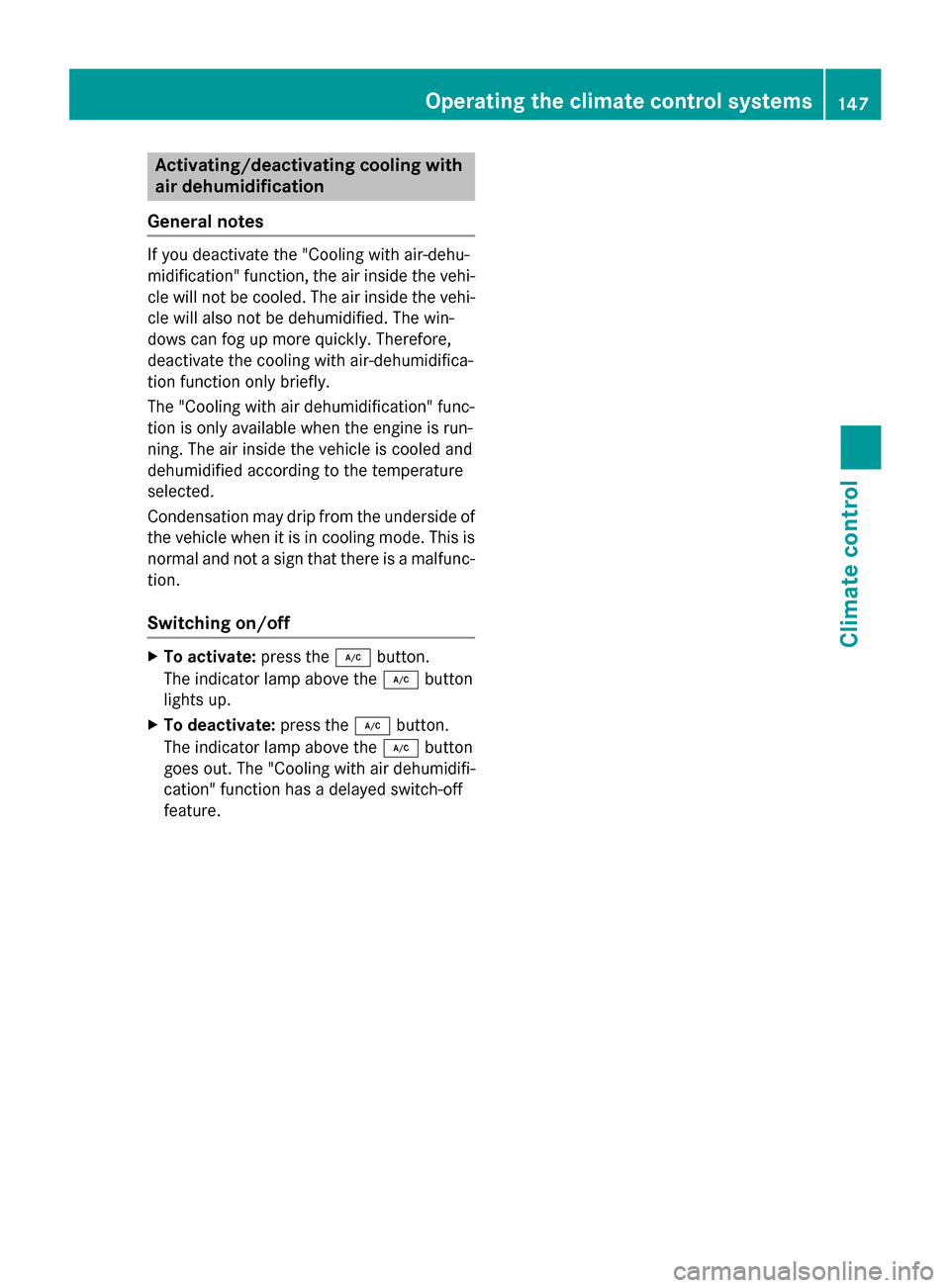

Activating/deactivating cooling with
air dehumidification
General notes If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi-
cle will not be cooled. The air inside the vehi-
cle will also not be dehumidified. The win-
dows can fog up more quickly. Therefore,
deactivate the cooling with air-dehumidifica-
tion function only briefly.
The "Cooling with air dehumidification" func-
tion is only available when the engine is run-
ning. The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
Condensation may drip from the underside of the vehicle when it is in cooling mode. This isnormal and not a sign that there is a malfunc-
tion.
Switching on/off X
To activate: press the005Abutton.
The indicator lamp above the 005Abutton
lights up.
X To deactivate: press the005Abutton.
The indicator lamp above the 005Abutton
goes out. The "Cooling with air dehumidifi-
cation" function has a delayed switch-off
feature. Operating the climate control systems
147Climate control

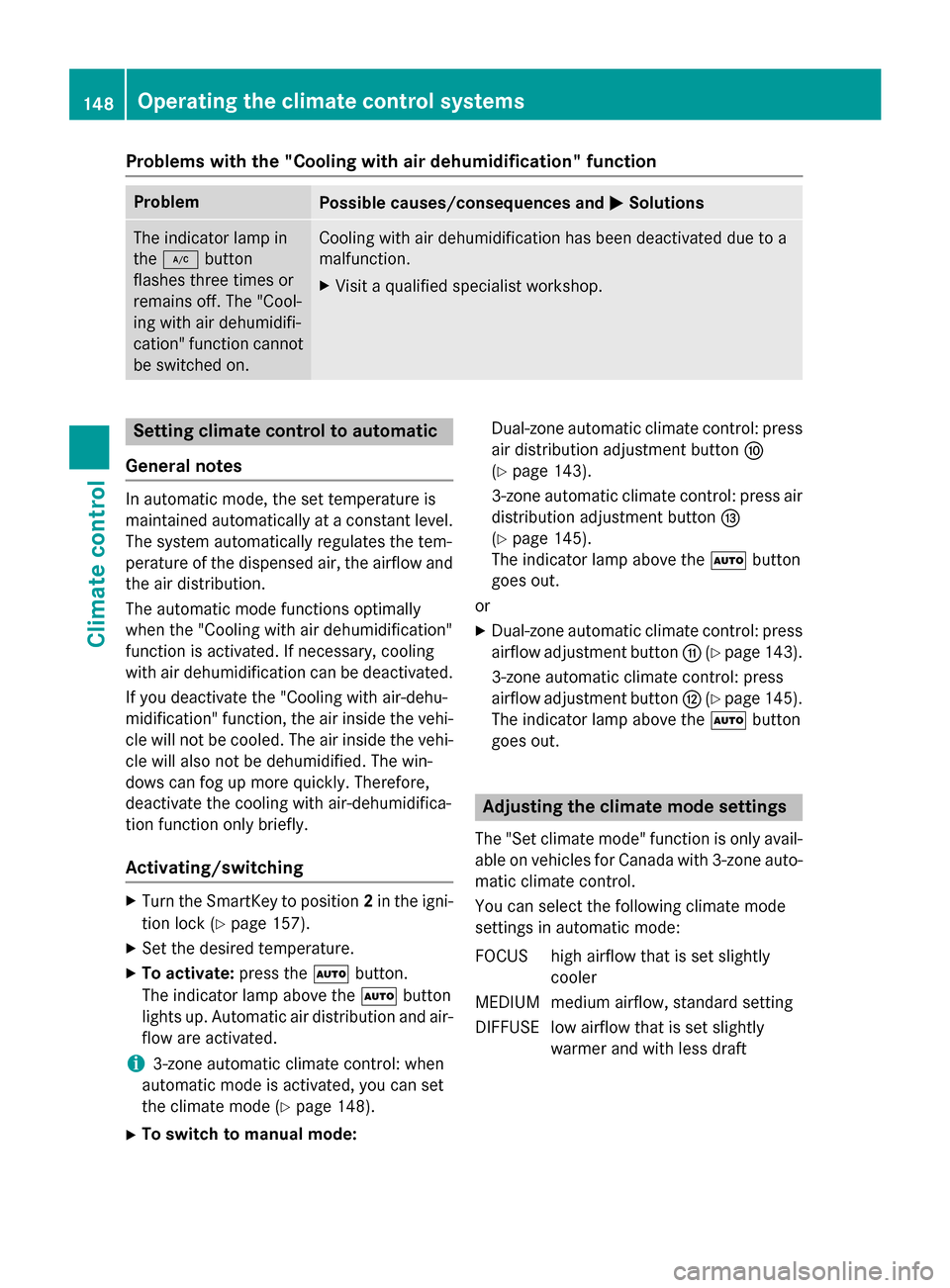

Problems with the "Cooling with air dehumidification" function
Problem
Possible causes/consequences and
0050
0050Solutions The indicator lamp in
the
005A button
flashes three times or
remains off. The "Cool-
ing with air dehumidifi-
cation" function cannot
be switched on. Cooling with air dehumidification has been deactivated due to a
malfunction.
X Visit a qualified specialist workshop. Setting climate control to automatic
General notes In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the tem-
perature of the dispensed air, the airflow and
the air distribution.
The automatic mode functions optimally
when the "Cooling with air dehumidification"
function is activated. If necessary, cooling
with air dehumidification can be deactivated.
If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi-
cle will not be cooled. The air inside the vehi- cle will also not be dehumidified. The win-
dows can fog up more quickly. Therefore,
deactivate the cooling with air-dehumidifica-
tion function only briefly.
Activating/switching X
Turn the SmartKey to position 2in the igni-
tion lock (Y page 157).
X Set the desired temperature.
X To activate: press the0058button.
The indicator lamp above the 0058button
lights up. Automatic air distribution and air-
flow are activated.
i 3-zone automatic climate control: when
automatic mode is activated, you can set
the climate mode (Y page 148).
X To switch to manual mode: Dual-zone automatic climate control: press
air distribution adjustment button 006E
(Y page 143).
3-zone automatic climate control: press air
distribution adjustment button 0071
(Y page 145).
The indicator lamp above the 0058button
goes out.
or
X Dual-zone automatic climate control: press
airflow adjustment button 006F(Ypage 143).
3-zone automatic climate control: press
airflow adjustment button 0070(Ypage 145).
The indicator lamp above the 0058button
goes out. Adjusting the climate mode settings
The "Set climate mode" function is only avail-
able on vehicles for Canada with 3-zone auto- matic climate control.
You can select the following climate mode
settings in automatic mode:
FOCUS high airflow that is set slightly cooler
MEDIUM medium airflow, standard setting
DIFFUSE low airflow that is set slightly warmer and with less draft 148
Operating the climate control systemsClimate control
