MERCEDES-BENZ E-Class SEDAN 2015 W212 Owner's Manual

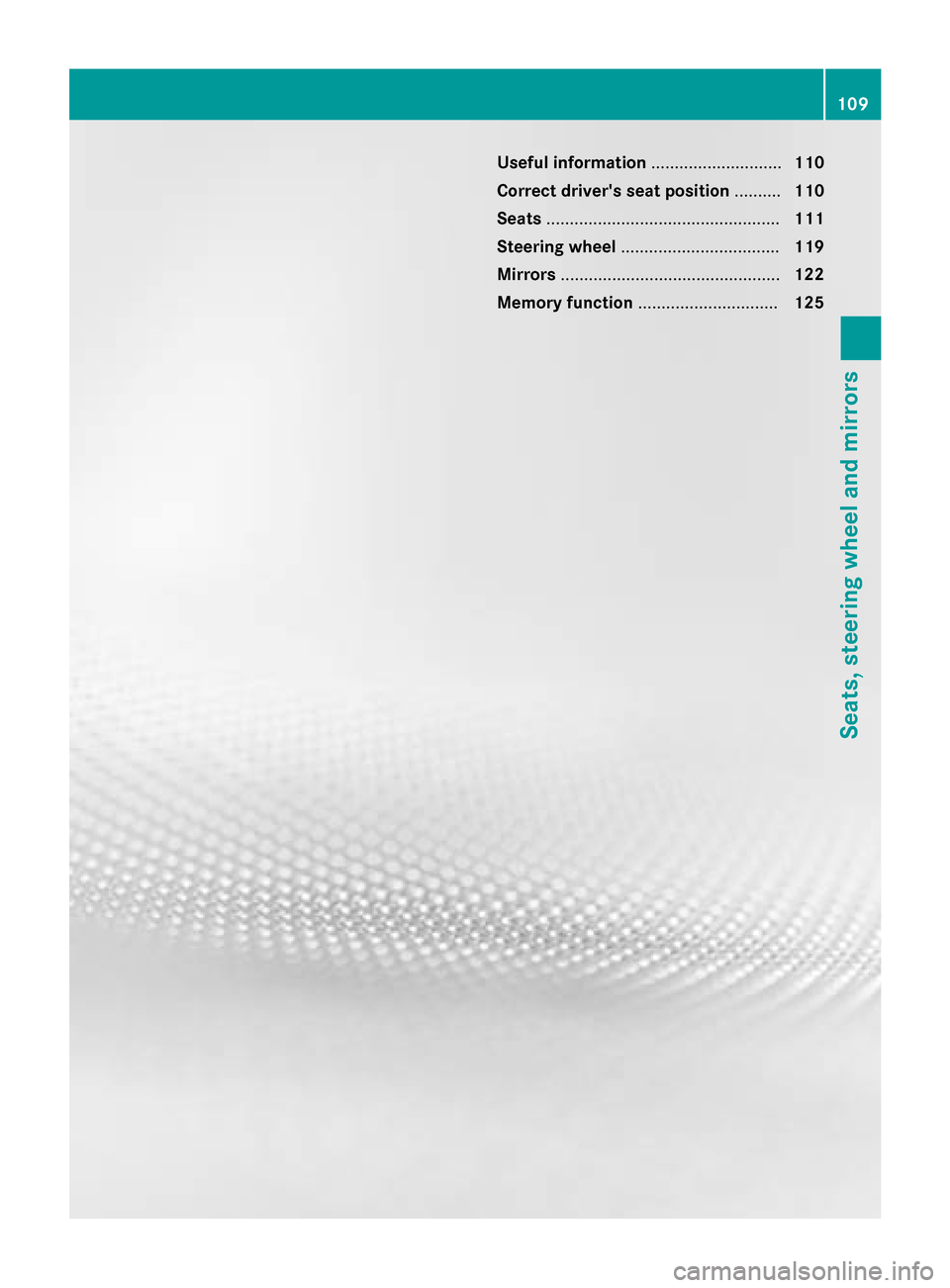

Useful information
............................110
Correct driver's seat position ..........110
Seats .................................................. 111
Steering wheel .................................. 119
Mirrors ............................................... 122
Memory function .............................. 125 109Seats, steering wheel and mirrors

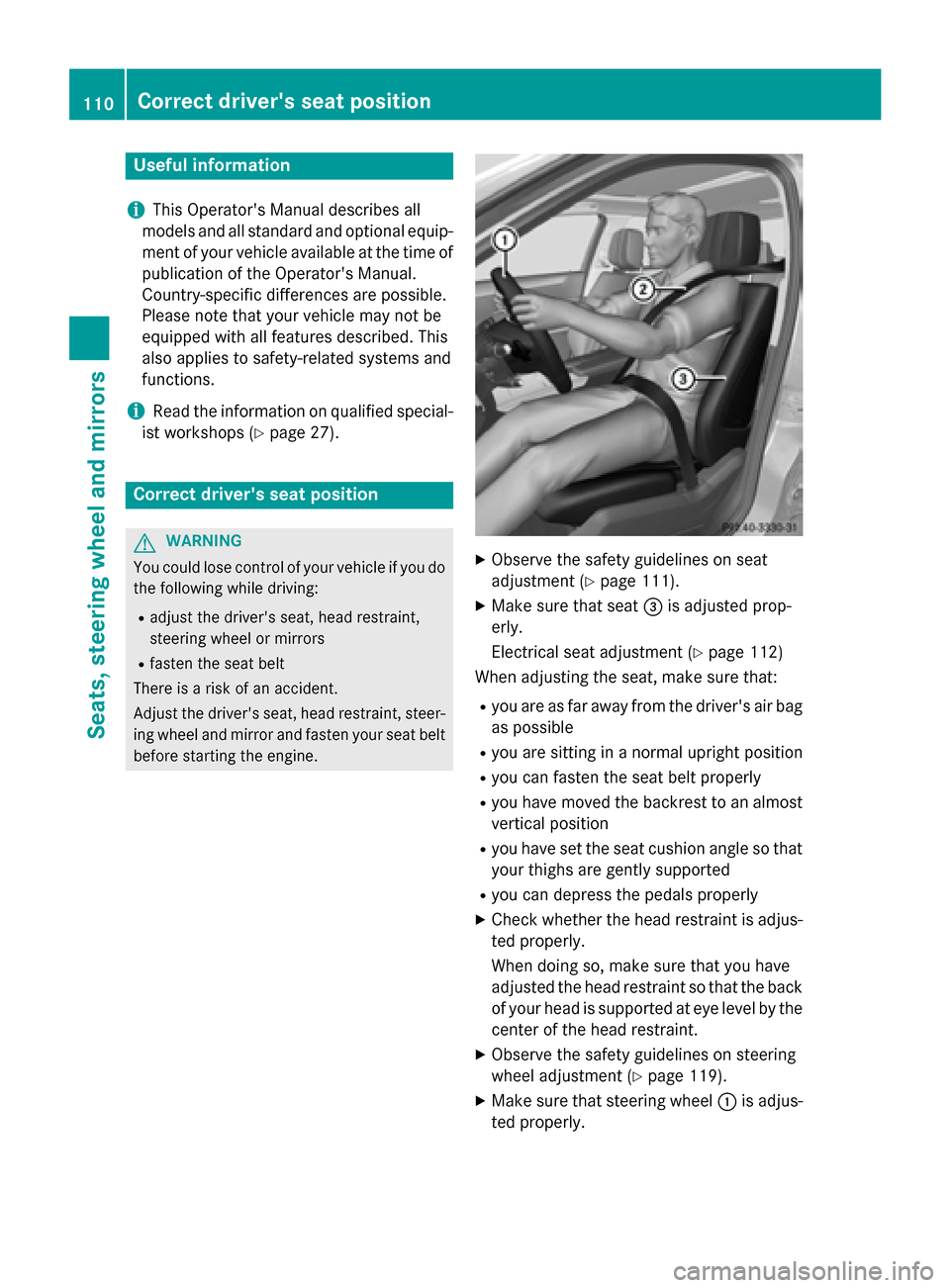

Useful information
i This Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 27). Correct driver's seat position
G
WARNING
You could lose control of your vehicle if you do the following while driving:
R adjust the driver's seat, head restraint,
steering wheel or mirrors
R fasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint, steer-
ing wheel and mirror and fasten your seat belt before starting the engine. X
Observe the safety guidelines on seat
adjustment (Y page 111).
X Make sure that seat 0087is adjusted prop-
erly.
Electrical seat adjustment (Y page 112)
When adjusting the seat, make sure that:
R you are as far away from the driver's air bag
as possible
R you are sitting in a normal upright position
R you can fasten the seat belt properly
R you have moved the backrest to an almost
vertical position
R you have set the seat cushion angle so that
your thighs are gently supported
R you can depress the pedals properly
X Check whether the head restraint is adjus-
ted properly.
When doing so, make sure that you have
adjusted the head restraint so that the back of your head is supported at eye level by the center of the head restraint.
X Observe the safety guidelines on steering
wheel adjustment (Y page 119).
X Make sure that steering wheel 0043is adjus-
ted properly. 110
Correct driver's seat positionSeats, steering wheel and mirrors

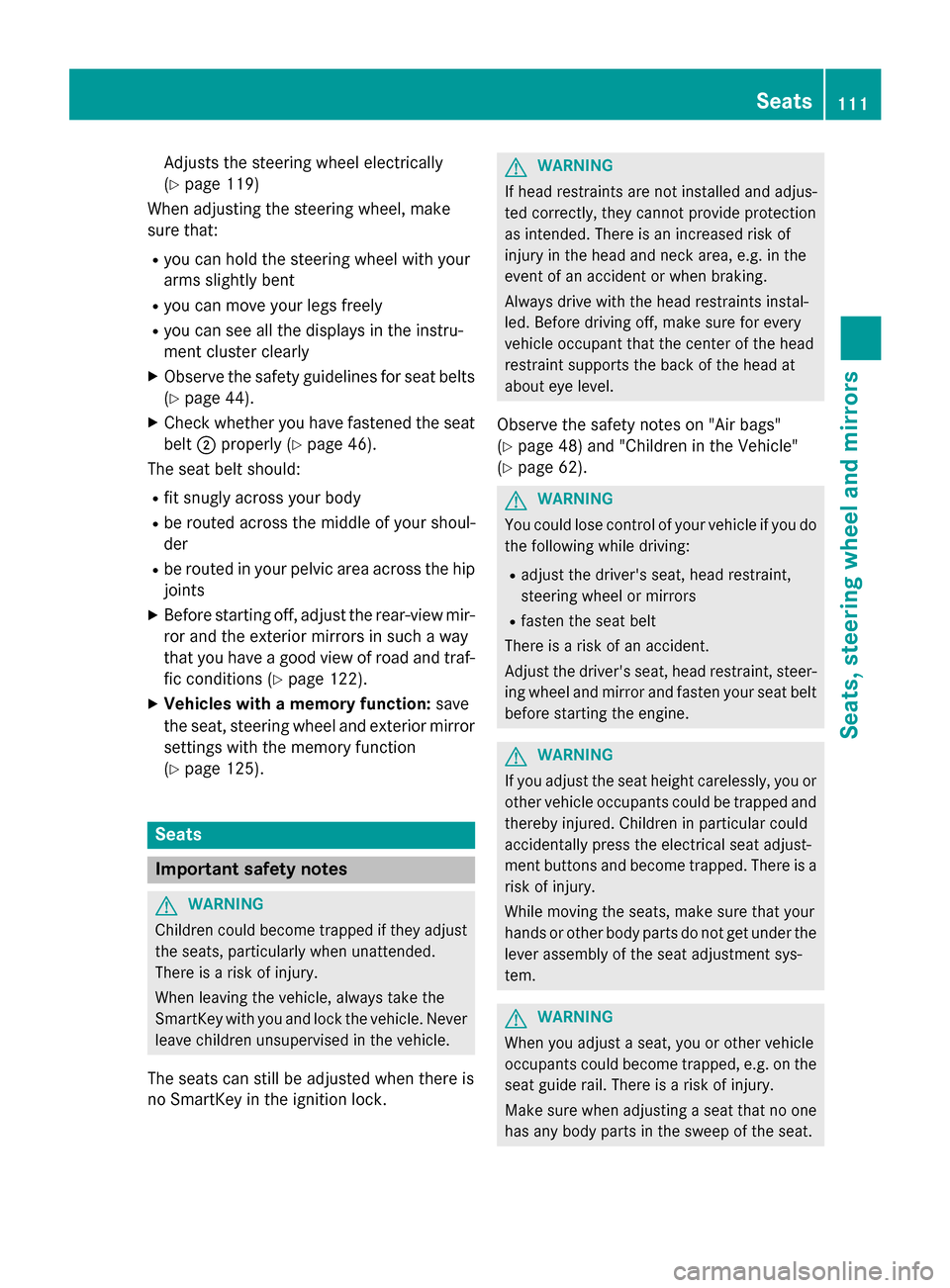

Adjusts the steering wheel electrically
(Y
page 119)
When adjusting the steering wheel, make
sure that:
R you can hold the steering wheel with your
arms slightly bent
R you can move your legs freely
R you can see all the displays in the instru-
ment cluster clearly
X Observe the safety guidelines for seat belts
(Y page 44).
X Check whether you have fastened the seat
belt 0044properly (Y page 46).
The seat belt should:
R fit snugly across your body
R be routed across the middle of your shoul-
der
R be routed in your pelvic area across the hip
joints
X Before starting off, adjust the rear-view mir-
ror and the exterior mirrors in such a way
that you have a good view of road and traf- fic conditions (Y page 122).
X Vehicles with a memory function: save
the seat, steering wheel and exterior mirror settings with the memory function
(Y page 125). Seats
Important safety notes
G
WARNING
Children could become trapped if they adjust the seats, particularly when unattended.
There is a risk of injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never leave children unsupervised in the vehicle.
The seats can still be adjusted when there is
no SmartKey in the ignition lock. G
WARNING
If head restraints are not installed and adjus-
ted correctly, they cannot provide protection
as intended. There is an increased risk of
injury in the head and neck area, e.g. in the
event of an accident or when braking.
Always drive with the head restraints instal-
led. Before driving off, make sure for every
vehicle occupant that the center of the head
restraint supports the back of the head at
about eye level.
Observe the safety notes on "Air bags"
(Y page 48) and "Children in the Vehicle"
(Y page 62). G
WARNING
You could lose control of your vehicle if you do the following while driving:
R adjust the driver's seat, head restraint,
steering wheel or mirrors
R fasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint, steer-
ing wheel and mirror and fasten your seat belt before starting the engine. G
WARNING
If you adjust the seat height carelessly, you or other vehicle occupants could be trapped andthereby injured. Children in particular could
accidentally press the electrical seat adjust-
ment buttons and become trapped. There is a
risk of injury.
While moving the seats, make sure that your
hands or other body parts do not get under the
lever assembly of the seat adjustment sys-
tem. G
WARNING
When you adjust a seat, you or other vehicle
occupants could become trapped, e.g. on the seat guide rail. There is a risk of injury.
Make sure when adjusting a seat that no one
has any body parts in the sweep of the seat. Seats
111Seats, steering wheel and mirrors Z

!
Make sure that there are no objects in the
footwell under or behind the seats when
moving the seats back. There is a risk that
the seats and/or the objects could be dam- aged.
i The head restraints in the front seats are
installed with the NECK-PRO system
(Y page 59). For this reason, it is not pos-
sible to remove the head restraints from
the front seats.
Vehicles without the through-loading fea-
ture: the head restraints cannot be
removed from the rear compartment seats.
For more information, contact a qualified

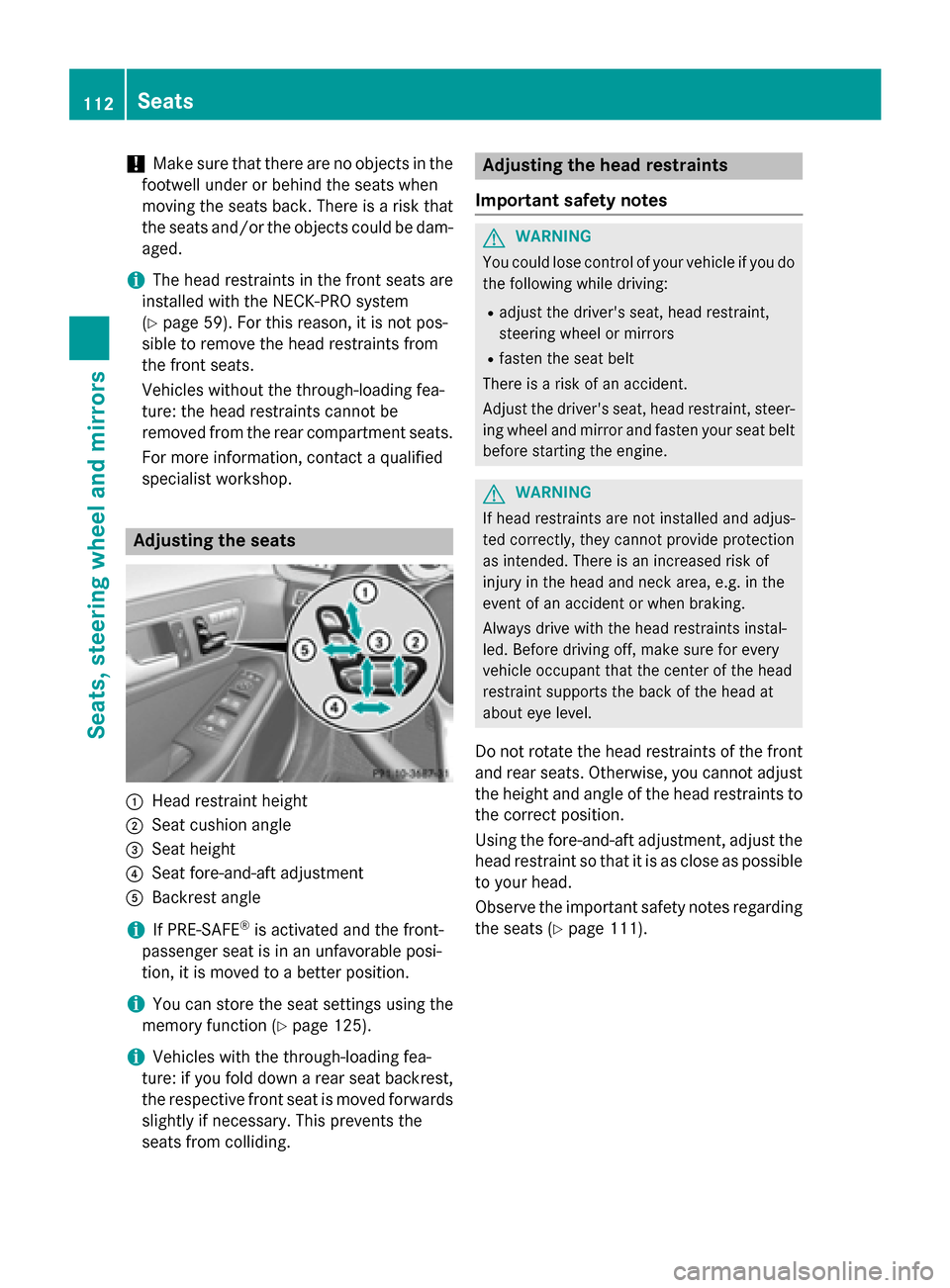

specialist workshop. Adjusting the seats
0043
Head restraint height
0044 Seat cushion angle
0087 Seat height
0085 Seat fore-and-aft adjustment
0083 Backrest angle
i If PRE-SAFE ®
is activated and the front-
passenger seat is in an unfavorable posi-
tion, it is moved to a better position.
i You can store the seat settings using the
memory function (Y page 125).
i Vehicles with the through-loading fea-
ture: if you fold down a rear seat backrest,
the respective front seat is moved forwards slightly if necessary. This prevents the
seats from colliding. Adjusting the head restraints
Important safety notes G
WARNING
You could lose control of your vehicle if you do the following while driving:
R adjust the driver's seat, head restraint,
steering wheel or mirrors
R fasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint, steer-
ing wheel and mirror and fasten your seat belt before starting the engine. G
WARNING
If head restraints are not installed and adjus-
ted correctly, they cannot provide protection
as intended. There is an increased risk of
injury in the head and neck area, e.g. in the
event of an accident or when braking.
Always drive with the head restraints instal-
led. Before driving off, make sure for every
vehicle occupant that the center of the head
restraint supports the back of the head at
about eye level.
Do not rotate the head restraints of the front and rear seats. Otherwise, you cannot adjust
the height and angle of the head restraints to
the correct position.
Using the fore-and-aft adjustment, adjust the head restraint so that it is as close as possibleto your head.
Observe the important safety notes regarding
the seats (Y page 111).112
SeatsSeats, steering wheel and mirrors

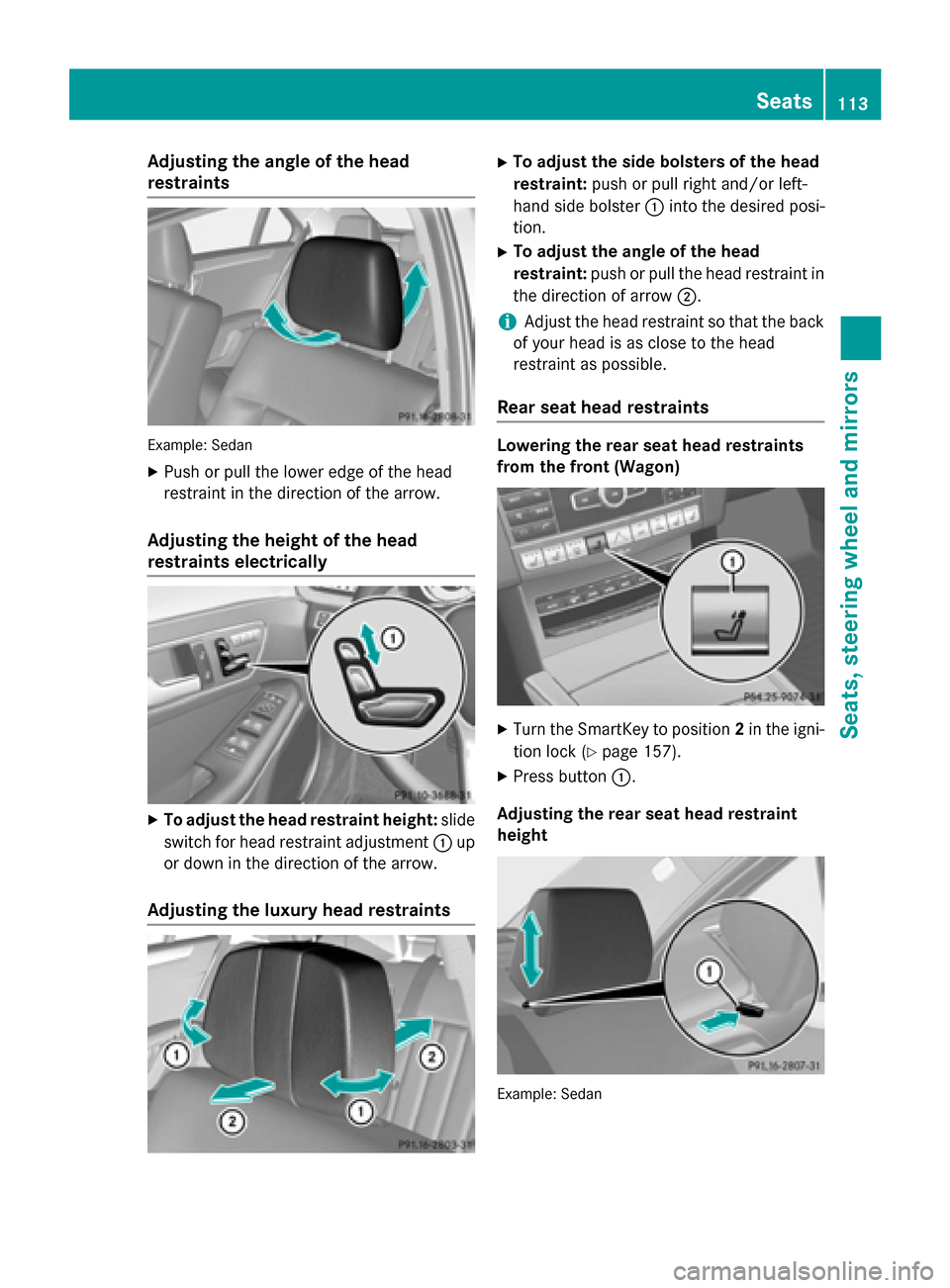

Adjusting the angle of the head
restraints Example: Sedan
X Push or pull the lower edge of the head
restraint in the direction of the arrow.
Adjusting the height of the head
restraints electrically X
To adjust the head restraint height: slide
switch for head restraint adjustment 0043up
or down in the direction of the arrow.
Adjusting the luxury head restraints X
To adjust the side bolsters of the head
restraint: push or pull right and/or left-
hand side bolster 0043into the desired posi-
tion.
X To adjust the angle of the head
restraint: push or pull the head restraint in
the direction of arrow 0044.
i Adjust the head restraint so that the back
of your head is as close to the head
restraint as possible.
Rear seat head restraints Lowering the rear seat head restraints
from the front (Wagon)
X
Turn the SmartKey to position 2in the igni-
tion lock (Y page 157).
X Press button 0043.
Adjusting the rear seat head restraint
height Example: Sedan Seats
113Seats, steering wheel and mirrors Z

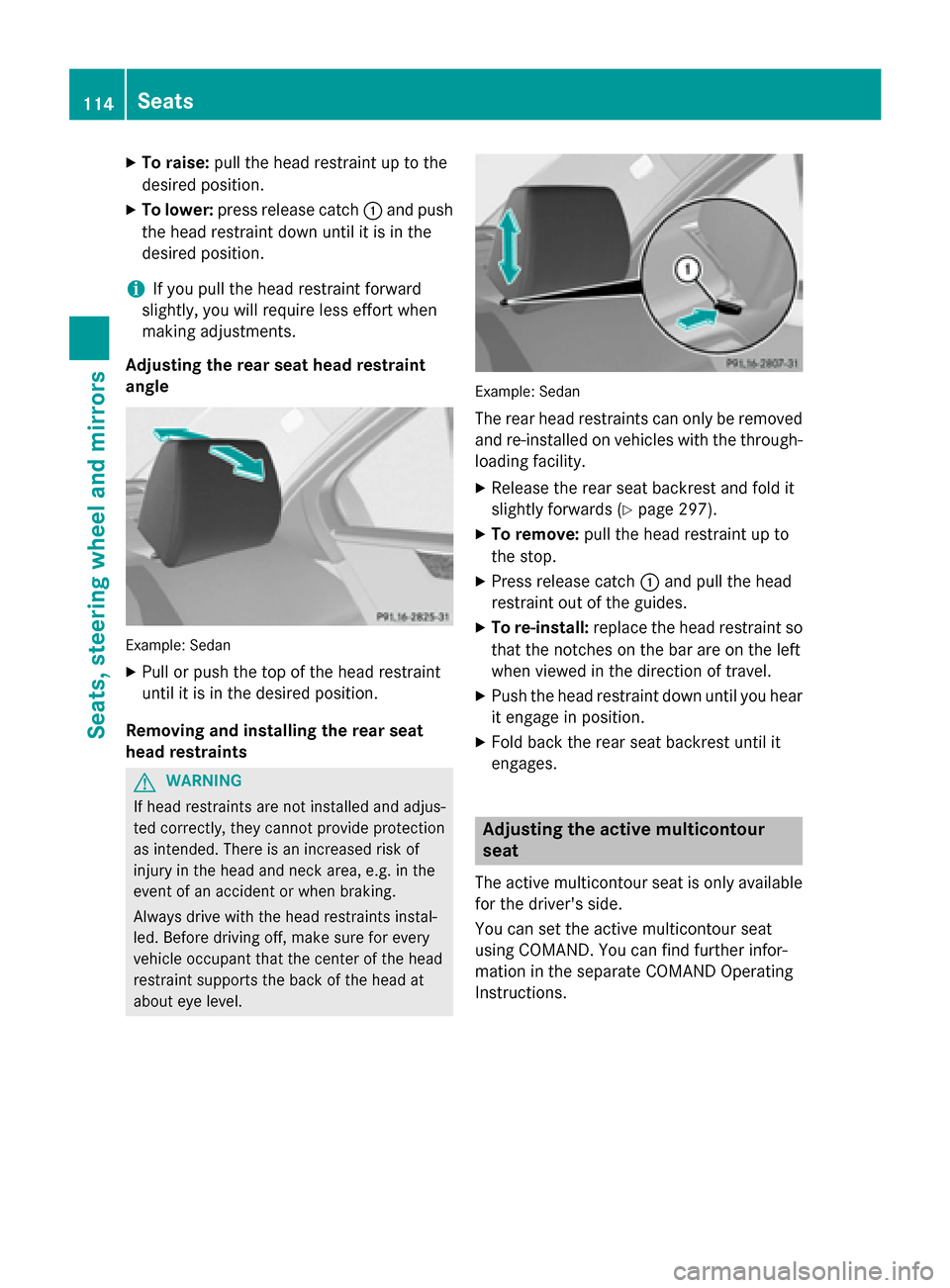

X
To raise: pull the head restraint up to the
desired position.
X To lower: press release catch 0043and push
the head restraint down until it is in the
desired position.
i If you pull the head restraint forward
slightly, you will require less effort when
making adjustments.
Adjusting the rear seat head restraint
angle Example: Sedan
X Pull or push the top of the head restraint
until it is in the desired position.
Removing and installing the rear seat
head restraints G
WARNING
If head restraints are not installed and adjus-
ted correctly, they cannot provide protection
as intended. There is an increased risk of
injury in the head and neck area, e.g. in the
event of an accident or when braking.
Always drive with the head restraints instal-
led. Before driving off, make sure for every
vehicle occupant that the center of the head
restraint supports the back of the head at
about eye level. Example: Sedan
The rear head restraints can only be removed and re-installed on vehicles with the through-
loading facility.
X Release the rear seat backrest and fold it
slightly forwards (Y page 297).
X To remove: pull the head restraint up to
the stop.
X Press release catch 0043and pull the head
restraint out of the guides.
X To re-install: replace the head restraint so
that the notches on the bar are on the left
when viewed in the direction of travel.
X Push the head restraint down until you hear
it engage in position.
X Fold back the rear seat backrest until it
engages. Adjusting the active multicontour
seat
The active multicontour seat is only available
for the driver's side.
You can set the active multicontour seat
using COMAND. You can find further infor-
mation in the separate COMAND Operating
Instructions. 114
SeatsSeats, steering
wheel and mirrors

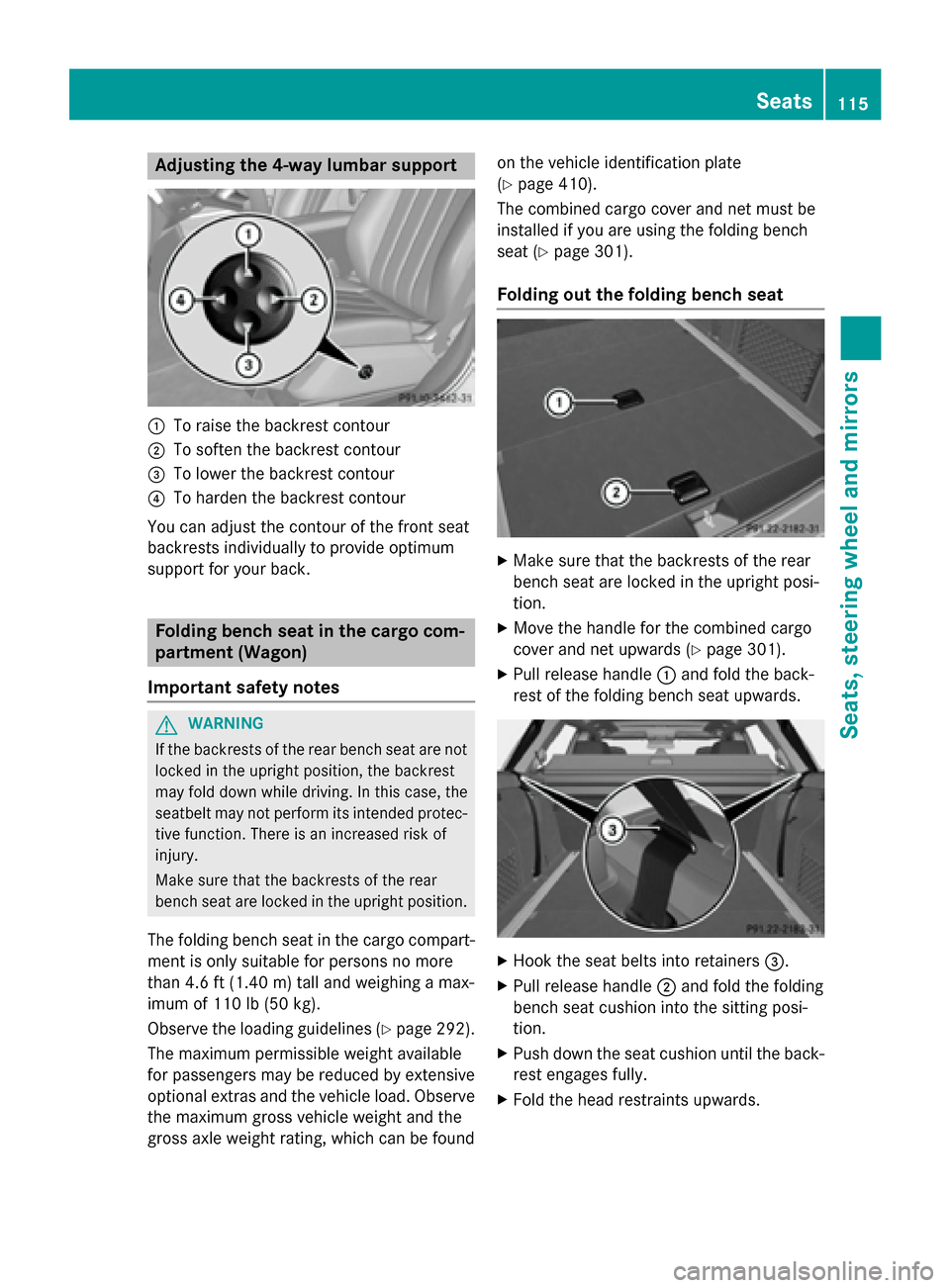

Adjusting the 4-way lumbar support
0043
To raise the backrest contour
0044 To soften the backrest contour
0087 To lower the backrest contour
0085 To harden the backrest contour
You can adjust the contour of the front seat
backrests individually to provide optimum
support for your back. Folding bench seat in the cargo com-
partment (Wagon)
Important safety notes G
WARNING
If the backrests of the rear bench seat are not locked in the upright position, the backrest
may fold down while driving. In this case, the
seatbelt may not perform its intended protec-
tive function. There is an increased risk of
injury.
Make sure that the backrests of the rear
bench seat are locked in the upright position.
The folding bench seat in the cargo compart- ment is only suitable for persons no more
than 4.6 ft (1.40 m) tall and weighing a max-
imum of 110 lb (50 kg).
Observe the loading guidelines (Y page 292).
The maximum permissible weight available
for passengers may be reduced by extensive
optional extras and the vehicle load. Observe the maximum gross vehicle weight and the
gross axle weight rating, which can be found on the vehicle identification plate
(Y
page 410).
The combined cargo cover and net must be
installed if you are using the folding bench
seat (Y page 301).
Folding out the folding bench seat X
Make sure that the backrests of the rear
bench seat are locked in the upright posi-
tion.
X Move the handle for the combined cargo
cover and net upwards (Y page 301).
X Pull release handle 0043and fold the back-
rest of the folding bench seat upwards. X
Hook the seat belts into retainers 0087.
X Pull release handle 0044and fold the folding
bench seat cushion into the sitting posi-
tion.
X Push down the seat cushion until the back-
rest engages fully.
X Fold the head restraints upwards. Seats
115Seats, steering wheel and mirrors Z

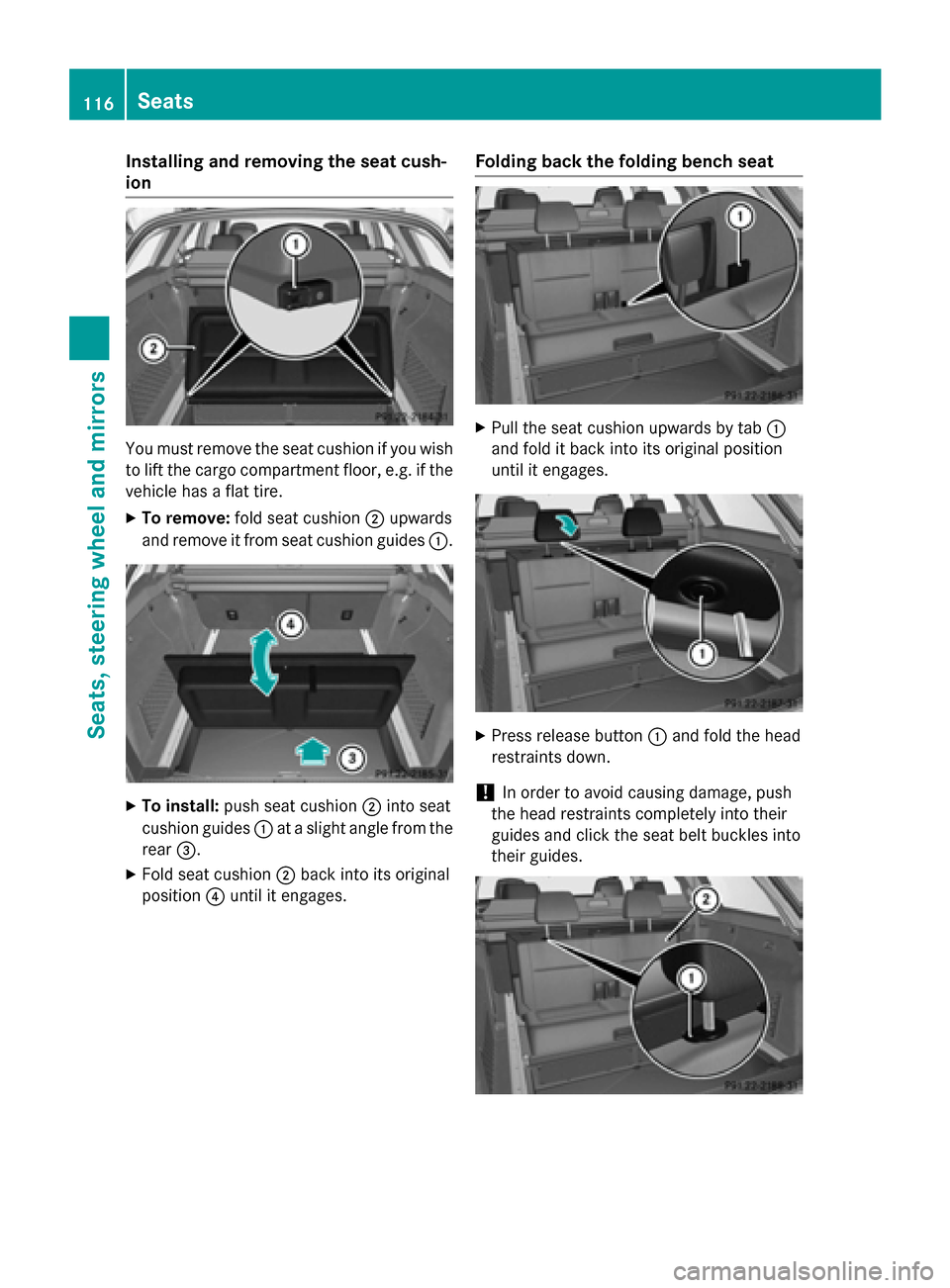

Installing and removing the seat cush-
ion You must remove the seat cushion if you wish
to lift the cargo compartment floor, e.g. if the
vehicle has a flat tire.
X To remove: fold seat cushion 0044upwards
and remove it from seat cushion guides 0043.X
To install: push seat cushion 0044into seat
cushion guides 0043at a slight angle from the
rear 0087.
X Fold seat cushion 0044back into its original
position 0085until it engages. Folding back the folding bench seat X
Pull the seat cushion upwards by tab 0043
and fold it back into its original position
until it engages. X
Press release button 0043and fold the head
restraints down.
! In order to avoid causing damage, push
the head restraints completely into their
guides and click the seat belt buckles into
their guides. 116
SeatsSeats
, steering wheel and mirrors

X
Press release button 0043and push the head
restraints all the way in.
X Fold backrest 0044of the folding bench seat

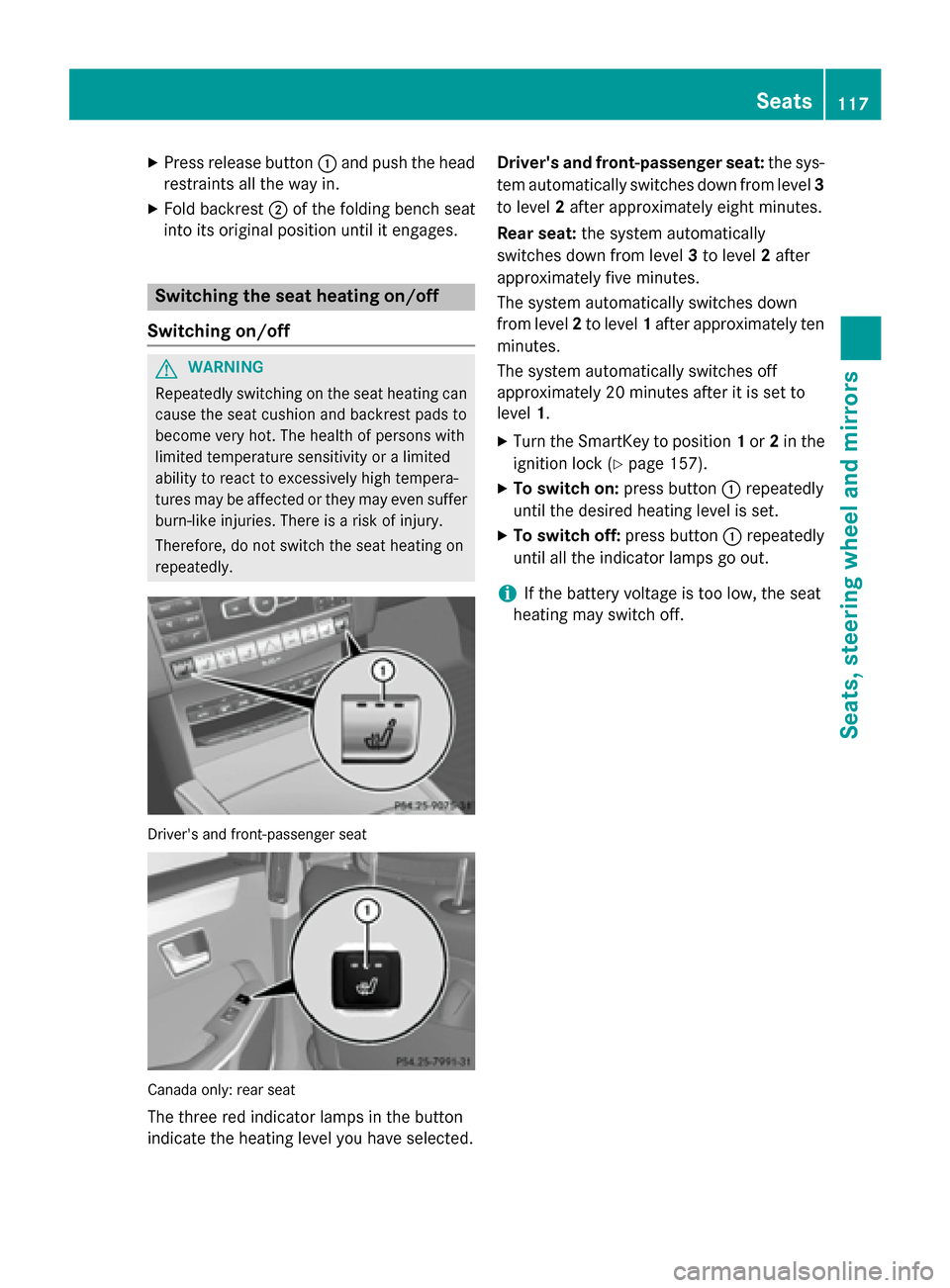

into its original position until it engages. Switching the seat heating on/off
Switching on/off G
WARNING
Repeatedly switching on the seat heating can
cause the seat cushion and backrest pads to
become very hot. The health of persons with
limited temperature sensitivity or a limited
ability to react to excessively high tempera-
tures may be affected or they may even suffer burn-like injuries. There is a risk of injury.
Therefore, do not switch the seat heating on
repeatedly. Driver's and front-passenger seat
Canada only: rear seat
The three red indicator lamps in the button
indicate the heating level you have selected. Driver's and front-passenger seat:
the sys-
tem automatically switches down from level 3
to level 2after approximately eight minutes.
Rear seat: the system automatically
switches down from level 3to level 2after
approximately five minutes.
The system automatically switches down
from level 2to level 1after approximately ten
minutes.
The system automatically switches off
approximately 20 minutes after it is set to
level 1.
X Turn the SmartKey to position 1or 2in the
ignition lock (Y page 157).
X To switch on: press button0043repeatedly
until the desired heating level is set.
X To switch off: press button0043repeatedly
until all the indicator lamps go out.
i If the battery voltage is too low, the seat
heating may switch off. Seats
117Seats, steering wheel and mirrors Z

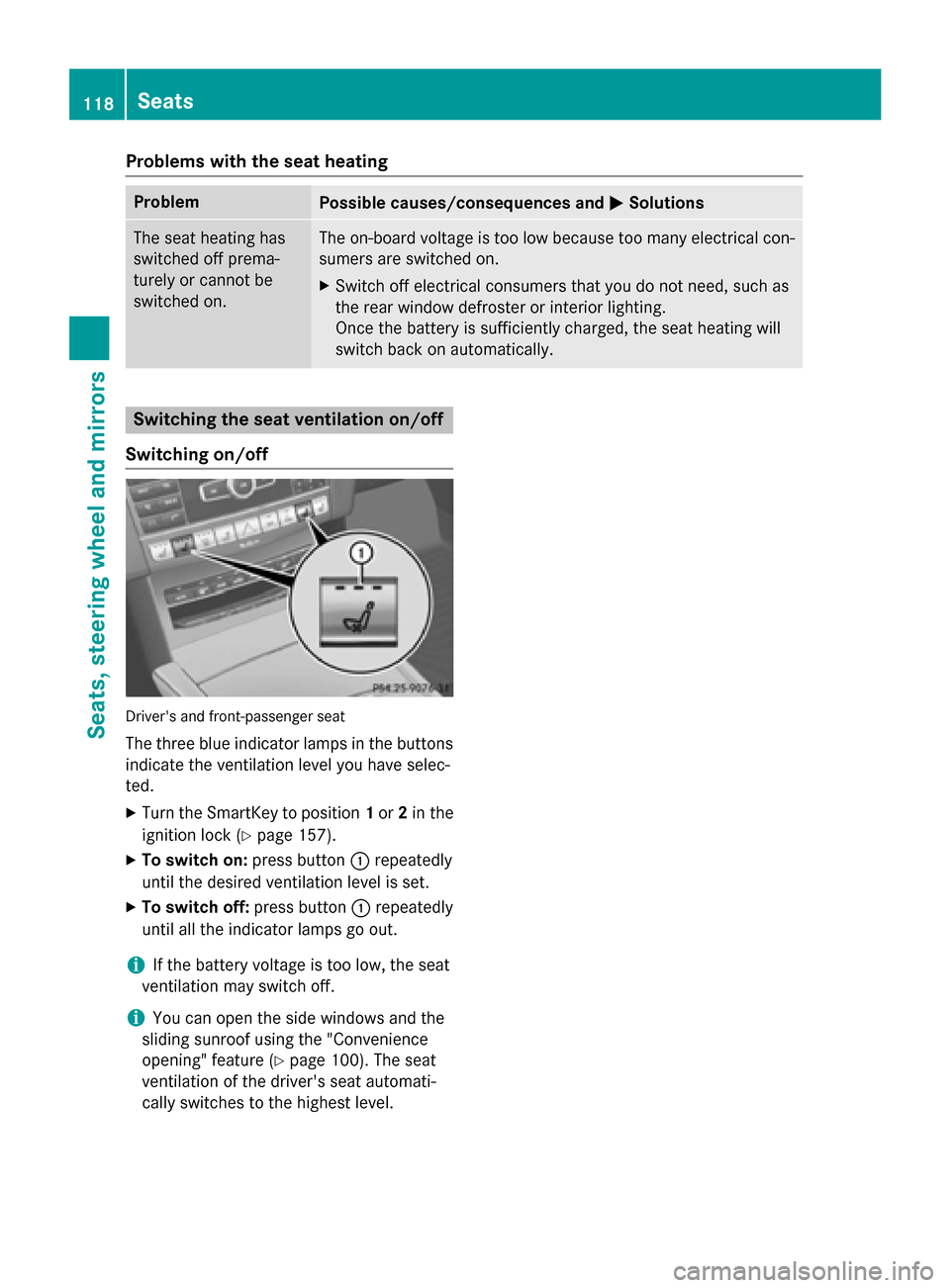

Problems with the seat heating
Problem
Possible causes/consequences and
0050
0050Solutions The seat heating has
switched off prema-
turely or cannot be
switched on. The on-board voltage is too low because too many electrical con-
sumers are switched on.
X Switch off electrical consumers that you do not need, such as
the rear window defroster or interior lighting.
Once the battery is sufficiently charged, the seat heating will
switch back on automatically. Switching the seat ventilation on/off
Switching on/off Driver's and front-passenger seat
The three blue indicator lamps in the buttons
indicate the ventilation level you have selec-
ted.
X Turn the SmartKey to position 1or 2in the
ignition lock (Y page 157).
X To switch on: press button0043repeatedly
until the desired ventilation level is set.
X To switch off: press button0043repeatedly
until all the indicator lamps go out.
i If the battery voltage is too low, the seat
ventilation may switch off.
i You can open the side windows and the
sliding sunroof using the "Convenience
opening" feature (Y page 100). The seat
ventilation of the driver's seat automati-
cally switches to the highest level. 118
SeatsSeats, steering wheel and mirrors
