MERCEDES-BENZ E-Class SEDAN 2017 W213 Owner's Manual

Opening
&WARNING Risk of injury from usingthe
windshield wiper swhile thee ngine hood
is open
When thee ngine hood is open and thew ind‐
shield wiper saresetinm otion ,you can be
trappe dbythe wiper linkage.
#Alw ayss witc hoffthew indshield wipers
and ignition befor eopening thee ngine
hood.
#Tu rn clip 2on co ver1 aquar ter-tur nto
th el eft.
#Pull co ver1 upwards in thed irection of the
ar row .
#Remo veanye xisting moisture fromthef use
bo xu sing adryclo th.
#Loosen scr ews4,r emovefuse bo xlid 3
from thet op.
Closing
#Chec kwhether thes eal is positioned cor‐
re ctly in thel id.
Breakdown assis tance 309

#Insertlid int othe brac ketatt herear of the
fuse box.
#Fo ld down lid of thef use bo xand tighten
scr ews4.
#Inser tcove r1 on bo thsides and engage
saf etyc lips.
#Clos ethe hood.
Cockpit fuse box
The fuse bo xisonthe side of thed ashboard
under acover.
#Contact an authorized Mercedes-Benz Cen‐
terf or fur ther information.
Fu se bo xinthe front-passenger foot we ll
Prerequisites
Obser vethen otes on electrical fuses
(
→pag e308).
#Open co ver1 inthed irection of thea rrow
and remo veit.
Fuse bo xinthe trunk
Prerequisites
Obser vethen otes on electrical fuses
(
→pag e308).
#Fold co ver1 down in thed irection of the
ar row .
The fuse assignment diagram is in areces son
th es ide of thef use box.
310
Breakdown assis tance

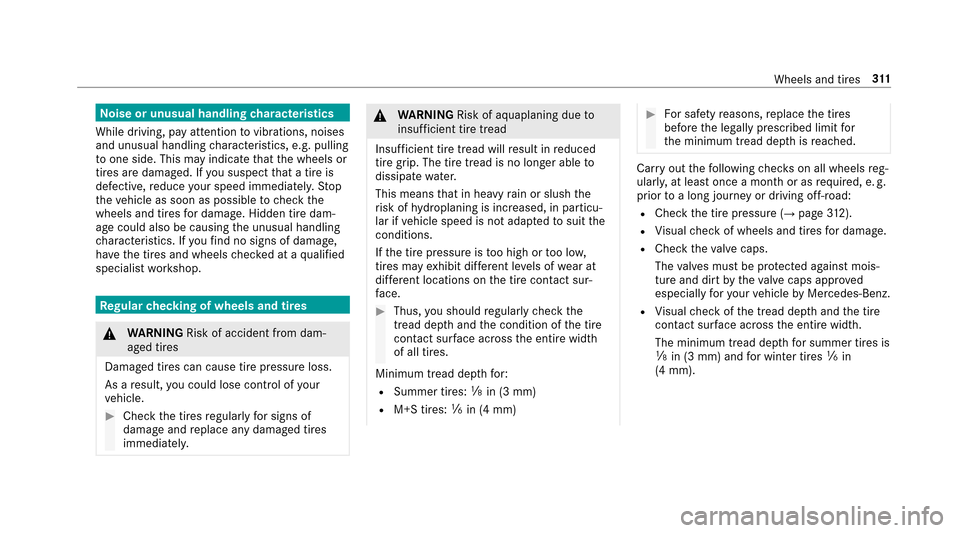

Noise or unusual handling characteristics
Whil edriving ,pay attention tovibrations, noises
and unusual handling characteristics, e.g .pulling
to one side. This ma yindicat ethat thew heels or
tires ar edamaged. If yous uspect that at irei s
defective, reduce your speedi mmediatel y.Stop
th ev ehicle as soon as possible tocheckt he
wheels and tires ford ama ge.H idden tir edam‐
ag ec ould also be causing theu nusual handling
ch aracteristics. If youf ind no sign sofdamage,
ha ve thet ires and wheels checkedataq ualified
specialis tworks hop.
Re gular checking of wheels and tires
&
WARNING Risk of accident from dam‐
aged tires
Dama gedt ires can cause tir epressur eloss.
As aresult, youc ouldlose cont rolofy our
ve hicle.
#Chec kthe tires regularly fors igns of
dama geand replace an ydamaged tires
immediatel y.
&
WARNING Risk of aquaplaning duet o
insuf ficient tir etread
Insuff icienttiret read will result in reduced
tir eg rip. The tir etread is no longer able to
dissipat ewater.
This meanst hat in heavyrain or slush the
ri sk of hydroplaning is increased, in particu‐
lar if vehicle speed is no tadap tedtos uitthe
conditions.
If th et irep ressur eist oo high or tool ow ,
tires ma yexhibit dif fere nt le vels of wear at
dif fere nt locations on thet irec onta ct sur‐
fa ce.
#Thus, yous hould regularly checkt he
tread dep thand thec ondition of thet ire
conta ct surf ace across thee ntir ew idth
of all tires.
Minimum tread dep thfor:
RSummer tires: âin (3 mm)
RM+S tires: ãin (4 mm)
#Fors afet yr easons, replace thet ires
befor ethe legally prescribed limit for
th em inimum tread dep thisreached.
Car ryout thef ollowing checks on all wheels reg‐
ularly ,atleastonce amonthorasr equired, e. g.
prior toalongj ourney or drivin goff-roa d:
RChec kthe tir epressur e(→page312).
RVisual checkofw heels and tires ford ama ge.
RChec kthe valvec aps.
The valves mus tbeprotected agains tmois‐
tur ea nd dir tbythevalvec aps appr oved
especiall yfor your vehicle byMercedes-Benz.
RVisual checkoft he tread dep thand thet ire
conta ct surf ace across thee ntir ew idth.
The minimum tread dep thfors ummer tires is
â in (3 mm) and forw inter tires ãin
(4 mm).
Wheels and tires 31
1

Six marks1 showw herethe bar indicators
(ar row )are integrated int othe tir etread. They
ar ev isible onceat read dep thof appr oximately
á in (1.6 mm) has been reached.
Note sons nowc hains
&
WARNING Risk of accident duetoi ncor‐
re ct mounting of sno wchains
If yo uh ave mounted sno wchains tothef ront
wheels, thes nowc hains ma ydraga gainst
th ev ehicle body or chassis components.
This coul dcaus edamag etothevehicle or
th et ires.
#Ne verm ount sno wchains on thef ront
wheels.
#Onl ym ount sno wchains on ther ear
wheel sinpairs.
*NO
TEDama getothew heel trim from
mounted sno wchains
If sno wchains ar emoun tedtos teel wheels,
th ew heel trims can be damaged.
#Remo vethew heel trims of steel wheels
befor emounting sno wchains.
RSno wchains ar eonly pe rmissible forc ertain
wheel/tir ecombinations .You can obtain
information abou tthis from an authorized
Mercedes-Benz Center.
RFo rs afet yr easons, onl yuse snow ch ainsthat
ha ve been specifically appr oved fory our
ve hicle byMercedes-Benz, or sno wchains
wit hthe same qualitys tandard.
RIf snow ch ains aremoun ted, them aximum
permissible speed is 30 mph(50 km/h).
RVe hicles with Parking Pilo t:Do no tuse
Pa rking Assis tPARKTRONIC if sno wchains
ar em oun ted.
RVe hicles with AI RBODYC ONT ROL:If snow
ch ains ha vebeen mounted youm ustd rive at
ar aised vehicle le vel.
% Youc an deactivat eESP
®topull away
(→pag e152). This allo wsthew heels to
spin, achieving an increased driving forc e.
Tire pressure
Note sont irep ressure
&
WARNING Risk of accident duetoi nsuf‐
fi cient or excessiv etirep ressure
Underinfla tedoro verinfla tedt ires pose the
fo llowing risks:
RThe tires ma yburst,e speciall yasthe
load and vehicle speed increase.
31 2
Wheels and tires

RThe tires maywear excessivel yand/or
une venly, whic hmaygreatly impair tire
traction.
RThe drivingc haracteristics, as well as
st eering and braking, ma ybegreatly
impaired.
#Comply wit hthe recommended tire
pressur eand checkt he tir epressur eof
all tires including thes par ew heel regu‐
larly:
Rat leas tonce amonth
Rwhen thel oad changes
Rbefor eembarkin gonalongerjourney
Rif operating conditions change, e.g .off-
ro ad driving
#Ad jus tthe tir epressur easn ecessar y.
Driving wi thtirep ressur ethat is tooh igh or too
lo wc an:
RSho rten thes ervice lif eofthe tires.
RCause increased tir edamage.
RAdverselya ffect handl ingc haracteristics and
th us dr ivingsafet y, e.g. due to hydroplaning.
&
WARNING Risk of an accident duet o
insuf ficient tir epressure
Ti re sw ithp ressur ethat is tool ow can over‐
heat and bur stas aresult.
In addition ,the ya lso suf ferf rome xcessive
and/or ir regular wear,w hic hc an significantly
impair theb raking properties and theh an‐
dling characteristics.
#Av oid excessively lo wtirep ressures in
all thet ires, including thes par ew heel.
Tire pressur ewhichist oo lo wcan cause:
RTire defectsasar esult ofoverheating.
RImpaired handling characteristics
RIrre gular wear
RIncreased fuel consum ption
&
WARNING Risk of accident from exces‐
siv etirep ressure
Ti re sw ithe xcessively hig hpressur ecan
burs tbecause they ared amaged mor eeasily
by highw ayfill, po tholes etc.
In addition, they also suf ferf romi rregular
we ar,w hic hc an significantl yimp air theb rak‐
ing properties and theh andling characteris‐
tics.
#Av oid excessively high tir epressures in
all thet ires, including thes par ew heel.
Excessively high tir epressur ecan result in:
RIncreased braking dis tance
RImpaired handling characteristics
RIrre gular wear
RImpaired drivin gcom fort
RSusceptibility todamage
Wheels and tires 31
3

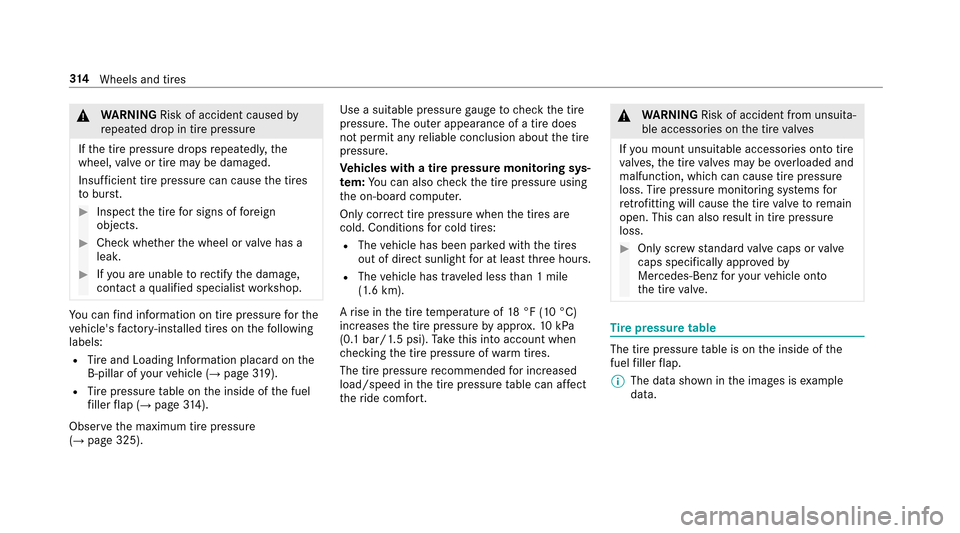

&WARNING Risk of accident caused by
re peated drop in tir epressure
If th et irep ressur edrops repeatedl y,the
wheel, valveort irem aybe damaged.
Insuf ficient tir epressur ecan cause thet ires
to bur st.
#Inspect thet iref or signs of fore ign
objects.
#Chec kwhether thew heel or valveh as a
leak.
#If yo ua reunab leto rectify thed amage,
conta ctaq ualified specialis tworks hop.
Yo uc an find informatio nontirep ressur efor the
ve hicle's factor y-ins talled tires on thef ollowing
labels:
RTi re and Loading Info rmatio nplacar dont he
B‑pi llarofyour vehicle (→pag e319).
RTire pressur etable on thei nside of thef uel
fi ller flap (→pag e314).
Obse rvet he maximum tir epressure
(
→pag e325). Use
asuitable pressur egaug etoc heckthe tire
pressure. The outer appearance of atired oes
no tp ermit an yreliable conclusion about thet ire
pressure.
Ve hicles with atirep ressur emonitoring sys‐
te m: Youc an also checkt he tir epressur eusing
th eo n-boar dcomputer.
Onl ycorrect tir epressur ewhent he tires are
cold. Conditions forc old tires:
RThe vehicle has been par kedw itht he tires
out of direct sunlight foratl east thre eh ours.
RThe vehicle has tr aveled less than 1m ile
(1.6 km).
Ar ise in thet iret emperatur eof18°F( 10°C)
increases thet irep ressur ebya pprox.10k Pa
(0. 1b ar/1.5 psi). Take this int oaccount when
ch ecking thet irep ressur eofw armt ires.
The tire pressure re commendedfori ncreased
load/speedint he tirepressur etable can af fect
th er ide comfort.
&
WARNING Risk of accident from unsuita‐
blea ccessori es onthet irev alves
If yo um ountunsuitable accessories onto tire
va lves, thet irev alves ma ybeoverloaded and
malfunction, whic hcan cause tir epressure
loss. Tire pressur emonitoring sy stems for
re trofitting will cause thet irev alvetor emain
open .This can als oresult in tir epressure
loss.
#Onl yscrew standar dvalvec aps or valve
cap sspecifically appr ovedby
Mercedes-Benzf oryour vehicle onto
th et irev alve.

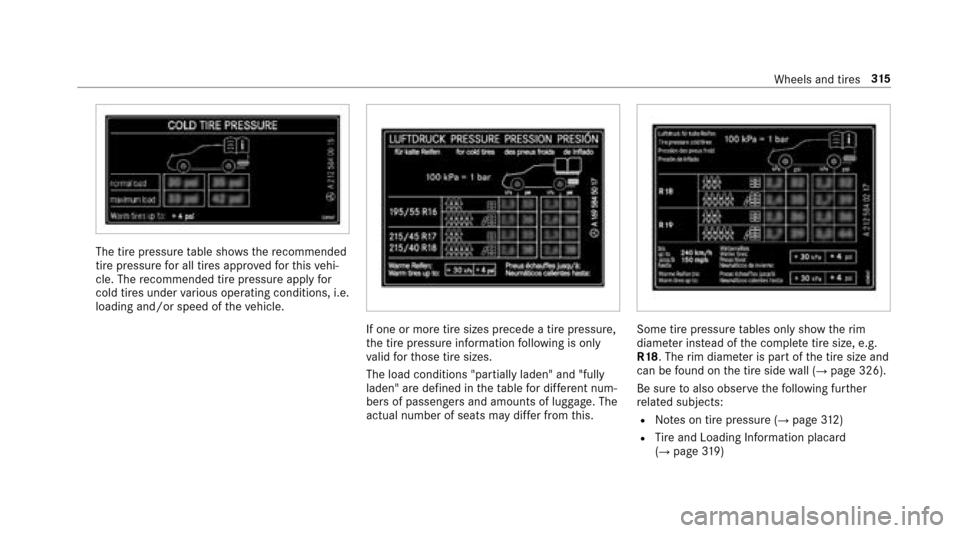

Tire pressur etable
The tir epressur etable is on thei nside of the
fuel filler flap.
% The dat ashown in thei mages is example
data.
31 4
Wheels and tires

The tirepressur etable sho ws therecommended
tir ep ressur efor all tires appr ovedfor this vehi‐
cle. The recommended tir epressur eapplyfor
cold tires under various operating conditions, i.e.
loading and/or speed of thev ehicle.
If one or mor etires izes precede atirep ressure,
th et irep ressur einformation following is only
va lid fort hose tir esizes.
The load conditions "partially laden" and "fully
laden" ar edefined in thet able ford iffe re nt num‐
be rs of passenger sand amounts of luggage. The
actual number of seats ma ydiffe rf romt his.Some tir epressur etables onl yshowt he rim
diame teri ns tead of thec omple tetires ize, e.g.
R18 .The rimd iame terisp artoft he tir esize and
can be found on thet ires ide wall (
→pag e326).
Be sur etoalso observ ethe following fur ther
re lated subjects:
RNo tesont irep ressur e(→page312)
RTire and Loading Info rmatio nplacard
(→pag e319)
Wheels and tires 31
5

RMaximum tirepressur e(→page325)

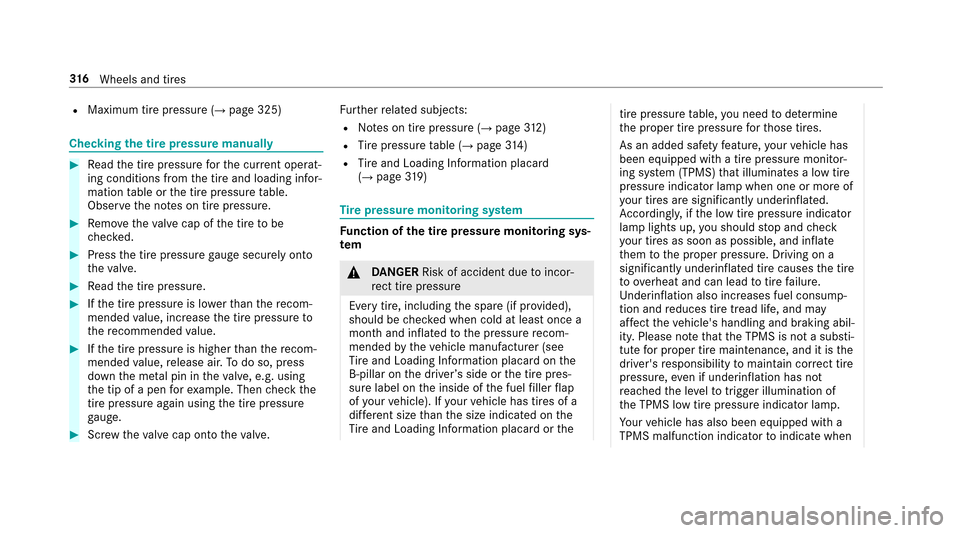

Checking thet irep ressur emanually
#Read thet irep ressur efor thec urrent operat‐
ing conditions from thet irea nd loading infor‐
mation table or thet irep ressur etable.
Obser vethen otes on tir epressure.
#Re mo vethev alvec ap of thet iretob e
ch ecked.
#Press thet irep ressur egaug esecurel yonto
th ev alve.
#Read thet irep ressure.
#Ifth et irep ressur eisl owerthan ther ecom‐
mended value, inc rease thet irep ressur eto
th er ecommende dvalue.
#Ifth et irep ressur eish igher than ther ecom‐
mended value, release air .Todos o, press
down them etal pin in thev alve, e.g. using
th et ip of apen fore xamp le. Then checkt he
tir ep ressur eagain usingt he tirepressure
ga uge.
#Sc rewt he valvec ap ont othe valve. Fu
rther related subjects:
RNo tesont irep ressur e(→page312)
RTire pressur etable (→pag e314)
RTire and Loading Info rmatio nplacard
(→pag e319)
Tire pressur emonitoring sy stem
Fu nction of thet irep ressur emonitoring sys‐
te m
&
DANG ER Risk of accidentd uetoincor‐
re ct tir epressure
Ever ytire, including thes par e(if pr ovided),
should be checkedw hen cold at leas toncea
mont hand inflated tothep ressur erecom‐
mended bythev ehicle manufacturer (see
Ti re and Loading Info rmatio nplacar dont he
B-pi llaronthed rive r’ss ide or thet irep res‐
sur elabel on thei nside of thef uel filler flap
of your vehicle). If your vehicle has tires of a
dif fere nt size than thes ize indicated on the
Ti re and Loading Info rmatio nplacar dort he
tirep ressur etable, youn eedtod etermine
th ep roper tir epressur efor those tires.
As an added saf etyf eature, your vehicle has
been equipped wit hatirep ressur emonitor‐
ing sy stem (TPMS) that illuminates alow tire
pressur eindicator lam pwhen oneorm oreo f
yo ur tires ar esignif icantl yunderinflated.
Ac cordingly ,ifthe lo wtirep ressur eindicator
lam plights up, yous hould stop and check
yo ur tires as soonasp ossible, and inflate
th em tothep roper pressure. Driving on a
significantly underinflated tir ecauses thet ire
to ove rheat and can lead totiref ailure.
Und erinflation also increases fuel consump‐
tion and reduces tir etread life, and may
af fect thev ehicle's handling and braking abil‐
ity .P lease no tethat theT PMS is no tasubsti‐
tut efor proper tir emaintenance, and it is the
driver's responsibility tomaintain cor rect tire
pressure, evenifu nderinflatio nhasnot
re ached thel evel to trig gerillumination of
th eT PMS lo wtirep ressur eindicator lamp.
Yo ur vehicle has also been equipped wit ha
TPMS malfunction indicator toindicat ewhen
316
Wheels and tires

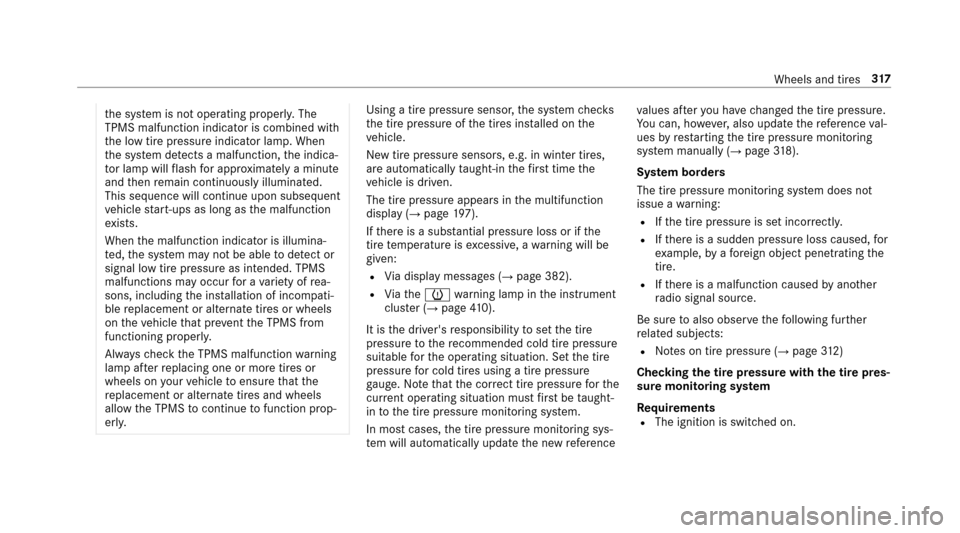

thes ystem is no toperating properly .The
TPMS malfunction indicator is combined with
th el ow tirep ressur eindicator lamp. When
th es ystem de tects am alfunction, thei ndica‐
to rlamp wil lflash fora pproxima tely am inute
and then remain continuously illumina ted.
This sequence will continue upon subsequent
ve hicle start-ups as longast he malfunction
ex ists.
When them alfunction indicator is illumina‐
te d, thes ystemm aynotbea bletodetect or
signal lo wtirep ressur easi ntended. TPMS
malfunctions ma yoccurf orav ariety of rea‐
sons, includingt he installation of incompati‐
ble replacemen toralternat etires or wheels
on thev ehicle that pr event theT PMS from
functioning proper ly.
Alw aysc hec kthe TPMS malfunction warning
lam pafter replacing one or mor etires or
wheels on your vehicle toensur ethat the
re placemen toralternat etires and wheels
allo wthe TPMS tocontinu etofunction prop‐
er ly.Using atirep ressur esensor ,the sy stem checks
th et irep ressur eoft he tires ins talled on the
ve hicle.
Ne wt irep ressur esensors, e.g. in winter tires,
ar ea utomaticall ytaught-in thef irst tim ethe
ve hicle is driven.
The tir epressur eappears inthem ultifunction
displa y(
→page197).
If th er eisas ubstantia lpressure loss or if the
tir et emperatur eisexcessive, awarning will be
given:
RVi ad ispla ymessages (→page382).
RViat he h warning lam pinthe instrument
clus ter(→pag e410).
It is thed rive r's responsibility tosetthe tire
pressur etotherecommended cold tir epressure
suitable fort he operating situation. Se tthe tire
pressur efor cold tires using atirep ressure
ga uge. Notethat thec orrect tir epressur efor the
cur rent operating situatio nmustfirst be taught-
in to thet irep ressur emonitoring sy stem.
In mos tcases, thet irep ressur emonitoring sys‐
te mw illautom atically updat ethe ne wreference va
lues af tery ou ha vechanged thet irep ressure.
Yo uc an,h ow ever,a lso updat ethe refere nce val‐
ues byrestartin gthe tir epressur emonitoring
sy stem manuall y(
→page318).
Sy stem borders
The tir epressur emonitoring sy stem does not
issue awarning:
RIfth et irep ressur eiss etincor rectly.
RIfth er eisas udden pressur eloss caused, for
ex ample, byaforeign object penetratin gthe
tire.
RIf th er eisam alfunction caused byano ther
ra dio signal source.
Be sur etoalso observ ethe following fur ther
re lated subjects:
RNo tesont irep ressur e(→page312)
Checking thet irep ressur ewitht he tir epres‐
sur em onitoring sy stem
Requ irements
RThe ignition is switched on.
Wheels and tires 317

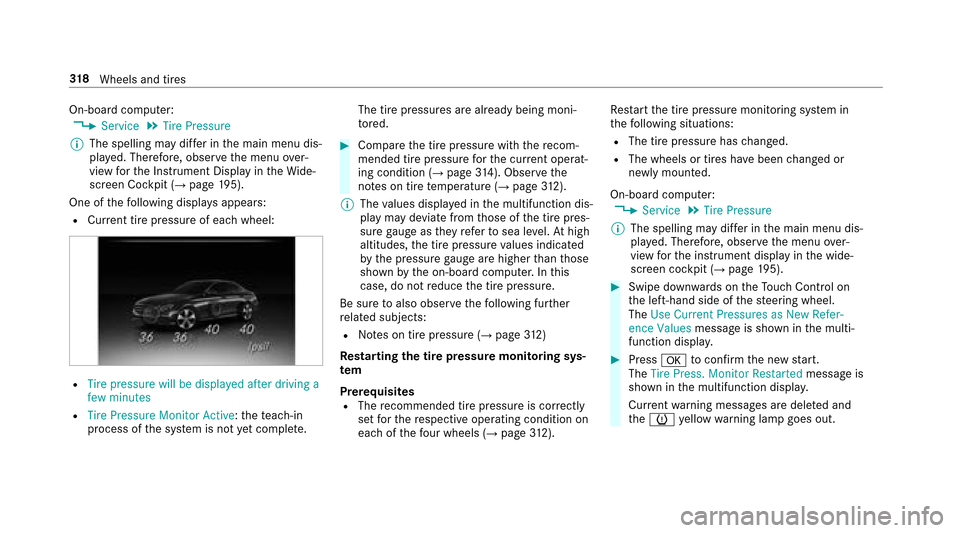

On-boardcomputer:,Service.Tire Pressure
% The spelling ma ydiffe rint he main menu dis‐
pla yed. Therefore, obser vethem enu over‐
vie wf ortheI nstrument Displa yintheWide‐
screen Cockpit (
→pag e195).
One of thef ollowing displa ysappears:
RCur rent tir epressur eofe achw heel:
RTire pressure will be displayed after driving a
few minutes
RTire Pressure Monito rActive:t heteach-in
process of thes ystemisn ot yetcomple te. The tir
epressures ar ealready being moni‐
to re d.
#Compar ethe tir epressur ewitht he recom‐
mended tir epressur efor thec urrent operat‐
ing condition (
→pa ge 314). Observ ethe
no tesont iret emperatur e(→page312).
% The values displa yedint he multifunction dis‐
pla ym aydeviat efromt hose of thet irep res‐
sur egaug east heyr efer tosea le vel.At high
altitudes, thet irep ressur evalues indicated
by thep ressur egaug earehigher than those
shown bytheo n-boar dcomputer .Inthis
case, do no treduce thet irep ressure.
Be sur etoalso observ ethe following fur ther
re lated subjects:
RNo tesont irep ressur e(→page312)
Rest arting thet irep ressur emonitoring sys‐
te m
Prerequisites
RThe recommended tir epressur eisc orrectly
se tfor ther espectiv eoperating condition on
eac hoft hefour wheels(
→pag e312). Re
star tt he tir epressur emonitoring sy stem in
th ef ollowing situations:
RThe tir epressur ehaschanged.
RThe wheels or tires ha vebeen changed or
newl ymoun ted.
On-boar dcomputer:
,Service.Tire Pressure
% The spelling ma ydiffe rint he main menu dis‐
pla yed. Therefore, obser vethem enu over‐
vie wf orthei nstrument displa yinthe wide‐
screen cockpit (
→pag e195).
#Swip edownw ards on theT ouc hControl on
th el eft-hand side of thes teering wheel.
The Use Current Pressures as New Refer-
ence Values messageisshown in them ulti‐
function displa y.
#Pressatoconfir mthe ne wstart.
The Tire Press. Monito rRestarted messageis
shown in them ultifunction displa y.
Cur rent wa rning messages ar edeleteda nd
th eh yello ww arning lam pgoes out.
318
Wheels and tires
