MERCEDES-BENZ E320CDI 2005 W211 Owner's Manual

109 Controls in detail
Locking and unlocking
Opening the doors from the inside
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
1Locking knob
2Inside door handleFront doors

Pull on door handle2 on the respec-
tive front or rear door to open door.
If door was locked, locking knob1 will
move up.
Rear doors

Pull up locking knob1 on the
respective rear door to unlock door.

Pull on door handle2 on the
respective rear door to open door.
iIf the vehicle has previously been
locked from the outside with the
SmartKey, opening a door from the in-
side will trigger the anti-theft alarm sys-
tem.
To cancel the alarm, do one of the fol-
lowing:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.
In vehicles with KEYLESS-GO*


Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO
must be inside the vehicle.


Grasp the outside door handle.
The SmartKey with KEYLESS-GO
must be within 3 ft (1 m) of the ve-
hicle.

110 Controls in detailLocking and unlockingOpening the trunk
Opening the trunk from the outside
A minimum height clearance of 5.90 ft
(1.80 m) is required to open the trunk lid.
The handle is located above the rear li-
cense plate recess.
In vehicles without KEYLESS-GO*: The ve-
hicle must be unlocked.
Pull on the handle.
The trunk lid opens.Opening the trunk from the inside
You can open the trunk from the inside if
the vehicle is stationary.
A minimum height clearance of 5.90 ft
(1.80 m) is required to open the trunk lid.
The switch is located on the driver’s door.
1Remote trunk lid switch with indicator
lamp
!The trunk lid swings open upwards au-
tomatically. Always make sure there is
sufficient overhead clearance.iThe trunk can also be opened using the
buttonŠ on the SmartKey or
SmartKey with KEYLESS-GO* or from
its inside in an emergency, see “Trunk
lid emergency release” (
page 117).
iIf the vehicle was previously centrally
locked, the trunk will lock automatical-
ly after closing it. The turn signals flash
three times to confirm locking.

111 Controls in detail
Locking and unlocking
1Remote trunk lid switch with indicator
lamp (vehicles with trunk lid open-
ing/closing system*)
Pull remote trunk lid switch1 until the
trunk begins to open.
The trunk lid opens. The indicator lamp
in the switch comes on and remains lit
until the trunk is closed.Limiting opening height of trunk lid*
Vehicles with trunk lid opening/closing
system*:
The trunk lid opening height can be limited
when transporting goods on a roof rack
(e.g. presence of an optional MB sport lug-
gage container). When activated, the trunk
lid opens to approximately the height of
the roof edge.

Activate the limiting opening height of
trunk lid using the control system
(page 166).
!The trunk lid swings open upwards au-
tomatically. Always make sure there is
sufficient overhead clearance.
Vehicles with trunk lid opening/closing
system*: To stop the opening proce-
dure, press or pull remote trunk lid
switch1.iThe trunk can also be opened using the
buttonŠ on the SmartKey or
SmartKey with KEYLESS-GO* or from
its inside in an emergency, see “Trunk
lid emergency release” (
page 117).

112 Controls in detailLocking and unlockingClosing the trunk
Closing the trunk from the inside auto-
matically*
In vehicles with trunk lid opening/closing
system* you can close the trunk from the
inside using the remote trunk lid switch.
Press remote trunk lid switch
(page 111) until the indicator lamp in
the switch goes out and the trunk lid is
closed.
To interrupt the closing procedure:

Release the remote trunk lid switch.If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.iYou can also close the trunk by hand.
Warning!
G
Maintain sight of trunk area while operating
the door mounted switch. Monitor the clos-
ing procedure carefully to make sure that no
one is in danger of being injured.
To interrupt the closing procedure, release
the door mounted remote trunk lid switch.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the remote trunk
lid switch can be operated. Therefore, do
not leave children unattended in the vehicle,
or with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Only drive with the trunk closed as, among
other dangers such as visibility blockage,
exhaust fumes may enter the vehicle
interior.

113 Controls in detail
Locking and unlocking
Closing the trunk from the outside
manually
Depending on production date, your vehi-
cle is equipped with either trunk design A
or B.Trunk design A1Handle
Lower trunk lid by pulling firmly on
handle1.

Close trunk lid with hands placed flat
on trunk lid.
Trunk design B1Handle
2Handles
Lower trunk lid by pulling firmly on
handle1 or handles2.

Close trunk lid with hands placed flat
on trunk lid.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
opening when closing the trunk. Be espe-
cially careful when small children are
around.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.Warning!
G
Only drive with the trunk closed as, among
other dangers such as visibility blockage,
exhaust fumes may enter the vehicle
interior.

114 Controls in detailLocking and unlocking
Closing the trunk from the outside
(vehicles without KEYLESS-GO*)
In vehicles with trunk lid opening/closing
system* you can close the trunk separate-
ly from the outside using the trunk lid clos-
ing switch.
1Trunk lid closing switch
Press trunk lid closing switch1 brief-
ly.
The trunk lid closes.If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk lid reopens slight-
ly.
iDo not place the SmartKey in the open
trunk. You may lock yourself out.
Vehicles with KEYLESS-GO*:
To prevent a possible inadvertent lock-
out, the trunk lid will open automatical-
ly if a SmartKey with KEYLESS-GO is
recognized inside the vehicle or in the
trunk.iIf the vehicle was previously centrally
locked, the trunk lid will lock automati-
cally after closing it (
page 112). The
turn signals will flash three times to
confirm locking.
iYou can also close the trunk by hand.
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press the trunk lid closing switch1


press the Š button on the SmartKey


press the remote trunk lid switch (on the
driver’s door)
Even with the SmartKey removed from the
starter switch, the remote trunk lid switch
can be operated. Therefore, do not leave
children unattended in the vehicle, or

115 Controls in detail
Locking and unlocking
Closing the trunk from the outside
(vehicles with KEYLESS-GO*)
In vehicles with trunk lid opening/closing
system* you can close the trunk separate-
ly from the outside using the trunk lid clos-
ing switch.
1Trunk lid closing switch
Make sure you have the SmartKey with
KEYLESS-GO with you.

Press trunk lid closing switch1 brief-
ly.
The trunk lid closes.If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.Warning!
G
Only drive with the trunk closed as, among
other dangers such as visibility blockage,
exhaust fumes may enter the vehicle
interior.iDo not place the SmartKey in the open
trunk. You may lock yourself out.iIf the vehicle was previously centrally
locked, the trunk lid will lock automati-
cally after closing it (
page 112). The
turn signals will flash three times to
confirm locking.
iYou can also close the trunk by hand.iTo prevent a possible inadvertent lock-
out, the trunk lid will open automatical-
ly if a SmartKey with KEYLESS-GO is
recognized inside the vehicle or in the
trunk.

116 Controls in detailLocking and unlocking

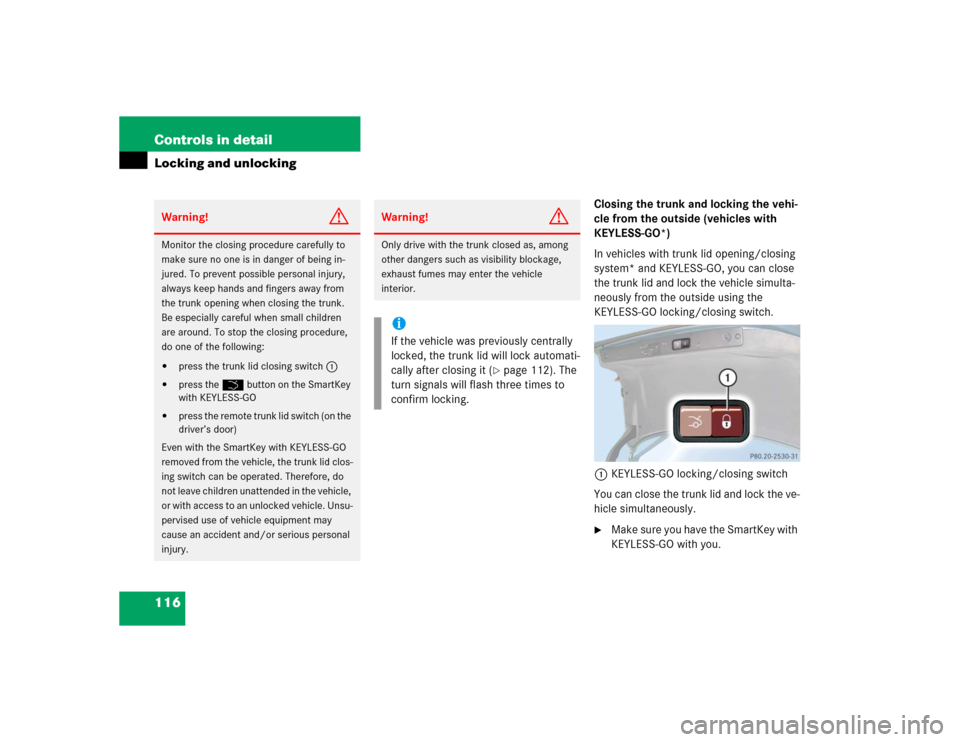

Closing the trunk and locking the vehi-
cle from the outside (vehicles with
KEYLESS-GO*)
In vehicles with trunk lid opening/closing
system* and KEYLESS-GO, you can close
the trunk lid and lock the vehicle simulta-
neously from the outside using the
KEYLESS-GO locking/closing switch.
1KEYLESS-GO locking/closing switch
You can close the trunk lid and lock the ve-
hicle simultaneously.
Make sure you have the SmartKey with
KEYLESS-GO with you.
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press the trunk lid closing switch1


press the Š button on the SmartKey
with KEYLESS-GO


press the remote trunk lid switch (on the
driver’s door)
Even with the SmartKey with KEYLESS-GO
removed from the vehicle, the trunk lid clos-
ing switch can be operated. Therefore, do
not leave children unattended in the vehicle,
or with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Only drive with the trunk closed as, among
other dangers such as visibility blockage,
exhaust fumes may enter the vehicle
interior.iIf the vehicle was previously centrally
locked, the trunk lid will lock automati-
cally after closing it (
page 112). The
turn signals will flash three times to
confirm locking.

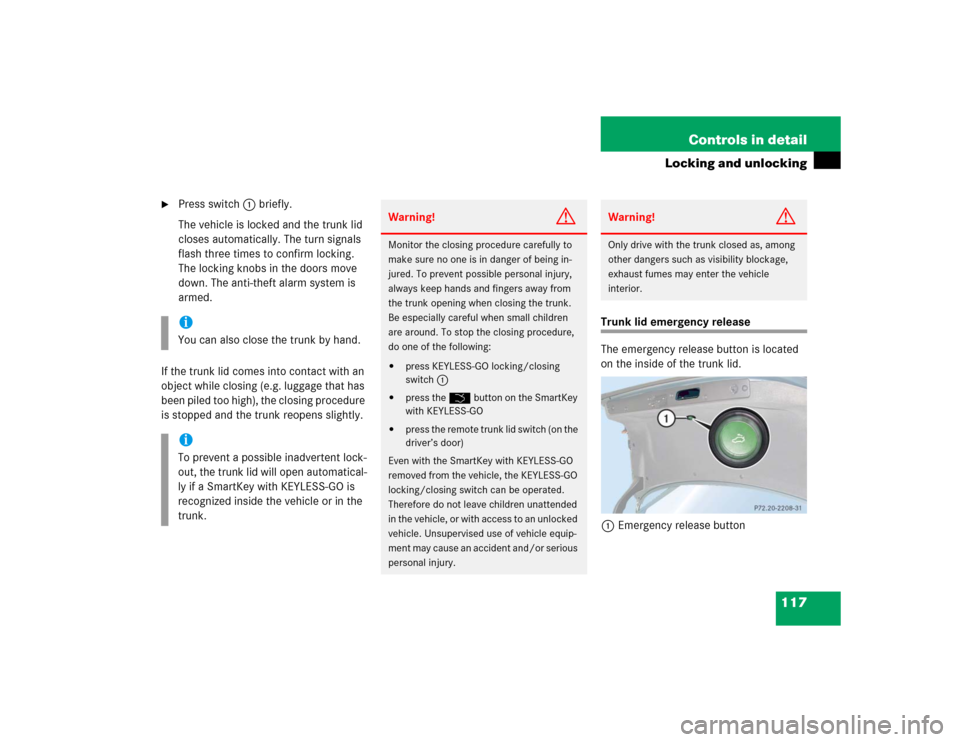

117 Controls in detail
Locking and unlocking

Press switch1 briefly.
The vehicle is locked and the trunk lid
closes automatically. The turn signals
flash three times to confirm locking.
The locking knobs in the doors move
down. The anti-theft alarm system is
armed.
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.
Trunk lid emergency release
The emergency release button is located
on the inside of the trunk lid.
1Emergency release button
iYou can also close the trunk by hand.iTo prevent a possible inadvertent lock-
out, the trunk lid will open automatical-
ly if a SmartKey with KEYLESS-GO is
recognized inside the vehicle or in the
trunk.
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press KEYLESS-GO locking/closing
switch1


press the Š button on the SmartKey
with KEYLESS-GO


press the remote trunk lid switch (on the
driver’s door)
Even with the SmartKey with KEYLESS-GO
removed from the vehicle, the KEYLESS-GO
locking/closing switch can be operated.
Therefore do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Warning!
G
Only drive with the trunk closed as, among
other dangers such as visibility blockage,
exhaust fumes may enter the vehicle
interior.

118 Controls in detailLocking and unlocking
Briefly press emergency release
button1.
The trunk unlocks and the trunk lid
opens.
Illumination of the emergency release but-
ton:


The button will flash for 30 minutes af-
ter opening the trunk.


The button will flash for 60 minutes af-
ter closing the trunk.
Automatic central locking
The doors and the trunk automatically lock
when the ignition is switched on and the
wheels are turning at vehicle speeds of ap-
proximately 9 mph (15 km / h) or more.
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
iThe emergency release button unlocks
and opens the trunk while the vehicle is
standing still or in motion.iThe emergency release button does
not open the trunk lid, if the vehicle
battery is discharged or disconnected.
iIf the emergency release button is
pressed and the vehicle was centrally
locked from the outside using the
SmartKey, the exterior lamps will flash
and the alarm will sound as the trunk
lid opens.
To cancel the alarm, do one of the fol-
lowing:

Insert the SmartKey in the starter
switch.


Press button Œ or ‹ on the
SmartKey.
In vehicles with KEYLESS-GO*


Grasp the outside door handle.
The SmartKey with KEYLESS-GO
must be within 3 ft (1 m) of the ve-
hicle.


Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO
must be inside the vehicle.
iThe doors unlock automatically after an
accident if the force of the impact ex-
ceeds a preset threshold.
The vehicle automatically locks when
the ignition is switched on and the
wheels are turning at vehicle speeds of
approximately 9 mph (15 km / h) or
more. You could therefore lock yourself
out when the vehicle

is pushed or towed


is on a test stand
