MERCEDES-BENZ E320CDI 2005 W211 Owner's Manual

429 Practical hints
Flat tire
In the case of a flat tire, you may tempo-
rarily use the Minispare wheel when ob-
serving the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km / h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one spare wheel mounted.Inflating the collapsible tire

Take the electric air pump out of the
trunk (
page 407).
1Flap
2Air pump switch
3Electrical plug
4Air hose with pressure gauge and vent
screw
5Union nut

Open flap 1 on the air pump.

Pull out electrical plug 3 and air hose
with pressure gauge 4.

Make sure the vent screw on air hose is
closed.

Remove the valve cap from the tire
valve.
Warning!
G
The dimensions of the Minispare wheel and
the collapsible tire are different from those
of the road wheels. As a result, the vehicle
handling characteristics change when driv-
ing with a Minispare wheel mounted.
The spare wheel should only be used tempo-
rarily, and replaced with a regular road
wheel as quickly as possible.
!Do not lower the vehicle before inflat-
ing the collapsible tire. Otherwise the
rim may be damaged.Warning!
G
Observe instructions on air pump label.


430 Practical hintsFlat tire
Screw air hose 4 onto the tire valve.

Insert electrical plug 3 into vehicle ci-
gar lighter socket.

Turn the SmartKey in the ignition to
position1.
or

Press the KEYLESS-GO* start/stop
button on the gear selector lever once
without depressing the brake pedal.

Press I on electric air pump switch 2.
The electric air pump should now
switch on and inflate the tire.

Inflate the tire to approx. 51 psi
(3.5 bar).
This takes about five minutes for the
collapsible tire. Air hose 4 and union
nut5 can become hot duration infla-
tion. Exercise proper caution to avoid
burning yourself when using the equip-
ment.

Press 0 on electric air pump switch 2.

Turn the SmartKey in the ignition to
position0.
or

Press KEYLESS-GO* start/stop button
on the gear selector lever twice without
depressing the brake pedal.
The electric air pump should now be
switched off.

If the tire inflation pressure is above
51 psi (3.5 bar), release excess tire in-
flation pressure using the vent screw.

Detach the electric air pump.

Stow electrical plug 3 and air hose 4
behind flap 1 and place the air pump
back in the trunk.
!Do not operate the air pump longer
than eight minutes without interrup-
tion. Otherwise it may overheat.
You may operate the air pump again af-
ter it has cooled off.
Warning!
G
Follow recommend inflation pressures.
Do not overinflate tires. Overinflating tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.


431 Practical hints
Flat tire
Lowering the vehicle
Lower vehicle by turning crank coun-
terclockwise until vehicle is resting ful-
ly on its own weight.

Remove the jack.
1-5 Wheel bolts

Tighten the five wheel bolts evenly, fol-
lowing the diagonal sequence illustrat-
ed (1 to 5), until all bolts are tight.
Observe a tightening torque of 96 lb-ft
(130 Nm).

Before storing the jack in the trunk, it
should be fully collapsed.Warning!
G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque of
96 lb-ft (130 Nm).
iWrap the damaged wheel in the protec-
tive film that comes with the spare
wheel and put the wheel in the trunk.
You can also place the damaged wheel
down into the spare wheel well. In this
case, you must stow the holder from
the spare wheel well in the trunk.
Do not activate the tire pressure moni-
toring system until the depressurized
tire is no longer in the vehicle.

432 Practical hintsBleeding the fuel system (Diesel engine only)Allowing the vehicle to be driven until the
fuel tank is empty is not recommended. If
this occurs, air may be pulled into the fuel
system. If this happens, the? malfunc-
tion indicator lamp (USA only) or the
±malfunction indicator lamp (Canada
only) comes and it may be possible that
the engine will not start immediately after
you refuel the vehicle.
After refueling:
Turn the SmartKey in the starter switch
to position2 for at least 30 seconds.

Return the SmartKey in the starter
switch to position0.

Turn the SmartKey in the starter switch
to position3 and hold it there for up to
60 seconds, i.e. until the engine is run-
ning surge-free.If the engine does not start:

Try to start the engine again without in-
terruption for a maximum of 60 sec-
onds until it is running smoothly.
If the engine still does not start even after
this attempt, do not make any further at-
tempts to start the engine. Contact an
authorized Mercedes-Benz Center.
iWhere the? malfunction indicator
lamp (USA only) or the± malfunc-
tion indicator lamp (Canada only) in the
instrument cluster has been illuminat-
ed for the above condition, it will re-
main illuminated until the engine was
cycled on and off four times in a row.

433 Practical hints
Batteries
Batteries
Your vehicle is equipped with two batter-
ies:

Main battery (battery for starter and
electrical consumers; located in the
trunk).


Auxiliary battery (back-up battery; sta-
bilizes the electrical system if the main
battery is discharged; located in the en-
gine compartment)

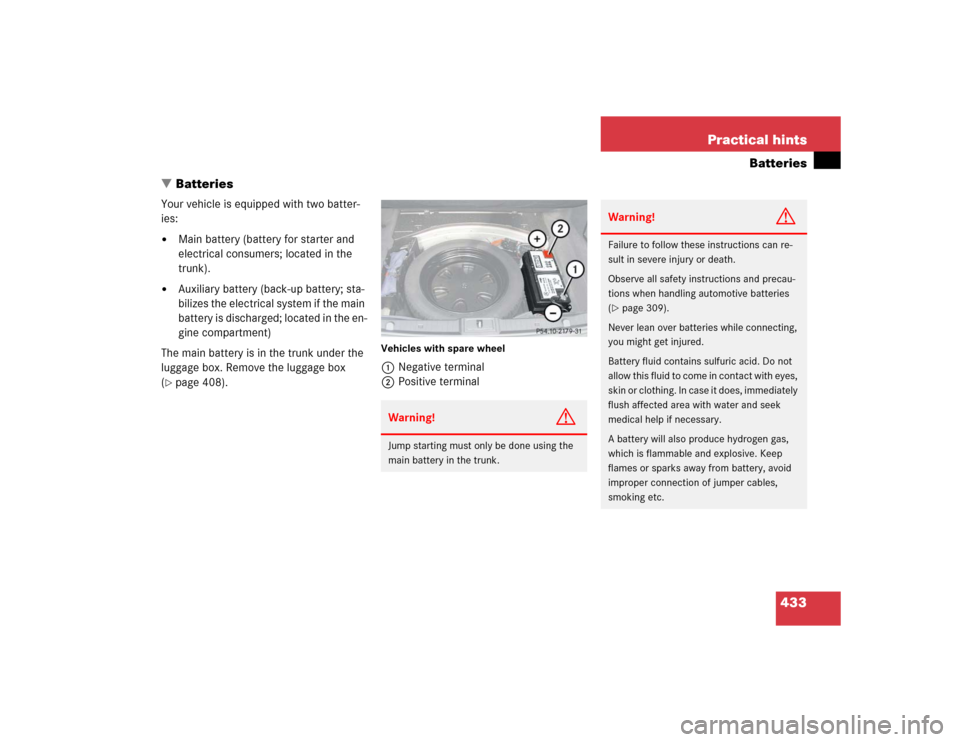

The main battery is in the trunk under the
luggage box. Remove the luggage box
(
page 408).
Vehicles with spare wheel1Negative terminal
2Positive terminalWarning!
G
Jump starting must only be done using the
main battery in the trunk.
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 309).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.

434 Practical hintsBatteries
Disconnecting the battery
Depress parking brake firmly or move
gear selector lever to positionP.

Turn off all electrical consumers.

Remove SmartKey from starter switch.
Vehicles with KEYLESS-GO*:
Press the start/stop button until
the engine shuts off.

Open the driver’s door.

Open the trunk.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Maintenance Booklet for main-
tenance intervals or contact your au-
thorized Mercedes-Benz Center for
further information.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
Warning!
G
The SBC brake system requires electrical
power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its emer-
gency operation mode. The same applies if
battery is disconnected. To brake, the driver
must then apply significantly greater brake
pedal pressure and depress the pedal much
further to obtain the expected braking ef-
fect. If necessary, apply full pressure to the
brake pedal. Brakes may only be applied to
the front wheels. Stopping distance is in-
creased! Adjust your driving style according-
ly. For more information, refer to “SBC brake
system” (
page 90).
Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch and
pressing the KEYLESS-GO* start/stop
button on the gear selector lever will
have no effect


the gear selector lever will remain
locked in positionP

435 Practical hints
Batteries

Remove the luggage box (
page 408).

Disconnect battery negative lead1.

Remove cover2 from the positive ter-
minal.

Disconnect the battery positive lead.
Removing the battery
Remove the screw-nuts securing the
battery.

Remove the battery bracket.

Take out the battery.
Charging and reinstalling the battery

Charge battery in accordance with the
instructions of the battery charger
manufacturer.

Reinstall the charged battery. Follow
the previously described steps in re-
verse order.
Reconnecting the battery
Turn off all electrical consumers.

Connect the positive lead and fasten its
cover.

Connect the negative lead.

Install the luggage box (
page 408).Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12 volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
Warning!
G
Never charge a battery while still installed in
the vehicle. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
!Never invert the terminal connections!!The battery, its filler caps and the vent
tube must always be securely installed
when the vehicle is in operation.
iThe following procedures must be car-
ried out following any interruption of
battery power (e.g. due to reconnec-
tion):

Set the clock (
page 159)
(see COMAND operator’s manual).


Resynchronize the ESP
(page 372).


Resynchronize the side windows
(page 220).


Resynchronize the tilt/sliding sun-
roof* (
page 225) or the tilt/slid-
ing panel* (
page 229).

436 Practical hintsJump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er1 are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12 V). Jump start-
ing with a more powerful battery could
damage the vehicle’s electrical system,
which will not be covered by the
Mercedes-Benz Limited Warranty.


Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure the jumper cables
are not on or near pulleys, fans or other
parts that move when the engine is
started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
1Vehicles with gasoline engine only
!Jump starting may only be performed
on the main battery installed in the
trunk.
Avoid repeated and lengthy starting at-
tempts.
Do not attempt to start the engine us-
ing a battery quick charge unit.
If the engine does not run after several
unsuccessful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter1.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.

437 Practical hints
Jump starting
The battery is located in the trunk under-
neath the luggage box (
page 408). Only
jump start the vehicle from the battery in
the trunk.

Make sure the two vehicles do not
touch.

Turn off all electrical consumers.

Apply parking brake.

Shift gear selector lever to positionP.

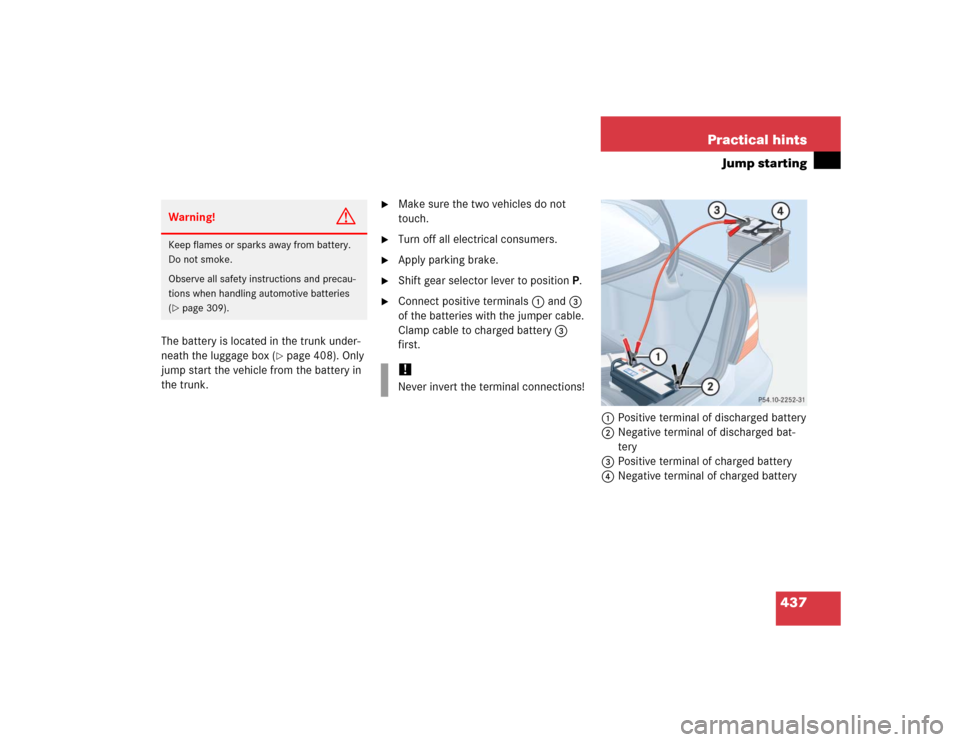

Connect positive terminals1 and3
of the batteries with the jumper cable.
Clamp cable to charged battery3
first.
1Positive terminal of discharged battery
2Negative terminal of discharged bat-
tery
3Positive terminal of charged battery
4Negative terminal of charged battery
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 309).
!Never invert the terminal connections!

438 Practical hintsJump starting
Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminals4 and2
of the batteries with the jumper cable.
Clamp cable to charged battery4
first.

Start the engine of the disabled vehi-
cle.Now you can again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals2 and4 and then
from positive terminals1 and3.
Now you can turn on the lights.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
iThe message
Malfunction - electric
consumers switched off
may appear
in the instrument cluster. It will disap-
pear as soon as the battery is suffi-
ciently charged.
!Do not tow-start the vehicle.
