449 Technical data

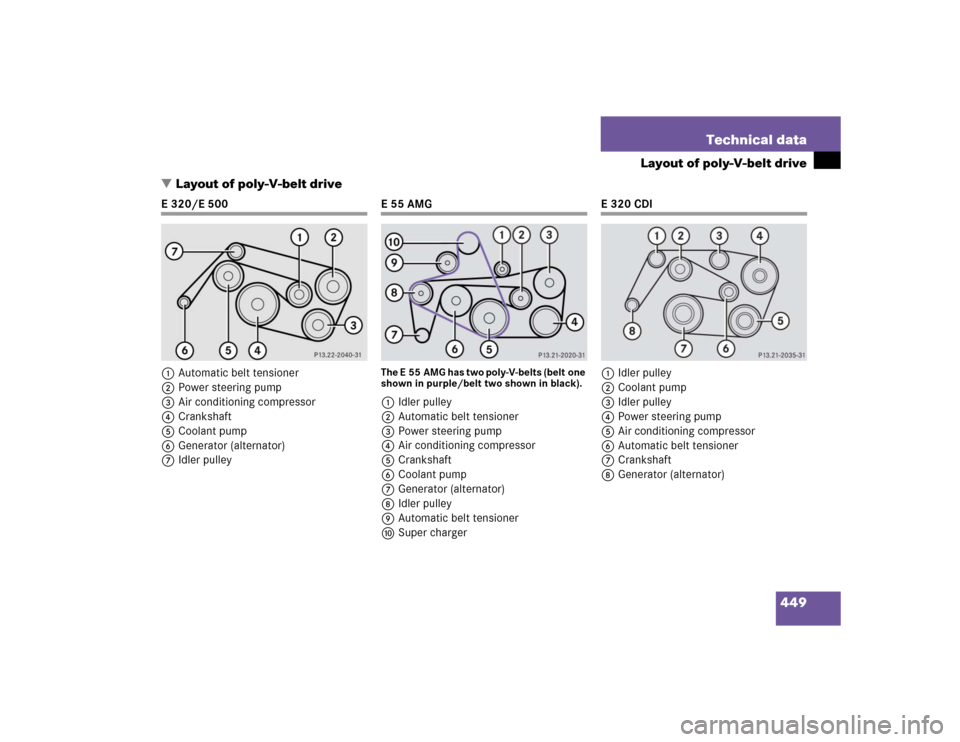

Layout of poly-V-belt drive
Layout of poly-V-belt drive
E 320/E 500
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
E55AMGThe E 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black).1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSuper charger
E 320 CDI
1Idler pulley
2Coolant pump
3Idler pulley
4Power steering pump
5Air conditioning compressor
6Automatic belt tensioner
7Crankshaft
8Generator (alternator)

450 Technical dataEngineModel
E 320 (211.065
1)
E 320 4MATIC (211.082
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
E 500 (211.070
1)
E 500 4MATIC (211.083
1)
Engine
112
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
8
Bore
3.54 in (89.90 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
Total piston displacement
195.2 cu in (3 199 cm
3)
303.0 cu in (4 966 cm
3)
Compression ratio
10:1
10:1
Output acc. to SAE J 1349
221 hp/5 600 rpm
2
(165 kW/5 600 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
302 hp/5 600 rpm
2
(225 kW/5 600 rpm)
Maximum torque acc. to SAE J 1349
232 lb-ft/3 000 rpm - 4 800 rpm
(315 Nm/3 000 rpm - 4 800 rpm)
339 lb-ft/2 700 rpm - 4 250 rpm
(460 Nm/2 700 rpm - 4 250 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
Poly-V-belt
2390 mm
2390 mm

451 Technical data
Engine
Model
E55AMG (211.076
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corre-
sponding data of all special bodies and special equipment.Engine
113
Mode of operation
4-stroke engine, gasoline injection
No. of cylinders
8
Bore
3.82 in (97.00 mm)
Stroke
3.60 in (92.00 mm)
Total piston displacement
331.8 cu in (5 439 cm
3)
Compression ratio
9:1
Output acc. to SAE J 1349
469 hp/6 100 rpm
2
(350 kW/6 100 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.Maximum torque acc. to SAE J 1349
516 lb-ft/2 650 rpm
(700 Nm/2 650 rpm - 4 500 rpm)
Maximum engine speed
6500 rpm
Firing order
1-5-4-2-6-3-7-8
Poly-V-belts
Belt one: 1 289 mmBelt two: 2 449 mm

452 Technical dataEngineModel
E 320 CDI (211.026
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corre-
sponding data of all special bodies and special equipment.Engine
OM 648
Mode of operation
Diesel 4-stroke
No. of cylinders
6
Bore
3.46 in (88.00 mm)
Stroke
3.48 in (88.30 mm)
Total piston displacement
196.6 cu in (3 222 cm
3)
Compression ratio
18:1
Output acc. to SAE J 1349
201 hp/4 200 rpm
(150 kW/4 200 rpm)
Maximum torque acc. to SAE J 1349
369 lb-ft/1 800 rpm - 2 600 rpm
(500 Nm/1 800 rpm - 2 600 rpm)
Maximum engine speed
4600 rpm
Firing order
1-5-3-6-2-4
Poly-V-belt
2260 mm

453 Technical data
Rims and tires
Rims and tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as:

Poor handling characteristics


Increased noise


Increased fuel consumption!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. This may result in damage to the
tires or the vehicle.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver's door
B-pillar. Some vehicles may have sup-
plemental tire pressure information for
driving at high speeds (
page 321) or
for vehicle loads less than the maxi-
mum loaded vehicle condition. If such
information is provided, it can be found
on the placard located on the inside of
the fuel filler flap. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

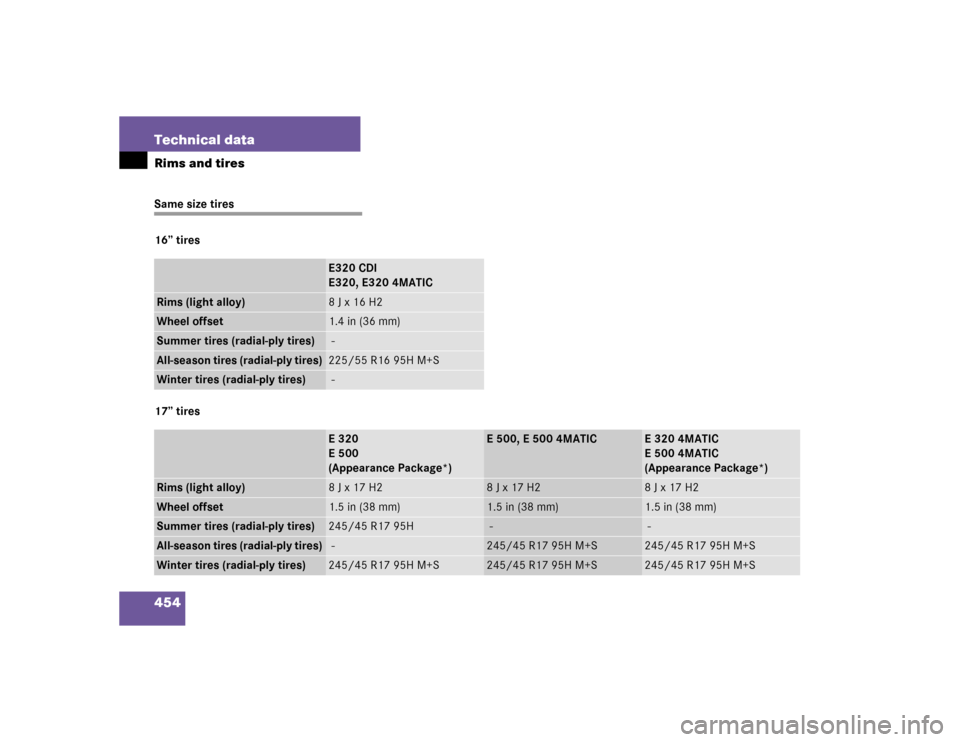

454 Technical dataRims and tiresSame size tires
16’’ tires
17’’ tires
E320 CDI
E320, E320 4MATIC
Rims (light alloy)
8 J x 16 H2
Wheel offset
1.4 in (36 mm)
Summer tires (radial-ply tires)
-
All-season tires (radial-ply tires)
225/55 R16 95H M+S
Winter tires (radial-ply tires)
-E320
E500
(Appearance Package*)
E 500, E 500 4MATIC
E3204MATIC
E5004MATIC
(Appearance Package*)
Rims (light alloy)
8 J x 17 H2
8 J x 17 H2
8 J x 17 H2
Wheel offset
1.5 in (38 mm)
1.5 in (38 mm)
1.5 in (38 mm)
Summer tires (radial-ply tires)
245/45 R17 95H
-
-
All-season tires (radial-ply tires)
-
245/45 R17 95H M+S
245/45 R17 95H M+S
Winter tires (radial-ply tires)
245/45 R17 95H M+S
245/45 R17 95H M+S
245/45 R17 95H M+S

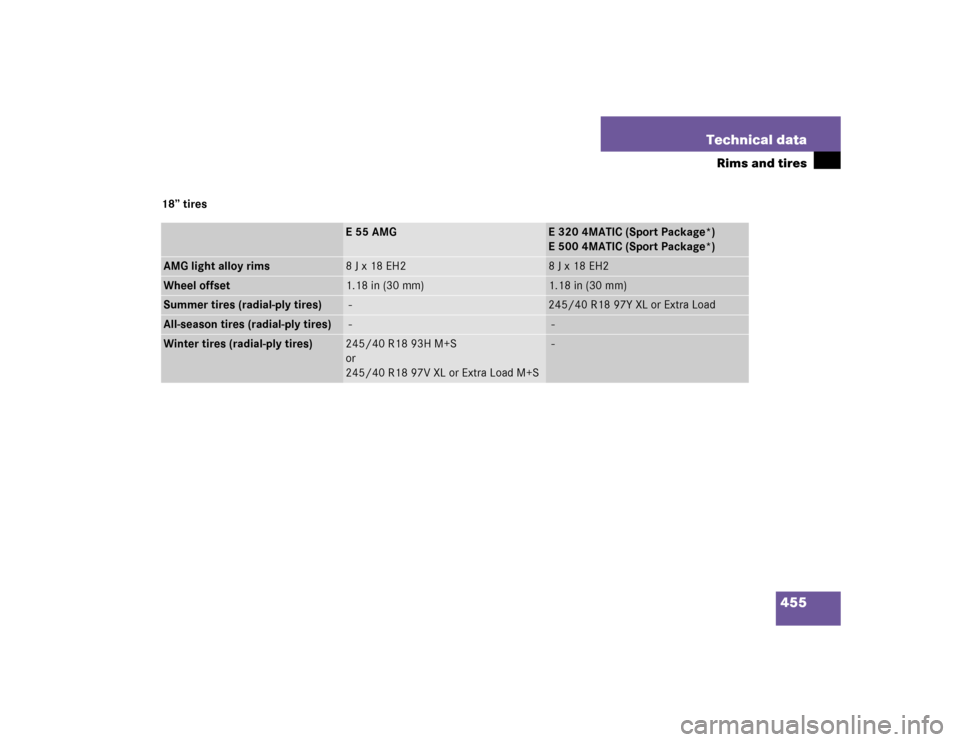

455 Technical data
Rims and tires
18’’ tires
E55AMG
E 320 4MATIC (Sport Package*)
E 500 4MATIC (Sport Package*)
AMG light alloy rims
8 J x 18 EH2
8 J x 18 EH2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires (radial-ply tires)
-
245/40 R18 97Y XL or Extra Load
All-season tires (radial-ply tires)
-
-
Winter tires (radial-ply tires)
245/40 R18 93H M+S
or
245/40 R18 97V XL or Extra Load M+S
-

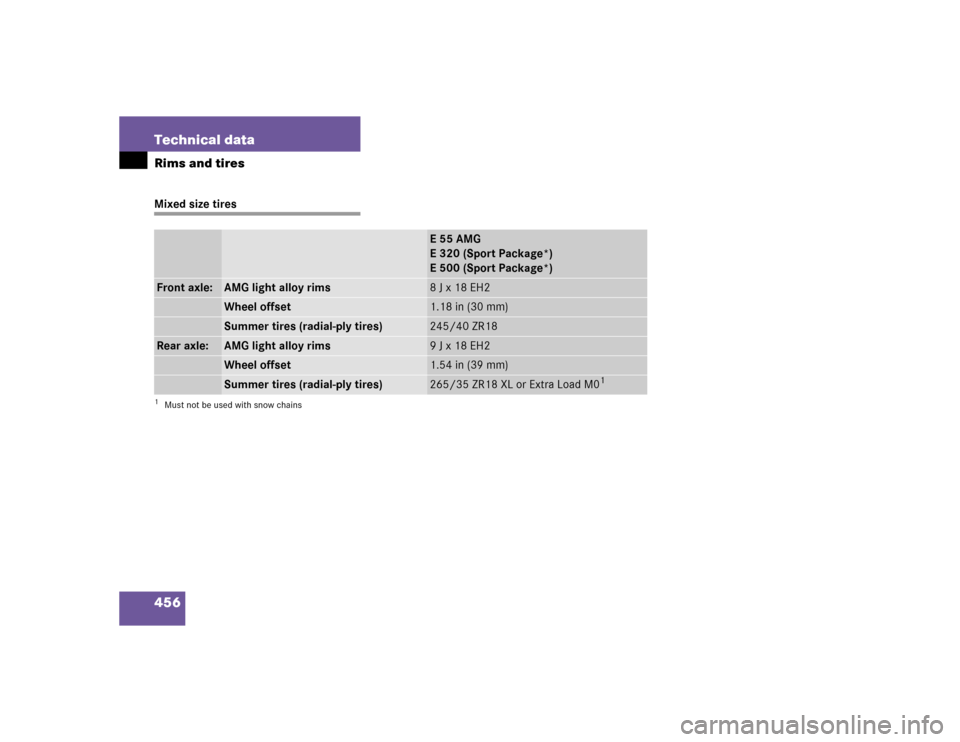

456 Technical dataRims and tiresMixed size tires
E55AMG
E320(Sport Package*)
E500(Sport Package*)
Front axle:
AMG light alloy rims
8 J x 18 EH2
Wheel offset
1.18 in (30 mm)
Summer tires (radial-ply tires)
245/40 ZR18
Rear axle:
AMG light alloy rims
9 J x 18 EH2
Wheel offset
1.54 in (39 mm)
Summer tires (radial-ply tires)
265/35 ZR18 XL or Extra Load M0
1
1Must not be used with snow chains

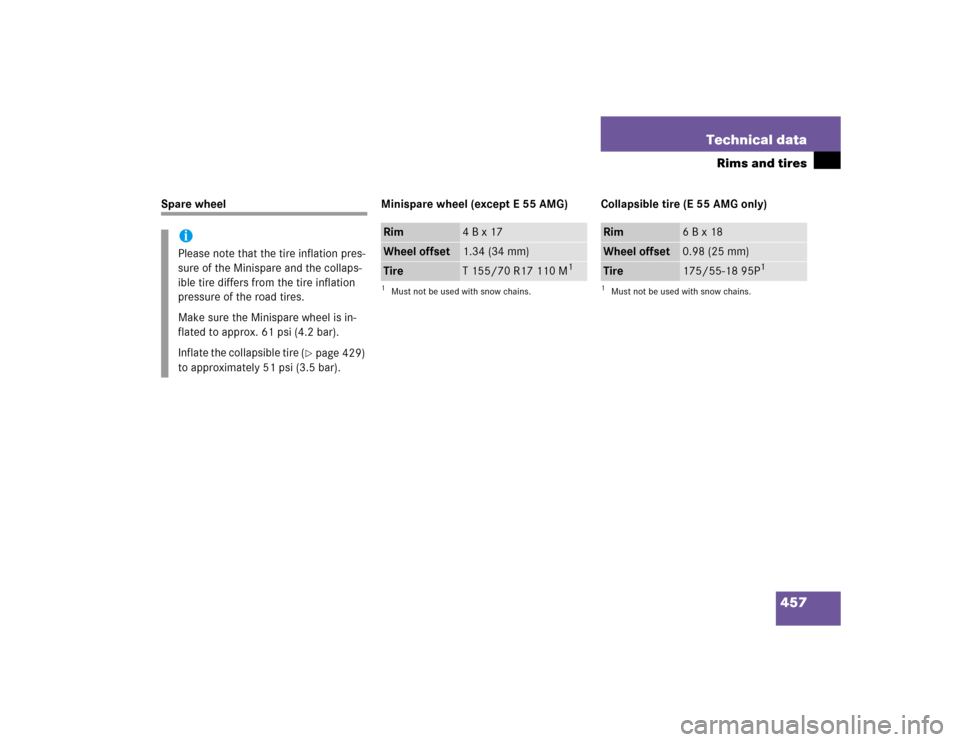

457 Technical data
Rims and tires
Spare wheel Minispare wheel (except E 55 AMG) Collapsible tire (E 55 AMG only)
iPlease note that the tire inflation pres-
sure of the Minispare and the collaps-
ible tire differs from the tire inflation
pressure of the road tires.
Make sure the Minispare wheel is in-
flated to approx. 61 psi (4.2 bar).
Inflate the collapsible tire (
page 429)
to approximately 51 psi (3.5 bar).
Rim
4 B x 17
Wheel offset
1.34 (34 mm)
Tire
T 155/70 R17 110 M
1
1Must not be used with snow chains.
Rim
6 B x 18
Wheel offset
0.98 (25 mm)
Tire
175/55-18 95P
1
1Must not be used with snow chains.

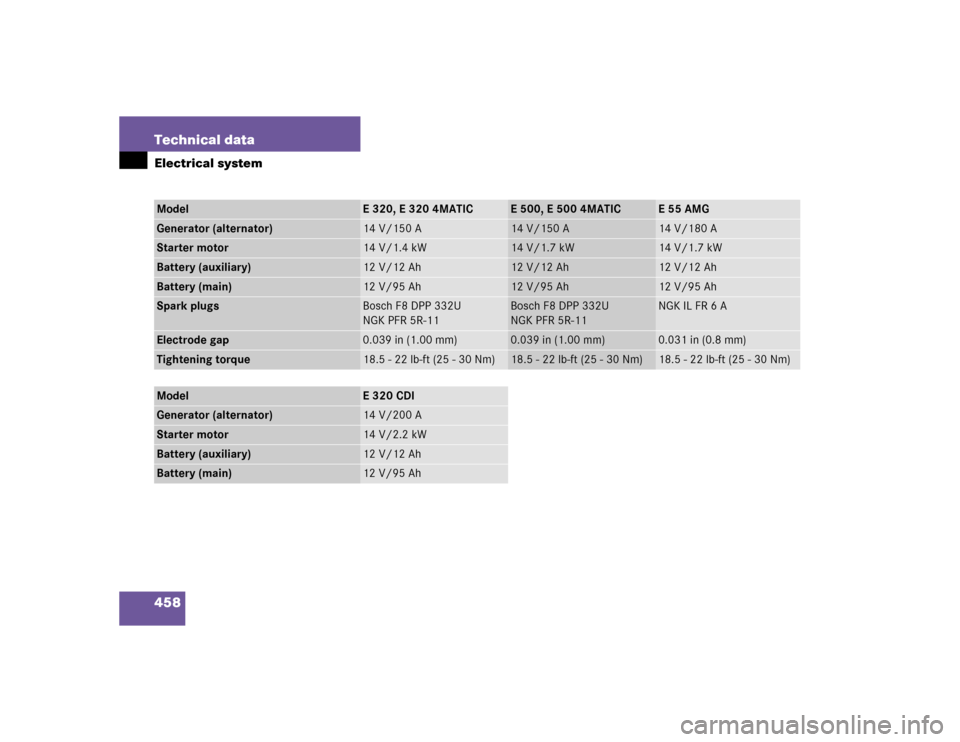

458 Technical dataElectrical systemModel
E320, E3204MATIC
E 500, E 500 4MATIC
E55AMG
Generator (alternator)
14 V/150 A
14 V/150 A
14 V/180 A
Starter motor
14 V/1.4 kW
14 V/1.7 kW
14 V/1.7 kW
Battery (auxiliary)
12 V/12 Ah
12 V/12 Ah
12 V/12 Ah
Battery (main)
12 V/95 Ah
12 V/95 Ah
12 V/95 Ah
Spark plugs
Bosch F8 DPP 332U
NGK PFR 5R-11
Bosch F8 DPP 332U
NGK PFR 5R-11
NGK IL FR 6 A
Electrode gap
0.039 in (1.00 mm)
0.039 in (1.00 mm)
0.031 in (0.8 mm)
Tightening torque
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
Model
E 320 CDI
Generator (alternator)
14 V/200 A
Starter motor
14 V/2.2 kW
Battery (auxiliary)
12 V/12 Ah
Battery (main)
12 V/95 Ah
