MERCEDES-BENZ E350 4MATIC WAGON 2007 S211 Owner's Manual

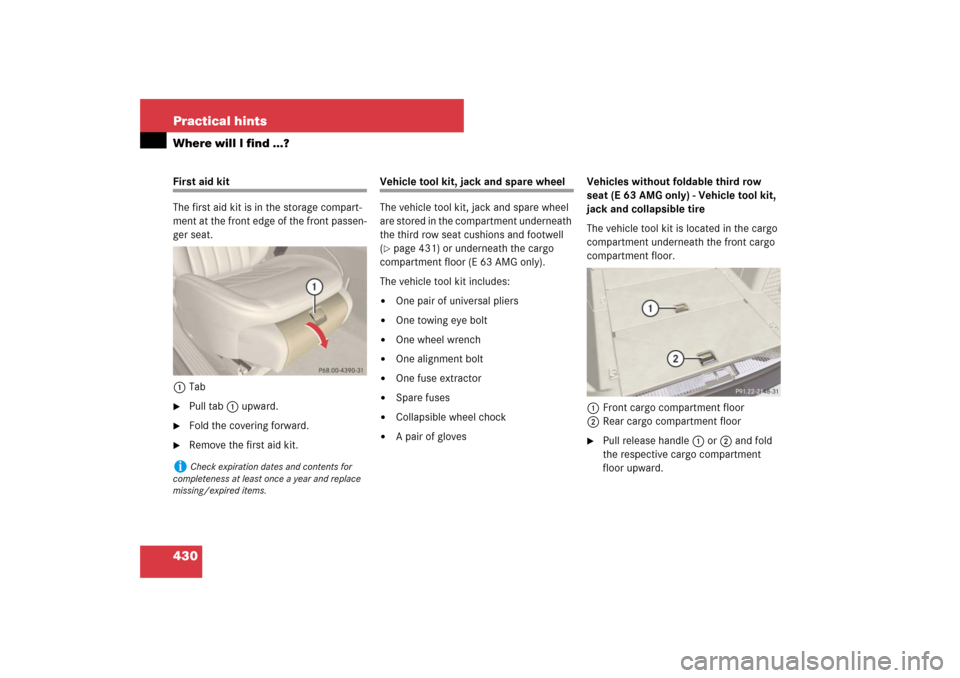

430 Practical hintsWhere will I find ...?First aid kit
The first aid kit is in the storage compart-
ment at the front edge of the front passen-
ger seat.
1Tab
Pull tab1 upward.

Fold the covering forward.

Remove the first aid kit.
Vehicle tool kit, jack and spare wheel
The vehicle tool kit, jack and spare wheel
are stored in the compartment underneath
the third row seat cushions and footwell
(page 431) or underneath the cargo
compartment floor (E 63 AMG only).
The vehicle tool kit includes:


One pair of universal pliers


One towing eye bolt


One wheel wrench


One alignment bolt


One fuse extractor


Spare fuses


Collapsible wheel chock


A pair of glovesVehicles without foldable third row
seat (E 63 AMG only) - Vehicle tool kit,
jack and collapsible tire
The vehicle tool kit is located in the cargo
compartment underneath the front cargo
compartment floor.
1Front cargo compartment floor
2Rear cargo compartment floor

Pull release handle 1 or 2 and fold
the respective cargo compartment
floor upward.
i
Check expiration dates and contents for
completeness at least once a year and replace
missing/expired items.

431 Practical hints
Where will I find ...?

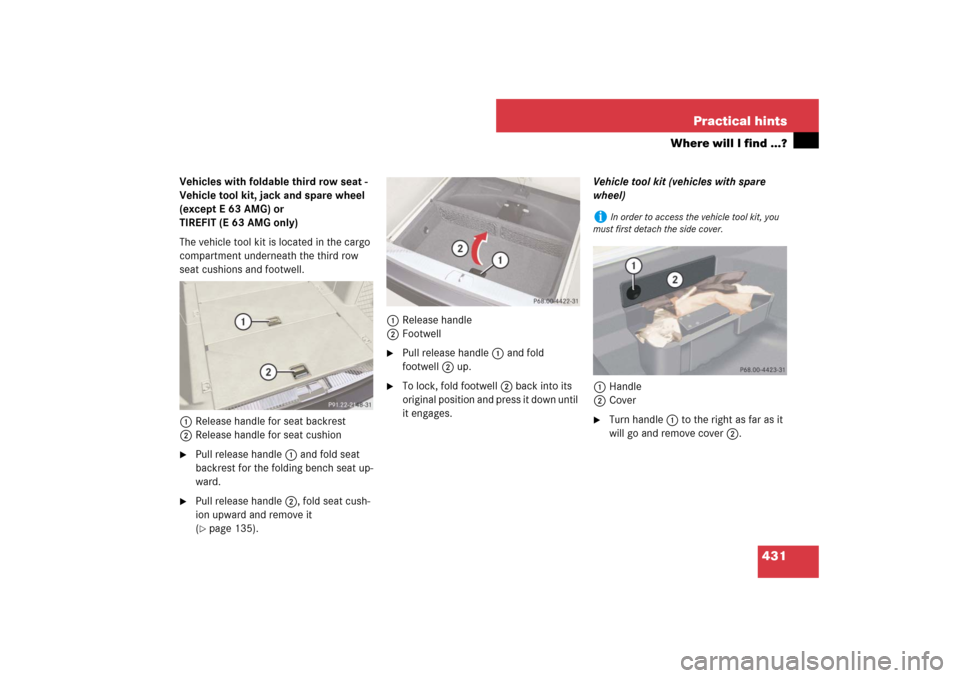

Vehicles with foldable third row seat -
Vehicle tool kit, jack and spare wheel
(except E 63 AMG) or
TIREFIT (E 63 AMG only)
The vehicle tool kit is located in the cargo
compartment underneath the third row
seat cushions and footwell.
1Release handle for seat backrest
2Release handle for seat cushion
Pull release handle 1 and fold seat
backrest for the folding bench seat up-
ward.

Pull release handle 2, fold seat cush-
ion upward and remove it
(page 135).1Release handle
2Footwell

Pull release handle 1 and fold
footwell2 up.

To lock, fold footwell 2 back into its
original position and press it down until
it engages.Vehicle tool kit (vehicles with spare
wheel)
1Handle
2Cover

Turn handle 1 to the right as far as it
will go and remove cover 2.
i
In order to access the vehicle tool kit, you
must first detach the side cover.

432 Practical hintsWhere will I find ...?Vehicle tool kit (vehicles with TIREFIT)

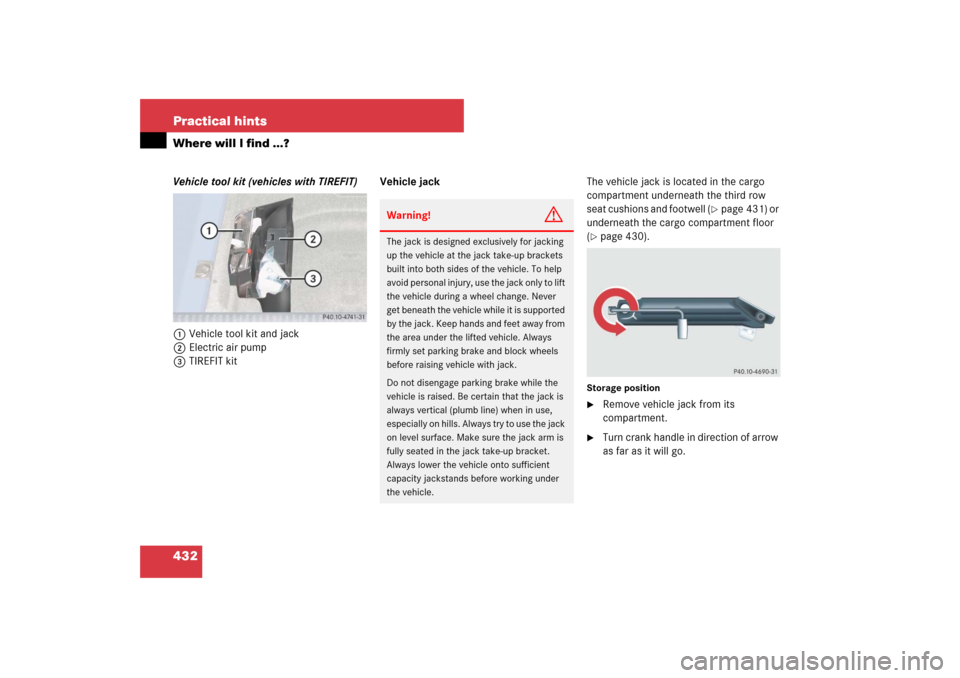

1Vehicle tool kit and jack
2Electric air pump
3TIREFIT kitVehicle jackThe vehicle jack is located in the cargo
compartment underneath the third row
seat cushions and footwell (
page 431) or
underneath the cargo compartment floor
(
page 430).
Storage position
Remove vehicle jack from its
compartment.

Turn crank handle in direction of arrow
as far as it will go.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

433 Practical hints
Where will I find ...?

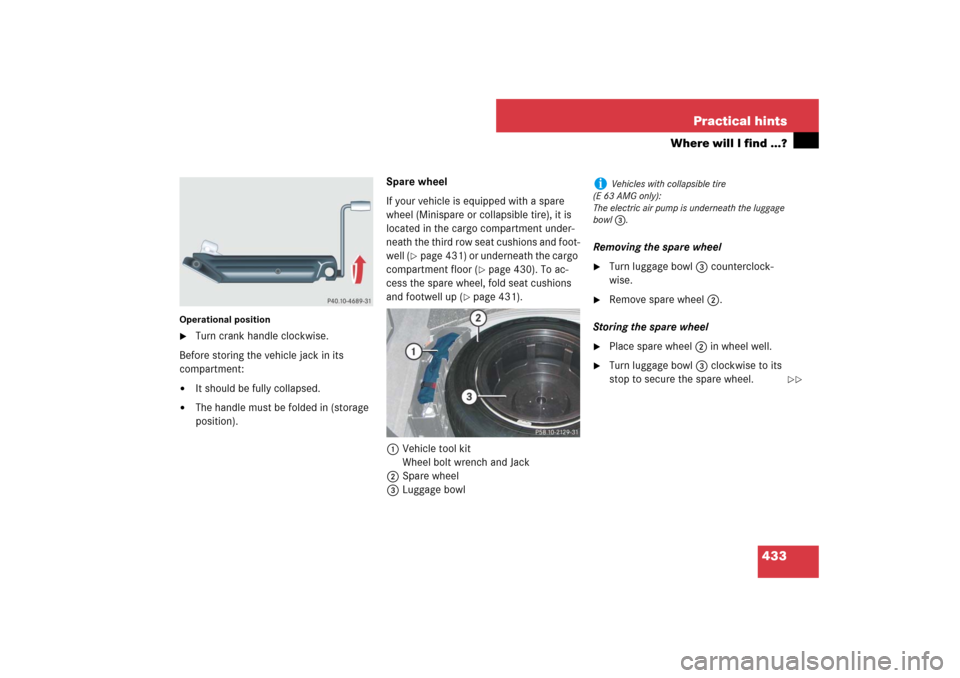

Operational position
Turn crank handle clockwise.
Before storing the vehicle jack in its
compartment:


It should be fully collapsed.


The handle must be folded in (storage
position).Spare wheel
If your vehicle is equipped with a spare
wheel (Minispare or collapsible tire), it is
located in the cargo compartment under-
neath the third row seat cushions and foot-
well (
page 431) or underneath the cargo
compartment floor (
page 430). To ac-
cess the spare wheel, fold seat cushions
and footwell up (
page 431).
1Vehicle tool kit
Wheel bolt wrench and Jack
2Spare wheel
3Luggage bowlRemoving the spare wheel

Turn luggage bowl3 counterclock-
wise.

Remove spare wheel2.
Storing the spare wheel

Place spare wheel2 in wheel well.

Turn luggage bowl3 clockwise to its
stop to secure the spare wheel.
i
Vehicles with collapsible tire
(E 63 AMG only):
The electric air pump is underneath the luggage
bowl3.


434 Practical hintsWhere will I find ...?In the case of a flat tire, you may tempo-
rarily use the spare wheel when observing
the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one spare wheel mounted.For more information see the “Technical
data” section (
page 483).

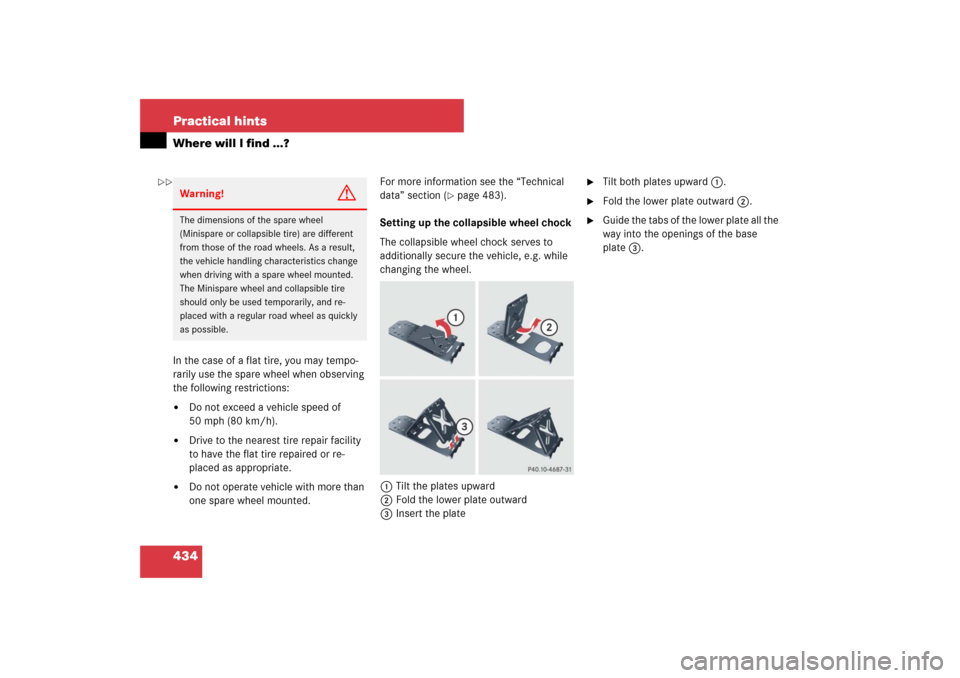

Setting up the collapsible wheel chock
The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plates upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of the base
plate3.
Warning!
G
The dimensions of the spare wheel
(Minispare or collapsible tire) are different
from those of the road wheels. As a result,
the vehicle handling characteristics change
when driving with a spare wheel mounted.
The Minispare wheel and collapsible tire
should only be used temporarily, and re-
placed with a regular road wheel as quickly
as possible.


435 Practical hints

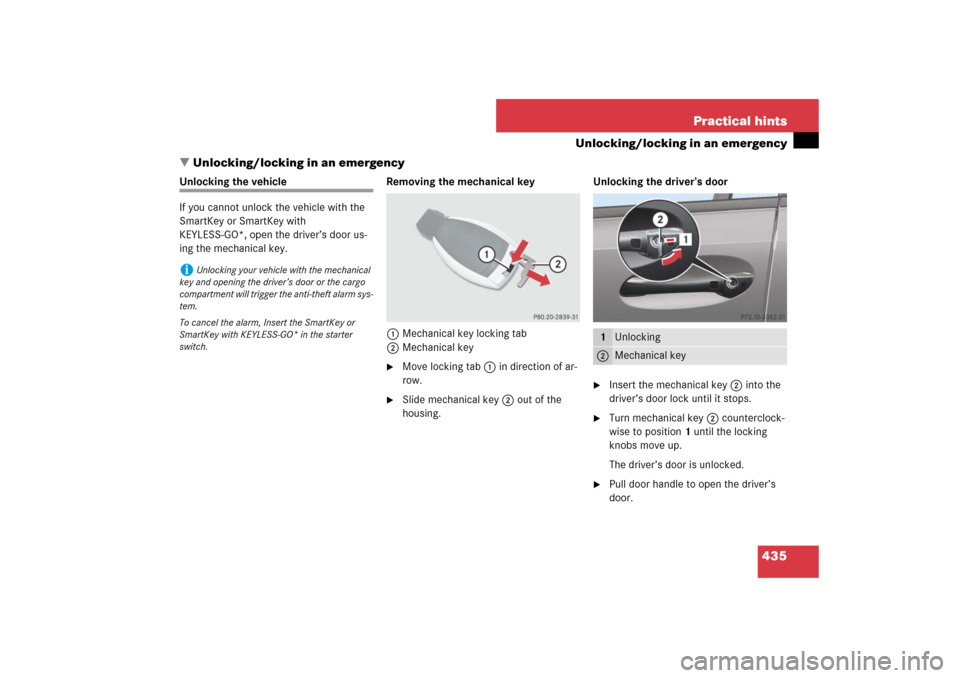

Unlocking/locking in an emergency
Unlocking/locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey or SmartKey with
KEYLESS-GO*, open the driver’s door us-
ing the mechanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of ar-
row.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door

Insert the mechanical key2 into the
driver’s door lock until it stops.

Turn mechanical key2 counterclock-
wise to position1 until the locking
knobs move up.
The driver’s door is unlocked.

Pull door handle to open the driver’s
door.
i
Unlocking your vehicle with the mechanical
key and opening the driver’s door or the cargo
compartment will trigger the anti-theft alarm sys-
tem.
To cancel the alarm, Insert the SmartKey or
SmartKey with KEYLESS-GO* in the starter
switch.
1
Unlocking
2
Mechanical key

436 Practical hintsUnlocking/locking in an emergencyUnlocking and opening the tailgate

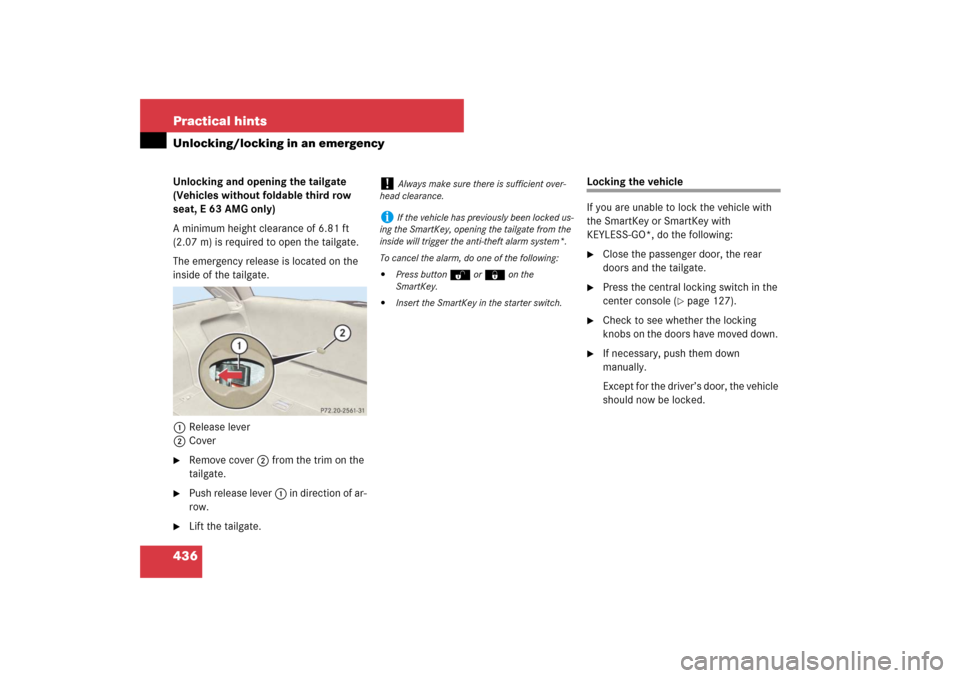

(Vehicles without foldable third row
seat, E 63 AMG only)
A minimum height clearance of 6.81 ft
(2.07 m) is required to open the tailgate.
The emergency release is located on the
inside of the tailgate.
1Release lever
2Cover
Remove cover2 from the trim on the
tailgate.

Push release lever1 in direction of ar-
row.

Lift the tailgate.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey or SmartKey with
KEYLESS-GO*, do the following:
Close the passenger door, the rear
doors and the tailgate.

Press the central locking switch in the
center console (
page 127).

Check to see whether the locking
knobs on the doors have moved down.

If necessary, push them down
manually.
Except for the driver’s door, the vehicle
should now be locked.
!
Always make sure there is sufficient over-
head clearance.
i
If the vehicle has previously been locked us-
ing the SmartKey, opening the tailgate from the
inside will trigger the anti-theft alarm system*.
To cancel the alarm, do one of the following:


Press buttonŒ or‹ on the
SmartKey.


Insert the SmartKey in the starter switch.

437 Practical hints
Unlocking/locking in an emergency

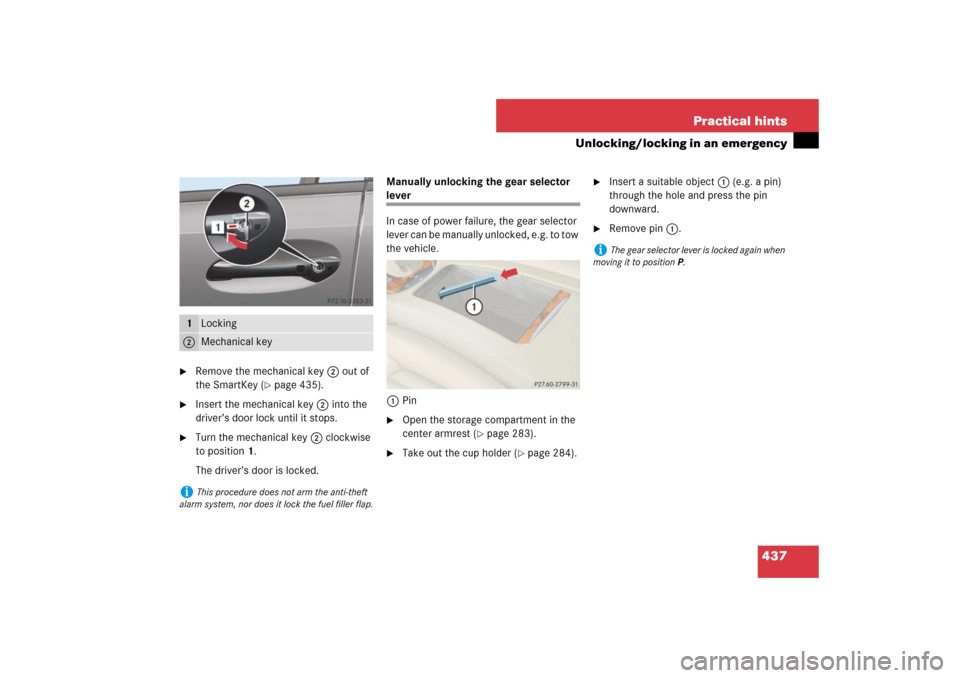

Remove the mechanical key2 out of
the SmartKey (
page 435).

Insert the mechanical key2 into the
driver’s door lock until it stops.

Turn the mechanical key2 clockwise
to position1.
The driver’s door is locked.Manually unlocking the gear selector
lever
In case of power failure, the gear selector
lever can be manually unlocked, e.g. to tow
the vehicle.
1Pin
Open the storage compartment in the
center armrest (
page 283).

Take out the cup holder (
page 284).

Insert a suitable object1 (e.g. a pin)
through the hole and press the pin
downward.

Remove pin1.
1
Locking
2
Mechanical key
i
This procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap.
i
The gear selector lever is locked again when
moving it to positionP.

438 Practical hintsOpening/closing in an emergencyPower tilt/sliding sunroof

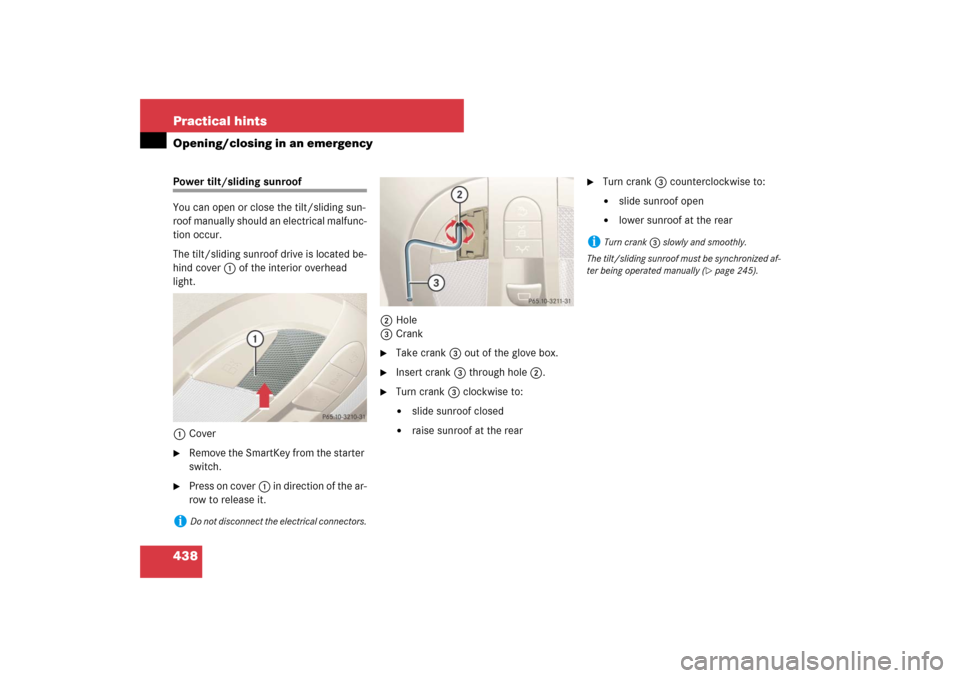

You can open or close the tilt/sliding sun-
roof manually should an electrical malfunc-
tion occur.
The tilt/sliding sunroof drive is located be-
hind cover1 of the interior overhead
light.
1Cover
Remove the SmartKey from the starter
switch.

Press on cover1 in direction of the ar-
row to release it.2Hole
3Crank

Take crank3 out of the glove box.

Insert crank3 through hole2.

Turn crank3 clockwise to:

slide sunroof closed


raise sunroof at the rear

Turn crank3 counterclockwise to:

slide sunroof open


lower sunroof at the rear
i
Do not disconnect the electrical connectors.
i
Turn crank3 slowly and smoothly.
The tilt/sliding sunroof must be synchronized af-
ter being operated manually (
page 245).

439 Practical hints

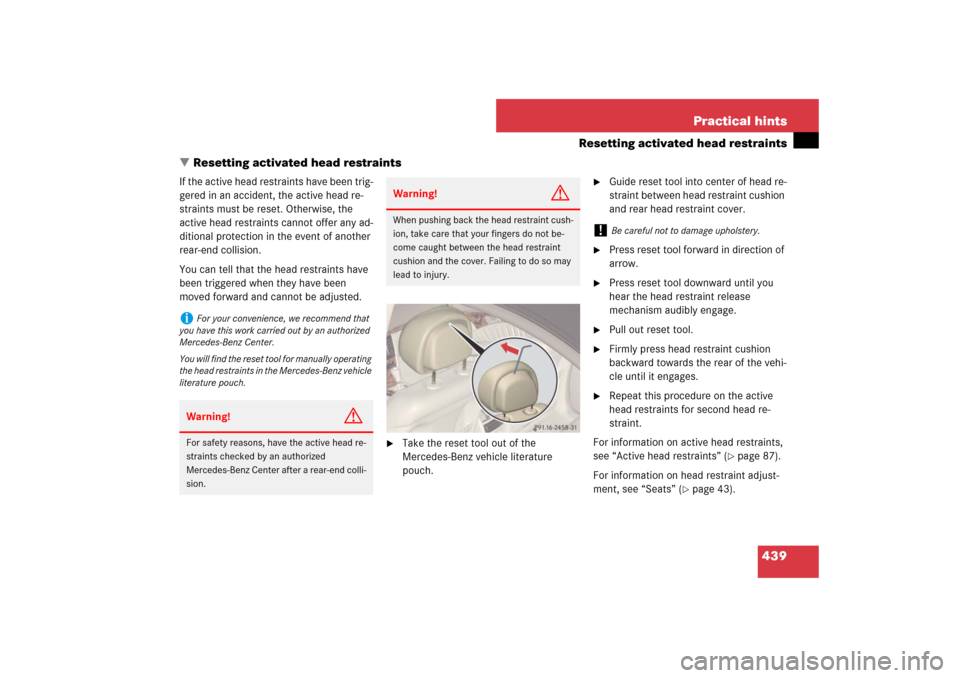

Resetting activated head restraints
Resetting activated head restraints
If the active head restraints have been trig-
gered in an accident, the active head re-
straints must be reset. Otherwise, the
active head restraints cannot offer any ad-
ditional protection in the event of another
rear-end collision.
You can tell that the head restraints have
been triggered when they have been
moved forward and cannot be adjusted.

Take the reset tool out of the
Mercedes-Benz vehicle literature
pouch.

Guide reset tool into center of head re-
straint between head restraint cushion
and rear head restraint cover.

Press reset tool forward in direction of
arrow.

Press reset tool downward until you
hear the head restraint release
mechanism audibly engage.

Pull out reset tool.

Firmly press head restraint cushion
backward towards the rear of the vehi-
cle until it engages.

Repeat this procedure on the active
head restraints for second head re-
straint.
For information on active head restraints,
see “Active head restraints” (
page 87).
For information on head restraint adjust-
ment, see “Seats” (
page 43).
i
For your convenience, we recommend that
you have this work carried out by an authorized
Mercedes-Benz Center.
You will find the reset tool for manually operating
the head restraints in the Mercedes-Benz vehicle
literature pouch.Warning!
G
For safety reasons, have the active head re-
straints checked by an authorized
Mercedes-Benz Center after a rear-end colli-
sion.
Warning!
G
When pushing back the head restraint cush-
ion, take care that your fingers do not be-
come caught between the head restraint
cushion and the cover. Failing to do so may
lead to injury.
!
Be careful not to damage upholstery.
